INDIWORK IW04A-N User manual

Model Name IW04A-N
Latest Firmware Date 2017 -02 -02
Manual Version Rev. 3.8
Language English
Release Date: 2018 -10 -22
Instruction Manual
High-Definition Link for Audi
IW04A-N

_____________________________________________________________ 3
_________________________________________________ 4
_________________________________________ 5
______________________________________________ 6
____________________________________ 7
____________________________________________ 9
______________________________________ 10
___________________ 11
___________________________________________ 12
___________________________________ 13
________________________________________ 14
_______________________________________________ 15
__________________________________ 16
______________ 17
__________________________________________________ 18
_____________________________________ 19
____________________________________________ 20
_____________________________________________ 20
______________________________________ 21
_________________________________ 21
______________________________ 22
____________________________________________________ 22
_____________________________________ 23
________________________________________________ 24
_____________________________________________ 24
_______________________________ 25
•Cautions
•Dimension & Exterior
•Components & Optional parts
•Full Installation Diagram
•CAN wires information(exceptions)
•HDMI Connection Diagram
•Navigation Connection Diagram
•Compatibility Chart for Navigation(GPS) box models
•LVDS Connection Diagram
•Hazard Module Connection Diagram
•Body Connector specifications
•Car Compatibility Chart
•Activation by original buttons of Audi
•Activation by original buttons of Audi Q3(6.5-inch screen model)
•DIP Switch Settings

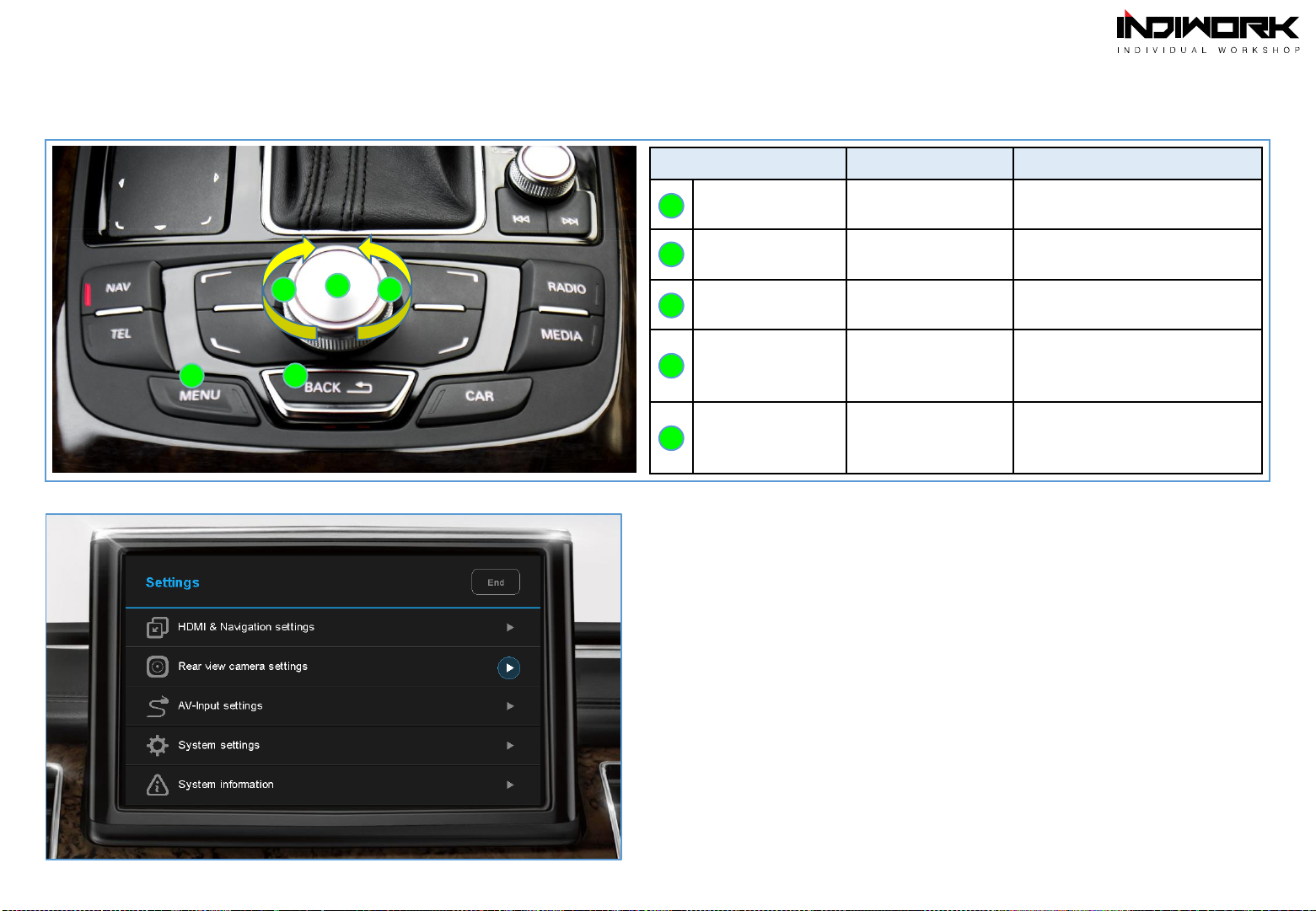

•Settings
1. Enter into the setting menu
2. HDMI mode settings
3. NAVI mode settings
4. Rear view camera settings
5. AV1(Front view camera) settings
6. Automatic activation function(AV1)
7. AV2 settings
8. Keep the rear camera view
9. System settings
10. System information
11. Information of Dip switch settings
Contents

3
IW04A-N_related
•You should check the names and colors of each wires exactly, before you connect the wires.
ex) CAN HIGH: White wires / CAN LOW: Blue wires
• The ‘POWER / CAN Cable’ should always be connected last and be disconnected first.
•The 'Mode Switch' is an optional part to change modes forcibly without CAN-BUS.
Generally, the CAN-BUS wires are connected for changing modes by original buttons.
•When the reverse gear is not detected by CAN-BUS,
the 'REVERSE 12V IN wire’ should be spliced with 12V power of reverse light.
HDMI device_related
•HDMI mode accepts general-screen resolution of HDMI devices(1080P / 1920*1080).
If screen size of HDMI does not fit on the monitor, should adjust screen size & position in 'settings mode'.
•Generally, '5V 1A Power output(5V USB POWER)' is a standard voltage for charging smartphone.
If you need higher voltage than 5V, you should add a separate power supply.
Navigation(GPS) box_related
•When you connect the power wires(B+, ACC) to the navigation(GPS) box,
the ‘NAVI 12V OUT' wire supported by IW04A-N should be spliced with anACC wire of navigation box.
•After installation is done, select an applicable navigation(GPS) box model in the 'Navigation model selection
menu' of setting mode.
•The navigation box should be powered off before unplugging the HDMI cable.
Cautions

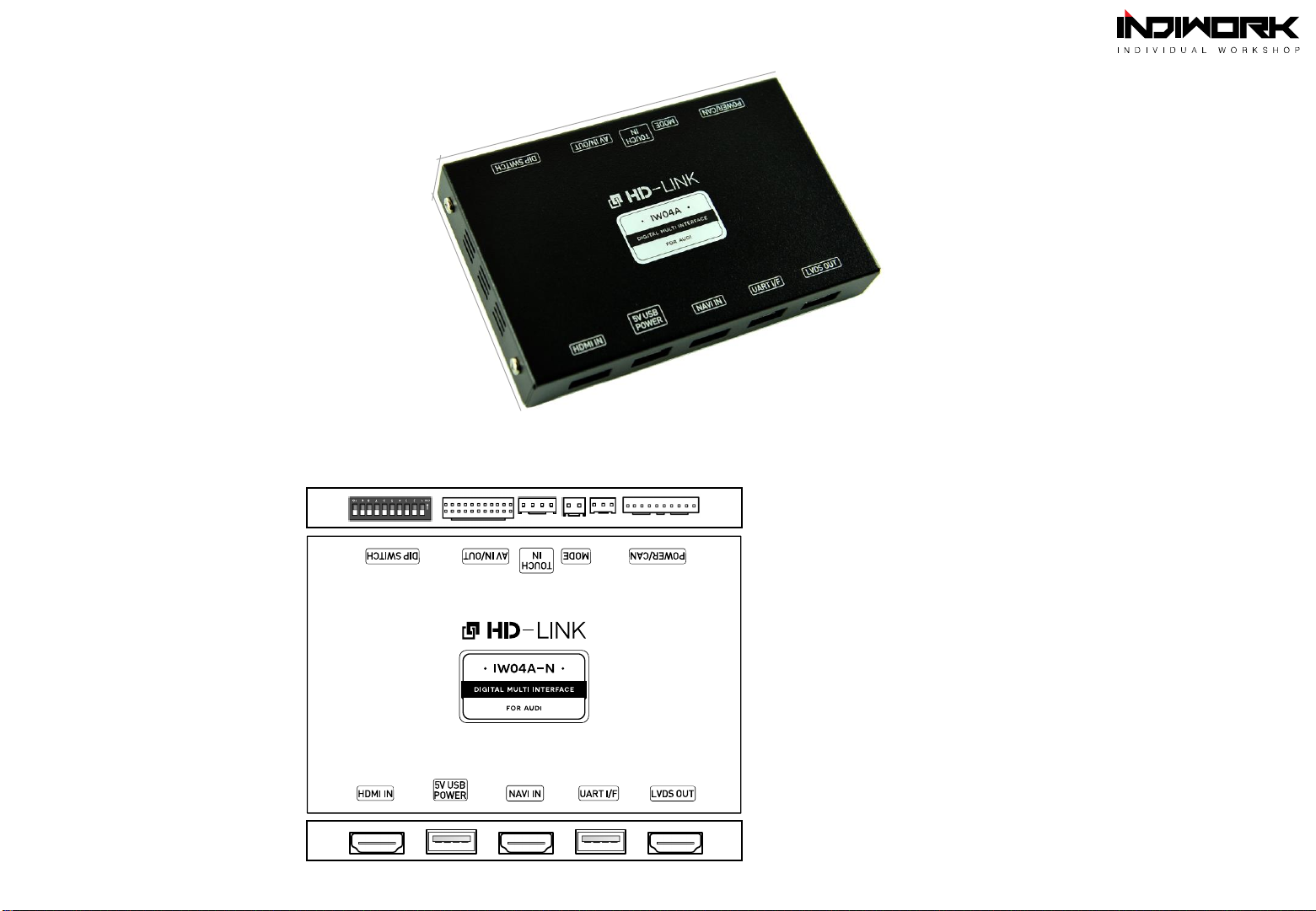

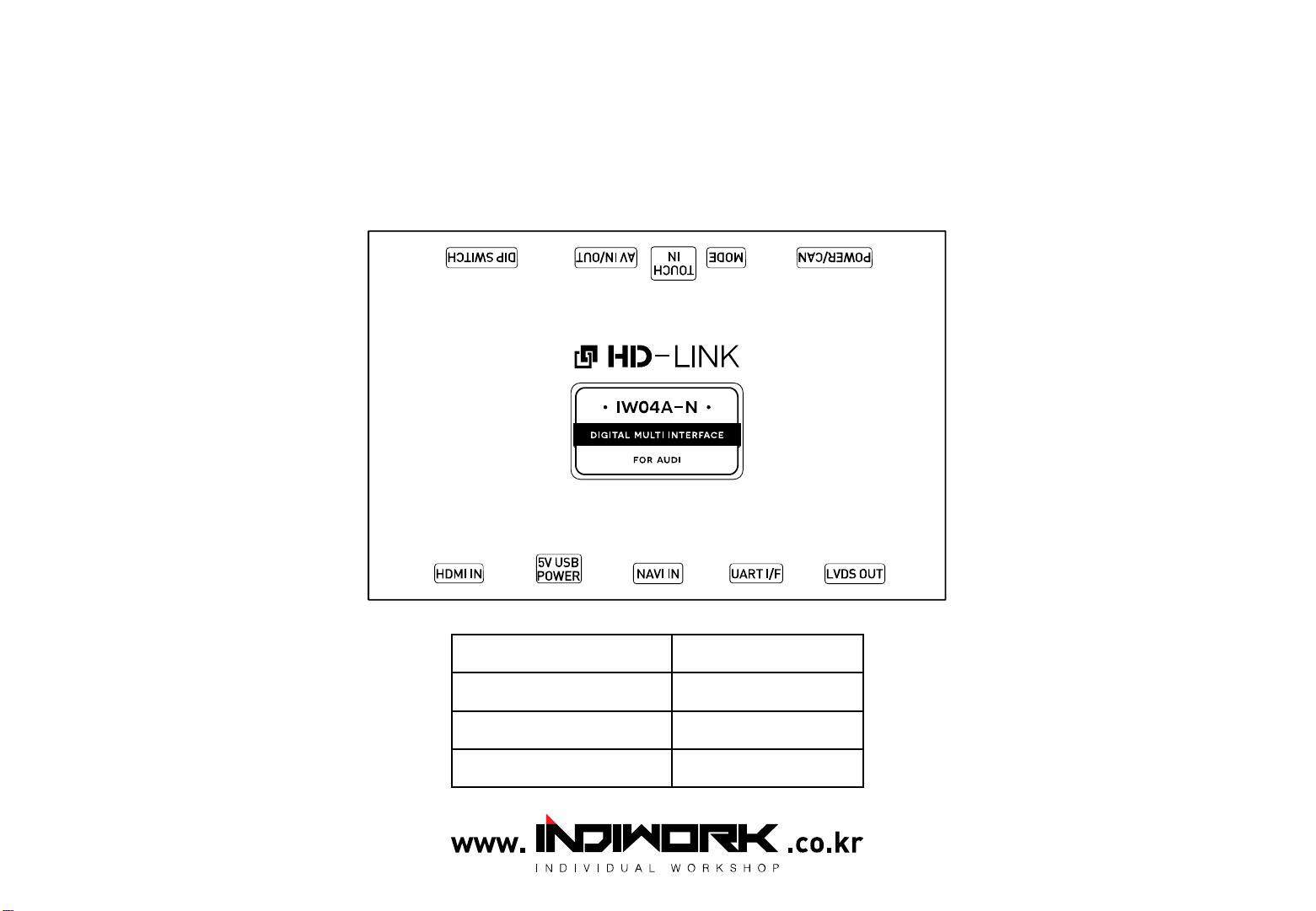

Exterior
Dimension
4
ⓐDIP SWITCH
ⓑAV IN / OUT
ⓒTOUCH IN (Not Used)
ⓓMODE
ⓔPOWER / CAN
ⓕHDMI IN
ⓖ5V USB POWER
ⓗNAVI IN
ⓘUART I/F
ⓙLVDS OUT
ⓐ ⓑ ⓒ ⓓ ⓔ
ⓕ ⓖ ⓗ ⓘ ⓙ
Width: 142 mm
Length: 91 mm
Height: 22 mm

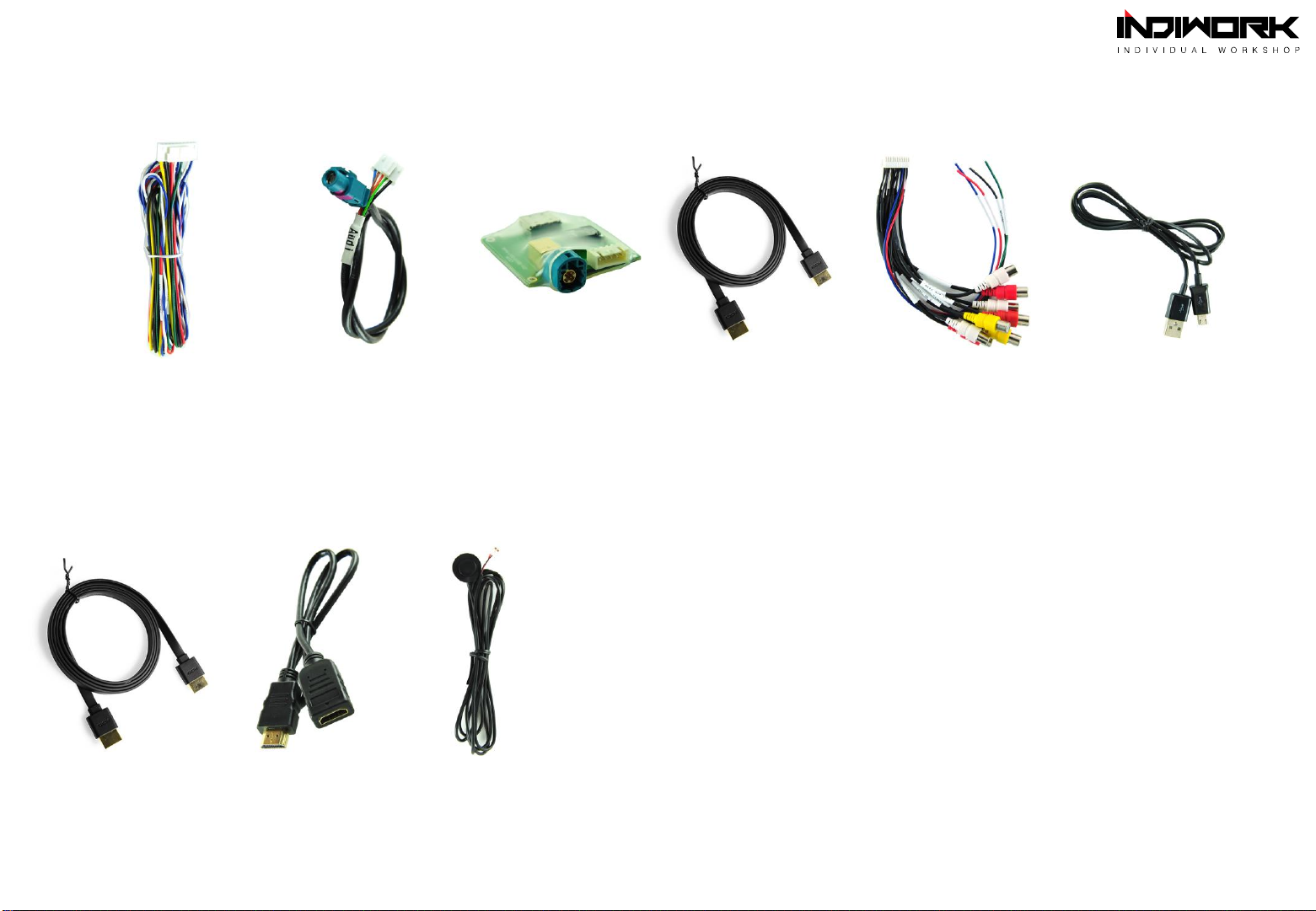

Components
5
Optional Parts(sold separately at the indiwork)
Power / CAN Cable LVDS Cable LVDS PCB HDMI Cable AV IN / OUT Cable 5-pin Micro USB Cable
Mode SwitchHDMI Extender
(For stick type HDMI device)
HDMI Cable
(Male to Male)

IR OUT
External Rear View
Camera
Audio(AUX) Output of
Navigation Box
Auxiliary(AUX)
Input of the car
External Front View
Camera
AV device
(ex: DTV Box, Divx)
RV-CAM Video Input
Navigation Box
Power / CAN
Cable
NAVI 12V
Power Output
GND Output
DIP S/W Setting
LVDS
IN / OUT
PCB
Mode
Switch
(optional)
GND Input
B+ Power Input
HDMI Device
HDMI
HDMI
HDMI
HDMI USB
FV-CAM Video Input
(AV1)
12V Power Output & GND Output(RV-CAM Power)
NAVI Audio Input
Audio Output
※Optional External Devices
AV-Input(AV2)
Reverse Signal Detection(optional)

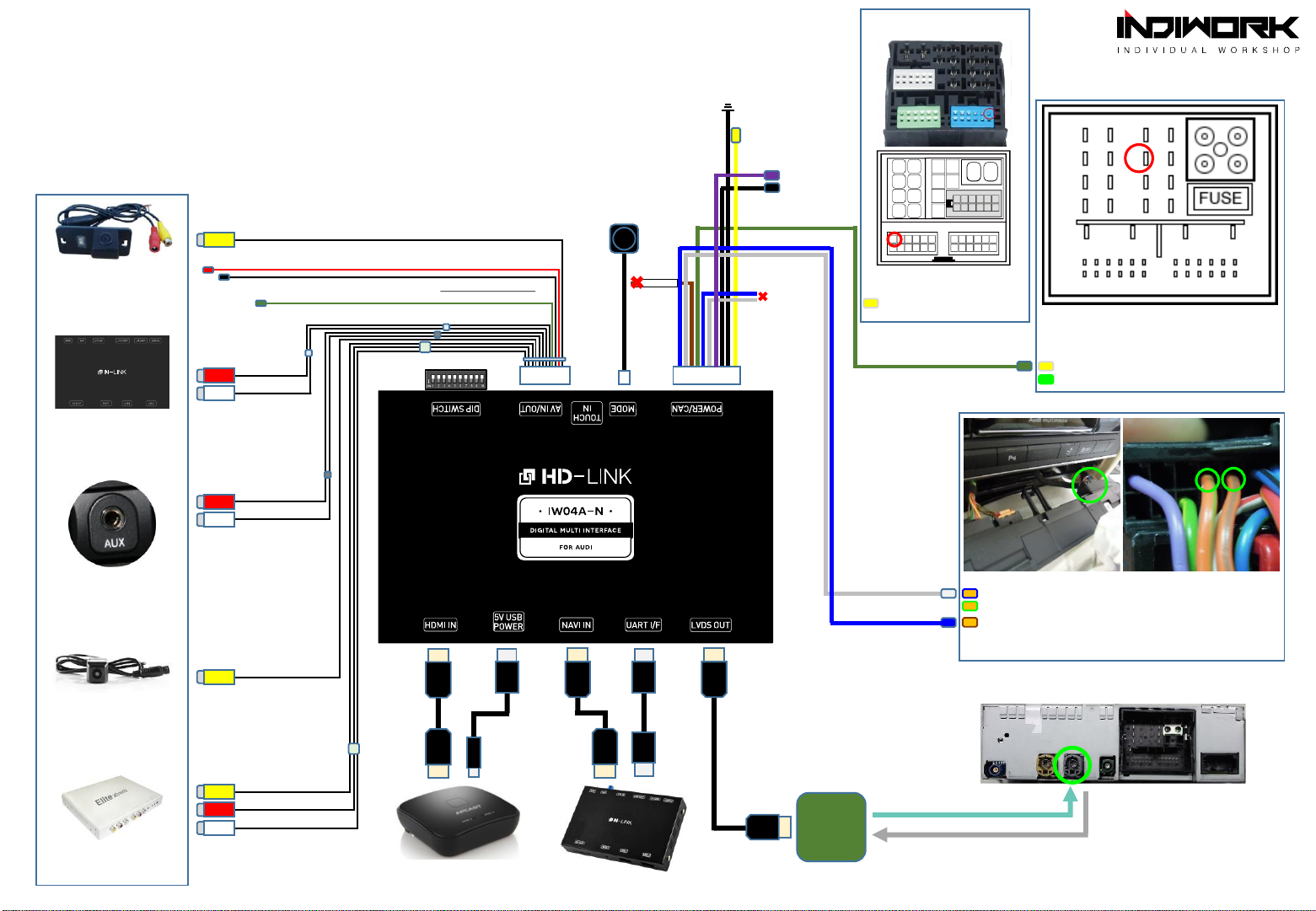

Full Installation Diagram
Pin # 10 = MMI DATA(Yellow / White)
or (Light Green)
MMI DATA Pin Specification
MMI 3G Plus & MMI 3G Head Unit
Original Main-Harness
1
4
5
8
9
10
12
13
16
* 20-Pin Connector of Climate controller
Pin # 4 = CAN HIGH(Orange / Blue)
or (Orange / Light Green)
Pin # 5 = CAN LOW(Orange / Brown)
* Some vehicles should be connected the CAN wires
at the other place. (Please refer to next page.)
HS CAN HIGH & LOW <A4, A5, A6, A7, A8, Q7>
1 2 3 4 5
HS CAN H(White)
HS CAN L(Blue)
AUDI MMI(Green)
LVDS IN / OUT Connection
MMI 3G & 3G+ Head Unit(OEM)
6
LS CAN wires
HDMI
HDMI USB
USB
(Some vehicles
should be connected the ‘LS CAN wires'.)
Original Main-Harness
A6 Low Resolution (6.5 inch)
Pin # = MMI DATA(Yellow / White)
※Speciality Connector Type

NAVI 12V OUT
IR OUT
NAVI 12V OUT
IR OUT

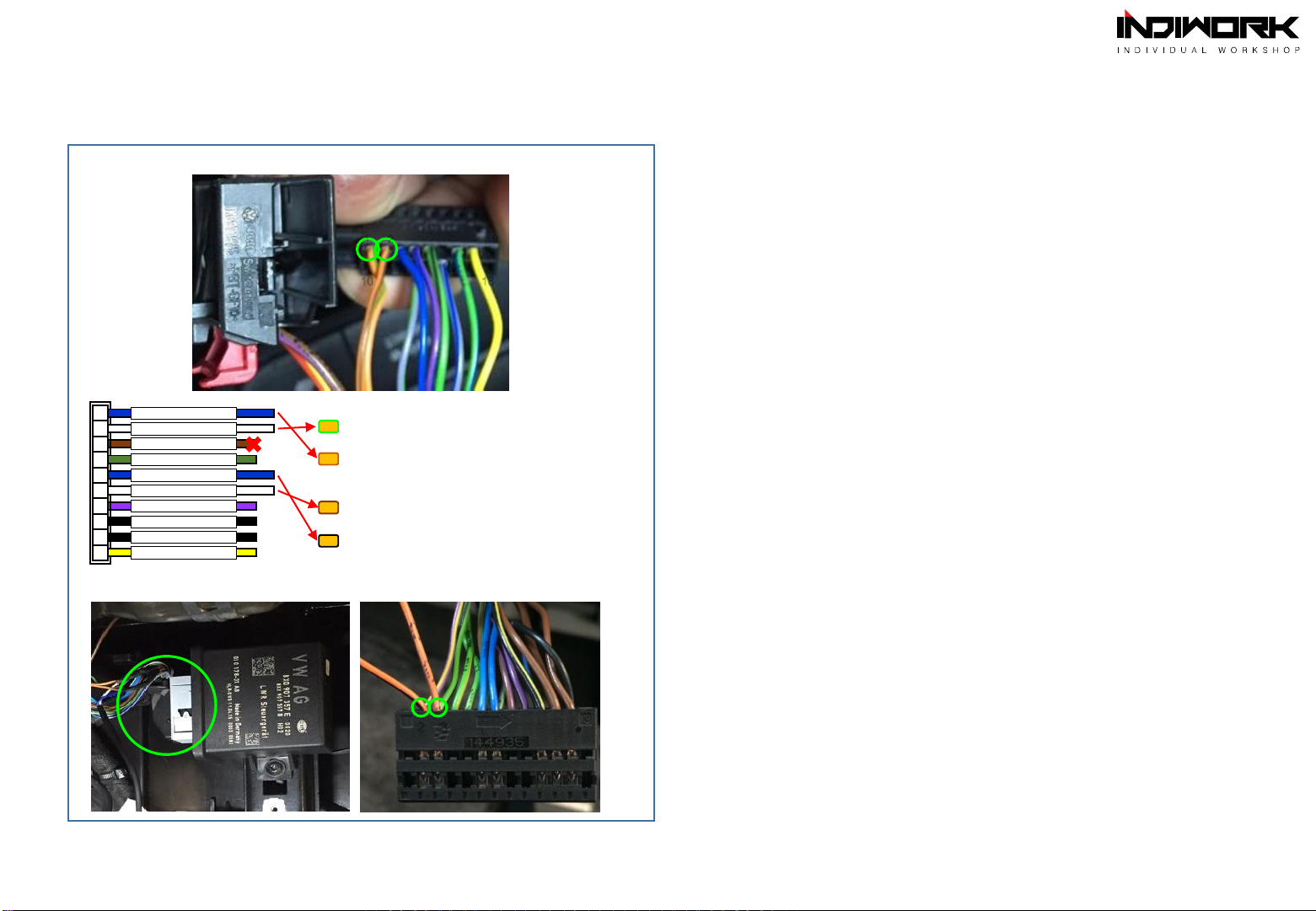

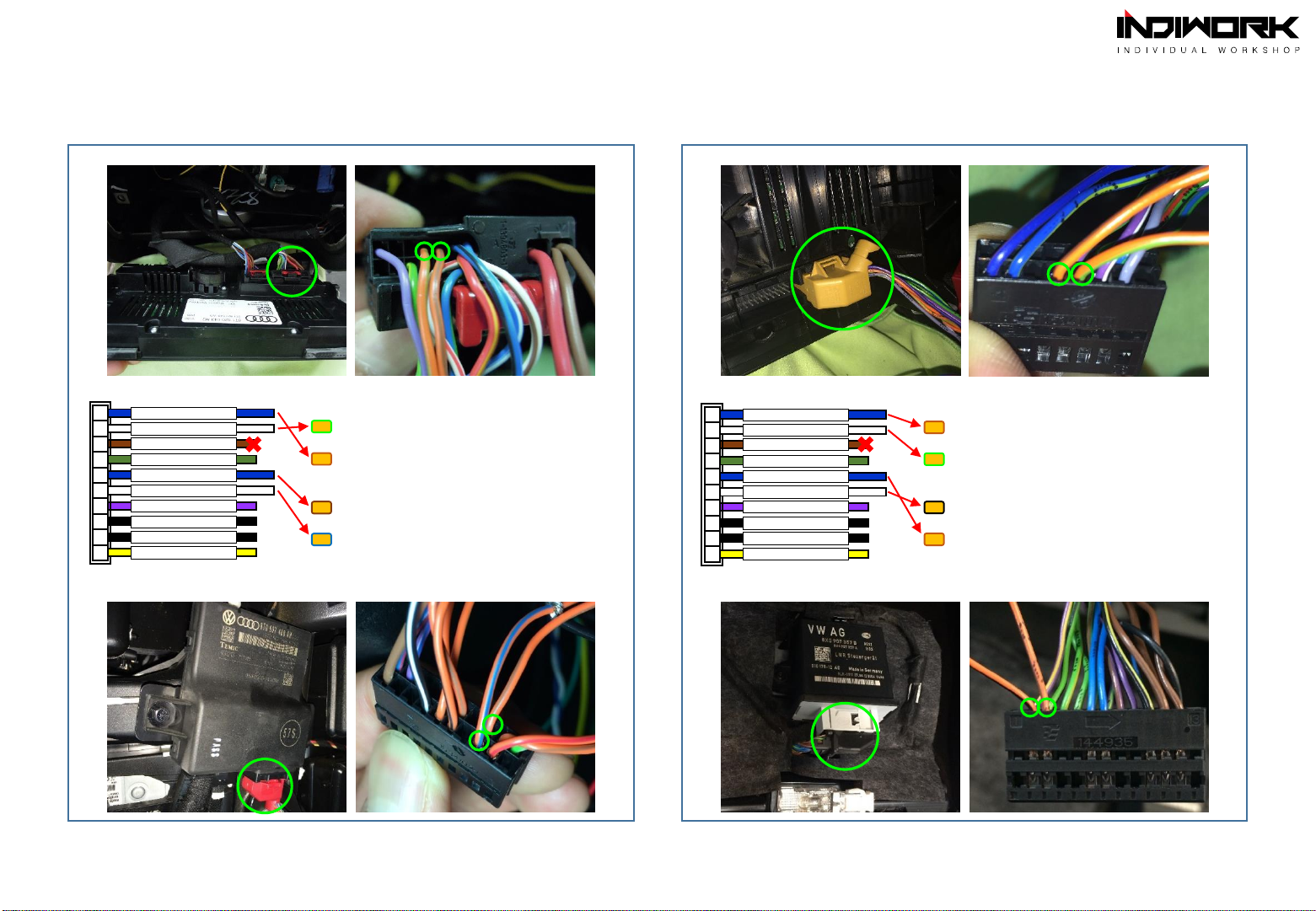

CAN wires information(exceptions)
7
• Normally, general models of Audi should be just connected the ‘HS CAN High, Low wires’ at the climate controller.
•But, some models have different CAN-BUS data. Please refer to above pictures and connect the CAN wires.
Pin # 4 = HS CAN HIGH(Orange / Light Green)
Pin # 5 = HS CAN LOW(Orange / Brown)
Pin # 8 = LS CAN LOW(Orange / Brown)
Pin # 18 = LS CAN HIGH(Orange / Blue)
< 2010, 2011 Audi A4 >
11
18 20
1
810
< 2012~ Audi Q3 >
Pin # 12 = HS CAN LOW(Orange / Brown)
Pin # 13 = HS CAN HIGH(Orange / Light Green)
Pin # 2 = LS CAN HIGH(Orange / Black)
Pin # 3 = LS CAN LOW(Orange / Brown)
LS CAN H
LS CAN L
AUDI MMI
HS CAN H
HS CAN L
BAT +
GROUND
GROUND
LS CAN H
LS CAN L
AUDI MMI
HS CAN H
HS CAN L
BAT +
GROUND
GROUND
POWER / CAN Cable POWER / CAN Cable
LWR Steuergerät Module(on the glovebox) –26-Pin Connector
(*In case of Q3 / ‘6.5-inch’ model, you do not need to connect LS CAN H, L and MMI wires.)
Climate Controller –16-pin Connector
9 12 13 16
Gateway+BEM Module(on the left of the glovebox) –20-Pin Connector
1 4 5 9 19 20
10 18
Climate Controller –20-Pin Connector
1 2 3 13

NAVI 12V OUT
IR OUT
8
Pin # 1 = HS CAN HIGH (Orange / Light Green)
Pin # 2 = HS CAN LOW(Orange / Brown)
Pin # 2 = LS CAN HIGH(Orange / Black)
Pin # 3 = LS CAN LOW(Orange / Brown)
< 2015 Audi A1>
LS CAN H
LS CAN L
AUDI MMI
HS CAN H
HS CAN L
BAT +
GROUND
GROUND
POWER / CAN Cable
LWR Steuergerät Module(on the glovebox) –26-Pin Connector
Climate Controller –20-Pin Connector
CAN wires information(exceptions)
1 2 9
10 18
• Normally, general models of Audi should be just connected the ‘HS CAN High, Low wires’ at the climate controller.
•But, some models have different CAN-BUS data. Please refer to above pictures and connect the CAN wires.
2 3

HDMI
HDMI
(Female)
USB
‘Stick Type’ HDMI Devices
HDMI IN 5V USB
POWER NAVI IN UART I/F LVDS OUT
HDMI Device
HDMI IN 5V USB
POWER NAVI IN UART I/F LVDS OUT
HDMI Device
USB
HDMI
HDMI
(Male)
‘Dongle & Adapter’ Type HDMI Devices

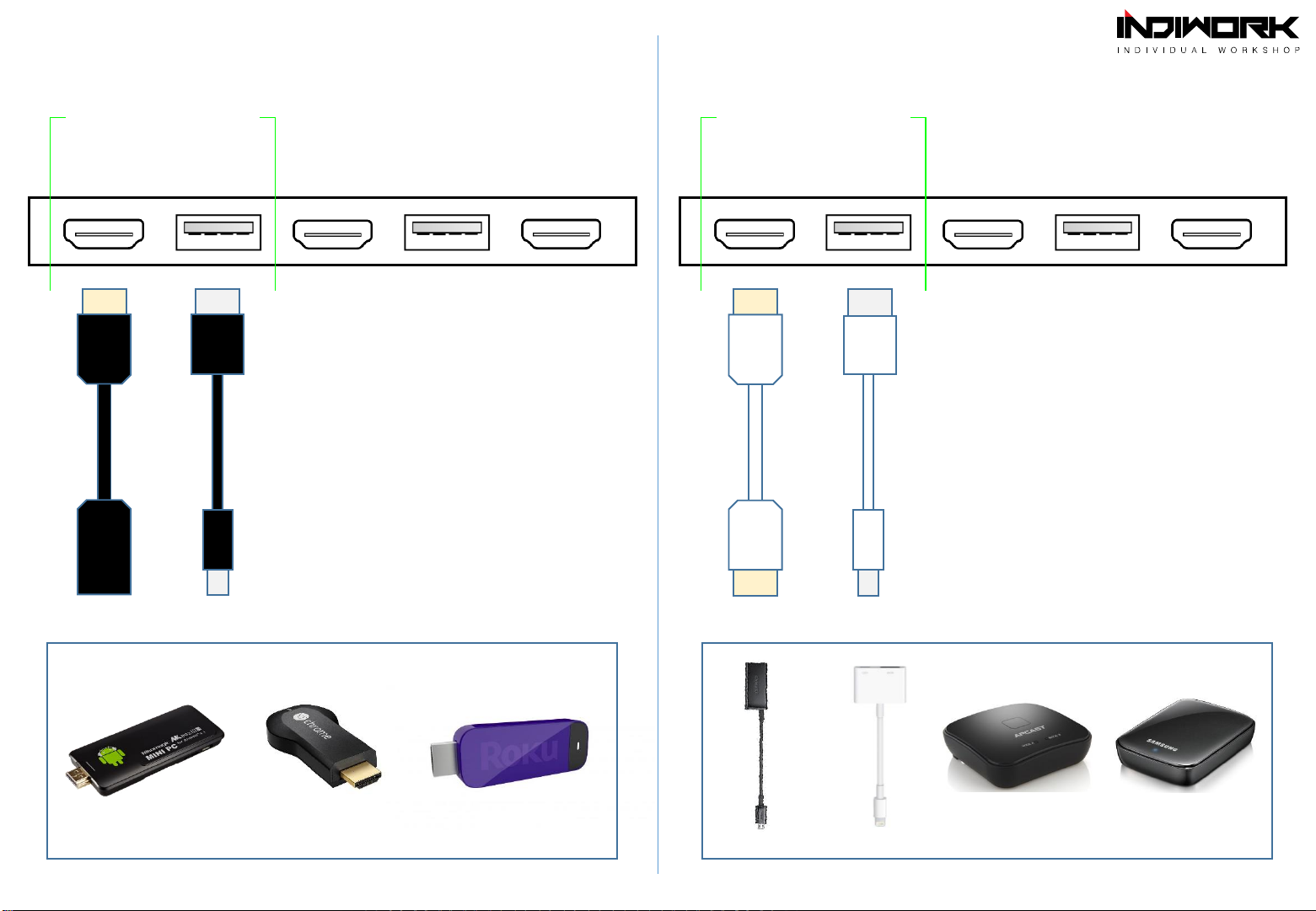

HDMI Connection Diagram
(5V-1A Power output for HDMI Device) (5V-1A Power output for HDMI Device)
9
(HDMI Extender) (HDMI Cable)

HDMI IN 5V USB
POWER NAVI IN UART I/F LVDS OUT HDMI IN 5V USB POWER NAVI IN UART I/F LVDS OUT

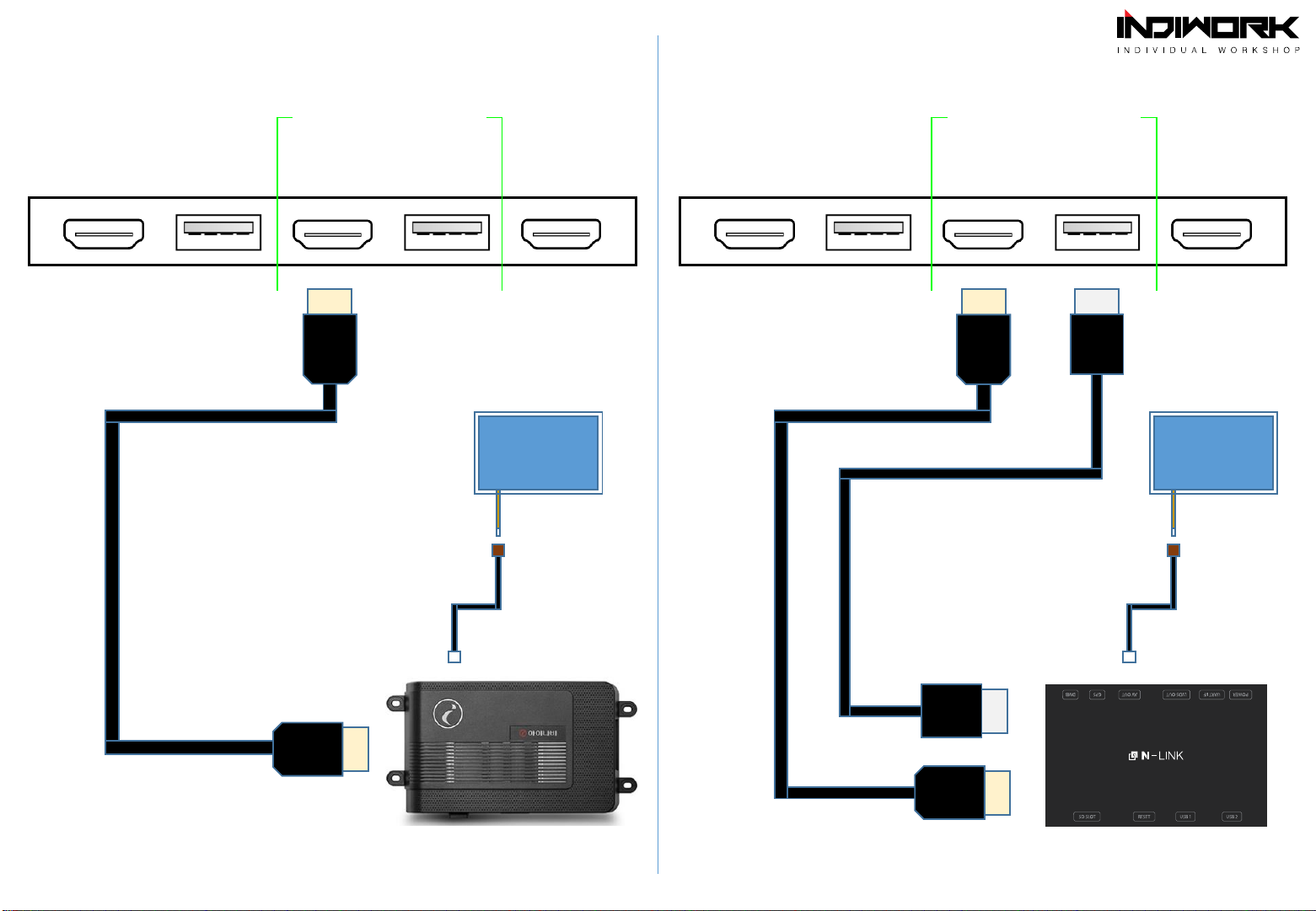

Navigation Connection Diagram Navigation Connection Diagram
Navigation(GPS) Box Navigation(GPS) Box
10
Microcity - N-Link
HDMI
HDMI
Touch screen panel
USB
USB
(USB cable connecting is for ‘N-Link’ only.)
HDMI
I-NAVI X1 CUBE
Touch screen panel
HDMI

Model Country Dip S/W
(Navigation) Required Parts
MICROCITY
N-Link South Korea -
HDMI Cable
(HDMI to HDMI) USB A-A Cable (USB to USB) Hazard Module (Refer to Page.11)
iNAVI
X1 CUBE South Korea
OFF(↑): 1, 2, 3, 4 HDMI Cable
(HDMI to HDMI)
MYVI
MS1400 Digital South Korea
OFF(↓): 1, 2, 3
ON(↑) : 4 HDMI Cable (HDMI to HDMI)

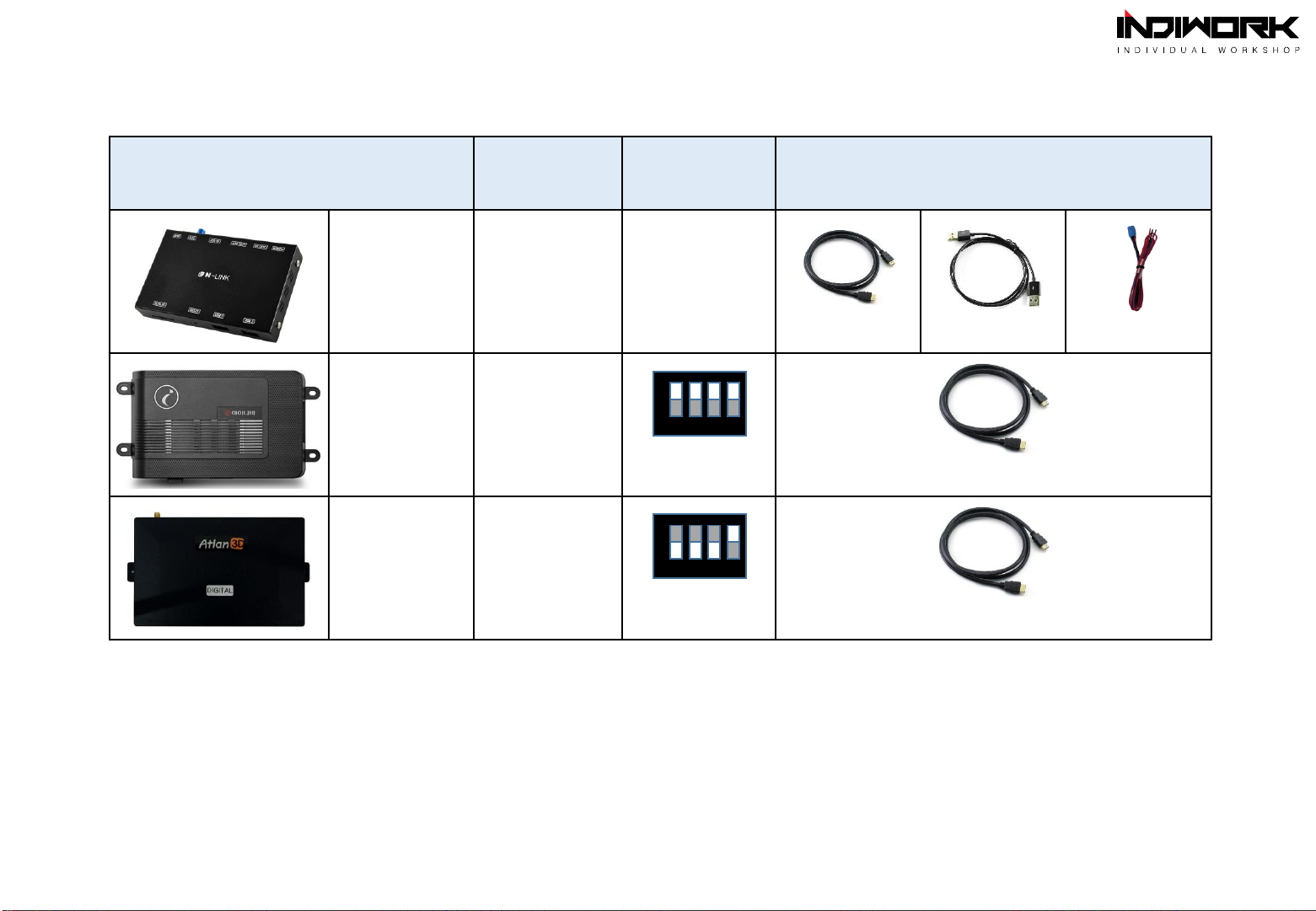

Compatibility Chart for Navigation(GPS) box models
• The ‘IW04A-N(HD-Link)' supports navigation(GPS) box models equipped with 'Digital video output'.
•It does not support the 'RGB video signals'. 9
1 2 3 4
ON
↑
1 2 3 4
OFF
↓
ON

HDMI
HDMI
HDMI IN 5V USB
POWER NAVI IN UART I/F LVDS OUT
LVDS
IN / OUT
PCB
LCD
Cable
(OEM LVDS Cable)
(Provided LVDS Cable)
12
Monitor(OEM)

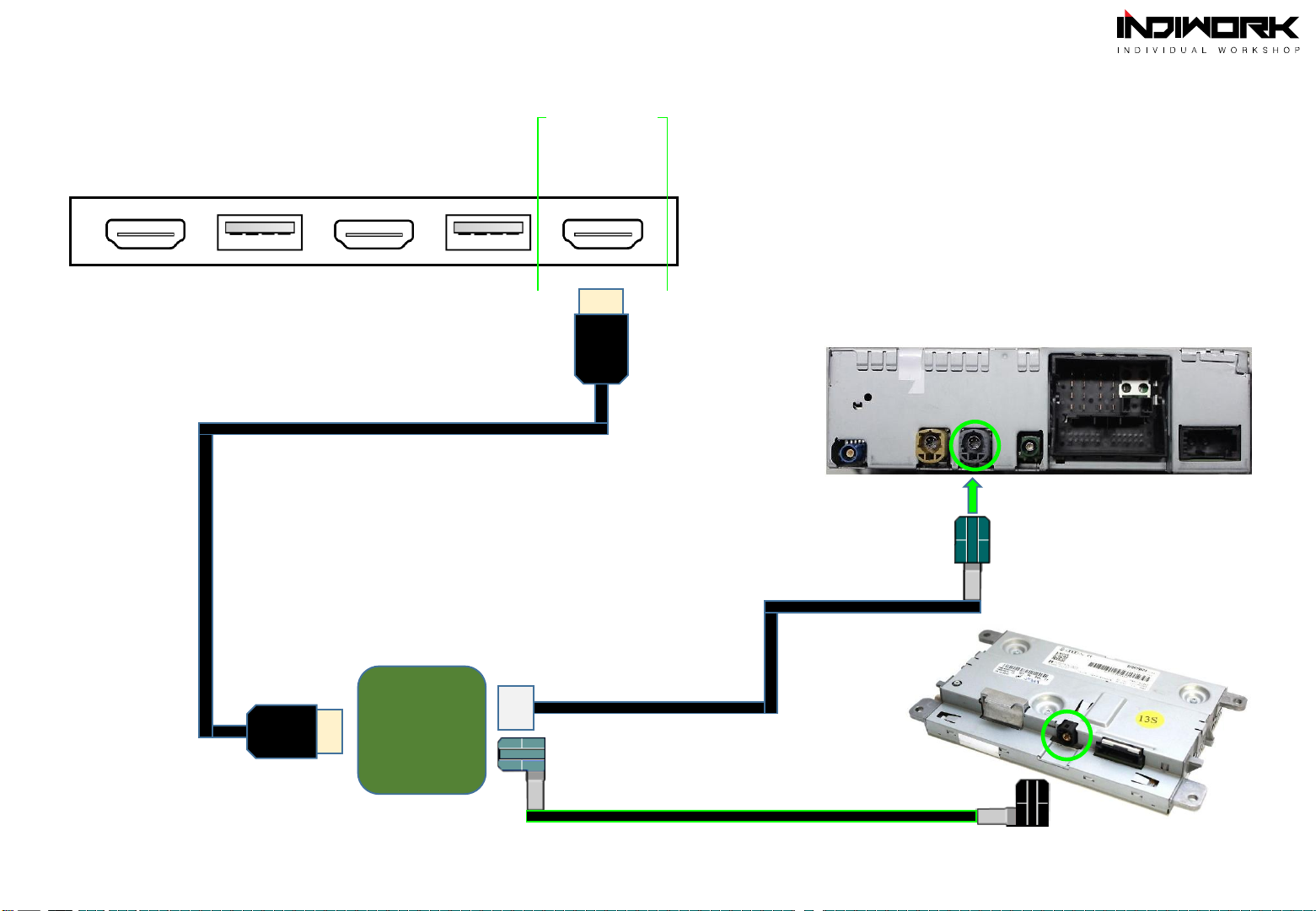

LVDS Connection Diagram
LVDS Connection
•'Genuine(OEM) LVDS connector' should be connected
to 'LVDS IN / OUT PCB'.
• ‘Provided LVDS connector' should be connected to the
head unit instead to the genuine connector.
MMI 3G Plus & 3G Head Unit

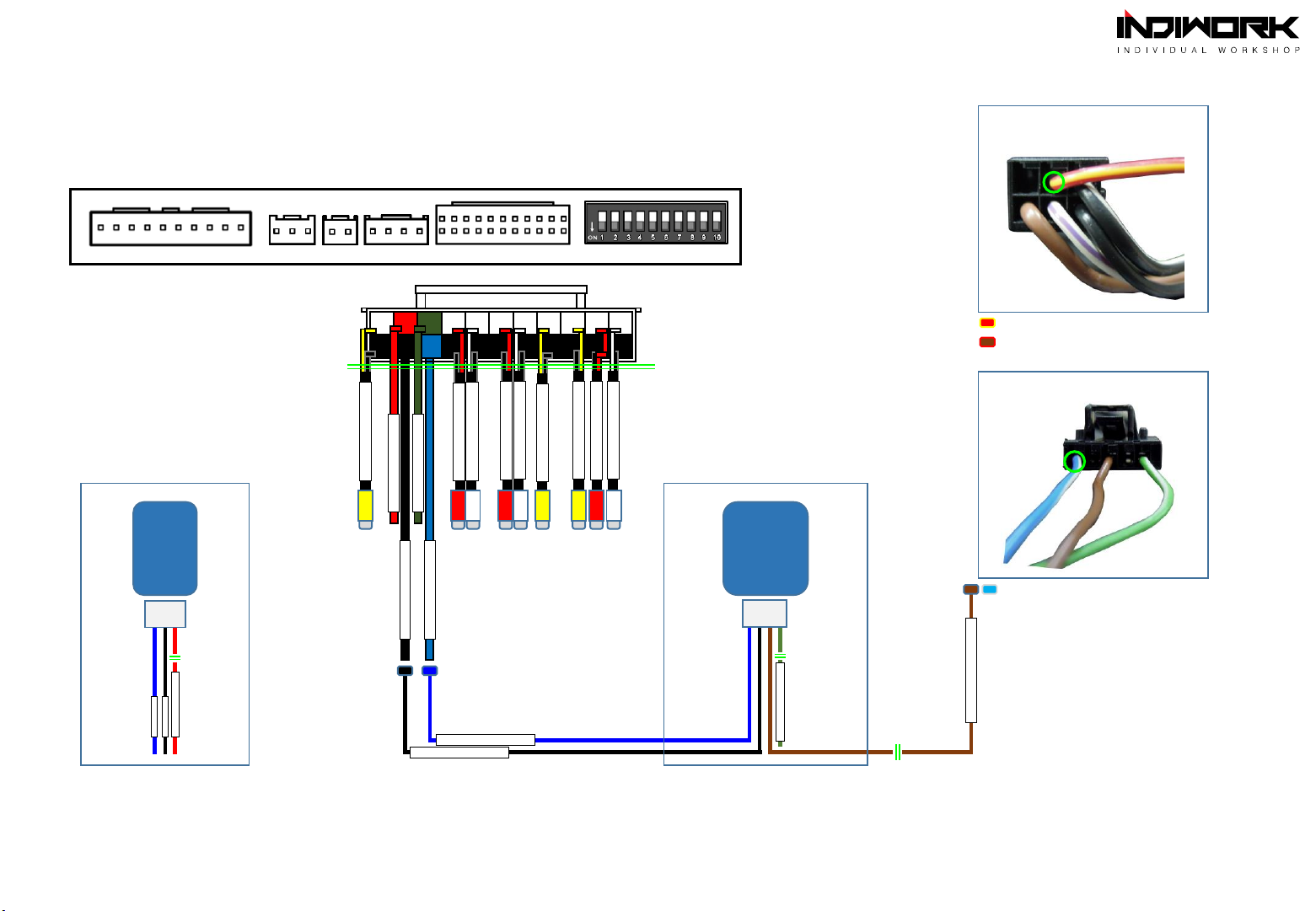

Hazard Module Connection Diagram
POWER / CAN MODE TOUCH-IN AV IN / OUT DIP SWITCH
1234 5 6 7 8 9 10 11
12 13 14 15 16 17 18 19 20 21 22
GROUND
IR OUT
REVERSE 12V IN
REAR 12V
REAR CAMERA
NAVI AUD IN R
NAVI AUD IN L
AUDIO OUT R
AUDIO OUT L
AV1 IN V
AV2 IN V
AV2 IN R
AV2 IN L
A6, A7 / 5-Pin Hazard Connector
Pin # 1 = Hazard(-) (Blue/White)
1 2 3 4 5
4 5 6
13
GND
IR IN
(20 cm)
*Hazard Module is just available with ‘Smart Drive function of N-Link’ navigation in South Korea.
A4, A5, Q3 / 6-Pin Hazard Connector
Pin # 2 = Hazard(-) (Red/Yellow)
Pin # 2 = Hazard(-) (Brown/Red) *Q3
1 2 3
4 5
Old Version Module
Hazard Light
GND
IR IN
New Version Module
Benz Hazard Light
(For IW04-MB14)
BMW/AUDI Hazard Light
Hazard
Module
(4-Pin)
Hazard
Module
(3-Pin)

POWER / CAN MODE TOUCH-IN AV IN / OUT DIP SWITCH
12 3 4 5 6 7 8 9 10 11
12 13 14 15 16 17 18 19 20 21 22
1 BATTERY POWER INPUT
2 GND INPUT
3 GND OUTPUT
4 NAVI 12V POWER OUTPUT
5 LS CAN HIGH
6 LS CAN LOW
7 AUDI MMI
8IR
9HS CAN HIGH
10
HS CAN LOW
1RV-CAM VIDEO INPUT
12
GND(RV-CAM VIDEO)
2RV-CAM POWER OUT
13
GND OUTPUT(RV-CAM)
3 REVERSE DETECTION
14
IR OUT
4 NAVI AUX INPUT R
15
GND(NAVI AUX IN R)
5 NAVI AUX INPUT L
16
GND(NAVI AUX IN L)
6 AUDIO OUTPUT R
17
GND(AUDIO OUT R)
7 AUDIO OUTPUT L
18
GND(AUDIO OUT L)
8 AV1 VIDEO INPUT
19
GND(AV1 VIDEO IN)
9 AV2 VIDEO INPUT
20
GND(AV2 VIDEO IN)
10
AV2 AUDIO INPUT R
21
GND(AV2 AUDIO IN R)
11
AV2 AUDIO INPUT L
22
GND(AV2 AUDIO IN L)
GROUND
IR OUT
REVERSE 12V IN
REAR 12V
REAR CAMERA
NAVI AUD IN R
NAVI AUD IN L
AUDIO OUT R
AUDIO OUT L
AV1 IN V
AV2 IN V
AV2 IN R
AV2 IN L
PUSH SWITCH
•The colors of each wires can be changed under manufacturer’s circumstance.
Body Connector specifications
1
2
14
Length: 100 cm Length: 20 cm
Length: 150 cm
12 3 4 56 7 8 910
LS CAN H
LS CAN L
AUDI MMI
HS CAN H
HS CAN L
BAT +
GROUND GROUND
NAVI 12V OUT
IR OUT

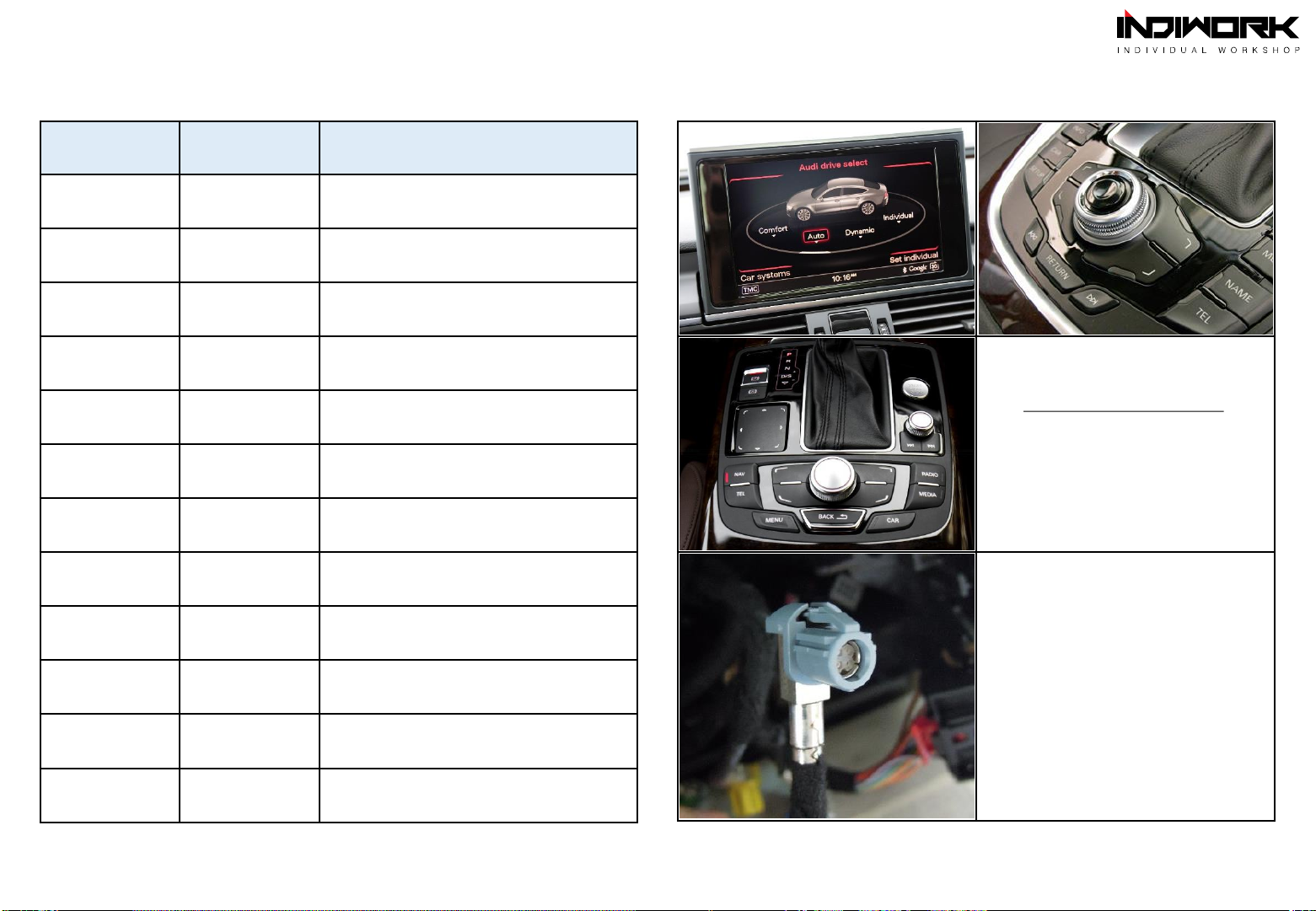

Car Models Production
Year Specific Models
A1 2015 -
A4 2010 -B8
A5 2011 -8T
A6 2010 -2011 C6 (MMI 3G)
A6 2011 -2014 C7
A7 2010 -2014 4G
A8 2010 -D4
Q3 2012 -8U
Q5 2009 -8R
Q7 2010 -4L
IW04A
-N is used in combination with
Audi
MMI(Multi Media Interface)
system.
-
MMI navigation (3G)
-
MMI navigation plus (3G)
-
MMI navigation plus (3G Plus)
The IW04A
-N supports the Audi
Original screen equipped with ‘4 pin
LVDS round
connector’ only.
Please check the specification of
original LVDS connector on the
sidelines of a production year.
15
Car Compatibility Chart

1
Button Function Operation Remarks
NAV
Changing
Modes Press the button 2 seconds. Order: HDMI →NAVI →AV1 → AV2 →OEM
NAV
Shortcut to
each modes
Press the button 2 times consecutively. < OEM → NAVI >
Press the button 3 times consecutively. < OEM → AV1 >
*It could also use 'iNAV(New) or MODE(Old) button' on the steering wheel.
Press the button 4 times consecutively. < OEM → AV2 >
NAV
System
Locking /
Unlocking Press the button 10 seconds long.
If you visit car service center, you can
lock the all functions of IW04A-N.
It is only possible to use the OEM
functions under it is locked.
Other
Buttons
Back to
OEM Press the button short. Return to the OEM mode in any modes.
BACK
(RETURN)
Reset to
factory
default
setting and
power.
Press the button 10 seconds long. You can use this function when you get in trouble to see the screen while setting
the screen.
MENU
(SETUP)
Enter into
the setting
menu Press the button 5 seconds long. Adjust settings of all functions like
adjustment screen size, brightness, and
etc.
1
1
For MMI 3G Plus & MMI 3G
3
2
MMI 3G Plus Controller
2
MMI 3G Controller
2
3
3
16
Activation by original buttons of Audi
1
1

Button Function Operation
∗Enter into the setting menu Press the ‘∗’button 5 seconds long.
iNAV Back to previous menu Press the button short.
VOICE Selection Press the button short.
◁ ▷
Move the menu and adjust the values. Press the button short.
1
Button Function Operation Remarks
iNAV
Changing
Modes Press the ‘iNAV’button short. Order: HDMI →NAVI →AV1 → AV2 →OEM
Other
Buttons
Back to
OEM Press the button short. Return to the OEM mode in any modes.
Steering Wheel buttons
6.5-inch screen(Entry model)
2
17
Activation by original buttons of Audi Q3 6.5-inch screen model
1
2
For Q3 6.5-inch screen model
1
3
3
4 5
4 5
Setting Menu

Pin
No. ON(▼)OFF(▲)
1HDMI Mode Skip HDMI Mode
2Navigation Mode Skip Navigation Mode
3External Rear View
Camera Original Rear View Camera
4External Front View
Camera(AV1 Mode) Skip External Front View Camera(AV1 Mode)
5AV2 Mode Skip AV2 Mode
6
Selection of car model
7
8
9
10
18
No.6 No.7 No.8 No.9 No.10 Car Models CAN wires Information
OFF(▲) OFF(▲) OFF(▲) OFF(▲) OFF(▲)A6, A7, A8/ 2012~
(8-inch / 800*480)
HS CAN = Climate controller
OFF(▲) OFF(▲)ON(▼)OFF(▲) OFF(▲)A4 / 2010
(7-inch / 800*480) HS CAN = Climate controller
LS CAN = Gateway+BEM
OFF(▲)ON(▼) ON(▼)OFF(▲)ON(▼)A4 / 2010
(7-inch / 800*480) HS CAN = Climate controller
LS CAN = Gateway+BEM
OFF(▲) OFF(▲) OFF(▲) OFF(▲)ON(▼)A4 / 2011 ,
Q5 /
2012
(7-inch / 800*480)
HS CAN = Climate controller
LS CAN = Gateway+BEM
OFF(▲) OFF(▲) OFF(▲)ON(▼)OFF(▲)A4, A5 / 2012~
(7-inch / 800*480)
HS CAN = Climate controller
OFF(▲) OFF(▲) OFF(▲)ON(▼) ON(▼)Q3 / 2012~2013
(7-inch / 800*480)
HS CAN = Climate controller
LS CAN = LWR Steuergerät
OFF(▲) OFF(▲)ON(▼) ON(▼) ON(▼)Q3 / 2014~
(7-inch / 800*480)
HS CAN = Climate controller
LS CAN = LWR Steuergerät
OFF(▲)ON(▼) ON(▼)OFF(▲) OFF(▲)Q3 / 2014~
(6.5-inch / 400*240) HS CAN = Climate controller
OFF(▲)ON(▼)OFF(▲) OFF(▲) OFF(▲)Q5 / 2009~2012
Q7 / 2010 HS CAN = Climate controller
(7-inch / 800*480)
OFF(▲)ON(▼)OFF(▲)ON(▼)OFF(▲)A6 / 2012~
(6.5-inch / 400*240) HS CAN = Climate controller
OFF(▲)ON(▼)OFF(▲) OFF(▲)ON(▼)Q5 / 2013
(7-inch / 800*480)
HS CAN = Climate controller
OFF(▲)ON(▼)OFF(▲)ON(▼) ON(▼)A1 / 2015~
(6.5-inch / 800*480)
HS CAN = Climate controller
LS CAN = LWR Steuergerät
OFF(▲) OFF(▲)ON(▼)OFF(▲)ON(▼)Q7 / 2013~
(7-inch / 800*480)
HS CAN = Climate controller
OFF(▲) OFF(▲)ON(▼) ON(▼)OFF(▲)A6 / 2010~2011
(7-inch / 800*480)
HS CAN = Climate controller
DIP Switch Settings
OFF
ON ON: ▼OFF:▲

1
Button Function Operation
MENU(SETUP) Enter into the
setting menu Press the button 5 seconds long.
BACK(RETURN) Back to previous
menu Press the button short.
Selection Select the menu
and setting values. Press the button short.
Turn the dial
clockwise
Move the menu-
pointer and adjust
the setting values.
Move the pointer and setting
values to up(↑) and right(→).
Turn the dial
counterclockwise
Move the menu-
pointer and adjust
the setting values.
Move the pointer and setting
values to down(↓) and left(←).
3
2
14
2
3
4 5
5
For MMI 3G Plus & MMI 3G
19
Settings
1. Enter into the setting menu.
<Press the ‘MENU(SETUP)’ button 5 seconds long.>
- HDMI & Navigation settings
- Rear view camera settings
-AV-input settings
- System settings
- System information

Settings
2. HDMI mode settings
- Mode selection: HDMI ↔ NAVI
- Image display
= Adjust the values of brightness and contrast
Red-Green-Blue colors of HDMI display.
- Screen position & size
= Adjust position and size of HDMI display.
3. NAVI mode settings
- Mode selection: NAVI ↔ HDMI
- Image display
= Adjust the values of brightness and contrast
Red-Green-Blue colors of NAVI display.
- Screen position & size
= Adjust position and size of NAVI display.
- Navigation model selection
①N-Link ②iNAVI –CUBE ③imercury –Class settop
④MYVI ⑤Mode A ⑥Mode B 20
