INDIWORK IW04B-N User manual

Instruction Manual
High-Definition Link for BMW
IW04B-N
Model Name IW04B-N
Latest Firmware Date 2016 –08 -12
Manual Version Rev. 2.3
Language English
Release Date: 2016 - 09 -07

_____________________________________________________________ 3
_________________________________________________ 4
_________________________________________ 5
______________________________________________ 6
____________________________________________ 7
_______________________________________ 8
_____________________ 9
___________________________________________ 10
___________________________________________ 11
________________________________________ 12
______________________________________________ 13
_________________________________ 14
__________________15
__________________________________________________ 16
_____________________________________ 17
____________________________________________ 18
_____________________________________________ 18
______________________________________ 19
_________________________________ 19
______________________________ 20
___________________________________________________ 20
_____________________________________ 21
________________________________________________ 22
____________________________________________ 22
_______________________________ 23
Contents
•Cautions
•Dimension & Exterior
•Components & Optional parts
•Full Installation Diagram
•HDMI Connection Diagram
•Navigation Connection Diagram
•Compatibility Chart for Navigation(GPS) box models
•LVDS Connection Diagram
•Hazard Module Connection
•Body Connector specifications
•Car Compatibility Chart
•Activation by original buttons of BMW
•Activation by original buttons of BMW (Rear view PIP)
•DIP Switch Settings
•Settings
1. Enter into the setting menu
2. HDMI mode settings
3. NAVI mode settings
4. Rear view camera settings
5. AV1(Front view camera) settings
6. Automatic activation function(AV1)
7. AV2 settings
8. Keep the rear camera view
9. System settings
10. System information
11. Information of Dip switch settings

3
IW04B-N-related
•You should check the names and colors of each wires exactly, before you connect the wires.
ex) CAN HIGH: White wires / CAN LOW: Blue wires
• The ‘POWER / CAN Cable’ should always be connected last and be disconnected first.
•The 'Mode Switch' is an optional part to change modes forcibly without CAN-BUS.
Generally, the CAN-BUS wires are connected for changing modes by original buttons.
•When the reverse gear is not detected by CAN-BUS,
the 'REVERSE 12V IN wire’ should be spliced with 12V power of reverse light.
HDMI device-related
•HDMI mode accepts general-screen resolution of HDMI devices.
•Generally, '5V 1A Power output(5V USB POWER)' is a standard voltage for charging smartphone.
If you need higher voltage than 5V, you should add a separate power supply.
Navigation(GPS) box-related
•When you connect the power wires(B+, ACC) to the navigation(GPS) box,
the ‘NAVI (12V) OUT' wire supported by IW04B-N should be spliced with anACC wire of navigation box.
•After installation is done, select an applicable navigation(GPS) box model in the 'Navigation model selection
menu' of setting mode.
•The navigation box should be powered off before unplugging the HDMI cable.
Cautions

4
ⓐ ⓑ ⓒ ⓓ
ⓔⓕ ⓖ ⓗ ⓘ ⓙ
ⓐ
DIP SWITCH
ⓑ
AV IN / OUT
ⓒ
MODE
ⓓ
POWER / CAN
ⓔ
HDMI IN
ⓕ
5V USB POWER
ⓖ
NAVI IN
ⓗ
UART I/F
ⓘ
LVDS IN
ⓙ
LVDS OUT
ON 1 2 3 4 5 6 7 8 9 10
HDMI IN 5V USB
POWER LVDS IN/OUT
POWER/CAN MODE DIP SWITCH AV IN/OUT
NAVI IN UART I/F
Length: 142 mm
Width: 97 mm
Height: 21 mm

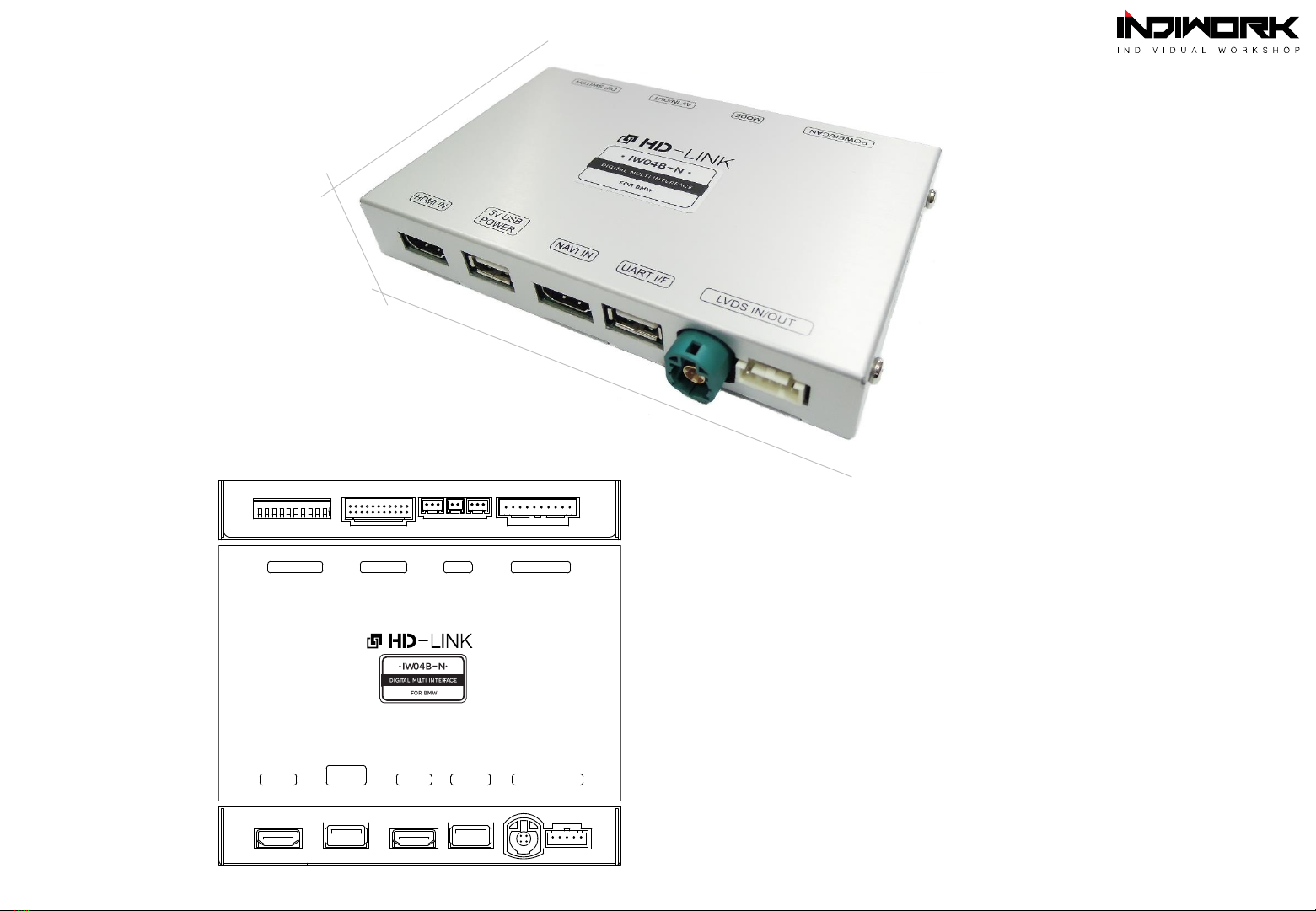

Exterior
Dimension

5

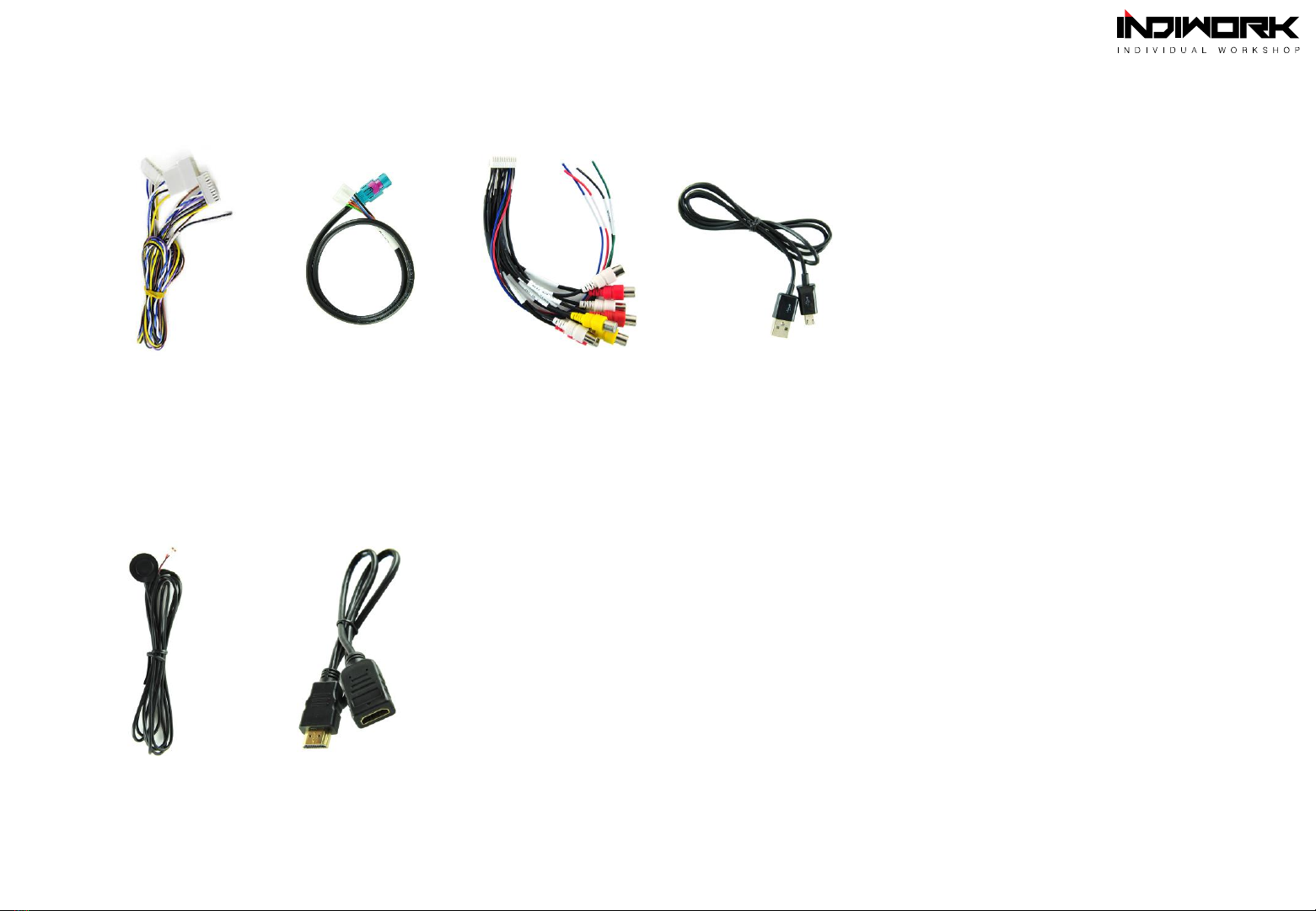

Power / CAN Cable LVDS Cable AV IN / OUT Cable 5-pin Micro USB Cable
Mode Switch HDMI Extender
(For stick type HDMI device)
Components
Optional Parts(sold separately at the indiwork)

HDMI Device
HDMI
HDMI USB
Navigation Box
HDMI
HDMI USB
USB
NAVI 12V Power Output (ACC 12V OUT)
※CAN HIGH / LOW Pin Specification
Monitor Main-Harness
1
4
OEM Head Unit
(OEM LVDS Cable)
(Provided LVDS Cable)
Pin # 5 = CAN HIGH (Light green / Orange)
Pin # 6 = CAN LOW (Light green)
Pin # 3 = GND(Brown)
Pin # 1 = Head Unit Power(Red / Yellow)
OEM Main cable
Provided Main cable
GND Output(GROUND)
IR OUT
6

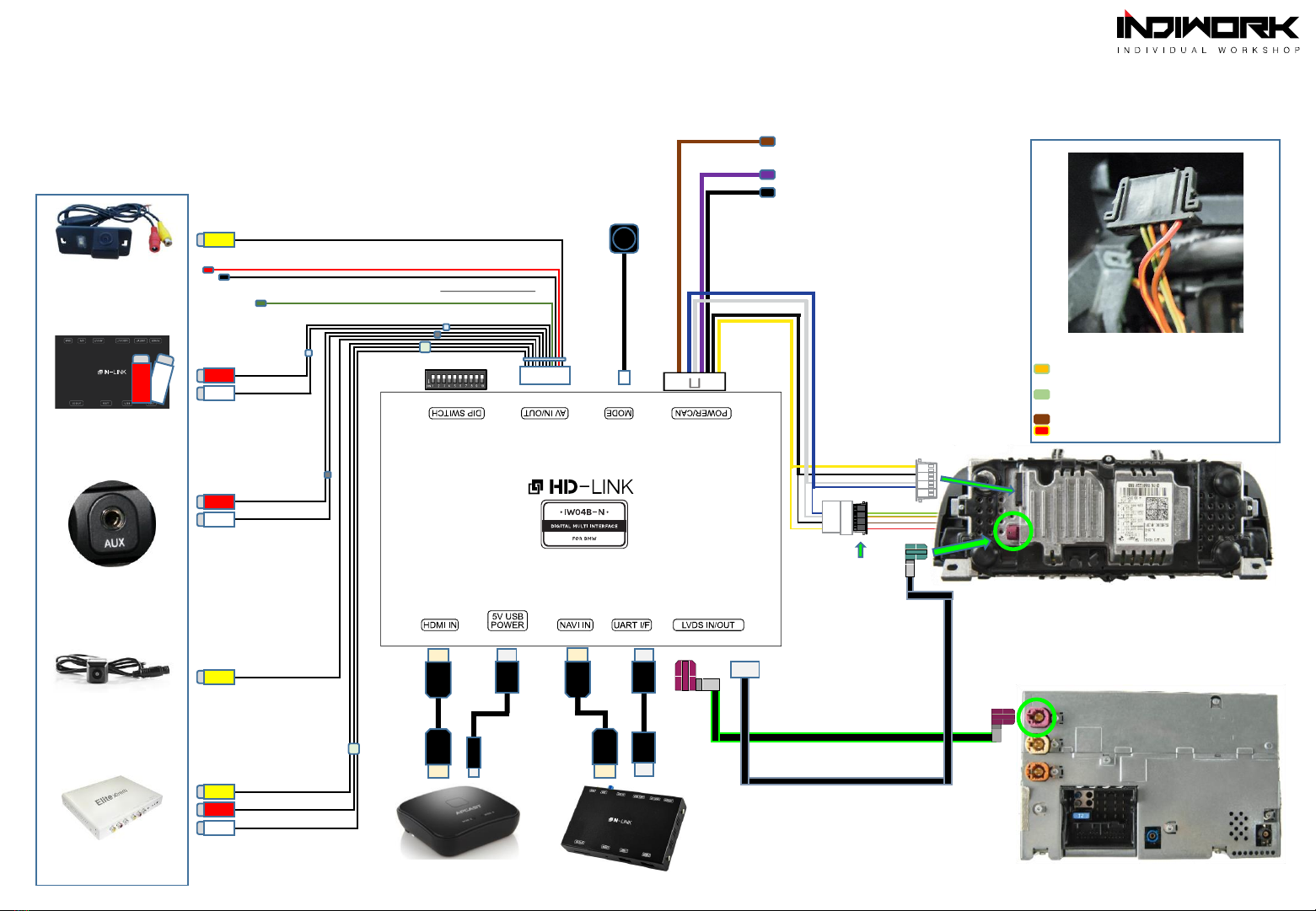

Full Installation Diagram
External Rear View
Camera
Audio(AUX) Output of
Navigation Box
Auxiliary(AUX)
Input of the car
External Front View
Camera
AV device
(ex: DTV Box, Divx)
RV-CAM Video Input
DIP S/W Setting
FV-CAM Video Input
(AV1)
12V Power Output & GND Output(RV-CAM Power)
NAVI Audio Input
Audio Output
※Optional External Devices
AV-Input(AV2)
Reverse Signal Detection(optional)
Mode Switch
(optional)

HDMI
HDMI
USB USB
HDMI
HDMI
(Male)
7
HDMI
(Female)
HDMI IN 5V USB
POWER
HDMI Device
HDMI IN 5V USB
POWER
HDMI Device

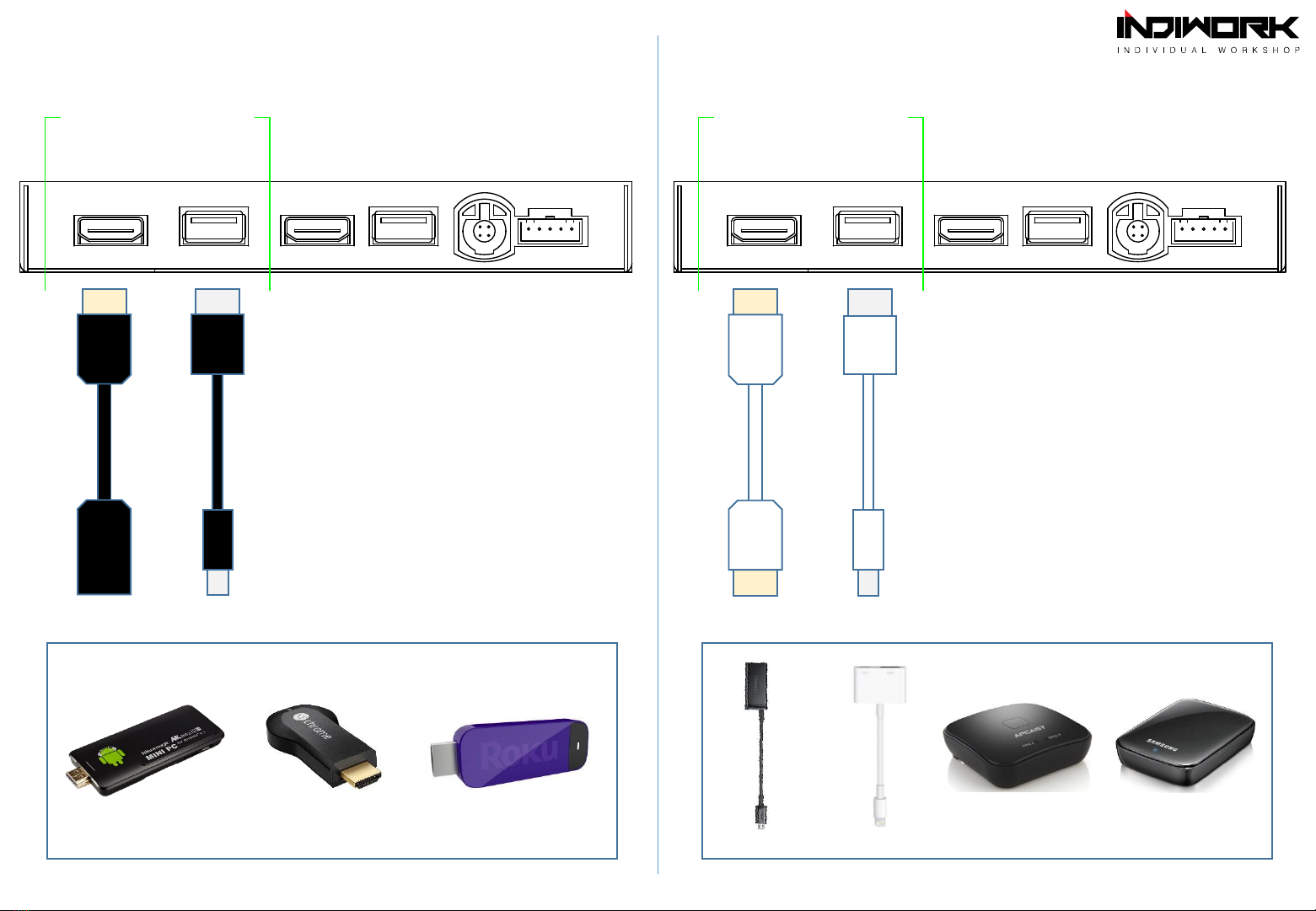

HDMI Connection Diagram
(5V-1A Power output for HDMI Device)
(HDMI Extender) (HDMI Cable)
‘Dongle & Adapter’ Type HDMI Devices
(5V-1A Power output for HDMI Device)
‘Stick Type’ HDMI Devices

iNAVI - CUBE
HDMI
Touch screen panel
8
Microcity - N-Link
USB
Touch screen panel
NAVI IN
Navigation(GPS) Box
UART I/F LVDS IN / OUT NAVI IN
Navigation(GPS) Box
UART I/F LVDS IN / OUT
USB
HDMI
HDMI
HDMI

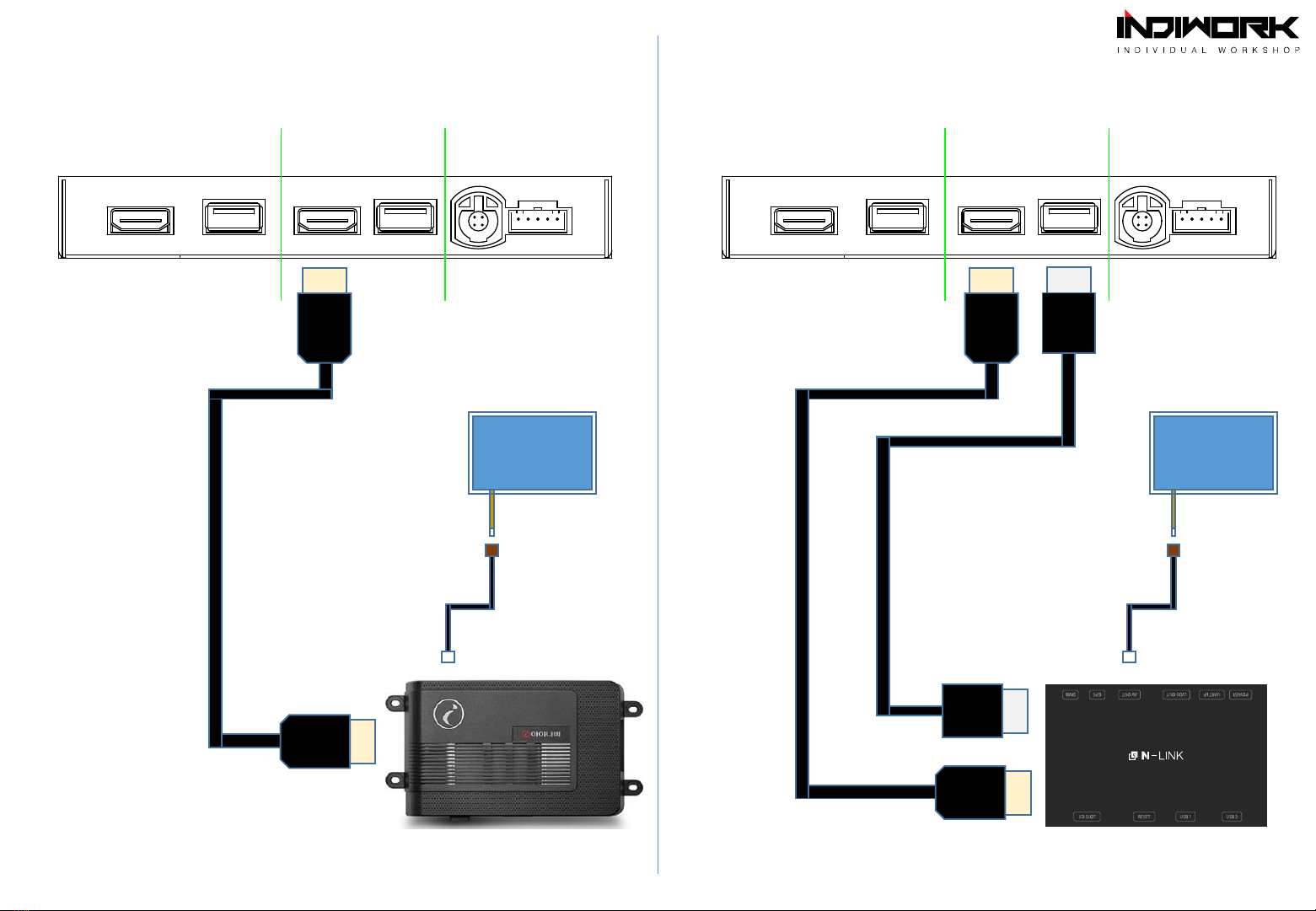

Navigation Connection Diagram
(USB cable connecting is for ‘N-Link’ only.)

Compatibility Chart for Navigation(GPS) box models
9
•The 'IW04B-N(HD-Link)' supports navigation(GPS) box models equipped with 'Digital video output'.
•It does not support the 'RGB video signals'.
Model Country Dip S/W
(Navigation) Required Parts
MICROCITY
N-Link South Korea -
HDMI Cable USB A-A Cable Hazard Module (Refer to Page.11)
iNAVI
X1 CUBE South Korea
800*480
OFF(↑): 1, 2, 3, 4
HDMI Cable
(HDMI to HDMI)
1280*480 BMW
ON(↓): 1 / OFF(↑): 2, 3, 4
MYVI
MS1400 Digital South Korea
OFF(↓): 1, 2, 3
ON(↑) : 4 HDMI Cable (HDMI to HDMI)
1 2 3 4
ON
↑
1 2 3 4
OFF
↓
ON
1 2 3 4
OFF
↓
ON

Head Unit
LCD
Cable (OEM LVDS Cable)
(Provided LVDS Cable)
10
'Genuine(OEM) LVDS connector' should be connected
to IW04B-N LVDS IN / OUT port
‘Provided LVDS connector' should be connected to the
monitor instead to the genuine connector.
Monitor(OEM)
HDMI IN 5V USB
POWER NAVI IN UART I/F LVDS IN / OUT

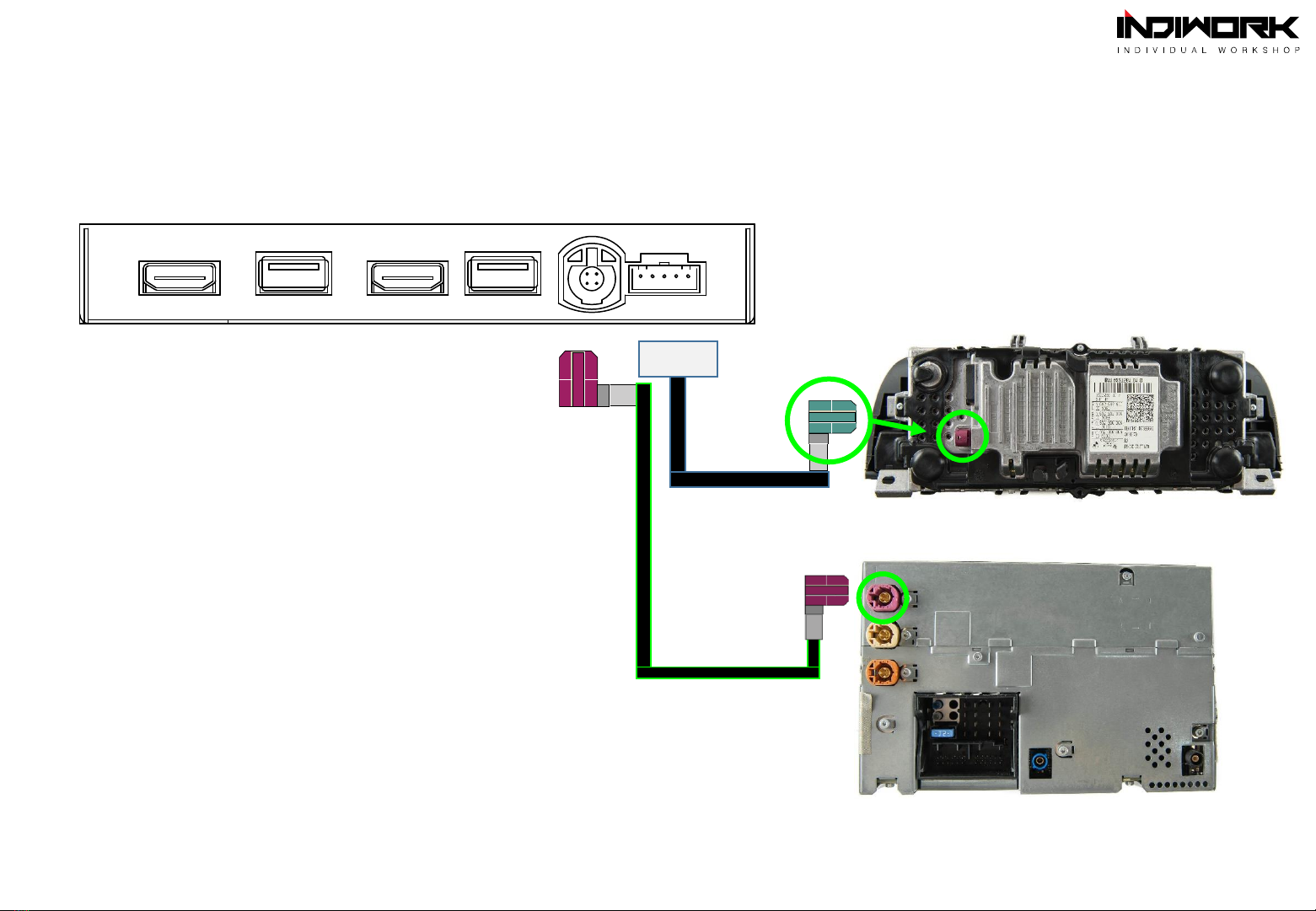

LVDS Connection Diagram

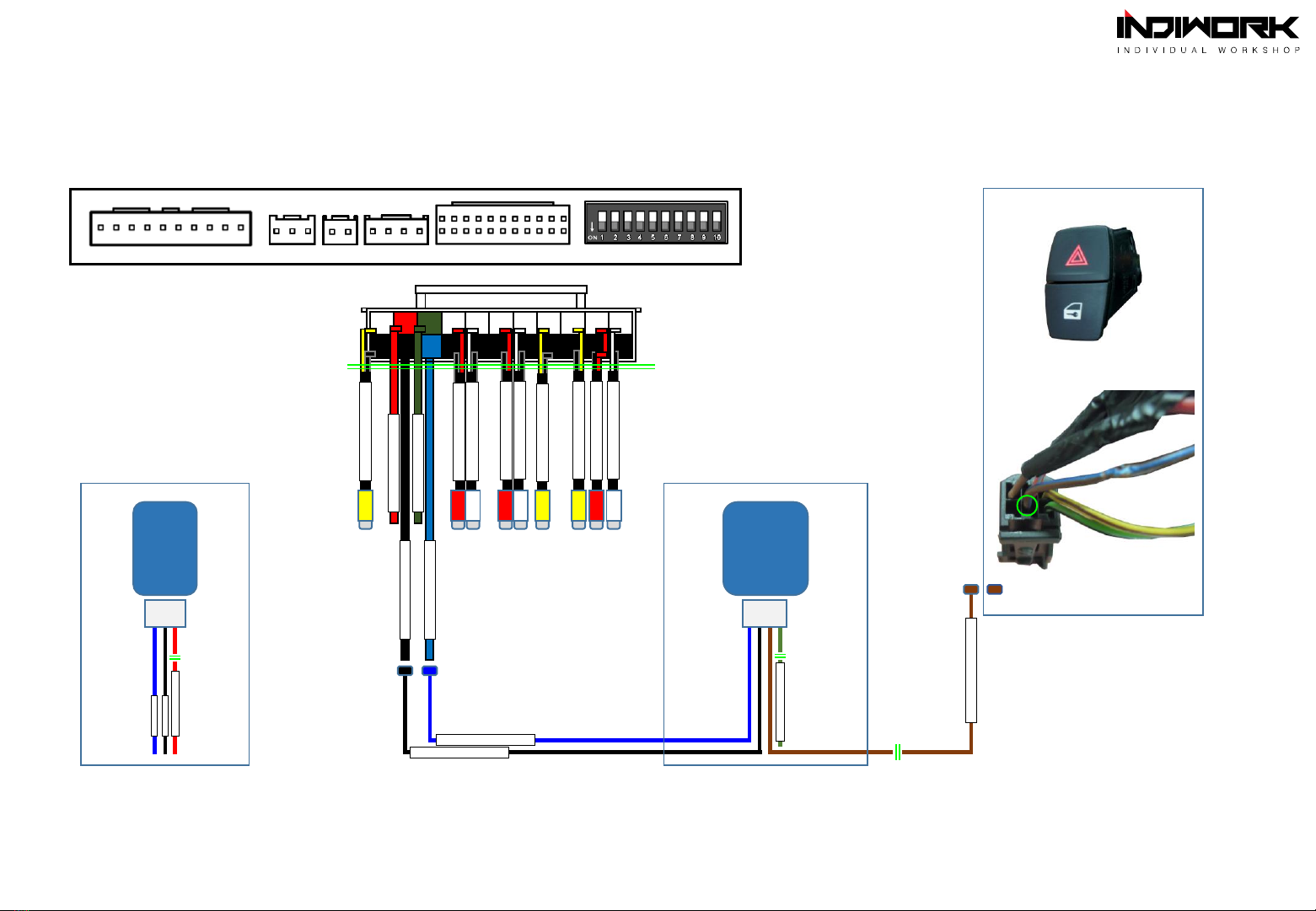

Hazard Module Connection
POWER / CAN MODE TOUCH-IN AV IN / OUT DIP SWITCH
1234 5 6 7 8 9 10 11
12 13 14 15 16 17 18 19 20 21 22
GROUND
IR OUT
REVERSE 12V IN
REAR 12V
REAR CAMERA
NAVI AUD IN R
NAVI AUD IN L
AUDIO OUT R
AUDIO OUT L
AV1 IN V
AV2 IN V
AV2 IN R
AV2 IN L
Hazard
Module
(4-Pin)
Hazard button
6-pin Hazard connector
Pin # 5 = Hazard(-) (Brown/Blue)
1 2 3
4 5 6
11
GND
IR IN
BMW/AUDI Hazard Light
(100 cm)
(20 cm)
Hazard
Module
(3-Pin)
Benz Hazard Light
(For IW04-MB14)
Old Version Module
Hazard Light
GND
IR IN
New Version Module
*Hazard Module is just available with ‘Smart Drive function of N-Link’ navigation in South Korea.

ON 1 2 3 4 5 6 7 8 9 10
12 3 4 5678910
1 BATTERY POWER INPUT
2 GND INPUT
3 GND OUTPUT
4 ACC(12V) POWER OUTPUT
5 PAS CAN HIGH
6PAS CAN LOW
7 -
8 IR OUT
9 -
10
-
CAN H
CAN L
BAT +
GROUND
NAVI 12V OUT
Push Switch
• The colors of each wires can be changed under manufacturer’s circumstance.

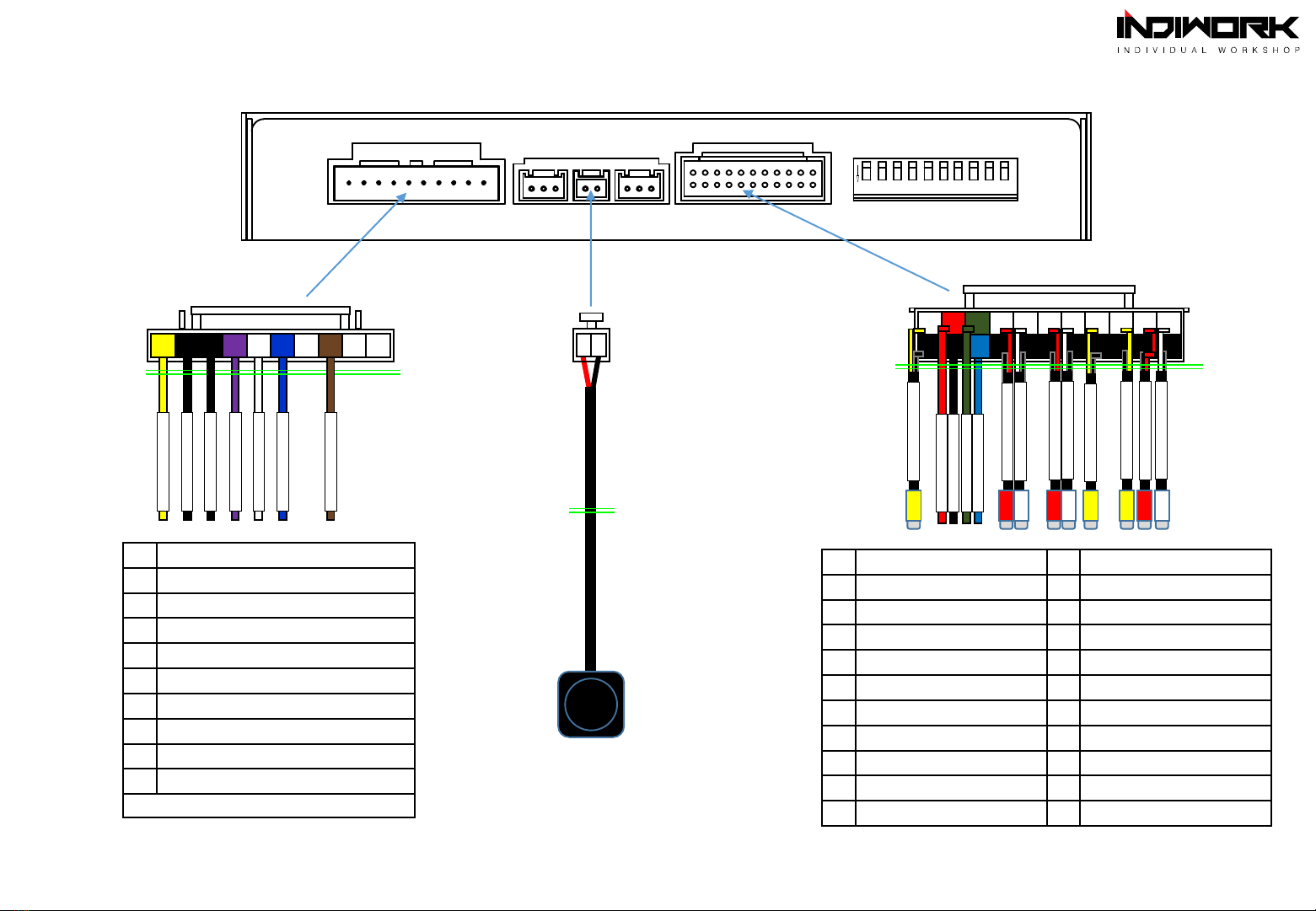

Body Connector specifications
1
2
12
Length : 100 cm
GROUND
IR OUT
12 3 4 5 6 7 8 9 10 11
12 13 14 15 16 17 18 19 20 21 22
GROUND
IR OUT
REVERSE 12V IN
REAR 12V
REAR CAMERA
NAVI AUD IN R
NAVI AUD IN L
AUDIO OUT R
AUDIO OUT L
AV1 IN V
AV2 IN V
AV2 IN R
AV2 IN L
Length : 20 cm
Length: 150 cm
1RV-CAM VIDEO INPUT
12
GND(RV-CAM VIDEO)
2RV-CAM POWER OUT
13
GND OUTPUT(RV-CAM)
3 REVERSE DETECTION
14
IR OUT
4 NAVI AUX INPUT R
15
GND(NAVI AUX IN R)
5 NAVI AUX INPUT L
16
GND(NAVI AUX IN L)
6 AUDIO OUTPUT R
17
GND(AUDIO OUT R)
7 AUDIO OUTPUT L
18
GND(AUDIO OUT L)
8 AV1 VIDEO INPUT
19
GND(AV1 VIDEO IN)
9 AV2 VIDEO INPUT
20
GND(AV2 VIDEO IN)
10
AV2 AUDIO INPUT R
21
GND(AV2 AUDIO IN R)
11
AV2 AUDIO INPUT L
22
GND(AV2 AUDIO IN L)
POWER / CAN AV IN / OUT DIP SWITCHMODE

Car Models Production
Year Specific Models
3 Series 2009 -2012 E90, E91, E92, E93
5 series 2009 E60,E61
5 series 2009-2012 F10, F11 , F07(5GT)
6 Series 2011 -2012 F12, F13
7 Series 2009 -2013 F01, F02
X1series 2009 - E84
X3 series 2011 -2013 F25
X5 series 2009 -2013 E70
X6 series 2010 -2013 E71, E72
Z4 2012 - E89
Mini 2009 - Equipped 6.5 inch screen with Visual boost
The IW04B
-N supports the BMW
original screen equipped with
‘4
-pin LVDS round connector’ only.
Please check the specification of
original LVDS connector on the
sidelines of a production year.
13
Car Compatibility Chart

1

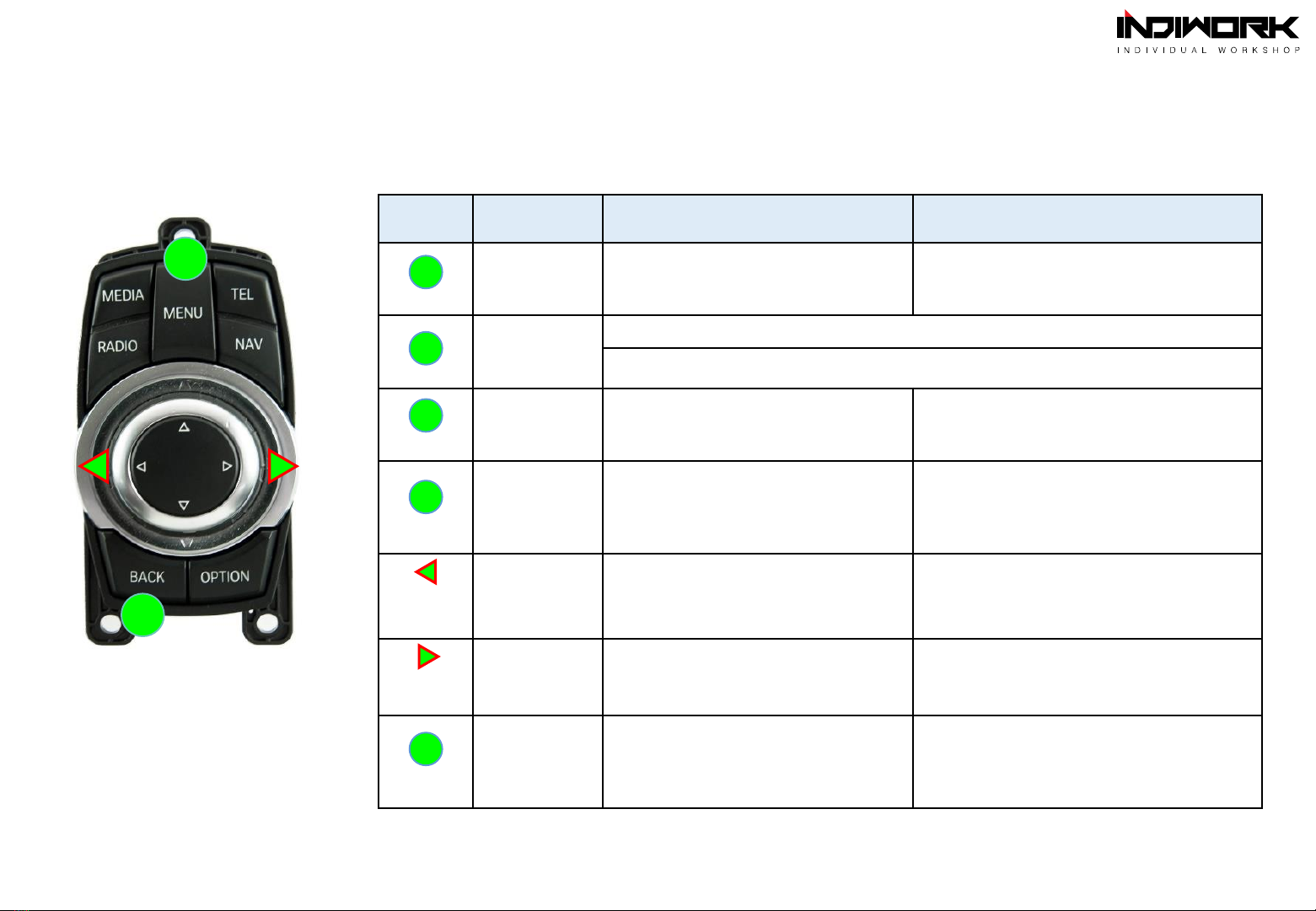

Button Function Operation Remarks
MENU
Changing
Modes Press the button 2 seconds long. Order: HDMI →NAVI →AV2 →OEM
MENU
Shortcut to
each modes
Press the button 2 times. < OEM → NAVI >
Press the button 4 times. < OEM → AV2 >
MENU Back to OEM Press the button short. Return to the OEM mode in any modes.
MENU
System
Locking /
Unlocking Press the button 10 seconds long.
If you visit car service center, you can lock
the all functions of IW04B-N.
It is only possible to use the OEM functions
under it is locked.
LEFT
PUSH
Changing
mode to Front
View Camera
mode(AV1)
Changing mode to Front View Camera
mode(AV1) Push the button left 2 seconds long.
RIGHT
PUSH
Changing
mode to
PIP(Rear)
Push the button right 2 seconds long.
(Only Rear,AV1) You can use this function only for 3 modes. (Full, PIP Mode1, PIP Mode2)
BACK
Reset to
factory default
setting and
power.
Press the button 10 seconds long. You can use this function when you get in trouble to see the screen while setting the
screen.
1
1
For BMW
2
14
1
2
1
BMW iDrive Controller

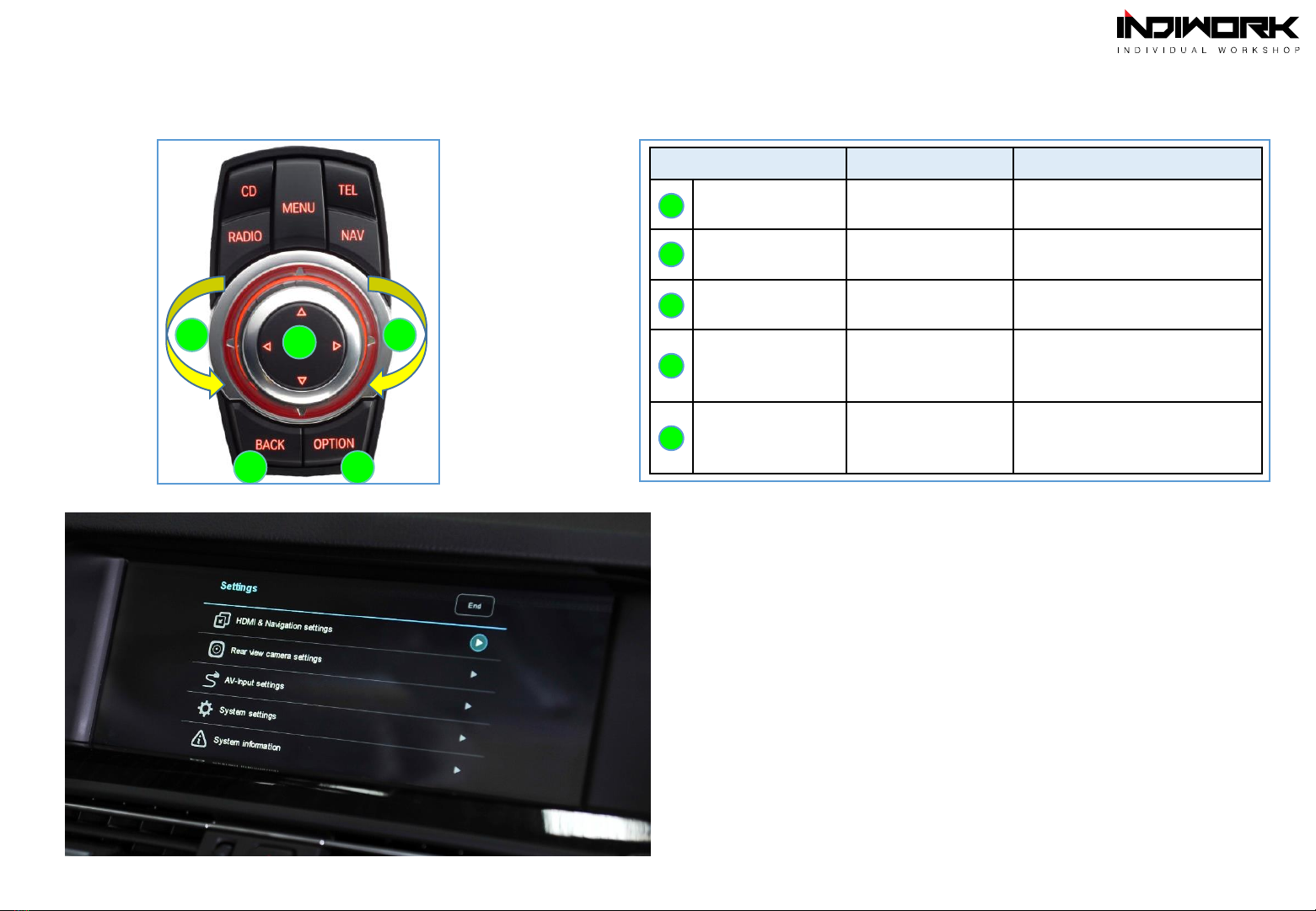

Activation by original buttons of BMW

15

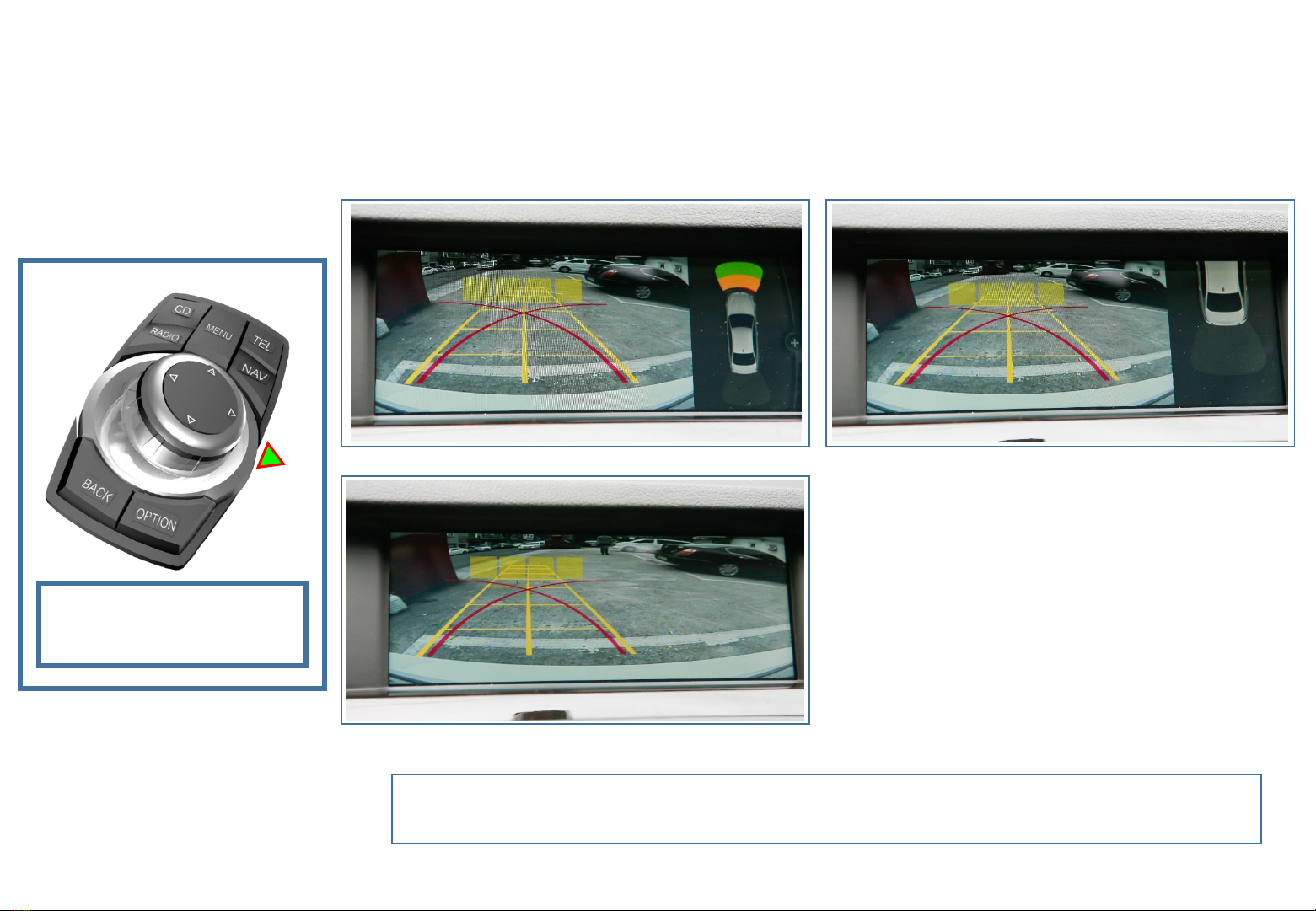

Rear View PIP
(External Rear View Camera)
1. Rear, AV1 PIP MODE
You can use this function only for 3 modes. (Full, PIP Mode1, PIP Mode2)
Push the button right 2
seconds long
!

DIP Switch Settings
Pin
No. ON(▼)OFF(▲)
1HDMI Mode Skip HDMI Mode
2Navigation Mode Skip Navigation Mode
3External Rear View Camera Original Rear View Camera
4External Front View
Camera(AV1 Mode) Skip External Front View Camera(AV1 Mode)
5AV2 Mode Skip AV2 Mode
6
Selection of car model
7
8
9
10 Connect i-drive can Connect monitor can
OFF
ON ON: ▼OFF:▲No.6 No.7 No.8 No.9 No.10 Car Models
OFF(
▲
)
OFF(
▲
)
OFF(
▲
)
OFF(
▲
)
OFF(
▲
)
5(F10),6(F12),7(F01),
5GT( F07) / 10.2inch
X5(E70),X6(E71), E60(Entire model)
/ 8.8 inch
OFF(
▲
)
OFF(
▲
)
OFF(
▲
)
OFF(
▲
)
ON(▼)5(F10), 6(F12),7(F01),5GT(F07),
(2012 ~ Connect i-drive can)
OFF(
▲
)
OFF(
▲
)
OFF(
▲
)
ON(▼)
OFF(
▲
)
2010 3(E90), X1,(E84),X3(F25), Z4(E89)
2nd Generation i-drive / 8.8 inch
OFF(
▲
)
OFF(
▲
)
OFF(
▲
)
ON(▼) ON(▼)MINI Visual Boost / 6.5 inch
16
* Among the BMW models[5 series(F10) and 5 GT(F07)] produced in 2013, most of
them are equipped with 6 pin LVDS monitor connector but some of them are
equipped with 4 pin LVDS monitor connector. Then, you should splice CAN wires
connection under the i-Drive controller, separately.

1
Button Function Operation
OPTION Enter into the
setting menu Press the button 5 seconds long.
BACK Back to previous
menu Press the button short.
Selection Select the menu
and setting values. Press the button short.
Turn the dial
counterclockwise
Move the menu-
pointer and adjust
the setting values.
Move the pointer and setting
values to up(↑) and left(←).
Turn the dial
clockwise
Move the menu-
pointer and adjust
the setting values.
Move the pointer and setting
values to down(↓) and right(→).
3
4
2
5
Settings
For BMW
17
2 1
4 5
3
1. Enter into the setting menu.
<Press the ‘OPTION’ button 5 seconds long.>
- HDMI & Navigation settings
- Rear view camera settings
-AV-input settings
- System settings
- System information

18
Settings
2. HDMI mode settings
- Mode selection: HDMI ↔ NAVI
- Image display
= Adjust the values of brightness and contrast
Red-Green-Blue colors of HDMI display.
- Screen position & size
= Entry Disabled / Not applicable.
3. NAVI mode settings
- Mode selection: NAVI ↔ HDMI
- Image display
= Adjust the values of brightness and contrast
Red-Green-Blue colors of NAVI display.
- Screen position & size
= Entry Disabled / Not applicable.
- Navigation Resolution selection
①800 X 480 ②1280 X 480

19
4. Rear view camera settings
- Parking guide lines
= Adjust position of parking guide lines and
select the lines ‘ON or OFF’.
- Parking distance control
= Adjust the position of parking distance control sensors
to ‘LEFT or RIGHT’ and select the PDC ‘ON or OFF’.
- Image display
= Adjust the values of brightness and contrast
Red-Green-Blue colors of Rear view camera display.
5. AV1(Front view camera) settings
- Mode selection:AV1(Front view camera) ↔ AV2
- Image display
= Adjust the values of brightness and contrast
Red-Green-Blue colors of AV1(Front view camera) display.
- Screen position & size
= Entry Disabled / Not applicable.
- Automatic activation function(AV1)
= * Please refer to next page.
- Parking distance control
= Adjust the position of parking distance control sensors
to ‘LEFT or RIGHT’ and select the PDC ‘ON or OFF’.
Settings

20
6. Automatic activation function(AV1)
- Shift gear from reverse to drive
- Shift gear from parking to drive
* When you shift gear ‘from reverse to drive’ or ‘from parking to drive’,
it just works automatically during the activation time you selected.
Settings
7. AV2 settings
- Mode selection:AV2 ↔ AV1(Front view camera)
- Image display
= Adjust the values of brightness and contrast
Red-Green-Blue colors of AV2 display.
- Screen position & size
= Entry Disabled / Not applicable.
