2 Concept

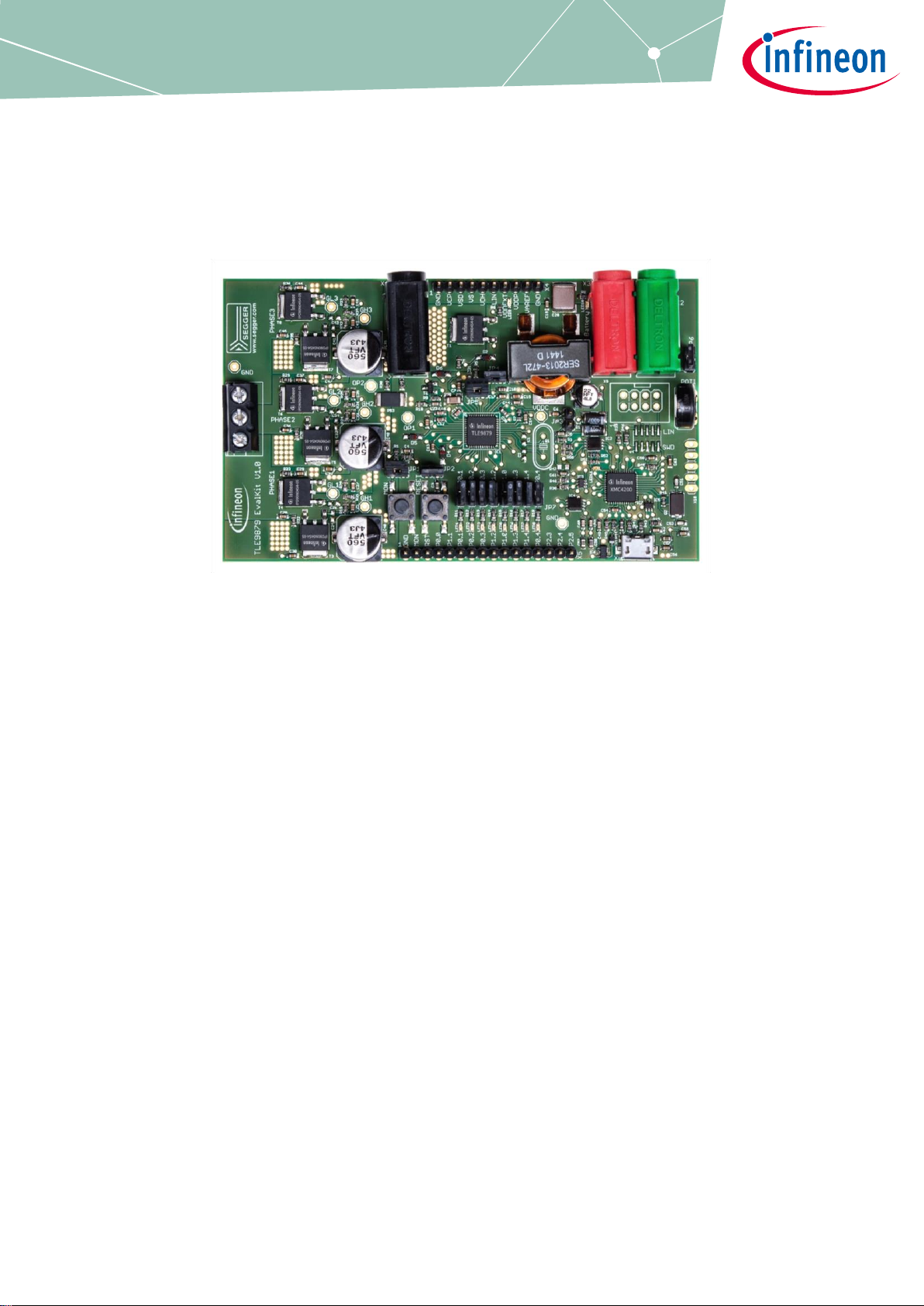

Figure 1: Board Concept
This board provides a simple, easy-to-use tool for getting familiar with Infineon’s Embedded Power IC
TLE9879QXA40 (further to be named: TLE9879). It contains the TLE9879 and its typical application circuit
including three MOSFET half bridges to drive a BLDC motor. The board is ready to connect with car supply or
similar and has an onboard J-Link debugger.
All relevant chip pins are connected to pin headers at the edge of the board, where signals can be probed or
applied directly (see Table 2, Table 3). By different jumper settings LEDs can be put in parallel to several ports
and selected functions can be configured (see Table 6). Push button switches allow easy hardware reset and
triggering of the MON input. There are intended test points for all six gate driver pins, for measurements at the
shunt, VDDC and several ground points on the evaluation board (see Figure 3). For testing analog signals ADC
inputs can be varied by the potentiometer on board. Three phases of motor current can be picked off at a
terminal block to connect a DC brushless motor.
The evaluation board can be operated by standard laboratory equipment as power supply and LIN
communication are working via banana jacks. Debugging and UART are provided via an USB interface combined
with an onboard Segger J-Link (XMC4200). Bidirectional level shifters ensure that the respective XMC pins are in
tristate as long as UART or debugging is not used.
An SWD interface is available to use another ISP than the onboard J-Link. To program the TLE9879 via LIN there
is an additional uIO BSL interface (see Table 4). There is a battery LED that indicates that the board is supplied
the right way. Otherwise reverse polarity protection secures the board from damage by cross connection.

TLE9879 EvalKit V1.4 User Manual 4
3 Interconnects
Figure 2: Interconnects
Banana jacks (marked yellow)
There are jacks in different colors for ground, supply (max.28V) and LIN communication via banana jack: GND
(black), VBAT (red), LIN (green)
Pin Ports X4 and X5 (marked red)
Soldering pin headers with 2,54mm pitch for X4 (1x10) and X5(1x16) yields test points for the TLE9879 pins. The
following signals are connected to the pins:
X4:
1
2
3
4
5
6
7
8
9
10
GND
VCP
VSD
VS
VDH
LIN
VDDEXT
VDDP
VAREF
GND
Table 2: Pin Configuration Top Line Pin Port (X4)
X5:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
GND
MON
RST
P0.0
P1.1
P0.1
P0.2
P0.3
P1.2
P1.0
P1.3
P1.4
P0.4
P2.3
P2.4
P2.5
Table 3: Pin Configuration Bottom Line Pin Port (X5)
Terminal block for connecting the motor (marked blue)
The three pins of the terminal block provide access to the three half bridges and are intended to connect a DC
brushless motor.
USB for UART and Debugging (marked green)
With this Micro USB PC and evaluation board can get connected.

TLE9879 EvalKit V1.4 User Manual 5
uIO BSL for LIN (marked orange)
For the uIO bootstrap loader an 8 pin header (2 x 4) with 2.54 mm pitch is placed on the board.
It is intended to connect additional hardware for bootstrap loading. This uIO interface can be used to program
the TLE9879 via LIN (see www.infineon.com/uio).
Table 4: Pin Configuration onboard uIO BSL
Pin Header for SWD (marked purple)
There is a 10 pin header (2x5) with 1,27mm pitch on the evaluation board. For debugging with another ISP than
the onboard Segger this interface can be used.
DBPRE will be implicitly connected to GND by connecting the external ISP. This keeps the XMC in reset state to
prevent interference of the SWD communication.
Table 5: Pin Configuration SWD Interface
5 V 1 2
3 4
5 6
7 8
GND
GND
n.c.
SWDIO (TMS)
SWCLK (P0.0)
n.c.
n.c.
910DBPRE RESET
LIN
RESET
GND
VS
NC
NC
NC
NC
1
2
3
4
5
6
7
8

TLE9879 EvalKit V1.4 User Manual 6
4Test Points
Figure 3: Test Points
The 3-phase power half-bridge is controlled by six gate driver pins, drivingthe gates of high side MOSFET and low
side MOSFET for each phase. Each gate has an intended test point to measure the respective signals at high side
gates and low side gates (GL1, GL2, GL3, GH1, GH2, GH3).
Test points OP1 and OP2 are provided at both sides of the shunt, which is 5mR.
Additionally, there is an intended test point for VDDC and various ground points.

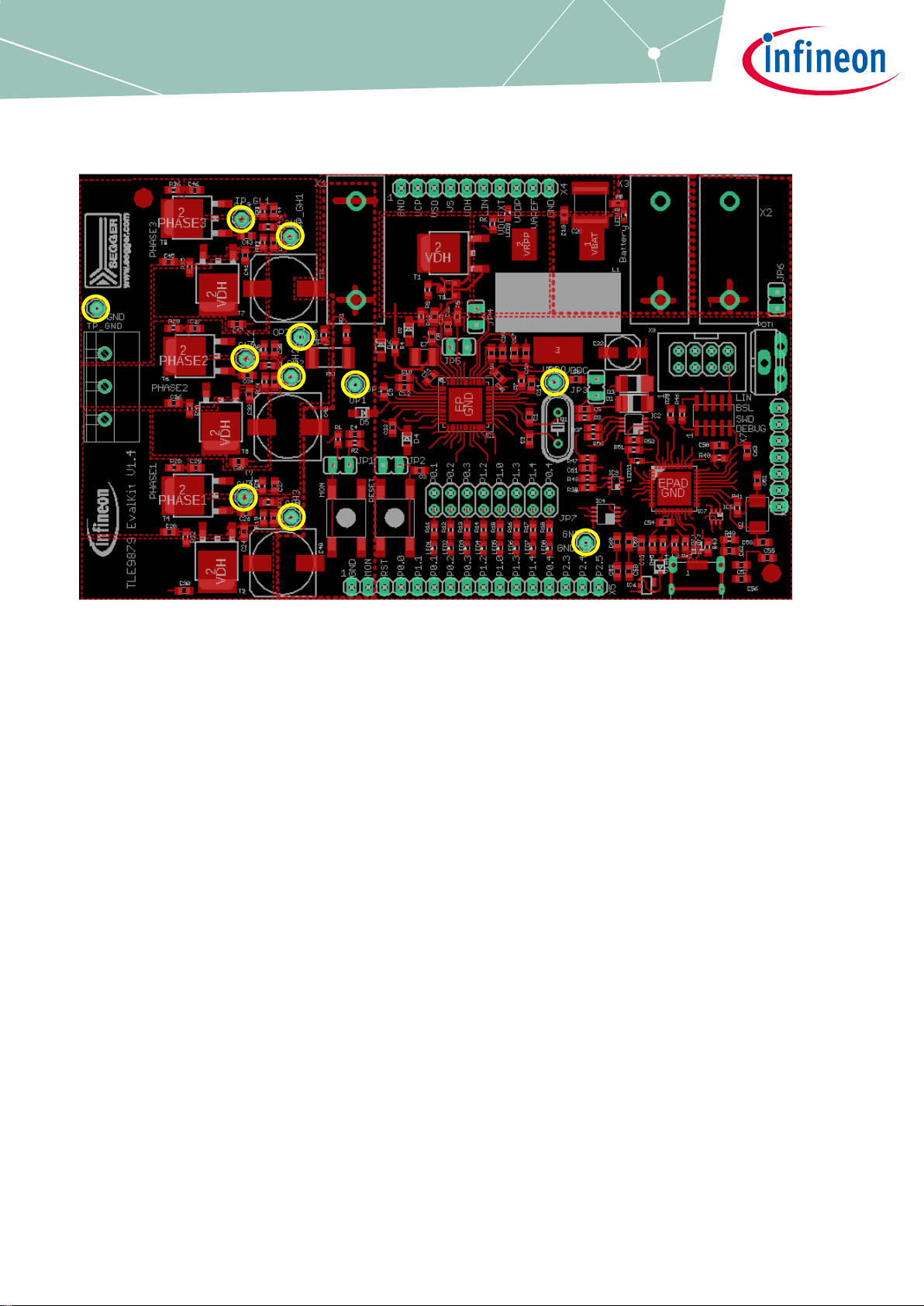

All test points marked in the following figure are not populated. In order to use these pins, they have to be
soldered in the designated solder holes.
GL3 GH3
OP2
OP1
GH2
GL1
GND
GL1 GH1
VDDC
GND

TLE9879 EvalKit V1.4 User Manual 7
5Jumper Settings
The following table summarizes the jumpers’ options. More information can be found in the text below.
JP1
Enable or disable MON button
JP2
Enable or disable RESET button
JP3
Select TLE9879 as LIN Master or LIN Slave
JP4
Connect or disconnect VAREF with VDDEXT
JP5
Replace by an ampere meter to measure input current
JP6
Enable or disable POTI
JP7
Enable or disable LED for respective GPIO
Table 6: Jumpers’ functionalities
Figure 4: Jumpers
JP1 JP2
JP3
JP4
JP5
JP6
JP7

TLE9879 EvalKit V1.4 User Manual 8
JP1: Close this jumper to connect MON button to MON input. Open it to disconnect MON button from MON input.
JP2: Close this jumper to connect RESET button to RESET input. Open it to disconnect RESET button from RESET
input.
JP3: Close this jumper to connect an additional 1k pull-up resistor. This is intended for LIN master
communication. Open the jumper to use the TLE9879 as slave in a LIN network. Software for LIN low level driver
can be found at the homepage of IHR (www.ihr.de).
JP4: Close this jumper in order to supply VAREF by VDDEXT. In case VAREF is supplied externally the user has to
take care by software that the internal VAREF is disabled. Open the jumper to use the internal VAREF which has
to be enabled by software.
JP5: This jumper is closed by default. If this jumper is left open the device is not supplied. It is intended to open
the VS line in order to measure the current flowing into the TLE9879.
JP6: Close this jumper to connect the potentiometer to P2.4. Open this jumper to disconnect the potentiometer.
JP7:Jumper 7 provides one individual jumper per LED in order to connect or disconnect the respective LED to
the pin port.
P0.1
P0.2
P0.3
P1.2
P1.0
P1.3
P1.4
P0.4
LED1
LED2
LED3
LED4
LED5
LED6
LED7
LED8
Table 7: Combinations of GPIOs and LEDs

TLE9879 EvalKit V1.4 User Manual 9
6Communication Interfaces
6.1 LIN (via Banana jack and uIO BSL)
The device integrated LIN transceiver is connected to a banana jack and also to the uIO BSL interface. To
integrate the device in a LIN network it is sufficient to use the single wire banana interface. The BSL interface is
intended to program the device via LIN. For further information about the uIO interface see
www.infineon.com/uio.
6.2 UART (via USB)
A virtual COM port provided by Segger driver enables a PC –board –communication via UART. The UART2 module
of TLE9879 uses the pins P1.1 (transmit) and P1.2 (receive). Those are connected to the XMC4200, which emulates
Rx and Tx on PC side with Segger firmware. Though they cannot be disconnected physically, bidirectional level
shifters ensure that the XMC pins are hi-Z in case the virtual COM port is not used.
By connecting the evaluation board to the PC, a virtual COM port gets emulated by the Segger driver
automatically. The port used will show up in the Microsoft®Windows®device manager.
Figure 5: UART and Debugging
Note: Only one of the interfaces USB or SWD can be used at one time. While using the SWD interface the XMC is hold
in reset. As long as a debugger is connected with the SWD interface it eliminates therefore debugging or UART via
USB.
6.3 Debugging (via USB or SWD-Interface)
For serial wire debug the TLE9879 uses the pins TMS (data) and P0.0 (clock). Level shifters between XMC4200 and
TLE9879 allow using P0.0, while it is not used for debugging.
The onboard J-Link module allows serial wire debugging via USB. An SWD interface is available in order to debug
with another ISP than the onboard J-Link e.g. U-Link2. Therefore, the signals are routed through the 10 pin
header SWD interface between the XMC4200 and the TLE9879. The pin configuration makes sure that the XMC is
hold in reset while another debugger is physically connected as DBPRE will be implicitly connected to GND by
connecting the external ISP (see Table 5).

TLE9879 EvalKit V1.4 User Manual 10
7Technical Data
Platine Size
110x66 mm
Voltage supply
max. 28V
Motor current
max. 20 A
Pin ports
5 V (GPIOs of TLE9879)
Table 8: Technical Data

TLE9879 EvalKit V1.4 User Manual 11
8Optional Additional Placements
Figure 6: Additional Placements’positions
Values for these optional additional placements have to be determined depending on application.
Q1
External Oscillator
C1
Oscillator Capacitor 1
C2
Oscillator Capacitor 2
R22
Resistance Snubber High side MOSFET Phase 1
C28
Capacitor Snubber High side MOSFET Phase 1
C24
Gate Drain Capacitor High side MOSFET Phase 1
R23
Resistance Snubber Low side MOSFET Phase 1
C29
Capacitor Snubber Low side MOSFET Phase 1
C26
Gate Drain Capacitor Low side MOSFET Phase 1
R28
Resistance Snubber High side MOSFET Phase 2
C36
Capacitor Snubber High side MOSFET Phase 2
C32
Gate Drain Capacitor High side MOSFET Phase 2
R29
Resistance Snubber Low side MOSFET Phase 2
C37
Capacitor Snubber Low side MOSFET Phase 2
C34
Gate Drain Capacitor Low side MOSFET Phase2
R35
Resistance Snubber High side MOSFET Phase 3
C45
Capacitor Snubber High side MOSFET Phase 3
C41
Gate Drain Capacitor High side MOSFET Phase 3
R36
Resistance Snubber Low side MOSFET Phase 3
C46
Capacitor Snubber Low side MOSFET Phase 3
C43
Gate Drain Capacitor Low side MOSFET Phase 3
Table 8: Additional Placements
Q1
C2
C1
C28
R22 C24
C26
C29
C36 C32
R23
R28
C34
R29 C37
R35
C45 C41
C43
C46R36

TLE9879 EvalKit V1.4 User Manual 12
9Changes with v1.3: Schematic
Pin P2.0 and pin P2.2 were swapped in the schematic.

TLE9879 EvalKit V1.4 User Manual 13
10 Schematics and Layout

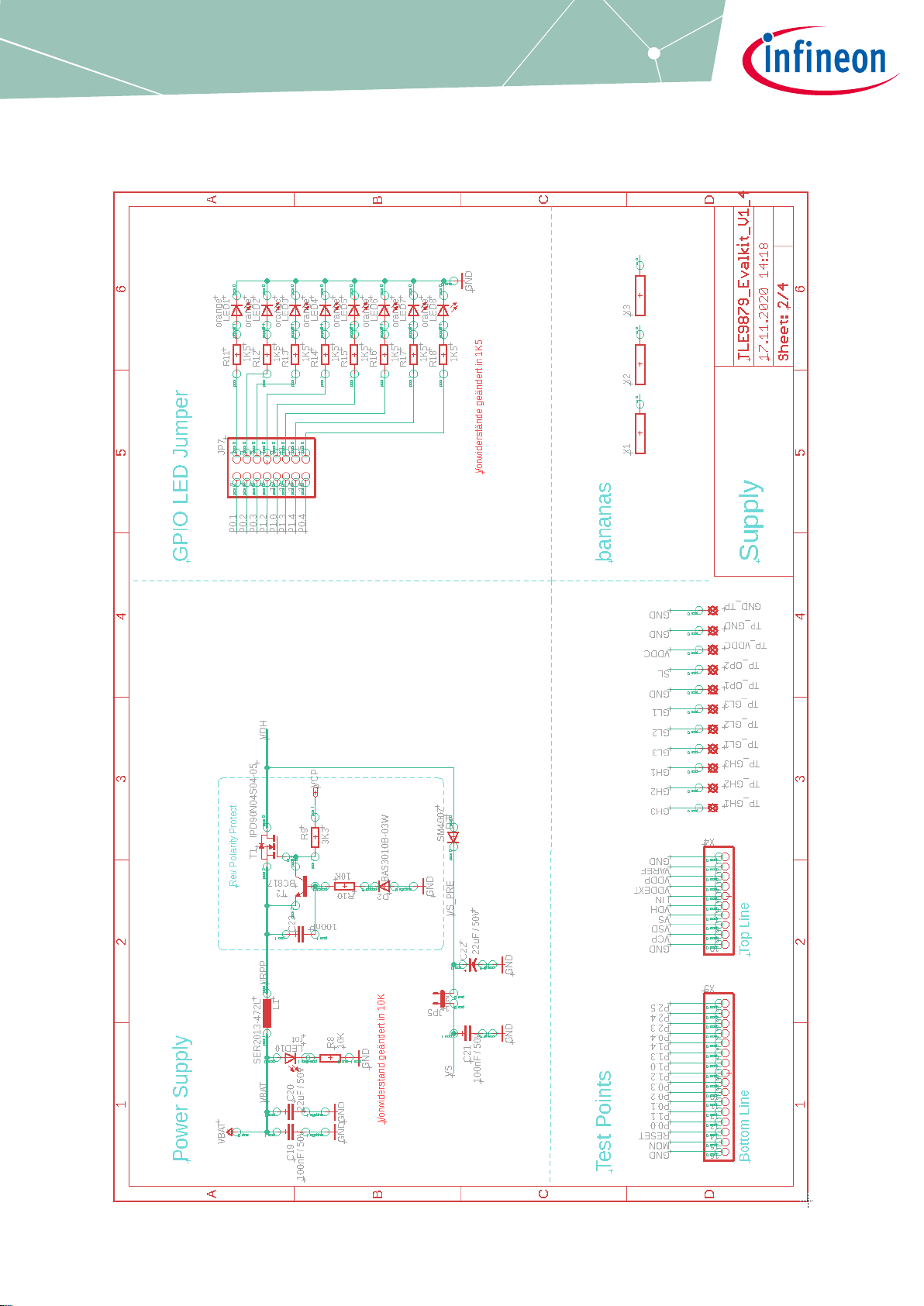

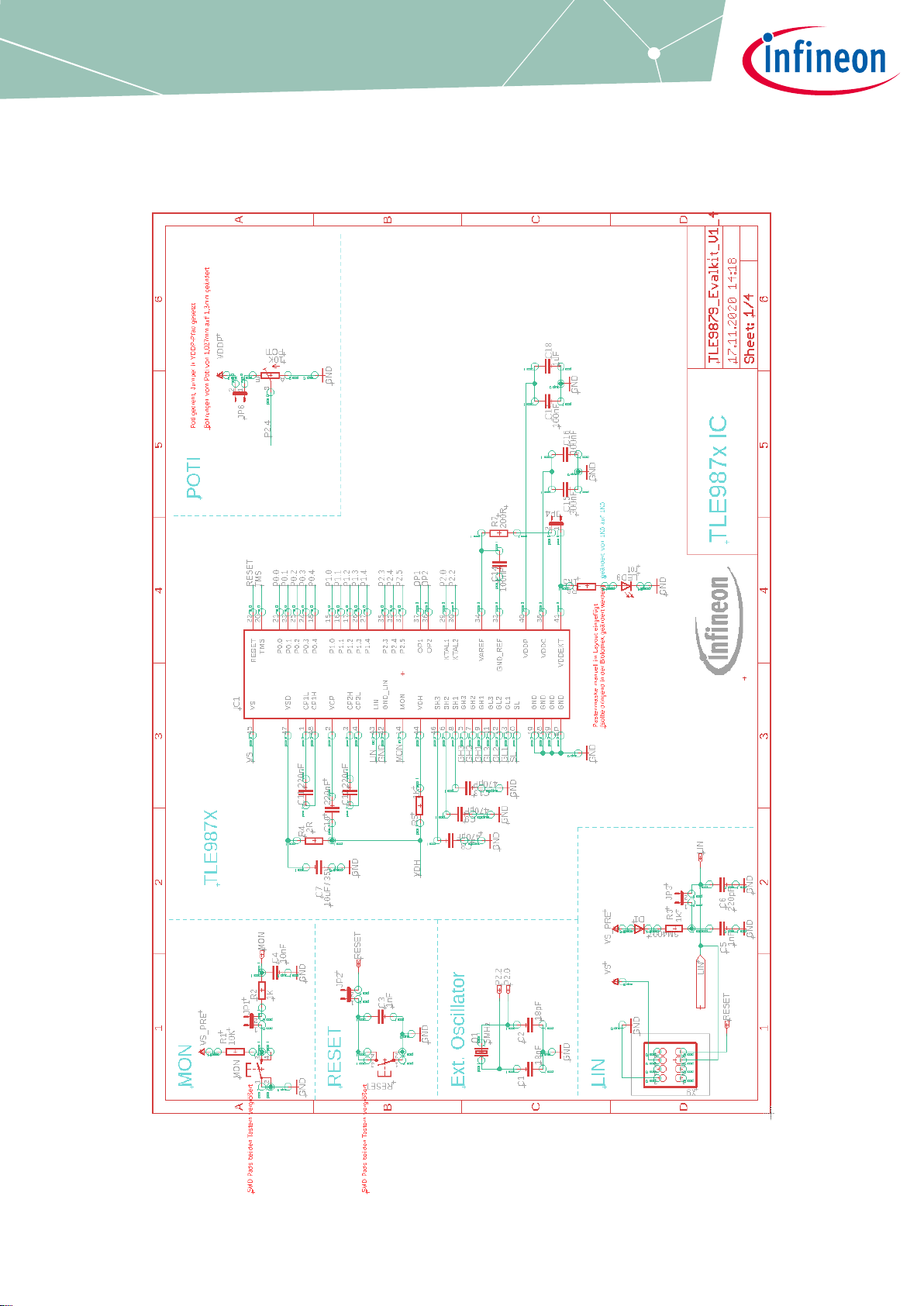

10.1 Schematic

TLE9879 EvalKit V1.4 User Manual 14

TLE9879 EvalKit V1.4 User Manual 15

TLE9879 EvalKit V1.4 User Manual 16

TLE9879 EvalKit V1.4 User Manual 17

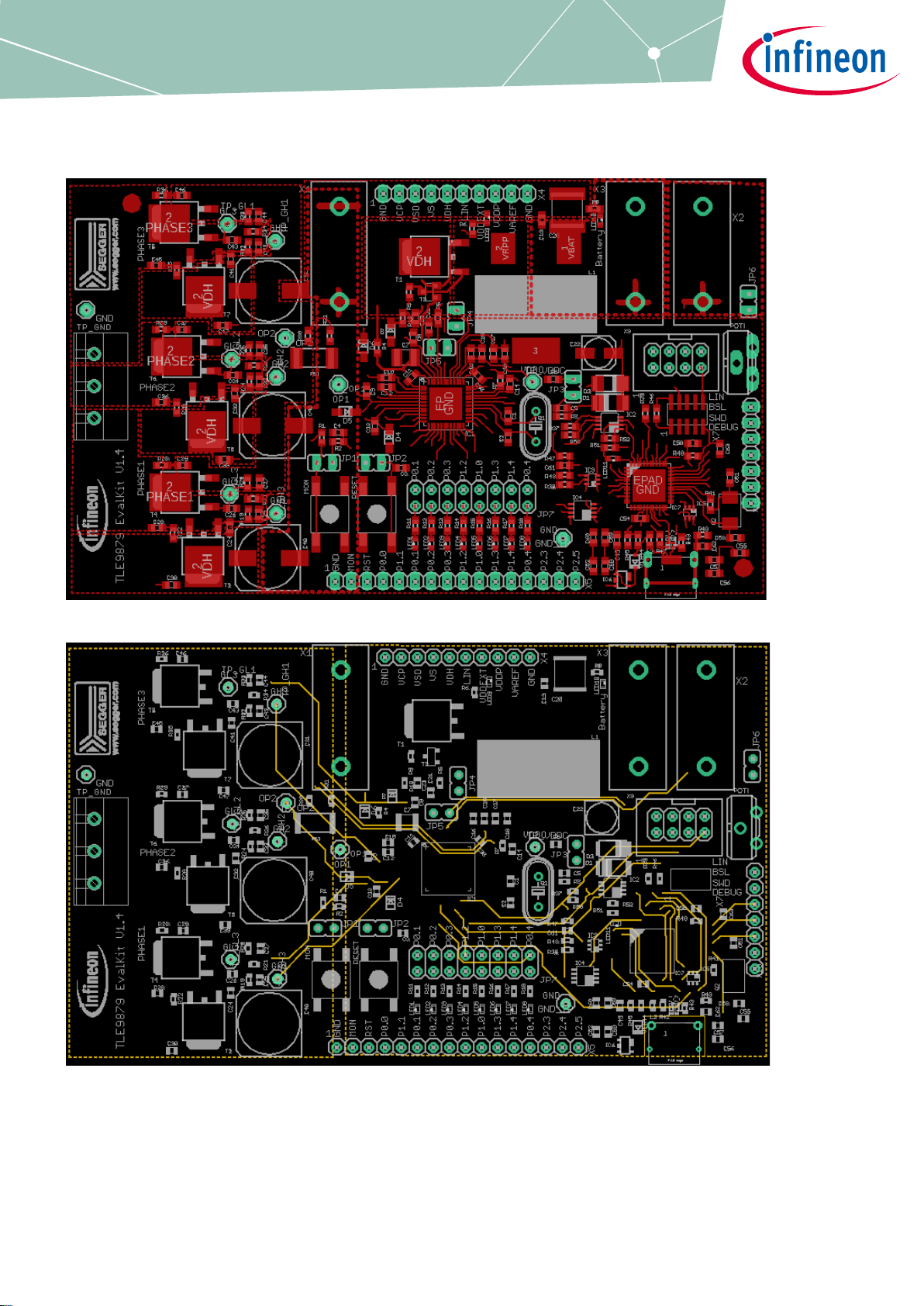

10.2 Layout
Top Layer
Layer 2

TLE9879 EvalKit V1.4 User Manual 18
Layer 3
Bottom Layer
