INNOSTREAM INNO-P11 User manual

INNO-P11 User’s Guide INNOSTREAM Confidential
PAGE : 1 of 97
INNO-P11 User manual
GPRS MEGA PIXEL CAMERA & MUSIC PHONE SERIES
COMPACT SIZE INTENNA SLIDE TYPE
TFT 262,000 MAIN SCREEN
1.3 MEGA PIXEL DIGITAL CAMERA
MP3 MUSIC PLAYER
MMS, JAVA, WAP 2.0
VIS / MSF

INNO-P11 User’s Guide INNOSTREAM Confidential
PAGE : 2 of 97
Contents
1.BEFORE YOU START
1.1 PHONE LAYOUT AND ICONS.........................................................................................................
1.2 KEYS DESCRIPTION ....................................................................................................................
1.3 QUICK SILENCE MODE.................................................................................................................
1.4 USING THE NAVIGATION KEYS.....................................................................................................
1.5 USING THE EARPHONE................................................................................................................
1.6 DISPLAY IN THE IDLE SCREEN......................................................................................................
1.7 USING THE KEYPAD LOCK FEATURE.............................................................................................
2.GETTING STARTED....................................................................................................................
2.1 HOW TO ATTACH THE BATTERY..................................................................................................
2.2 HOW TO REMOVE THE BATTERY ..................................................................................................
2.3 HOW TO CHARGE THE BATTERY ..................................................................................................
2.4 HOW TO PLACE THE SIM CARD ....................................................................................................
2.5 HOW TO REMOVE THE SIM CARD ..................................................................................................
2.6 HOW TO SWITCH YOUR PHONE ON AND OFF ..................................................................................
2.7 HOW TO USING MASS STORAGET .................................................................................................
3. SECURITY CODES ......................................................................................................................
3.1 PIN ..........................................................................................................................................
3.2 PUK..........................................................................................................................................
3.3 PIN2.........................................................................................................................................
3.4 PUK2........................................................................................................................................
3.5 SIM LOCK CODE .........................................................................................................................
3.6 LOCK CODE ...............................................................................................................................
3.7 PASSWORD ................................................................................................................................
4. MAKING AND RECEIVING A CALL............................................................................................
4.1 MAKING A CALL .........................................................................................................................
4.2 ANSWERING A CALL ...................................................................................................................
4.3 MAKING THE EMERGENCY CALL...................................................................................................
4.4 MAKING AN INTERNATIONAL CALL ..............................................................................................
4.5 ENTERING A "PAUSE" CHARACTER IN A DIAL STRING .....................................................................
4.6 NOTIFICATION OF MISSED CALL...................................................................................................
5. IN-CALL OPTIONS .....................................................................................................................
5.1 PUTTING A CALL ON HOLD/UNHOLD ............................................................................................
5.2 MAKING A SECOND CALL.............................................................................................................
5.3 SWAPPING BETWEEN ACTIVE CALLS AND HELD CALLS...................................................................
5.4 ANSWERING A SECOND INCOMING CALL........................................................................................
5.5 ADJUSTING THE EARPIECE VOLUME .............................................................................................
5.6 MUTING THE MICROPHONE .........................................................................................................
5.7 SENDING DTMF ..........................................................................................................................
5.8 STORING A NUMBER ON THE SCRATCHPAD ...................................................................................

INNO-P11 User’s Guide INNOSTREAM Confidential
PAGE : 3 of 97
5.9 USING THE SMS FUNCTION
5.10 USING THE LOUDSPEAKER ...................................................................................................
5.11 MAKING A CONFERENCE CALL.........................................................................................
5.12 RECORD SPEECH
6. PHONEBOOK...............................................................................................................................
6.1 STORING A PHONE NUMBER WITH A NAME....................................................................................
6.2 QUICK SEARCHING FOR A NUMBER IN THE PHONEBOOK..................................................................
6.3 STORING A NUMBER OF THE RECENT CALLS TO THE PHONEBOOK ...................................................
6.4 SPEED LIST ...............................................................................................................................
6.5 USING THE PHONEBOOK OPTIONS ................................................................................................
7. TEXT EDITING ...........................................................................................................................
7.1 INPUT MODE.............................................................................................................................
7.2 T9 ABC INPUT MODE ................................................................................................................
7.3 MULTI-TAP INPUT MODE...........................................................................................................
7.4 NUMERIC INPUT MODE...............................................................................................................
7.5 SYMBOLS INPUT MODE ..............................................................................................................
7.6 T9 LANGUAGE INPUT MODE ..............................................................................................
7.7 TEMPLATE INPUT MODE
8. THE MENU MAP.........................................................................................................................
9. THE MENU FUNCTIONS............................................................................................................
9.1 MESSAGES
(SMS, MMS, E-mail, Voicemail, Broadcast)
9.2 CALL RECORDS
(Dialled Calls, Received Calls, Missed Calls, Delete Records, Cost & Duration, Data Counter)
9.3 PHONE SETTING
(Own Numbers, Language, Sound Setting, Display Setting, Clock Setting, Call Setting, Data
Connections, IrDA , Security Setting, Navi-key Setting)
9.4 CAMERA & MEDIA
(Camera, Camcorder, MP3, Vis Storage, File Manager,)
9.5 ORGANISER
(Calendar, View Today Report, Alarm, Memo, Template, Lady Schedule, Expense Diary)
9.6 NETWORK SERVICE
(Call Divert, Call Barring, Call Waiting, Caller Identity, Closed User Group, Network Selection)
9.7 GAME & UTILITY
(Games, Java, Electronic Dictionary, Tools, Utilities,)
9.8 INTERNET
(Home, Resume, Bookmarks, Push Messages Inbox, Settings, History, Go To Address)
9.9 SIM AT SERVICE
10. VIS
11. DATA AND FAX........................................................................................................................
12. PHONE AND BATTERY CARE .................................................................................................
13. TROUBLE SHOOTING ..............................................................................................................
14. GLOSSARY ................................................................................................................................
15. SAFETY INFORMATION...........................................................................................................

INNO-P11 User’s Guide INNOSTREAM Confidential
PAGE : 4 of 97
16. INDEX ........................................................................................................................................

INNO-P11 User’s Guide INNOSTREAM Confidential
PAGE : 5 of 99
1. Before You Start
1.1 Phone Layout and Icons
The following illustration shows the main elements of your phone.

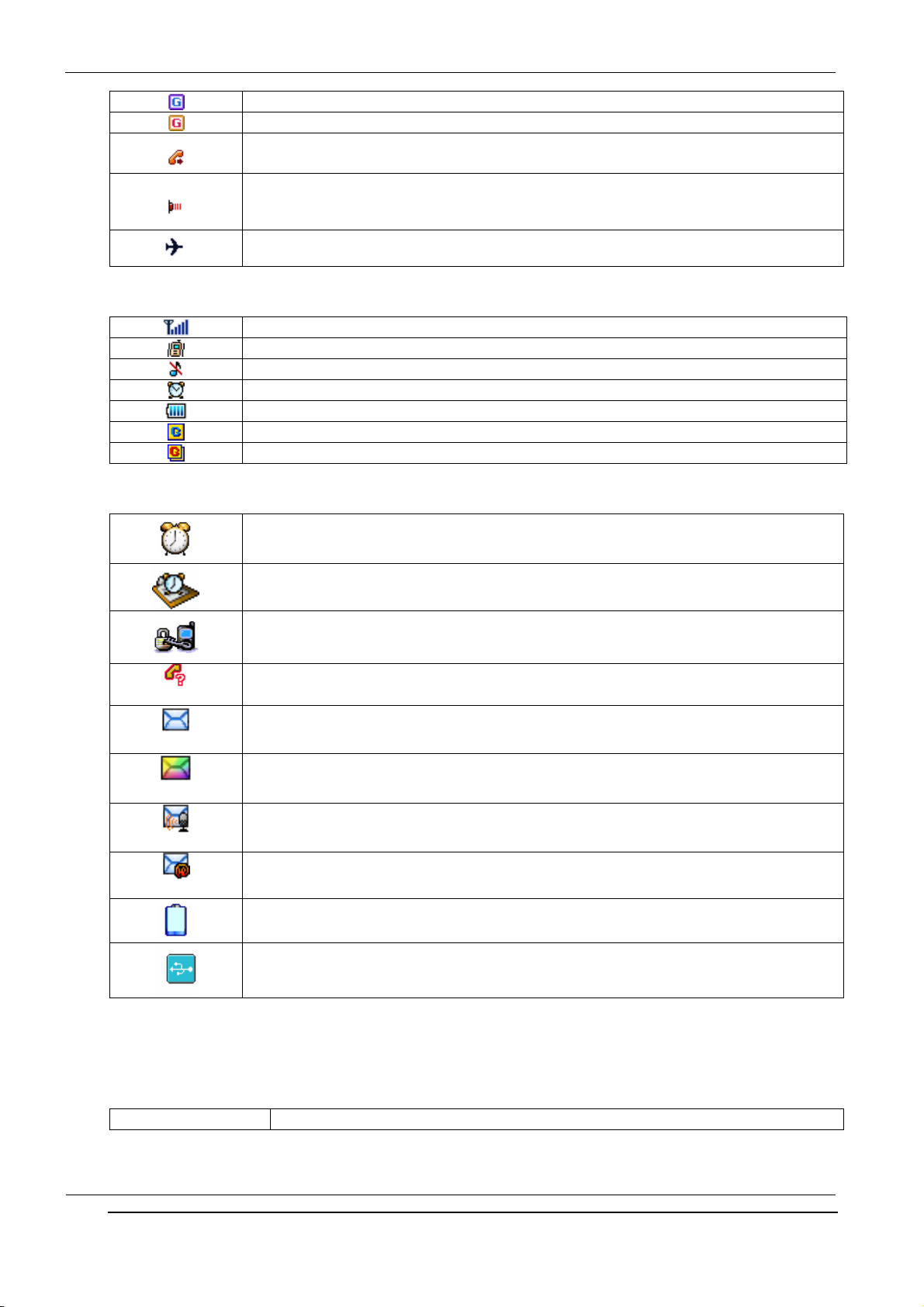

< Icons in the main display screen >
Shows the received signal strength. The larger the number of bars, the better
the signal strength.
Appears when a new text message has been received
Appears when you have messages waiting in voice mail
Appears when vibrator is selected as ring tone type.
Appears when an alarm clock is enabled.
Appears when the phone is out of your home network area and the phone is
registered to the network other than its home service (i.e. when travelling in
other countries with GSM service)
Shows the level of battery status. The more bars you see, the more power
battery has left.
Indicates that your phone is on the quick silence mode.
If your phone is in the quick silence mode, all audible key tones are muted
and all audible alerts are changed to vibrator alert.
Appears when a PUSH message has been received
Main Display
Screen
Soft Ke
y
(
left
)
SEND Ke
y
Number and
Alpha Keys
Soft ke
y
(
Ri
g
ht
)
NavigationKeys
END Ke
y
Slide Ke
y
Micro External Socke
t

INNO-P11 User’s Guide INNOSTREAM Confidential
PAGE : 6 of 99
Appears when your phone is registered to a GPRS network.
Appears when there is an active GPRS connection.
Appears when your phone is connected to a GPRS modem.
Appears when infrared port is active for receiving file and ready for using
modem via infrared port.
Appears when Flight Mode is turned on
< Icons in the LCD display screen >
Shows the received signal strength.
Appears when vibrator is selected as ring tone type.
Indicates that your phone is on the quick silence mode.
Appears when an alarm clock is enabled.
Shows the level of battery status.
Appears when your phone is registered to a GPRS network.
Appears when there is an active GPRS connection.
< Event images in the LCD display screen >
Appears when an alarm is expired.
Appears when the alarm of scheduler is expired.
Indicates that your phone is under security code checking after power up.
1 Appears when a missed call has occurred.
1
Appears when a new text message has been received
1 Appears when a new MMS message has been received
1
Appears when you have messages waiting in voice mail
1 Appears when a new PUSH message has been received
Indicates that the battery level of your phone is low.
Indicates that your phone is plugged in USB cable in case of Mass Storage.

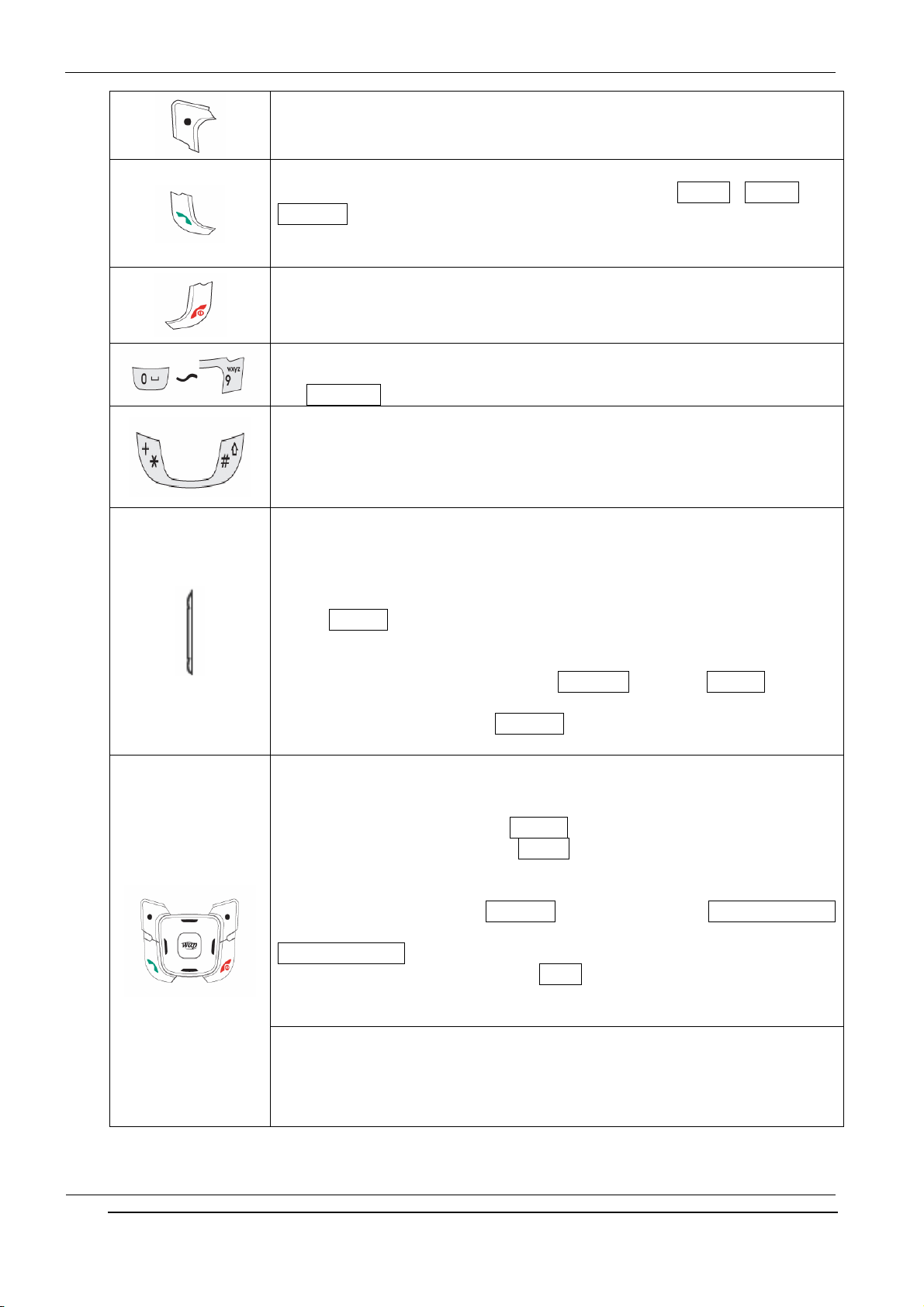

Keys Description
Key Description

INNO-P11 User’s Guide INNOSTREAM Confidential
PAGE : 7 of 99
Performs the functions indicated by the text in the bottom line of the
display screen above those keys.
Makes or answers a call.
In the idle mode, launches the recent calls list.(Dialled, Missed and
Received )
In the menu, selects menu function or stores information that you have
entered (such as a name) in the phone or SIM memory.
Ends a call.
Also switches the phone ON or OFF when pressed and held.
In the menu, returns to the idle mode or cancels your input.
Enters numbers, letters and some special characters.
By pressing and holding [ 1 ] in the idle mode, you can directly listen to
the Voicemail.
In the idle mode, enters special dial characters.
Enters ‘ +’ (International Indicator) or ‘ P’ (Pause) when pressed and
held
Whilst you are playing the game, these keys are used for adjusting the
game melody volume.
(on the left side of phone)
During a call, adjust the earpiece volume.
During a game, adjust the game melody volume.
[VOL-UP]
It switches between the quick silence mode and previous profile you have
set on Profiles menu when pressed and held in the idle mode.
[VOL-DOWN]
In the idle mode, displays the today’ s date, day and time for short time.
And in the idle mode, launches the Still Shot menu of Camera menu or
switch on the flash if you press and hold while the folder is closed.
For more details, please see Still Shot menu in section 9.
!Note : Prolong usage of flash leads rapid consumption of battery.
In the editing mode, moves the cursor.
In the menu, moves the menu cursor.
In the idle mode, each key has following functionality.
[NAVI-LEFT] : launches the Camera menu.
[NAVI-RIGHT] : launches the Games menu.
During a call, [NAVI-LEFT] and [NAVI-RIGHT] change the call focus on
the multiple calls state.
[NAVI-UP] : launches the My Menu list, and launch the My Menu Setting
menu if you press and hold [NAVI-UP] key. For more details, please see
My Menu Setting menu in section 9.
[NAVI-DOWN] : launches the Inbox message lists of all kinds of
message.
During a call, [NAVI-UP] and [NAVI-DOWN] adjust the earpiece volume.
[NAVI-CENTRE]
In the editing mode, launches the editing mode selection menu.
In the menu, selects the menu on which menu cursor is.
In the idle mode, accesses the WAP site.
1.3 Quick Silence Mode

INNO-P11 User’s Guide INNOSTREAM Confidential
PAGE : 8 of 99
You can switch the sound/alert mode of your phone by just pressing and holding the [VOLUME-
UP] on the idle screen. icon on the top of the main display screen or icon on the top of
the display screen indicates that your phone is under the quick silence mode status.
If your phone is in the quick silence mode, all audible key tones are muted and all audible alerts
are changed to vibrator alert.
You can return to previous profile setting by pressing and holding the [VOLUME-UP] again.
1.4 Using the Navigation Keys
To use the navigation keys appropriately.

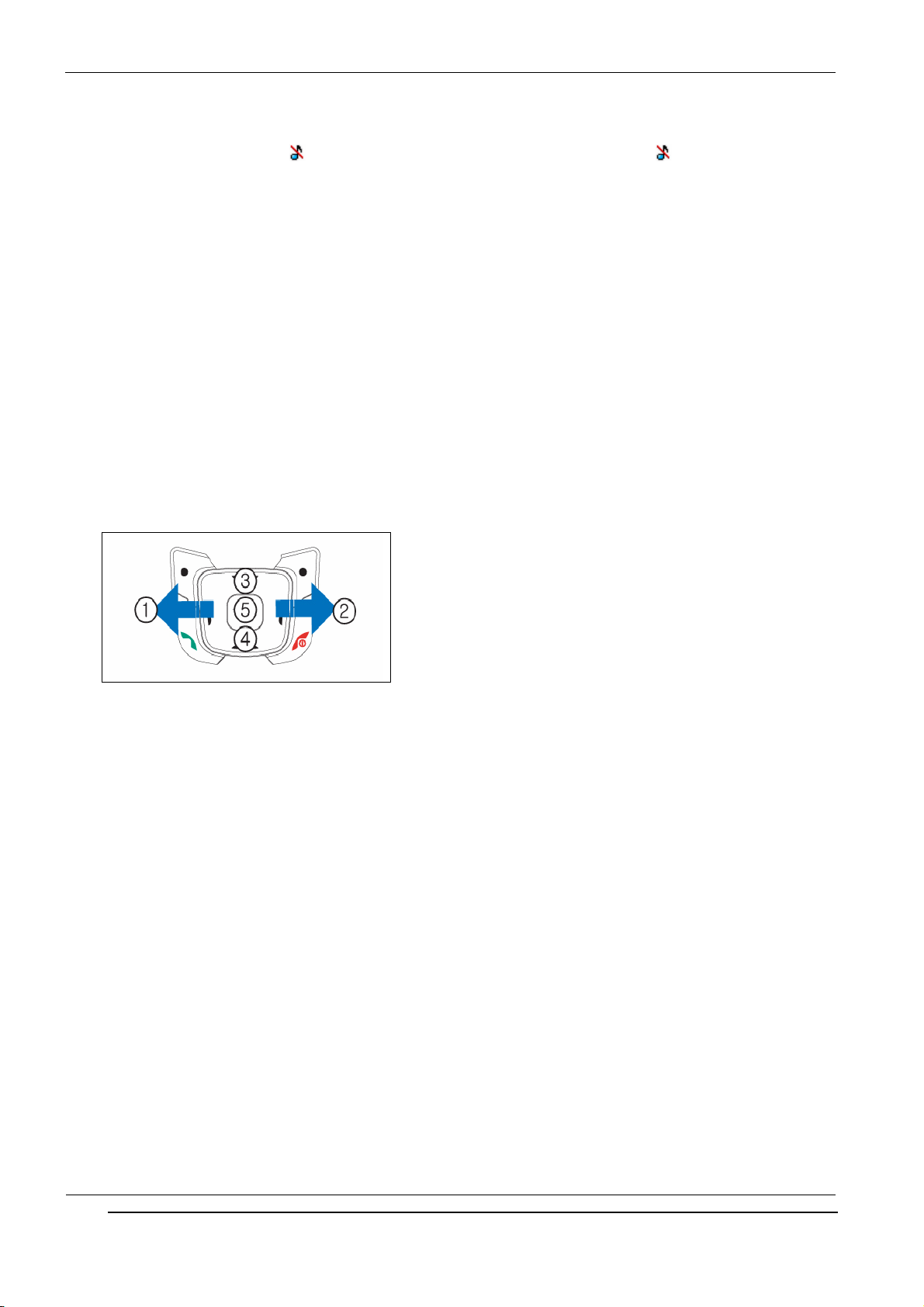

1. [NAVI-LEFT] : Push the left side of the navigation key bar to left direction.
2. [NAVI-RIGHT] : Push the right side of the navigation key bar to right direction.
3. [NAVI-UP] : Push the up side of the navigation key bar to up direction.
4. [NAVI-DOWN] : Push the down side of the navigation key bar to down direction.
5. [NAVI-CENTRE] : Push the navigation key bar down.
1.5 Using the Earphone
If you insert the earphone to the jack on the left side of your phone, you can use it in the same
way as your phone’ s earpiece and microphone.
You can answer or end a call by pressing the hook button on the earphone.
When new waiting call is come whilst you are in a call, you can answer the waiting call by
pressing the hook button on the earphone. (The first call will be held automatically)
You can make the last number dialled call in the idle screen by pressing the hook button on the
earphone. The last number dialled is launched by pressing the hook button, and then the call will
be made by pressing the hook button again.

INNO-P11 User’s Guide INNOSTREAM Confidential
PAGE : 9 of 99
1.6 Display Screens in the Idle Mode
< Main Display Screen >
Å Icon Area
Å Network Status or Event Area
Å Broadcast and Digital Time Area
Å Function Key Area
The background image is displayed according to the setting of Wallpaper menu. Please see
Section 9 for details. You can set the background image from Sample Image, Photo Album,
Image File, Mflash Folder or Video Folder menu.
Icon Area:
9 icons such as Signal Level, GPRS, SMS, Vibrator, Alarm, Roaming, Battery Level, PUSH
and Voicemail are displayed indicating the phone status.
If the quick silence mode is enabled, icon will appear in the Vibrator icon’ s place.
If there is an active GPRS connection, icon will appear in the GPRS icon’ s place.

INNO-P11 User’s Guide INNOSTREAM Confidential
PAGE : 10 of 99
If Travel Charger is inserted, the Battery icon will be scrolled.
Network Status or Event Area:
Network name registered is displayed. If Network Name Display menu is set to Off, the network
name is not displayed even though your phone is registered to any GSM or GPRS network.
If there is not any GSM or GPRS network near the location you are, No Service is displayed.
If you are in the coverage of a GSM or GPRS network but you are not allowed to be registered
to the network, Emergency Only is displayed.
If an event is occurred, an adequate big event icon is displayed.
! Note: If Network Name Display menu is set to Off, the network name is not displayed even
though your phone is registered to any GSM or GPRS network.
Broadcast and Digital Time Area:
If you set to get the broadcast message from the network, you can see it on this area of the idle
screen. For details of how to activate and deactivate it, please see Broadcast menu in Section 9.
In this case, the User Selectable Area updates the received broadcast messages. If you want to
go back to default screen, press [END].
The digital time is displayed at the right bottom place in this area. If Clock Display menu is set
to Off, the digital time is not displayed.
! Note: The broadcast message service may not be available on all networks.
Function Key Area:
The functions assigned to right soft key and left soft key are displayed.
If you press [VOLUME-DOWN], current date, day and time is displayed at this area for short
time.
2. Getting Started
NOTE :
Please never detach the battery from your mobile whilst your phone is alive. To turn off your
phone, please press and hold down only until you see the power-off animation.
Please use only approved batteries and chargers.
2.1 How to attach the battery
1. Align the bottom of the battery down into the holes in the bottom of the phone.
2. Then sit the battery on the back of the aligned until it clicks into place.
