Inovance GL20-4AD User manual

*PS00004945A01*

‑1‑
Preface
■ About This Guide
GL20‑4AD series 4‑channel analog input module supports voltage and current input
with a 16‑bit resolution, and can be used together with a PLC master such as Easy
series.
This guide describes the mechanical installation, electrical installation and
programming examples of the product.
■ More Data
Data Name Data Code Description
GL20‑RTU‑ECT
Communication Interface
Module User Guide
PS00004985 This guide describes the installation,
wiring and more of the product.
■ Revision History
Date Version Description
June 2022 A01 Minor corrections
March 2022 A00 First release.
■ How to Obtain
This guide is not delivered with the product. You can obtain the PDF version by the
following method:
●Log in to Inovance's website (
http://en.inovance.cn/
), choose Support >
Download, search by keyword, and then download the PDF file.
●Scan the QR code on the product with your mobile phone.
■ Warranty Agreement
The warranty period of the product is 18 months as of the date of manufacture (refer
to the barcode on the equipment). If otherwise agreed upon, the agreed terms and
conditions shall prevail. After 18 months, a proper maintenance fee is charged.
Within the 18‑month warranty period, a reasonable repair fee will be charged for
damages caused by the following:
●Operations not following the user instructions
●Fire, flood, or abnormal voltage

‑2‑
●Use of the product for non‑recommended functions
●Use of the product outside the scope of intended use
●Force majeure such as natural disasters, earthquake, lightning strike
The maintenance fee is charged according to the latest Price List of Inovance. If
otherwise agreed upon, the agreed terms and conditions shall prevail.
For details, see Product Warranty Card.

‑3‑
Safety Instructions
■ Safety Precautions
1. Read and comply with the safety instructions during installation, operation, and
maintenance on the equipment.
2. To ensure the safety of humans and the products, follow the marks on the products
and all the safety instructions in this document.
3. The “CAUTION,” “WARNING,”and "DANGER”signs are only supplements to the safety
instructions.
4. Use this equipment according to the designated environment requirements.
Damage caused by improper use is not covered by warranty.
5. Inovance shall take no responsibility for any personal injuries or property damage
caused by improper use.
■ Safety Levels and Definitions
: Indicates that failure to comply with the notice will result in severe
personal injuries or even death.
: Indicates that failure to comply with the notice may result in severe
personal injuries or even death.
: Indicates that failure to comply with the notice may result in minor or
moderate personal injuries or damage to the equipment. Please keep this guide well
so that it can be read when necessary and forward this guide to the end user.
During Control System Design
●Provide a safety circuit outside the PLC so that the control system can still work safely
once external power failure or PLC fault occurs.
●Add a fuse or circuit breaker because the module may smoke or catch fire due to long‑
time overcurrent caused by operation above rated current or load short‑circuit.

‑4‑
●An emergency stop circuit, a protection circuit, a forward/reverse operation interlocked
circuit, and a upper position limit and lower position limit interlocked circuit must be set
in the external circuits of PLC to prevent damage to the machine.
●To ensure safe operation, for the output signals that may cause critical accidents, design
external protection circuit and safety mechanism;
●Once PLC CPU detects abnormality in the system , all outputs may be closed; however,
when a fault occurs in the controller circuit, the output may not be under control.
Therefore, it is necessary to design an appropriate external control circuit to ensure
normal operation;
●If the PLC output units such as relays or transistors are damaged, the output may fail to
switch between ON and OFF states according to the commands;
●The PLC is designed to be used in indoor electrical environment (overvoltage category II).
The power supply must have a system‑level lightning protection device, assuring that
overvoltage due to lightning shock cannot be applied to the PLC power supply input
terminals, signal input terminals and output terminals and so forth, so as to avoid
damage to the equipment.
Installation
●Installation must be carried out by the specialists who have received the necessary
electrical training and understood enough electrical knowledge.
●Disconnect all external power supplies of the system before removing/installing the
module. Failure to do so may result in electric shock, module fault or malfunction.
●Do not use the PLC where there are dust, oil smoke, conductive dust, corrosive or
combustible gases, or exposed to high temperature, condensation, wind & rain, or
subject to vibration and impact. Electric shock, fire and malfunction may also result in
damage or deterioration to the product.
●The PLC is open‑type equipment that must be installed in a control cabinet with lock
(cabinet housing protection > IP20). Only the personnel who have received the necessary
electrical training and understood enough electrical knowledge can open the cabinet.

‑5‑
●Prevent metal filings and wire ends from dropping into ventilation holes of the PLC
during installation. Failure to comply may result in fire, fault and malfunction.
●Ensure there are no foreign matters on ventilation surface. Failure to comply may result
in poor ventilation, which may cause fire, fault and malfunction.
●Ensure the module is connected to the respective connector securely and hook the
module firmly. Improper installation may result in malfunction, fault or fall‑off.
Wiring
●Wiring must be carried out by personnel who have received the necessary electrical
training and understood enough electrical knowledge.
●Disconnect all external power supplies of the system before wiring. Failure to comply
may result in electric shock, module fault or malfunction.
●Install the terminal cover attached to the product before power‑on or operation after
wiring is completed. Failure to comply may result in electric shock.
●Perform good insulation on terminals so that insulation distance between cables will not
reduce after cables are connected to terminals. Failure to comply may result in electric
shock or damage to the equipment.
●To avoid electric shock, cut off the power supply before connecting the product to the
power supply.
●The input power of the product is 24 VDC. If the power input is not within 24 VDC±20%,
the product may be damaged. Therefore, check regularly that the DC power provided by
the switching‑mode power supply unit is stable.
During Operation and Maintenance

‑6‑
●Maintenance & inspection must be carried out by personnel who have the necessary
electrical training and experience.
●Do not touch the terminals while the power is on. Failure to comply may result in electric
shock or malfunction.
●Disconnect all external power supplies of the system before cleaning the module or re‑
tightening screws on the terminal block or screws of the connector. Failure to comply
may result in electric shock.
●Disconnect all external power supplies of the system before removing the module or
connecting/removing the communication wirings. Failure to comply may result in electric
shock or malfunction.
Safety Recommendations
●On‑site manual devices or other backup means must be equipped in the position where
the operator directly touches the mechanical parts, such as loading and unloading
mechanical tools, or the position where the machine runs automatically. The manual
devices and backup means, which can start or interrupt automatic operations of the
system, must be independent of the programmable controller.
●If you need to modify the program while the system is running, use the lock function or
other protective measures. Ensure that only authorized personnel can make the
necessary modifications.
Disposal
●Treat the scrapped product as industrial waste. Dispose of the battery according to local
laws and regulations.
●Recycle retired equipment by observing industry waste disposal standards to avoid
environmental pollution.

‑7‑
1 产品信息
1.1 Model Number and Nameplate
①Product Information
GL: General local module
③I/O Points
4: 4 channels
8: 8 channels
②Serial Number
20: 20 series module
④Module Type
AD: Analog input
DA: Analog output
AM: Hybrid module
PT: Heating resistor temperature
measurement
TC: Thermocouple temperature
detection
Based on the above description of model number and nameplate, the relevant
ordering data of this product is described in the following table.

‑8‑
Model Description Product Code Applicable Model
GL20‑4AD GL20 series 4‑channel analog
input module supports
voltage/current input.
01440288 AC800 series, Easy series
1.2 Components
The following describes the terminals of the module.
No. Name Description
1Signal
indicators
PR (POWER
+RUN)
Power / running
indicator
Yellow
green
ON when the
module is in normal
operation
ERR
State machine
error indicator
Red ON when an error
occurs in the state
machine
2 Terminals See Terminal Definition for detailed definition
3Color
identification
Red: Digital
output
Orange: Analog
output
Gray: Digital
input Green: Analog input
White:
Communication Blue: Other module

‑9‑
1.3 Specifications
■ Power supply specifications
Item Specification
Rated bus input voltage 5 VDC (4.75 VDC to 5.25 VDC)
Rated bus input current 120 mA (typical@5 V)
Rated terminal input voltage 5 VDC (20.4 VDC to 28.8 VDC)
Rated terminal input current 50 mA (typical@24 V)
Rated terminal output voltage N/A
Rated terminal output current N/A
Hot swap Not supported
■ Input specifications
Item Description
Input type Analog input
Input mode Voltage/Current
Input channels 4
Resolution 16‑bit
Conversion time 60 us/ channel
Voltage input range ±10 V, 0 to 10 V, ±5 V, 0 to 5 V, 1 to 5V
Voltage input impedance 1MΩ
Voltage input accuracy (25°C) ±0.1% (full range)
Voltage input accuracy (full temperature
range)
±0.2% (full range)
Voltage input limit ±15 V
Voltage input diagnosis Wire breakage detection not supported
Current input range ±20 mA, 0 to 20 mA, 4 to 20 mA
Current sampling impedance 250 Ω
Current input accuracy (25°C) ±0.1% (full range)

‑10‑
Item Description
Current input accuracy (full temperature
range)
±0.2% (full range)
Current input limit ±30 mA (transient), ±24 mA (average)
Current input diagnosis Wire break detection supported only when
set to 4 to 20 mA
Isolation No isolation between the channels;
Isolation between the channels and the
power supply;
Isolation between the channels and the bus
Input action display N/A
Input derating N/A
■ Software specifications
Item Description
Independent channel enable
configuration
Supported
Diagnostic report configuration Supported
Diagnostic detection
configuration
Short circuit detection and wire break detection, not
supported by output range containing 0
Conversion mode configuration ±10 V, 0 to 10 V, ±5 V, 0 to 5 V, 1 to 5 V, ±20 mA, 0 to 20
mA, 4 to 20 mA
Filter parameter configuration The software filtering time can be configured through
the host controller, the setting range is 0‑65535
Overlimit detection
configuration
Supported
Peak hold configuration Supported
Digital output range
configuration
The default is consistent with that of GL10 (–20000 to
20000) and supports ±32000
Sampling time 250 us for four channels

‑11‑
Item Description
Sampling refresh Refresh asynchronously according to the sampling time,
not required to refresh synchronously according to the
bus cycle
When in stop mode Output last value, no refresh

‑12‑
2 Mechanical Installation
2.1 Mounting Dimensions
■ Module

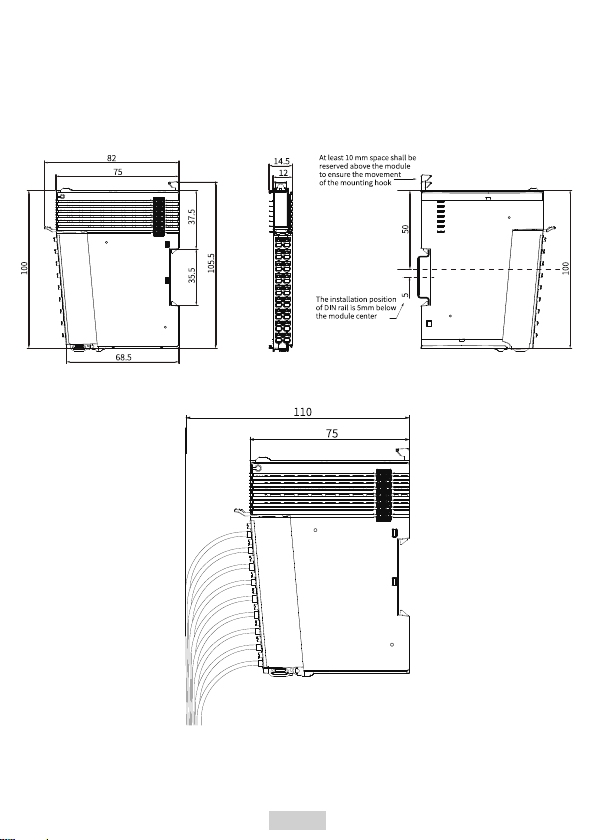

The mounting dimensions (in mm) are shown in the figure below.
■ Cable Connection

‑13‑
2.2 Installation Method
■ Installing Modules Side-by-Side
You can install multiple modules side by side with the help of top and bottom guides
on the modules, as shown below.
■ Installing Module onto DIN Rail
You can install the module onto a DIN rail. Align the module with the DIN rail and
push the module in the direction indicated by the arrow until you hear a click, as
shown below.
Note: After the module is installed, the DIN rail mounting hook will automatically
move downward to lock the module to the rail. If the hook does not move downward,
press down the top of the hook to ensure that the module is installed in place.
Mount an end plate on either side of the module assembly. To mount the end plate,
hook the bottom of it to the bottom of the DIN rail, rotate the end plate to hook the
top of it to the top of the DIN rail, and then tighten the screw to lock the end plate in
place, as shown below.

‑14‑
■ Removing Module
Pry the DIN rail mounting hook upwards with a tool such as slotted screwdriver, hold
the protrusions and pull the module out straight forward, and then press down the
top of the DIN rail mounting hook.

‑15‑
3 Electrical Installation
3.1 Cable Selection
The cable lug and cable diameter included in the following table are only for
reference.
Material
Name
Applicable Cable Diameter KST Suzhou Yuanli
mm2AWG Model Crimping
Tool
Model Crimping
Tool
Tubular
lug
0.3 22 E0308 KST2000L 0308 YAC‑5
0.5 20 E0508 0508
0.75 18 E7508 7508
1.0 18 E1008 1008
1.5 16 E1508 1508
If you use other types of tubular lug, crimp the lug to the cables according to the
shape and dimension requirements shown in the figure below.

‑16‑
3.2 Terminal Definition
Signal Left Terminal Right Terminal Signal
VI0+ A1 B1 VI1+
I0+ A2 B2 I1+
VI0‑ A3 B3 VI1‑
VI2+ A4 B4 VI3+
I2+ A5 B5 I3+
VI2‑ A6 B6 VI3‑
‑ A7 B7 ‑
PE A8 B8 PE
24 V A9 B9 COM

‑17‑
3.3 Terminal Wiring
■ Wiring Precautions
●Do not bundle the extension cable together with power cables (high voltage, large
current) which produce strong interference signals; otherwise, it may be
influenced by noise, surge and induction. Separate it from other cables and avoid
cabling in parallel.
●Select recommended cables and pinboards for connection. It is recommended
that shielded cables be used as extension cables to enhance capacity of resisting
interference.
●Apply single‑point grounding for the shielding of shielded cable and solder sealed
cable.

‑18‑
■ External Wiring
●*1 Use 2‑core shielded twisted pair cable for analog signal.
●*2 Indicates input impedance of 4AD.
●*3 For current input, terminal (V+) must be connected to terminal (I+).
