Inovance GL20-0016ETN User manual

*PS00005426A01*

‑1‑
Preface
■ About This Guide
GL20‑0016ETN series 16‑channel digital NPN transistor output module can be used
together with a PLC master such as Easy series.
This guide describes the mechanical installation, electrical installation and
programming examples of the product.
■ More Data
Data Name Data Code Description
GL20‑RTU‑ECT
Communication Interface
Module User Guide
PS00004985 This guide describes the installation,
wiring and more of the product.
■ Revision History
Date Version Description
June 2022 A01 Minor corrections
March 2022 A00 First release.
■ How to Obtain
This guide is not delivered with the product. You can obtain the PDF version by the
following method:
●Log in to Inovance's website (
http://en.inovance.cn/
), choose Support >
Download, search by keyword, and then download the PDF file.
●Scan the QR code on the product with your mobile phone.
■ Warranty Agreement
The warranty period of the product is 18 months as of the date of manufacture (refer
to the barcode on the equipment). If otherwise agreed upon, the agreed terms and
conditions shall prevail. After 18 months, a proper maintenance fee is charged.
Within the 18‑month warranty period, a reasonable repair fee will be charged for
damages caused by the following:
●Operations not following the user instructions
●Fire, flood, or abnormal voltage

‑2‑
●Use of the product for non‑recommended functions
●Use of the product outside the scope of intended use
●Force majeure such as natural disasters, earthquake, lightning strike
The maintenance fee is charged according to the latest Price List of Inovance. If
otherwise agreed upon, the agreed terms and conditions shall prevail.
For details, see Product Warranty Card.

‑3‑
Safety Instructions
■ Safety Precautions
1. Read and comply with the safety instructions during installation, operation, and
maintenance on the equipment.
2. To ensure the safety of humans and the products, follow the marks on the products
and all the safety instructions in this document.
3. The “CAUTION,” “WARNING,”and "DANGER”signs are only supplements to the safety
instructions.
4. Use this equipment according to the designated environment requirements.
Damage caused by improper use is not covered by warranty.
5. Inovance shall take no responsibility for any personal injuries or property damage
caused by improper use.
■ Safety Levels and Definitions
: Indicates that failure to comply with the notice will result in severe
personal injuries or even death.
: Indicates that failure to comply with the notice may result in severe
personal injuries or even death.
: Indicates that failure to comply with the notice may result in minor or
moderate personal injuries or damage to the equipment. Please keep this guide well
so that it can be read when necessary and forward this guide to the end user.
During Control System Design
●Provide a safety circuit outside the PLC so that the control system can still work safely
once external power failure or PLC fault occurs.
●Add a fuse or circuit breaker because the module may smoke or catch fire due to long‑
time overcurrent caused by operation above rated current or load short‑circuit.

‑4‑
●An emergency stop circuit, a protection circuit, a forward/reverse operation interlocked
circuit, and a upper position limit and lower position limit interlocked circuit must be set
in the external circuits of PLC to prevent damage to the machine.
●To ensure safe operation, for the output signals that may cause critical accidents, design
external protection circuit and safety mechanism;
●Once PLC CPU detects abnormality in the system , all outputs may be closed; however,
when a fault occurs in the controller circuit, the output may not be under control.
Therefore, it is necessary to design an appropriate external control circuit to ensure
normal operation;
●If the PLC output units such as relays or transistors are damaged, the output may fail to
switch between ON and OFF states according to the commands;
●The PLC is designed to be used in indoor electrical environment (overvoltage category II).
The power supply must have a system‑level lightning protection device, assuring that
overvoltage due to lightning shock cannot be applied to the PLC power supply input
terminals, signal input terminals and output terminals and so forth, so as to avoid
damage to the equipment.
Installation
●Installation must be carried out by the specialists who have received the necessary
electrical training and understood enough electrical knowledge.
●Disconnect all external power supplies of the system before removing/installing the
module. Failure to do so may result in electric shock, module fault or malfunction.
●Do not use the PLC where there are dust, oil smoke, conductive dust, corrosive or
combustible gases, or exposed to high temperature, condensation, wind & rain, or
subject to vibration and impact. Electric shock, fire and malfunction may also result in
damage or deterioration to the product.
●The PLC is open‑type equipment that must be installed in a control cabinet with lock
(cabinet housing protection > IP20). Only the personnel who have received the necessary
electrical training and understood enough electrical knowledge can open the cabinet.

‑5‑
●Prevent metal filings and wire ends from dropping into ventilation holes of the PLC
during installation. Failure to comply may result in fire, fault and malfunction.
●Ensure there are no foreign matters on ventilation surface. Failure to comply may result
in poor ventilation, which may cause fire, fault and malfunction.
●Ensure the module is connected to the respective connector securely and hook the
module firmly. Improper installation may result in malfunction, fault or fall‑off.
Wiring
●Wiring must be carried out by personnel who have received the necessary electrical
training and understood enough electrical knowledge.
●Disconnect all external power supplies of the system before wiring. Failure to comply
may result in electric shock, module fault or malfunction.
●Install the terminal cover attached to the product before power‑on or operation after
wiring is completed. Failure to comply may result in electric shock.
●Perform good insulation on terminals so that insulation distance between cables will not
reduce after cables are connected to terminals. Failure to comply may result in electric
shock or damage to the equipment.
●To avoid electric shock, cut off the power supply before connecting the product to the
power supply.
●The input power of the product is 24 VDC. If the power input is not within 24 VDC±20%,
the product may be damaged. Therefore, check regularly that the DC power provided by
the switching‑mode power supply unit is stable.
During Operation and Maintenance

‑6‑
●Maintenance & inspection must be carried out by personnel who have the necessary
electrical training and experience.
●Do not touch the terminals while the power is on. Failure to comply may result in electric
shock or malfunction.
●Disconnect all external power supplies of the system before cleaning the module or re‑
tightening screws on the terminal block or screws of the connector. Failure to comply
may result in electric shock.
●Disconnect all external power supplies of the system before removing the module or
connecting/removing the communication wirings. Failure to comply may result in electric
shock or malfunction.
Safety Recommendations
●On‑site manual devices or other backup means must be equipped in the position where
the operator directly touches the mechanical parts, such as loading and unloading
mechanical tools, or the position where the machine runs automatically. The manual
devices and backup means, which can start or interrupt automatic operations of the
system, must be independent of the programmable controller.
●If you need to modify the program while the system is running, use the lock function or
other protective measures. Ensure that only authorized personnel can make the
necessary modifications.
Disposal
●Treat the scrapped product as industrial waste. Dispose of the battery according to local
laws and regulations.
●Recycle retired equipment by observing industry waste disposal standards to avoid
environmental pollution.

‑7‑
1 产品信息
1.1 Model Number and Nameplate
①Product Information
GL: General local
module
③I/O Points
00: Zero input
⑤Module Type
E: Logic I/O expansion
module
②Serial Number
20: 20 series module
④I/O Points
16: 16 outputs
⑥Output Type
R: Relay output
TP: Transistor output
(sourcing)
TN: Transistor output
(sinking)

‑8‑
Based on the above description of model number and nameplate, the relevant
ordering data of this product is described in the following table.
Model Description Product Code Applicable Model
GL20‑
0016ETN
GL20 series 16‑channel digital
NPN transistor output module
01440293 AC800 series, Easy series
1.2 Components
No. Name Description
1 Signal
indicators
PR
(POWER
+RUN)
Power / running
indicator
Yellow
green
ON when the module is
in normal operation
Flashes when the
module is preparing or
stopped
OFF when the module is
faulty
ERR Error indicator Red ON when hardware error
occurs
2 I/O signal
indicator
Corresponds to various input signals ON: Input active OFF: Input
inactive
3 Terminals See Terminal Definition for detailed definition

‑9‑
No. Name Description
4Color
identification
Red: Digital output Orange: Analog output
Gray: Digital input Green: Analog input
White:
Communication Blue: Other module
1.3 Specifications
■ Power supply specifications
Item Specification
Rated bus input voltage 5 VDC (4.75 VDC to 5.25 VDC)
Rated bus input current 100 mA (typical@5 V)
Rated terminal input voltage 24 VDC (20.4 VDC to 28.8 VDC)
Rated terminal input current 12 mA (typical@24 V)
Rated terminal output voltage N/A
Rated terminal output current N/A
Hot swap Not supported
■ Output specifications
Item Specification
Output type Digital output, NPN
Output mode Sinking
Output channels 16
Output voltage class 24 VDC±10% (21.6 VDC to 26.4 VDC)
Output load (resistive
load)
0.5 A/ point, 4 A/ module
Output load (inductive
load)
7.2 W/ point, 24 W/ module
Output load (lamp load) 5 W/ point, 18 W/ module
ON/OFF response time 100 us/100 us
Leakage current at OFF 10 uA

‑10‑
Item Specification
Switching frequency 100 Hz with resistive load, 0.5 Hz with inductive load, 10 Hz with
lamp load
Isolation Yes
Output action display Output indicators are turned ON (via software control) when the
outputs are in the driving state
Output derating 50% derating at 55°C (the output current does not exceed 2A
when all outputs are ON ), or 10°C derating when all outputs are
ON
Protection function Short circuit protection, overcurrent protection
■ Software specifications
Item Specification
Output mode upon stop Output zero, output last value, output preset
value
Preset value 0 or 1
Output port anomaly detection and
indication
N/A
Output channel logic level
configuration
Not supported
Independent channel enable
configuration
Not supported
Diagnostic report configuration Not supported
When in stop mode Output according to output mode upon stop and
present value, no refresh
I/O mapping Supports bitwise, bytewise and wordwise
addressing

‑11‑
2 Mechanical Installation
2.1 Mounting Dimensions
■ Module
The mounting dimensions (in mm) are shown in the figure below.
■ Cable Connection

‑12‑
2.2 Installation Method
■ Installing Modules Side-by-Side
You can install multiple modules side by side with the help of top and bottom guides
on the modules, as shown below.

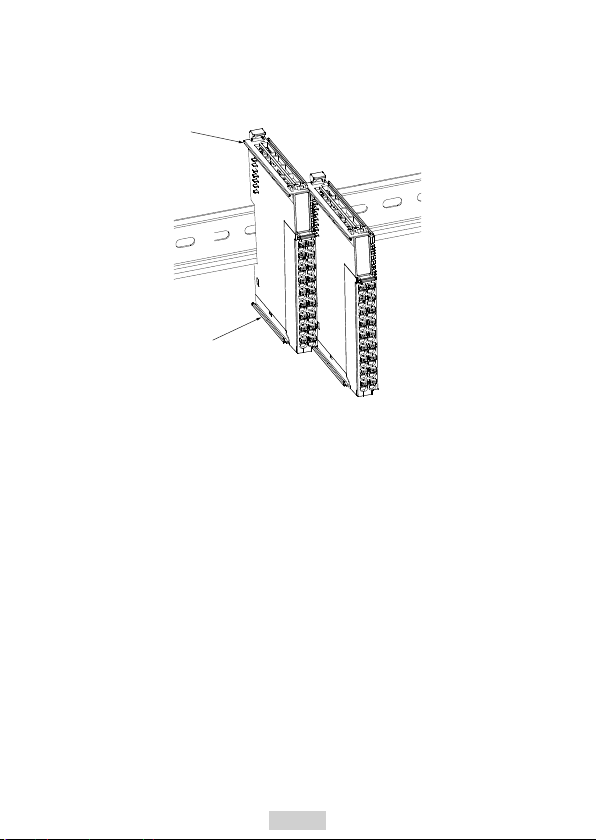

■ Installing Module onto DIN Rail
You can install the module onto a DIN rail. Align the module with the DIN rail and
push the module in the direction indicated by the arrow until you hear a click, as
shown below.
Note: After the module is installed, the DIN rail mounting hook will automatically
move downward to lock the module to the rail. If the hook does not move downward,
press down the top of the hook to ensure that the module is installed in place.

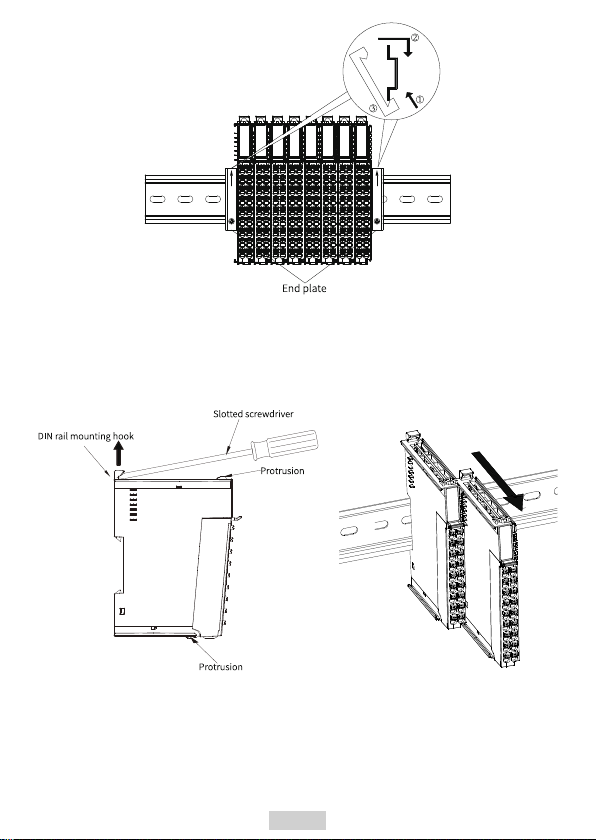

Mount an end plate on either side of the module assembly. To mount the end plate,
hook the bottom of it to the bottom of the DIN rail, rotate the end plate to hook the
top of it to the top of the DIN rail, and then tighten the screw to lock the end plate in
place, as shown below.

‑13‑
■ Removing Module
Pry the DIN rail mounting hook upwards with a tool such as slotted screwdriver, hold
the protrusions and pull the module out straight forward, and then press down the
top of the DIN rail mounting hook.

‑14‑
3 Electrical Installation
3.1 Cable Selection
The cable lug and cable diameter included in the following table are only for
reference.
Material
Name
Applicable Cable Diameter KST Suzhou Yuanli
mm2AWG Model Crimping
Tool
Model Crimping
Tool
Tubular
lug
0.3 22 E0308 KST2000L 0308 YAC‑5
0.5 20 E0508 0508
0.75 18 E7508 7508
1.0 18 E1008 1008
1.5 16 E1508 1508

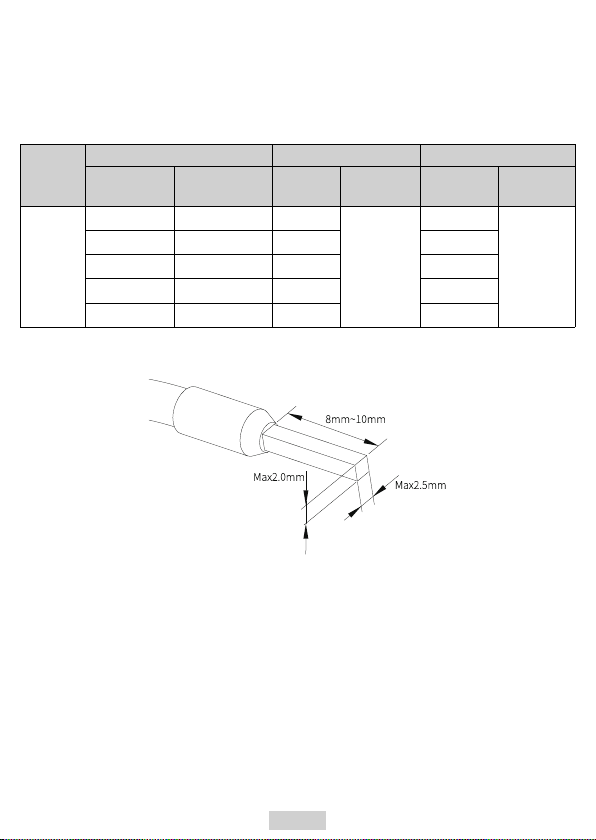

If you use other types of tubular lug, crimp the lug to the cables according to the
shape and dimension requirements shown in the figure below.

‑15‑
3.2 Terminal Definition
Left Indicator Left Signal Left Terminal Right
Terminal
Right Signal Right
Indicator
00 DO0 A1 B1 DO10 10
01 DO1 A2 B2 DO11 11
02 DO2 A3 B3 DO12 12
03 DO3 A4 B4 DO13 13
04 DO4 A5 B5 DO14 14
05 DO5 A6 B6 DO15 15
06 DO6 A7 B7 DO16 16
07 DO7 A8 B8 DO17 17
/ 24 V A9 B9 COM /
3.3 Terminal Wiring
External Wiring

‑16‑

‑17‑
4 Programming Examples
The following is an example where the input voltage of channel 0 of the GL20‑
0016ETN module is assigned to the corresponding variable, and AC802 is used as the
master control module.
1. Add GL20‑0016ETN module.
2. In Channels Config interface of the GL20‑0016ETN module, set Output status
after stop or disconnection of each channel.

‑18‑

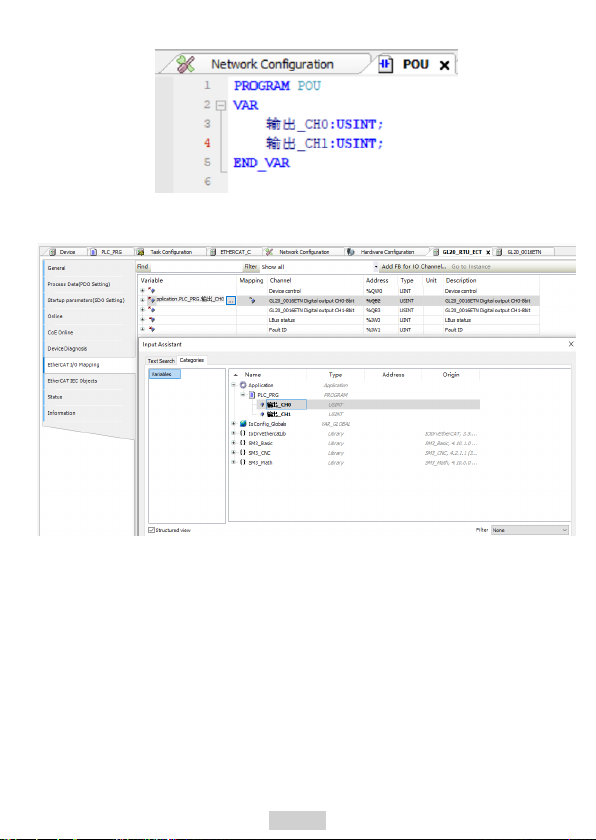

3. Define variables output_CH0 and output_CH1 with the ST programming language.
4. Map the defined variable output_CH0 to Group 0 (DO7‑DO0) of the configured
GL20‑0016ETN module.
5. After successful compiling, download the project and run it.
