Insignia NS-MWPCA5-C User manual

Power adapter
Micro USB charge/
sync cable
PACKAGE CONTENTS
• Wireless Charging Pad
• Micro USB charge/sync cable
• Power adapter
• Quick Setup Guide
USING YOUR CHARGING PAD
1 Connect the micro USB charge/sync cable to the micro USB port
on your charging pad.
2 Plug the USB connector into the power adapter.
3 Connect the power adapter to the power outlet.
4 Place your Qi-enabled device on the charging pad with the
screen facing up. The LED is blue or purple when your device
is charging.
Note: If the LED is red, your device is not charging. See
“Troubleshooting”for more information.
COMPATIBILITY
Works with all Qi v1.2.2 and newer devices. This includes Samsung
devices such as the Note 5, S6 Edge, S6, S6 Edge +, S7 Edge, S7, S8,
and the new iPhone.
PRODUCT OVERVIEW
Before using your new product, please read these instructions to prevent any damage.
Flat size (W×H): 12 × 2.75 in. (304.8 x 69.85 mm)
Final folded size: 3 × 2.75 in. (76.2 x 69.85 mm)
Micro USB port
LED indicator
LED indicator
QUICK SETUP GUIDE
Wireless
Charging Pad
NSMWPCA5 / NSMWPCA5C
NS-MWPCA5_17-0826_QSG_V2_EN _Final .ai 1 2018-01-10 10:33:27 AMNS-MWPCA5_17-0826_QSG_V2_EN _Final .ai 1 2018-01-10 10:33:27 AM
LED
Blue
Purple (solid)
Red (solid)
O
STATUS
Device is charging.
Fast wireless charging (only if your device is compatible).
Device is not charging. See "Troubleshooting" for more information.
Charging pad is not connected to power.
LED INDICATOR STATUS
TROUBLESHOOTING
Device not charging/LED is red
• Make sure that your device is Qi-enabled.
• Make sure that your charging pad is connected to a working
power outlet.
• Make sure that you are using the power adapter that came with
this product.
• Make sure that your device is positioned correctly on your
charging pad.
• Make sure that there are no other objects on the charging pad.
• Remove your device’s case. It may be blocking the wireless signal.
Device charges slowly
• Your device may charge more slowly with the charging pad than a
charging cable.
• Make sure that you are using the power adapter that came with this
product.
• Make sure that your device is positioned correctly on your charging
pad.
SPECIFICATIONS
Wireless Charging Pad:
• Input: 5V/2A, 9V/1.67A
• Output: 10W Max
• Dimension: 3.9 × 0.8 in.
(100 × 20.5 mm)
• Weight: 70+/-5 g
• Qi version: 1.2.2
LEGAL NOTICES
FCC Information
FCC Caution: Changes or modications not expressly approved by the part responsible for compliance
could void the user's authority to operate the equipment.
FCC Statement: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment o and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit dierent from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
FCC statement:This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
RSS-Gen statement:
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not cause interference, and (2) this device must accept
any interference, including interference that may cause undesired operation of the device.
SAFETY INFORMATION
1Use only the power adapter that came with the product. Do not make
unauthorized changes to the power supply.
2Do not attempt to disassemble the product. It may result in
short-circuit or damage.
3The product should be kept in a dry and ventilated environment. Do
not store it in an area of high humidity and high temperature.
4Do not use an organic solvent to clean the product.
ONE-YEAR LIMITED WARRANTY
Visit www.insigniaproducts.com for details.
CONTACT INSIGNIA:
For customer service, call U.S. and Canada (877-467-4289)
Mexico (01-800-926-3000)
www.insigniaproducts.com
INSIGNIA is a trademark of Best Buy and its aliated companies
Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richeld, MN 55423 U.S.A.
©2017 Best Buy. All rights reserved.
Made in China
AC Power Adapters:
• Input: 100-240V, 50/60Hz, 0.8A
• Output: 5V/3A, 9V/2A, 12V/1.5A
V2 ENGLISH 17-0826
NS-MWPCA5_17-0826_QSG_V2_EN _Final .ai 2 2018-01-10 10:33:28 AMNS-MWPCA5_17-0826_QSG_V2_EN _Final .ai 2 2018-01-10 10:33:28 AM

This manual suits for next models

1

Other Insignia Batteries Charger manuals

Insignia NS-PAC65INT User manual

Insignia

Insignia NS-PAC65INT User manual

Insignia NS-MWPC10CU User manual

Insignia

Insignia NS-MWPC10CU User manual

Insignia NS-MWPC5K User manual

Insignia

Insignia NS-MWPC5K User manual

Insignia NS-PWL965 User manual

Insignia

Insignia NS-PWL965 User manual

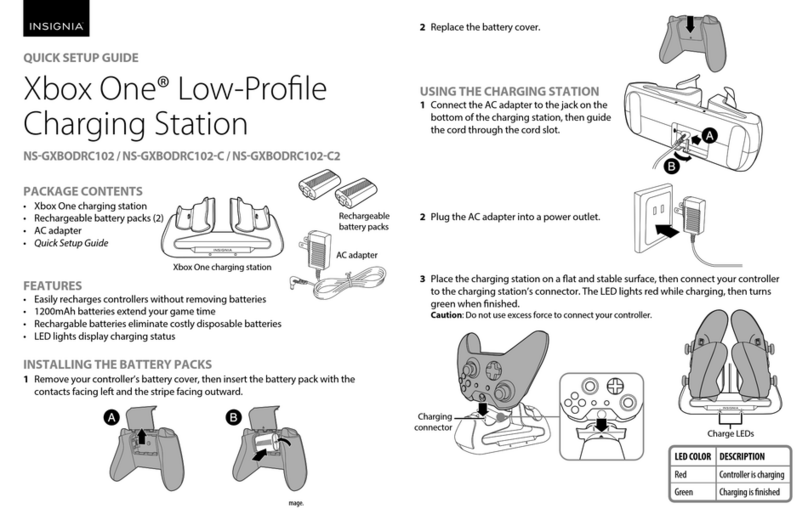

Insignia NS-GXBODRC102 User manual

Insignia

Insignia NS-GXBODRC102 User manual

Insignia NS-GXBOSBCS18 User manual

Insignia

Insignia NS-GXBOSBCS18 User manual

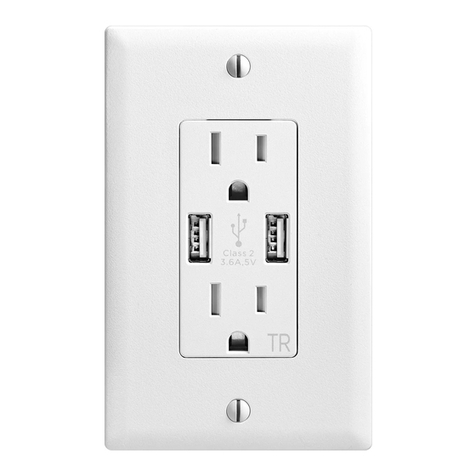

Insignia NS-HW36A2P User manual

Insignia

Insignia NS-HW36A2P User manual

Insignia NS-PWLC641 User manual

Insignia

Insignia NS-PWLC641 User manual

Insignia Qi NS-MWPC5CU User manual

Insignia

Insignia Qi NS-MWPC5CU User manual

Insignia NS-PWLC641 User manual

Insignia

Insignia NS-PWLC641 User manual

Insignia NS-XCHRG2 User manual

Insignia

Insignia NS-XCHRG2 User manual

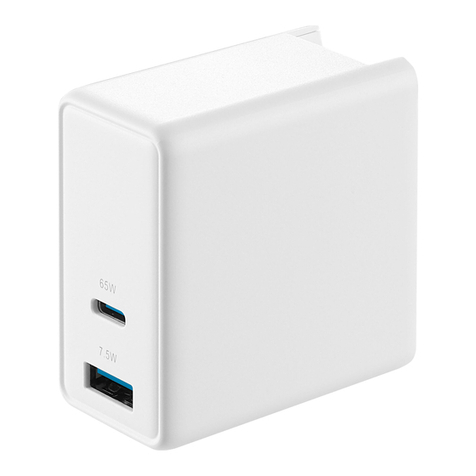

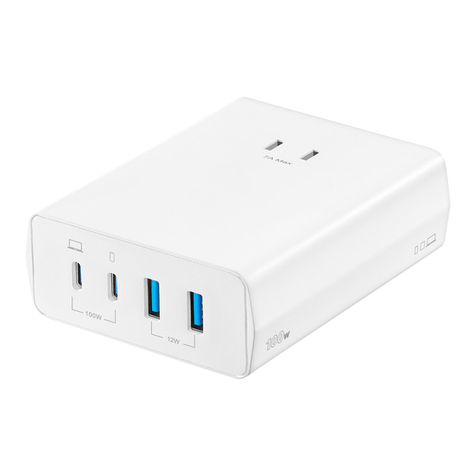

Insignia V20 Series User manual

Insignia

Insignia V20 Series User manual

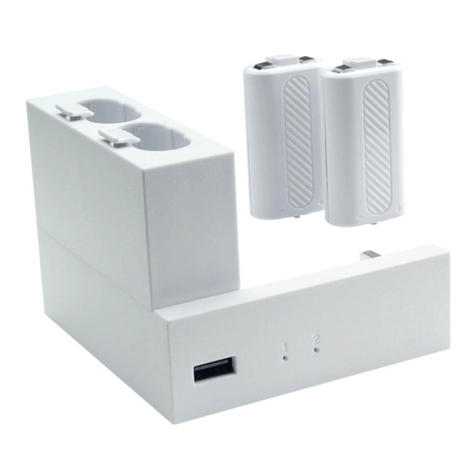

Insignia NS-GXBOSBCX19 User manual

Insignia

Insignia NS-GXBOSBCX19 User manual

Insignia NS-PWL965-C User manual

Insignia

Insignia NS-PWL965-C User manual

Insignia NS-PS4DRC101 User manual

Insignia

Insignia NS-PS4DRC101 User manual

Insignia NS-GXBOBCS101-C2 User manual

Insignia

Insignia NS-GXBOBCS101-C2 User manual

Insignia NS-GPS4DRC102 User manual

Insignia

Insignia NS-GPS4DRC102 User manual

Insignia NS-CAHCC02 User manual

Insignia

Insignia NS-CAHCC02 User manual

Insignia NS-CAHCC02-C User manual

Insignia

Insignia NS-CAHCC02-C User manual

Insignia NS-GN3DSCS101 User manual

Insignia

Insignia NS-GN3DSCS101 User manual

Insignia X Series User manual

Insignia

Insignia X Series User manual

Insignia NS-GXBOBCS101 User manual

Insignia

Insignia NS-GXBOBCS101 User manual

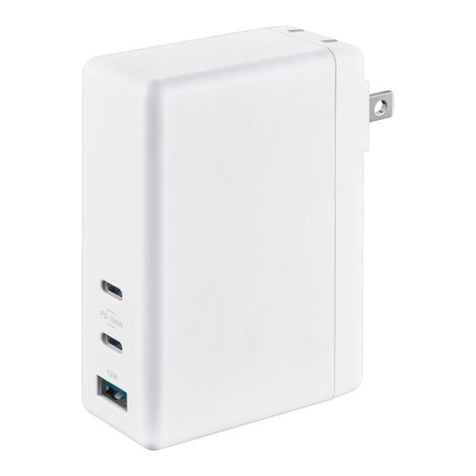

Insignia NS-PW3X1A1C2W22 User manual
