USER MANUAL – EN
IN 8236 Exercise Bike inSPORTline Daxos

2
CONTENTS
SAFETY INSTRUCTIONS.................................................................................................................................... 3
EXPLODED DRAWING ....................................................................................................................................... 4
PARTS LIST........................................................................................................................................................... 5
ASSEMBLY STEPS............................................................................................................................................... 7
ADJUSTING THE RESISTANCE......................................................................................................................... 8
USAGE INSTRUCTIONS...................................................................................................................................... 8
MAINTENANCE CHART..................................................................................................................................... 9
ADJUSTING THE BELT TENSION................................................................................................................. 9
HOW TO REPLACE MAGNETIC HOLDER................................................................................................. 10
TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS ....................................................... 10

3
SAFETY INSTRUCTIONS
•Consult your physician before starting with any exercise program to receive advice on the optimal
training.
•Warning: incorrect/excessive training can cause health injuries. Stop using the bike when feeling
uncomfortable.
•Please follow the advice for correct training as detailed in the training instructions.
•Ensure that training only starts after correct assembly, adjustment and inspection of the bike.
•Always start with a warm-up session.
•Only use original parts as delivered.
•Follow the steps of the assembly instruction carefully.
•Only use suitable tools for assembly and ask for assistance if necessary.
•Please the bike on an even, non-slippery surface.
•For all adjustable parts be aware of the maximum position to which they can be adjusted.
•Tighten all adjustable parts to prevent sudden movement while training.
•This product is designed for adults. Please ensure that children only use it under the supervision of an
adult
•Ensure that those present are aware of possible hazards, e.g. movable parts during training.
•The resistance level can be adjusted to your personal preference.
•Do not use the bike without shoes or loose shoes.
•Ensure that sufficient space is available to use the bike.
•Be aware of non-fixed or moving parts whilst mounting or dismounting the bike.
•
To protect the floor or carpet from damage, place a mat under the exercise bike.
•In case of emergency please place both feet at the same time on the side reins.
•Ensure that an area of 2000x1000mm behind the exercise bike is free from any obstacles.
•This product is tested up to a maximum body weight of 150 kilograms.
•We take no responsibility for personal injury or damage sustained by or through the use of this
exercise bike.

4
EXPLODED DRAWING

5
PARTS LIST
No. Name Unit
1 Saddle pc
2 Alloy bind clamp ( R &L ) pr
3 Spring for knob pc
4 Knob pc
5 Left crank arm pc
6 Belt pc
7 Right crank arm pc
8 Foot tube nut pc
9 Foot tube washer pc
10 Foot fixing bolt pc
11 Pedal pr
12 Rear foot tube set
13 Front foot end cap pr
14 Rear foot tube end cap pr
15 Fender fixed plate pc
16 Front foot tube set
17 Brake pad w/holder pc
18 Rubber sleeves pc
19 Bolt for sprocket bracket pc
20 Sprocket bracket for resistance knob pc
21 Handlebar w/slier pc
22 Release lever w/washer pc
23 Handlebar post pc
24 Outer chain guard pc
25 Flywheel axle set
26 Flywheel security washer set
27 Flywheel bearing set
28 BB axle w/plate pc
29 Bottle cage pc
30 Screw for bottle cage pc
31 Brake system set
32 Crank bolt pc
33 Flywheel security nut pc
34 Outer chain guard bolt M6 pc
35 Screw & washer for bracket pc

6
36 Flywheel adjuster bolt pc
37 Knob washer pc
38 Plastic washer for knob pc
39 Knob fixed bolt pc
40 Washer for knob pc
41 Seat slider pc
42 Seat post pc
43 Axle bolt for moving wheel pc
44 Flywheel set
45 BB bearing pc
46 Belt wheel w/screw pc
47~49
54~57 Magnetic w/support, fixed bolt, screw, housing, nut, fixe pin pc
50 Bolt for fender pc
51 Fender pc
52 Washer for fender pc
53 Nut for fender pc
58 E clip pc
59 Fixed pin pc
60 Plate for brake system pc
61 Fixed bolt for plate pc
62 Connection bracket pc
63 Fixed bolt for connection bracket pc
64 Plate for screw pc
65 Spring pc
66 Bolt for plate pc
67 Outer chain guard bolt M5 pc
68 Axle cover w/bolt pr
69 Washer for bottle cage pc
70 Moving wheel pc

7
ASSEMBLY STEPS
STEP 1
Attach the front (16) and rear feet (12) to the frame using the nuts (8), washer (9) and bolts (10).
STEP 2
Attach the handlebar post (23) inserting into the head tube on the frame. Using knob to adjust and tighten the
height in proper position. Then attached handlebar slider (21) on the handlebar post (23), use release lever (22)
to adjust and tighten the handlebar in proper position.
STEP 3
Insert the seat post (42) into the frame’s seat tube. Fit the saddle (1) into Seat slider (41) and tighten the nuts on
the bracket securely. Insert the seat slider (41) into the seat post (42) and fix. Using knob ( 4 ) adjusts and
tightens the height in proper position.
STEP 4
Attach the pedals (11) into the crank arms (5)(7), each pedal is marked with the L (left) or R (right) to denote the
side of the spinning bike they are on, Note: the right hand crank is on the same side as the chain guard (24). Be
careful to align the threads correctly to avoid any damage. A little grease on the threads should help the pedals to
screw in easily and correctly, tighten using a 15mm spanner; both pedals threads should tighten towards the front
of the spinning bike.

8

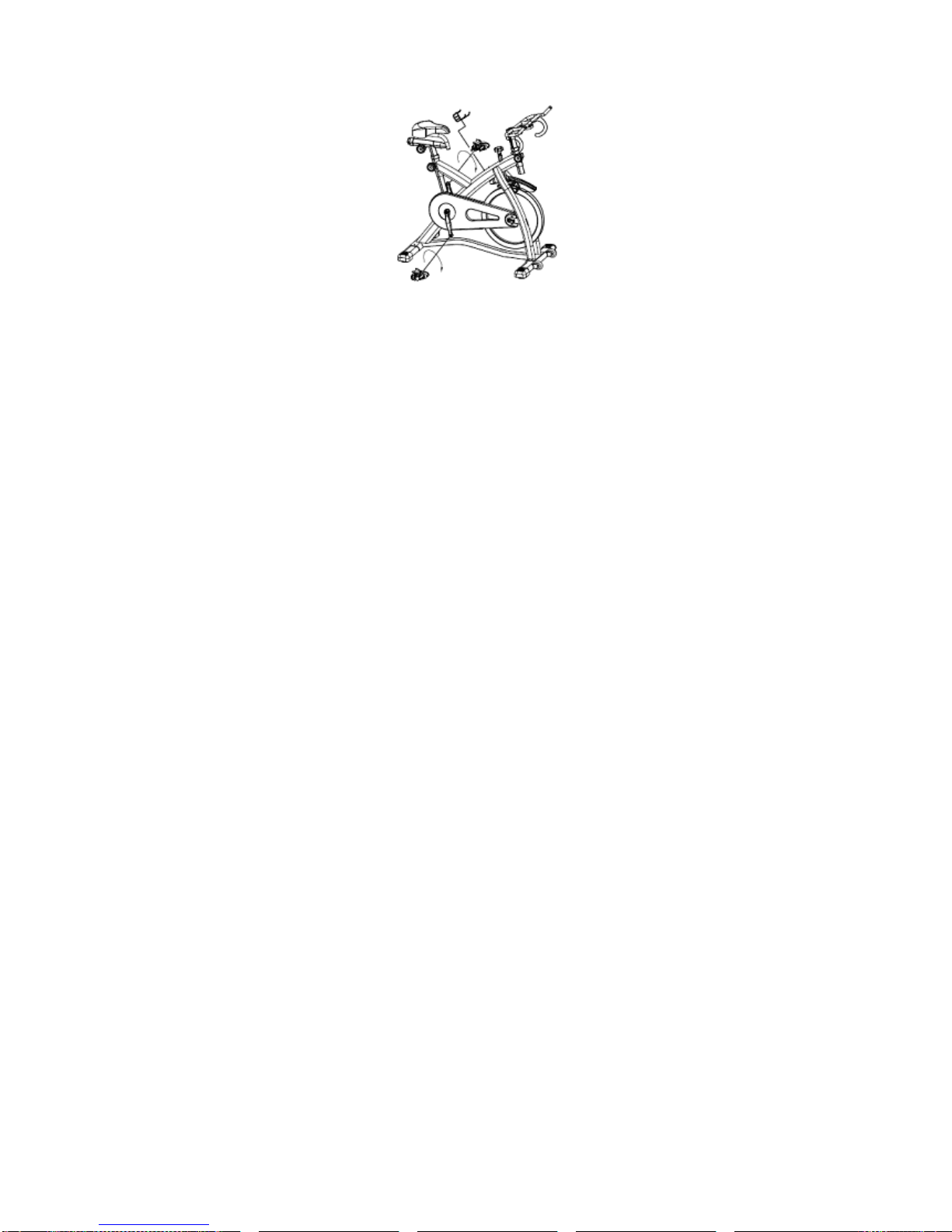

ADJUSTING THE RESISTANCE
To adjust the exercising resistance on the complete spinning bike by the brake knob (31) of brake system, and
then simply loosen (-) or tighten (+).
The flywheel should rotate freely without resistance when you loosen (-) the brake system totally.
More experienced riders may wish to increase the overall resistance by tighten (+) the brake system totally.
USAGE INSTRUCTIONS
1) The model has a fixed wheel driven flywheel and should only be used under professional supervision.
2) Installation: It is important that the bike is correctly assembled and we recommend that suitably
qualified personnel carry out installation and assembly.
3) It is important that the handlebar and seat are set at the correct height for your body. Make sure it is
securely tightened and that there is no lateral or vertical movement. Ask your instructor for assistance.
HANDLEBAR ADJUSTMENT
a) Adjusting height: Undo the knob that is located where the handlebar post fits into the frame. Slide
the handlebar post up or down to the required height and retighten the knob.
b) Adjusting forwards or backwards: Undo the release lever located below the handlebar slider.
Slide the handlebar assembly forwards until you reach the required position. Then securely re-
tighten the Release lever.
SEAT ADJUSTMENT
a) Adjusting height: Undo the knob located where the seat post fits into the frame. Then retighten the
knob. Make sure it is tight enough to prevent the seat from twisting side to side.
b) Adjusting forwards or backwards: Undo the knob located directly side of the seat slider. Loosen
the knob then slide the seat to the required position. Then make sure the knob retighten.
4) Pedals and toe straps: Your feet should be securely positioned in the toe clips during the exercise. Put
your foot as far forwards as you can into the toe-clip and then pull the strap tight.
5) The bike should operate on a level surface with no lateral movement. There is height adjuster pads
located on either side underneath the foot tube. Turn these pads clockwise or anti-clockwise until the
bike is totally stable on the ground.
6) Movement: The bike is equipped with moving wheels, to make it easier to move. The moving wheels
located at the front of your bike make it easier to move it into a chosen position, by lifting the rear of
the bike up slightly and pushing it.
7) Emergency brake: Press down brake system (31) for stop.
8) The magnetic holder installs: The bike is assembled with high gausses of magnetic force. When
assembled should avoid the bike close to the household appliances articles and iron material part which
easy to be absorbed by the magnetic force. Ensure that an area of 2000 x 1000 mm behind the exercise
bike is free from any obstacles

9
9) Maintenance: It may be unsafe when loosen bolt on the parts or noise on the flywheel, please contact
your supplier. Like any other mechanical cycling device, the bike should be regularly maintained. Ask
your supplier for a detailed maintenance program.
MAINTENANCE CHART
No DESCRIPTION Daily Weekly Monthly Quarterly Annually
1 Keep machine clean: Wipe machine down
with clean & dry fabric to clear dirt & sweat

2 Wipe Anti-rusty cream or similar on the seat
post set, handlebar set

3 Visual check

4 Check security of handle bar post & seat
post

5 Check security of saddle

6 Remove handlebar post and clean tube

7 Remove seat and clean tube

8 Check brake pads for wear-align

9 Check brake adjustment

10 Check security of all knobs & release lever

11 Check toe straps for signs of wear

12 Check crank bolts and re-tighten

13 Make sure pedals are screwed in

14 Check the magnetic holder in correct
position

15 Check belt tension

16 Wipe the anti-rust oil on the middle range of
flywheel surface

17 Check bottom bracket

18 Check flywheel bearings

19 Full service-frame inspection

ADJUSTING THE BELT TENSION
The belt belongs to the flexible material. It will relax with frequency of utilization and time. It’s normal
situation.
1) Loosen the bolt (34), and take off the axle cover (68).
2) Loosen the nut cap (33).
3) Rotating the nut of the adjuster bolt (36) by clockwise and anti-clockwise to adjusting the belt tension.
Suggest rotating 1/4 of the circles each time. Don't rotation too much to causing tension too tight then
damage the axle and bearing.

10
4) Make sure flywheel keeps parallel with frame. And two sides distance between flywheel and magnet
must be the same.
5) After finished the above steps, screw the nut cap by both sides. Make sure the nut caps is tighten and
fixedly.
HOW TO REPLACE MAGNETIC HOLDER
1) To Screw the brake pad set on the magnetic holder but don’t tightened.
2) To Screw the magnetic holder on the frame but don’t tightened.
3) Press down the brake system (31). Make sure brake pad touch flywheel completely. Then re-tighten the
screw and nut (54~57). Make sure two sides of magnetic holder are symmetrical and in the center of
flywheel. Prevent the magnet touch the surface of flywheel. Then tighten the screw and washer (35).
TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS
General Conditions of Warranty and Definition of Terms
All Warranty Conditions stated hereunder determine Warranty Coverage and Warranty Claim Procedure.
Conditions of Warranty and Warranty Claims are governed by Act No. 40/1964 Coll. Civil Code, Act No.
513/1991 Coll., Commercial Code, and Act No. 634/1992 Coll., Consumer Protection Act, as amended, also in
cases that are not specified by these Warranty rules.
The seller is SEVEN SPORT s.r.o. with its registered office in Borivojova Street 35/878, Prague 13000,
Company Registration Number: 26847264, registered in the Trade Register at Regional Court in Prague, Section
C, Insert No. 116888.
According to valid legal regulations it depends whether the Buyer is the End Customer or not.
“The Buyer who is the End Customer” or simply the “End Customer” is the legal entity that does not conclude
and execute the Contract in order to run or promote his own trade or business activities.
“The Buyer who is not the End Customer” is a Businessman that buys Goods or uses services for the purpose of
using the Goods or services for his own business activities. The Buyer conforms to the General Purchase
Agreement and business conditions to the extent specified in the Commercial Code.
These Conditions of Warranty and Warranty Claims are an integral part of every Purchase Agreement made
between the Seller and the Buyer. All Warranty Conditions are valid and binding, unless otherwise specified in
the Purchase Agreement, in the Amendment to this Contract or in another written agreement.
Warranty Conditions
Warranty Period
The Seller provides the Buyer a 24 months Warranty for Goods Quality, unless otherwise specified in the
Certificate of Warranty, Invoice, Bill of Delivery or other documents related to the Goods. The legal warranty
period provided to the Consumer is not affected.
By the Warranty for Goods Quality, the Seller guarantees that the delivered Goods shall be, for a certain period
of time, suitable for regular or contracted use, and that the Goods shall maintain its regular or contracted
features.
The Warranty does not cover defects resulting from:
User’s fault, i.e. product damage caused by unqualified repair work, improper assembly, insufficient insertion of
seat post into frame, insufficient tightening of pedals and cranks
Improper maintenance
Mechanical damages
Regular use (e.g. wearing out of rubber and plastic parts, joints etc.)
Unavoidable event, natural disaster
Adjustments made by unqualified person

11
Improper maintenance, improper placement, damages caused by low or high temperature, water, inappropriate
pressure, shocks, intentional changes in design or construction etc.
Warranty Claim Procedure
The Buyer is obliged to check the Goods delivered by the Seller immediately after taking the responsibility for
the Goods and its damages, i.e. immediately after its delivery. The Buyer must check the Goods so that he
discovers all the defects that can be discovered by such check.
When making a Warranty Claim the Buyer is obliged, on request of the Seller, to prove the purchase and validity
of the claim by the Invoice or Bill of Delivery that includes the product’s serial number, or eventually by the
documents without the serial number. If the Buyer does not prove the validity of the Warranty Claim by these
documents, the Seller has the right to reject the Warranty Claim.
If the Buyer gives notice of a defect that is not covered by the Warranty (e.g. in the case that the Warranty
Conditions were not fulfilled or in the case of reporting the defect by mistake etc.), the Seller is eligible to
require a compensation for all the costs arising from the repair. The cost shall be calculated according to the
valid price list of services and transport costs.
If the Seller finds out (by testing) that the product is not damaged, the Warranty Claim is not accepted. The
Seller reserves the right to claim a compensation for costs arising from the false Warranty Claim.
In case the Buyer makes a claim about the Goods that is legally covered by the Warranty provided by the Seller,
the Seller shall fix the reported defects by means of repair or by the exchange of the damaged part or product for
a new one. Based on the agreement of the Buyer, the Seller has the right to exchange the defected Goods for a
fully compatible Goods of the same or better technical characteristics. The Seller is entitled to choose the form of
the Warranty Claim Procedures described in this paragraph.
The Seller shall settle the Warranty Claim within 30 days after the delivery of the defective Goods, unless a
longer period has been agreed upon. The day when the repaired or exchanged Goods is handed over to the Buyer
is considered to be the day of the Warranty Claim settlement. When the Seller is not able to settle the Warranty
Claim within the agreed period due to the specific nature of the Goods defect, he and the Buyer shall make an
agreement about an alternative solution. In case such agreement is not made, the Seller is obliged to provide the
Buyer with a financial compensation in the form of a refund.
SEVEN SPORT, s.r.o.
Borivojova 35/878 130 00 Praha 3, Czech Rebublic CRN: 268 47 264, VAT ID: CZ26847264
Orders: [phone], [e-mail]
Warranty Claims: [phone], Mobile: [phone], [e-mail]
Service: [phone], Mobile: [phone], [e-mail]
Fax: [phone], (Service [phone])
Web: www.insportline.cz, www.worker.cz, www.worker-moto.cz
INSPORTLINE, s.r.o.
Bratislavska 36, 911 05 Trencin, Slovakia CRN: 36311723, VAT ID: SK2020177082
Orders: [phone], [phone], [e-mail]
Warranty Claims: [phone], [phone], [e-mail]
Fax: [phone]
Web: www.insportline.sk, www.worker.sk, www.worker-moto.sk

12
Date of Sale: Stamp and Signature of Seller:
