Intellian GX100PM User manual

Marine Satellite Communication Antenna System
GX100PM
Installation and Operation Manual

Serial number of the product
This serial number will be required for the all troubleshooting or service inquiries.
© 2016 Intellian Technologies Inc. All rights reserved. Intellian and the Intellian
logo are trademarks of Intellian Technologies, Inc., registered in the U.S. and
other countries. The v-Series and the GX100PM are trademarks of Intellian
Technologies, Inc. Intellian may have patents, patent applications, trademarks,
copyrights, or other intellectual property rights covering subject matter in this
document. Except as expressly provided in any written license agreement from
Intellian, the furnishing of this document does not give you any license to these
patents, trademarks, copyrights, or other intellectual property. Global Xpress
Service™or GX™is a trademark of Inmarsat PLC and refers to Inmarsat’s xed
and mobile, land, maritime and aero Inmarsat 5 Ka-band satellite services. All
other logos, trademarks, and registered trademarks are the property of their
respective owners. Information in this document is subject to change without
notice. Every effort has been made to ensure that the information in this manual
is accurate. Intellian is not responsible for printing or clerical errors.
Doc. No. UM-P4-160714_V1

INDEX

5
INDEX
INTRODUCTION 11
Intellian GX100PM Introduction 12
Intellian GX100PM Features 13
System Conguration 14
INSTALLING THE ANTENNA 15
System Package 16
Planning the Installation 21
Antenna Installation 25
INSTALLING THE BDT 35
Mounting the BDT 36
Gyrocompass Connection 38
PC to BDT Connection Setup 40
Wi-Fi Connection 41
Checking Modem Information 43
One-touch Commissioning 44
BDT Connector Guide 45
OPERATING THE BDT 47
Introduction 48
Normal Mode 50
Setup Mode 55
Installation Settings 56
Antenna Settings 59
Satellite Settings 69
System Settings 76
Aptus®81
Introduction 82
Software Installation 83
PC to BDT Communication Setup 84
Toolbar Menus 87
System Property Status Dashboard 90
Work View Tabs 94
Aptus® WEB 111
Introduction 112
Main Page 113
Antenna Settings 118
Firmware & Conguration 124
Administration 130
TECHNICAL SPECIFICATION 138
WARRANTY 139

CERTIFICATIONS
Doc Number IT16-DC0502-02
Intellian Technologies, Inc.
EMEA & APAC Headquarters
348-5 Chungho-Ri, Jinwi-Myeon
Pyeongtaek-Si, Gyeonggi-Do, 451-862 Korea
Tel: + 82 31 379 1000
Intellian Technologies, Inc.
US Headquarters
9004 Research Dr.
Irvine, CA 92618 USA
Tel: [phone]
C-Tick Declaration of Conformity (DoC)
We, Intellian Technologies, Inc. located at 18-7, Jinwisandan-ro, Jinwi-myeon (Chungho-ri), Pyeongtaek-si, Gyeonggi-do
17709 Korea declare under our sole responsibility that the product(s) described in the below to which this declaration relates
is in conformity with the requirement of the Radio communications (Electromagnetic Compatibility) Standard 2010.
Product Information:
Product Name:
Intellian GX100PM, 1m Ka-band Maritime Stabilized Antenna System
Test Result:
Standard Test Test Report Number Result
AS/NZS CISPR 22:
2009 with Amdt 1
(2010)
Conducted disturbance at AC main port DRECTK1604-0117 Pass
Conducted disturbance at telecommunication port DRECTK1604-0117 Pass
Radiation disturbance below 1GHz DRECTK1604-0117 Pass
Radiated disturbance above 1GHz DRECTK1604-0117 Pass
Supplementary Information:
Notified Body Involved:
(Testing Organization)
DT&C Co., Ltd.
42, Yur im -ro 154 beon-gil, Cheoin-Gu, Yongin-Si, Gyeonggi-Do, 449-935, Korea
Technical/Compliance
File Held by:
Intellian Technologies, Inc.
18-7, Jinwisandan-ro, Jinwi-myeon (Chungho-ri), Pyeongtaek-si, Gyeonggi-do 17709
Korea
Place and Date of Issue: Gyeonggi-do, Korea on April 6, 2016
Authority: Kevin Eom Signature: ___ ______
/ CTO, R&D
Date: 2nd May, 2016

Doc Number IT16-DC0406-01
Intellian Technologies, Inc.
EMEA & APAC Headquarters
348-5 Chungho-Ri, Jinwi-Myeon
Pyeongtaek-Si, Gyeonggi-Do, 451-862 Korea
Tel: + 82 31 379 1000
Intellian Technologies, Inc.
US Headquarters
9004 Research Dr.
Irvi ne, CA 92618 USA
Tel: [phone]
EMI Declaration of Conformity (DoC)
We, Intellian Technologies, Inc. located at 18-7, Jinwisandan-ro, Jinwi-myeon (Chungho-ri), Pyeongtaek-si, Gyeonggi-do
17709 Korea declare under our sole responsibility that the product(s) described in the below to which this declaration relates
is in conformity with the essential requirements and other relevant requirements of the MIL-STD 461.
Product Information:
Product Name: Intellian GX100PM, 1m Ka-band Maritime Stabilized Antenna System
Test Result:
Test Conducted: Result
CE101: Conducted Emissions Testing (60 Hz-10kHz)
Pass
CE102: Conducted Emissions, Power Leads (10 kHz-10 MHz)
Pass
RE101: Radiated Emissions, Magnetic Field (30 Hz-100 kHz)
Pass
RE102: Radiated Emissions, Electric Field (10 kHz-18 GHz)
Pass
CS101: Conducted Susceptibility, Power Leads (30 Hz-150 kHz)
Pass
CS106: Conducted Susceptibility, Transients, Power Leads
Pass
CS114: Conducted Susceptibility, Bulk Cable Injection (10 kHz-200 MHz)
Pass
CS116: Conducted Susceptibility, Damped Sinusoidal Transients, Cables & Power Leads (10 kHz-100 MHz)
Pass
RS101: Radiated Susceptibility, Magnetic Field (30 Hz-100 kHz)
Pass
RS103: Radiated Susceptibility, Electric Field (2 MHz-18 GHz)
Pass
Supplementary Information:
Notified Body Involved:
(Testing Organization)
DT&C Co., Ltd.
42, Yurim-ro 154 beon-gil, Cheoin-Gu, Yongin-Si, Gyeonggi-Do, 449-935, Korea
Technical/Compliance
File Held by:
Intellian Technologies, Inc.
18-7, Jinwisandan-ro, Jinwi-myeon (Chungho-ri), Pyeongtaek-si, Gyeonggi-do 17709
Korea
Place and Date of Issue: Gyeonggi-do, Korea on March 24, 2016
Authority: Kevin Eom Signature: ___ ______
/ CTO, R&D
Date: 2nd May, 2016

CERTIFICATIONS
Doc Number IT16-DC0502-01
Intellian Technologies, Inc.
EMEA & APAC Headquarters
348-5 Chungho-Ri, Jinwi-Myeon
Pyeongtaek-Si, Gyeonggi-Do, 451-862 Korea
Tel: + 82 31 379 1000
Intellian Technologies, Inc.
US Headquarters
9004 Research Dr.
Irvine, CA 92618 USA
Tel: [phone]
FCC Part 15 Subpart B Declaration of Conformity (DoC)
We, Intellian Technologies, Inc. located at 18-7, Jinwisandan-ro, Jinwi-myeon (Chungho-ri), Pyeongtaek-si, Gyeonggi-do
17709 Korea declare under our sole responsibility that the product(s) described in the below to which this declaration relates
is in conformity with the requirement of the FCC Part 15 Subpart B.
Product Information:
Product Name: Intellian GX100PM, 1m Ka-band Maritime Stabilized Antenna System
Test Result:
Standard Test Rule Section Test Report Number Result
FCC Part 15
Subpart B
AC Power line conducted emission ANSI C63.4:2014 DREFCC1604-0118 Pass
Radiation emissions below 1GHz ANSI C63.4:2014 DREFCC1604-0118 Pass
Radiation emissions above 1GHz ANSI C63.4:2014 DREFCC1604-0118 Pass
Supplementary Information:
Notified Body Involved:
(Testing Organization)
DT&C Co., Ltd.
42, Yurim-ro 154 beon-gil, Cheoin-Gu, Yongin-Si, Gyeonggi-Do, 449-935, Korea
Technical/Compliance
File Held by:
Intellian Technologies, Inc.
18-7, Jinwisandan-ro, Jinwi-myeon (Chungho-ri), Pyeongtaek-si, Gyeonggi-do 17709
Korea
Place and Date of Issue: Gyeonggi-do, Korea on April 6, 2016
Authority: Kevin Eom Signature: ___ ______
/ CTO, R&D
Date: 2nd May, 2016

Doc Number IT16-DC0502-03
Intellian Technologies, Inc.
EMEA & APAC Headquarters
348-5 Chungho-Ri, Jinwi-Myeon
Pyeongtaek-Si, Gyeonggi-Do, 451-862 Korea
Tel: [phone]
Intellian Technologies USA, Inc.
US Headquarters
9004 Research Dr.
Irvine, CA 92618 USA
Tel: [phone]
R&TTE Declaration of Conformity (DoC)
We, Intellian Technologies, Inc. located at 18-7, Jinwisandan-ro, Jinwi-myeon, Pyeongtaek-si, Gyeonggi-do 451-862,
Korea declare under our sole responsibility that the product(s) described in the below to which this declaration relates
is in conformity with the essential requirements and other relevant requirements of the Radio and Telecommunications
Terminal Equipment(R&TTE) Directive (1999/5/EC).
Product Information:
Product Name(s): Intellian GX100PM, 1m Ka-band Maritime VSAT Antenna System
To provide the presumption of conformity in accordance to Annex III(encompassing Annex II) of Directive 1999/5/EC;
the following harmonized standards and normative documents are those to which the product’s conformance is
declared, and by specific reference to the essential requirements of Article 3 of the Directive 1999/5/EC.
1995/5/EC Article Standard(s) Applied in Full Result
SAFETY (Art 3.1.a) IEC EN 60950-1: 2006+A11: 2009+A1: 2010+A12: 2011+A2: 2013 Pass
EMC (Art. 3.1.b)
IEC EN 60945: 2002
ETSI EN 301 489-1 V1.9.2: 2011-09
ETSI EN 301 489-12 V2.2.2: 2008
ETSI EN 301 489-17 V2.2.1: 2012-09
Pass
SPECRTUM (Art. 3.2)
ETSI EN 301 360 V1.2.1: 2006-02
ETSI EN 300 328 V1.8.1: 2012-04
ETSI EN 303 978 V1.1.2: 2013-02
Pass
Supplementary Information:
Notified Body Involved:
(Testing Organization)
DT&C Co., Ltd.
42, Yurim-ro, 154 beon-gil, Cheoin-gu, Yongin-si, Gyeonggi-do 449-935, Korea
Technical/Compliance
File Held by:
Intellian Technologies, Inc.
18-7, Jinwisandan-ro, Jinwi-myeon, Pyeongtaek-Si, Gyeonggi-Do 451-862, Korea
Place and Date of issue: Gyeonggi-do, Korea on 20 Oct 2012
Authority: Kevin Eom Signature: _____ _______
/ CTO, R&D
Date: 18th July, 2016

11
INTRODUCTION
Intellian GX100PM Introduction
Intellian GX100PM Features
System Conguration
INTRODUCTION

GX100PM – Marine Satellite Communication System
12
Intellian GX100PM Introduction

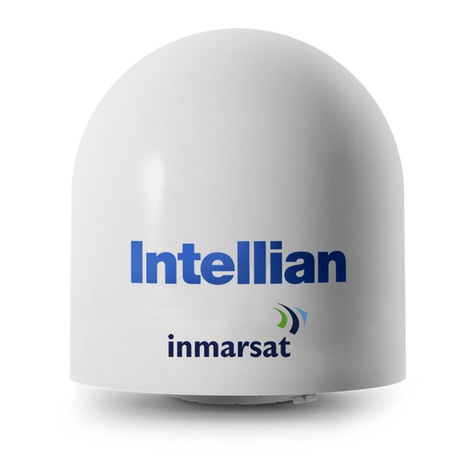

Intellian GX100PM (1.03m) is a 1m Global Xpress terminal specially designed for
use in military applications. The GX100PM offers robust Ka-band RF performance
optimized for use on Inmarsat's Global Xpress network.
The GX100PM is certied to military standards MIL-STD-167-1A and MIL-STD-
461F while meeting other highest industrial standards such as FCC, ETSI and
R&TTE. The antenna’s 3-axis stabilized platform and advanced shock-resistant
and vibration damping design of the Pedestal is fully optimized to withstand the
demanding maritime conditions and to ensure reliable broadband communications.
The unlimited azimuth range ensures continuous tracking without unwrapping the
cables in the antenna and the low elevation angle (-20°) supports seamless signal
reception at extremely high latitudes.
The GX100PM BDT combines the Global Xpress Modem internally with the below
deck terminal, saving time and space during installation. The BDT also includes
Wi-Fi to allow wireless connection using the dedicated Intellian Aptus software for
system control and monitoring.
The Aptus software automatically congures the antenna system, enabling true One
Touch Commissioning.
Equipped with Intellian’s next generation Antenna Control Software, ‘Aptus®’,
the GX100PM antenna can be remotely accessed, monitored and controlled
through serial connection or secured TCP/IP network. Its graphic-based user
interface provides easy-to-use operating environment. The GX100PM also has
an embedded webserver and secured web user interface called Aptus Web for
remote management of the antenna on a web browser. Network connection can be
easily setup through the front Management Ethernet Port on the BDT that supports
automatic IP conguration.

13
INTRODUCTION
Intellian GX100PM Features
Military Standards Compliance
The GX100PM is certied to military standards for MIL-STD-167-1A for shock and vibration
and MIL-ST-461F for EMI/EMC performance.
Frequency tuned radome
To ensure efcient operations for Ka-band Inmarsat Global Xpress™ systems, the signal loss
of the radome itself is minimized and the performance maximized with an optimized radome
design that enhances the Ka-band system performance.
Gyro-free satellite search capability
Intellian’s new generation gyro-free satellite search function enables the GX100PM to acquire
and lock onto the satellite without requiring a separate input from the ship’s gyrocompass.
GX Core Module Combined BDT
The below deck terminal combines the GX Core Module internally with the antenna controller,
saving time and space during installation. The BDT also includes a Wi-Fi connection to
allow wireless connectivity via the dedicated Intellian Aptus software for system control and
monitoring. The Aptus software also helps automatically congure the antenna system
during initial commissioning.
Graphical and user-friendly antenna control software
The GX100PM provides a newly developed, graphic-based antenna remote control program
with an additional Software Development Kit (SDK), allowing the NOC or service center to
integrate antenna monitoring and control into its existing network management systems in
an easier, user-friendly, and convenient manner.
One Touch Commissioning
The GX100PM is pre-congured to get network connection quickly without the need of post
installation conguration or NOC staff.
Intelligent rmware upgrade
Intellian GX100PM provides easy and intelligent rmware upgrade methods. Firmware
upgrades can be automatically initiated by plugging a rmware stored USB Memory Stick
to the USB Port on the BDT front or by launching ‘Firmware Upgrade’ on the Aptus®or
Aptus Web. Users can also manually select a rmware le on a local disk and complete the
upgrade. The rmware can be rolled back to a previous version as the BDT’s built-in memory
stores the current and previous rmware les.

GX100PM – Marine Satellite Communication System
14
System Conguration
For your satellite communication system to work properly, the system will have to
be connected with all of the provided components as shown in the gure below.
A separate purchase of a satellite modem, ship’s gyrocompass, and Intellian Dual
VSAT Mediator may be required.
Basic system
configuration
PC

15
INTRODUCTION
INSTALLING THE ANTENNA
System Package
Antenna Unit
BDT (Below Deck Terminal)
Installation Kit
Planning the Installation
Selection of Antenna Installation Site
Setting Block Zones
System Cables
Power Requirement
Tools Required for Installation
Antenna Installation
Unpacking the Wooden Crate
Check before Mounting
Position the Radome
Mount the Radome
RF Cable Connections
Secure the RF Cables

GX100PM – Marine Satellite Communication System
16
System Package
The package of Intellian GX100PM consists of antenna unit, lifting straps, BDT and
installation kit box.
Antenna unit
BDT
Installation kit box

17
INSTALLING THE ANTENNA
Antenna Unit
The antenna unit includes an antenna pedestal inside a radome assembly unit. The
pedestal consists of a satellite antenna main dish with RF components mounted
on a stabilized pedestal. The radome protects the antenna pedestal assembly unit
from the severe marine environment.
Antenna unit

GX100PM – Marine Satellite Communication System
18
BDT (Below Deck Terminal)
The digital VFD (Vacuum Fluorescent Display) allows for easy operation of the BDT,
even in the dark.
The functions of the BDT are as follows :
• Setting the satellite
• Editing satellite information
• Setting the antenna parameter
• Setting the antenna manual search
• Setting the LNB local frequency
• Setting block zones
• Setting modem connections
• Setting GPS and Gyrocompass
• Display power status
• Built-in real-time diagnostics function
• Backup and restore the system settings
• Set up the interface with a PC
• Supports Wi-Fi BDT operation
• Recording antenna activities and rmware upgrade through USB
• Built-in web-based remote control management
• Front and rear panel Management Ethernet port
Below deck terminal
Rear panel
Front panel

19
INSTALLING THE ANTENNA
Contains the items required for securing the antenna unit and BDT to the vessel.
Installation Kit
BDT box
Description Q'ty Size Remarks
Below Deck Terminal (BDT) 1 43.1 cm x 44.1 cm x 4.4 cm
(17" x 17.3" x 1.7") Below Deck Terminal
User Manual 1
RF Hazard Sticker 1 Radiation Safety Distance Label
Mounting Template 1
Wi-Fi Antenna 1 110mm
USB Flash Drive 1

GX100PM – Marine Satellite Communication System
20
Components box
Description Q'ty Size Remarks
BDT Bracket (Rack) 2 BDT-19inch Rack
BDT Bracket (Table) 2 BDT-Table
AC Power Cord (CEEE7/7) 1 1.5m BDT Power
AC Power Cord (USA) 1 1.5m BDT Power
AC Input Cable to Power Box 1 3m AC Power to Antenna Power Box
PC Serial Cable 1 1.8m BDT to PC
USB Cable (A-A) 1 1.8m BDT to PC
Ethernet Cable (RJ45/LAN) 1 1.5m BDT to PC
N to F Adaptor 2 N(Male) to F(Female) Adaptor
Hex Bolt 5 M12 x 100L
Antenna-Deck 4 Sets :
Installation 1 Set : Spare
Flat Washer 5 M12
Spring Washer 5 M12
Hex Nut 10 M12
Hex Head Wrench Bolt 5 M6 x 40L
Radome (Spare Bolts)Spring Washer and Flat Washer 5 M6
Sems Bolt 2 M4 x 8
Self-Tapping Screw 5 M4 x 16 Table Mount Bracket
Flat Head Screw 10 M4 x 12L Rack Mount Bracket BDT
Sems Bolt 5 M3 x 12L Table Mount Bracket BDT
3 Pin Power Connector 1 - MS3106A 14S-1S
