Introduction to Intellian v130
Features of Intellian v130
System Congurations
INTRODUCTION

9
INTRODUCTION
Introduction to Intellian v130
Intellian v130 (1.25m) is a ku-band VSAT maritime antenna system that supports
SCPC, TDMA, Spread Spectrum or Carrier-in-Carrier and is suitable for high-speed
internet, email, le transfer, video conference, VoIP, VPNs and database backup.
With its 3-axis stabilized platform and advanced shock-resistant and vibration
damping design, the v130 is capable of withstanding the most demanding sea
conditions to provide “always on” and “high-quality” broadband communications
on all types of vessels.
The v130 is built to meet or exceed the industry’s most stringent standards such as
FCC, ETSI, R&TT, and MIL-STD-167. The v130 offers superior RF performance with
its simple yet sophisticated design that reduces installation time and total cost of
ownership. Equipped with Remote IP access function, the v130 can be accessed,
monitored and controlled from anywhere and anytime to ensure cost-effective
technical supports without having an engineer come on board.
The v130 is fully integrated with ABS (Automatic Beam Switching) function with
leading service providers who use the embedded OpenAMIP protocol of the iDirect
platform and v130 is also compatible with various platforms such as Hughes,
Comtech, SatLink and more. The v130 is available in both cross-pol and co-pol
feeds and supports multi-band LNBs and the option of 4W-25W BUC.

v130 – Marine Satellite Communication System
10
Features of Intellian v130
Enjoy always-on broadband connection at sea
Intellian v130 is the most modern communication system that offers a high-
speed and always-on broadband connection at sea, where the atmospheric and
environmental conditions are very harsh.
Best solution for all kinds of vessels
The v130 is the best solution for all kinds of vessels that require the satellite
broadband connection around the globe. The major RF components are designed
and manufactured by Intellian’s solid in-house engineering to achieve superior
antenna gain and xpol isolation recognized among the best performances in the
industry.
Gyro-free satellite search capability
Intellian’s new generation gyro-free satellite search function enables the v130 to
acquire and lock onto the satellite without requiring a separate input from the ship’s
gyrocompass
Wide elevation range
The v130 have a wide elevation range from -15° to 120° and -20° to 120°,
respectively which offer seamless signal reception while the vessel is traveling near
the Equator or Polar Regions.
Remote management solution
The v130 can be accessed, monitored, and controlled from any location in the world
through the embedded web server, which can save tremendous time and cost from
the hundreds of routine maintenance activities. These solutions include operating
rmware upgrade, tracking parameters resets and system diagnostic.
Save installation and maintenance time
Simple design allows users to install and setup the system without the need for a
skilled engineer. The v130 provides the utmost in reliability resulting in time and cost
savings in maintenance.
Various platform compatibility
The v130 is fully integrated with Automatic Beam Switching (ABS) function with
leading service providers who use the embedded OpenAMIP protocol of the iDirect
platform and ROSS ROAM protocol of the Comtech platform. The v130 is also
compatible with various platforms such as Hughes, Comtech, SatLink and more.

11
INTRODUCTION
System Congurations
For your satellite communication system to work properly, the system will have to
be connected with all of the provided components properly, as shown in the gure
below. Separate purchase of a satellite modem, ship’s gyrocompass, and Intellian
Dual VSAT Mediator are required.
Basic System
Conguration
(8W BUC)
Basic System
Conguration
(4W BUC)
MODEM Interface Gyro-Compass Input
RS-232/RS-422
Antenna Rx
24 V == 5 A
BUC
Power Modem Rx
Satellite Modem
(Not supplied)
Antenna Control Unit
Modem InterfaceModem RX
Antenna TX
Antenna RX
BUC
Power
AC 100 ~ 240 V
(50~60 Hz 4A)
Ship’s Gyrocompass
(Not supplied)
PC Interface Tx
ANT1RS232 USB ANT2 MODEM
Rx
ANT1 ANT2 MODEM
ACU Interface
ACU1RS232 & RS422Console ACU
Modem Interface
Ethernet
NMEA
Heading
+ -
MODEM Interface Gyro-CompassInput
RS-232/RS-422
AntennaRx
24V == 5 A
BUC
Power ModemRx
MODEM Interface Gyro-CompassInput
RS-232/RS-422
AntennaRx
24V == 5 A
BUC
Power ModemRx
BUC
Power
BUC
Power
RX1 TX1 TX2
Antenna
Unit 1
Antenna
Unit 2
RX2
AC 100 ~ 240V (50~60Hz)
Antenna Control Unit 1
Satellite Modem
Antenna Control Unit 2
Mediator
Ship’s
Gyrocompass
TX RX Interface
PC
NOTE: BUC power should set to ON from the modem when you connect to a 4W
BUC. BUC power should set to OFF from the modem when you connect to an 8W
BUC.
MODEM Interface Gyro-Compass Input
RS-232/RS-422
Antenna Rx
24 V == 5 A
BUC
Power Modem Rx
Satellite Modem
(Not supplied)
Antenna Control Unit
Modem InterfaceModem RX
Antenna TX
Antenna RX
AC 100 ~ 240 V
(50~60 Hz 4A)
Ship’s Gyrocompass
(Not supplied)
PC Interface Tx
ANT1RS232 USB ANT2 MODEM
Rx
ANT1 ANT2 MODEM
ACU Interface
ACU1RS232 & RS422Console ACU
Modem Interface
Ethernet
NMEA
Heading
+ -
MODEM Interface Gyro-CompassInput
RS-232/RS-422
AntennaRx
24V == 5 A
BUC
Power ModemRx
MODEM Interface Gyro-CompassInput
RS-232/RS-422
AntennaRx
24V == 5 A
BUC
Power ModemRx
BUC
Power
BUC
Power
RX1 TX1 TX2
Antenna
Unit 1
Antenna
Unit 2
RX2
AC 100 ~ 240V (50~60Hz)
Antenna Control Unit 1
Satellite Modem
Antenna Control Unit 2
Mediator
Ship’s
Gyrocompass
TX RX Interface
PC

v130 – Marine Satellite Communication System
12
MODEM Interface Gyro-Compass Input
RS-232/RS-422
Antenna Rx
24 V == 5 A
BUC
Power Modem Rx
Satellite Modem
(Not supplied)
Antenna Control Unit
Modem InterfaceModem RX
Antenna TX
Antenna RX
BUC
Power
AC 100 ~ 240 V
(50~60 Hz 4A)
Ship’s Gyrocompass
(Not supplied)
PC Interface Tx
ANT1RS232 USB ANT2 MODEM
Rx
ANT1 ANT2 MODEM
ACU Interface
ACU1RS232 & RS422Console ACU
Modem Interface
Ethernet
NMEA
Heading
+ -
MODEM Interface Gyro-CompassInput
RS-232/RS-422
AntennaRx
24V == 5 A
BUC
Power ModemRx
MODEM Interface Gyro-CompassInput
RS-232/RS-422
AntennaRx
24V == 5 A
BUC
Power ModemRx
BUC
Power
BUC
Power
RX1 TX1 TX2
Antenna
Unit 1
Antenna
Unit 2
RX2
AC 100 ~ 240V (50~60Hz)
Antenna Control Unit 1
Satellite Modem
Antenna Control Unit 2
Mediator
Ship’s
Gyrocompass
TX RX Interface
PC

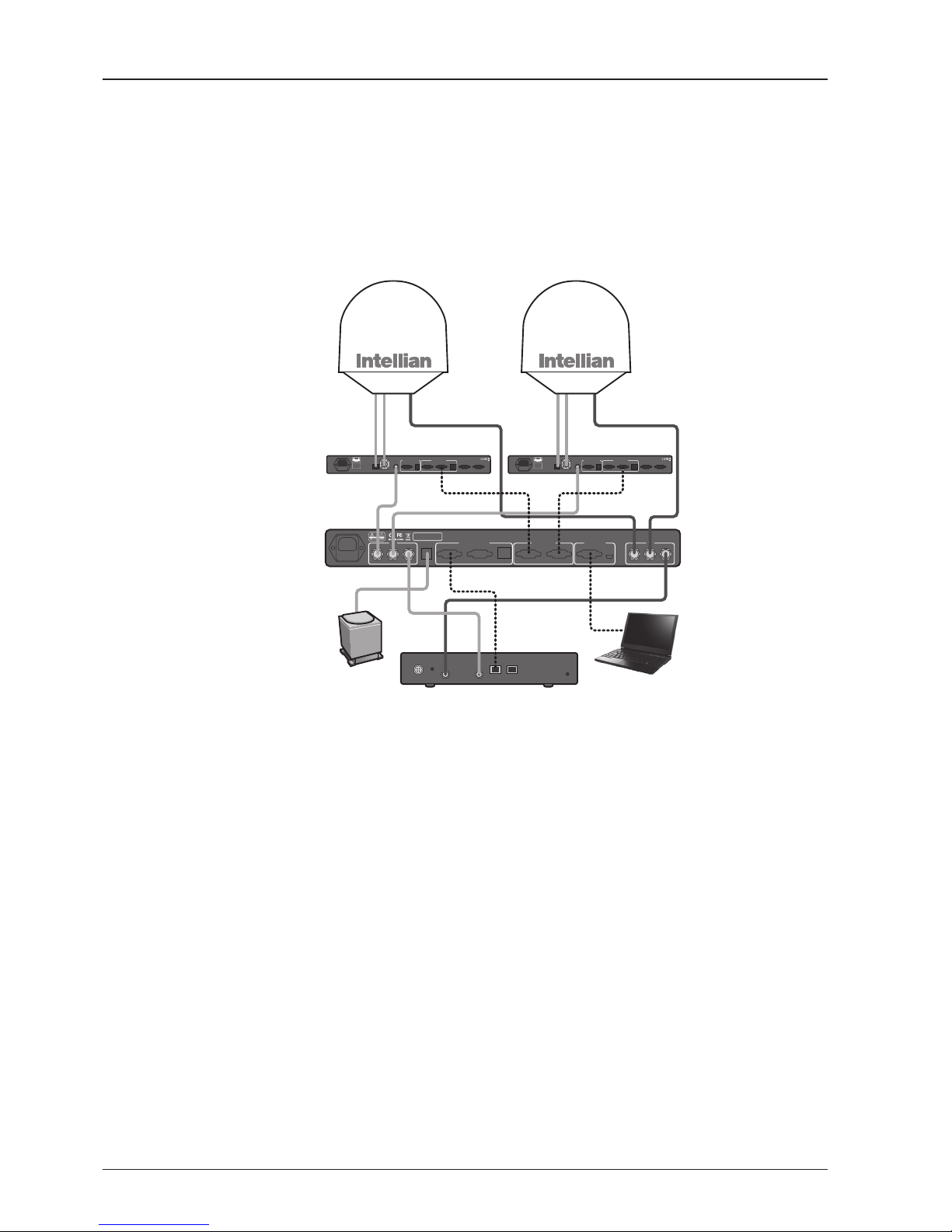

Dual System
Conguration
(8W BUC)

13
INTRODUCTION
INSTALLING THE ANTENNA
System Package
Antenna Unit
ACU (Antenna Control Unit)
Installation Kit
Planning the Installation
Selection of Antenna Installation Site
Congure Radiation Hazard/Blockage Zones
System Cables
Power Requirement
Tools Required for Installation
Antenna Installation
Unpacking the Wooden Crate
Antenna Dimensions
Antenna Mounting Templates
Position the Radome
Mount the Radome
RF Cable Connections
Secure the RF Cables

v130 – Marine Satellite Communication System
14
System Package
The package of Intellian v130 consists of antenna unit, ACU and installation kit box.
Antenna unit
ACU
Installation kit box

15
INSTALLING THE ANTENNA
Antenna Unit
The antenna unit includes an antenna pedestal inside a radome assembly unit. The
pedestal consists of a satellite antenna main dish with RF components mounted
on a stabilized pedestal. The radome protects the antenna pedestal assembly unit
from the marine environment.
Antenna Unit

v130 – Marine Satellite Communication System
16
ACU (Antenna Control Unit)
ACU provides power to the antenna and Block Up Converter (BUC), The digital
Vacuum Fluorescent Display (VFD) allows for easy operation of the ACU, even in
the dark.
The functions of the ACU are as follows:
• System startup
• Setting the satellite
• Editing satellite information
• Setting the antenna parameter
• Setting the antenna manual search
• Setting the LNB local frequency
• Setting radiation hazard or blockage zone
• Setting modem connections
• Setting GPS and Gyrocompass
• Display versions
• Display power status
• Performing diagnostic tests
• Backup and restore the system settings
• Set up the interface with a PC
Antenna Control Unit
Front panel
Rear panel

17
INSTALLING THE ANTENNA
Antenna Q’ty Description Size Remark
5Hex. Bolt M12 x 80L
Antenna-Deck
4 Sets: Installation
1 Set: Spare
5Flat Washer M12
5Spring Washer M12
10 Hex. Nut M12
5Hex Head Wrench
Bolt M6 x 40L
Radome
(Spare Blots)
5Dome Washer M6
ACU Q’ty Description Size Remark
5Self-Tapping
Screw 4 x 16 Table Mount Bracket
10 Flat Head Screw M3 x 8L Rack Mount
Bracket ACU
5Sems Bolt M3 x 12L Table Mount
Bracket ACU
Installation Kit
Contains the items required for securing the antenna unit and ACU to the vessel.

v130 – Marine Satellite Communication System
18

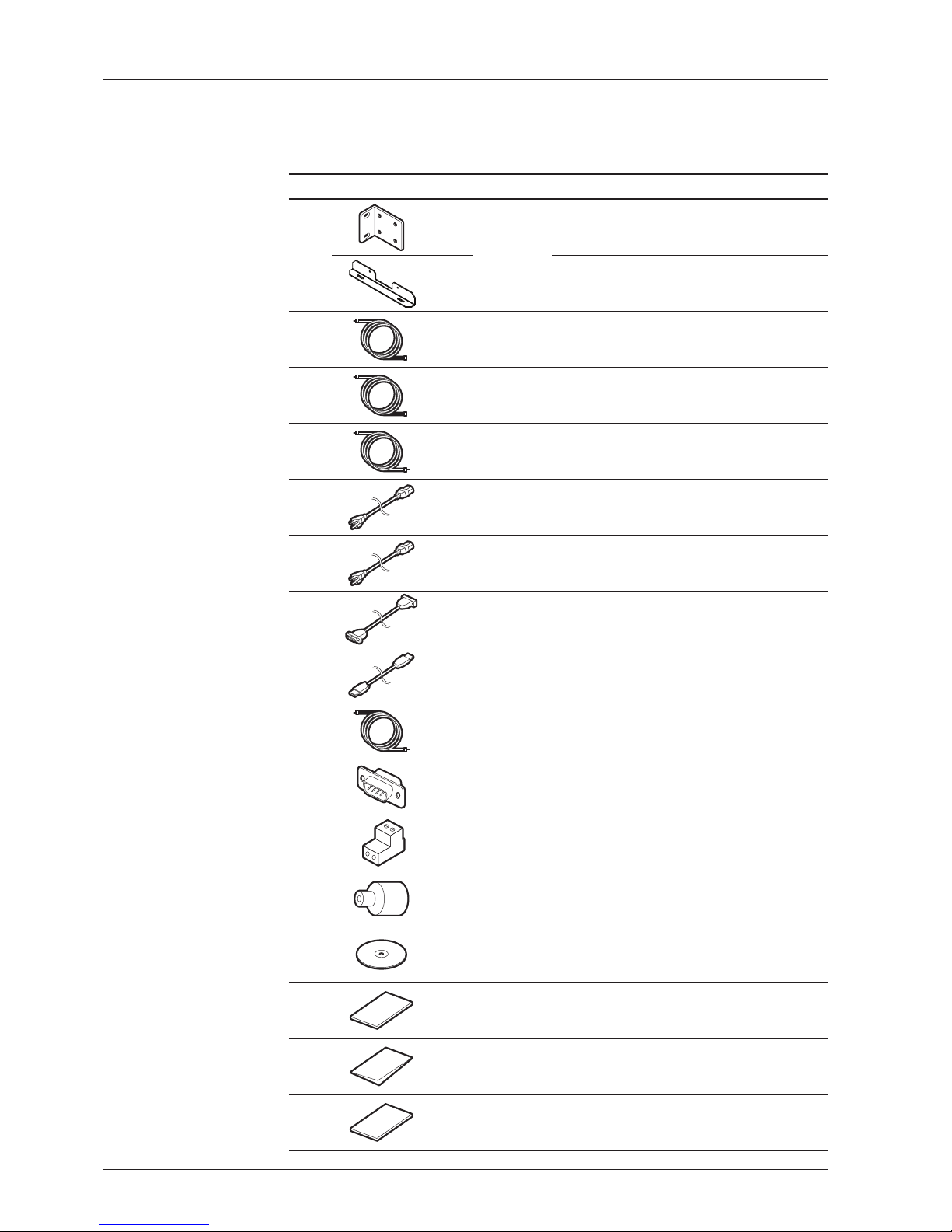

Other Components
Item Image Q’ty Description Size Remark
1
2
ACU
Bracket
Rack - ACU - 19 inch Rack
2Table - ACU-Table
2 1RG6 Cable 3 m ACU to Modem
3 2RG6 Cable
(Optional) 15 m Antenna to Modem & Antenna to ACU
41BUC Power Cable 15 m Antenna to ACU
5 1AC Power Cord
(CEE7/7) 1.5 m ACU Power
6 1AC Power Cord
(USA) 1.8 m ACU Power
7 1PC Serial Cable 1.8 m ACU to PC
8 1USB Cable
(A-A / M-M) 1.8 m ACU to PC
9 1iDirect Interface Cable 1.5 m ACU to Modem
10 2D-Sub 9 Pin Male
Connector - ACU
11 1BUC Power Connector
(AK950-2) - Antenna (BUC In)
12 1N to F Adapter - N (Male) to F (Female)
Adapter
13 1Installation CD - -
14 1User Manual - -
15 1Mounting Template - -
16 1Wooden Crate
Unpacking Guide - -

19
INSTALLING THE ANTENNA
Planning the Installation
Selection of Antenna Installation Site
Install the antenna in accordance with the following procedures to insure maximum
performance of the antenna. The ideal antenna site has a clear view of the horizon
or satellite all around. Please be sure there are no obstacles within 15º above the
center of the antenna. Any obstacles can prevent the antenna from transmitting and
receiving the satellite signal.
Do not install the antenna near the radar especially on the same plane as its energy
levels may overload the antenna front-end circuits. It is recommended to position
the antenna at least 4 feet (1.2 m) above or below the level of the radar and minimum
of 15 feet (4.6 m) away from the high power short wave radars.
The mounting platform should be rigid enough and not subjected to excessive
vibration. The movement of the antenna can be minimized by installing at the
center of the vessel. If these conditions can be only partially satised, nd the best
compromised installation site between the various considerations.
Elevation Limit
of Obstacles
15°
Congure Radiation Hazard/Blockage Zones
It is important to setup the radiation hazard or blockage zones for Intellian VSAT
communication systems. The ACU can be programmed with relative azimuth and
elevation sectors to create up to ve zones where transmit power would endanger
personnel who are frequently in that area or blockage exists. Several things happen
when the antenna is within one of these zones.
1. “BLOCK” will be displayed on the ACU screen.
2. Tracking continues as long as the signal level is greater than the predened
threshold value. When the signal level drops below the threshold value the
antenna will wait “Search Wait Time” parameter amount of time and re-target the
satellite you targeted last. The antenna will continue to re-target the satellite until
the satellite is re-acquired and tracking can be resumed.
3. A transmit inhibit output from the ACU will disable/mute the modem transmission.
Antenna Unit Obstacle

v130 – Marine Satellite Communication System
20
System Cables
Before installing the system cables, you need to take the following points into
consideration.
1. All cables need to be well clamped and protected from physical damage and
exposure to heat and humidity.
2. Cable with an acute bend is not allowed.
3. Where a cable passes through an exposed bulkhead or deck head, a watertight
gland or swan neck tube should be used.
Power Requirement
Intellian v130 has been designed to work on a vessel’s power supply rated at 100-
240 V AC.
• BUC Power Cable
Cable Length mm2per conductor
Up to 30 meters 1.25 mm2
Up to 50 meters 2.30 mm2
Up to 70 meters 3.00 mm2
Up to 120 meters 5.00 mm2
Recommended
BUC Power Cables
Type Multi-conductor, Shielded
Number of wires 5 conductors for Synchro
• Gyro Compass / GPS Interface Cable (Customer Furnished)
Recommended
Cables
• RF Cable (Customer Furnished)
Due to the voltage losses across the length of the RF coax on L-Band, Intellian
recommends the following 50 ohm coax cable types for standard system
installations. For cables that run longer than 150 meters, please consult Intellian
Technologies.
Recommended
RF Cables Coaxial Cable
Type
Attenuation in
dB/100M
Attenuation in
dB/M
Recommended
Cable Length
LMR300 30.3 0.303 35M
LMR400 19.6 0.196 60M
LMR500 15.9 0.159 80M
LMR600 12.8 0.128 100M
LMR900 8.6 0.086 150M
LMR1200 6.5 0.065 200M
