Intellinet 560900 User manual

24-PORT POE+
WEB-MANAGED GIGABIT
ETHERNET SWITCH
WITH 4 SFP COMBO PORTS
USER MANUAL!
Model 560900
!
!
INT-560900-01-UM-1013

FCC Warning
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy. It may cause harmful interference to radio communications if the
equipment is not installed and used in accordance with the instructions. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment to an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
CE Warning
This is a Class A product. In a domestic environment,this product may cause radio interference,in
which case the user may be required to take adequate measures.
!

"!
!
Contents
Contents............................................................................................................................ 3!
1.!Introduction ............................................................................................................... 5!
1.1 Product Overview............................................................................................5
1.2 General Features ............................................................................................5
1.3 Software Features...........................................................................................5
1.4 Package Contents...........................................................................................6
2.!Hardware!Description................................................................................................. 7!
2.1 Dimensions .....................................................................................................7
2.2 Appearance & Front Panel..............................................................................7
2.3 LED Indicators ................................................................................................8
2.4 Rear Panel ......................................................................................................8
2.5 Hardware Installation ......................................................................................8
3.!Preparation!for!Web!Interface...................................................................................10!
4.!Web!UI!Configuration................................................................................................12!
4.1!Configuration ########################################################################################################## $%!
4.1.1 System Configuration.................................................................................12
4.1.2 Ports...........................................................................................................14
4.1.3 VLAN..........................................................................................................15
4.1.4 Aggregation................................................................................................17
4.1.5 LACP..........................................................................................................17
4.1.6 RSTP .........................................................................................................18
4.1.7 802.1X Configuration .................................................................................20
4.1.8 IGMP Snooping..........................................................................................22
4.1.9 Mirroring.....................................................................................................23

&!
!
4.1.10 QoS..........................................................................................................24
4.1.11 Filter Configuration...................................................................................26
4.1.12 PoE (Power over Ethernet) Configuration................................................26
4.1.13 Rate Limit Configuration ..........................................................................27
4.1.14 Storm Control...........................................................................................28
4.2 Monitoring ############################################################################################################### "'!
4.2.1 Statistic Overview ......................................................................................30
4.2.2 Detailed Statics ..........................................................................................30
4.2.3 LACP Status ..............................................................................................31
4.2.4 RSTP Status ..............................................................................................31
4.2.4 IGMP Status...............................................................................................32
4.2.5 VeriPHY .....................................................................................................33
4.2.6 Ping............................................................................................................34
4.3 Maintenance ########################################################################################################### "(!
4.3.1 Warm Restart.............................................................................................35
4.3.2 Factory Default...........................................................................................35
4.3.3 Software upload .........................................................................................35
4.3.4 Configuration File Transfer ........................................................................36
!4.3.5 Logout ################################################################################################################## ")!
5.!Specifications............................................................................................................38!

(!
!
1. Introduction
1.1 Product Overview
This switch is a 24-port 10/100/1000M PoE+ (with four Combo SFP ports) Rackmount Web-
Smart Switch. It supports the IEEE 802.3at Power over Ethernet standard, with a maximum of
390 watts power consumption per system. The switch also provides exceptionally smart web
management features, such as VLAN, QoS, RSTP, IGMP Snooping, LACP, IEEE 802.1X and
Storm Control.
The switch is a standard 19”rackmount design to fit into the rack environment. With these
features, the switch is a superb choice for a medium or large network environment to
strengthen its network connection and efficiency.
!
1.2 General Features
24-Port 10/100/1000BaseT(X) PoE+ with 4 Combo SFP open slots
IEEE 802.3at, up to 30 W per port
Maximum 390 W power consumption
48 Gbps non-blocking switching performance
8K MAC address table; up to 9K jumbo frames
Web-based configuration and management
802.1Q VLAN, QoS, Link Aggregation, RSTP, IGMP Snooping and IEEE 802.1X
!
1.3 Software Features
VLAN: 16, VLAN ID: 1 – 4094
Rapid Spanning Tree Protocol
IGMP Snooping V1&V2
LACP/Trunk: up to 8 groups
Quality of Service: up to 4 queues, 802.1p
PoE Control: PoE Port Enabled/Disable, Status
IEEE 802.1X, Source IP Filter
Storm Control: Broadcast, Multicast, Flood Unicast
Port: Port State, Speed/Duplex, Flow Control
Rate Limiting, Port Mirroring
Management: Web GUI, SNMP, password protection, configuration upload/download,
firmware upgrades

)!
!
1.4 Package Contents!
Before you start to install this switch, verify your package contains the following items:
Switch
Power cord
User manual on CD
Rackmount kit with 8 screws

*!
!
2. Hardware Description
This section primarily presents the hardware of the switch, physical dimensions, appearance,
front panel, rear panel and LED indicators.
2.1 Dimensions
45 ×440 ×330 mm (H×W ×D)
2.2 Appearance & Front Panel
The front panel of the switch consists of 24 gigabit RJ45 ports. Four of the gigabit RJ45 ports
(Ports1–4) are in combo with the four gigabit SFP open slots. The LED Indicators are also
located on the front panel.

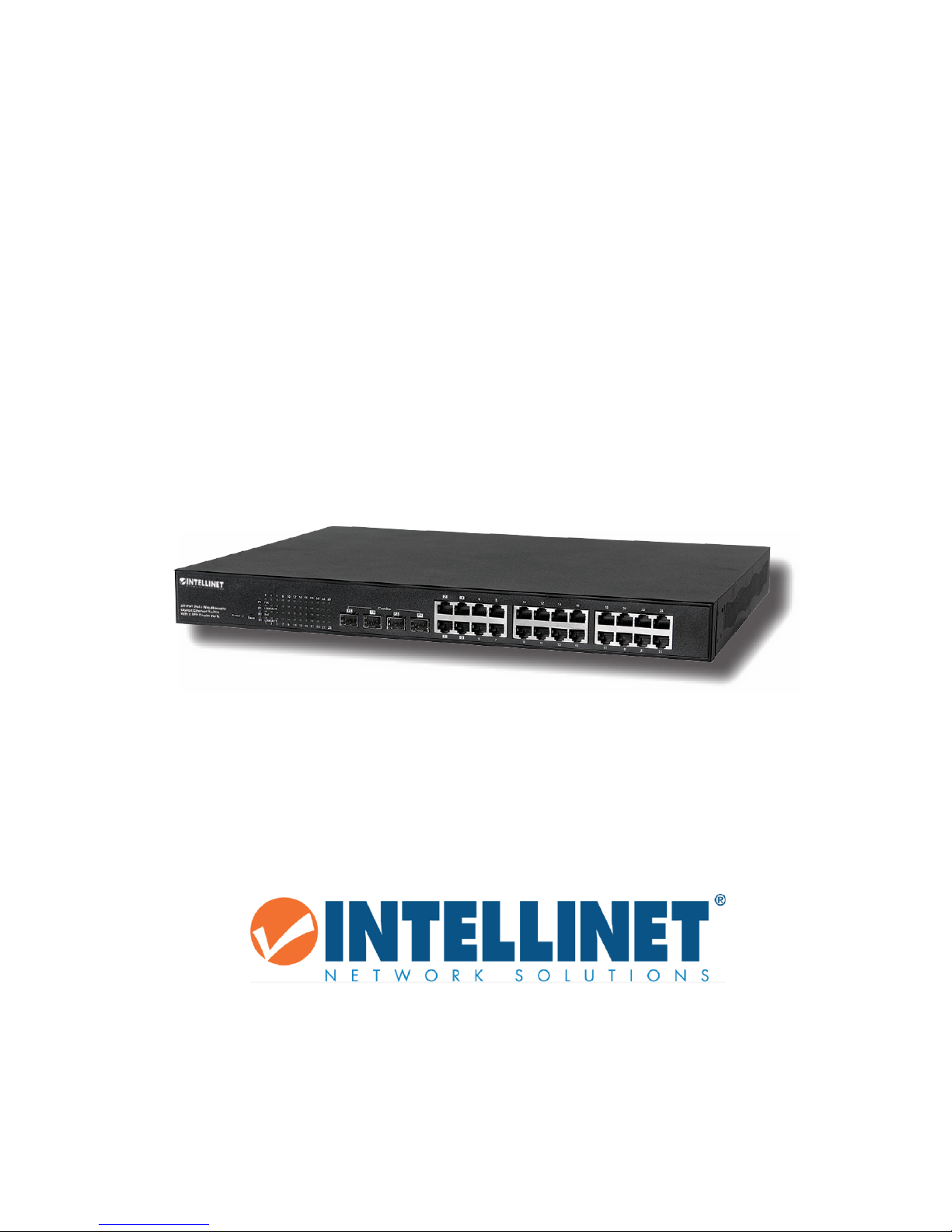

Appearance
Front Panel
Note 1: The SFP ports are shared with normal RJ45 ports 1, 2, 3 and 4. For example: The
RJ45 Port 1 can not be used when SFP Port 1 is linked to a device.
Note 2: Press the Reset button for 5 seconds and the system configuration will be reset to the
default settings.
LED Display
RJ-45 Port
IEEE 802.3at PSE
4 RJ-45/SFP
Combo ports
Reset Button

+!
!
2.3 LED Indicators
The LED Indicators present real-time information of systematic operation status. This table
provides description of LED status and the meaning.
Table 1-1 LED Indicators
LED
Status
Description
On
Power on
Power
Off
Switched to Off or disconnected from
power source
On
Link
Flashing
Data activating
Link / ACT
Off
No device is attached
On
Port is linked to powered device
PoE
Off
No powered device is connected
!
2.4 Rear Panel
The 3-pronged power plug is on the rear panel of the switch as shown as below. This is
reserved for AC power input.
2.5 Hardware Installation
The switch is typically mounted in a19”rack, installed in an IT room or other secured
place. Make sure all the power cables, Ethernet cables, mounting screws and such are
prepared and installed as described below, including clearance for adequate ventilation.
Ports1–24 are copper ports, requiring UTP/STP cable. These portsare also PoE ports,
requiring CAT 5/5eor above for the PoE application.
Ports 1–4 are also the combo SFP ports.
Ethernet cable requirements
The wiring cable types for data transmission are as below.
10 Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable, EIA/TIA-568 100-ohm (max. 100m)
100 Base-TX: 2-pair UTP/STP Cat. 5 cable, EIA/TIA-568 100-ohm (max. 100m)
1000 Base-T: 4-pair UTP/STP Cat. 5 cable, EIA/TIA-568 100-ohm (max. 100m)
The wiring cable types for data transmission and power delivery in any speed should be
Cat5 or above.

,!
!
SFP Installation
When using the SFP ports, make sure the SFP types are compatible in terms of
transmission distance, wavelength and fiber cable can meet your request.
When connecting an SFP transceiver, plug in the SFP fiber transceiver first. The SFP
transceiver has two plugsfor fiber cable:one is TX (transmit);the other is RX (receive).
Cross-connect the transmit channel at each end to the receive channel at the opposite
end.
Rackmount Installation
Attach the brackets to the device using the screws provided in the rackmount kit.
Mount the device in a19” rack using four rackmounting screws provided by the rack
manufacturer.

$'!
!
3. Preparation for Web Interface
The Web management page allows you to use a standard Web browser — such as
Microsoft Internet Explorer, Google Chrome or Mozila Firefox —to configure and
interrogate the switch from anywhere on the network.
Before you attempt to use the Web user interface to manage switch operation, verify
that your switch is properly installed on your network and that every PC on this network
can access the switch via the Web browser.
1. Verify that your network interface card (NIC) is operational, and that your operating
system supports the TCP/IP protocol.
2. Powerontheswitchand connect your computer to the switch.
3. The switch default IP address is 192.168.2.1. The switch and the connected PC(s)
should locate within the same IP subnet.
4. Change your computer's IP address to 192.168.2.XX or another IP address that is
located in the 192.168.2.x subnet. (For example: IP address = 192.168.2.30; subnet
mask = 255.255.255.0)
Launch the Web browser and log in.
5. Launch the Web browser on the PC.
6. Enter “http://192.168.2.1” (or the IP address of the switch), then press <Enter>.
7. The login screen will appear next.
8. Key in the password. Default password is no password.Click Apply.

$$!
!
Login Screen
The factory default password is no password: Just click Apply to log in directly.
Once the login is complete, the interface displays “Password successfully entered.”
Note: To help ensure your switch’s security, go to the System Configuration page and set
up anew password.
Below is the main screen. The left side shows the function list and the right side shows
the configuration parameters.
Troubleshooting
If you can't log in to the switch, the following steps can help you to identify the problem.
1. Switch to DOS command mode and enter "ipconfig" to check the NIC setting. Enter "ping
192.168.2.1" to verify a normal response time.
2. Check the security and firewall settings of your computer.
3. Try a different Web browser.

$%!
!
4. Web UI Configuration
This part instructs you how to set up and manage the switch through the Web user
interface.
4.1 Configuration
This section shows how to configure the switch settings.

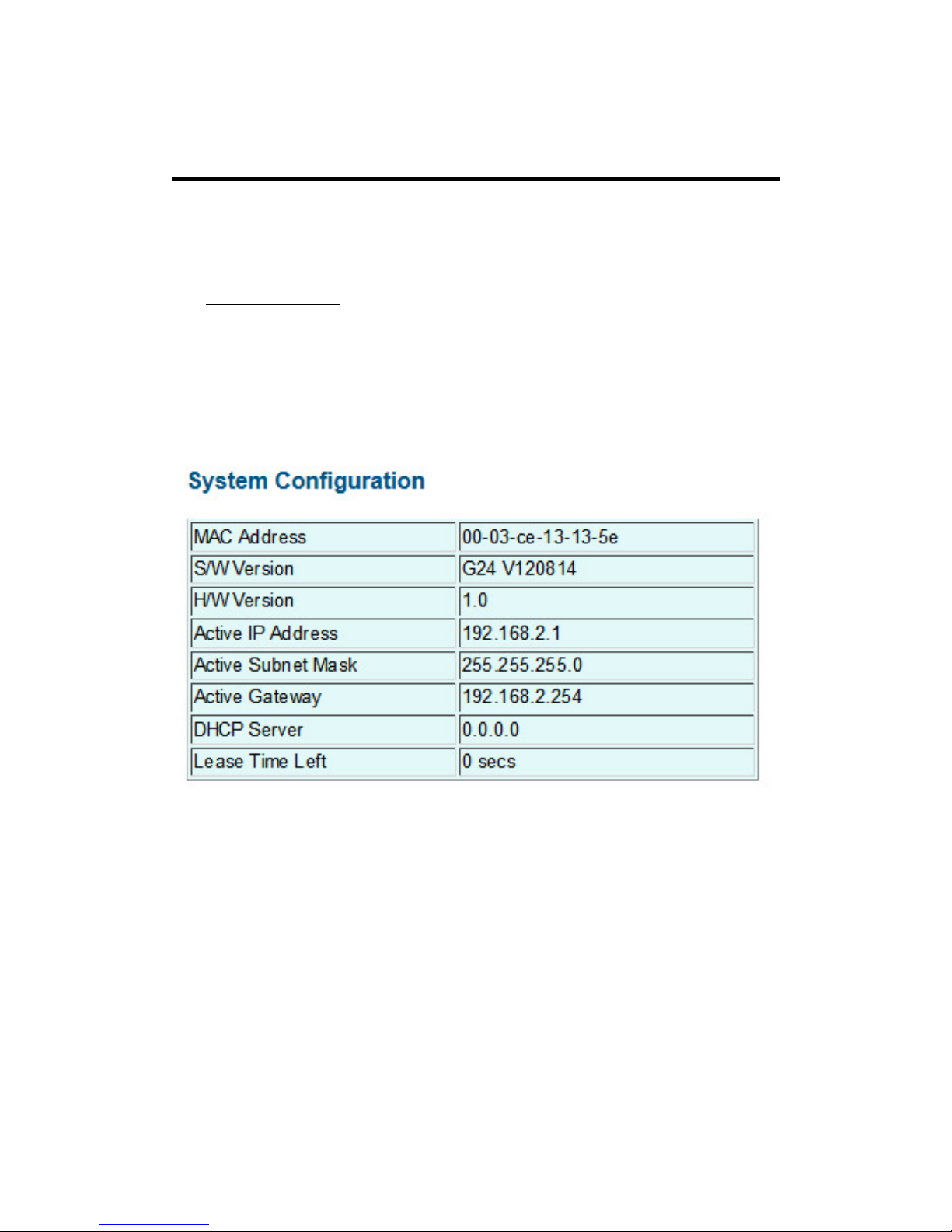

4.1.1 System Configuration
What follows is system configuration information.
MAC Address: Displays the unique hardware address assigned by the manufacturer
(default).
S/W Version: Displays the switch’s firmware version.
H/W Version: Displays the switch’s hardware version.
Active IP Address: The current active IP address of the switch.
Active Subnet mask: The current active subnet mask of the IP address.
Active Gateway: The current active gateway of the switch.
DHCP Server: The IP of the DHCP server. Displaysafter DHCP Client is enabled.
Lease Time Left: Display after DHCP Client is enabled.

$"!
!
DHCP Enabled: Click the box to enable DHCP Client mode.
Fallback IP address: Manually assign the IP address that the network is using. The default
IP is 192.168.2.1.
Fallback Subnet Mask: Assign the subnet mask to the IP address.
Fallback Gateway: Assign the network gateway for an industrial switch. The default
gateway is 192.168.2.254.
Management VLAN: ID of a configured VLAN (1-4094) through which you can manage the
switch. By default, all ports on the switch are members of VLAN 1. However, if the
management VLAN is changed, the management station must be attached to a port
belonging to this VLAN.
Name: Enter the new user name information.
Password: Enter the new password (the default value is no password).
SNMP Enabled: Enables or disables SNMP on the switch. Supports SNMP version 1 and
2c management clients.
SNMP Trap Destination: IP address of the trap manager to receive notification messages
from this switch. Traps indicating status changes are issued by the switch to specified trap
managers. You must specify trap managers so that key events are reported by this switch
to your management station.

$&!
!
SNMP Read Community: A community string that acts like a password and permits access
with Read privilege to the SNMP database on this switch. Authorized management stations
are only able to retrieve MIB objects.
SNMP Write Community: A community string that acts like a password and permits access
with Write privilege to the SNMP database on this switch. Authorized management stations
are able to modify the value of the MIB objects.
SNMP Trap Community: A community string sent with the notification operation.
4.1.2 Ports
In Port Configuration, you can set and view the operation mode for each port.
Enable Jumbo Frames: This switch provides more efficient throughput for large sequential
data transfers by supporting jumbo frames on Gigabit Ethernet ports up to 9216 bytes.
Compared to standard Ethernet frames that run only up to 1.5 KB, using jumbo frames
significantly reduces the per-packet overhead required to process protocol encapsulation
fields.
Power Saving Mode: Adjusts the power provided to ports based on the length of the cable
used to connect to other devices. Only sufficient power is used to maintain connection
requirements.
Mode: Allowsuser to manually set the port speed,such as Auto, 10 half, 10 Full, 100 Half,
100 Full, 1000 Full or Disabled. Click Apply to complete the configuration procedure.
Flow Control: Allows you to manually enable or disable the Flow Control feature. Check the
box of the specific ports you want, the click Apply to complete the configuration procedure.
!
!
!
!
!
!
!
!
!
!
!
!
!
!

$(!
!
4.1.3 VLAN
A Virtual LAN (VLAN) is a logical network grouping that limits the broadcast domain, which
would allow you to isolate network traffic so only the members of the same VLAN will receive
traffic from each other. Basically, creating a VLAN from a switch is logically the equivalent of
reconnecting a group of network devices to another Layer 2 switch. However, all the network
devices are still plugged into the same switch physically.
Port Segmentation (VLAN) Configuration

$)!
!
VLAN ID: ID of a configured VLAN (1-4094, no leading zeroes). Enter the new ID and click
Add. The Web UI is directed to the VLAN Setup screen.
VLAN Configuration List: Lists all the current VLAN groups created for this system (up to
16). VLAN groups can be defined. VLAN 1 is the default untagged VLAN.
VLAN Setup Configuration
This screen allows you to select the member ports of the VLAN you added. Select the
ports and click Apply to activate.

$*!
!
4.1.4 Aggregation
Port trunk allows multiple links to be bundled together and act as a single physical link for
increased throughput. It provides load balancing and redundancy of links in a switched
internetwork. Actually, the link does not have an inherent total bandwidth equal to the sum of
its component physical links. Traffic in a trunk is distributed across an individual link within the
trunk in a deterministic method called a hash algorithm. The hash algorithm automatically
applies load balancing to the ports in the trunk. A port failure within the trunk group causes the
network traffic to be directed to the remaining ports. Load balancing is maintained whenever a
link in a trunk is lost or returned to service.
Aggregation / Trunking Configuration
To assign the ports to a trunk, click the required trunk number ports, then click Apply.
The below example shows that Ports3 and 4 are the member ports of Trunk Group 1.
4.1.5 LACP
IEEE 802.3ad Link Aggregation Control Protocol (LACP) increases bandwidth by automatically
aggregating several physical links together as a logical trunk and providing load balancing and
fault tolerance for uplink connections. Once the port is configured as a Static Aggregation port,
the area will become gray. It means a port can only be amember of the Aggregation or LACP.
LACP Port Configuration
Port: The port ID.
Protocol Enabled: Enables LACP Protocol on the associated port.
Key Value: Configures a port's LACP administration key. The port administrative key must
be set to the same value for ports that belong to the same link aggregation group (LAG). If

$+!
!
this administrative key is not set when an LAG is formed (i.e., it has the null value of 0), this
key will automatically be set to the same value as that used by the LAG.
4.1.6 RSTP
IEEE 802.1w Rapid Spanning tree protocol (LACP) provides a loop-free network and
redundant links to the core network with rapid convergence to ensure faster recovery from
failed links, enhancing overall network stability and reliability.
RSTP System Configuration
System Priority: This parameter configures the spanning tree priority globally for this switch.
The device with the highest priority becomes the STP root device. However, if all devices
have the same priority, the device with the lowest MAC address will then become the root
device. Number between 0 and 61440 in increments of 4096. Therefore, there are 16
distinct values.

$,!
!
Hello Time: Interval (in seconds) at which the root device transmits a configuration
message (BPDU frame). Number between 1 and 10 (default is 2).
Max Age:The maximum time (in seconds) a device can wait without receiving a
configuration message before attempting to reconfigure. This also means the maximum
lifetime for a BPDU frame. Number between 6 and 40 (default is 20).
Forward Delay: The maximum time (in seconds) the root device will wait before changing
states (i.e., discarding to learning to forwarding). Number between 4 and 30 (default is 15).
Force Version: Set and show the RSTP protocol to use. Normal -use RSTP; Compatible -
compatible with STP.
RSTP Port Configuration
Port: The port ID. Aggregations mean any configured trunk group.
Protocol Enabled: Select to enable/disable the RSTP protocol for the port.
Edge: Expect the port to be an edge port (linking to an end station) or a link to another STP
device.
Path Cost: This parameter is used by the STP to determine the best path between devices.
Therefore, lower values should be assigned to ports attached to faster media, and higher
values assigned to ports with slower media. Set the RSTP path cost on the port. Number
between 0 and 200000000. The default value is “auto,” meaning the system will
automatically generate path cost.
