Intellinet 561167 User manual

8‐PortDesktopGigabitWeb‐SmartPoE+
Switchwith2SFPPorts
UserManual 
Model561167 
























INT‐561167‐UM‐1216‐1


   8‐PortDesktopGigabitWeb‐SmartPoE+Switchwith2SFPPorts
2

1 TABLEOFCONTENTS
2ProductIntroduction.........................................................................................................................4
2.1ProductOverview..............................................................................................................................4
2.2Features.............................................................................................................................................4
2.3Specifications.....................................................................................................................................5
2.4ExternalComponentDescription.....................................................................................................6
2.4.1FrontPanel............................................................................................................................................6
2.4.2RearPanel..............................................................................................................................................8
2.5PackageContents..............................................................................................................................8
3InstallingandConnectingtheSwitch...............................................................................................9
3.1DesktopInstallation...........................................................................................................................9
3.2Rack‐mountableInstallationin19‐inchCabinet..............................................................................9
3.3PowerontheSwitch.......................................................................................................................10
4ConnectiontotheSwitch................................................................................................................11
4.1ConnectingComputer.....................................................................................................................11
4.2HowtoLogintotheSwitch............................................................................................................11
5SavingtheConfiguration.................................................................................................................13
6SwitchConfiguration.......................................................................................................................14
6.1Home................................................................................................................................................14
6.1.1PortInformation..................................................................................................................................14
6.1.2PortInformation,EquipmentConfigurationandPortStatistics.........................................................14
6.2QuickSetup......................................................................................................................................16
6.3PortSettings....................................................................................................................................17
6.3.1BasicConfig..........................................................................................................................................17
6.3.2PortAggregation....................................................................................................................................1
6.3.3PortMirroring........................................................................................................................................2
6.3.4Portspeedlimit.....................................................................................................................................3
6.3.5Broadcaststorm....................................................................................................................................4
6.3.6Portisolation.........................................................................................................................................5
6.4VLAN...................................................................................................................................................8
6.4.1TrunkPortSettings..............................................................................................................................10
6.4.2HybridPortSettings.............................................................................................................................11
6.4.3SetupExample***..............................................................................................................................12
6.5Fault/Safety......................................................................................................................................15
6.5.1AntiAttack...........................................................................................................................................15
6.5.2ChannelDetection...............................................................................................................................22
6.5.3ACLAccessControlList........................................................................................................................24
6.6PoE...................................................................................................................................................27
6.6.1PoEConfig............................................................................................................................................27
6.6.2PoEPortConfig....................................................................................................................................28
6.6.3PoEDelayConfig..................................................................................................................................30

   8‐PortDesktopGigabitWeb‐SmartPoE+Switchwith2SFPPorts
3

6.7SpanningTreeProtocol(STP).........................................................................................................31
6.7.1MSTPRegion........................................................................................................................................34
6.7.2MSTPBridge........................................................................................................................................35
6.8DHCPRelayAgent............................................................................................................................37
6.8.1DHCPRelay..........................................................................................................................................37
6.8.2Option82..............................................................................................................................................37
6.9DHCPServer.....................................................................................................................................39
6.9.1DHCPConfig.........................................................................................................................................39
6.10IGMPSnooping................................................................................................................................41
6.10.1IGMPConfig.........................................................................................................................................42
6.10.2IGMPFilterPolicyConfig.....................................................................................................................44
6.11TerminalAccessControllerAccess‐ControlSystem(TACACS+)....................................................45
6.12Radius...............................................................................................................................................47
6.12.1RadiusGeneralConfig.........................................................................................................................47
6.12.2RadiusServerConfig............................................................................................................................48
6.13AAA...................................................................................................................................................49
6.13.1EnableConfig.......................................................................................................................................49
6.13.2RegionConfig.......................................................................................................................................49
6.14QoS–QualityofService..................................................................................................................50
6.14.1QoSRules.............................................................................................................................................50
6.14.2QueueConfig.......................................................................................................................................51
6.14.3QueueMapping...................................................................................................................................52
6.15AddressTable..................................................................................................................................53
6.15.1AddressTableConfig...........................................................................................................................53
6.16SNMP................................................................................................................................................55
6.16.1SNMPConfig........................................................................................................................................55
6.16.2RMONConfig.......................................................................................................................................60
6.17System..............................................................................................................................................64
6.17.1SystemConfig......................................................................................................................................64
6.17.2SystemUpdate....................................................................................................................................68
6.17.3ConfigurationManagement................................................................................................................69
6.17.4ConfigSave..........................................................................................................................................70
6.17.5AdministratorSettings.........................................................................................................................70
6.17.6InformationCollect..............................................................................................................................71
7Warranty.........................................................................................................................................72
8Copyright.........................................................................................................................................73
9FederalCommunicationCommissionInterferenceStatement.....................................................74



   8‐PortDesktopGigabitWeb‐SmartPoE+Switchwith2SFPPorts
4

2 PRODUCTINTRODUCTION
CongratulationsonyourpurchaseoftheIntellinet8‐PortWeb‐ManagedGigabitEthernetSwitch.Beforeyou
installandusethisproduct,readthismanualcarefullytounderstanditsfunctions.
2.1 PRODUCTOVERVIEW

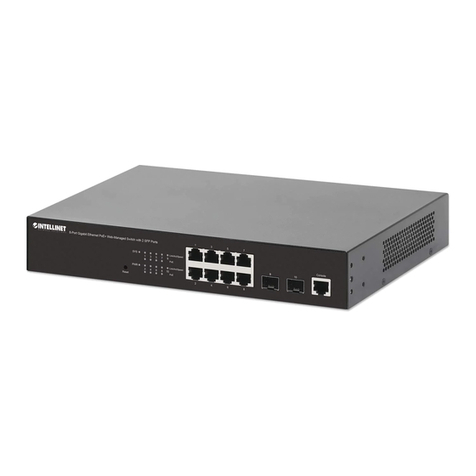

TheIntellinet8‐PortGigabitEthernetPoE+Web‐ManagedSwitchwith2SFPPortsprovidesseamlessnetwork
connections.Itintegrates1000MbpsGigabitEthernet,100MbpsFastEthernetand10MbpsEthernetnetwork
capabilitiesinahighlyflexiblepackage.Eachofthe810/100/1000MbpsAuto‐NegotiationRJ45portssupports
AutoMDI/MDIXfunction.Theswitchisahigh‐performanceupgradefromyouroldnetworktoa1000Mbps
Gigabitnetwork.Itsolvesnetworkbottlenecksthatfrequentlydevelopasmoreadvancedcomputerusersand
newerapplicationsdemandgreaternetworkresources.Forefficientmanagement,theswitchisequippedwith
aremoteWebinterface.UserscanprogramtheswitchforadvancedmanagementfunctionssuchasPort
Management,LinkAggregation,VLAN,SpanningTree,Multicast,QoS,Security,AccessControl,MACAddress
Table,Diagnostics,RMONandmore.
2.2 FEATURES

Eight10/100/1000Mbpsauto‐sensingportsautomaticallydetectoptimalnetworkspeeds

 Twosmallform‐factorpluggableGBICmoduleslots(SFP)
 Foruseondesktopormountedinstandard19"rack
 IEEE802.3at/af‐compliantRJ45PoE/PoE+outputports
 SupportsIEEE802.3atandIEEE802.3af‐compliantPoEdevices(wirelessaccesspoints,VoIPphones,IP
cameras)
 PoEpowerbudgetof140watts
 SNMPV1,V2C,V3withRMONgroups1,2,3&9
 SupportsVLAN(tag‐basedandport‐based) 
 ProvidesIEEE802.1xport‐basedsecurity 
 Supportslinkaggregation(trunking
)

 Supportsportmirroring 
 Supportsjumboframesupto9kBytes
 SupportsRapidSpanningTree/SpanningTreeprotocol
 Broadcaststormcontrolwithmulticastpacketratesettings 
 SupportstwotypesofQoS:port‐basedandDSCP
 LEDsforpower,link/activity,connectionspeed
 High‐efficiencyfandeliversquiet,reliablecooling
 Includes
19"rackmountbrackets


   8‐PortDesktopGigabitWeb‐SmartPoE+Switchwith2SFPPorts
5

2.3 SPECIFICATIONS
Standards
•IEEE802.1d(SpanningTreeProtocol)
•IEEE802.1p(TrafficPrioritization) 
•IEEE802.1q(VLANTagging)
•IEEE802.1s(MultipleSpanningTreeProtocol)
•IEEE802.1w(RapidSpanningTreeProtocol)
•IEEE802.3ad(LinkAggregation) 
•IEEE802.3(10Base‐TEthernet)
•IEEE802.3ab(TwistedPairGigabitEthernet)
•IEEE802.3ad(LinkAggregationControlProtocolLACP) 
•IEEE802.3af(PoweroverEthernet802.3atType1)
•IEEE802.3at(PoweroverEthernet802.3atType2)
•IEEE802.3az(EnergyEfficientEthernetEEE) 
•IEEE802.3u(100Base‐TXFastEthernet)
•IEEE802.3x(flowcontrol,forfullduplexmode)

Power
•Input:100–240VAC,50–60Hz

Environmental
•Metalhousing
•Dimensions:280(L)x180(W)x44(H)[mm]/11.02(L)x7.09(W)x1.73(H)[in.]
•Weight:1.6kg(3.5lbs.)
•Operatingtemperature:0–45°C(32–113°F)
•Operatinghumidity:10–90%RH,non‐condensing
•Storagetemperature:‐10–70°C(14–158°F)

PackageContents
•8‐PortGigabitEthernetPoE+Web‐ManagedSwitchwith2SFPPorts
•19"rackmountbrackets
•Powercable
•Instructions



   8‐PortDesktopGigabitWeb‐SmartPoE+Switchwith2SFPPorts
6

2.4 EXTERNALCOMPONENTDESCRIPTION
2.4.1 FrontPanel 
Thefrontpaneloftheswitchconsistsof810/100/1000MbpsRJ‐45ports,twoSFPports,oneconsoleport,
oneResetbuttonandaseriesofLEDindicatorsasshownbelow.


10/100/1000MbpsRJ‐45ports(1~8):
Connecttoadevicewithabandwidthof10Mbps,100Mbpsor1000Mbps;eachhasacorresponding
10/100/1000MbpsLED.

SFPports(SFP1,SFP2):
InstallSFPmodulesandconnecttothedevicewithabandwidthof1000Mbps;allportshaveacorresponding
1000MbpsLED.
Consoleport(Console):
Connectswiththeserialportofacomputerorterminaltomonitorandconfiguretheswitch. 
Resetbutton(Reset): 
Restoresthesystemtofactorydefaultsettings;holdtheresetbuttonforfivesecondswhilethedevicepowers
itselfon.

LEDindicators:
Enabletheadministratortomonitor,diagnoseandtroubleshootanypotentialproblemwiththeswitch,its
connectionorattacheddevices. 




   8‐PortDesktopGigabitWeb‐SmartPoE+Switchwith2SFPPorts
7

ThefollowingchartprovidesanexplanationofeachLEDindicatorontheswitch.
LEDCOLORSTATUSSTATUS DESCRIPTION
PWR Green
OnPower On
OffPower Off
Link/Act
(1-8)
10/100M:
Orange
OnA device is connected to the port.
OffNo device is connected to the port.
1000M:
GreenFlashingSending or receiving data.
PoE Green
On
APoweredDevice(PD)isconnectedtotheport,andpowerisbeing
provided.
Off
NoPDisconnectedtothecorrespondingportorpowerisnotbeing
suppliedtoit.

Flashing
PoEoverloadorshortcircuit–disconnectthePDrightaway. 
Max1
(1‐4Ports)
Green
On
PoweroutputtothePDshasreachedthemaximumpowerbudget
of≥55W.NopowermaybesuppliedifadditionalPDsare
connected.

Off
ThepowerofalltheconnectedPoEportsis<55W,ornoPDis
connectedtothecorrespondingport.

Flashing
ThepoweroutputtoPDshasexceededthemaximumpower
budgetof70W.

Max2
(5‐8Ports)
Green
On
ThepoweroutputtoPDshasreachedthemaximumpowerbudge
of≥55W.NopowermaybesuppliedifadditionalPDsare
connected.
Off
ThepowerofalltheconnectedPoEportsis<55W,ornoPD
connectedtothecorrespondingport.

Flashing
ThepoweroutputtoPDshasexceededthemaximumpower
budgetof≥70W.

SFP1
SFP2
Green
On Adeviceisconnectedtotheport.
Off Adeviceisdisconnectedtotheport.
Flashing Sendingorreceivingdata.



   8‐PortDesktopGigabitWeb‐SmartPoE+Switchwith2SFPPorts
8

2.4.2 RearPanel



ACPowerConnector:  
PowerissuppliedthroughanexternalACpoweradapter;itsupportsAC100‐240V,50/60Hz.

GroundingTerminal: 
GroundstheswitchthroughthePEcableontheACcordorwithaseparategroundwire. 



2.5 P ACKAGE C ONTENTS 
Beforeinstallingtheswitch,makesurethatthefollowingitemsareenclosed.Ifanypartismissingor
damaged,contactyourIntellinetagentimmediately. 

 8‐PortGigabitEthernetPoE+Web‐ManagedSwitchwith2SFPPorts
 Fourrubberfeet,twomountingearsandeightsscrews 
 OneACpowercord 
 OneQuickInstallationGuide
 InstallationCDwithUserManual



   8‐PortDesktopGigabitWeb‐SmartPoE+Switchwith2SFPPorts
9

3 INSTALLINGANDCONNECTINGTHESWITCH
ThischapterdescribeshowtoinstallyourWeb‐ManagedGigabitEthernetSwitchandmakeconnectionstoit.
Thefollowingstepswillhelppreventdamagetothedeviceandmaintainpropersecurity:
 Placetheswitchonastablesurfaceordesktoptominimizethechancesofitfalling. 
 MakesuretheswitchworksintheproperACinputrangeandmatchesthevoltagelabeledonthe
switch. 
 Topreventelectrocution,donotopentheswitch’schassis,evenifitfailstoreceivepower. 
 Makesurethatthereisproperheatdissipationfromandadequateventilationaroundtheswitch. 
 Makesurethesurfaceonwhichtheswitchisplacedcansupporttheweightoftheswitchandits
accessories. 

3.1 DESKTOPINSTALLATION 
Wheninstallingtheswitchonadesktop(ifnotinarack),attachtheenclosedrubberfeettothebottom
cornersofittominimizevibration.Allowadequatespaceforventilationbetweenthedeviceandtheobjects
aroundit. 

3.2 RACK‐MOUNTABLEINSTALLATIONIN19‐INCHCABINET 
TheswitchcanbemountedinanEIAstandard‐sized,19‐inchrack,whichcanbeplacedinawiringclosetwith
otherequipment.Toinstalltheswitch,followthesesteps:
Attachthemountingbracketsontheswitch’ssidepanels(oneoneachside)andsecurethemwiththescrews
provided. 

Figure5‐BracketInstallation


   8‐PortDesktopGigabitWeb‐SmartPoE+Switchwith2SFPPorts
10

Usethescrewsprovidedwiththeequipmentracktomounttheswitchontherackandtightenit. 

Figure6‐RackInstallation
3.3 POWERONTHESWITCH 
ConnecttheswitchtoanoutletusingtheAC100‐240V50/60Hzinternalhigh‐performancepowersupply.

ACElectricalOutlet:
Intellinetrecommendstheuseofasingle‐phase,three‐wirereceptaclewithaneutraloutletormultifunctional
professionalreceptacle.Besuretoconnectthemetalgroundconnectortothegroundingsourceontheoutlet.

ACPowerCordConnection:
ConnecttheACpowerconnectoronthebackpaneloftheswitchtoanexternalreceptaclewiththeincluded
powercord.ThencheckthatthepowerindicatorisON.WhenitisON,thecorrespondingLEDisilluminated.



   8‐PortDesktopGigabitWeb‐SmartPoE+Switchwith2SFPPorts
11

4 CONNECTIONTOTHESWITCH
4.1 CONNECTINGCOMPUTER
UsestandardCat5/5eEthernetcables(UTP/STP)toconnecttheswitchtoendnodesasdescribedbelow.
Switchportswillautomaticallyadjusttothecharacteristics(MDI/MDI‐X,speed,duplex)ofthedevicetowhich
theyareconnected.

Figure7‐PCConnect
TheLNK/ACT/SpeedLEDsforeachportareilluminatedwhenthelinkisavailable.
4.2 HOWTOLOGINTOTHESWITCH
AstheswitchprovidesWeb‐basedmanagementlogin,configureyourcomputer’sIPaddressmanuallytolog
ontotheswitch.Thedefaultsettingsoftheswitchareshownbelow.
Parameter DefaultValue 
DefaultIPaddress  192.168.2.1 
DefaultUsername  admin
DefaultPassword  1234
Logontotheconfigurationwindowoftheswitchthroughfollowingsteps: 
1. ConnecttheswitchwiththecomputerNICinterface. 
2. Powerontheswitch. 
3. CheckwhethertheIPaddressofthecomputeriswithinthisnetworksegment:192.168.2.xxx(“xxx”
rangeis2‐254);forexample,192.168.2.100. 


   8‐PortDesktopGigabitWeb‐SmartPoE+Switchwith2SFPPorts
12

Openthebrowser,andgototheURLhttp://192.168.2.1.Theswitchloginwindowappears,asshownbelow.

EntertheUsernameandPassword(thefactorydefaultUsernameisadminandthePasswordis1234),and
thenclick“LOGIN”tologintotheswitchconfigurationwindowasbelow.



   8‐PortDesktopGigabitWeb‐SmartPoE+Switchwith2SFPPorts
13

5 SAVINGTHECONFIGURATION
TheIntellinet8‐PortGigabitEthernetPoE+Web‐ManagedSwitchprovidesamyriadofconfigurationoptions,
manyofwhicharedesignedforexperiencednetworkadministratorsandaren’teasytoconfigure.Itwouldbe
arealshameifalltheconfigurationdatawaslostafterapowerfailureoraftertheswitchwasrestarted.In
ordertomaketheconfigurationpermanent,itneedstobesaved. 
Hereishow:




Ifyoudonotperformthisfunction,yourisklosingallthesettingsaftertheswitchrestarts.


   8‐PortDesktopGigabitWeb‐SmartPoE+Switchwith2SFPPorts
14

6 SWITCHCONFIGURATION
Thischapterdescribeshowtousetheweb‐basedmanagementinterface(WebUI)forthisswitch. 
6.1 HOME


6.1.1 PortInformation


AgreensquareindicatestheportlinkisupatGigabitspeeds.Anambersquareindicatesalinkspeedof100
Mbps.Agraysquaresindicatetheportlinkisdown,andaPoEconnectionisindicatedbythecolorred.


6.1.2 PortInformation,EquipmentConfigurationandPortStatistics
Thissectionprovidesreal‐timeinformationabouttheports,basicsettingsandtrafficstatistics.



   8‐PortDesktopGigabitWeb‐SmartPoE+Switchwith2SFPPorts
15

Item Description
PortInformation Displaystheportnumber.Thenomenclatureisasfollows:
Gi=GigabitEthernet
0/=Switch0(whichmeansthisdevice)
1‐10=Portnumber.Ports9and10areSFPmoduleslots.
Description Optionaldescriptionfortheport,asenteredinthebasicportconfiguration.
InputFlow(bps) Inboundtrafficrate,measuredin"bitspersecond.”
OutputFlow(bps) Outboundtrafficrate,measuredin"bitspersecond.”
OpenState ON=Portisactivatedinthebasicportconfigurationandwillacceptconnections
fromnetworkingdevices.
OFF=Portisdeactivatedinbasicportconfiguration. 
Status Connect:Anetworkingdeviceisconnectedtotheportandhasanactivelink. 
Disconnect:Nodeviceisconnectedtotheport. 
VLAN IftheportbelongstoaVLAN,itsIDisdisplayedhere.ID1=default.
TrunkPort Yes=TheportispartofanLACPtrunkinggroup.
No=TheportisnotpartofanLACPtrunkinggroup.


Thistabdisplaysinformationaboutvariousfunctionsandprovidesashort‐cutthatallowsdirectconfiguration
ofthatpartoftheswitchsettings.

Thistabdisplaysreal‐timeinformationaboutthedatapacketsforeachport.


   8‐PortDesktopGigabitWeb‐SmartPoE+Switchwith2SFPPorts
16

6.2 QUICKSETUP

TheIntellinet8‐PortGigabitEthernetPoE+Web‐ManagedSwitchprovidesasettingthatoffersdirectaccessto
someofthecorefunctionsofthedevice,namelyVLAN,trunking,deviceIPaddressandadminpassword.Even
thoughthefunctioniscalled“QuicklySet,”thereisnoneedtorush.Takeasmuchtimeasyoulikewiththe
configuration.





Refertosubsequentsectionsinthisuserguideforadditionalinformationabouttheindividualfunctions.


   8‐PortDesktopGigabitWeb‐SmartPoE+Switchwith2SFPPorts
17

6.3 PORTSETTINGS 
6.3.1 BasicConfig

Accesstheparametersrelatedtoeachofthe10ports.Thescreenisdividedintotwosections.Theupper
sectiondisplaysanimageofthe10portsoftheIntellinetswitch.Inordertomakechangestoaport,simply
clicktoselectit.
 

Createaselectionofmultipleportsatonce:
 

Onceoneportormultipleportsareselected,makechangestotheportsettings.


Item Description
Portdescription Optionaldescriptionfortheport.Amaximumof80characterscanbeprovided.No
specialcharactersorspacesareallowed.
PortSpeed 10M:Forceaconnectiontobemadeat10Mbps.
100M:Forceaconnectiontobemadeat100Mbps.
1000M:Forceaconnectiontobemadeat1000Mbps.
Auto:Theswitchandconnecteddevicenegotiatethebestpossibleconnectionspeed.
FlowControl IEEE802.3xflowcontrolistheprocessofmanagingtherateofdatatransmission
betweentwonodes(i.e.,theswitchandaconnectednetworkclient)topreventafast
senderfromoverwhelmingaslowreceiver.Itprovidesamechanismforthereceiver
tocontrolthetransmissionspeedsothatthereceivingnodeisnotoverwhelmedwith
datafromthetransmittingnode.Thatsoundslikeit'sagoodthing,anditis.Sowhyis
theoptionbydefaultsetto“disabled"?Theshortanswerisbecauseyounormally
don’tneeditandbecauseitcan,inveryrareinstances,haveanegativeimpactonthe
overallperformanceinyournetwork.TheTCPprotocolalreadyprovidesitsownflow
controlmechanism,allowingasendertothrottlebackthespeedifthereceiveris
havingproblemskeepingup.
Status ON:Activatetheport.
OFF:Disablestheport.Noconnectionstoitcanbemade.


   8‐PortDesktopGigabitWeb‐SmartPoE+Switchwith2SFPPorts
18

Item Description
DuplexMode Thisparametercontrolstheduplexmode.Inafull‐duplexsystem,bothpartiescan
communicatetotheothersimultaneously.Anexampleofafull‐duplexdeviceisa
telephone;thepartiesatbothendsofacallcanspeakandbeheardbytheotherparty
simultaneously.Innetworkingterms,fullduplexallowsuserstoreceiveandtransmit
dataatthesametime,whereashalfduplexdoesnot.Ifthetelephoneisanexample
forfullduplex,thenapush‐to‐talkCBradioor"walkie‐talkie"representshalfduplex.
Theswitchcaneitherreceiveorsenddata,butitcanneverhappensimultaneously.
Unlessyouhaveaspecificreasonnottodoso,thisshouldbeleftin“Auto”mode.
CableType
Detection
AutoMDI‐Xautomaticallydetectstherequiredcable‐connectiontypeandconfigures
theconnectionappropriately,removingtheneedforcrossovercablestointerconnect
switchesorforconnectingPCspeer‐to‐peer.Aslongasitisenabledoneitherendofa
link,eithertypeofcablecanbeused.ForautoMDI‐Xtooperatecorrectly,thedata
rateontheinterfaceandduplexsettingmustbesetto"auto."WhentwoautoMDI‐X
portsareconnectedtogether,whichisnormalformodernproducts,thealgorithm
resolutiontimeistypically<500ms.However,a~1.4secondasynchronoustimeris
usedtoresolvetheextremelyrarecase(withaprobabilityoflessthan1in5×1021)ofa
loopwhereeachendkeepsswitching.Ifyoudon’tunderstandanyofthis,simplyleave
thisvalueon“Auto.”

Thescreenalsoshowsatablethatlistsall10portsalongwiththeirparameters.The“megaframe”valuerefers
tojumboframes,whichareEthernetframeswithmorethan1500bytesofpayload.Definethesizeofthe
jumboframesinthesectionSYSTEM‐>SYSTEMCONFIG.




 Clickingthepencilallowstheadministratortoedittheportsettings,exactlythesamewayas
directlyselectingtheport(s)asshownonthepreviouspage.

6.3.2 PortAggregation

PortaggregationisamethodofusingmultipleEthernetportsinparalleltoincreasethroughputbeyondwhata
singleconnectioncouldsustainandtoprovideredundancyincaseoneofthelinksshouldfail.Asthisis
essentiallyagroupingofportsintoonelogicalunit,wecallthemLinkAggregationGroups,or“LAG”forshort. 

ThispageisusedtosetupLAGs.CreateuptoeightdifferentLAGs;eachcanhaveuptoeightmemberports.
EachLAGcanbegivenacustomname,andyoumustselecttheportsfortheLAG.Theexamplebelowshowsa
LAGgroupsetupwithfourmemberports. 



Item Description
Aggregateportnumber Thisisthelinkaggregationgroup(LAG)number
Pleaseselecttheporttojointheaggregateport SelectthememberportsthatbelongtothisLAG




   8‐PortDesktopGigabitWeb‐SmartPoE+Switchwith2SFPPorts
2

6.3.3 PortMirroring


Portmirroringistheabilityofa
networkswitchtosendacopyof
networkpacketsseenonaswitch
portorportstoanetwork‐
monitoringdeviceconnectedto
anotherswitchport(i.e.,a
computerequippedwithapacket
snifferutility).TheIntellinet8‐
PortGigabitEthernetPoE+Web‐
ManagedSwitchprovidesupto
fourgroupsforport‐mirroring
settings. 

Theexamplebelowshowsthesetupofonemirrorgroupwherealltrafficoccurringonport1ismirroredto
port6.



