International INT56ULTWSTEX User manual

USE AND CARE GUIDE
56 in. 10-Drawer Mobile Workbench
with Pegboard and Top Storage Cabinets
Store SKU # 1000000000
Internet SKU # 1000000000
Model # INT56ULTWSTEX
Questions, problems, missing parts?
Before returning to the store, call
Husky Customer Service
8 a.m – 7 p.m., EST, Monday-Friday
9 a.m – 6 p.m., EST, Saturday
1-866-441-5080
THANK YOU
We appreciate the trust and con dence you have placed in International through the purchase of this cabinet. We strive to continually
create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing International!

CAUTION: Load unit starting with bottom
drawers. Overloading the top of the unit may
result in the product becoming unstable and
creating a tipping hazard, which may cause
personal injury or product damage.
Table of Contents
Table of Contents..................................................2
Safety Information ...............................................2
Warranty ................................................................4
Specifications ........................................................4
Package Contents..................................................4
Hardware Included........................................................... 4
Assembly ...............................................................6
13............................... ................................ecnanetniaM
12..............................................................
Operation
Safety Information
1. Do not pull this unit, push it when moving.
2. Use the brakes when this product is not being
moved. This prevents the product from rolling.
3. Secure this product properly before moving it.
4. Do not tow the product with power equipment.
5. Do not alter this product in any manner. For
example, do not weld external lock bars or attach
electrical equipment.
Do not attach or mount this product
to a vehicle or mobile trailers. This may cause
personal injury or product damage. Mounting this
product to any vehicle or mobile trailers in any
warranty.
Do not stand on this product. You
may fall which may cause personal injury or
Be careful when opening more than
one drawer. The product may become unstable
and tip, which may cause personal injury or
product damage.
CAUTION: Keep the product on level surfaces.
The product may become unstable and tip if
stored or moved on an unlevel surface, which
may cause personal injury or product damage.
CAUTION:
CAUTION:
CAUTION:
CAUTION:

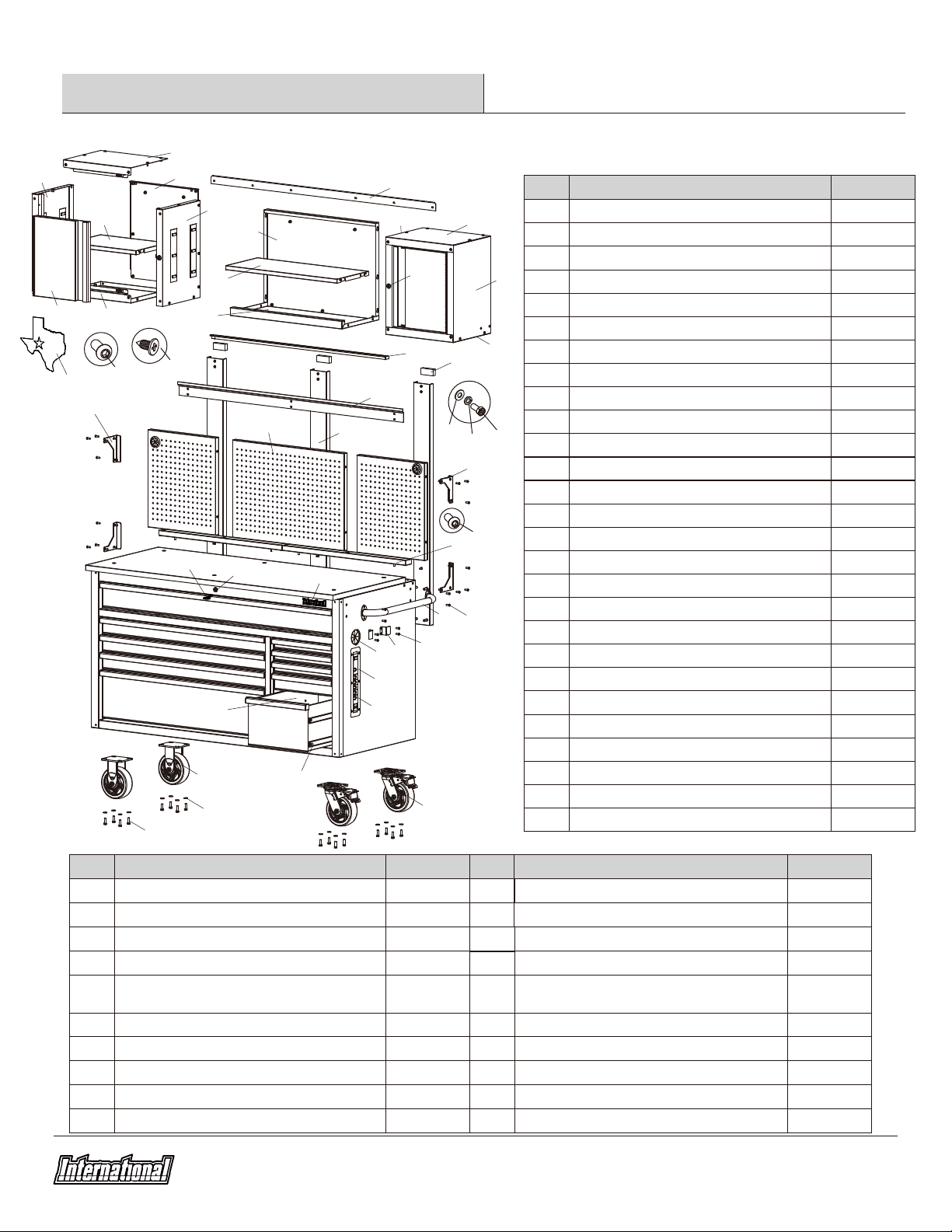

Replacement Parts ................................................14
product damage.
6. Before locking the cabinet, ensure the drawers are
completely closed in order for the lock bars to work properly.
Cordless Power Tool Battery Chargers ...............13
2
manner will void
CAUTION: Do not use the side handle as a
point of leverage to lift the unit off of the
ground. Handle is not intended to withstand
the force of vertical lifting, and is only designed
to aid in the movement of unit around on casters.
Failure to adhere to this warning may cause
handle to break and cause personal injury
and/or product damage.
Lock the drawers and the door
before moving this product. They could come
open and make the product unstable and tip,
which may cause personal injury or product
damage.
.............. 4Alternative Tools For Assembly (Not Included)

7. Extension cord
Follow all manufacturers' Warnings and Operating
Instructions for your extension cord.
Only use a three-wire extension cord with all three prongs
intact. Never remove the round grounding prong.
Check the insulation and plugs of extension cord before
using. Do NOT use cord if it is worn or damaged.
□
□
□
□
Do not insert extension cord through hole without grommet
in place.
□
Extension cord must be connected to a 125 Volt GFCI
protected outlet with proper ground. If GFCI outlet is not
available, use an extension cord with GFCI protection
built in.
□
□
□
Do NOT overload extension cord.
Remove extension cord from the hole
before moving or transporting storage cabinet.
Only use an extension cord that is rated for outdoor use.
□Do NOT connect extension cord to outlet that also sup-
plies critical safety equipment with power.
8. Electrical Shock Hazard
□ Do not plug cord into outlet with wet hands.
□ Do not use this cabinet near a bathtub, a shower, or a
swimming pool.
□ Cabinet plugs must match the outlet.
□ Never modify the plug in any way.
□ Do not use any adapter plugs with earth (grounded) cabinet
power strips.
□
of electric shock.
□ Avoid body contact with earthed or grounded surfaces. There
is an increased risk of electric shock if your body is earthed or
grounded.
CAUTION: RISK OF ELECTRICAL SHOCK: This unit has
one power supply cord. Make sure the cord is
unplugged before any servicing or cleaning.
3
NOTE : This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications.However, there
is no guarantee that interference will not occur in
a particular installation.
If this equipment does cause harmful interference to
radio or television reception, which can be determined
by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or
more of the following measures:
□Reorient or relocate the receiving antenna.
□Increase the separation between the equipment and
receiver.
□Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
□Consult the dealer or an experienced radio/TV
technician for help.
NOTE : This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful
interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
WARNING: Changes or modifications to this unit not
expressly approved by the party responsible for
compliance could void the user’s authority to operate
the equipment.
Please contact 1-866-441-5080 for further assistance.

ALTERNATIVE TOOLS FOR ASSEMBLY
(Not Included)
Slotted or Phillips Screwdriver
*12 mm wrench or socket
Specifications
Maximum weight per cabinet drawer 120 lbs.
150 lbs.
150 lbs.
Package Contents
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
Part Description
AA
BB
M6 x 16 bolt (2 extra pieces)
12
M8 x 20 bolt
87
CC
DD
Washer, Φ14 x 2.6 mm
12
Washer, Φ18 X 1.2 mm
12
EE
FF
Flat head Tapping Screw, ST5.5*12
(for door attachment)
1Hex key
8
Quantity
AA
EE FF
BB CC DD
Warranty
4
The manufacturer warrants the product to be free from defects in materials and workmanship for a period of three (3) years from date of
purchase. This warranty applies only to the original consumer and only to products used in normal use and service. If this product is found to
be defective, the manufacturer’s only obligation, and your exclusive remedy, is the repair or replacement of the product at the manufacturer’s
mishandling.
This warranty shall not apply to any product that is found to have been improperly installed, set up, or used in any way not in accordance with
the instructions supplied with the product. This warranty shall not apply to a failure of the product as a result of an accident, misuse, abuse,
negligence, alteration, faulty installation, or any other failure not relating to faulty material or workmanship. This warranty shall not apply to
ar purpose,
consequential
or incidental loss or damage, including but not limited to any labor/expense costs involved in the replacement or repair of said product.
NOTE: Begin product assembly close to t nal
intended location of your cabinet. This product is
heavy and may be di cult to move after assembly.
Maximum pegboard capacity
Maximum capacity of top cabinets and shelf
3000 lbs.Total weight capacity
Contact the Customer Service Team at 1-866-441-5080.

Package Contents (continued)
NOTE:
The keys are inside top drawer.
5
Part Description Quantity
A
B
C
Workstation 1
Cabinet handle 1
D
3
2
Storage hook
E
F
1
1
Hanger
Horizontal support
G
2
H
I
Pegboard
Left side panel for wall cabinet(Left)
J
K
Part Description Quantity
L
M
Right side panel for wall cabinet(Left)
2
O
1
1
Back panel
Shelf
P
Q
1
3
Bottom panel
EVA sticker
R
3
1
2
1
Vertical support
S
T
Rubber wood top
Back tray
U
V1
1
1
1
Top panel for wall cabinet(Right)
Back panel for wall cabinet
Shelf inside wall cabinet
Bottom panel for wall cabinet(Left) 1
1
Bottom panel for wall cabinet(Right)
M
X
A
B
H
C
J
I
E
F
K
D
L
O
V1 Q
R
PW1
S
Y
Left side panel for wall cabinet(Right)
Right side panel for wall cabinet(Right)
2
Left bracket
2
Right bracket
1
1
LED light and power cord(USB)
V2
W1
W2
T
U
N
G
X
1
Top panel for wall cabinet(Left)
N
2
Door for wall cabinet
Y
V2
W2
Please contact 1-866-441-5080 for further assistance.
2
Magnetic label
Z
Z

1
Top Cabinet Assembly
NOTE:
Side panels and back panel tabs (flanges) must
be positioned on inside of cabinet facing up.
NOTE:
CAUTION:
Two people are recommended for assembly.
Assembly
6
For Left wall cabinet, attach Side Panels (R & S) to Bottom Panel (W1) with bolts (AA) and supplied hex key (FF). Do not fully
tighten. See Figure 1.1
Insert Back Panel (Q) inside the two Side Panels (R & S) and Bottom (W1). Align and insert bolts (AA) into holes and secure with
hex key (FF). See Figure 1.2
Place Top Panel (V1) over sides (R & S) and back (Q). Align holes on top (V1), sides (R & S) and back (Q) then secure with bolts (AA)
and hex key (FF). Do not fully tighten. See Figure 1.3
Square up cabinet on a level surface and fully tighten all bolts (AA) with hex key (FF).
Align the holes on the hinge of the Door (O) to the holes on Left Side Panel (R) then secure with Flat head Tapping Screws (EE) and
screwdriver. Ensure the door is squared and ush with the cabinet before tightening the screws. See Figure 1.4
With the Door (O) open insert Shelf Panel (P) into cabinet. Determine the desired height of your Shelf (P) and secure by inserting
shelf edges into the tab flanges on the two Side Panels (R & S). If flanges appear tight, lightly pry to loosen. The left wall cabinet
assembly is complete.
Repeat this process for the Right wall cabinet using Side Panels (T & U).
□
□
□
□
□
□
□
R
S
AA
AA
AA
W1
Q
S
R
V1
R
S
Q
O
P
EE
R
S
The holes in the top cabinet are tapped and do
not require nuts.
Figure 1.1 Figure 1.2
Figure 1.3 Figure 1.4

2
Top Cabinet Shelf Assembly
Insert Back Panel (L) between the two wall cabinets and secure the pins in the key holes. Ensure the top of the Back Panel (L)
is ush with the top of the cabinets. See Figure 2.1
Attach both wall cabinets to Bottom Panel (N) with bolts (AA) and hex key (FF). See Figure 2.2
Determine the desired height of your Shelf (M) and secure by inserting shelf edges into the tab flanges on the right (or left) panel
of wall cabinets. If flanges appear tight, lightly pry to loosen.
Align Hanger (D) mounting holes to the Back Panel (L) and wall cabinets. Fasten with bolts (AA) and hex key (FF).
See Figure 2.3
□
□
□
□
7
L
M
N
AA
AA
D
L
Figure 2.1
Figure 2.2
Figure 2.3
Please contact 1-866-441-5080 for further assistance.

3
Attaching the Cabinet Handle
Position the cabinet Handle (A) over the holes on the
Cabinet (X).
Attach with the bolts (AA) and tighten with hex key (FF).
□
□

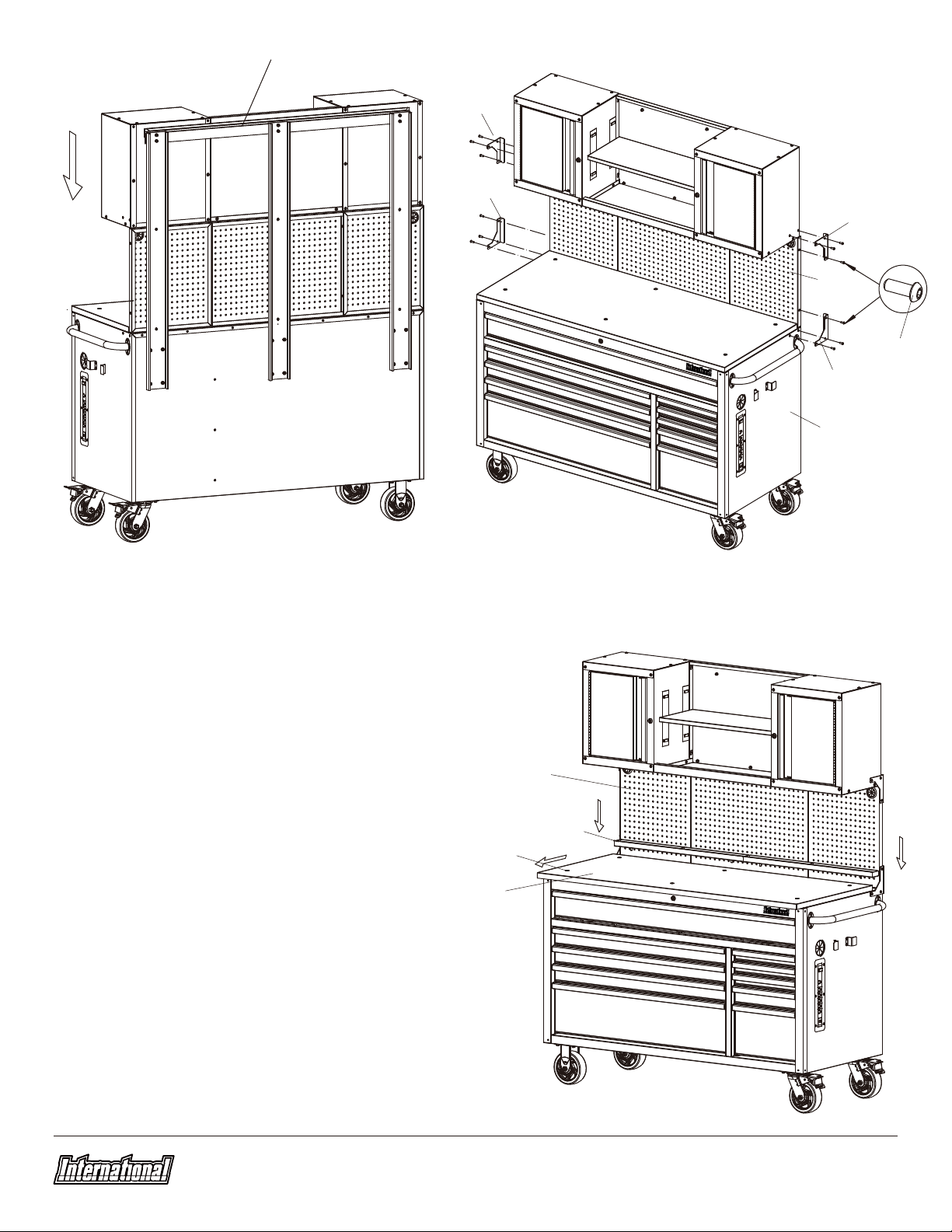

Attaching the Pegboard
5
□
□
□
□
□
Position the Vertical Supports (F) over the holes on the Workstation (X).
Secure with 4 bolts (BB), washers (CC) and washers (DD) per Vertical Support (F) and tighten with hex key (FF) or
12mm wrench/socket. Do Not fully tighten bolts at this time. See Figure 5.1
Align the Horizontal Support (E) holes to upper holes of Vertical Supports (F), secure with 6 bolts (AA) and hex key (FF).
Do Not fully tighten bolts at this time. See Figure 5.2
Position each piece of Pegboard (B) over the holes on Vertical Supports (F). Please note the grommet position in the
left and right pegboard panels in Figure 5.2
Secure the Pegboard panels (B) with the 10 bolts (AA) and tighten with hex key (FF).
Attaching the Cord Storage Hooks
4
□Position the Storage Hook (C) over the holes on the
Cabinet (X).
□Attach Hook (C) using bolts (AA) and tighten with
hex key (FF).
8
CAUTION: Do not over tighten the bolts.
NOTE:
of cabinet, but only one handle comes with this cabinet.
If a second handle is desired, please call 1-866-441-5080
to order.
.
There are holes to mount handle on either side
□Once the Pegboard panels (B) are secured and squared, go back and tighten all hardware in this step.
AA
X
AAA
C
X

9
F
X
BB
CC
DD
F
E
B
AA
Attaching Top Cabinet System to the Workstation
6
□
□
□
□
□
Peel off the paper back from the EVA stickers (I), then attach in appropriate position toward bottom of
Wall Cabinets‘ back. See Figure 6.1
Hang wall cabinets onto Horizontal Support (E) and ensure the cabinet Hanger (D) is properly seated on the the Horizontal
Support (E). See Figure 6.2
Secure the wall cabinets to the supports by positioning the L-bracket (G&H) over the holes on the Pegboard (B) and the
wall cabinets. See Figure 6.3
Attach with 3 bolts (AA) per L-brackets (G&H) and tighten with the hex key (FF).
Repeat this process for the other side of the Pegboard (B) to attach the wall cabinets to the Workstation (X).
NOTE:
Wall cabinet may need to be hung on horizontal
support to determine the appropriate position for EVA
X
sticker.
I
3 in. 3 in.
20 in.
Figure 5.1 Figure 5.2
Figure 6.1
CAUTION: Two people are recommended
for this step.
Please contact 1-866-441-5080 for further assistance.

10
Attaching the Storage Tray
7
□
□
□
□
Loosen bolts (AA) from Wood Top (Y) with
hex key (FF).
Gently pull the Wood Top (Y) forward until 2 in. of
overhang on the front of the Workstation (X)
Place the 2 Trays (J) in the space created in the back of
the Wood Top (Y) and Pegboard (B), and secure with
4 bolts (AA) and hex key (FF).
Tighten the 6 bolts in the Wood Top (Y) to secure in place
with hex key (FF). Be careful not to over tighten
the bolts.
E
H
B
AA
X
AA
Y
B
J
Figure 6.2 Figure 6.3
G
G
H

O
Z
11
Attaching the LED Magnetic Light
8
□Attach LED light (K) under the Top Cabinet System.
K
Power Strip Cord
9
Untie the power cord located inside drawer of the Workstation (X).
Gently pull cord plug through the grommet and secure any excess
cord on the Cord Storage Hooks (C).
□
□
□Attach the LED power cord to the light and run through the rubber grommet in the Pegboard (B).
□Plug in the LED power cord to the USB connection in the power strip located in the Workstation (X).
Ensure the cord is free from the workspace area.
Please contact 1-866-441-5080 for further assistance.
Installation of magnetic label
10
Attach magnetic label (Z) to desire location on the wall cabinet door (O)
directly.
□

12

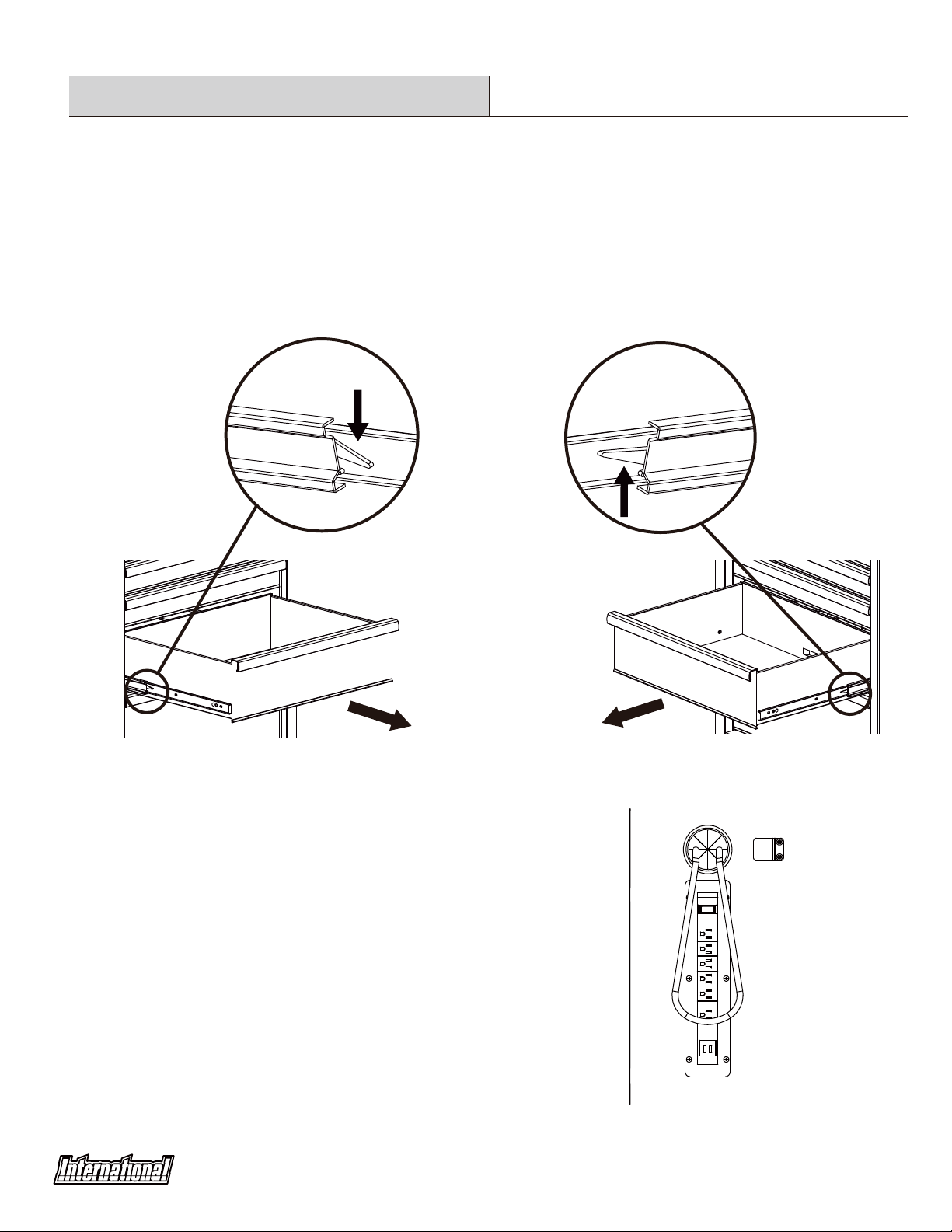

Operation
1
Removing the drawers 2 Re-inserting the drawers
Fully extend the empty drawer.
□
□
elihwrevelesaelerenoonpuhsuP pulling down on
the other release lever.
□Gently pull the drawer outward until it is released
from the drawer slide.
Extend the drawer slides.
□
□
Insert the brackets on each side of the drawer into
the slots in the slides, being careful that they are
properly positioned.
□Once properly inserted, completely close the drawer
to set the slides in their proper positions.
3
□
□
BE SURE TO FOLLOW ALL ELECTRICAL SAFETY PRECAUTIONS.
Warning: Do Not forcefully pull on the power cords to avoid
damaging the power strip and causing injury.
Power Cords

13
Cordless Power Tool Battery Chargers
See Charger’s Owner’s Manual for proper use and care of charger and batteries.
Follow all Warnings and Instructions provided with your battery charger.
□
Place chargers and electrical connections inside cabinet.
□
Chargers are for use in dry locations only. Do NOT expose to liquid, vapor, or rain. Should your charger become wet,
Do NOT attempt to use. Unplug extension cord from supply before handling wet charger or cords.
□
Only use chargers and batteries that are intact and operating properly.
□
Do NOT touch metal prongs when plugging charger into extension cord.
□
□
Do NOT place or attempt to charge lead acid, car type batteries in storage cabinet.
□
□Periodically clean the drawer fronts, drawer trim, and other surfaces with a mild detergent and water.
□
Maintenance
1 Caster maintenance 2 Drawer maintenance
□Grease the casters annually using high-quality
bearing grease.
□Lu
bearing grease.
bricate the slides semi-annually with high-quality
Please contact 1-866-441-5080 for further assistance.

14
Replacement Parts
For assistance with replacement parts please call 1-866-441-5080.
Part Description Quantity
Part Description Quantity Part Description Quantity
ACabinet Handle 1
BFixed Caster 2
CSwivel Caster 2
DCabinet Lock 1
EKey 6
FBadge 1
GDrawer Liner 10
HDrawer Slide 26
ICaster Bolt 16
JCaster Washer 16
KHandle Bolt 4
LOutlet 1
MOutlet Panel Cover 1
NRubber Grommet 3
OStorage Hook 2
PStorage Hook Bolt 4
Q
R
Pegboard Bolt 10
S
Pegboard (Left, Center, Right) 3
T
Back Tray 2
U
Vertical Support 3
V
Vertical Support Bolt 12
AA KK
LL
MM
NN
Flat Head Tapping Screw, ST5.5*12
(for door attachment ) 8OO
Bolts for Wall Cabinet System assembly 63
Wall Cabinet Lock 2
BB
CC
DD
EE
FF
GG
HH
II
W
Vertical Support Washer,Φ14 x 2.6 mm 12
X
Vertical Support Washer,Φ18 X 1.2 mm 12
Y
LED Light 1
Left Bracket 2
ZRight Bracket 2
QQ
JJ
NN
MM
KK
SS
LL
BB
GG
HH
II
OO
PP
XAA
T
CC
Z
S
K
O
NP
L
M
A
F
D
B
J
I
C
H
G
Y
E
U
V
W
EE
FF
R
Q
1
1
Cabinet Hanger
Horizontal Support
2
Left Side Panel for Wall Cabinet(Left)
Right Side Panel for Wall Cabinet(Left)
2
1
1
Back Panel
Shelf
1
3
Bottom Panel
EVA Sticker
1
1
1
Top Panel for Wall Cabinet(Right)
Back Panel for Wall Cabinet
Shelf inside Wall Cabinet
Bottom Panel for Wall Cabinet(Left) 1
1
Bottom Panel for Wall Cabinet(Right)
Left Side Panel for Wall Cabinet(Right)
Right Side Panel for Wall Cabinet(Right)
1
1
1
Top Panel for Wall Cabinet(Left)
JJ
2
Door for Wall Cabinet
PP
QQ
RR
SS
TT
DD
RR
TT
Z1
Z1 Magnetic label 2

Questions, problems, missing parts? Before returning to the store call
Customer Service
9 a.m. - 6 p.m., EST, Monday-Friday
1-866-441-5080
Retain this manual for future use.
