Krystal ClearTM Sand Filter Pump
Model SF90220RC-1 4 m3
220 - 240 V~, 50 Hz, 190 W
Hmax 3.0 m, Hmin 0.19 m, IPX4
Max. Water Temperature 35 °C
IMPORTANT
SAFETY RULES
Please read, understand, and follow all
instructions carefully before installing
and using this product. Keep for future
reference.
Don’t forget to try these other fine Intex products: pools, pool
accessories, inflatable pools and in-home toys, airbeds and boats
available at fine retailers or visit our website.
Due to a policy of continuous product improvement, Intex reserves
the right to change specifications and appearance, which may
result in updates to the instruction manual without notice.
OWNER’S MANUAL
©2018 Intex Marketing Ltd. - Intex Development Co. Ltd. - Intex Recreation Corp.
All rights reserved/Tous droits réservés/Todos los derechos reservados/Alle
Rechte vorbehalten. Printed in China/Imprimé en Chine/Impreso en China/
Gedruckt in China.
®™ Trademarks used in some countries of the world under license from/®™ Marques utilisées dans certains pays sous
licence de/Marcas registradas utilizadas en algunos países del mundo bajo licencia de/Warenzeichen verwendet in einigen
Ländern der Welt in Lizenz von/Intex Marketing Ltd. to/à/a/an Intex Development Co. Ltd., G.P.O Box 28829, Hong
Kong & Intex Recreation Corp., P.O. Box 1440, Long Beach, CA 90801 • Distributed in the European Union by/Distribué
dans l’Union Européenne par/Distribuido en la unión Europea por/Vertrieb in der Europäischen Union durch/Intex Trading
B.V., Venneveld 9, 4705 RR Roosendaal – The Netherlands
www.intexcorp.com
341-*GS-R0-1906
For illustrative purposes only.

341
GS
SAVE THESE INSTRUCTIONS
(341GS) MODEL SF90220RC-1 SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/26/2018
English
Page 2
Warnings........................................................................................ 3
Parts References.......................................................................... 4-5
Setup Instructions........................................................................ 6-13
Product Specifications................................................................. 8
Operating Instructions.................................................................. 14-16
Intex Pools Operating Time Table................................................ 17
Non-Intex Pools Operating Time Table........................................ 18
Maintenance.................................................................................. 19
Long Term Storage........................................................................ 19
Troubleshooting Guide................................................................. 20
Common Pool Problems............................................................... 21
General Aquatic Safety................................................................. 21
Limited Warranty............................................................................ 22
TABLE OF CONTENTS
RCD OPERATING INSTRUCTIONS
• Plug RCD into power outlet. Press RESET button on the RCD plug.
Indicator should be "ON".
• Press TEST button on the RCD plug. Indicator should be "OFF".
• Press RESET button for use. Do not use if test fails. Contact a qualified
electrician to determine cause of failure.
RESET
RESET
TEST
TEST RESET
RESET
RESET
TEST
TEST
TEST

341
GS
SAVE THESE INSTRUCTIONS
(341GS) MODEL SF90220RC-1 SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/26/2018
English
Page 3
IMPORTANT SAFETY RULES
Read, Understand and Follow All Instructions Carefully Before Installing and Using this Product.
READ AND FOLLOW ALL INSTRUCTIONS
WARNING
• Always supervise children and those with disabilities.
• Children must stay away from this product and electrical cord(s).
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
• Assembly and disassembly by adults only. Cleaning and user maintenance must be performed by an adult above 18 years old
who is familiar with the risk of electric shock.
• Risk of electric shock. Connect this product only to a grounding type receptacle protected by a ground-fault circuit interrupter
(GFCI) or residual current device (RCD). Contact a qualified electrician if you cannot verify that the receptacle is protected by
a GFCI/RCD. Use a qualified electrician to install the GFCI/RCD, which has a maximum rate of 30 mA.
• Always unplug this product from the electrical outlet before removing, cleaning, servicing or making any adjustment to the
product.
• Always unplug the appliance on raining days or if leave it for long time (such as going out for holidays).
• The plug must be accessible after produc t is installed.
• Do not bury the electrical cord. Locate the cord where it will not be damaged by lawn mowers, hedge trimmers and other
equipment.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order
to avoid a hazard.
• To reduce the risk of electric shock, do not use extension cords, timers, plug adaptors or converter plugs to connect unit to
electric supply; provide a properly located outlet.
• Do not attempt to plug in or unplug this product while standing in water or when your hands are wet.
• Keep this product more than 3.5 m away from the pool.
• Keep the plug of this product more than 4 m away from the pool and at a height of 1.2 m at least.
• Position this product away from the pool, so as to prevent children from climbing on it and accessing the pool.
• Do not operate this product when pool is occupied.
• This product is for use with storable pools only. Do not use with permanently installed pools. A storable pool is constructed so
that it may be readily disassembled for storage and reassembled to its original configuration.
• To reduce the risk of entrapment hazard, never enter the pool if suction strainer component is loose, broken, cracked,
damaged or missing. Replace loose, broken, damaged, cracked or missing suction strainer components immediately.
• Never play or swim near suction fittings. Your body or hair may be trapped causing permanent injury or drowning.
• To prevent equipment damage and risk of injury, always turn pump off before changing the filter control valve position.
• Never operate this product above the maximum working pressure stated on the filter tank.
• Hazardous Pressure. Improper tank valve cover assembly could cause the valve cover to blow off and cause serious injury,
property damage or death.
• This product is intended to be used only for the purposes described in the manual!
FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN PROPERTY DAMAGE, ELECTRIC SHOCK, ENTANGLEMENT
OR OTHER SERIOUS INJURY OR DEATH.
These product warnings, instructions and safety rules provided with the product represent some common risks of water
recreation devices and do not cover all instances of risk and danger. Please use common sense and good judgement when
enjoying any water activity.

341
GS
SAVE THESE INSTRUCTIONS
(341GS) MODEL SF90220RC-1 SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/26/2018
English
Page 4
PARTS REFERENCE
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
34
114
96
2
13
20
35
36
315
16
4
12
7
8
32
11
33
17
10
5
19
18
" * ": These parts are not included if this pump was not purchased as part of a pool
set. Contact our Authorized Service Centers to order these parts if needed.
NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale.
21
22
23 24 25 26
28
29 31
* *
* *
37
21
22
23 24 25 39 27
28 41 30
38
38
40

SAVE THESE INSTRUCTIONS
(341GS) MODEL SF90220RC-1 SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/26/2018
" * ": These parts are not included if this pump was not purchased as part of a pool set. Contact our
Authorized Service Centers to order these parts if needed.
When ordering parts, be sure to quote the model number and part numbers.
REF. NO. DESCRIPTION QTY.
SPARE PART NO.
1 PRESSURE GAUGE 111720
2 TANK COVER & 6-WAY VALVE SET 111721
3 DRAIN OUTLET COVER 1 11131
4 CLAMP ASSEMBLY 111722
5TANK O-RING 111728
6 SAND FILTER PUMP MOTOR INLET O-RING 110712
7 CENTER PIPE 111729
8FILTER GRID 1 11730
9 DRAIN VALVE CAP 111456
10 DRAIN VALVE O-RING 111385
11 L-SHAPE O-RING 411228
12 HOSE WITH NUTS 2 11010
13 SAND FILTER INTERCONNECETING HOSE 111763
14 TRANSPARENT OUTLET ADAPTOR 2 11723
15 TRANSPARENT OUTLET ADAPTOR O-RING 411724
16 CLAMP PIN 111726
17 CLAMP SCREW 111727
18 L-SHAPE O-RING 111412
19 TRANSPARENT LEAF TRAP 1 11733
20 PUMP MOTOR 112704GS
21* PLUNGER VALVE (HOSE O-RING & STEP WASHER INCLUDED) 2 10747
22* HOSE O-RING 2 10262
23* STEP WASHER 2 10745
24* STRAINER NUT 2 10256
25* FLAT STRAINER RUBBER WASHER 2 10255
26* THREADED STRAINER CONNECTOR 111235
27* ADJUSTABLE POOL INLET JET NOZZLE 112369
28* ADAPTOR B 2 10722
29* STRAINER CONNECTOR 1 11070
30* POOL INLET JET NOZZLE 112364
31* STRAINER GRID 112197
32 10" SAND FILTER PUMP TANK 112711
33 10" SAND FILTER PUMP TANK BASE 112715
34 TRANSPARENT OUTLET ADAPTOR SCREW 411725
35 AIR RELEASE VALVE 110725
36 AIR RELEASE VALVE O-RING 110264
37* STRAINER GRID 112198
38* AIR JET VALVE 112363
39* INLET THREADED AIR CONNECTOR 112371
40* POOL INLET AIR ADAPTOR 112368
41* INLET STRAINER CONNECTOR 112365
42* AIR JET VALVE CAP (NOT SHOWN) 112373
Page 5
PARTS REFERENCE
Before assembling your product, please take a few minutes to check the contents and become familiar with all the parts.

341
GS
SAVE THESE INSTRUCTIONS
(341GS) MODEL SF90220RC-1 SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/26/2018
English
The strainer grid prevents large objects from jamming and/or damaging the filter pump. If
your pool has an inflatable top ring, install the strainer, nozzle and plunger valve before
inflating the pool liner top ring. The part numbers here onward refer to the parts depicted
in the Parts List section of this manual. To install, do the following:
1. In a counter-clockwise motion unscrew plunger valve
union from the threaded strainer connector (26) (see
drawing 1). Be careful not to lose the step rubber
washer (23). Place the plunger valve on the ground in a
safe place.
2. In a counter-clockwise motion unscrew the strainer nut
(24) from the threaded connector (26). Leave the flat
washer (25) on the connector (26).
3. Install the strainer and plunger valve at the lower
position of pool outlet (marked "+"). From the inside of
the pool liner insert the connector (26) into one of the
pre-cut holes with the washer remaining on the
connector to be placed against the inside of the liner
wall.
4. Before assembly, lubricate the threads with a petroleum
jelly. With the flat side of the strainer nut (24) facing the
outside wall of the liner in a clockwise motion screw the
strainer nut (24) back onto the threaded connector (26)
(see drawing 2).
5. Finger tighten the strainer nut (24) onto the threaded
connector (26).
6. Grasp the plunger valve assembly. Make sure the step
washer (23) is in place.
7. In a clockwise motion screw the plunger valve union
back onto the threaded connector (26) (see drawing 3).
8. In a clockwise motion turn the plunger valve handle to
close position. Ensure the plunger valve is securely
closed. This will prevent water from flowing out during
filling of the pool (see drawing 4).
POOL OUTLET - STRAINER & PLUNGER VALVE SETUP (optional)
Page 6
2
25
INSIDE
LINER WALL
24
1
23
2
1
3
1
2
4
INSIDE
LINER WALL
26 37

341
GS
SAVE THESE INSTRUCTIONS
(341GS) MODEL SF90220RC-1 SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/26/2018
English
POOL INLET - NOZZLE & PLUNGER VALVE SETUP (optional)
Page 7
5
2
1
7
1
2
8
INSIDE
LINER WALL
9
WATER
FLOW
POOL
6
25 39 27
INSIDE LINER
WALL
24
38
1. In a counter-clockwise motion unscrew plunger valve
union from the inlet threaded air connector (39) (see
drawing 5). Be careful not to lose the step rubber
washer (23). Place the plunger valve on the ground in
a safe place.
2. In a counter-clockwise motion unscrew the strainer
nut (24) from the inlet threaded air connector (39).
Leave the flat washer (25) on the connector (39).
3. Install the nozzle and plunger valve at the upper
position of pool inlet. From the inside of the pool liner
insert the nozzle union (27 & 39) into one of the
pre-cut holes with the washer remaining on the
connector to be placed against the inside of the liner
wall.
4. Before assembly, lubricate the threads with a
petroleum jelly. Then, with the flat side of the
strainer nut (24) facing the outside wall of the liner
in a clockwise motion screw the strainer nut (24)
back onto the inlet threaded air connector (39) (see
drawing 6).
5. Finger tighten the adjustable pool inlet jet nozzle (27)
and the strainer nut (24) onto the inlet threaded air
connector (39).
6. Grasp the plunger valve assembly. Make sure the
step washer (23) is in place.
7. Screw the air jet valve (38) over the inlet threaded air
connector (39).NOTE: Make sure the air jet valve
is securely tighten and facing up. In a clockwise
motion screw the plunger valve union back onto the
inlet threaded air connector (39) (see drawing 7).
8. In a clockwise motion turn the plunger valve handle
to close position. Ensure the plunger valve is securely
closed. This will prevent water from flowing out during
filling of the pool (see drawing 8).
9. Adjust the direction of nozzle head pointing away
from the pool outlet for a better circulation result
(see drawing 9).
10. The pool liner is now ready to fill with water. Consult
the above-ground-pool owner’s manual for filling
instructions.

341
GS
SAVE THESE INSTRUCTIONS
(341GS) MODEL SF90220RC-1 SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/26/2018
English
Page 8
PRODUCT SPECIFICATIONS
SETUP INSTRUCTIONS
The sand filter removes suspended particles but does not sanitize your pool. Pool
chemistry is a specialized area and you should consult your local pool service specialist
for details.
TOOLS REQUIRED: One (1) Phillips screwdriver
Pump location and mounting:
• Thesystemmustbeinstalledonasolidlevelandvibration-freebase.
• Providealocationprotectedfromtheweather,moisture,floodingandfreezing
temperature.
• Provideadequateaccess,spaceandlightingforroutinemaintenance.
• Pumpmotorrequiresfreecirculationofairforcooling.Donotinstallthepumpina
damp or non-ventilated location.
A team of 2 or more people is recommended for setting up this product.
The appliance is intended only for household use.
Leaf trap setup:
1. Make sure the pump o-ring (6) is in place. In a clockwise motion screw the leaf trap (19)
onto the motor inlet (see drawing 10).
Sand tank installation:
1. Place the tank support base at the selected location.
2. Place the tank on the tank support base (see drawing 11.1).
Power: 220-240 Volt AC
Wattage: 190 W
Maximum working pressure: 1.4 bar (20 psi)
Effective filtering area: 0.05 m2 (0.54 ft2)
Pump flow rate (at pump outlet): 4.5 m3/h (1200 GPH)
Recommended filtering media: No. 20 silica sand or glass sand. Particle size
(Not included) range 0.45 to 0.85 mm (0.018 to 0.033 inches).
Uniformity Coefficient less than 1.75.
Recommended filtering media quantity: No. 20 silica sand 12 Kg (26 Lbs) or glass sand
8.5 Kg (18.5 Lbs).
Limited Warranty: see “Limited Warranty”
11.2
10
19
6
11.1 11.3

341
GS
SAVE THESE INSTRUCTIONS
(341GS) MODEL SF90220RC-1 SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/26/2018
English
Page 9
SETUP INSTRUCTIONS (continued)
3. In a clockwise motion screw the center pipe (7) onto the filter grid (8) securely by hand (see
drawing 11.2).
4. Vertically insert the filter grid and center pipe assembly into the tank. Ensure filter grid
assembly is securely fitted to the bottom of the tank, and the center pipe is vertically
centered inside the tank (see drawing 11.3).
Sand loading:
IMPORTANT: Use No. 20 silica sand or glass sand with particle size range 0.45 to 0.85 mm
(0.018 to 0.033 inches) and a Uniformity Coefficient less than 1.75.
Only use the filter media specified by the manufacturer.
NOTE: Before loading the tank with sand, ensure the sand filter grid and center pipe
assembly is securely in place on the tank bottom, and the center pipe (7) is vertically
centered inside the tank.
1. To prevent sand from falling into the center pipe top opening when pouring the sand, cover
the center pipe top opening with a cup or similar object (see drawing 12).
2. With one person holding the center pipe to keep it centered, pour the sand into the tank at a
slow rate manually to prevent the filter grid assembly from shifting (see drawing 13).
14
3. Fill the tank approximately half way first to evenly distribute the sand inside the tank, then fill
the tank with some water to provide a cushioning effect when the remaining sand is poured
in. This prevents the filter grid (8) from excessive shock (see drawing 14).
4. Sand shall be filled between the “MAX” and “MIN” marked gauge on the center pipe. Evenly
spread and level out the sand by hand (see drawings 14 & 15).
5. Remove the protective cup from the center pipe top opening.
6. Wash away all sand around the top edge of the tank.
IMPORTANT: Ensure the center pipe (7) remains centered after sand loading is completed
before proceeding to the next step.
MAX
MIN
MAX
MIN
15
7
13
12
7

341
GS
SAVE THESE INSTRUCTIONS
(341GS) MODEL SF90220RC-1 SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/26/2018
English
SETUP INSTRUCTIONS (continued)
WARNING

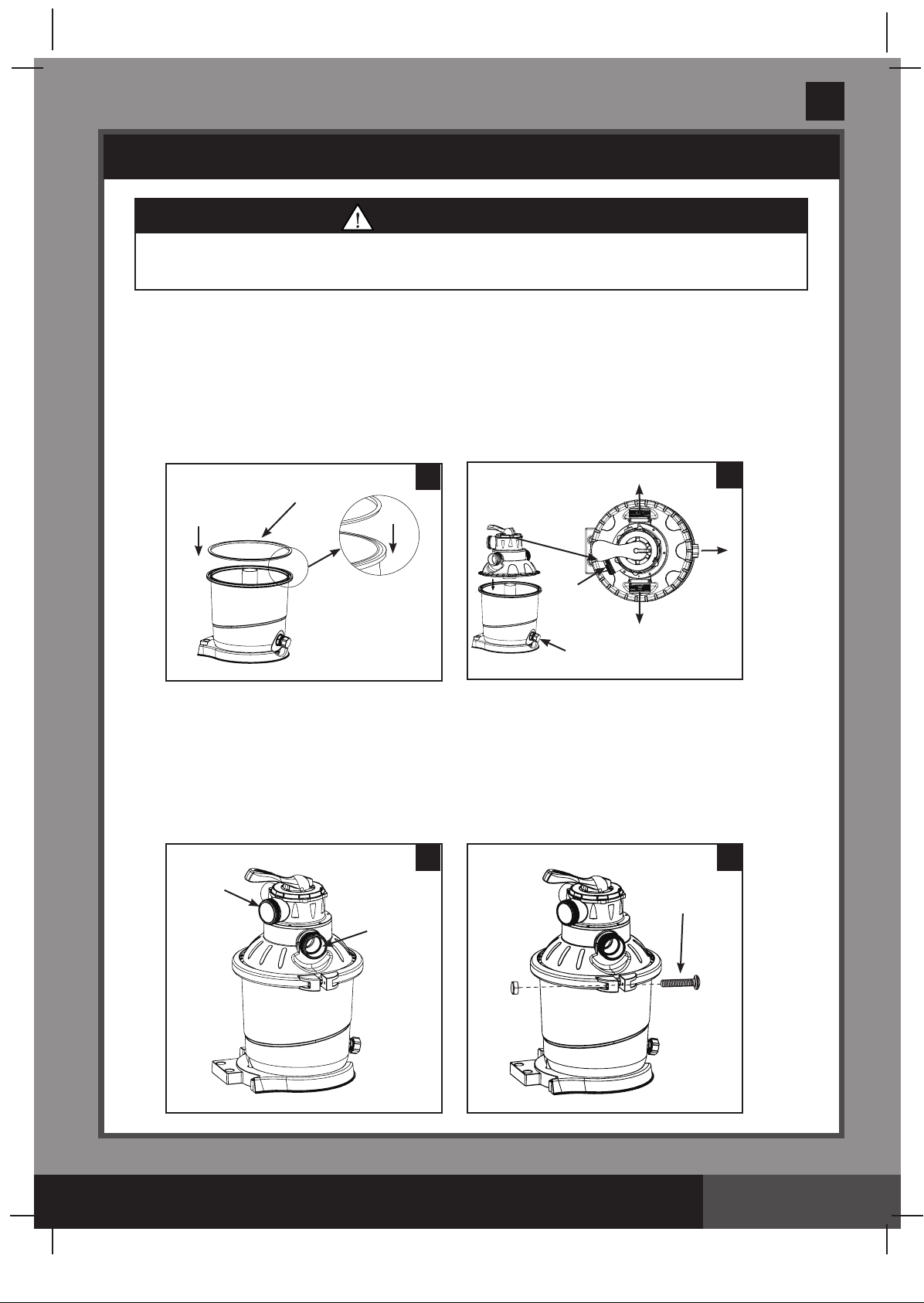

Improper tank valve and clamp assembly could cause the valve and clamp to
blow off and cause serious injury, property damage or death.
Page 10
6-way valve installation:
1. Make sure the tank o-ring (5) is in place (see drawing 16). NOTE: Ensure the tank o-ring is
free of sand or debris.
2. Lower the 6-way valve cover over the tank slowly, and ensure the bypass pipe protruding
underneath the 6-way valve cover fits securely into the center pipe (7) top opening (see
drawing 17). Make sure the tank o-ring is securely fitted between the top edge of the tank
groove and the 6-way valve cover edge. IMPORTANT: Ensure the 6-way valve cover ridge
is aligned with the groove on the tank rim.
IMPORTANT: There are three hose connection ports on the 6-way valve, ensure the
outlet connection (from filter to the pool) on the valve is facing towards the pool (see
drawing 18).
3. Remove the screw, and install the clamp around the tank and 6-way valve flanges, then
replace the screw and use a phillips screwdriver (not included) to tighten it (see
drawings 18 & 19).
16
5
17
WATER
INLET
WATER
OUTLET
TO
DRAIN
DRAIN
VALVE
CAP
DRAIN VALVE
CAP
19
17
18
WATER
OUTLET
WATER
INLET

341
GS
SAVE THESE INSTRUCTIONS
(341GS) MODEL SF90220RC-1 SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/26/2018
English
Page 11
SETUP INSTRUCTIONS (continued)
Motor installation:
1. Place an L-shape o-ring (18) on the pump motor outlet. In a clockwise motion connect the
sand filter interconnecting hose (13) to the pump motor outlet (see drawing 20).
2. Connect the pump motor unit to the tank support base (see drawing 21.1). NOTE: Ensure
the leaf trap water inlet hose connection is facing towards the pool.
IMPORTANT: Some countries, especially in the European community, require the
product to be secured to the ground or to a base in a permanent upright position.
Check your local authorities to determine if there is a regulation in your area
regarding above-the-ground swimming pool filter-pumps. If yes, then the product can
be mounted to a platform using the two holes located in the base. See drawing 21.2.
The product can be mounted on a cement base or onto a wooden platform to prevent
accidental falling over.
 • Themountingholesare6.4mmindiameterandspaced 196.5 mm apart.
 • Usetwoboltsandlocknutswithamaximumof6.4mmindiameter.
3. Place an L-shape o-ring (11) on the 6-way valve inlet connection. In a clockwise motion
connect the sand filter interconnecting hose (13) to the 6-way valve inlet connection (see
drawing 22).
21.1
22
13
20
13
21.2
196.5 mm

341
GS
SAVE THESE INSTRUCTIONS
(341GS) MODEL SF90220RC-1 SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/26/2018
English
Page 12
SAND FILTER PUMP HOSE CONNECTION SETUP
The 6-way valve has three hose connection ports.
1. Connect one hose (12) end to the pre-filter inlet and the other end of the hose to the lower
connector with the strainer. Ensure the hoses are securely tightened.
2. Connect the second hose (12) between the 6-way valve water outlet and the upper connector
with the inlet-nozzle. Ensure the hoses are securely tighten.
3. The third hose connection port (drain/waste outlet) on the 6-way valve shall be directed to
a proper draining receptacle using a hose or pipe (not provided). Remove the drain cap before
attaching the drain/waste hose or pipe.
4. The sand filter pump is now ready to filter the pool.
According to the International Standard, IEC 60364-7-702, on electrical installation of swimming
pools and other basins equipment, the following installation distances must be respected:
• The filter pump must be positioned more than 3.5 m away from the pool walls.
• The power cord plug to the 220-240 volt electrical power source of the filter pump must be
positioned more than 4 m away from the pool walls.
Check your local authorities to determine the appropriate standard and requirements for “electrical
installation of swimming pools and basins equipment”. The following table is for reference only:
International
France
Germany
The Netherlands
Country/Region Standard Number
IEC 60364-7-702
NF C 15-100-7-702
DIN VDE 0100-702
NEN 1010-702
WATER INLET
WATER INLET
WATER LEVEL
OUTSIDE
LINER WALL
PLUNGER
VALVE
L-SHAPE
O-RING
L-SHAPE
O-RING
TO
DRAIN
AIR
RELEASE
VALVE
>3.5M
>4M (ILLUSTRATION NOT TO SCALE)
AIR JET VALVE
INLET THREADED AIR
CONNECTOR
WARNING
• Keepthisproductmorethan3.5mawayfromthepool.
• Keeptheplugofthisproductmorethan4mawayfromthepoolandata
height of 1.2 m at least.
• Positionthisproductawayfromthepool,soastopreventchildrenfrom
climbing on it and accessing the pool.
RCD

341
GS
SAVE THESE INSTRUCTIONS
(341GS) MODEL SF90220RC-1 SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/26/2018
English
Page 13
SAND FILTER PUMP HOSE CONNECTION SETUP (continued)
For INTEX pool with 1-1/4” (32mm) connections/hoses:
Make sure the air jet valve (38) is securely tighten onto the pool inlet air adaptor (40) and facing
up.
For NON-INTEX pool:
Connect the hose (12) to the pool inlet/outlet connection with a large hose clamp. Tighten
securely.
POOL
LARGE HOSE
CLAMP
12
3
41
28
(Adaptor B) 40 38 30 29 31
23 28
(Adaptor B)
23

341
GS
SAVE THESE INSTRUCTIONS
(341GS) MODEL SF90220RC-1 SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/26/2018
English
Page 14
OPERATING INSTRUCTIONS
 • Riskofelectricshock.Connectthisproductonlytoagroundingtypereceptacleprotectedbyaground-fault
circuit interrupter (GFCI) or residual current device (RCD). Contact a qualified electrician if you cannot verify that
the receptacle is protected by a GFCI/RCD. Use a qualified electrician to install the GFCI/RCD, which has a
maximum rate of 30mA.
•To reduce the risk of electric shock, do not use extension cords, timers, plug adaptors or converter plugs to
connect unit to electric supply; provide a properly located outlet.
• Do not attempt to plug in or unplug this product while standing in water or when your hands are wet.
 • Neveroperatethisproductabovethemaximumworkingpressurestatedonthefiltertank.
 • Alwaysswitchoffpumpbeforechangingthe6-wayvalveposition.
 • Operatingthisproductwithoutwaterflowingthroughthesystemcancauseabuildupofhazardouspressure 
which can result in an explosive situation, serious injury, property damage or death.
 • Nevertestthispumpwithcompressedair.Neveroperatethesystemwithwatertemperatureabove35°C(95°F).

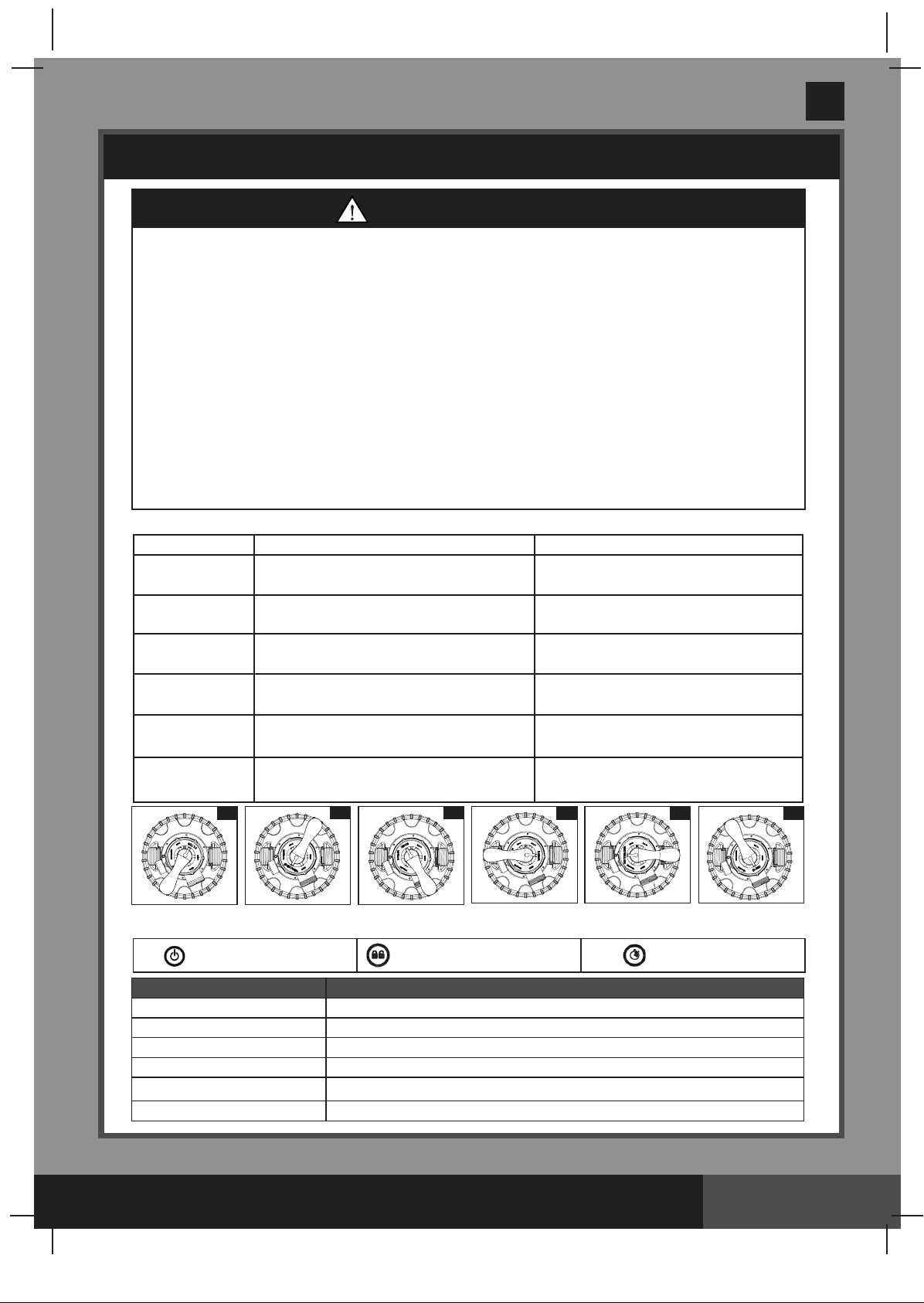

Valve Position Function Water Flow Direction
FILTER
(see drawing 23)
Normal filtration and regular vacuuming
of pool
From pump through filter media to
pool
BACKWASH
(see drawing 24)
Reverses water flow to clean filter
media
From pump through filter media to
valve waste/drain outlet
RINSE
(see drawing 25)
For initial startup cleaning of the sand, and
leveling the sand bed after backwashing
From pump through filter media to
valve waste/drain outlet
WASTE
(see drawing 26)
For vacuuming directly to waste,
lowering pool level or to drain the pool
From pump to valve waste/drain
outlet bypassing the filter media
RECIRCULATE
(see drawing 27)
For circulating water back to pool
without going through the filter media
From pump through valve to
pool bypassing the filter media
CLOSED
(see drawing 28)
Shuts off all flow to filter and pool
“Do not use this setting with pump running”
6-way valve positions and function:
WARNING
23 26 27 28
24 25
Control panel description:
ON / OFF button LOCK / UNLOCK button TIMER button
LED Reading Definition
00 Stand-by mode (start-up / operating cycle finished)
01 Minimum operating hour (1 hour remaining)
02-11 Operating hours (2 – 11 hours remaining)
12 Maximum operating hours (12 hours remaining)
FP Timer OFF (pump operating continuously)
Power saving mode
.

341
GS
SAVE THESE INSTRUCTIONS
(341GS) MODEL SF90220RC-1 SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/26/2018
English
Page 15
Initial startup and operation:
Before operating, be sure that:
• All the hoses have been connected and tightened securely, and correct amount of filter sand have
been loaded.
• The entire system is connected to a grounding type receptacle protected by a ground-fault circuit
interrupter (GFCI) or residual current device (RCD).
OPERATING INSTRUCTIONS (continued)
CAUTION
The filter control valve has a closed position. The pump should never be
on when the valve is in the closed position. If the pump is operated with
the valve closed, explosive situation could exist.
1. Turn both plunger valve handles fully counter-clockwise until they
stop. This opens the valves to allow water to flow into the sand
filter pump.
2. Release air from the system - Ensure the drain/waste outlet on
the 6-way valve is not covered and directed to a proper draining
receptacle, and the pump is off. Turn the 6-way valve to the “N”
position and unscrew the air release valve (36) from the motor
housing (see drawing 29). When water starts flowing out of the
air release valve hole, close the air release valve back.
3. BACKWASH - Ensure the pump is off, depress the 6-way valve
and turn it to the “BACKWASH” position (see drawings 24 & 30).
IMPORTANT: To prevent damage to the 6-way valve, always
depress the valve handle before turning. Always switch off
pump before changing the 6-way valve position.
4. Press to switch on the system, and then press to set
the operating TIMER hours (see “Operating the system under
TIMER mode or manually” section for details). Water is circulating
backward through the sand media and to waste/drain outlet. Backwash until a clear flow of water is
observed in the waste/drain outlet or through the transparent outlet adaptor.
NOTE: If the LED display flashes “00”, the device is in stand-by mode and the pump will not operate.
The initial backwash of the filter is recommended to remove any impurities or fine sand particles in the
sand media.
5. Switch off the pump, change the 6-way valve to “RINSE” position (see drawing 25).
6. Switch on the pump and run the pump for about one minute to level out the sand bed after backwashing
the sand media.
7. Switch off the pump, change the 6-way valve to “FILTER” position (see drawing 23).
8. Switch on the pump. The system is now operating in the normal filtering mode. Run the pump until the
desired pool water clearance is obtained and no more than 12 hours per day. For the initial startup, it is
recommended setting the system to a longer TIMER operating hours or “FP” for the pump to operate
continuously without the TIMER.
9. Record the initial pressure gauge reading when the filter media is clean.
NOTE: During initial setup of the system, it may be necessary to backwash frequently due to unusual
heavy dirt present in the water and sand. After that, as the filter removes dirt and impurities from the pool
water, the accumulated dirt in the sand media will cause the pressure to rise and the flow to diminish. If
there is no vacuuming device attached to the system and the pressure gauge reading is in the yellow
zone it is time to backwash the sand media, see “BACKWASH” under “initial startup and operation”
section.
Vacuuming device (i.e. Intex auto pool cleaner) attached to the system may also cause the flow to
diminish and the pressure to rise. Remove any vacuuming device from the system and check if the
pressure gauge reading has dropped from the yellow zone to the green zone.
10. Monitor the pressure gauge reading, and check that the inlet and outlet openings are not obstructed on a
weekly basis. If the pressure gauge indicates yellow it is time to backwash the filter media.
30
1
2
N
29
36

341
GS
SAVE THESE INSTRUCTIONS
(341GS) MODEL SF90220RC-1 SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/26/2018
English
Page 16
OPERATING INSTRUCTIONS (continued)
Operating the system under “TIMER” mode or manually:
To operate the sand filter pump in “FILTER” mode under “TIMER” control:
1. Activate the unit:
Press button. Flashing code “00” appears on the LED display, indicating
that the unit is ready to be programmed.
2. Set operating hours:
With code “00” flashing, press button to set the desired operating
hours. See the “Operating Time Table” for the required operating
hours related to each pool size. Pressing will increase the time
from 01 to 12 hours maximum. If you have selected too many hours
keep pressing to repeat the cycle. The built-in timer will now
activate the Sand filter pump, at the same time each day, for the
number of hours you have set.
3. Lock keypad controls:
With the desired hour value showing, press button until you hear a “beep”. Locking the
control buttons into this setting prevents unauthorized changing of the operating cycle.
NOTE: If you forget to lock the keypad controls, the system will automatically lock it
and start working 10 seconds later
The sand filter pump is now filtering the water and will stop after the operating hours are
completed.
4. Readjust operating time if necessary:
The operating hours can be re-adjusted if necessary. Press button until you hear a “beep”
to unlock the keypad and the current programmed time will flash. Repeat steps 2 to 3.
5. Stand-by/power saving mode:
•When the cycle ends, the LED display shows “00”. The system is now
in Stand-By mode. After 5 minutes the system goes into Power
Saving mode and the LED display shows “.”. The system will
automatically turn itself back on in 24 hours.
• While the system is in Power Saving mode, press any button and the
system will briefly display the programmed time and then “00”.
To view the TIMER preset hours:
While the pump is operating, press “ ” button, the display will briefly flash the preset hours
for 10 seconds and then display back the remaining operating hours.
To operate the sand filter pump manually (without the “TIMER” mode):
1. To run the pump alone without the “Timer”, press button to turn
on the pump, then press button until the LED displays “FP”, this
indicates that the TIMER is off and the pump is now operating continuously.
2. To stop the pump, press button again.
(1 to 12 hours max per cycle)

341
GS
SAVE THESE INSTRUCTIONS
(341GS) MODEL SF90220RC-1 SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/26/2018
English
Page 17
INTEX POOLS OPERATING TIME TABLE (WITHOUT INTEX SALTWATER SYSTEM)
This table shows the required operating time for average use of the sand filter pump with
above ground pools.
If the system is attached to an “Intex Saltwater System” unit, the filter pump running time
should be longer than the required operating time of the Intex Saltwater System unit.
NOTE: The timer setting has an additional 10 minutes over the actual setting.
Pool Size
Water Capacity (Calculated at
90% for Frame Pool and 80%
for Easy Set & Oval Pool)
Sand filter pump
operating time
(For one cycle) /
(Hours)
(Gals) (Liters)
INTEX ABOVE GROUND POOLS (AGP’s)
EASY SET®
POOL
15' x 33" (457cm x 84cm)
2587 9792 3
15' x 36" (457cm x 91cm)
2822 10681 3
15' x 42" (457cm x 107cm)
3284 12430 4
15' x 48" (457cm x 122cm)
3736 14141 4
16' x 42"(488cm x 107cm)
3754 14209 4
16' x 48" (488cm x 122cm)
4273 16173 5
18' x 42" (549cm x 107cm)
4786 18115 5
18' x 48" (549cm x 122cm)
5455 20647 6
18' x 52" (549cm x 132cm)
5894 22309 6
ROUND
METAL
FRAME POOL
12' x 36" (366cm x 91cm)
2086 7896 2
15' x 36" (457cm x 91cm)
3282 12422 4
15' x 42" (457cm x 107cm)
3861 14614 4
15' x 48" (457cm x 122cm)
4440 16805 5
16' x 48" (488cm x 122cm)
5061 19156 5
18' x 48" (549cm x 122cm)
6423 24311 7
18' x 52" (549cm x 132cm)
6981 26423 7
ULTRA FRAME
POOL
12' x 36" (366cm x 91cm)
2086 7896 2
14' x 48" (427cm x 122cm)
3861 14614 4
16' x 48" (488cm x 122cm)
5061 19156 5
18' x 48" (549cm x 122cm)
6423 24311 7
18' x 52" (549cm x 132cm)
6981 26423 7
GRAPHITE GRAY
PANEL POOL SET™
16'8" x 49" (508cm x 124cm)
5061 19156 5
18'8" x 53" (569cm x 135cm)
6981 26423 7
OVAL FRAME
POOL
18' x 10' x 42" (549cm x 305cm x 107cm)
2885 10920 3
20' x 12' x 48" (610cm x 366cm x 122cm)
4393 16628 5
24' x 12' x 48" (732cm x 366cm x 122cm)
5407 20465 6
28' x 12' x 48" (853cm x 366cm x 122cm)
6420 24300 7
RECT. ULTRA
FRAME POOL
15' x 9' x 48" (457cm x 274cm x 122cm)
3484 13187 4
18' x 9' x 52" (549cm x 274cm x 132cm)
4545 17203 5

341
GS
SAVE THESE INSTRUCTIONS
(341GS) MODEL SF90220RC-1 SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/26/2018
English
Page 18
NON-INTEX POOLS OPERATING TIME TABLE
This table shows the required operating time for average use of the sand filter pump with
above ground pools.
Water Capacity
Sand filter pump operating
time (For one cycle)
(Gals) (Liters) (Hours)
2000 7570 2
3000 11355 3
4000 15140 4
5000 18925 5
6000 22710 6
7000 26495 7
8000 30280 8

341
GS
SAVE THESE INSTRUCTIONS
(341GS) MODEL SF90220RC-1 SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/26/2018
English
Page 19
1. Before emptying your pool for long term storage, or relocation, be sure the water is directed
towards an acceptable drain water receptacle away from the house. Check local regulations
for specific directions regarding disposal of swimming pool water.
2. Switch off the unit, and disconnect power cord from electrical outlet.
3. When the pool is empty, disconnect all hoses from pump and plunger valves and remove the
strainers/plunger valves from the pool wall.
4. In a counter clockwise motion unscrew the drain valve cap (9) from the drain valve to
thoroughly drain the tank. The drain valve is located at the bottom of the filter tank.
5. Disassemble the pump motor from the tank base.
6. Leave sand filter pump pieces and hoses outside to thoroughly air dry.
7. Coat the following o-rings and washers with petroleum jelly for long term storage:
• L-shape o-rings (11 & 18).
• Pump hose o-rings (22).
• Strainer valve assembly step washers (23).
• Flat strainer rubber washers (25).
8. Depress the 6-way valve handle and rotate so as to set the pointer on the valve top “N”
position. This allows the water to drain from the valve. Leave the 6-way valve in this inactive
position.
9. It is best to place all dry pieces and pump motor in the original packaging for storage. To
avoid condensation or corrosion problem, do not cover or wrap pump motor with plastic bags.
10. Store the pump motor and accessories in a dry place. The storage's temperature should be
controlled, between 0 degrees Celsius (32 degrees Fahrenheit) and 40 degrees Celsius
(104 degrees Fahrenheit).
11. Cover the tank with a tarpaulin or plastic sheet to protect it from the weather.
POOL CARE & CHEMICALS
• All pools require care to keep the water clear and hygienically clean. With proper chemical
control, your filter will help attain this objective. Consult your pool supply dealer for
instructions regarding the proper use of chlorine, algaecide and other chemical agents
required for sparkling clear water.
• Keep pool chemicals away from children.
• Do not replenish chemicals in pool while pool is occupied. Skin or eye irritations could occur.
• Daily pH checking and chemical treatment of the water is very important and cannot be
overemphasized. Chlorine, algaecide and maintenance of proper pH levels are required when
filling the pool as well as during the season. Consult your local swimming pool supply store
for instructions.
• The season's first filling of the pool may have brackish water requiring extra water additives
and extra filtering time. Do not allow swimming in pool until the pH level is balanced. Consult
your local swimming pool supply store for instructions.
• Chlorinated water may damage lawns, gardens or shrubbery as children play in the pool and
splash water outside the pool. Lawn areas underneath the pool liner will be destroyed. Note
that some types of grass may grow through the liner.
• Filter run time depends on pool size, weather and usage level. Experiment with various run
times so as to produce clean clear water.
• European standard EN16713-3 lists some additional pool water quality and water treatment
information that can be found at www.intexcorp.com/support.
LONG TERM STORAGE & WINTERIZATION
CAUTION
Concentrated chlorine solutions may damage the pool liner. Always follow
the chemical manufacturer’s directions, and the health and hazard warnings.
CAUTION
Allowing the water to freeze will damage the sand filter and void the warranty.
If anti-freeze solution is needed, use only propylene glycol. Propylene glycol is
non-toxic and will not damage plastic system components; other anti-freezes
are highly toxic and may damage plastic components in the system.

341
GS
SAVE THESE INSTRUCTIONS
(341GS) MODEL SF90220RC-1 SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/26/2018
English
Page 20
TROUBLESHOOTING GUIDE
• Line cord must be plugged into a 3 wire
outlet that is protected by a Class A Ground
Fault Circuit Interrupter, or RCD.
• Reset circuit breaker. If circuit breaker trips
repeatedly, your electrical system may have a
defect. Turn off circuit breaker and call an
electrician to correct the problem.
• Let the motor cool down and restart again.
• Adjust the chlorine and pH level. Consult your
local swimming pool supply stores.
• Load with filter sand, see “sand loading
instructions”.
• Set valve to “FILTER” position.
• Operate the filter for longer periods.
• Clean the strainer screen at the inlet.
• Release the air, see operating instructions
section.
• Clear any obstructions in the intake hose by
discharging it inside pool wall.
• Tighten hose nuts, check hoses for damage,
check pool water level.
• Backwash filter.
• Install the nozzle at the upper position of the
pool inlet, and the strainer at the lower position
of the pool outlet.
• Remove about 1” of sand if necessary.
• Remove any pool vacuuming device attached
to the system line.
• Make sure the inlet threaded air connector is
connected to the pool inlet upper hole.
• Fill pool to correct water level.
• Clean strainer screens at pool inlet.
• Tighten hose nuts, check hose for damage.
• Contact Intex service center.
• Remove 6-way valve cover and ensure the
o-ring is in place.
• Clean sand tank o-ring with garden hose water.
• Tighten securely.
• Contact Intex service center.
• Tighten/reinstall hose nut.
• Ensure o-ring/L-shape o-ring is in place and
not damaged.
• Turn off the pump and restart 5 minutes later.
• Re-set the timer.
• Contact Intex service center.
• Clear any obstructions in the intake by
unscrewing it from the 6-way valve.
• Contact Intex service center.
• Use only No. 20 silica sand with particle size
range 0.45 to 0.85 mm (0.018 to 0.033 inches)
and a Uniformity Coefficient less than 1.75.
• Change sand.
• Tighten or reinstall plunger valve.
• Tighten air jet valve and make sure it’s facing
up.
• Turn pump ON and run for few seconds, then
turn OFF, repeat 3 times.
• Remove air jet valve, flush dirt out with water
and replace valve back.
• Replace a new air jet valve.
FILTER MOTOR
FAILS TO START
FILTER DOESN’T
CLEAN POOL
FILTER DOESN’T
PUMP WATER OR
FLOW IS VERY
SLOW
PUMP DOESN’T
WORK
6-WAY VALVE/
COVER LEAKING
HOSE LEAKING
TIMER IS
INACCURATE OR
TIMER CAN'T BE SET
PRESSURE GAUGE
DOESN’T WORK
SAND IS FLOWING
BACK INTO THE
POOL
INLET THREADED
AIR CONNECTOR
/ AIR JET VALVE
LEAKING
• The motor is not plugged in.
• The GFCI/RCD circuit breaker is
tripped.
• Motor too hot and overload
protection is shut off.
• Improper chlorine or pH levels.
• No filtering media in tank.
• Wrong 6-way valve setting position.
• Excessively dirty pool.
• The strainer screen is restricting
the water flow.
• Trapped air in the system.
• Clogged inlet or discharge.
• An air leak on the intake line.
• Excessively dirty pool.
• Sand media clogged with dirt.
• Nozzle and strainer connections
are reversed.
• Crusting or caking on the filtering
sand surface.
• Pool vacuuming device attached to
the system.
• Inlet threaded air connector
connected to the wrong hole on
the liner.
• Low water level.
• Strainer screen clogged up.
• An air leak on the intake hose.
• Faulty motor or the impeller is jammed.
• Sand tank o-ring missing.
• Sand tank o-ring dirty.
• Flange clamp not tight.
• 6-way valve damage.
• Hose nut not securely tight.
• Hose connection fitting o-ring/
L-shape o-ring missing.
• Possible inner timer defective.
• Clogged inlet of the pressure
gauge.
• Pressure gauge damage.
• Sand is too small.
• Sand bed is calcified.
• Plunger valve not well-fitted.
• Air jet valve is not tight and facing
up.
• Air jet valve internal seal blocked.
• Air jet valve internal seal dirty.
• Air jet valve broken.
TROUBLE CAUSE SOLUTION
