Invacare Stratos Portable Plus Battery Pack IRC 1731 User manual
Part No 1150754 1 STRATOS™Portable Plus Battery Pack
For more information regarding Invacare products, parts, and services,
please visit www.invacare.com
STRATOS™Portable Plus Battery Pack
Model No. - IRC 1731
NOTE:Checkallpartsforshippingdamage.Incaseofdamage,DONOTuse.Contactthe
Carrier/Invacareforfurtherinstruction.
Safety Summary
WARNING
DO NOT use this product or any available optional equipment without first
completely reading and understanding these instructions, Stratos Portable
Plus Compressor Operator’s Manual and any additional instructional
material such as service manuals or instruction sheets supplied with this
product or optional equipment. If you are unable to understand the warnings,
cautions or instructions, contact a healthcare professional, dealer or technical
personnel before attempting to use this equipment - otherwise, injury or
damage may occur.
To charge battery, use only the original power cable (AC) or AC adapter and
cable provided with your Stratos Portable Plus Compressor. Use of non-original
equipment may result in damage to the battery.
DO NOT dispose of battery pack in household waste. Proper disposal at an
appropriate collection site in your local area is strongly recommended and
may be required by some local ordinances.
DO NOT dispose of batteries in fire, as they could explode.
ACCESSORIES WARNING
Invacare products are specifically designed and manufactured for use in
conjunction with Invacare accessories. Accessories designed by other
manufacturers have not been tested by Invacare and are not recommended
for use with Invacare products.
CAUTION
DO NOT attempt to open the plastic case or replace any components.
DO NOT short circuit battery contacts. Make sure battery contacts DO NOT
come in contact with keys, coins or other metal objects.
Charging of the battery requires at least six hours. Failure to condition the
battery prior to its first use may result in a reduced battery life expectancy.
The battery has protection from overheating and will not operate if temperature
is 104°F (40°C) or higher. Allow the battery to cool before restarting.
SAVE THESE INSTRUCTIONS
STRATOS™Portable Plus Battery Pack 2Part No 1150754
Conditioning the Battery
NOTE:Thedefinitionofconditioningthebatteryissimplychargingthebatteryforafull
sixhourcyclebeforetheinitialuseoftheproduct.
1. Disconnectthebatteryfromthecompressor.
2. Connectthepowercable(AC)orautoadaptercable(DC)tothebattery.
3. Chargethebatteryforafullsixhourcycle.
Theorangelightwillindicateifthebatteryisproperlycharging.Batterycharging
tofullcapacityisdependentuponmanyfactors.Conditioningthebatteryrequires
atleast6hours.Failuretoconditionthebatterypriortoitsfirstusemayresultina
reducedbatterylifeexpectancy. Toassuremaximumlifeperformanceofthebattery
afterconditioning,leavethebatteryconnectedtoapowersourcewhennotinuse.
Thebatteryoperationtimedependsuponthechargeconditionofthebattery,the
temperature,thestoragetimeofthebatterypriortouse,theamountofmedication
usedfortreatment,andthenumberofcharge/dischargecycles.Themanufacturer
ofthebatteryrecommendsthebatterybeconditionedeveryoneortwomonths.
Charging the Battery
NOTE:Forthisprocedure,refertoFIGURE 1.
1. Pressinthereleasebuttononthefrontofthebatterypackandseparatethe
batteryfromthecompressor(Detail“A”).
2. Connectthepowercable(AC)totheACadapterandcableprovidedwithyour
STRATOSPortablePlusCompressor(Detail“B”).
3. ConnecttheACadapterandcabletothebattery(Detail“A”).
4. Plugthepowercableintotheappropriatepowersource.
TheORANGElightwillturnonindicatingthatthechargingcyclehasbegun.The
batterywillreachfullchargeafteratleastsixhours.Completionofthechargecycle
isindicatedbyaGREENbatterylight.Fullchargewillprovideuptoninety
minutesofoperation.
NOTE:Inordertoensuremaximumperformanceofthebattery,keepthebatteryplugged
inandchargingwhennotinuse.Thiswillnotoverchargeordamagethebattery.
NOTE:Thebatterymustbepluggedintoapowersourceforthebatterytocharge.The
batterywillnotchargewhenitisattachedtothecompressornebulizersystem.
NOTE:Neverleavethebatteryconnectedtoeitherpowercablewhenthecableis
disconnectedfromthepowersource.Thiswillcausethebatterytodischarge.
FIGURE 1 Charging the Battery
Release
Button
Battery AC Adapter
and Cable
Power
Cable
Connect
Adapter
HERE
Hook DETAIL “B” -
ADAPTER
DETAIL “A” -
BATTERY
To Battery
To Outlet
Part No 1150754 3STRATOS™Portable Plus Battery Pack

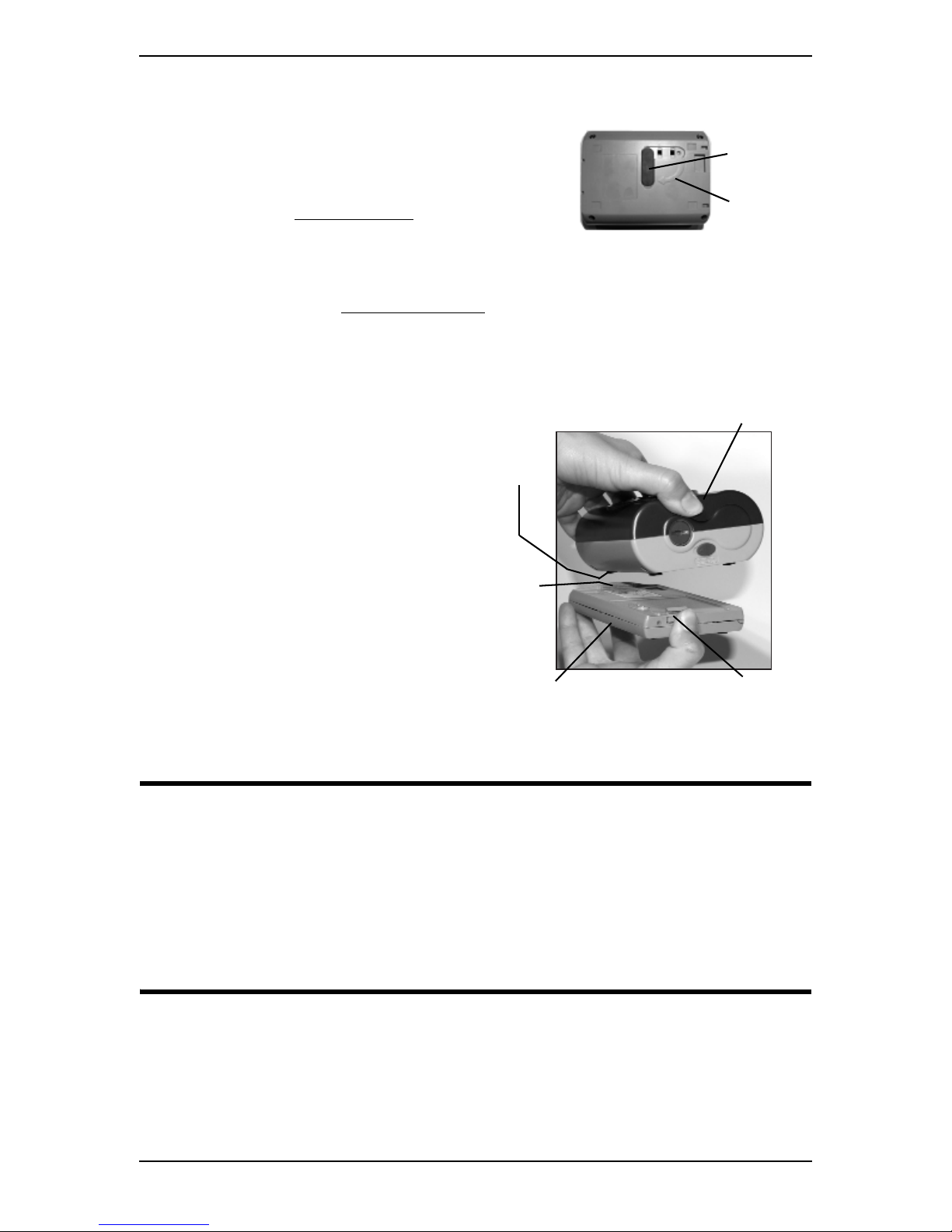

Using the Battery
1. Beforeconnectingthebatterypack,
shiftthegreycontactscoverlocated
onthebottomofthecompressorto
theside,followingthedirection
arrow.RefertoContactCoveron
page 3.
FIGURE 2 Contact Cover
2. Fitthefronthookonthebatterytopintotherecessonthebottomofthe
compressor.RefertoUsingtheBatteryonpage 3.
3. Pressthebatteryandcompressortogetheruntilthereleasebuttononthefront
ofthebatteryclicks.
NOTE:ForoperationoftheStratosPortablePlusCompressor,refertotheowner’smanual.
4. Gentlypullthecompressorand
batterypackinoppositedirectionsto
ensurethetabshaveseatedproperly.
5. Toremovethebatterypack,press
thereleasebuttononthefrontofthe
batterypackwhilepullingthe
batteryandcompressorapart.
NOTE:TheGREENlightonthebatterywill
notilluminatewhilethenebulizerisbeing
powered.TheORANGElightflasheswhen
thebatterypowerlevelislow.Whenthe
ORANGElightflashes,immediatelyfindan
alternativepowersource(i.e.awallsocket). FIGURE 3 Using the Battery
Cleaning the Battery and Cables
CAUTION
Unplug the battery and power cables before cleaning.
DO NOT submerge the battery pack, AC adapter or auto adapter in water to
clean. NEVER hold under running water or spray with water or other liquids.
Clean outer case with a damp cloth.
DO NOT clean using abrasive cleaners.
DO NOT remove outer case of this unit. Electrical shock hazard. All disassembly
and maintenance of this unit MUST be done by a qualified technician.
Compressor
Battery
Hook
Release Button
Recess
(hidden
from
view)
Cover
Direction
Arrow
Routine Care
CAUTION
DO NOT subject the battery to any strong shocks such as dropping the unit
on the floor.
DO NOT store the battery in extreme hot or cold temperatures, high humid-
ity or under direct sunlight.
NOTE:Tooptimizebatteryperformance,thebatteryshouldreplacedafter250cyclesofcharge/
discharge.Toreplacethebattery,refertoSTEP4inUsingtheBattery.
1. StorethebatteryFULLYCHARGEDinacool,dryplace.
LIMITED WARRANTY
PLEASE NOTE: THE WARRANTY BELOW HAS BEEN DRAFTED TO COMPLY WITH FEDERAL
LAW APPLICABLE TO PRODUCTS MANUFACTURED AFTER JULY 4, 1975.
This warranty is extended only to the original purchaser who purchases this product when new and
unused from Invacare Corporation or a dealer. This warranty is not extended to any other person or
entity and is not transferable or assignable to any subsequent purchaser or owner. Coverage under
this warranty will end upon any such subsequent sale or other transfer of title to any other person.
This warranty gives you specific legal rights and you may also have other legal rights which vary from
state to state.
Invacare warrants this product when purchased new and unused to be free from defects in materials
and workmanship for a period of six months with a copy of the seller’s invoice required for coverage.
If within such warranty periods any such product shall be proven to Invacare’s satisfaction to be
defective, such product shall be repaired or replaced, at Invacare’s option. This warranty does not
apply to normal wear and tear or failure to adhere to the product instructions, nor does it include
shipping charges incurred in replacement part installation or repair of any such product. Invacare’s
sole obligation and your exclusive remedy under this warranty shall be limited to such repair and/or
replacement.
For warranty service, please contact the Invacare service department during normal business hours
at the toll-free telephone number identified on the back cover of this manual.
Upon receiving notice of an alleged defect in a product, Invacare will issue a serialized return
authorization. It shall be the responsibility of the purchaser to pack the product(s) or part(s) in an
appropriate manner to avoid shipping damage and return the product(s) or part(s), at the
purchaser’s expense, to either Invacare’s plant or service center as specified by Invacare in advance.
The defective product(s) or component part(s) must be returned for warranty inspection using the
serial number as identification within 30 days of the return authorization date. DO NOT return any
product(s) or part(s) to our factory or service center without prior consent. C.O.D. shipments will
be refused – please pre-pay shipping charges.
LIMITATIONS AND EXCLUSIONS: THE FOREGOING WARRANTY SHALL NOT APPLY TO
SERIAL NUMBERED PRODUCTS IF THE SERIAL NUMBER HAS BEEN REMOVED OR
DEFACED; PRODUCTS SUBJECTED TO NEGLIGENCE, ACCIDENT, IMPROPER OPERATION,
MAINTENANCE, OR STORAGE; PRODUCTS MODIFIED WITHOUT INVACARE’S EXPRESS
WRITTEN CONSENT (INCLUDING, BUT NOT LIMITED TO, MODIFICATION THROUGH THE
USE OF UNAUTHORIZED PARTS OR ATTACHMENTS); PRODUCTS DAMAGED BY REASON
OF REPAIRS MADE TO ANY COMPONENT WITHOUT THE SPECIFIC CONSENT OF
INVACARE; PRODUCTS DAMAGED BY CIRCUMSTANCES BEYOND INVACARE’S CONTROL;
OR PRODUCTS REPAIRED BY ANYONE OTHER THAN INVACARE OR AN INVACARE
SERVICE CENTER. SUCH EVALUATION SHALL BE SOLELY DETERMINED BY INVACARE.
THE FOREGOING EXPRESS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY OTHER
WARRANTIES WHATSOEVER, WHETHER EXPRESSED OR IMPLIED, INCLUDING THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, AND THE SOLE REMEDY FOR VIOLATIONS OF ANY WARRANTY WHATSOEVER,
SHALL BE LIMITED TO REPAIR OR REPLACEMENT OF THE DEFECTIVE PRODUCT
PURSUANT TO THE TERMS CONTAINED HEREIN. THE APPLICATION OF ANY IMPLIED
WARRANTY WHATSOEVER SHALL NOT EXTEND BEYOND THE DURATION OF THE
EXPRESS WARRANTY PROVIDED HEREIN. INVACARE SHALL NOT BE LIABLE FOR ANY
CONSEQUENTIAL OR INCIDENTAL DAMAGES WHATSOEVER.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGE, OR LIMITATION OF HOW LONG AN IMPLIED WARRANTY
LASTS, SO THE ABOVE EXCLUSION AND LIMITATION MAY NOT BE APPLICABLE.
THIS WARRANTY SHALL BE EXTENDED TO COMPLY WITH STATE/PROVINCIAL LAWS
AND REQUIREMENTS.
Invacare Corporation www.invacare.com
USA
One Invacare Way
Elyria, Ohio USA
44036-2125
800-333-6900
2101 E. Lake Mary Blvd.
Sanford, FL USA
32773
800-832-4707
All rights reserved. Trademarks are
identified by the symbols ™ and ®. All
trademarks are owned by or licensed
to Invacare Corporation unless
otherwise noted.
©2008 Invacare Corporation
Part No 1150754
Rev B - 10/08
