Operator’s Manual
HomeFill®II
Oxygen Conserving
Cylinder
HF2PCE6
HF2PCE9
0120

WARNING
HomeFill® II 2 Part No 1141477
 WARNING
DO NOT OPERATE THIS EQUIPMENT WITHOUT
FIRST READING AND UNDERSTANDING THIS
MANUAL. IF YOU ARE UNABLE TO
UNDERSTAND THE WARNINGS, CAUTIONS,
AND INSTRUCTIONS, CONTACT A
HEALTHCARE PROFESSIONAL, DEALER OR A
QUALIFIED TECHNICIAN BEFORE ATTEMPTING
TO USE THIS EQUIPMENT – OTHERWISE INJURY
OR DAMAGE MAY RESULT.
 WARNING
Invacare products are specifically designed and
manufactured for use in conjunction with Invacare
accessories. Accessories designed by other manufacturers
have not been tested by Invacare and are not
recommended for use with Invacare products.
 DANGER
DO NOT SMOKE while using this device. Keep all
matches, lighted cigarettes or other sources of ignition
out of the room in which this product is located and away
from where oxygen is being delivered.
Textiles and other materials that normally would not
burn are easily ignited and burn with great intensity in
oxygen enriched air. Failure to observe this warning can
result in severe fire, property damage and cause physical
injury or death.
NOTE:Theinformationcontainedinthisdocumentissubjectto
changewithoutnotice.
NOTE:Updatedversionsofthismanualareavailableon
www.invacare.com.

TABLE OF CONTENTS
Part No 1141477 3 HomeFill®II
TABLE OF CONTENTS
SPECIAL NOTES ............................................... 4
RECEIVING INSPECTION .................................. 4
INTENDED USE ................................................ 4
SECTION 1—GENERAL GUIDELINES .....................6
SECTION 2—FEATURES ......................................10
SECTION 3—TYPICAL PRODUCT PARAMETERS .11
SECTION 4—INSPECTION AND COMPRESSOR
INTERFACE .......................................................12
Cylinder Prefill Inspection...............................................................12
Connecting/Disconnecting the Cylinder to/from the
Compressor........................................................................................16
SECTION 5—OPERATING INSTRUCTIONS ..........22
SECTION 6—MAINTENANCE .............................24
Replacement Parts – Accessories..................................................24
SECTION 7—CYLINDER FILL TIMES ....................25
Troubleshooting ................................................................................25
WARRANTY INFORMATION .......................... 26

SPECIAL NOTES
HomeFill® II 4 Part No 1141477
SPECIAL NOTES
Signalwordsareusedinthismanualandapplytohazardsor
unsafepracticeswhichcouldresultinpersonalinjuryor
propertydamage.Refertothefollowingtablefordefinitions
ofthesignalwords.
RECEIVING INSPECTION
Removeproductfrompackageandinspectfordamage.If
thereisanydamage,DONOTuse.Contactyourdealer/
HomeCareequipmentprovider.
INTENDED USE
Tostore,regulate,anddeliversupplementaloxygento
patientswhomayhavedifficultyextractingoxygenfromthe
airtheybreathe.Itisforpatientswhowouldnormallyreceive
theoxygenviaanasalcannula.ThedevicedeliversUSP93%
oxygenatanumberofdifferentflow/pulsesettings.Itis
intendedtobeusedasanoxygensavingdevicethatmay
reducethedryingoutoftheairways.
Thisproducthasbeensuppliedfromanenvironmentally
awaremanufacturerthatcomplieswiththeWasteElectrical
andElectronicEquipment(WEEE)Directive2002/96/CE.
SIGNAL WORD MEANING
DANGER Danger indicates an imminently hazardous
situation which, if not avoided, will result in
death or serious injury.
WARNING Warning indicates a potentially hazardous
situation which, if not avoided, could result
in death or serious injury.
CAUTION Caution indicates a potentially hazardous
situation which, if not avoided, may result in
property damage.

INTENDED USE
Part No 1141477 5 HomeFill® II
Thisproductmaycontainsubstancesthatcouldbeharmfulto
theenvironmentifdisposedofinplaces(landfills)thatarenot
appropriateaccordingtolegislation.
Theʹcrossedoutwheeliebinʹsymbolisplacedonthisproduct
toencourageyoutorecyclewhereverpossible.
Pleasebeenvironmentallyresponsibleandrecyclethis
productthroughyourrecyclingfacilityatitsendoflife.

SECTION 1—GENERAL GUIDELINES
HomeFill® II 6 Part No 1141477
SECTION 1—GENERAL GUIDELINES
 WARNING
SECTION 1 – GENERAL GUIDELINES contains
important information for the safe operation and use of
this product. DO NOT use this product or any available
optional equipment without first completely reading and
understanding these instructions and any additional
instructional material such as Owner’s Manuals, Service
Manuals or Instruction Sheets supplied with this product
or optional equipment. If you are unable to understand
the Warnings, Cautions or Instructions, contact a health
care professional, dealer or technical personnel before
attempting to use this equipment – otherwise, injury or
damage may occur.
 WARNING
Onlypersonnelinstructedandtrainedintheuseofthe
HomeFillIIO2ConservingCylindershouldoperatethis
product.
Productcontainsmagnetic,ferrousmaterialthatmayaffect
theresultsofanMRI.
Besureallconnectionsaretightandleakfree.
DONOTusealiquidleakdetectortotestforleaks.
DONOTautoclave.
DONOTgassterilizewithethyleneoxide.
DONOTcleanwitharomatichydrocarbons.
DONOTattempttorepairproduct.
DONOTimmerseproductinanykindofliquid.
Storeproductinacleanareawhennotinuse.

SECTION 1—GENERAL GUIDELINES
Part No 1141477 7 HomeFill® II
 WARNING
OnlyuseInvacareCorporationcarryingbagHF2PC9BAG
carryingbag.
NEVERsmokeinanareawhereoxygenisbeing
administered.
ALWAYSconfirmprescribeddosebeforeadministeringto
patientandmonitoronafrequentbasis.
DONOTuseifdirtorcontaminantsarepresentonoraround
cylinder,valve,productorconnectingdevices.
NEVERusenearanytypeofflameorflammable/explosive
substances,vapoursoratmosphere.
NOOXYGENisdeliveredwhenthepointerisalignedwith
“Off”.
DONOTblocktheoutletfittingorkinkthecannulawhenthe
productisinuse,asthismaydamagetheunit.
Theuseofthisdeviceislimitedtotheoxygenpatient.
CylindersMUSTbeusedonlybytheoxygenpatientandare
nottobedistributedtoanyotherindividualforanypurpose.
ThisproductisNOTtobeusedbypatientswhobreathe
throughtheirmouths.
DONOTallowoilfromyourhandsorothersourcestocome
intocontactwiththecompressorcouplingorbottlefittings.
Thesesubstancesmaybecomeflammableinthepresenceof
oxygenandcauseinjury.Avoidtouchingthebottlefitting
wheneverpossible.Exampleofitemstoavoidarehand
creamsorlotions,cookingoils,suntanoilsorsunblocksand
similaroilyproducts.Ifyouusethesetypesofproducts
Invacaresuggestsyouwashyourhandspriortousingthe
HomeFillIIunit.Ifthebottlefittingshouldcomeincontact
withsuchsubstancesitshouldbecleanedoffwithadamp
clothpriortoconnectingittothecompressor.

SECTION 1—GENERAL GUIDELINES
HomeFill® II 8 Part No 1141477
 WARNING
NEVERoilorlubricatethecompressorcouplerorbottle
fittings.NEVERuseanypenetratingoilorlubricantsuchas
WD‐40or3inOne.Ifconnectiondifficultyisexperienced
verifythatthebottlefittingisbeinginsertedstraightdown
intothecompressorcoupler.Ifcontinueddifficultyis
experiencedcontactyoursupplierforassistance.
DONOTuseahumidifierwiththisproduct.
DONOTallowcylinderstotiporfall.Securegascylindersso
theycannotfall.Ensurecylinderisalwaysinuprightposition.
DONOTstorecylindersnearsourcesofheatorflame.
Thisproductisequippedwithareliefvalve.Ifyouhearaloud
hissingorpoppingsoundcomingfromtheproduct,
discontinueuseofproduct,turntheflowselectortothe“Off”
position,andcontactyourdealer/HomeCareequipment
provider.
DONOTusewhilesleepingwithoutconsultingyour
healthcareprovider.
Thisproductisdesignedtooperatewithastandardsingle
lumen,adultoxygennasalcannulawithamaximumlengthof
2.1m(7ft).
Thecannulaisforsinglepatientuseonly.
CannulaMUSTbeinstalledonoutletconnectionpriortouse.
DONOTplacetheunitunderclothingwhileinuse.When
thisproductisinuseasmallamountofoxygenisvented.
Wearingtheunitunderclothingmaysaturatefabricswith
oxygenandcausethemtoburnrapidlyifexposedtosparks
orflame.Itmaytakeseveralhoursforoxygenlevelsinfabrics
toreturntonormal.

SECTION 1—GENERAL GUIDELINES
Part No 1141477 9 HomeFill® II
 WARNING
DONOTuseIOH200AW,HomeFillIIunit,tofillcylinder
outdoorsoranywherebelow13°C(55°F).

SECTION 2—FEATURES
HomeFill® II 10 Part No 1141477
SECTION 2—FEATURES
 DANGER
This product is not intended as a life-sustaining or
life-supporting device.

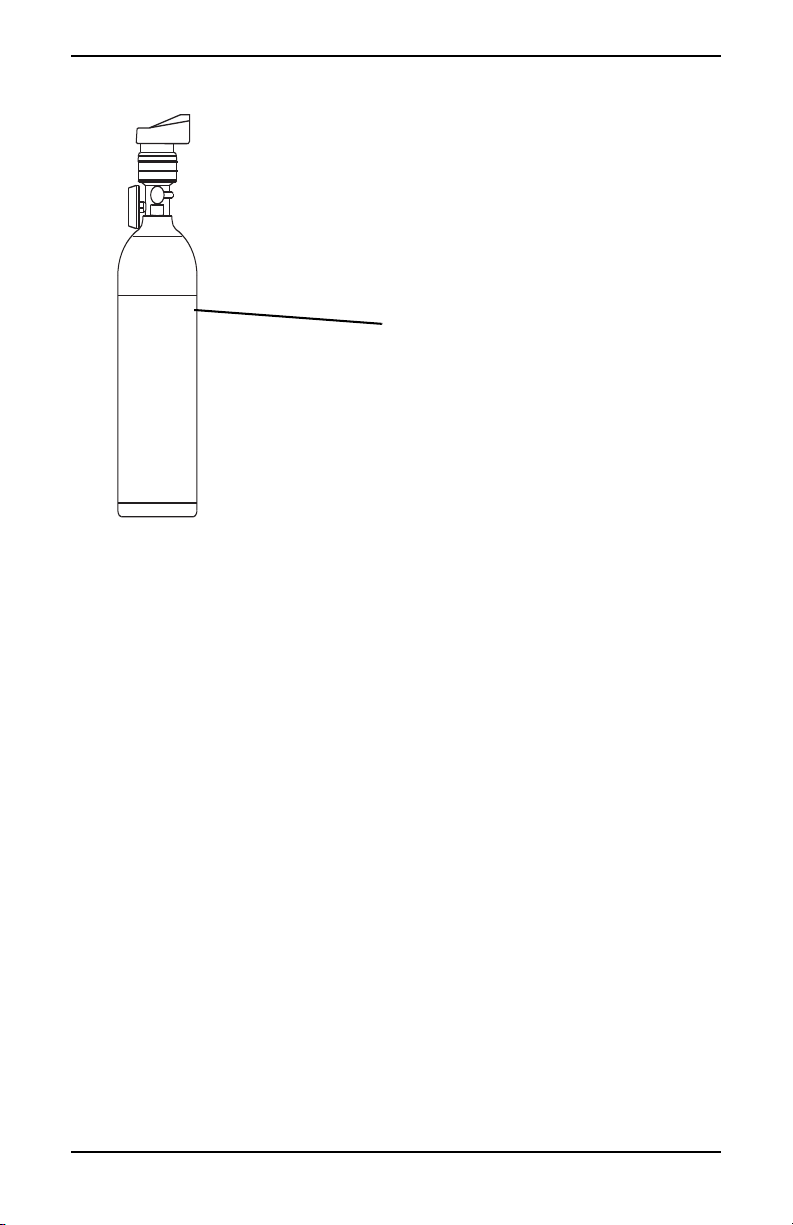

FIGURE 2.1 Product Diagram
Outlet
Connection
Cannula
Flow Dial
Cylinder
Gauge
Indicator
Pointer
Cylinder Fill
Port

SECTION 3—TYPICAL PRODUCT PARAMETERS
Part No 1141477 11 HomeFill® II
SECTION 3—TYPICAL PRODUCT
PARAMETERS
INLET PRESSURE RANGE: 2068 kpa - 14479 kpa (300 - 2100 psig)
INTERNAL REGULATED PRES-
SURE: 345 kpa (50 psig)
DIMENSIONS: HF2PCE6 - 1.0 Liters
HF2PCE9 - 1.7 Liters
HF2PCE6: WEIGHT 1.86 kg (4.1 lbs)
HF2PCE6: OVERALL LENGTH 27.7 cm (10.9 in)
HF2PCE6: DIAMETER 11.1 cm (4.4 in)
HF2PCE9: WEIGHT 2.31 kg (5.1 lbs)
HF2PCE9: OVERALL LENGTH 35.5 cm (14 in)
HF2PCE9: DIAMETER 11.1 cm (4.4 in)
PULSE SETTINGS: 1, 2, 3, 4 and 5
FLOW SETTINGS: 2 LPM Continuous
SAVINGS RATIO: Up to 5.7:1
CANNULA
REQUIREMENT:
1.21 m (4 ft) recommended (MS0204)
2.1 m (7 ft) long maximum standard
adult single lumen oxygen nasal cannula
OPERATING CONDITIONS
TEMPERATURE
PULSE:
CONTINUOUS:
1.7° C (35° F) to 40.6° C (105° F)
-17° C (0° F) to 40.6° C (105° F)
ALTITUDE: 0 to 3071 m (0 to 10,000 ft)
STORAGE CONDITIONS
TEMPERATURE: -40° C (-40° F) to 60° C (140° F)
MAXIMUM HUMIDITY: 95%
PRODUCT CLASSIFICATION: Class IIB
REGULATORY LISTING: In compliance with the medical device
directive 93/42/EEC

SECTION 4—INSPECTION AND COMPRESSOR INTERFACE
HomeFill® II 12 Part No 1141477

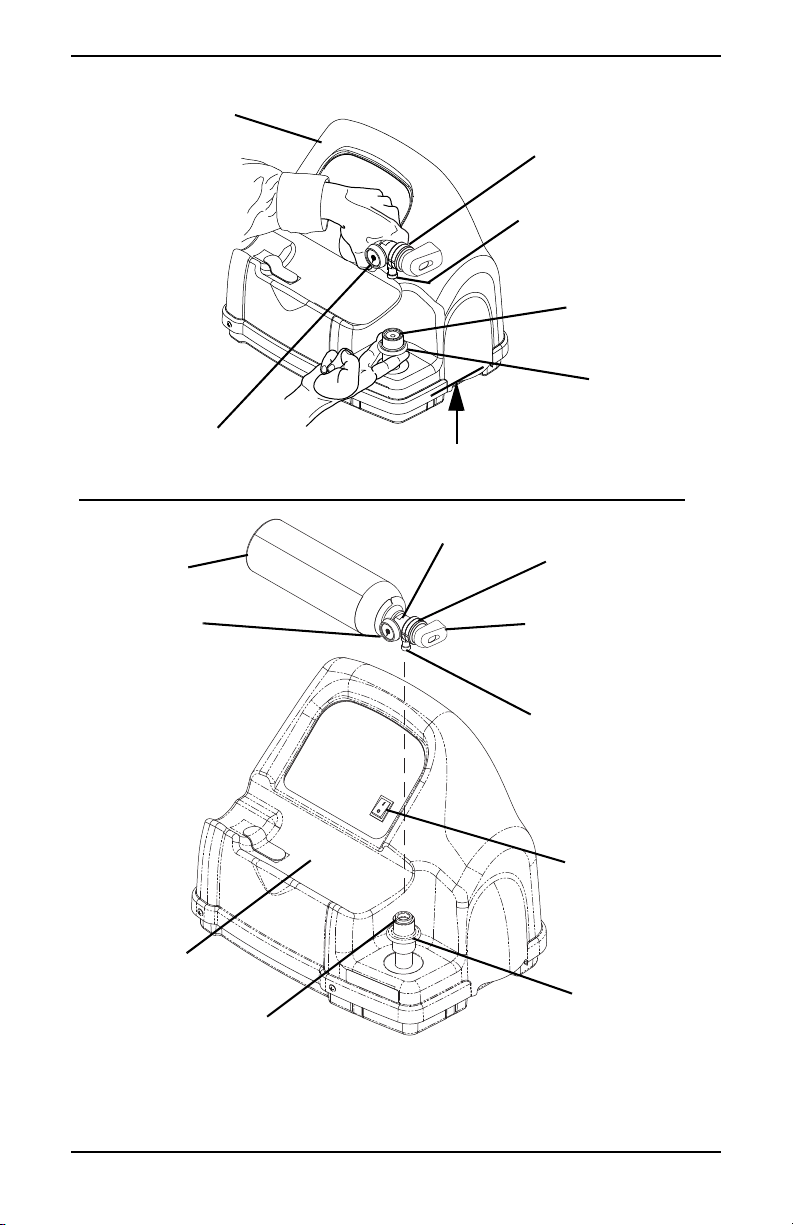

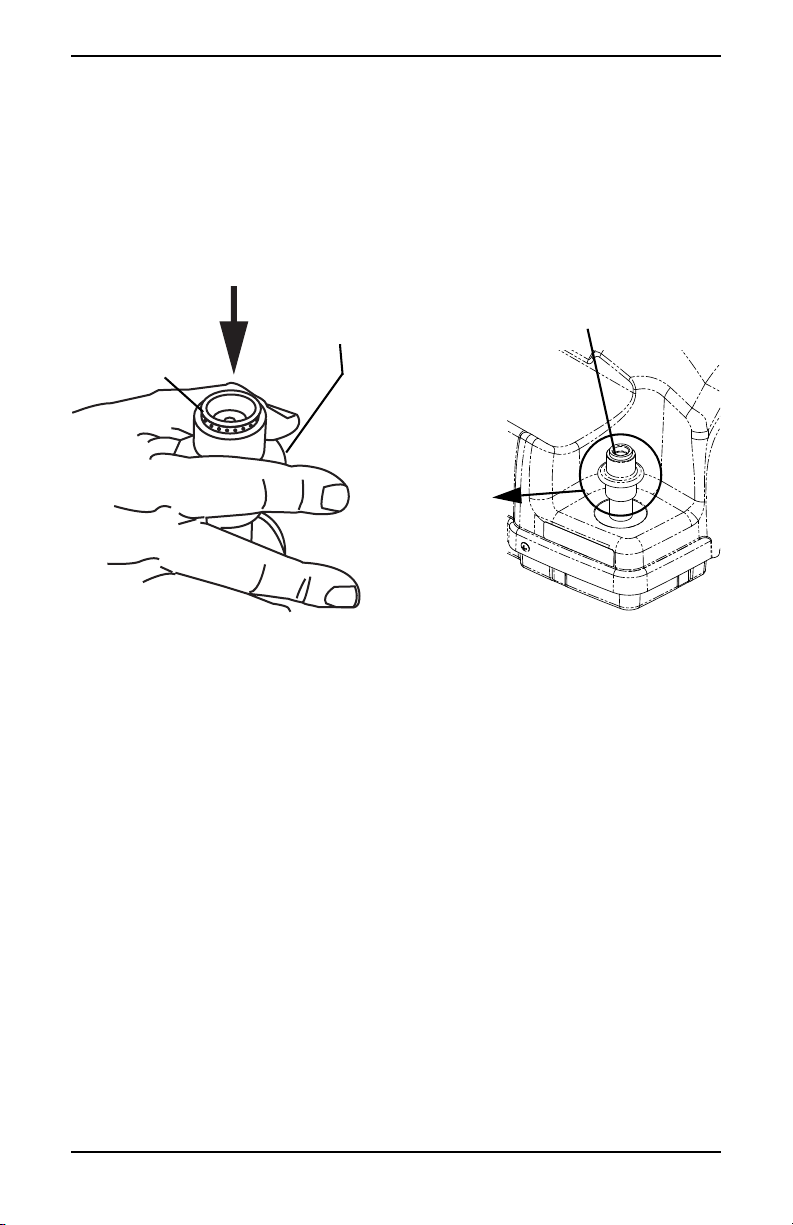

SECTION 4—INSPECTION AND
COMPRESSOR INTERFACE
NOTE:RefertotheHomeFillIIowner’smanualforcompressor
operatinginstructions.
Cylinder Prefill Inspection
 DANGER
Improper filling or abuse of this cylinder, or failure to
follow these safety instructions may cause serious bodily
injury or death. High pressure oxidizing gas vigorously
accelerates combustion.
DO NOT alter or modify cylinder or related components.
DO NOT use oil or grease. Keep cylinder, cylinder valve,
all equipment and connections free of oil and grease to
avoid violent ignition resulting in serious bodily injury or
death.
 WARNING
For medical applications, use only as directed by a
licensed practitioner. Uninterrupted use of high
concentrations of oxygen over a long duration, without
monitoring its effect on oxygen content of arterial blood,
may be harmful.
Oxygen cylinders filled by the HomeFill II shall be used for
personal use only. “Not to be filled for resale or use by
professional users”.
This cylinder is to be used with the HomeFill II system.
This cylinder contains 93±3% oxygen produced by an
oxygen concentration using the pressure swing adsorption
process.
DO NOT handle cylinder or use contents until you are
professionally trained, including emergency procedures.

SECTION 4—INSPECTION AND COMPRESSOR INTERFACE
Part No 1141477 13 HomeFill® II
 WARNING
Use this cylinder in accordance with the HomeFill II
owner’s manual. Open valve slowly, Close valve after each
use and when empty. Secure cylinder during storage and
use. No smoking in cylinder area. Keep away from heat,
flame or spark. Keep out of the reach of children. DO
NOT drop.
Transfilling of this gas is performed by HomeFill II only.
Cylinders that have been refinished and/or exposed to
elevated temperatures MUST be hydrostatically tested
before filling. Cylinder temperature should not exceed
52° C (125° F). Aluminum cylinders subject to the action
of fire or heated temperatures in excess of 177° C (350° F)
MUST be withdrawn from service and condemned by
trained personnel. DO NOT use caustic paint strippers.
Valve and safety relief devices MUST be removed and
replaced by trained and authorized personnel. DO NOT
alter or change valve assembly.
All cylinders MUST be inspected before attempting to fill;
otherwise, injury or damage may occur.
NEVER smoke in an area where oxygen is being
administered.
NEVER use near any type of flame or flammable/explosive
substances, vapours or atmosphere.
NOTE:Forthisprocedure,refertoFIGURE4.1.
The Hydrostatic Testing Date
AluminumcylindersMUSTundergotestingeveryfiveyears.

SECTION 4—INSPECTION AND COMPRESSOR INTERFACE
HomeFill® II 14 Part No 1141477
 WARNING
DO NOT fill cylinders that have not been tested in the
past five years. Otherwise, serious personal injury may
result. Contact your dealer for replacement.
External Examination
1. Examinetheoutsideofthecylinderforthefollowing
conditions,andreplacethecylinderiftheyexist:
•Dentsordings
•Arcburns
•Oilorgrease
•Anyothersignsofdamagethatmightcauseacylinder
tobeunacceptableorunsafeforuse.
2. Examinethecylinderforevidenceoffireorthermal
damage.Evidenceincludescharringorblisteringofthe
paint,orotherprotectivecoatingorheatsensitive
indicator.Iffireorthermaldamageisfound,replacethe
cylinder.
3. Inspectthecylinderfillportforthefollowing:
•Debris,oilorgrease
•Noticeablesignsofdamage
•Signsofcorrosioninsidethevalve
•Signsofexcessiveheatorfiredamage
NOTE:DONOTusethecylinderifanyoftheseitemsare
found.Contactyourdealerforreplacement.

SECTION 4—INSPECTION AND COMPRESSOR INTERFACE
Part No 1141477 15 HomeFill® II
FIGURE 4.1 External Examination
Warning Label
This cylinder is to be used with the HomeFill II system.
This cylinder contains 93±3% oxygen.
Keep cylinder in a well ventilated place.
Keep away from combustible material.
Keep free from oil and grease.
Refer to the HomeFill II owner’s manual for additional
warnings, cautions and safety instructions.

SECTION 4—INSPECTION AND COMPRESSOR INTERFACE
HomeFill® II 16 Part No 1141477
Connecting/Disconnecting the Cylinder
to/from the Compressor
Connecting the Cylinder to the Compressor
 WARNING
NEVER use tools of any kind to connect/disconnect the
cylinder and the compressor. Otherwise, severe injury
and/or damage may occur.
DO NOT drop oxygen cylinders. Use two hands when
handling/transporting oxygen cylinders. Otherwise, injury
or damage may occur.
DO NOT use a liquid leak detector to test for leaks.
NOTE:Forthisprocedure,refertoFIGURE4.2andFIGURE4.3.
1. Examinethecylindergauge.Ifthecylinderpressureisless
than10342kpa(1500psig),proceedtoSTEP2(FIGURE
4.3).
NOTE:Ifthecylinderpressureisgreaterthan10342kpa(1500
psig),DONOTattempttotopoffthiscylinder.Itmaynotfill.
2. SettheregulatorflowdialonthecylindertoOff(FIGURE
4.3).
3. Removethecylinderandconnectorfillportcovers.
CAUTION
DO NOT connect the outlet (cannula) connection to the
HomeFill II unit, otherwise the conserving cylinder will
not work properly.
4. MomentarilypushDOWNontheouterring(sleeve)ofthe
connectorfillporttoresettheconnectorasshownin
FIGURE4.2.

SECTION 4—INSPECTION AND COMPRESSOR INTERFACE
Part No 1141477 17 HomeFill® II
NOTE:Iftheouterring(sleeve)isintheUPposition
(GREENdotsnotvisible),theconnectorfillportwillnot
beabletoacceptthecylinderfillport.PushingDOWN
momentarilywillresettheconnectorfillport(GREEN
dotsvisible)toacceptthecylinderfillport.
FIGURE 4.2 Resetting Connector Fillport
5. Graspthecylinder/regulatorassemblyintheareabehind
thecylindergauge(FIGURE4.3).
6. Positionthecylinderinthecompressorcradle(FIGURE
4.3).
7. Alignthecylinderfillportwiththeconnectorfillport
(FIGURE4.3).
8. PullUPontheouterring(sleeve)oftheconnectorfillport
whilepushingDOWNonthecylinder/regulatorassembly
tocouplethecylinderfillportintotheconnectorfillport
(FIGURE4.3).
NOTE:Thecylinderisproperlyconnectedwhenanaudible“click”
isheard.
Connector Fillport
Outer Ring (Sleeve)
PUSH DOWN
GREEN Dots
BEFORE
COUPLING
CYLINDER,
PUSH DOWN
ON SLEEVE
UNTIL GREEN
DOTS ARE
VISIBLE

SECTION 4—INSPECTION AND COMPRESSOR INTERFACE
HomeFill® II 18 Part No 1141477
FIGURE 4.3 Connecting the Cylinder to the Compressor
Cylinder/Regulator
Assembly
Compressor
Cylinder Gauge
Cylinder Fillport
Connector
Fillport
PULL UP
NOTE:Fillportcoversnotshownforclarity.
Outer Ring
(Sleeve)
Cylinder
Compressor
Cradle
Cylinder
Gauge
Regulator
Flow Dial
Outer Ring
(Sleeve)
Connector
Fillport
Outlet (Cannula)
Connection
Power Switch
Regulator
Cylinder
Fillport

SECTION 4—INSPECTION AND COMPRESSOR INTERFACE
Part No 1141477 19 HomeFill® II
Disconnecting the Cylinder from the Compressor
 WARNING
NEVER use tools of any kind to connect/disconnect the
cylinder and the compressor. Otherwise, severe injury
and/or damage may occur.
NOTE:Forthisprocedure,refertoFIGURE4.4.
1. PressthecompressorpowerswitchtotheOff(O)position.
2. Graspthecylinder/regulatorassemblyintheareabehind
thecylindergauge.
3. Withtheotherhand,grasptheouterring(sleeve)ofthe
connectorfillportandpushDOWN.
4. Liftuponthecylinder/regulatorassemblytoremovefrom
theconnectorfillport.
FIGURE 4.4 Disconnecting the Cylinder from the Compressor
Cylinder/Regulator
Assembly
Compressor
Cylinder
Gauge Cylinder
Fillport
Connector Fillport
Outer Ring
(Sleeve)
PUSH DOWN

SECTION 4—INSPECTION AND COMPRESSOR INTERFACE
HomeFill® II 20 Part No 1141477
5. Whenthecylinderfillportisdisconnectedfromthe
connectorfillport,releasetheouterring(sleeve)ofthe
connectorfillportandusetwohandstoremovethe
cylinderfromthecompressorcradle.
 WARNING
The fillport cover on the connector fillport and the
cylinder fillport MUST be replaced after filling and
whenever not in use. If either of the fillport covers are
missing contact your healthcare provider before using.
6. Placethefillportcoversontotheconnectorfillportand
cylinderfillport.
7. Examinethecylindergaugetoensurecylinderisfull
(needlepointingintoGREENarea).Ifthecylinderisnot
full,performthefollowing:
• RepeatSTEPS1‐8ofConnectingtheCylindertothe
Compressoronpage 16.
•Ifcylinderisnotfullaftersecondattemptatfilling,DO
NOTusethecylinderandcontacttheprovider.
