Invacare Rectangular Pan Holder and Pan 9610-1 User manual

Install Pan Holder
Existing Pail
Hanger
Back Rail of Commode

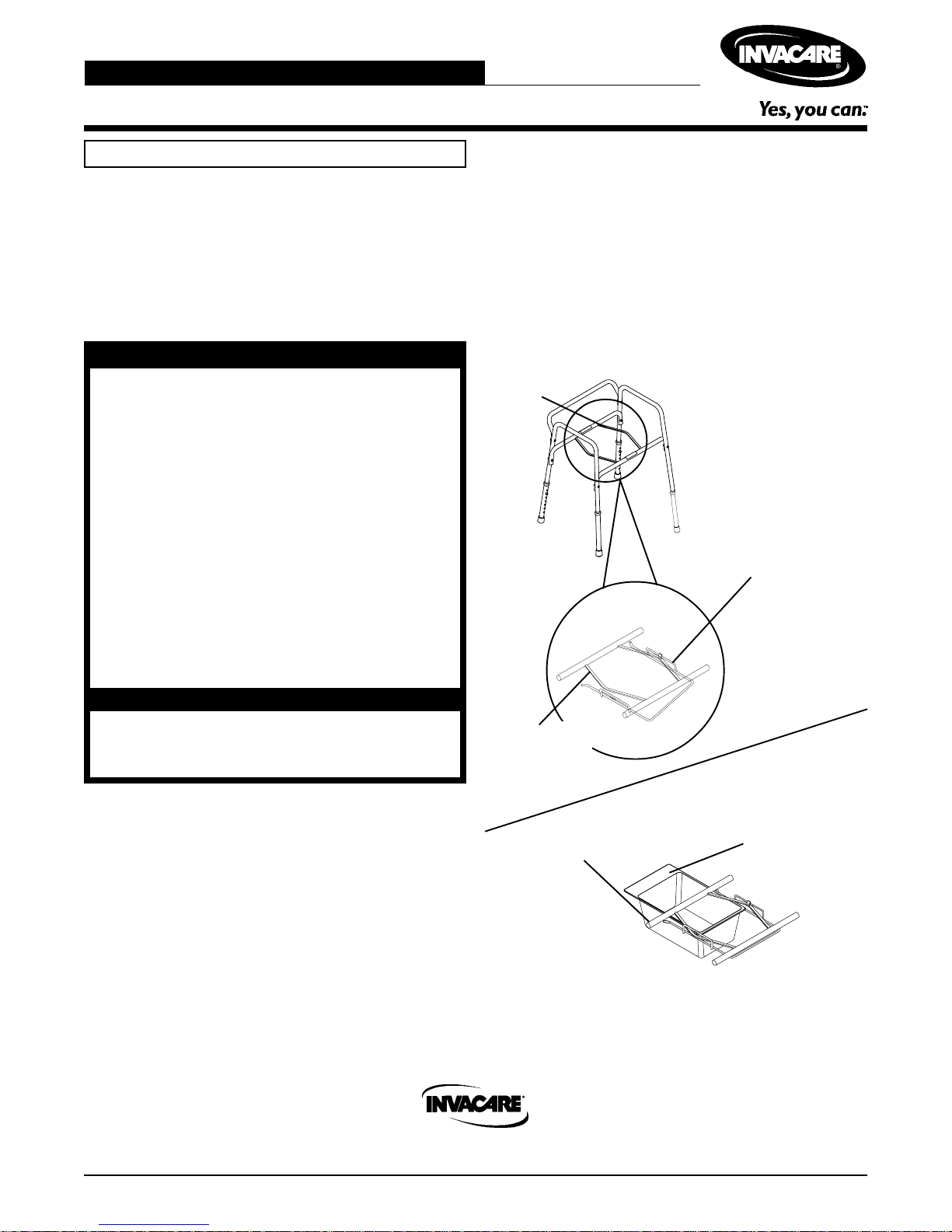

FIGURE 1 - INSTALLING RECTANGULAR PAN
HOLDER AND PAN ONTO EXISTING
STANDARD COMMODE PAILHANGER
4. Slide the remaining bracket up and over the remaining
portion of the existing pail hanger. Open end of pan
holder should face to the rear of the commode.
5. Ensure that it is properly situated onto existing pail
hanger.6.InstallNEWrectangularpanontotheNEW
pan holder from the rear of the commode by sliding
the back end of the lipped top of the rectangular pan
onto the NEW pan holder rails and push it forward.
7. To remove pan and pan holder, reverse STEPS 3-6.
INSTALLING RECTANGULAR PAN
HOLDER AND PAN ONTO EXISTING
STANDARD COMMODE PAIL
HANGER (FIGURE 1)
1. Remove original commode lid from commode by
grasping and pulling straight up.
2. Remove existing commode seat by grasping and
pulling straight up.
3. Install the rectangular pan holder onto existing
commode pail hanger framework by placing bracket
of one side over the existing pail hanger.
Install Pan to
Pan Holder from
Rear of Commode.
Existing Pail
Hanger
SAVE THESE INSTRUCTIONS
NOTE: Check all parts for shipping damage before using.
In case of damage, DO NOT use the equipment. Contact
your Dealer/Carrier for further instruction.
SAFETY SUMMARY
Thefollowingrecommendationsaremadeforthesafe
andproperinstallationanduseoftheRectangularPan
Holder and Pan:
GENERAL WARNING
DONOTinstallorusethisequipmentwithoutfirstread-
ing and understanding this instruction sheet. If you
are unable to understand the Warnings, Cautions
and Instructions, contact a healthcare professional,
dealerortechnical personnel before attempting to
install this equipment - otherwise, injury or damage
may occur.
Before using the commode: Always test to see that
allparts ofthecommode aresecure. Makecertain
ALL screws, nuts and/or bolts are tight at all times.
Users with limited physical capabilities should be
supervisedorassistedwhenutilizingthecommode.
The applicable commodes listed have a weight
limitation of 300 lbs. (135 kg.). The Extra Wide Com-
modehas a weight limitation of450 lbs. (202.5 kg.).
INSTALLATIONWARNING
AfterANYadjustments,repairorserviceandBEFORE
use, make sure that all attaching hardware is
tightened securely.
Installation of Rectangular Pan Holder and Pan
Assembly, Installation and Operating Instructions
MODEL Nos. 9640-4, 9640-1, 9630-4, 9630-1, 9620-4, 9620-1, 9610-4 and 9610-1
FormNo. 97-105 P/N 1069323 Printed in USA
INVACARE CORPORATION
899 Cleveland St. lElyria, Oh. 44036-2125 lCustomer Service - Toll Free [phone]
