Invacare Formula Instruction Manual

Yes, you can. ™
Formula™ TRE Powered Seating
TDX®
Power Wheelchairs
Parts Catalog Issued: Mar 8, 2012

The information contained in this document is subject to change without notice. This catalog contains
service parts for Form No. 04-041. If you have any questions regarding this catalog, please contact one
of our Customer Service Representatives.
For Customer Service Support Call:
1-800-333-6900
For Faxed In Orders Call:
1-800-678-4682 or
1-440-366-0709
For Technical Service Call:
1-800-832-4707
Literature Can Be Found at:
www.invacare.com or
1-800-828-6272
SYMBOL DEFINITION
Throughout this catalog you will notice letters to draw your attention to specific footnotes which are located at the
bottom of the page or below specified charts.
HARDWARE MEASUREMENTS
Examples: = Special Comments
= General information pertaining to that specific page
= No Longer Available
NOTE:
NLA
The measurements for the hardware will be listed as follows:
Screws, Bolts
Washers
Spacers
For your convenience, we have supplied an area for you to list your Invacare Representatives.
A,B,C etc.
Diameter X Thread Count/Pitch X Length
Inside Diameter X Outside Diameter X Thickness
Inside Diameter X Outside Diameter X Length
Name Phone Numbers
© 2012 Invacare Corporation. Elyria, Ohio. Invacare, Yes, you can., the Blue Medallion Design, SureStep, Storm Series, TDX are registered trademarks and
Formula, Contoura, Personal Back 10, DualFlex, MKIV, MK5, EX, and TCD are trademarks of Invacare Corporation.
Otto Bock is a registered trademark owned by Otto Bock Orthopaedische Industrie GMBH & Co.. JAY Back is a registered trademark of Sunrise Medical
HHG, Inc. Corporation.
Parts Catalog Usage Guide
1
Form No. 04-041
To order call toll free 1-800-333-6900, or www.invacare.com

A: READ THIS FIRST (THIS CATALOG IS DIFFERENT!) ...................................................... 7
Accessories - Arm Pads - Otto Bock ........................................................................................ 154
Accessories - Back Cane Push Handle Attachments - Contoura Seating ............................... 158
Accessories - Back Cane Push Handle Attachments - Conventional Tilt & Tilt w/ BPO Option 156
Accessories - Headrest Supports - Stealth CP175/CP275/CP180/CP280 .............................. 162
Accessories - Headrest Supports - Tarsys ............................................................................... 160
Accessories - Lateral Supports - Stealth - Contoura Seating TWB-CPR/TWB-CPRL ............. 174
Accessories - Lateral Supports - Stealth - Conventional Recline - T/R & Recline w/ BPO Option
TWB-TPR/TWB-TPRL
170
Accessories - Lateral Supports - Stealth - Conventional Tilt & Tilt w/ BPO Option
TWB-RPR/TWB-RPRL
167
Accessories - Lateral Supports - Tarsys - Contoura Seating CSLM/CSLL .............................. 171
Accessories - Lateral Supports - Tarsys - Conventional Recline - T/R & Recline w/ BPO Option
TMSLM/TMSLL
168
Accessories - Lateral Supports - Tarsys - Conventional Tilt & Tilt w/ BPO Option
TMSLM/TMSLL
164
Accessories - Miscellaneous .................................................................................................... 201
Accessories - Personal Back10 (TALL Regular/TALL Plus) Mtg. Hdwr. - Conventional Recline
w/ BPO Option
197
Accessories - Power Wheelchair Tool Kit ................................................................................ 199
Accessories - Seat & Chest Positioning Strap Mounting Hardware ......................................... 195
Accessories - Seat & Chest Positioning Straps without Mounting Hardware ........................... 193
Accessories - Vent Tray Assembly without Mounting Hardware .............................................. 185
Accessories - Vent Tray Kits .................................................................................................... 176
Accessories - Vent Tray Mounting Hardware - Conventional & Contoura Recline Only .......... 189
Accessories - Vent Tray Mounting Hardware - Conventional Tilt & BPO Option ..................... 187
TABLE of CONTENTS
Description
Page
Number
2
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 04-041

Accessories - Vent Tray Mounting Hdwr. - Conventional Tilt/Recline - (Contoura Tilt & T/R) &
All T/R w/ BPO Option
191
Actuator Module - Elevate Integrated (EIAM) - For Elevate Actuator Motor w/ MK6i Electronics 57
Actuator Module - Recline Integrated Actuator Module (RIAM) For Recline & Tilt/Recline ...... 59
Actuator Motor - Elevate & Mounting Hardware ....................................................................... 55
Actuator Motor - Recline & Mounting Hardware ....................................................................... 53
Actuator Motor - Tilt & Mounting Hardware .............................................................................. 51
Arms - Mounting Hardware - Conventional & Contoura - Recline & Tilt/Recline Seating ........ 135
Arms - Mounting Hardware - Conventional & Contoura Tilt Seating ........................................ 138
Arms - Mounting Swingaway Hardware - Elevate Only For ASBA/ADJASBA Seating ............ 131
Arms - Mtg. Front/Rear Arm Socket Asbly. & Hdwr. - Elevate Only For ADJASBA Seat (16" -
22" W) (After 7/4/05)
133
Arms - w/o Mounting Hardware - Adjustable Height - Elevate Only or Tilt Seating .................. 126
Arms - w/o Mounting Hardware - Fixed Height - Elevate Only or Tilt Seating .......................... 122
Arms - w/o Mounting Hardware - Recline & Tilt/Recline .......................................................... 129
Backs - Contoura without Mounting Hardware - Before 5/15/09 .............................................. 74
Backs - Conventional without Mounting Hardware ................................................................... 69
Backs - Curve Contoura without Mounting Hardware - After 5/14/09 ...................................... 78
Backs - Mounting Hardware - Contoura - ADJASBA Only - Before 5/15/09 ............................ 89
Backs - Mounting Hardware - Contoura Recline & Tilt/Recline - Before 5/15/09 ..................... 91
Backs - Mounting Hardware - Contoura Tilt - Before 5/15/09 .................................................. 87
Backs - Mounting Hardware - Conventional Recline & Tilt/Recline - Before 5/15/09 ............... 85
Backs - Mounting Hardware - Conventional Tilt - Before 5/15/09 ............................................ 83
TABLE of CONTENTS
Description
Page
Number
3
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 04-041

Backs - Mounting Hardware - Curve Contoura - After 5/14/09 ................................................. 93
Backs - Prop Rod Assembly - Contoura Tilt ............................................................................. 95
Backs - Recline Shear Link Assemblies ................................................................................... 97
Battery Box Hdwr. - Door Asbly. - Elevate Actuator Motor - Elevate For ASBA/ADJASBA -
Conv. & Contoura Seating
18
Battery Box Hdwr. & Door Asbly. - Non-Elevate Conv. & Contoura Seating ............................ 15
Battery Support Bracket Assembly TRBKTS Option ................................................................ 20
Battery Tray Asbly. & Wire Harnesses For Vent Tray (3) 22NF Batteries ................................ 22
Battery Wire Harnesses - Sensor Proximity Switch - Extension Cables & Energy Chain - All
Elevate Systems
24
Canes - Back - Slide Blocks & Sleeves - Conventional Recline - BPO Recline & Tilt/Recline . 109
Canes - Back - Solid Straight w/o Push Handle & Mtg. Hdwr. - Conventional Tilt & Tilt w/ BPO
Option
107
Canes - Back - Spreader Bars & Hdwr. (16" - 22" W) - Elevate Only For ASBA Seating (Before
7/5/05)
99
Canes - Back & Spreader Bars (16" - 22" W) - Elevate Only For ADJASBA Seating (After
7/4/05)
102
Canes - Back Att. Hdwr. (16" - 22" W) Elevate Only For ADJASBA Seating (After 7/4/05) ..... 105
Cushions - Seat - Contoura Seating ......................................................................................... 64
Electronics - MK5 ~PLEASE READ THIS FIRST~ .................................................................. 152
Electronics - MK6i ~PLEASE READ THIS PAGE~ .................................................................. 151
Frame - Tilt & Mounting Hardware ........................................................................................... 47
Frame Finishes - Touch-Up Paints & Upholstery Options ........................................................ 8
Frames - Back - Slide Blocks & Sleeves - Contoura Seating ................................................... 111
Frames - Seat & Hardware (16" - 22" W) - Elevate Only For ASBA Seating (Before 7/5/05) .. 27
Frames - Seat & Seat Pan w/ Hdwr. (16" - 20" W x 16" - 22" D Conventional) & (16", 18", 20"
W x 16" - 22" D Contoura) Stg.
33
TABLE of CONTENTS
Description
Page
Number
4
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 04-041

Frames - Seat & Seat Pan w/ Hdwr. (16" - 20" W x 16" - 22" D) - Elevate Only For ADJASBA
Seating (After 7/4/05)
29
Frames - Seat & Seat Pan w/ Hdwr. (20" - 22" W x 16" - 22" D) - Elevate Only For ADJASBA
Seating (After 7/4/05)
31
Frames - Seat & Seat Pan w/ Hdwr. (20" - 24" W x 16" - 22" D Conventional) & (20", 22", 24"
W x 16" - 22" D Contoura) Stg.
35
Frames - Seat Mounting Hardware - Elevate Only For ADJASBA Seating (After 7/4/05) ........ 39
Frames - Seat Mounting Hardware - Elevate Only For ADJASBA Seating with TRBKTS Option 41
Frames - Seat Mounting Hardware - Elevate Only For ASBA Seating (Before 7/5/05) ........... 37
Frames - Seat Mounting Hardware - Recline Only For Conventional & Contoura Seating ...... 43
Frames - Seat Mounting Hardware - Tilt or Tilt/Recline For Conventional & Contoura Seating 45
Front Riggings ~PLEASE READ THIS FIRST~ ....................................................................... 153
Label Locations For TRBKTS Option ....................................................................................... 12
Packaging & Literature ............................................................................................................. 10
RETROFIT KITS FOR FORMULA TRE POWERED SEATING ............................................... 14
Seat Pans & Mounting Hardware - Elevate Only For ASBA Seating (Before 7/5/05) .............. 61
Shroud Cover - Conventional Seating ...................................................................................... 142
Shroud Cover - Conventional Tilt, Tilt w/ BPO or Tilt-Elevate w/ MK6i Electronics (After
2/28/07)
147
Shroud Covers - Contoura Seating .......................................................................................... 140
Shroud Covers - Conventional Tilt, Tilt w/ BPO or Tilt-Elevate w/ MK6i Electronics (Before
3/1/07)
144
Shroud Covers - Recline & Tilt/Recline Conventional or Contoura Seating w/ MK6i Electronics 149
Spreader Bar Assembly - Contoura Tilt - Recline & Tilt/Recline .............................................. 117
Spreader Bar Assembly - Conventional Recline & Tilt/Recline ................................................ 119
Spreader Bar Assembly - Conventional Tilt w/o Vent .............................................................. 115
TABLE of CONTENTS
Description
Page
Number
5
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 04-041

Spreader Bar Assembly - Double For Conventional Tilt w/ Vent & Tilt w/ BPO Option ............ 113
Spring - Seat Frame Balance & Tilt Spring Assist Assemblies For Tilt & Tilt/Recline .............. 49
TRBKTS Option Clarification Reference .................................................................................. 13
Upholstery - Back Nylon - Elevate Only For ASBA/ADJASBA Seating .................................... 67
TABLE of CONTENTS
Description
Page
Number
6
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 04-041

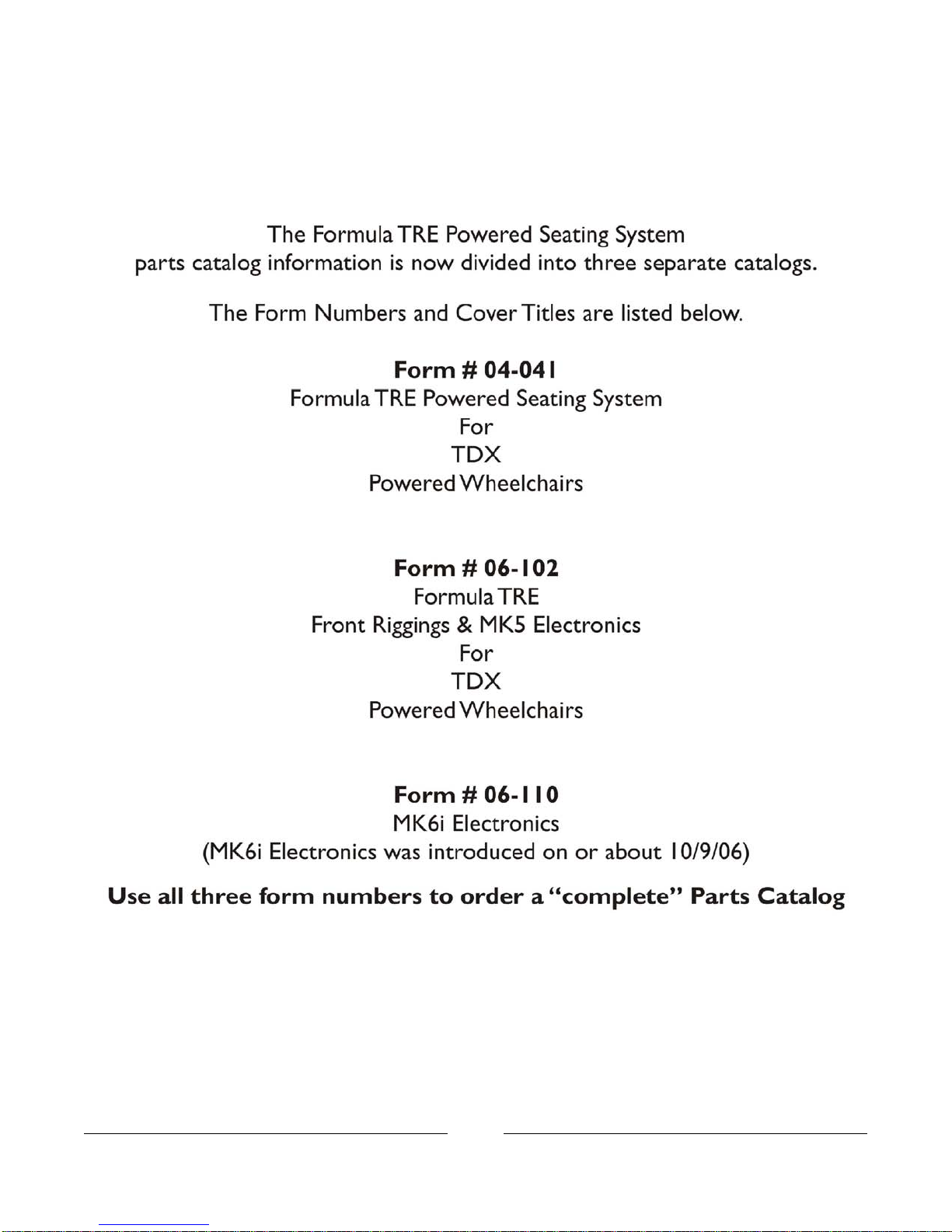

A: READ THIS FIRST (THIS CATALOG IS DIFFERENT!)
7
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 04-041

Frame Finishes, Touch-Up Paints and Upholstery Options
Frame Finishes and Touch-Up Paint
Color Number Part Number Bottle Size Frame Finish
Deep Purple.6 oz.103145608P Cobalt Blue.6 oz.104631917P Anthracite.6 oz.103337622P Wet Black.6 oz.103145024P Red.6 oz.103145533P Flat Black.6 oz.104632734P Electric Red.6 oz.104632161P Electric Blue.6 oz.104632062P Electric Purple.6 oz.104632266P Teflon Black.6 oz.1101320-NLA69P Silver VeinN/AN/A71P Lavender.6 oz.107389684P Jeweled Green.6 oz.1101325101P Denim Blue.6 oz.1101327102P Electric Teal.6 oz.1101316104P MIdnight Blue.6 oz.1101326105P Black PrismN/AN/A115P Sunkissed OrangeN/AN/A116P Tangerine RedN/AN/A117P Fruit FusionN/AN/A118P Bubblegum PinkN/AN/A119P Grape MadnessN/AN/A120P Lolly Pop BlueN/AN/A121P Cosmic BlueN/AN/A122P Celestial PurpleN/AN/A123P Vivid VioletN/AN/A124P Emerald GreenN/AN/A125P Shamrock GreenN/AN/A126P Grasshopper GreenN/AN/A127P
8
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 04-041

Frame Finishes, Touch-Up Paints and Upholstery Options
Sparkle Frame Finishes
Color Number Frame Finish
Wet Black with Twilight Sparkle88P
Upholstery Options For A.S.B.A. Seating
Nylon Color
U240 Black
9
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 04-041

Packaging and Literature
10
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 04-041

Packaging and Literature
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1036028 Carton, Cover 1 11 40131X161 Insert, Plain Pad 1 22 40131X011 Carton, Front Riggings 1 13 1015592 Bag, Poly (72" L x 35" W x 19" D) 1 14 1043198-NLA NLA - Tube, Paper 1 15 1012001 Carton, Joystick 1 16 1036027 Carton, Tray 1 27 1129590 Carton, Corner Reinforcement 1 48 00077X031-NLA NLA - Warranty Card 1 1A 1114809 Owner's Manual, TDX w/ MK5 Electronics 1 1A 1122170 Owner's Manual, Formula TRE w/ MK6i Electronics 1 1A
A - Not Shown
Whe
n adjusting or replacing parts, please refer to your Owner's Manual for assistance.
NOTE:
11
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 04-041

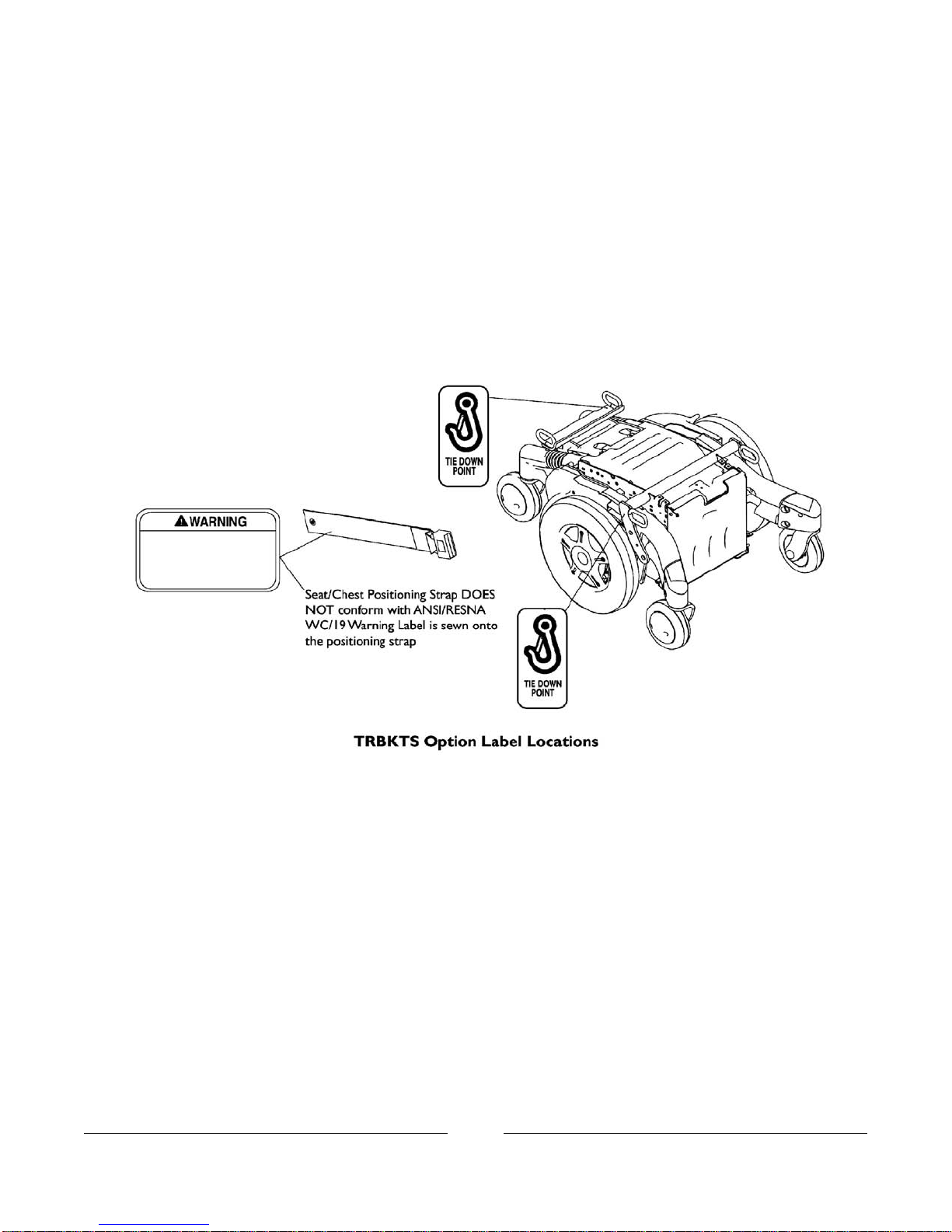

Label Locations For TRBKTS Option
12
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 04-041

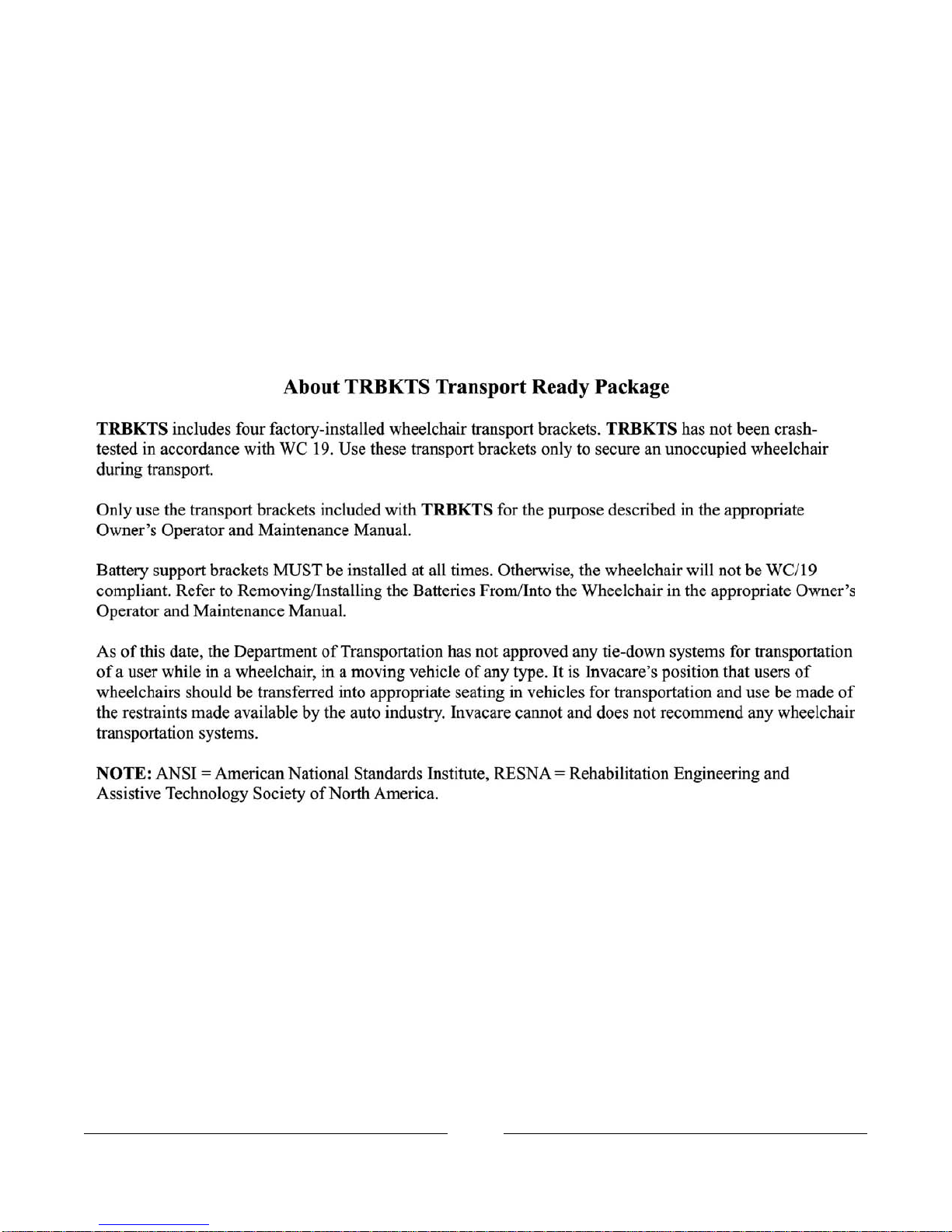

TRBKTS Option Clarification Reference
TRBKTS Option was introduced 12/19/05 as an On-Chair option only.
13
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 04-041

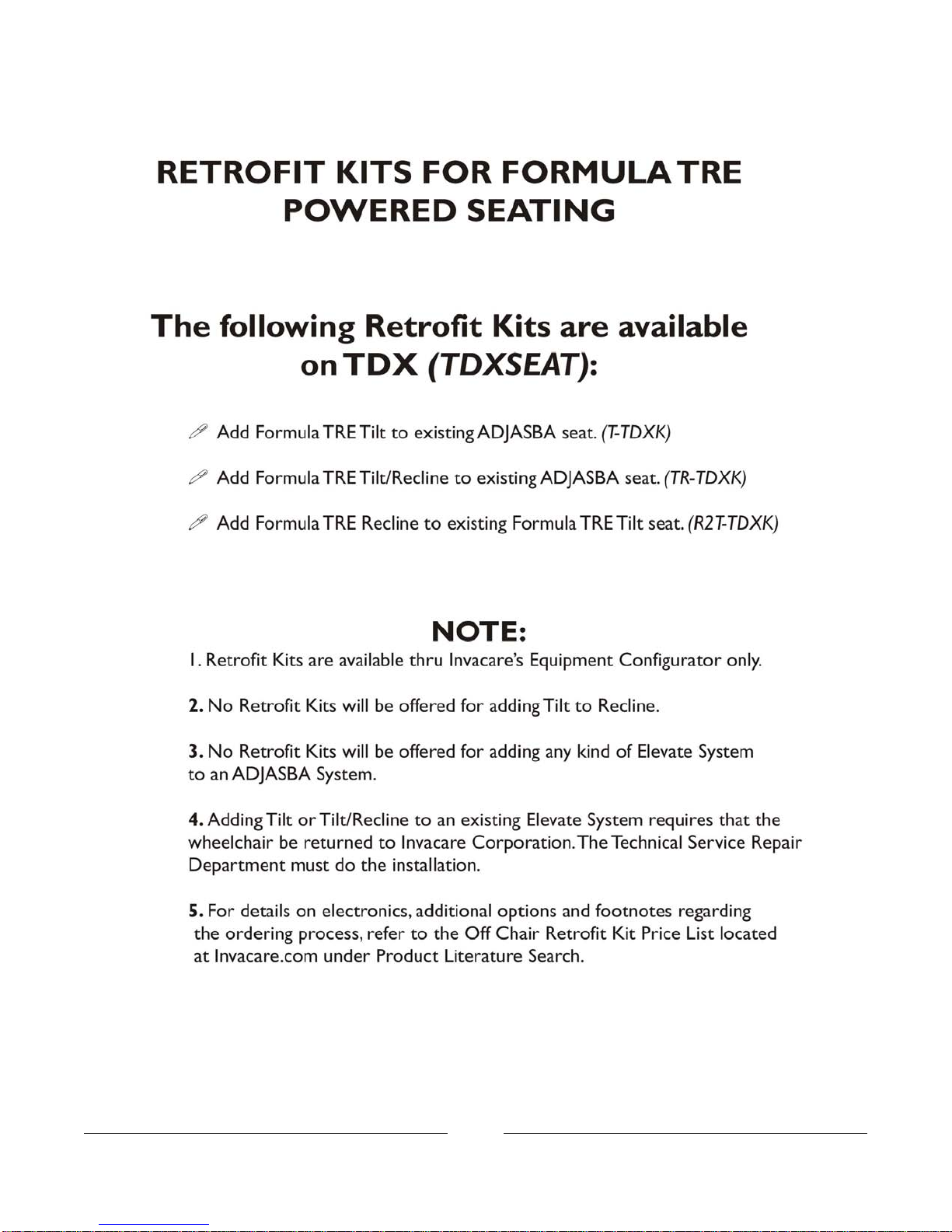

RETROFIT KITS FOR FORMULA TRE POWERED SEATING
14
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 04-041

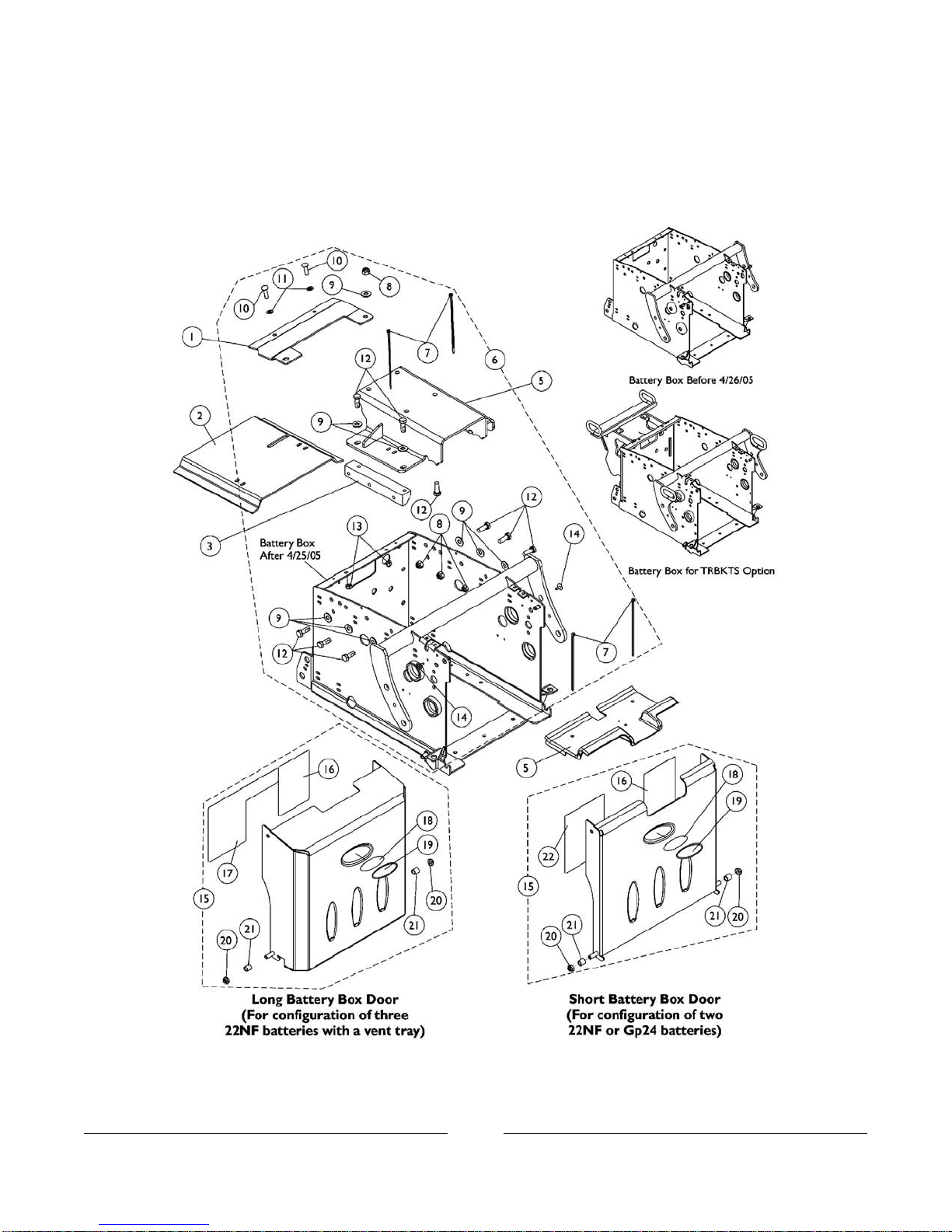

Battery Box Hardware and Door Assembly
Non-Elevate
For Formula Conventional and Contoura Seating
The Battery Boxes are non-serviceable parts in the field. Wheelchair must be returned to Invacare for
repair. Call Technical Services for assistance (1-800-832-4707)
15
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 04-041

Battery Box Hardware and Door Assembly
Non-Elevate
For Formula Conventional and Contoura Seating
The Battery Boxes are non-serviceable parts in the field. Wheelchair must be returned to Invacare for
repair. Call Technical Services for assistance (1-800-832-4707)
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1128731 Bracket, Frame Stiffener, Black 1 11 E 1124725 Shroud, Battery Box Isolation 1 12 F 1125639 Block, Side Support 1 13 1124668-NLA NLA - Shroud, Front Battery Box 1 14 1128729 Bracket, Seat Frame Mounting, Black
LOW 0° = 18" STF; 5° = (19-3/4" STF For 16-19"
Deep) or (21-1/4" STF For 20-22" Deep)
1 15 E
1128730 Bracket, Seat Frame Mounting, Black
TALL 0° = 19-1/4" STF; 5° = (21" STF For 16-19"
Deep) or (21-1/4" STF For 20-22" Deep)
1 15 E
1125738 Kit, Non-Elevate Battery Box Assembly Hardware 1 16 A Tie Wrap (5-5/8" L) 1 47 Locknut (5/16-18) 1 48 Washer, Steel (5/16 x 3/4 x 1/16") 1 99 Bolt, Hex Head Cap (1/4-20 x 3/4") 1 210 Washer (1/4 x 1/2 x 1/16") 1 211 Screw, Hex Head w/ Patch (5/16-18 x 7/8") 1 912 Locknut (1/4-20) 1 213 Screw, Phillips Pan Head Tap (#10-32 x 1/2") 1 214 1113357 Kit, Battery Box Door Assembly, 22NF Short 1 115 B,D Label, 22NF Terminal Configuration Warning 1 116 NLA - Decal, Blank Logo 1 118 Decal, Invacare Medallion - Large 1 119 Locknut (1/4-20) 1 220 NLA - Sleeve, Door Pivot 1 221 Label, 22NF Battery Install/Remove 1 122 1113127 Kit, Battery Box Door Assembly, GP24 Short 1 115 B,D Label, Terminal Configuration Warning, GP24 1 116 NLA - Decal, Blank Logo 1 118 Decal, Invacare Medallion - Large 1 119 Locknut (1/4-20) 1 220 NLA - Sleeve, Door Pivot 1 221 Label, Battery Install/Remove, GP24 1 122 1121072-NLA Kit, Battery Box Door Assembly, 22NF Long (For
Vent) 1 115 C,D
Label, 22NF Terminal Configuration Warning 1 116 Label, 3 Battery Configuration Warning 1 117 NLA - Decal, Blank Logo 1 118 Decal, Invacare Medallion - Large 1 119 Locknut (1/4-20) 1 220 NLA - Sleeve, Door Pivot 1 221
16
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 04-041

Battery Box Hardware and Door Assembly
Non-Elevate
For Formula Conventional and Contoura Seating
The Battery Boxes are non-serviceable parts in the field. Wheelchair must be returned to Invacare for
repair. Call Technical Services for assistance (1-800-832-4707)
A - Includes Battery Box Door along w/ Items 7-14.
B - Includes Battery Box Door along w/ Items 16 and 18-22.
C - Includes Battery Box Door along w/ Items 16-21.
D - Blank Logo Decal is no longer available and no longer required for item number 19 Invacare Medallion Decal.
E - Chairs manufactured before 8/30/04 must have items 1 and 5 ordered together in order for the mounting holes to line up
properly
F - No longer available as a service part.
NOTE:
17
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 04-041

Battery Box Hardware, Door Assembly, Elevate Actuator
Motor
Elevate
For ASBA/ADJASBA, Conventional and Contoura Seating
The Battery Boxes are non-serviceable parts in the field. Wheelchair must be returned to Invacare for
repair. Call Technical Services for assistance (1-800-832-4707)
18
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 04-041

Battery Box Hardware, Door Assembly, Elevate Actuator
Motor
Elevate
For ASBA/ADJASBA, Conventional and Contoura Seating
The Battery Boxes are non-serviceable parts in the field. Wheelchair must be returned to Invacare for
repair. Call Technical Services for assistance (1-800-832-4707)
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1122258 Elevating Actuator Assembly 1 11 1124653-NLA NLA - Bracket, Elevate, Black 1 12 1124670 Plate, Battery Box Bottom 1 13 1124721-NLA NLA - Shroud w/ Decals, Elevate, Battery Box 1 14 1079203 Decal, Warning Pinch Point 1 25 1124668-NLA NLA - Shroud, Front Battery Box 1 16 1125739 Kit, Battery Box Assembly Hardware Elevate 1 17 A Screw, Hex Head w/ Patch (5/16-18 x 7/8") 1 28 Washer, Flat (21/64 x 53/64 x 7/64") 1 29 Screw, Socket Flat Head (1/4-20 x 3/4") 1 310 Bolt, Hex Head Cap (1/4-20 x 3/4") 1 311 Washer (1/4 x 1/2 x 1/16") 1 312 Screw, Hex Head (1/4-20 x 1-5/8") 1 413 Screw, Phillips Pan Head (#10-32 x 5/8") 1 414 Bracket, Upper Seat, Front, Black 1 115 Bracket, Lower Seat, Front, Black 1 116 Screw, Hex Head w/ Patch (5/16-18 x 3/4") 1 217 Package, Tie Wrap (5-5/8" L) 1 218 Locknut (1/4-20) 1 619 Washer, Flat (3/16 x 5/8 x 1/16") 1 420 Screw, Phillips Pan Head Tap (#10-32 x 1/2") 1 221 1125776 Kit, Battery Box Door Elevate Assembly, 22NF
Short 1 122 B,C
Label, 22NF Terminal Configuration Warning 1 123 NLA - Decal, Blank Logo 1 124 Decal, Invacare Medallion - Large 1 125 Locknut (1/4-20) 1 226 NLA - Sleeve, Door Pivot 1 227 NLA - Decal, Warning, Battery Install 1 128
A - Includes items 8-21
B - Includes items 23-28
C - Blank Logo Decal is no longer available and no longer required for item number 25 Invacare Medallion Decal.
NOTE:
19
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 04-041
