Lynx L-3X
Scooter Series
Parts Catalog Issued: Mar 27, 2012

The information contained in this document is subject to change without notice. This catalog contains
service parts for Form No. 07-080. If you have any questions regarding this catalog, please contact one
of our Customer Service Representatives.
For Customer Service Support Call:
1-800-333-6900
For Faxed In Orders Call:
1-800-678-4682 or
1-440-366-0709
For Technical Service Call:
1-800-832-4707
Literature Can Be Found at:
www.invacare.com or
1-800-828-6272
SYMBOL DEFINITION
Throughout this catalog you will notice letters to draw your attention to specific footnotes which are located at the
bottom of the page or below specified charts.
HARDWARE MEASUREMENTS
Examples: = Special Comments
= General information pertaining to that specific page
= No Longer Available
NOTE:
NLA
The measurements for the hardware will be listed as follows:
Screws, Bolts
Washers
Spacers
For your convenience, we have supplied an area for you to list your Invacare Representatives.
A,B,C etc.
Diameter X Thread Count/Pitch X Length
Inside Diameter X Outside Diameter X Thickness
Inside Diameter X Outside Diameter X Length
Name Phone Numbers
© 2012 Invacare Corporation. Elyria, Ohio. Invacare, the Medallion Design and Yes, you can. are registered trademarks and Lynx is a trademark of Invacare
Corporation.
Parts Catalog Usage Guide
1
Form No. 07-080
To order call toll free 1-800-333-6900, or www.invacare.com

Chargers, Controller & Cable Cover ......................................................................................... 14
Floor Mats - Main & Rear Shrouds ........................................................................................... 6
Frame Finishes and Touch-Up Paint ........................................................................................ 3
Lower Tiller Assembly w/ Caster .............................................................................................. 18
Motor - Transaxle & Rear Wheel .............................................................................................. 16
Seat & Arms - L-3X .................................................................................................................. 4
Tiller Maintenance .................................................................................................................... 9
Wire Harnesses & Battery Straps ............................................................................................. 12
TABLE of CONTENTS
Description
Page
Number
2
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 07-080

Touch-Up Paint (.6 oz.) Color
Paint, Touch-Up, Blue
1149226-NLA
See Note(s) A
Paint, Touch-Up, Onyx Blue
1169179-NLA
See Note(s) B Paint, Touch-Up, Silver1101318
A - To be used on scooters built before serial number 10BCT600382.
B - To be used on scooter built after serial number 10BCT600381.
NOTE:
Frame Finishes and Touch-Up Paint
3
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 07-080

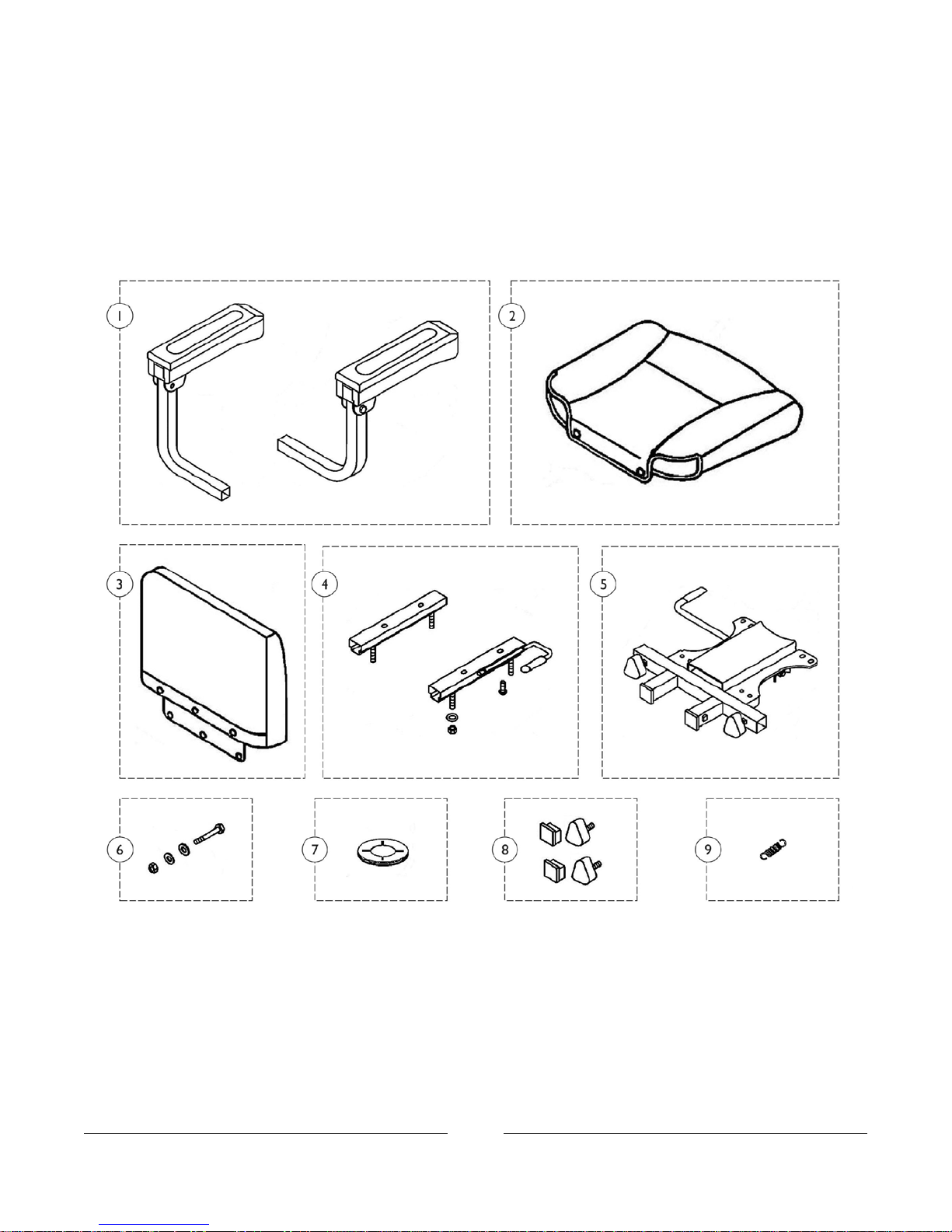

Seat and Arms - L-3X
NOTE: A full seat assembly is not available at this time, please order seat components separately.
4
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 07-080

Seat and Arms - L-3X
NOTE: A full seat assembly is not available at this time, please order seat components separately.
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1168468 Arm Assembly (Pair) 2 11 Arm Assembly - Right 1 1
Arm Assembly - Left 1 1
1148847 Cover, Seat 1 12 C 1168466 Cover, Seat 1 12 D 1148848-NLA NLA - Cover, Backrest 1 13 C 1168465 Cover, Backrest 1 13 D 1148845 Kit, Seat Slide 1 14 1148846-NLA NLA - Seat Bracket Assembly 1 15 1148850 Hardware, Seat Post
Includes:
(1) ea. Nylon Nut,
(1) ea. Bolt, &
(2) ea. Washers.
1 16
1148852 Liner, Shroud/Guide Seat 1 17 1148849 Kit, Plugs and Knobs
Includes:
(2) ea. Screws &
(2) ea. Plugs.
1 18
1144812 Spring, Seat Lever 1 19
C - Before 9/7/10
D - After 9/6/10
NOTE:
5
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 07-080

Floor Mats, Main and Rear Shrouds
Due to design change, Invacare recommends replacing all blue shrouds on scooters manufactured after
serial number 10BCT600381 in order to maintain a unified appearance.
6
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 07-080

Floor Mats, Main and Rear Shrouds
Due to design change, Invacare recommends replacing all blue shrouds on scooters manufactured after
serial number 10BCT600381 in order to maintain a unified appearance.
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1148851 Kit, Floor Mat w/ Hardware
Includes:
(1) ea. Rubber Pad and
(6) ea. Push Rivets.
1 11
1144816 Package, Push Rivet 25 1A 1148855 Kit, Floor Shroud, Red
Includes:
(1) ea. 3-D Invacare Logo,
(1) ea. Front Shroud - Red,
(4) ea. Shield Bolts,
(1) ea. Front Bumper Cover,
(2) ea. Bolt,
(1) ea. Hook & Loop,
(1) ea. Weight Capacity Decal, and
(1) ea. Warning Label.
1 12
1148856 Kit, Floor Shroud, Blue
Includes:
(1) ea. 3-D Invacare Logo,
(1) ea. Front Shroud - Blue,
(4) ea. Shield Bolts,
(1) ea. Front Bumper Cover,
(2) ea. Bolt,
(1) ea. Hook & Loop,
(1) ea. Weight Capacity Decal, and
(1) ea. Warning Label.
1 12 B
1148171 Kit, Floor Shroud, Onyx
Includes:
(1) ea. 3-D Invacare Logo,
(1) ea. Front Shroud - Onyx,
(4) ea. Shield Bolts,
(1) ea. Front Bumper Cover,
(2) ea. Bolt,
(1) ea. Hook & Loop,
(1) ea. Weight Capacity Decal, and
(1) ea. Warning Label.
1 12 C
1148857 Kit, Rear Shroud, Red
Includes:
(1) ea. Drive/Push Decal,
(1) ea. Rear Shroud - Red,
(1) ea. Hook & Loop, and
(2) ea. Lynx Side Logo Decals.
1 13
1148858 Kit, Rear Shroud, Blue
Includes:
(1) ea. Drive/Push Decal,
(1) ea. Rear Shroud - Blue,
(1) ea. Hook & Loop, and
(2) ea. Lynx Side Logo Decals.
1 13 B
7
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 07-080

Floor Mats, Main and Rear Shrouds
Due to design change, Invacare recommends replacing all blue shrouds on scooters manufactured after
serial number 10BCT600381 in order to maintain a unified appearance.
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1148172 Kit, Rear Shroud, Onyx
Includes:
(1) ea. Drive/Push Decal,
(1) ea. Rear Shroud - Onyx,
(1) ea. Hook & Loop, and
(2) ea. Lynx Side Logo Decals.
1 13 C
1148853 Cover, Shroud Tail w/ Decal, Red 1 14 1148854 Cover, Shroud Tail w/ Decal, Blue 1 14 B 1169667 Cover, Shroud Tail w/ Decal, Onyx 1 14 C
A - Not Shown
B - To be used on scooters built before serial number 10BCT600382.
C - To be used on scooter built after serial number 10BCT600381.
NOTE:
8
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 07-080

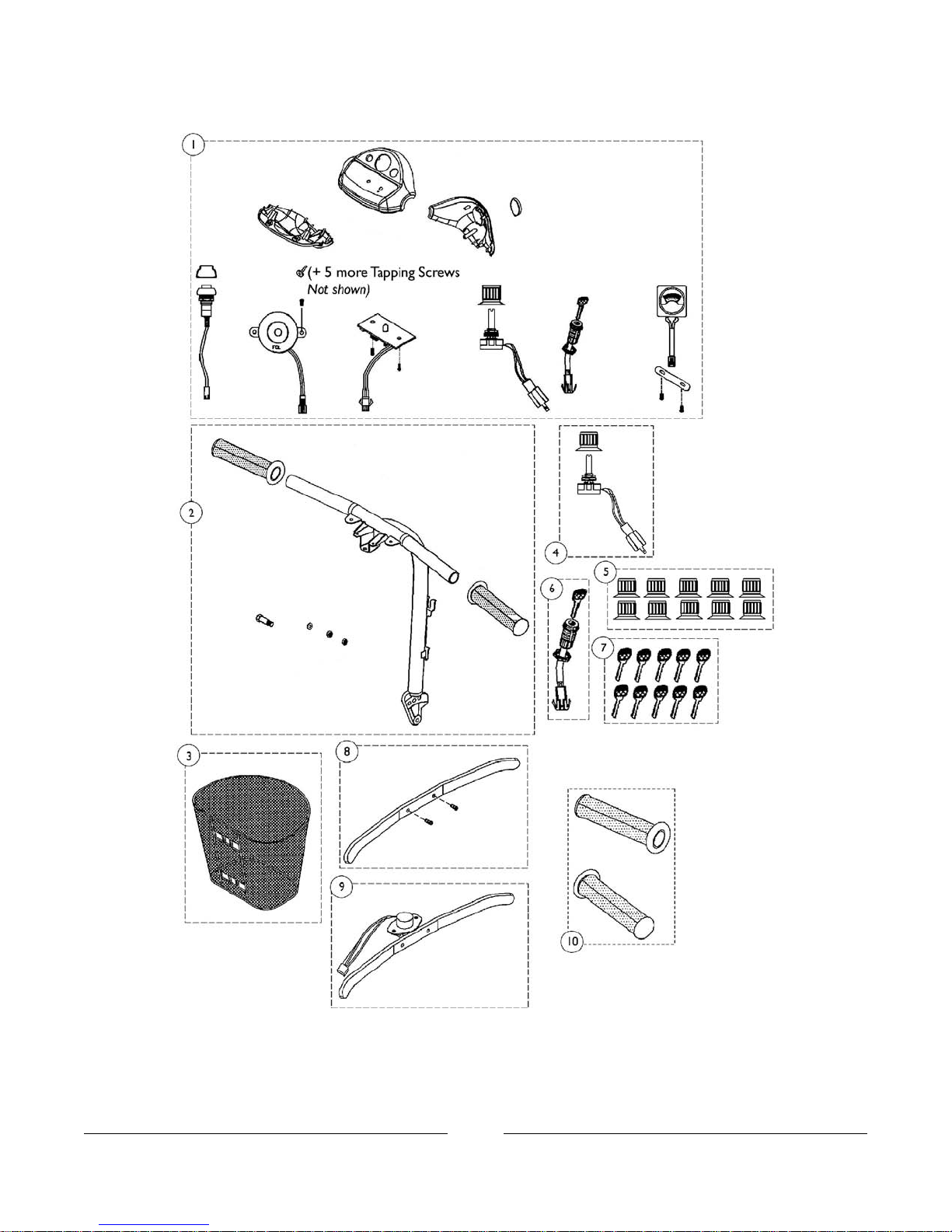

Tiller Maintenance
9
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 07-080

Tiller Maintenance
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1148838 Kit, Tiller Cover, Red
Includes:
(1) ea. Upper Steering Cover,
(1) ea. Front Steering Cover - Red,
(1) ea. Rear Steering Cover - Red,
(1) ea. Faceplate Decal,
(1) ea. Reflector,
(6) ea. Tapping Screws,
(1) ea. Volt Meter,
(2) ea. Screw,
(1) ea. Speed Pot,
(1) ea. Speed Control Knob,
(1) ea. Ignition Switch w/ Key,
(1) ea. Horn speaker,
(2) ea. Screw,
(1) ea. 2-Pole Switch Complete,
(1) ea. Splash Cap Complete,
(1) ea. Meter PC Board, and
(2) ea. Screws.
1 11 A
1148839 Kit, Tiller Cover, Blue
Includes:
(1) ea. Upper Steering Cover,
(1) ea. Front Steering Cover - Blue,
(1) ea. Rear Steering Cover - Blue,
(1) ea. Faceplate Decal,
(1) ea. Reflector,
(6) ea. Tapping Screws,
(1) ea. Volt Meter,
(2) ea. Screw,
(1) ea. Speed Pot,
(1) ea. Speed Control Knob,
(1) ea. Ignition Switch w/ Key,
(1) ea. Horn speaker,
(2) ea. Screw,
(1) ea. 2-Pole Switch Complete,
(1) ea. Splash Cap Complete,
(1) ea. Meter PC Board, and
(2) ea. Screws.
1 11 A,B
10
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 07-080

Tiller Maintenance
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1169666 Kit, Tiller Cover, Onyx
Includes:
(1) ea. Upper Steering Cover,
(1) ea. Front Steering Cover - Onyx,
(1) ea. Rear Steering Cover - Onyx,
(1) ea. Faceplate Decal,
(1) ea. Reflector,
(6) ea. Tapping Screws,
(1) ea. Volt Meter,
(2) ea. Screw,
(1) ea. Speed Pot,
(1) ea. Speed Control Knob,
(1) ea. Ignition Switch w/ Key,
(1) ea. Horn speaker,
(2) ea. Screw,
(1) ea. 2-Pole Switch Complete,
(1) ea. Splash Cap Complete,
(1) ea. Meter PC Board, and
(2) ea. Screws.
1 11 C
1148841 Kit, Steering Bar
Includes:
(1) ea. Steering Bar,
(2) ea. Hand Grips,
(1) ea. Plain Washer,
(2) ea. Nylon Washer, and
(1) ea. Bolt.
1 12
1148861 Basket 1 13 1144791 Kit, Speed Pot - Includes:
Speed Control Knob (1) and
Speed Pot - 30 K Ohms (1)
1 14 A
1144792 Package, Speed Control Knob 10 15 A 1144793 Ignition Switch with Key Assembly 1 16 1144794 Package, Ignition Key 10 17 1144796 Throttle Lever w/ Hardware 1 18 1144795 Throttle Pot and Lever Assembly 1 19 1144802 Hand Grip (Pair) 2 110
A - Due to design change, the knob may be differenct in appearance but is functionally equivalent to the original knob.
B - To be used on scooters built before serial number 10BCT600382.
C - To be used on scooter built after serial number 10BCT600381.
NOTE:
11
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 07-080

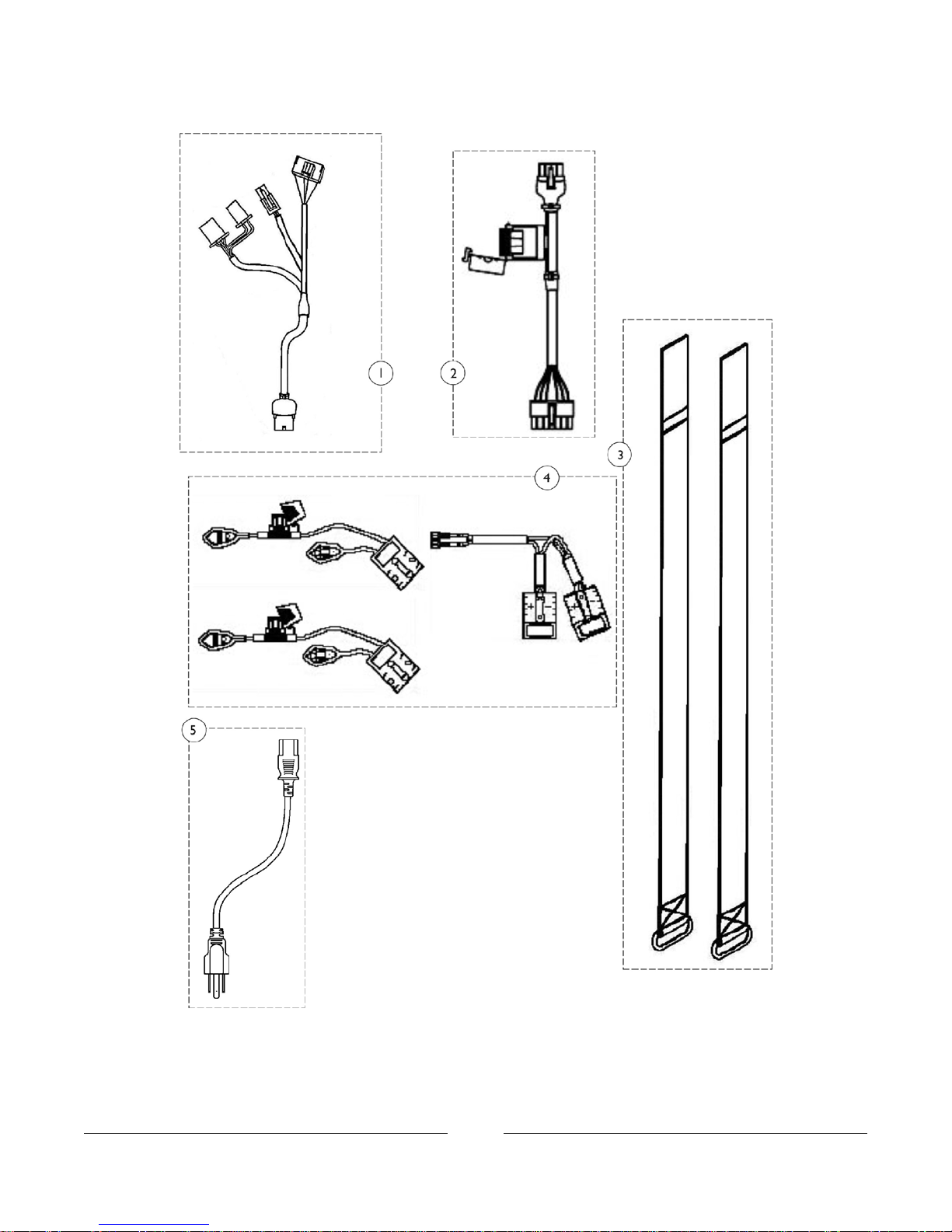

Wire Harnesses & Battery Straps
12
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 07-080

Wire Harnesses & Battery Straps
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1148831 Harness, Front Wiring 1 11 1148832 Kit, Rear Wiring Harness 1 12 1148834 Strap, Battery 1 13 1148833 Kit, Battery Wiring 1 14 1144798 Cable, Charger 1 15 1144835 Fuse (3 AMP) 1 1A 1144836 Fuse (5 AMP) 1 1A
A - Not shown
NOTE:
13
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 07-080

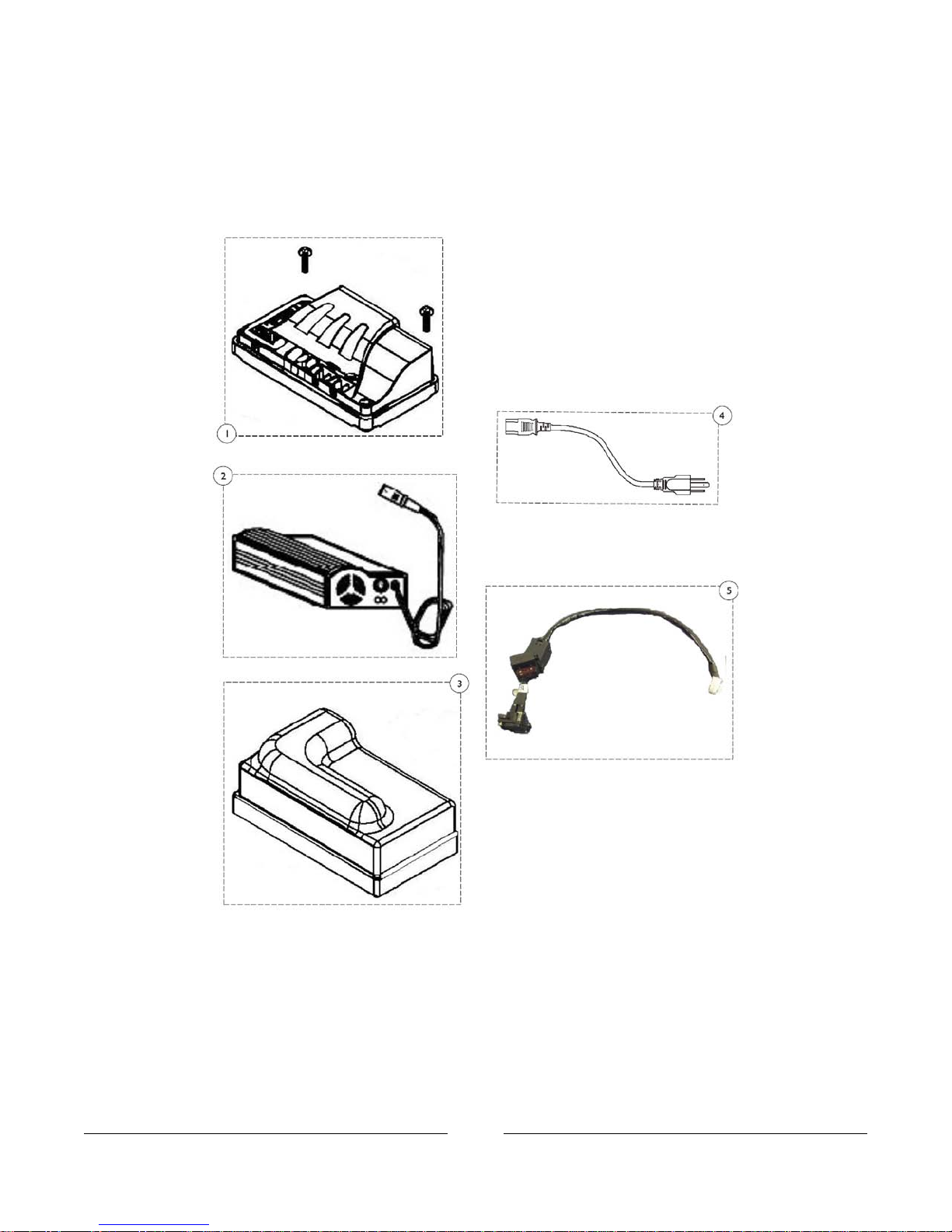

Chargers - Controller & Cable Cover
14
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 07-080

Chargers - Controller & Cable Cover
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1148828 Controller R-Series (DR-90) w/ Hardware 1 11 A,B 1148830 Charger, Off-Board, 24 DC (5 AMP) 1 12 A 1148829 Cover, Plastic Cable 1 13 1144798 Cable, Charger 1 14 1165866 Cable, Charger w/ Fuse 1 15
A - The Controller and Charger may or may not reflect the true look of the controller supplied.
B - Includes controller and (2) attaching screws.
NOTE:
15
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 07-080

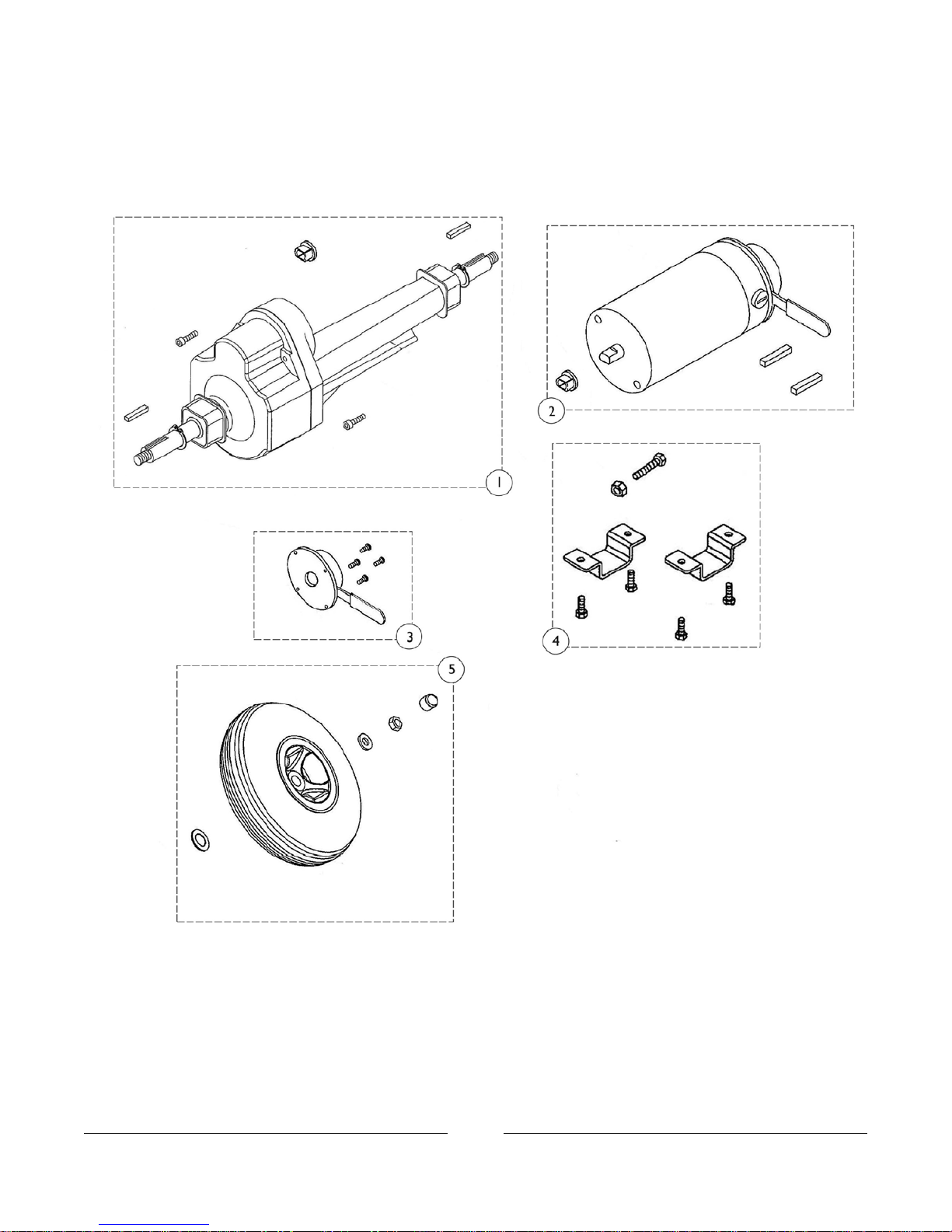

Motor, Transaxle & Rear Wheel
16
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 07-080

Motor, Transaxle & Rear Wheel
Motor, Transaxle & Rear Wheel
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1148824 Kit, Transaxle
Includes:
(1) ea. Differential,
(2) ea. Keys,
(2) ea. Bolts,
(1) ea. Guide, and
(1) ea. Decal, Inspection.
1 11
1148825 Kit, Motor with Brake
Includes:
(1) ea. Motor Assembly,
(1) ea. Guide, and
(2) ea. Keys.
1 12
1148827 Kit, Brake with Hardware
Includes:
(1) ea. Brake and
(4) ea. Screw M4 x 8L.
1 13
1148835 Kit, Transaxle Hardware
Includes
(2) ea. Holder, Differential,
(4) ea. Bolt M6 x 12L,
(1) ea. Bolt M8 x 25L, and
(1) ea. Nut.
1 14
1148860 Kit, Rear Wheel
Includes:
(2) ea. Spacers.
(1) ea. Rear Wheel,
(1) ea. Plain Washer,
(1) ea. Nylon Nut, and
(1) ea. Cap Washer.
1 15
17
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 07-080

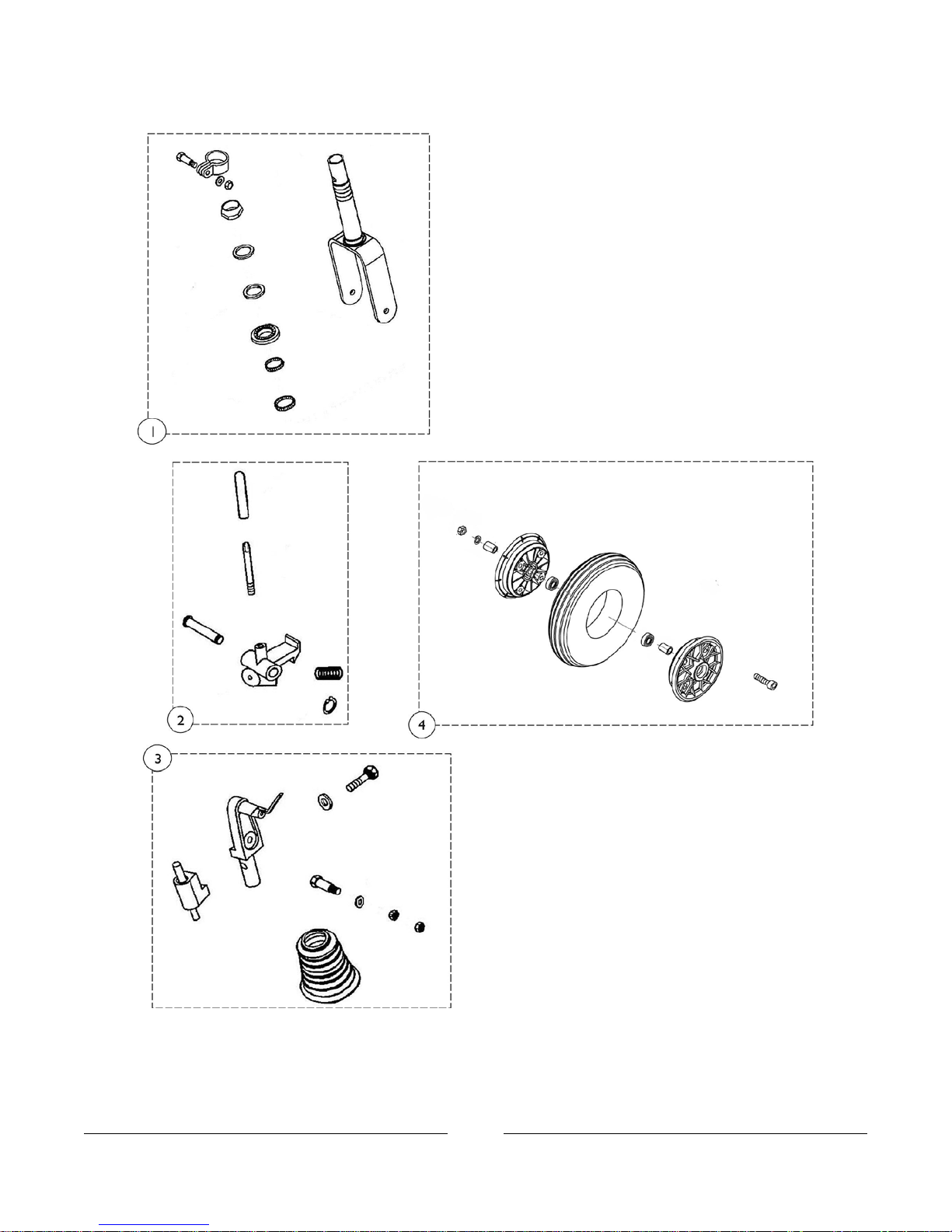

Lower Tiller Assembly w/ Caster
18
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 07-080

Lower Tiller Assembly w/ Caster
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1148840 Kit, Fork w/ Hardware
Includes:
(1) ea. Fork,
(1) ea. Padlock,
(1) ea. Steering Nut,
(1) ea. Plain Washer,
(1) ea. Tooth Washer,
(1) ea. Steering Race, and
(2) ea. Set Bearing.
1 11
1148836 Kit, Frame Connection
Included:
(1) ea. Frame Hook,
(1) ea. Hook Pin,
(1) ea. C-Ring,
(1) ea. Spring,
(1) ea. Lever, &
(1) ea. Lever Cap.
1 12
1148837 Kit, Lower Steering Hardware
Includes:
(1) ea. Steering Adj.,
(1) ea. Plain Washer,
(2) ea. Nylon Nut,
(1) ea. Bolt,
(1) ea. Joint Bolt,
(1) ea. Washer, &
(1) ea. Guide Complete.
1 13
1148859 Kit, Front Wheel
Includes:
(2) ea. Nylon Nuts,
(1) ea. Front Wheel Assembly,
(1) ea. Plain Washer,
(1) ea. Bolt, &
(2) ea. Spacers.
1 14
19
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 07-080
