Invacare® Perfecto2
TM Series
IRC5PO2AW, IRC5PO2VAW
en HomeFill® System Compatible Oxygen
Concentrators with SensO2
User Manual ................................ 3
cs HomeFill® systém kompatibilní
koncentrátory kyslíku s SensO2
Návod k obsluze ............................ 35
fr Système HomeFill® compatibles
concentrateurs d'oxygène avec SensO2
Manuel d'utilisation .......................... 67
de HomeFill® systemfähig
Sauerstoffkonzentratoren mit SensO2
Gebrauchsanweisung.........................101
it Sistema HomeFill® concentratori di
ossigeno compatibili con SensO2
Manuale d’uso...............................135
pl Systemowe HomeFill® Kompatybilne z
SensO2koncentratorów tlenu
Instrukcja obsługi ............................167
This manual MUST be given to the user of the product.
BEFORE using this product, read this manual and save for future reference.

© 2017 Invacare Corporation
All rights reserved. Republication, duplication or modification in whole or in part is prohibited without
prior written permission from Invacare. Trademarks are identified by ™ and ®. All trademarks are
owned by or licensed to Invacare Corporation or its subsidiaries unless otherwise noted.
Pine-sol and Lestoil are trademarks of The Clorox Company.
Dawn is a trademark of The Proctor and Gamble Company.
Making Life's Experiences Possible is a registered trademark in the U.S.A.

Contents
This manual MUST be given to the user of the product.
BEFORE using this product, read this manual and save for future
reference.
1General ........................................ 4
1.1 Symbols ..................................... 4
1.2 IntendedUse.................................. 6
1.3 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.4 Contraindications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.1 Label Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.2 General Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.3 Radio Frequency Interference. . . . . . . . . . . . . . . . . . . . . . 12
3Components.................................... 13
3.1 Component Identification. . . . . . . . . . . . . . . . . . . . . . . . . 13
4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.1 Optional Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5 Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5.1 Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5.2 Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5.3 Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
6 Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
6.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
6.2 Select a Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
6.3 Setting Up the Concentrator . . . . . . . . . . . . . . . . . . . . . . 18
6.3.1 Setting Up the Humidifier . . . . . . . . . . . . . . . . . . . . . . 18
6.3.2 Turning the Concentrator On . . . . . . . . . . . . . . . . . . . 21
6.3.3 Flowrate .................................. 22
6.3.4 SensO2Oxygen Purity Indicator . . . . . . . . . . . . . . . . . 22
6.3.5 Initial Startup of the Concentrator . . . . . . . . . . . . . . . . 22
6.3.6 Explanation of Oxygen Purity Indicator Lights . . . . . . . . 23
6.3.7 Elapsed Time Meter (Hour Meter) . . . . . . . . . . . . . . . . 23
7 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
7.1 Cleaning the Cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
7.2 Cleaning the Cabinet Filter . . . . . . . . . . . . . . . . . . . . . . . . 25
7.3 Humidifier Cleaning and Thermic Disinfection . . . . . . . . . . 26
7.4 Cleaning and Disinfection Between Patients . . . . . . . . . . . . 26
7.5 Preventive Maintenance Checklist . . . . . . . . . . . . . . . . . . . 27
8AfterUse....................................... 28
8.1 Recycling Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
8.2 Wear and Tear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
9 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
9.1 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
10 Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
10.1 Typical Product Parameters . . . . . . . . . . . . . . . . . . . . . . 31

Invacare® Perfecto₂™Series
1 General
1.1 Symbols
Signal words are used in this manual and apply to hazards or unsafe
practices which could result in personal injury or property damage.
See the information below for definitions of the signal words.
DANGER!
–Danger indicates an imminently hazardous situation
which, if not avoided, will result in death or serious
injury.
WARNING!
–Warning indicates a potentially hazardous situation
which, if not avoided, could result in death or serious
injury.
CAUTION!
–Caution indicates a potentially hazardous situation
which, if not avoided, may result in property damage
or minor injury or both.
Gives useful tips, recommendations and information for
efficient, trouble-free use.
Symbols in Documentation
Read manual
No Smoking
No Open Flame
Class II, Double Insulated
Alternating Current
Type BF equipment
Recycle
DO NOT dispose of in household waste
Electrical Hazard
Keep dry
EC Representative
Manufacturer
4 1195656-A

General
Call supplier
This product complies with Directive
93/42/EEC concerning medical devices.
The launch date of this product is stated in the
CE declaration of conformity.
For more details about CE marks, refer to Typical Product
Parameters.
Symbols on Product
Unit running
Unit not running
O2Indicators
Symbol O2Purity Indicator Lights (LED)
O2SYSTEM OKAY
O2over 85%
GREEN Indicator Light
O2between 73% to
85%
YELLOW Indicator Light
A. YELLOW Solid
B. YELLOW Flashing
Sensor
Failure
Call a qualified technician
SYSTEM FAILURE
O2Below 73%
RED Indicator Light
Continuous Audible
Alarm Sieve — GARD™
Compressor Shutdown
1195656-A 5

Invacare® Perfecto₂™Series
1.2 Intended Use
Your oxygen concentrator is intended for individual use by patients
with respiratory disorders who require supplemental oxygen. The
device is not intended to sustain or support life. The concentrator is
intended for use within a home or institutional environment.
DANGER!
Risk of Injury or Death
This product is to be used as an oxygen supplement and
is not intended to be life-supporting or life-sustaining.
ONLY use this product if the patient is capable of
spontaneous breath, able to inhale and exhale without
the use of a machine.
–DO NOT use in parallel or series with other oxygen
concentrators or oxygen therapy devices.
DANGER!
Risk of Injury or Death
Depending on their medical condition, patients on flow
rates greater than 5 l/m may be at an increased risk for
serious injury or death in the event of failure.
–ALWAYS discuss this increased risk with your health
care provider BEFORE using this product if you are
prescribed a flow rate greater than 5 l/m.
DANGER!
Risk of Injury or Death
While Invacare strives to produce the best oxygen
concentrator in the market today, this oxygen
concentrator can fail to produce oxygen due to power
failure or device malfunction.
–ALWAYS have a backup source of oxygen readily
available.
–In the event the concentrator fails to produce oxygen,
the concentrator will briefly alarm signaling the patient
to switch to their backup source of oxygen. Refer to
Troubleshooting for more detail.
WARNING!
Risk of Injury or Damage
Use of this product outside of the intended use and
product parameters has not been tested and may lead to
product damage, loss of product function, or personal
injury.
–DO NOT use this product in any way other than
described in the product parameters and intended use
sections of this manual.
6 1195656-A

General
1.3 Description
The Invacare Perfecto2concentrator is used by patients with
respiratory disorders who require supplemental oxygen. The device
is not intended to sustain or support life.
The oxygen concentration level of the output gas ranges from 87%
to 95.6%. The oxygen is delivered to the patient through the use
of a nasal cannula.
The Invacare Perfecto2concentrator uses a molecular sieve and
pressure swing adsorption methodology to produce the oxygen
gas output. Ambient air enters the device, is filtered and then
compressed. This compressed air is then directed toward one of
two nitrogen adsorbing sieve beds.
Concentrated oxygen exits the opposite end of the active sieve bed
and is directed into an oxygen reservoir where it is delivered to the
patient.
The Invacare Perfecto2concentrator is capable of operation by the
patient in a home environment or in an institutional environment.
Device operates at a nominal 230 VAC/50 Hertz supply.
Both concentrator models (IRC5PO2AW and
IRC5PO2VAW) have identical operating parameters with the
exception of the product weight and power consumption.
Refer to typical product parameters.
Service information will be available upon request to qualified
technical personnel only.
1.4 Contraindications
Invacare is not aware of any contraindications for the Invacare
Perfecto2Concentrator Series.
1195656-A 7

Invacare® Perfecto₂™Series
2 Safety
2.1 Label Locations
ASerial number label is located on the resonator
intake assembly.
BSpecification Label is located on the back of the
concentrator at the base.
CEU Representative label is located on the base.
DPhthalate label is located on the base.
E
8 1195656-A

Safety
2.2 General Guidelines
In order to ensure the safe installation, assembly and operation of the
concentrator these instructions MUST be followed.
DANGER!
Risk Of Death, Injury, Or Damage
Improper use of the product may cause death, injury or
damage. This section contains important information for
the safe operation and use of this product.
–DO NOT use this product or any available optional
equipment without first completely reading and
understanding these instructions and any additional
instructional material such as user manuals, service
manuals or instruction sheets supplied with this
product or optional equipment.
–If you are unable to understand the warnings, cautions
or instructions, contact a healthcare professional,
dealer or technical personnel before attempting to
use this equipment.
–Check ALL external components and carton for
damage. In case of damage, or if the product is not
working correctly, contact a technician or Invacare
for repair.
–THE INFORMATION IN THIS DOCUMENT IS
SUBJECT TO CHANGE WITHOUT NOTICE.
DANGER!
Risk Of Death, Injury, Or Damage From Fire
Textiles, oil or petroleum substances, grease, greasy
substances and other combustibles are easily ignited
and burn with great intensity in oxygen enriched air and
when in contact with oxygen under pressure. To avoid
fire, death, injury or damage:
–DO NOT SMOKE while using this device.
–DO NOT near OPEN FLAME or IGNITION
SOURCES.
–DO NOT use any lubricants on concentrator unless
recommended by Invacare.
–NO SMOKING signs should be prominently displayed.
–Avoid creation of any spark near oxygen equipment.
This includes sparks from static electricity created by
any type of friction.
–Keep all matches, lighted cigarettes or other sources
of ignition out of the room in which this concentrator
is located and away from where oxygen is being
delivered.
–Keep the oxygen tubing, cord, and concentrator out
from under such items as blankets, bed coverings,
chair cushions, clothing, and away from heated or hot
surfaces including space heaters, stoves, and similar
electrical appliances.
CAUTION!
Federal (statutory) law restricts this device sale to or
on the order of a medical practitioner licensed by a
governmental agency where he/she practices.
–ONLY a licensed medical practitioner may order the
purchase or use of this device.
1195656-A 9

Invacare® Perfecto₂™Series
DANGER!
Risk of Death, Injury, from Electric Shock
To reduce the risk of burns, electrocution, death or
injury to persons:
–DO NOT disassemble. Refer servicing to qualified
service personnel. There are no user serviceable
parts.
–Avoid using while bathing. If continuous usage
is required by the physician's prescription, the
concentrator must be located in another room at
least 7ft (2.5m) from the bath.
–DO NOT come in contact with the concentrator
while wet.
–DO NOT place or store concentrator where it can
drop into water or other liquid.
–DO NOT reach for concentrator that has fallen into
water. Unplug IMMEDIATELY.
–DO NOT use frayed or damaged AC adapter cords.
WARNING!
Risk Of Injury Or Damage
–Invacare products are specifically designed and
manufactured for use in conjunction with Invacare
accessories. Accessories designed by other
manufacturers have not been tested by Invacare and
are not recommended for use with Invacare products.
–There are many different types of humidifiers, oxygen
tubing, cannulas and masks that can be used with this
device. You should contact your local home care
provider for recommendations on which of these
devices will be best for you. They should also give you
advice on the proper usage, maintenance, and cleaning.
DANGER!
Risk of Injury or Death
To avoid choking or ingestion of chemicals from airway
contamination:
–DO NOT use the concentrator in the presence of
pollutants, smoke, fumes, flammable anesthetics,
cleaning agents, or chemical vapors.
WARNING!
Risk of Injury or Death
To prevent injury or death from product misuse:
–Closely supervise when this concentrator is used by
or near children or physically-challenged individuals.
–Monitor patients using this device who are unable to
hear or see alarms or communicate discomfort.
WARNING!
Risk of Injury or Death
To avoid choking and/or strangulation from tubing
entanglement:
–Keep children and pets away from nasal cannula and
tubing.
–Close supervision is necessary when the nasal cannula
is used by or near children and/or disabled persons.
WARNING!
Risk of Injury or Death
To reduce the risk of injury or death from illness:
–Replace the nasal cannula on a regular basis. Check
with your equipment provider or physician to
determine how often the cannula should be replaced.
–DO NOT share cannulas between patients.
10 1195656-A

Safety
WARNING!
Risk of Injury
A change in altitude may affect total oxygen available to
you. To prevent oxygen deprivation:
–Consult your physician before traveling to higher or
lower altitudes to determine if your flow settings
should be changed.
WARNING!
Risk of Injury or Damage
To prevent injury or damage from cord misuse:
–DO NOT move or relocate concentrator by pulling
on the cord.
–DO NOT use extension cords with AC power
adapters provided.
–Properly store and position electrical cords and/or
tubing to prevent a tripping hazard.
WARNING!
Risk of Injury or Damage
To prevent injury or damage from misuse:
–NEVER leave concentrator unattended when plugged
in.
–Make sure concentrator is off when not in use.
WARNING!
Risk of Injury or Damage
Invacare oxygen concentrators are specifically designed
to minimize routine preventive maintenance. To prevent
injury or damage:
–Only professionals of the healthcare field or
persons fully conversant with this process such as
factory trained personnel should perform preventive
maintenance or performance adjustments on the
oxygen concentrator, except for tasks described in
this manual.
–Users should contact your dealer or Invacare for
service.
CAUTION!
Risk of Damage
To prevent damage from liquid ingress:
–If the concentrator is not working properly, if it
has been dropped or damaged, or dropped into
water, call equipment provider/qualified technician for
examination and repair.
–NEVER drop or insert any object or liquid into any
opening.
–Invacare recommends the concentrator not be used
in the rain.
1195656-A 11

Invacare® Perfecto₂™Series
2.3 Radio Frequency Interference
WARNING!
Risk of Injury or Damage
To reduce the risk of injury or product damage from
interference with wireless equipment:
–Keep concentrator at least 9.8 ft (3.0 m) away from
wireless communication equipment such as wireless
home network devices, mobile phones, cordless
phones and base stations, walkie-talkies, etc.
This equipment has been tested and found to comply with EMC limits
specified by IEC/EN 60601-1-2. These limits are designed to provide
a reasonable protection against electromagnetic interference in a
typical medical installation.
Other devices may experience interference from even the low levels
of electromagnetic emissions permitted by the above standards.
To determine if the emissions from the concentrator are causing
the interference, turn the concentrator Off. If the interference
with the other device(s) stops, then the concentrator is causing the
interference. In such rare cases, interference may be reduced or
corrected by one of the following measures:
•Reposition, relocate, or increase the separation between the
equipment.
•Connect the equipment into an outlet on a circuit different from
that to which the other device(s) is connected.
12 1195656-A

Components
3 Components

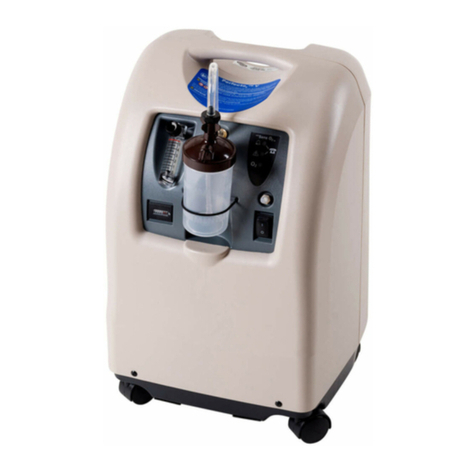

3.1 Component Identification
AOxygen Outlet
BFlowmeter
CElapsed Time Meter
DOxygen Purity Indicator
Lights/Fault and Power Indicator
Lights
ECircuit Breaker
FPower Switch
1195656-A 13

Invacare® Perfecto₂™Series
Rear View
GPower Cord
HHomeFill Outlet Fitting
ICabinet Filter
The HomeFill outlet fitting His to be used only for
filling oxygen cylinders with the HomeFill home oxygen
compressor. The outlet fitting does not affect concentrator
performance. Refer to the HomeFill user manual
for connection and operating instructions.
When not in use, the plug provided with the concentrator
should be inserted into the outlet fitting. For more
information about the HomeFill, contact your Invacare
dealer.
14 1195656-A

Accessories
4 Accessories
4.1 Optional Accessories
There are many different types of humidifiers, oxygen tubing, cannulas
and masks that can be used with this device. You should contact your
local home care provider for recommendations on which of these
devices will be best for you. They should also give you advice on the
proper usage, maintenance, and cleaning.
The supply accessories (nasal cannula, mask, tubing, humidifier, etc.)
used to deliver oxygen to the patient need to include a means to
reduce the propagation of fire in the accessories for the safety of the
patient and others. If a commercially available, fire-activated flow
stop device is used in the accessories setup, it should be placed as
close to the patient as practicable.
The following optional accessories and replacement parts (listed
below) are also available:
•Standard Adult Nasal Cannula, 2.1 m (7 feet) - M3120
•Standard Humidifier - Invacare Part #1155719
•PreciseRX™ Pediatric Humidifier/Flowmeter Accessory -
IRCPF16AW
•HomeFill home oxygen compressor - IOH200AW
•Humidifier Bottle Holder - M1521
•Oxygen Supply Tubing 2.1 m (7 feet) - MS4107
•Oxygen Supply Tubing 6.3 m (21 feet) - MS4121
•Oxygen Tubing Connector - MS4301
1195656-A 15

Invacare® Perfecto₂™Series
5 Setup
5.1 Unpacking
1. Check for any obvious damage to the carton or its contents. If
damage is evident, notify the carrier, or your local dealer.
2. Remove all loose packing from the carton.
3. Carefully remove all the components from the carton.
Unless the oxygen concentrator is to be used
IMMEDIATELY, leave concentrator in its packaging for
storage until use is required.
5.2 Inspection
1. Inspect/examine exterior of the concentrator for nicks, dents,
cracks, scratches or other damage.
2. Inspect all components.
5.3 Storage
1. Store the repackaged oxygen concentrator in a dry area. Refer to
Typical Product Parameters for storage temperature parameters.
2. DO NOT place objects on top of repackaged concentrator.
16 1195656-A

Usage
6 Usage
6.1 Introduction
Your oxygen concentrator is intended for individual use indoors.
It is an electronically operated device that separates oxygen from
room air. It provides high concentration of oxygen directly to you
through a nasal cannula. Clinical studies have documented that
oxygen concentrators are therapeutically equivalent to other types of
oxygen delivery systems.
Your provider will show you how to use your oxygen concentrator.
He/She should be contacted with any questions or problems
regarding your oxygen concentrator. This user manual will tell you
about your concentrator and will serve as a reference as you use
your concentrator.
6.2 Select a Location
WARNING!
Risk of Injury or Damage
To avoid injury or damage from airborne pollutants
and/or fumes and for optimal performance:
–Locate and position the concentrator in a well
ventilated space so that the air intake and the air
exhausts are not obstructed.
–NEVER block the air openings of the concentrator
or place it on a soft surface, such as a bed or couch,
where the air opening may be blocked.
–Keep the openings free from lint, hair and similar
foreign items.
–Keep concentrator at least 12 inches (30,5 cm) away
from walls, draperies and furniture.
–Avoid use in presence of pollutants, smoke or fumes,
flammable anesthetics, cleaning agents or chemical
vapors.
–Place concentrator in a well ventilated area to avoid
airborne pollutants and/or fumes.
–DO NOT use in a closet.
WARNING!
Risk of Injury
To avoid injury during therapy:
–The oxygen concentrator MUST be placed on a level
surface for use.
–DO NOT relocate the oxygen concentrator while in
use.
1195656-A 17

Invacare® Perfecto₂™Series
You may select a room in your house where using your oxygen
concentrator would be most convenient. Your concentrator can be
easily rolled from room to room on its casters.
Your oxygen concentrator will perform best when operated under
the conditions outlined in typical product parameters.
Usage in environments other than those described may result in the
need for increased equipment maintenance. The air intake of the
unit should be located in a well ventilated area to avoid airborne
pollutants and/or fumes.
6.3 Setting Up the Concentrator
1. Plug in power cord to an electrical outlet.
2. Connect Humidifier (if so prescribed).
6.3.1 Setting Up the Humidifier
WARNING!
Risk of Injury or Damage
To avoid burns from steam or hot water, inhalation of
water and/or water damage to the concentrator:
–DO NOT fill humidifier bottle with hot water. Allow
boiled water to cool to room temperature before
filling.
–DO NOT overfill humidifier.
–Replace the humidifier cap and securely tighten.
Confirm that the cap is not cross-threaded on the
humidifier bottle.
–DO NOT reverse the oxygen input and output
connections. Water from the humidifier bottle will
travel through the cannula back to the patient if input
and output connections are reversed.
–When using tubing connections longer than 2.1 m
(7 feet) in length, position the humidifier as close
to the patient as possible to allow for maximum
humidification output.
18 1195656-A

Usage
WARNING!
Risk of Injury or Damage
Failure to properly install the humidifier bottle or other
accessories to the concentrator will impact the flow of
oxygen.
–To check for proper operation of the oxygen
concentrator and accessories, place the end of the
nasal cannula under the surface of a half-full cup of
water and look for the bubbles.
–If there are no bubbles, check all connections
(including humidifier bottle and other accessories, if
applicable) and repeat. Contact your dealer or service
provider immediately if bubbles still do not appear.
Humidifier Bottle with Cap
Humidifier Bottle without Cap
1195656-A 19

Invacare® Perfecto₂™Series
1. Remove cap from bottle.
2. Fill humidifier with boiled tap water or bottled water to the level
indicated by the manufacturer. Boil tap water for approximately
10 minutes and cool to room temperature prior to use.
3. Insert a flathead screwdriver in the plate groove on the top edge
of the filter access door Cand gently pry the filter access door
off.
4. Pull up and remove the humidifier bottle adapter B.
5. Replace the filter access door and install the air scoop Fonto
the filter access door by inserting the six tabs Gon the air scoop
into the six slots Don the sides of the filter access door.
6. Attach the humidifier bottle adapter to the humidifier bottle Hby
turning the wing nut on the humidifier bottle counterclockwise
until it is securely fastened.
20 1195656-A
