Invacare Platinum HF II User manual

PLATINUM 5
OXYGEN CONCENTRATORS STANDARD,
WITH/SENSO2®AND HOMEFILL II
CONCENTRADORES DE OXÍGENO
STANDARD, CON/SENSO2®Y HOMEFILL II
OPERATOR'S MANUAL - ENGLISH
MANUAL DE INSTRUCCIONES -
DOMESTIC SPANISH
DEALER: THIS MANUAL MUST BE GIVEN TO THE END USER.
USER: BEFORE USING THIS CONCENTRATOR, READ
THIS MANUAL AND SAVE FOR FUTURE REFERENCE.
DISTRIBUIDOR: ENTREGUE ESTE MANUAL
AL USUARIO FINAL.
USUARIO: ANTES DE OPERAR EL CONCENTRADOR,
LEA TOTALMENTE ESTE MANUAL Y CONSÉRVELO
COMO REFERENCIA PARA EL FUTURO.
Invacare 5 with/SensO2®
Model IRC5LXO2
Invacare 5 con/SensO2®
Modelo IRC5LXO2
Invacare 5
Model IRC5LX
Invacare 5
Modelo IRC5LX
All manuals and user guides at all-guides.com
all-guides.com

2
SPECIAL NOTES
SAVE THESE INSTRUCTIONS
WARNING
DO NOT OPERATE THIS EQUIPMENT
WITHOUT FIRST READING AND
UNDERSTANDING THIS MANUAL. IF YOU
ARE UNABLE TO UNDERSTAND THE
WARNINGS, CAUTIONS, AND
INSTRUCTIONS, CONTACT INVACARE
TECHNICAL SERVICES BEFORE ATTEMPTING
TO USE THIS EQUIPMENT - OTHERWISE
INJURY OR DAMAGE MAY RESULT.
SPECIAL NOTES
WARNING/CAUTION notices used in this manual apply to
hazards or unsafe practices which could result in personal
injury or property damage.
NOTICE
THE INFORMATION CONTAINED IN THIS DOCUMENT
IS SUBJECT TO CHANGE WITHOUT NOTICE.
All manuals and user guides at all-guides.com

3
SPECIAL NOTES........................................... 2
SAFETY SUMMARY ...................................... 4
FEATURES ..................................................... 7
SPECIFICATIONS ......................................... 8
HANDLING .................................................. 11
Unpacking .................................................................... 11
Inspection .................................................................... 11
Storage ......................................................................... 11
INTRODUCTION........................................ 12
OPERATING INSTRUCTIONS ................. 12
Select a Location .......................................................... 12
Recommended End-User Guidelines
for Optimum Performance ..................................... 12
Plug in Power Cord ..................................................... 13
Connect Humidifier (if so prescribed) .................... 13
Oxygen Tubing.............................................................. 14
Power Switch ................................................................ 15
Flowrate.......................................................................... 15
SensO2® Oxygen Purity Indicator- If your
Unit Features the O2 Sensor ........................................... 15
Initial Startup of the Concentrator ....................... 16
Explanation of Indicator Lights ............................... 16
Oxygen Purity Indicator- If your
Unit Does Not Features the O2 Sensor ........................ 17
MAINTENANCE .......................................... 17
Cleaning the Cabinet Filters ...................................... 17
Cabinet............................................................................ 18
Humidifier ...................................................................... 18
TROUBLESHOOTING GUIDE................... 19

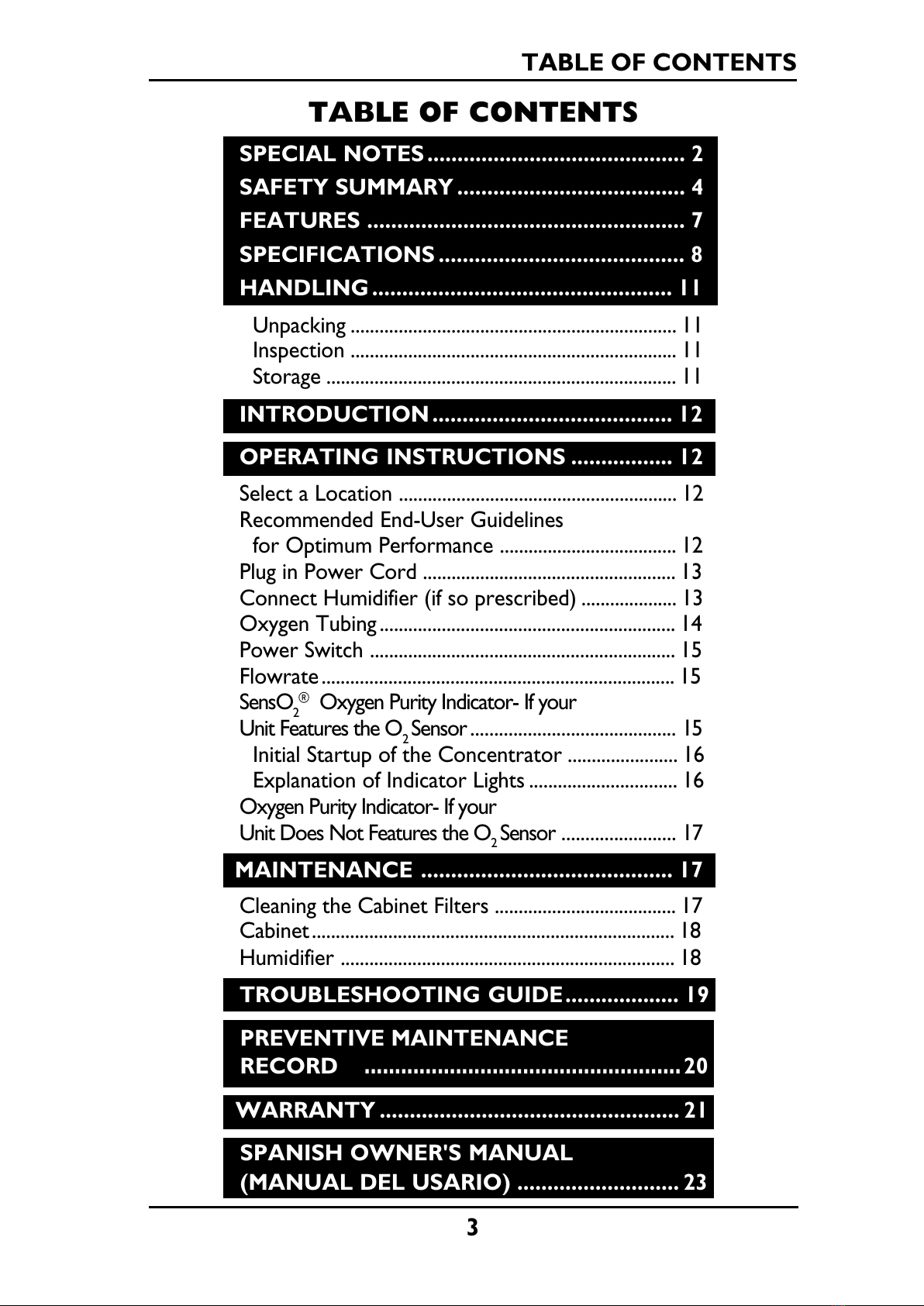

TABLE OF CONTENTS
TABLE OF CONTENTS
PREVENTIVE MAINTENANCE
RECORD ....................................................20
WARRANTY .................................................. 21
SPANISH OWNER'S MANUAL
(MANUAL DEL USARIO) ........................... 23
All manuals and user guides at all-guides.com

4

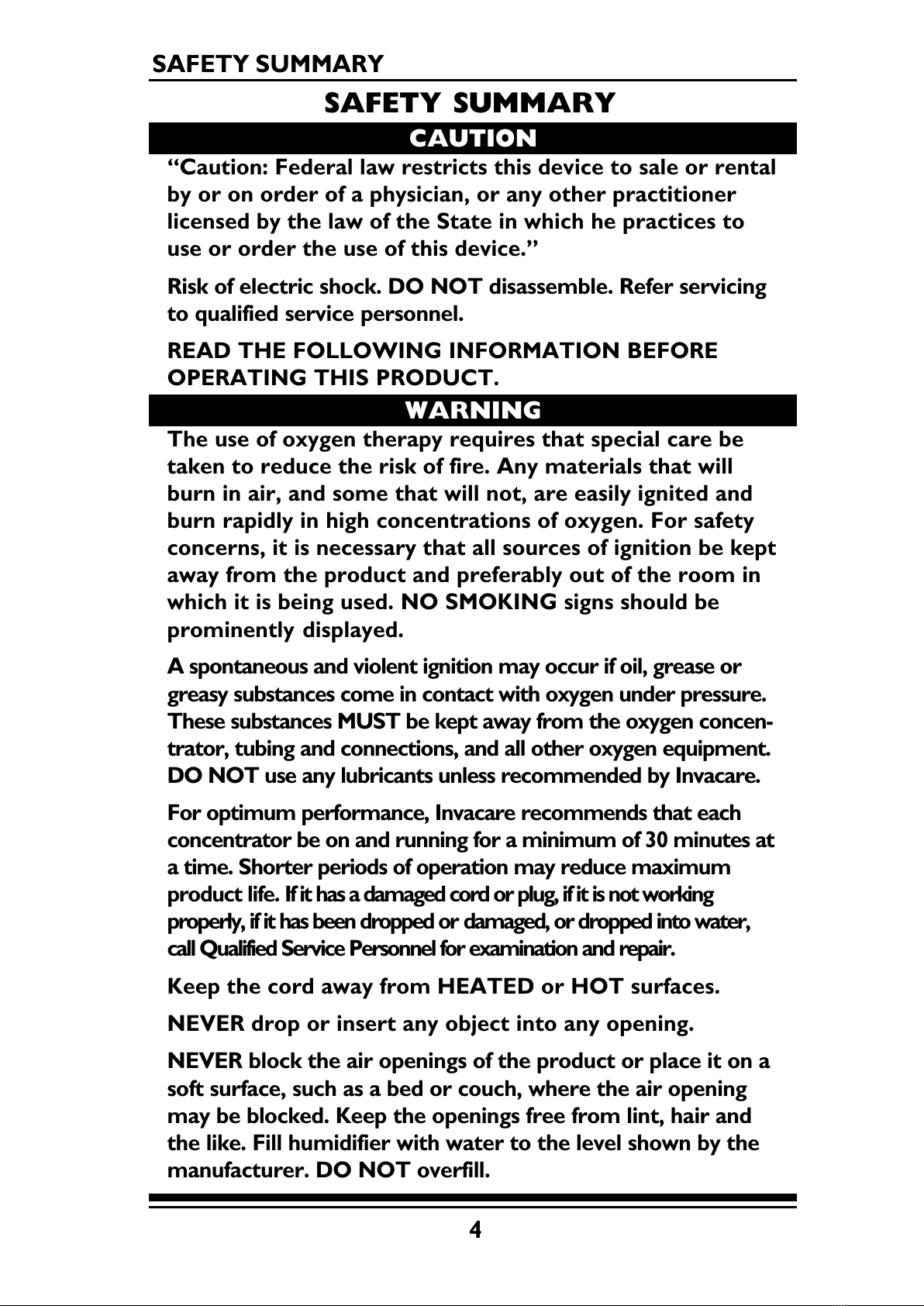

SAFETY SUMMARY
SAFETY SUMMARY
CAUTION
Caution: Federal law restricts this device to sale or rental
by or on order of a physician, or any other practitioner
licensed by the law of the State in which he practices to
use or order the use of this device.
Risk of electric shock. DO NOT disassemble. Refer servicing
to qualified service personnel.
READ THE FOLLOWING INFORMATION BEFORE
OPERATING THIS PRODUCT.
WARNING
The use of oxygen therapy requires that special care be
taken to reduce the risk of fire. Any materials that will
burn in air, and some that will not, are easily ignited and
burn rapidly in high concentrations of oxygen. For safety
concerns, it is necessary that all sources of ignition be kept
away from the product and preferably out of the room in
which it is being used. NO SMOKING signs should be
prominently displayed.
A spontaneous and violent ignition may occur if oil, grease or
greasy substances come in contact with oxygen under pressure.
These substances MUST be kept away from the oxygen concen-
trator, tubing and connections, and all other oxygen equipment.
DO NOT use any lubricants unless recommended by Invacare.
For optimum performance, Invacare recommends that each
concentrator be on and running for a minimum of 30 minutes at
a time. Shorter periods of operation may reduce maximum
product life. If it has a damaged cord or plug, if it is not working
properly, if it has been dropped or damaged, or dropped into water,
call Qualified Service Personnel for examination and repair.
Keep the cord away from HEATED or HOT surfaces.
NEVER drop or insert any object into any opening.
NEVER block the air openings of the product or place it on a
soft surface, such as a bed or couch, where the air opening
may be blocked. Keep the openings free from lint, hair and
the like. Fill humidifier with water to the level shown by the
manufacturer. DO NOT overfill.
All manuals and user guides at all-guides.com

5
SAFETY SUMMARY
WARNING (CONTINUED)
Keep at least 3 inches away from walls, draperies, furniture,
and the like.
Invacare recommends that Crush-Proof oxygen tubing
(supplied by Invacare) be used with this product and NOT
exceed 50 ft. (15.2m) in length.
MAINTENANCE
The Invacare Oxygen Concentrator was specifically designed to
minimize routine preventive maintenance at intervals of once
per year. Only professionals of the healthcare field or persons
fully conversant with this process such as authorized or factory
trained personnel should perform preventive maintenance or
performance adjustments on the oxygen concentrator.
RADIO FREQUENCY INTERFERENCE
Most electronic equipment is influenced by Radio Frequency
Interference (RFI). CAUTION should be exercised with regard
to the use of portable communications equipment in the area
around such equipment.
TO REDUCE THE RISK OF BURNS, ELECTROCUTION, FIRE
OR INJURY TO PERSONS.
WARNING
ALWAYS unplug this product IMMEDIATELY after using.
Avoid using while bathing. If continuous usage is required by the
physicians prescription:
The concentrator must be located in another room at least
seven (7) feet from the bath.
DO NOT come in contact with the concentrator while wet.
DO NOT place or store product where it can drop into
water or other liquid.
DO NOT reach for product that has fallen into water. UNPLUG
IMMEDIATELY.
A product should NEVER be left unattended when plugged in.
All manuals and user guides at all-guides.com

6

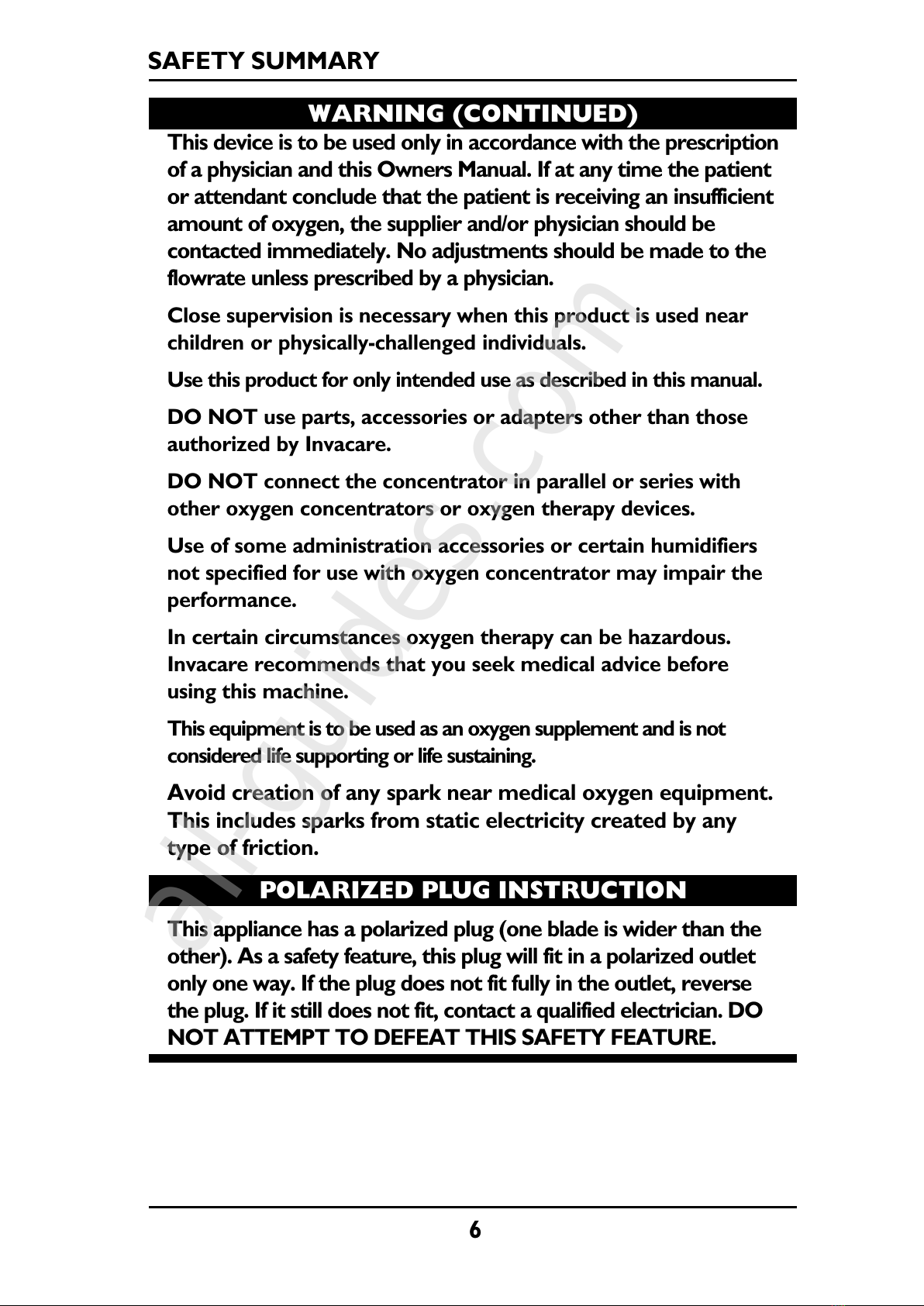

WARNING (CONTINUED)
This device is to be used only in accordance with the prescription
of a physician and this Owners Manual. If at any time the patient
or attendant conclude that the patient is receiving an insufficient
amount of oxygen, the supplier and/or physician should be
contacted immediately. No adjustments should be made to the
flowrate unless prescribed by a physician.
Close supervision is necessary when this product is used near
children or physically-challenged individuals.
Use this product for only intended use as described in this manual.
DO NOT use parts, accessories or adapters other than those
authorized by Invacare.
DO NOT connect the concentrator in parallel or series with
other oxygen concentrators or oxygen therapy devices.
Use of some administration accessories or certain humidifiers
not specified for use with oxygen concentrator may impair the
performance.
In certain circumstances oxygen therapy can be hazardous.
Invacare recommends that you seek medical advice before
using this machine.
This equipment is to be used as an oxygen supplement and is not
considered life supporting or life sustaining.
Avoid creation of any spark near medical oxygen equipment.
This includes sparks from static electricity created by any
type of friction.
POLARIZED PLUG INSTRUCTION
SAFETY SUMMARY
This appliance has a polarized plug (one blade is wider than the
other). As a safety feature, this plug will fit in a polarized outlet
only one way. If the plug does not fit fully in the outlet, reverse
the plug. If it still does not fit, contact a qualified electrician. DO
NOT ATTEMPT TO DEFEAT THIS SAFETY FEATURE.
All manuals and user guides at all-guides.com
all-guides.com

7
FEATURES
Power Indicator Light
FEATURES
FRONT VIEW
Circuit Breaker
Cabinet Filter
(one of two shown)
Power Switch
Elapsed Time Meter
Oxygen Purity
Indicator Lights
(SensO2®model only)
Oxygen Outlet
Fault Indicator Light
(LX model only)
ACCESSORIES (NOT SHOWN):
Remote Humidifier/Flowmeter
Accessory - IRCRF5
PreciseRX Pediatric Humidifier/
Flowmeter Accessory - IRCPF16
Venture® Homefill II home
oxygen compressor - IOH200
Power
Cord
Outlet
Fitting
NOTE: This outlet fitting is to be used only for
filling oxygen cylinders with the Venture HomeFill
II home oxygen compressor. The outlet fitting does
not affect concentrator performance. Refer to the
HomeFill II owner's manual, part number
1100873, for connection and operating instruc-
tions. When not in use, the plug provided with the
concentrator should be inserted into the outlet
fitting. For more information about the HomeFill
II, contact your Invacare dealer.
REAR VIEW
Flowmeter
All manuals and user guides at all-guides.com

8
SPECIFICATIONS
Electrical Requirements:
Rated Current Input:
Sound Level:
Altitude:
*Oxygen Output
Concentration Levels:
Maximum Outlet Pressure:
120 VAC +10% (132 VAC/108 VAC),
60 Hz
4.0 A
50 dB Average
Up to 6,000 ft. (1828 meters) above
sea level without degradation of
concentration levels. From 6,000 ft.
(1828 meters) to 13,129 ft. (4000
meters) below 90% efficiency.
ALL 5LXO2/5LX MODELS
95.6% to 87% at 1/2 to 5 L/min.
* Stated concentration levels
achieved after initial warm-up
period (approximately 30 minutes).
5 + 0.5 psi.
(34.5 + 3.45 kPa.)

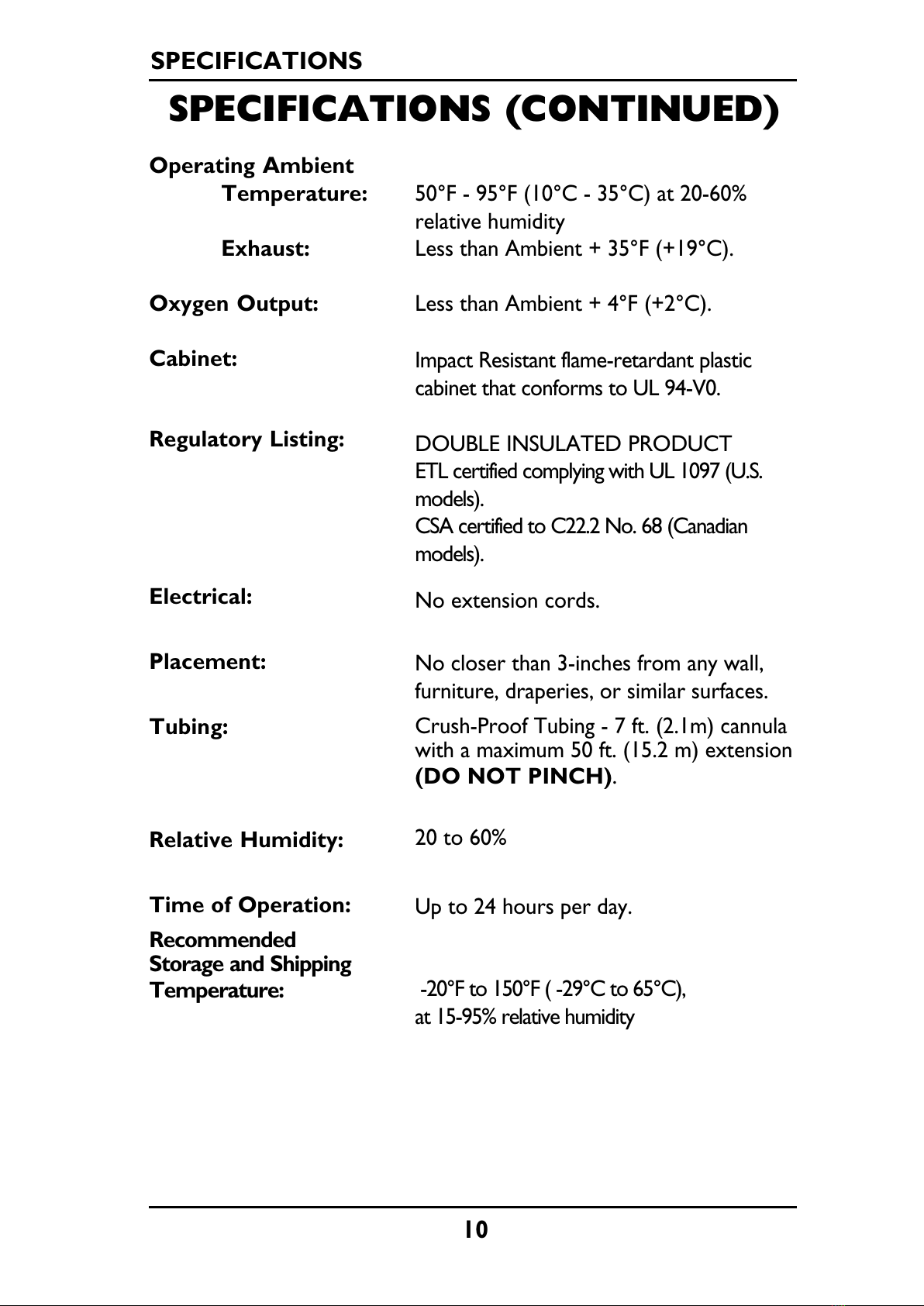

SPECIFICATIONS
SensO2® Alarm Thresholds:
O2 Purity
Below 73%
73% to 85%
Over 85%
Indicators
RED Indicator Light -
Continuous Audible Alarm
Sieve-GARDCompressor
Shutdown
YELLOW Indicator Light
GREEN Indicator Light
O
2
Label
Symbol
All manuals and user guides at all-guides.com

9
Flow Range:
Average Power
Consumption:
Pressure Relief Mechanism
Operational at:
Change in maximum
recommended flow
when back pressure
of 7kPa is applied:
Filters:
Safety System:
Width:
Height:
Depth:
Weight:
Shipping Weight:

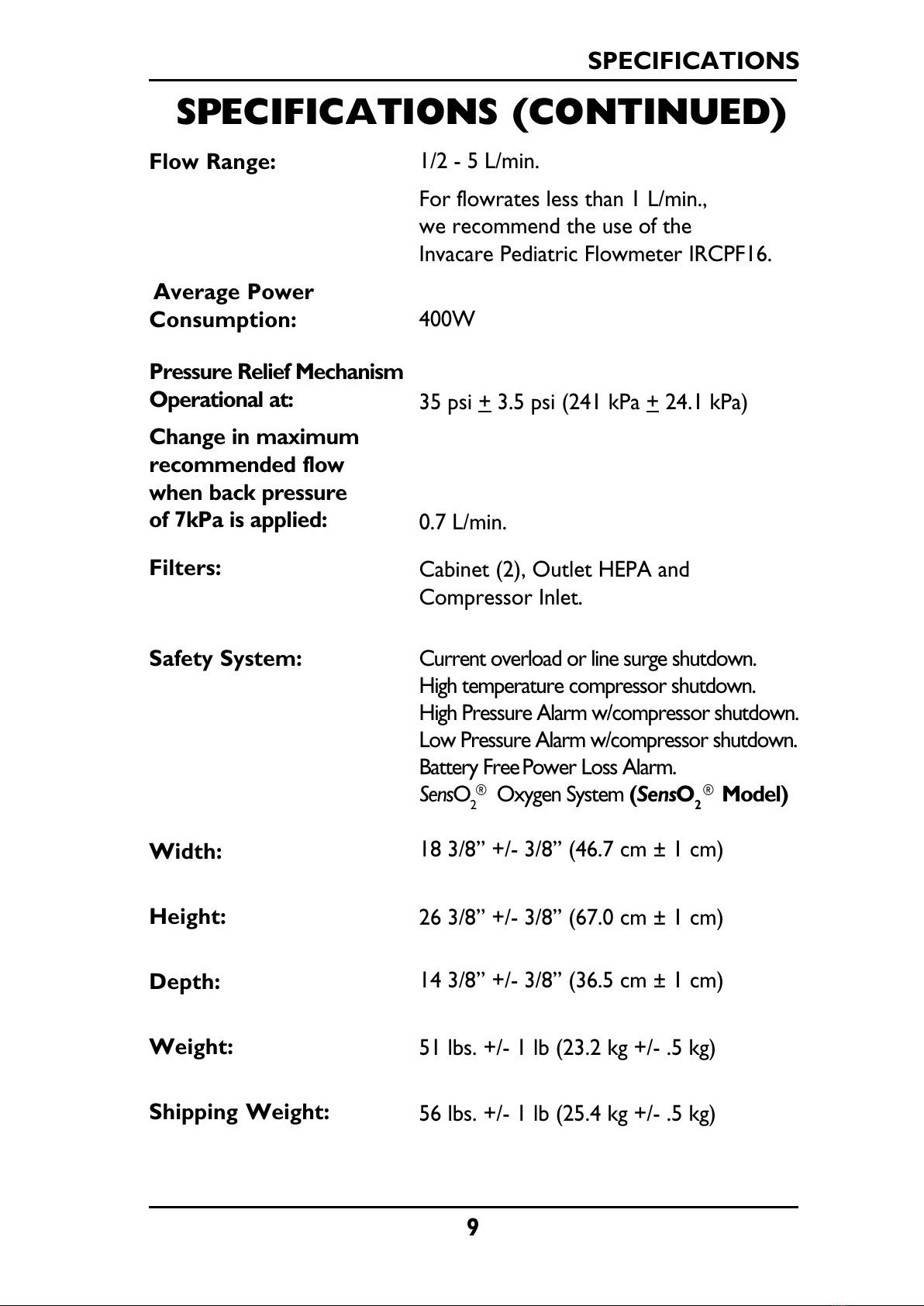

SPECIFICATIONS
SPECIFICATIONS (CONTINUED)
1/2 - 5 L/min.
For flowrates less than 1 L/min.,
we recommend the use of the
Invacare Pediatric Flowmeter IRCPF16.
400W
35 psi + 3.5 psi (241 kPa + 24.1 kPa)
0.7 L/min.
Cabinet (2), Outlet HEPA and
Compressor Inlet.
Current overload or line surge shutdown.
High temperature compressor shutdown.
High Pressure Alarm w/compressor shutdown.
Low Pressure Alarm w/compressor shutdown.
Battery FreePower Loss Alarm.
SensO2® Oxygen System (SensO2® Model)
18 3/8 +/- 3/8 (46.7 cm ± 1 cm)
26 3/8 +/- 3/8 (67.0 cm ± 1 cm)
14 3/8 +/- 3/8 (36.5 cm ± 1 cm)
51 lbs. +/- 1 lb (23.2 kg +/- .5 kg)
56 lbs. +/- 1 lb (25.4 kg +/- .5 kg)
All manuals and user guides at all-guides.com

10
SPECIFICATIONS (CONTINUED)
Operating Ambient
Temperature:
Exhaust:
Oxygen Output:
Cabinet:
Regulatory Listing:
Electrical:
Placement:
Tubing:
Relative Humidity:
Time of Operation:
Recommended
Storage and Shipping
Temperature:
50°F - 95°F (10°C - 35°C) at 20-60%
relative humidity
Less than Ambient + 35°F (+19°C).
Less than Ambient + 4°F (+2°C).
Impact Resistant flame-retardant plastic
cabinet that conforms to UL 94-V0.
DOUBLE INSULATED PRODUCT
ETL certified complying with UL 1097 (U.S.
models).
CSA certified to C22.2 No. 68 (Canadian
models).
No extension cords.
No closer than 3-inches from any wall,
furniture, draperies, or similar surfaces.
Crush-Proof Tubing - 7 ft. (2.1m) cannula
with a maximum 50 ft. (15.2 m) extension
(DO NOT PINCH).
20 to 60%
Up to 24 hours per day.
-20°F to 150°F ( -29°C to 65°C),
at 15-95% relative humidity
SPECIFICATIONS
All manuals and user guides at all-guides.com

11
HANDLING
The concentrator should always be kept in the upright position to prevent
cabinet damage while being transported. The shipping container has been
designed to assure maximum protection of the concentrator. If the
concentrator is to be reshipped by common carrier, additional cartons are
available from Invacare.
UNPACKING
1. Check for any obvious damage to the carton or its contents. If
damage is evident, notify the Carrier, or your local dealer.
2. Remove all loose packing from the carton.
3. Carefully remove all the components from the carton.

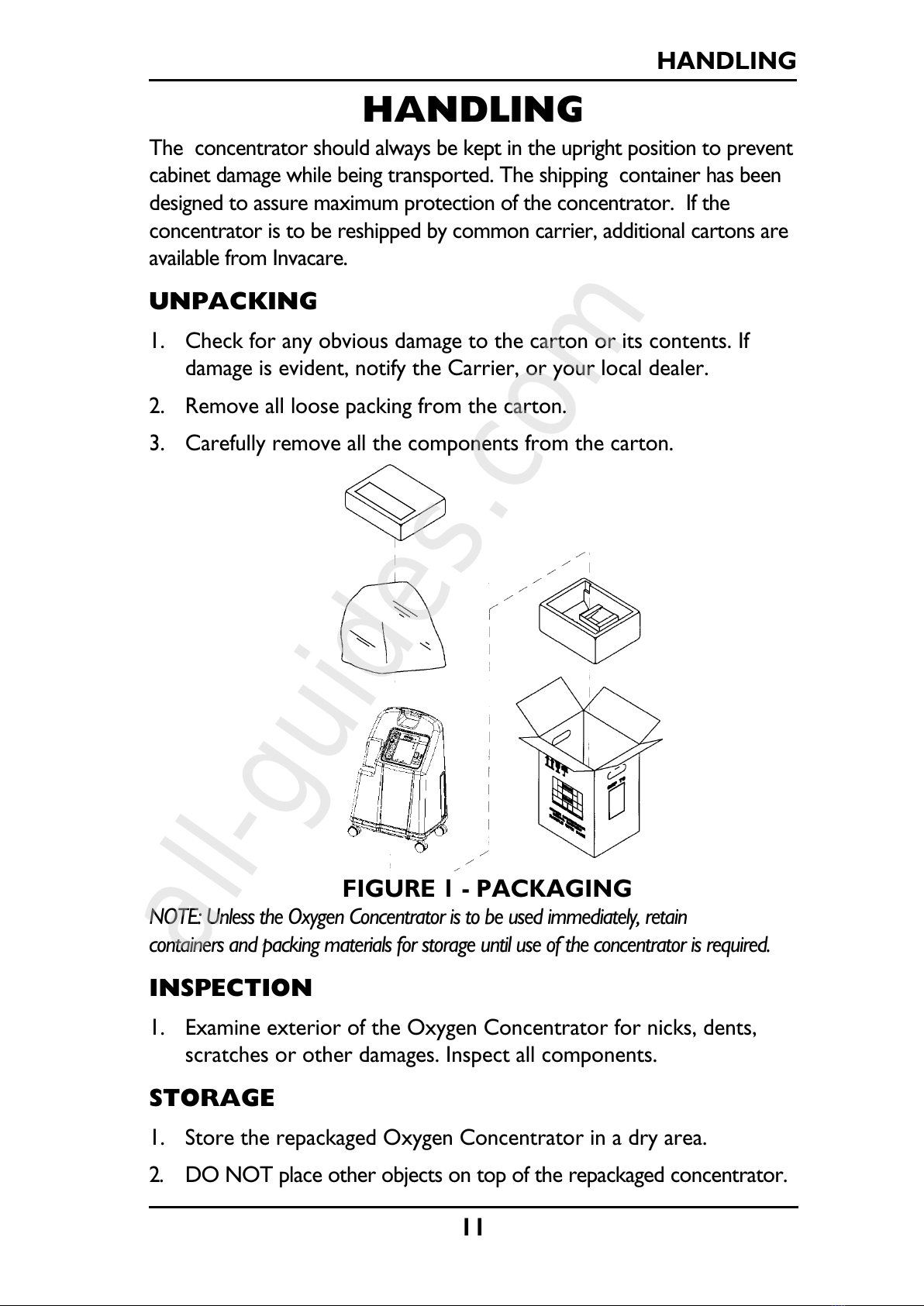

FIGURE 1 - PACKAGING
HANDLING
NOTE: Unless the Oxygen Concentrator is to be used immediately, retain
containers and packing materials for storage until use of the concentrator is required.
INSPECTION
1. Examine exterior of the Oxygen Concentrator for nicks, dents,
scratches or other damages. Inspect all components.
STORAGE
1. Store the repackaged Oxygen Concentrator in a dry area.
2. DO NOT place other objects on top of the repackaged concentrator.
All manuals and user guides at all-guides.com
all-guides.com

12
INTRODUCTION
Your Oxygen Concentrator is intended for individual use in the home. It is an
electronically operated device that separates oxygen from room air. It provides
high concentration of oxygen directly to you through a nasal cannula or mask.
Clinical studies have documented that oxygen concentrators are therapeutically
equivalent to other types of oxygen delivery systems.
Your Provider will show you how to use your oxygen concentrator.
He/She should be contacted with any questions or problems regarding
your Oxygen Concentrator.This Owners Manual will tell you about your
concentrator and will serve as a reference as you use your concentrator.
OPERATING INSTRUCTIONS
SELECT A LOCATION
You may select a room in your house where using your oxygen
concentrator would be most convenient. Your concentrator can be
easily rolled from room to room on its casters.
Your Oxygen Concentrator will perform best when operated under
the following conditions. Usage in environments other than those
described may result in the need for increased equipment maintenance.
The air intake of the unit should be located in a well ventilated area to
avoid airborne pollutants and/or fumes.
RECOMMENDED END-USER GUIDELINES FOR OPTIMUM PERFORMANCE:
Temperature: 50°F - 95°F (10°C - 35°C)
Electrical: No extension cords.
Placement: No closer than 3-inches from the wall,
furniture, draperies, or similar surfaces.
Tubing and Cannula: 7 ft. cannula with a maximum 50 ft. of
Crush-Proof Tubing (DO NOT PINCH).
Environment: Smoke and soot-free. No confined spaces
(Example: NO closets).
Relative Humidity: 20 to 60%
Time of Operation: Up to 24 hours per day.
Flow Rate From 1/2 L/min. to 5 L/min.
For flow rates less than 1 L/min., use the
Pediatric Flowmeter.
Minimum OperatingTime: 30 Minutes
INTRODUCTION/ OPERATING INSTRUCTIONS
All manuals and user guides at all-guides.com

13
WARNING
DO NOT overfill humidifier.
Replace the humidifier cap and securely tighten.
DO NOT reverse the oxygen input and output connections.
Water from the humidifier bottle WILL travel through the
cannula back to the patient.

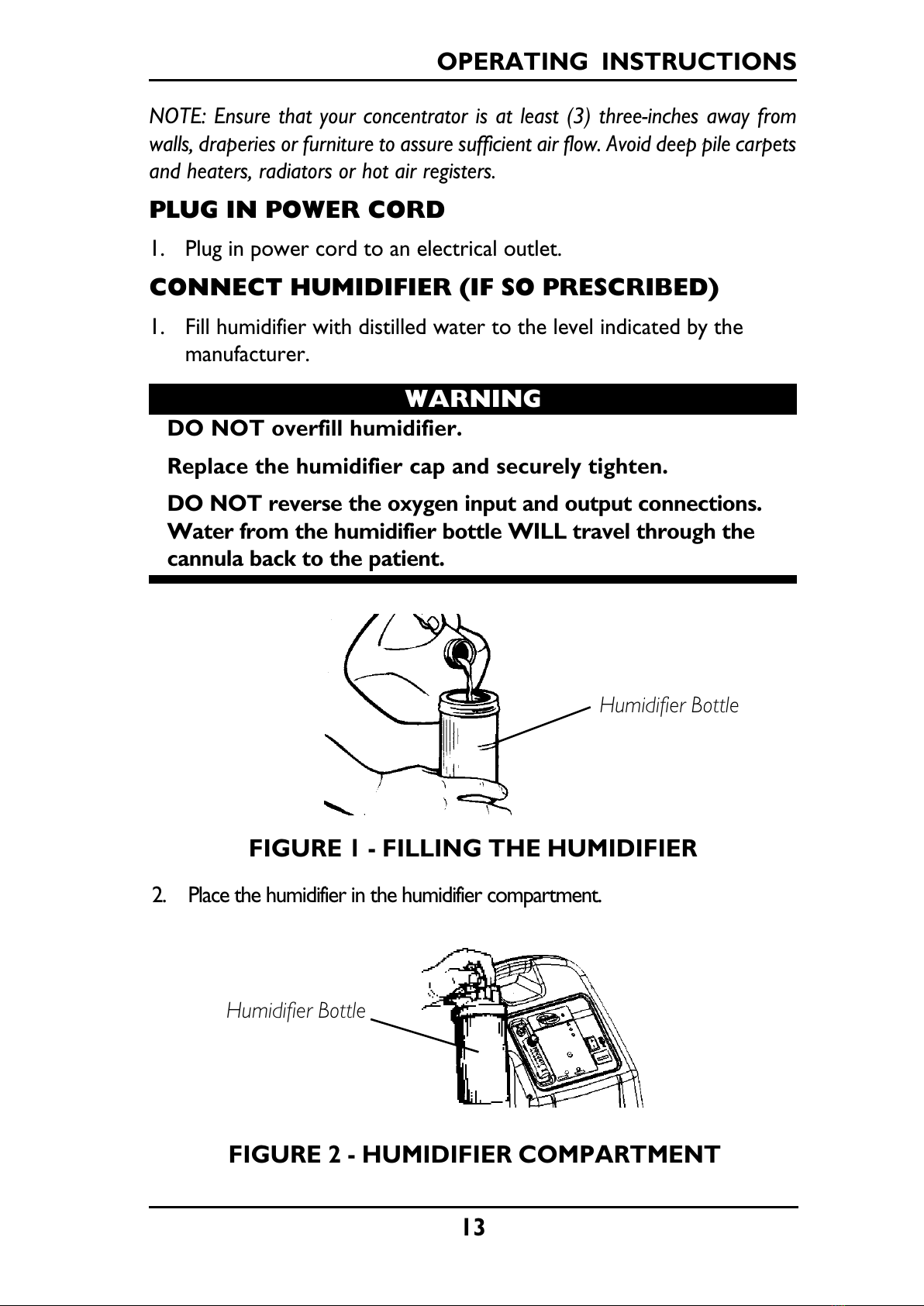

FIGURE 2 - HUMIDIFIER COMPARTMENT
Humidifier Bottle
NOTE: Ensure that your concentrator is at least (3) three-inches away from
walls, draperies or furniture to assure sufficient air flow. Avoid deep pile carpets
and heaters, radiators or hot air registers.
PLUG IN POWER CORD
1. Plug in power cord to an electrical outlet.
CONNECT HUMIDIFIER (IF SO PRESCRIBED)
1. Fill humidifier with distilled water to the level indicated by the
manufacturer.
OPERATING INSTRUCTIONS
Humidifier Bottle
FIGURE 1 - FILLING THE HUMIDIFIER
2. Place the humidifier in the humidifier compartment.
All manuals and user guides at all-guides.com

14
3. Remove the humidifier adapter from its stored location inside the filter access
door and attach it to the humidifier by turning the wing nut on the humidifier
bottle counterclockwise until it is securely fastened.
Humidifier Bottle
Adapter

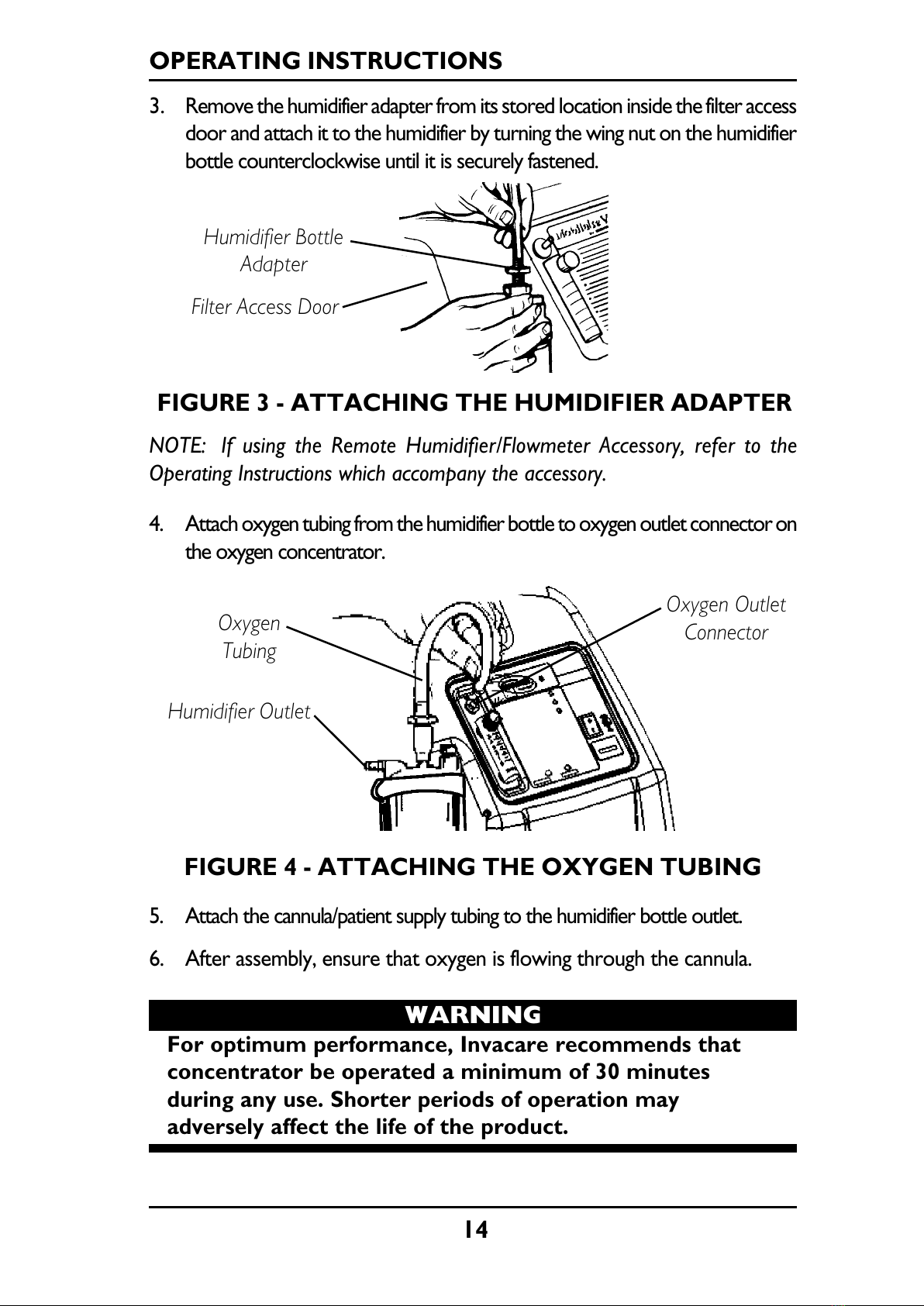

FIGURE 3 - ATTACHING THE HUMIDIFIER ADAPTER
OPERATING INSTRUCTIONS
NOTE: If using the Remote Humidifier/Flowmeter Accessory, refer to the
Operating Instructions which accompany the accessory.
4. Attach oxygen tubing from the humidifier bottle to oxygen outlet connector on
the oxygen concentrator.
Oxygen
Tubing
Oxygen Outlet
Connector
WARNING
For optimum performance, Invacare recommends that
concentrator be operated a minimum of 30 minutes
during any use. Shorter periods of operation may
adversely affect the life of the product.
Filter Access Door
FIGURE 4 - ATTACHING THE OXYGEN TUBING
5. Attach the cannula/patient supply tubing to the humidifier bottle outlet.
6. After assembly, ensure that oxygen is flowing through the cannula.
Humidifier Outlet
All manuals and user guides at all-guides.com

15
WARNING
DO NOT change the L/min. setting on the flowmeter unless
a change has been prescribed by your physician or therapist.
NOTE: To properly read the flowmeter, locate the prescribed flowrate line on
the flowmeter. Next, turn the flow knob until the ball rises to the line. Now,
center the ball on the L/min. line prescribed (FIGURE 6).
FIGURE 6 - ADJUSTING THE FLOWRATE-
PLATINUM 5 WITH SENSO2®SHOWN
Ball
Flow knob
POWER SWITCH
1. Press power switch to the ON position. The power light (I/O), located on
the control panel, will illuminate a GREEN light. The alarm will "beep"
three (3) times indicating that the system is functioning properly (FIGURE 5).
FLOWRATE
1. Turn the flowrate knob to the setting prescribed by your physician
or therapist.
OPERATING INSTRUCTIONS
FIGURE 5 - POWER SWITCH
On/Off (I/O)
Power Switch
All manuals and user guides at all-guides.com

16
INITIAL STARTUP OF THE CONCENTRATOR
NOTE: Concentrator may be used during the initial start warm-up time
(approximately 30 min.) while waiting for the GREEN O2 purity light to illuminate.
When the unit is initially turned on, the GREEN power LED (I/O) will
illuminate. Within 5 to 30 minutes after initial startup, a GREEN light will
illuminate in the Oxygen Purity section of the Control Panel (FIGURE
7) if concentration is within specification. Any other SensO2® indicator lights
illuminating will signal a condition that requires a call to the supplier.
OPERATING INSTRUCTIONS
EXPLANATION OF OXYGEN PURITY INDICATOR
LIGHTS (FIGURE 7):
GREEN LIGHT ( ) - Normal Operation
YELLOW LIGHT ( ) - Call Supplier IMMEDIATELY. You may
continue to use the concentrator unless instructed otherwise by your
supplier. Be certain that BACKUP OXYGEN is nearby.
RED LIGHT ()- Total unit shutdown. Switch IMMEDIATELY
to BACKUP OXYGEN supply. Call Supplier IMMEDIATELY.
GREEN LIGHT - with YELLOW LIGHT FLASHING - Call
Supplier IMMEDIATELY. Oxygen sensor malfunctioning; you may
continue to use the concentrator.
O
2
FIGURE 7 - O2DISPLAY CONTROL PANEL
Call Supplier
Normal
Below Normal
Oxygen Purity
RED
YELLOW
GREEN
O
2
Auto Shut - Down
Use Backup
SENSO2® OXYGEN PURITY INDICATOR-
IF YOUR UNIT FEATURES THE O2SENSOR
FEATURE
This feature monitors the purity of oxygen generated by the oxygen
concentrator. If purity falls below factory preset standards, indicator
lights on the control panel will illuminate.
All manuals and user guides at all-guides.com
all-guides.com

17
FIGURE 9 - CABINET FILTER LOCATION
MAINTENANCE
CLEANING THE CABINET FILTERS
Cabinet Filter
(located on both sides
of concentrator)
OPERATING INSTRUCTIONS/MAINTENANCE
NOTE: There are two (2) cabinet filters. One (1) is located on each side of the
cabinet (FIGURE 9).
1. Remove each filter and CLEAN AT LEAST ONCE A WEEK
depending on environmental conditions (FIGURE 10).
NOTE: Environmental conditions that may require more frequent cleaning of
the filters include but are not limited to: high dust, smoking, air pollutants, etc.
OXYGEN PURITY INDICATOR- IF YOUR
UNIT DOES NOT FEATURE THE O2SENSOR
LX MODELS INDICATOR LIGHT EXPLANATION
(FIGURE 8):
RED LIGHT ( )- Total Unit Shut-Down. Switch IMMEDIATELY
to a BACK-UP OXYGEN supply. Call Supplier IMMEDIATELY.
GREEN LIGHT (I/O)- On/Off.
I/O
RED GREEN
On/Off
Total Unit
Shut-Down
FIGURE 8 - DISPLAY CONTROL PANEL
All manuals and user guides at all-guides.com

18
CABINET
WARNING
UNPLUG the concentrator when cleaning. To avoid
electrical shock, DO NOT remove cabinet.
1. Clean the cabinet with a mild household cleaner and non-abrasive
cloth or sponge.
HUMIDIFIER
NOTE: To clean the oxygen humidifier, follow the instructions provided by the
manufacturer. If none are provided, follow these steps:
1. Clean the humidifier every day.
2. Wash it in soapy water and rinse it with a solution of ten (10) parts
water and one (1) part vinegar.
3. Rinse thoroughly with hot water and refill with distilled water to
the level shown on the humidifier.
WARNING
DO NOT overfill Humidifier Bottle.
MAINTENANCE
2. Clean the cabinet filters with a vacuum cleaner or wash in
warm soapy water and rinse thoroughly (FIGURE 10).
3. Dry the filters thoroughly before reinstallation.
CAUTION
DO NOT operate the concentrator without the filters
installed.
FIGURE 10 - CLEANING THE CABINET FILTERS
All manuals and user guides at all-guides.com

19
TROUBLESHOOTING
1. Internal repairs required. 1. Call Provider for Service.
GREEN LIGHT with
YELLOW Light
Flashing.
Alarm:
SHORT BEEPS,
LONG PAUSE
Concentrator
NOT operating,
power switch ON.
Beep...... Beep......
Main Power Loss:
1. Power cord NOT
plugged In.
2. No power at outlet.
3. Tripped circuit breaker.
1. Insert plug into outlet.
2. Inspect house circuit
breakers or fuses. If
problem recurs, use a
different outlet.
3. Call Provider for
Service.
Alarm:
CONTINUOUS
Power Switch ON,
Concentrator NOT
OPERATING.
Beeeeeeeep....
System Failure:
1. Unit overheating due
to blocked air intake.
2. Insufficient power at
outlet.
3. Internal repairs required.
1a. Remove and clean
cabinet filters.
1b. Move oxygen concentrator
at least three (3) inches
away from walls, draperies
or furniture.
2. Do not use extension cords.
Move to another electrical
outlet or circuit.
3. Call Provider for Service.
YELLOW or RED
LIGHT Illuminated.
* Only applies to
SensO2models.
*1. Low oxygen purity.
*2. Kinked or blocked tubing,
cannula or humidifier.
*3. Flowmeter set at
1/2 L/min. or less.
4. Unit overheating due
to blocked air intake.
5. Insufficient power at
outlet.
6. Internal repairs required.
TROUBLESHOOTING GUIDE
SYMPTOM: PROBABLE CAUSE: SOLUTION:
1. Clean or Replace filters.
2. Inspect for kinks or block-
ages. Correct, clean or
replace item. Once correct-
ed, turn power OFF for 60
seconds and then turn
power back ON.
3. Check flowmeter is set to
1.0 L/min. or more. Refer to
Recommended End-User
Guidelines in the Operating
Instructions of this manual
(page 12).
4.a. Remove and clean cabinet
filters.
4b. Move concentrator at least
3- inches from walls,
draperies, and furniture.
5. Do not use extension
cords. Move to another
electrical outlet or circuit.
6. Call Provider for Service.
All manuals and user guides at all-guides.com

20
ON EACH INSPECTION

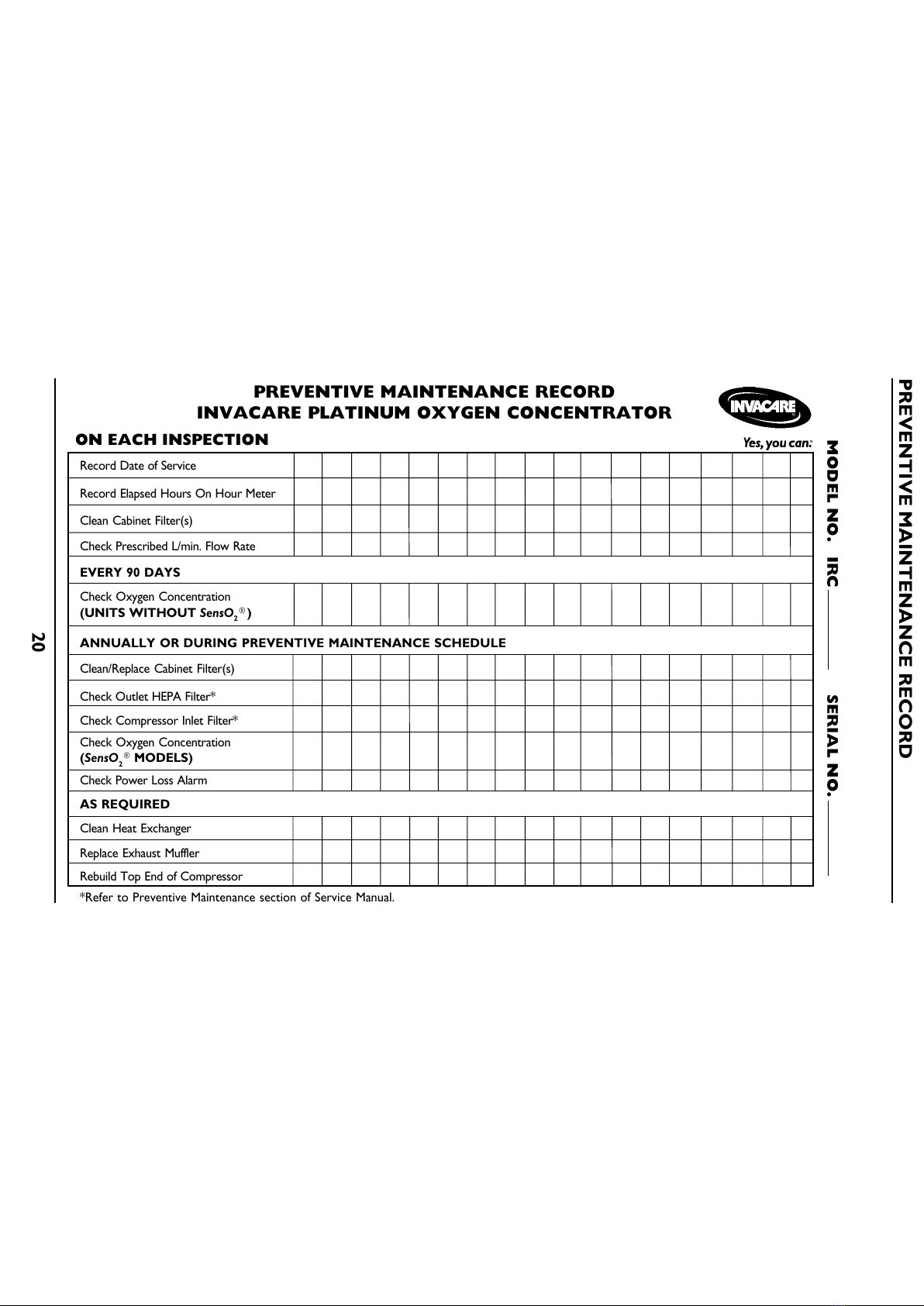

PREVENTIVE MAINTENANCE RECORD
MODEL NO. IRC SERIAL NO.
PREVENTIVE MAINTENANCE RECORD
INVACARE PLATINUM OXYGEN CONCENTRATOR
Record Date of Service
Record Elapsed Hours On Hour Meter
Clean Cabinet Filter(s)
Check Prescribed L/min. Flow Rate
EVERY 90 DAYS
Check Oxygen Concentration
(UNITS WITHOUT SensO2®)
ANNUALLY OR DURING PREVENTIVE MAINTENANCE SCHEDULE
Clean/Replace Cabinet Filter(s)
Check Outlet HEPA Filter*
Check Compressor Inlet Filter*
Check Oxygen Concentration
(SensO2®MODELS)
Check Power Loss Alarm
AS REQUIRED
Clean Heat Exchanger
Replace Exhaust Muffler
Rebuild Top End of Compressor
*Refer to Preventive Maintenance section of Service Manual.
All manuals and user guides at all-guides.com
