Invacare PLATINUM 5 User manual

PLATINUM™ 5
OXYGEN CONCENTRATORS STANDARD,
WITH/SENSO2®AND HOMEFILL®
CONCENTRADORES DE OXÍGENO STANDARD,
CON/SENSO2®Y HOMEFILL®
CONCENTRATEURS D’OXYGENE STANDARD,
AVEC / SENSO2® ET HOMEFILL®
SAUERSTOFFKONZENTRATOREN STANDARD,
MIT/SENSO2®UND FÜR HOMEFILL®
CONCENTRADORES DE OXIGENIO STANDARD,
COH/SENSO2®E HOMEFILL®
CONCENTRATORI DI OSSIGENO STANDARD,
CON/SENSO2®E HOMEFILL®
OPERATOR'S MANUAL - ENGLISH
MANUAL DE INSTRUCCIONES - SPANISH
MANUEL D’UTILISATION - FRENCH
BENUTZERHANDBUCH - GERMAN
NANUAL DO OPERADOR - BRAZILIAN PORTUGUESE
MANUALE D’USO - ITALIAN
DEALER: THIS MANUAL MUST BE GIVEN TO THE END USER.
USER: BEFORE USING THIS CONCENTRATOR, READ THIS MANUAL AND SAVE FOR
FUTURE REFERENCE.
DISTRIBUIDOR: ENTREGUE ESTE MANUAL AL USUARIO FINAL.
USUARIO: ANTES DE OPERAR EL CONCENTRADOR, LEA TOTALMENTE ESTE
MANUAL Y CONSÉRVELO COMO REFERENCIA PARA EL FUTURO.
DISTRIBUTEUR: CE MANUEL DOIT ÊTRE REMIS À L’UTILISATEUR.
UTILISATEUR: AVANT D’UTILISER CE CONCENTRATEUR, BIEN LIRE CE
MANUEL ET LE CONSERVER POUR S’Y RÉFÉRER ULTÉRIEUREMENT.
FÜR HÄNDLER: DIESES HANDBUCH MUSS DEM ENDBENUTZER ÜBERGEBEN
WERDEN.
FÜR BENUTZER: LESEN SIE DIESES HANDBUCH VOR BENUTZUNG DIESES
KONZENTRATORS UND BEWAHREN SIE ES ZUM NACHSCHLAGEN FÜR DIE
ZUKUNFT AUF.
REPRESENTANTE: ESTE MANUAL DEVE SER ENTREGUE AO USUÁRIO.
USUÁRIO: ANTES DE USAR ESSE CONCENTRADOR, LEIA
ESTE MANUAL E GUARDE-O PARA REFERÊNCIAS FUTURAS.
DISTRIBUTORE : CONSEGNARE IL PRESENTE MANUALE
ALL’UTILIZZATORE FINALE.
UTILIZZATORE : PRIMA DI USARE QUESTO
CONCENTRATORE, LEGGERE QUESTO MANUALE E
CONSERVARLO PER OGNI FUTURA ESIGENZA.

2
SPECIAL NOTES
WARNING
DO NOT OPERATE THIS EQUIPMENT WITHOUT FIRST
READING AND UNDERSTANDING THIS MANUAL.
IF YOU ARE UNABLE TO UNDERSTAND THE WARNINGS,
CAUTIONS, AND INSTRUCTIONS, CONTACT INVACARE
TECHNICAL SERVICES BEFORE ATTEMPTING TO USE
THIS EQUIPMENT - OTHERWISE SERIOUS INJURY OR
PROPERTY DAMAGE MAY RESULT.
DANGER
Users MUST NOT SMOKE while using this device. Keep
all matches, lighted cigarettes or other sources of
ignition out of the room in which this product is located.
NO SMOKING signs should be prominently displayed.
Textiles and other materials that normally would not
burn are easily ignited and burn with great intensity in
oxygen enriched air. Failure to observe this warning can
result in severe fire, property damage and cause physical
injury or DEATH.
Invacare 5
Model IRC5LXAW
Invacare 5
Modelo IRC5LXAW
Invacare 5
Modèle IRC5LXAW
Invacare 5
Modell IRC5LXAW
Invacare 5
Modelo IRC5LXAW
Invacare 5 with/SensO2®
Model IRC5LXO2AW
Invacare 5 con/SensO2®
Modelo IRC5LXO2AW
Invacare 5 avec/SensO²®
Modèle IRC5LXO2AW
Invacare 5 mit/SensO2®
Modell IRC5LXO2AW
Invacare 5 con/SensO2®
Modelo IRC5LXO2AW
SAVE THESE INSTRUCTIONS
SPECIAL NOTES
WARNING/CAUTION notices used in this manual apply to
hazards or unsafe practices which could result in personal
injury or property damage.
NOTICE
THE INFORMATION CONTAINED IN THIS DOCUMENT
IS SUBJECT TO CHANGE WITHOUT NOTICE.

3
TABLE OF CONTENTS
CONCENTRATOR
TABLE OF CONTENTS
SPECIAL NOTES ..................................................................... 2
SAFETY SUMMARY ................................................................ 5
FEATURES ................................................................................ 8
SPECIFICATIONS ................................................................... 9
HANDLING ............................................................................. 12

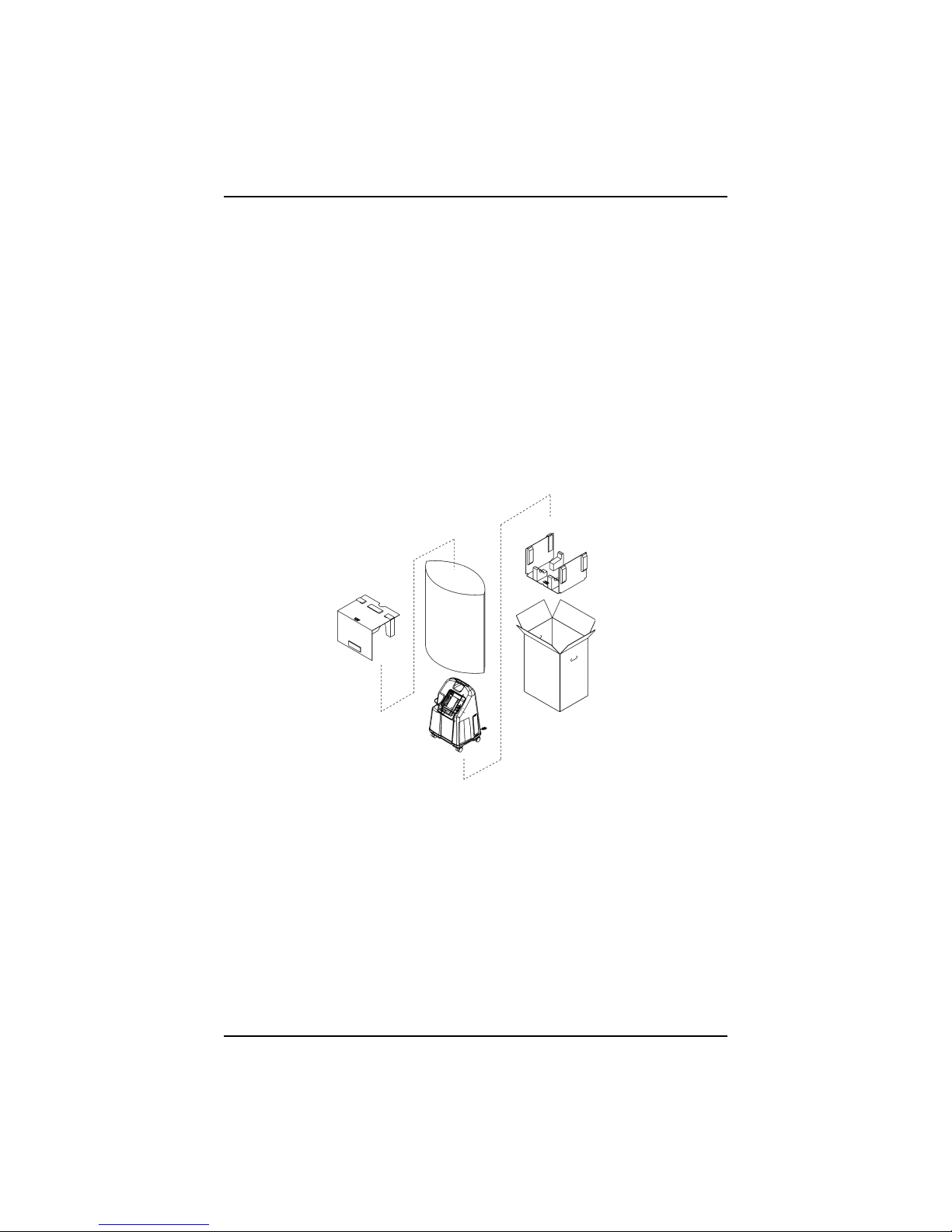

Unpacking ........................................................................................................ 12
Inspection ........................................................................................................ 12
Storage .............................................................................................................. 12
INTRODUCTION .................................................................. 13
OPERATING INSTRUCTIONS ........................................... 13
Select a Location ............................................................................................ 13
Recommended End-User Guidelines
for Optimum Performance.................................................................... 13
Plug in Power Cord ...................................................................................... 14

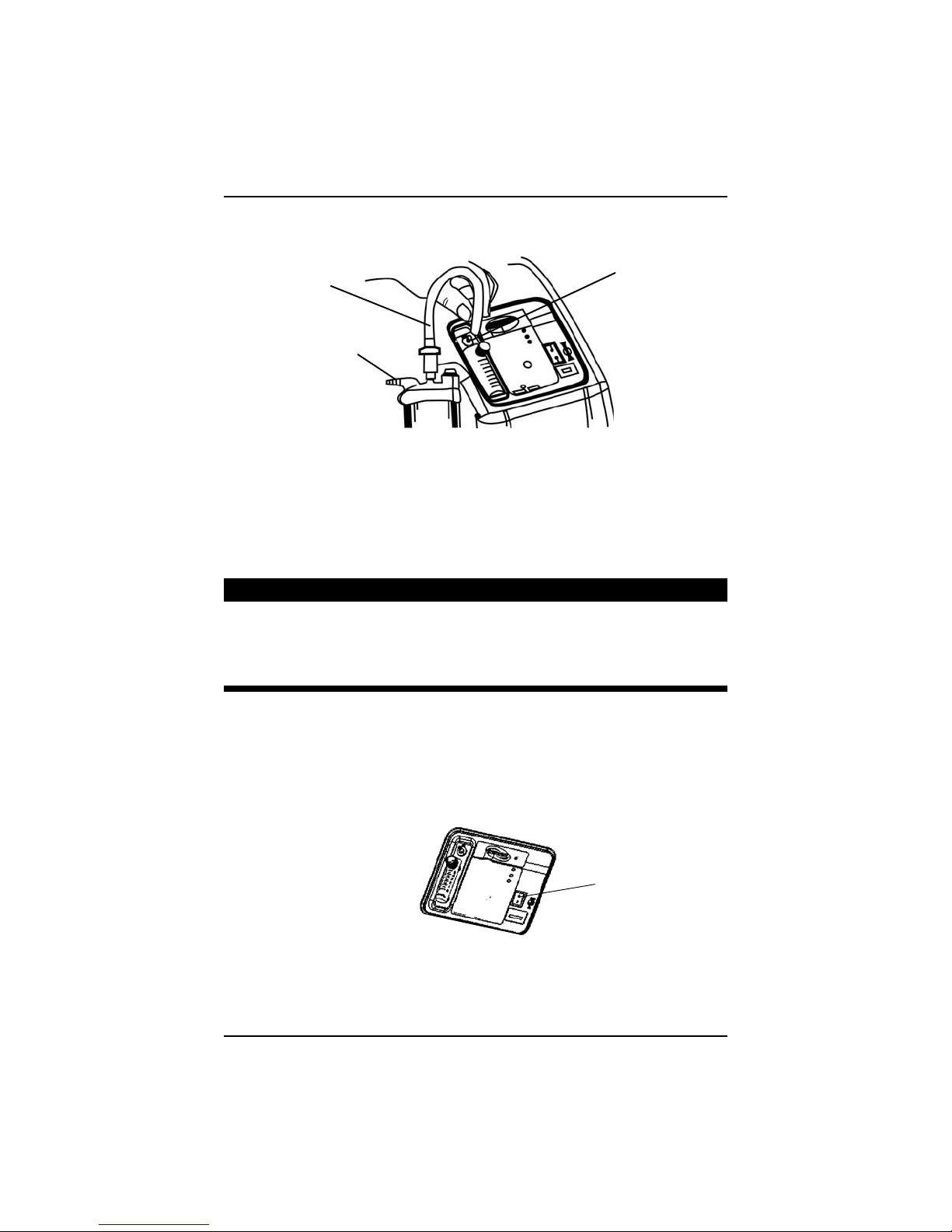

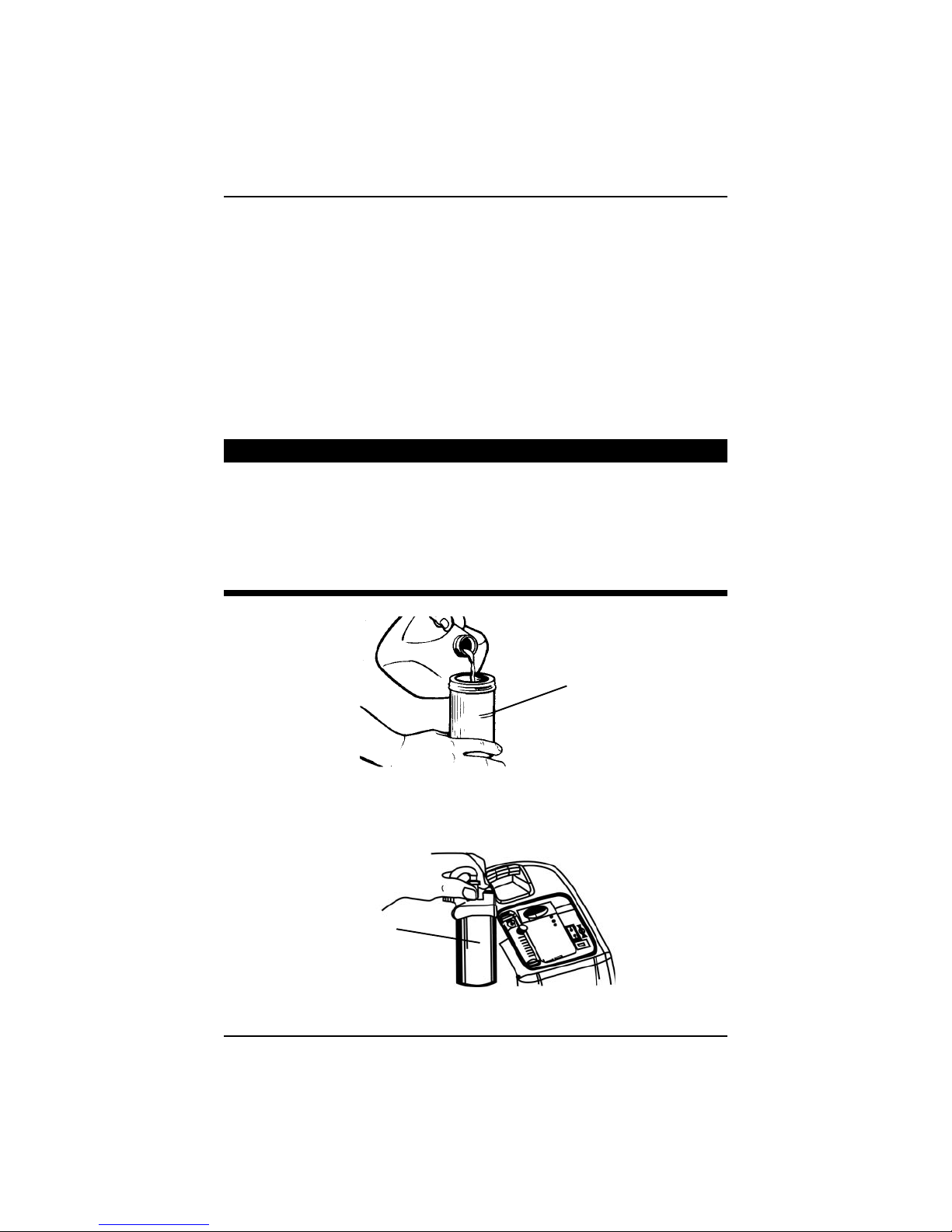

Connect Humidifier (if so prescribed) ................................................... 14
Power Switch.................................................................................................. 16

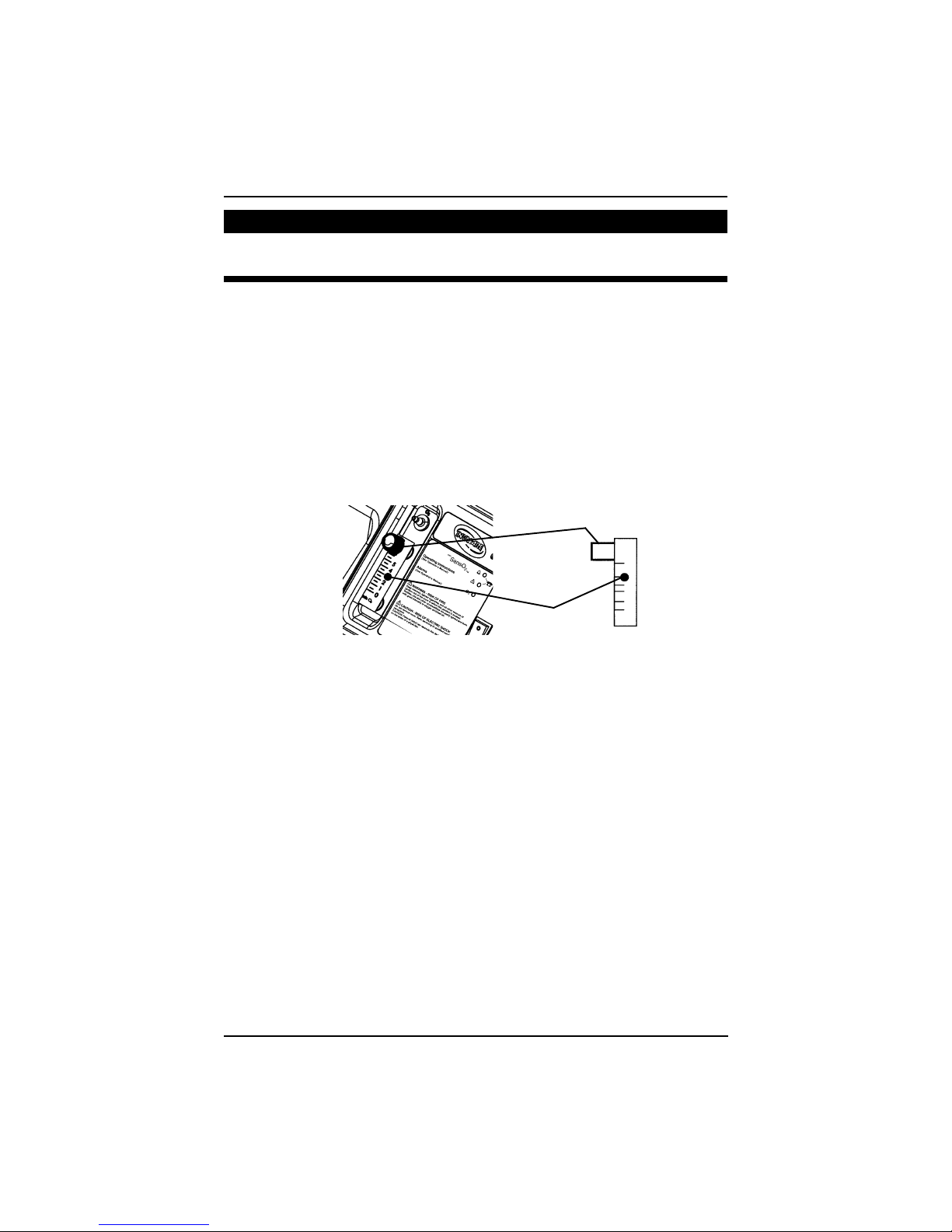

Flowrate............................................................................................................ 16
SensO2®Oxygen Purity Indicator
(if the unit features the O2Sensor)..................................................... 17
Initial Startup of the Concentrator .......................................................... 17

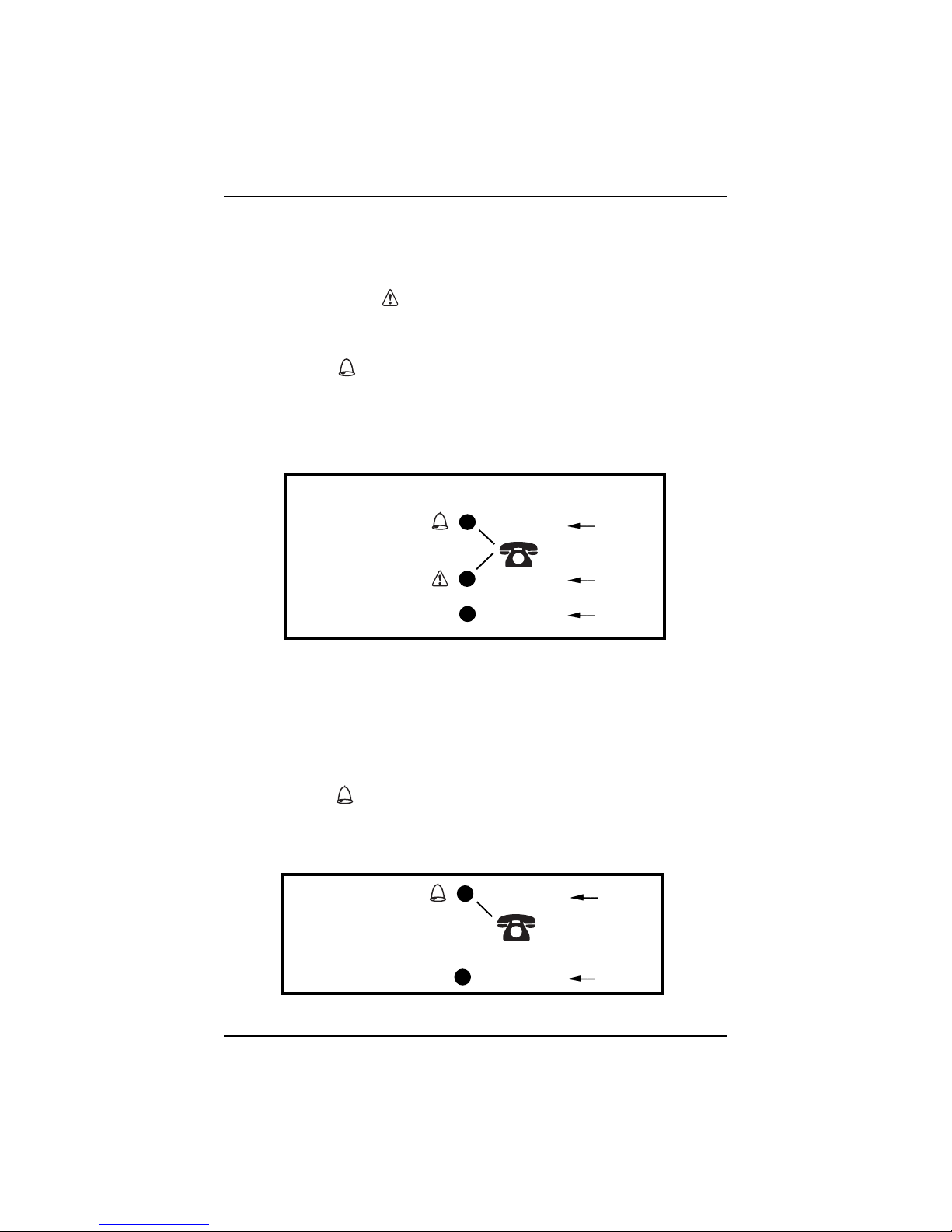

Explanation of Oxygen Purity Indicator Lights ..................................... 18
Indicators (if the unit does not feature the O2Sensor)..................... 18
CONCENTRATOR MAINTENANCE................................ 19
Cleaning the Cabinet Filters ....................................................................... 19
Cabinet ............................................................................................................. 20
Humidifier ........................................................................................................ 20
TROUBLESHOOTING GUIDE ............................................ 20
PREVENTIVE MAINTENANCE RECORD........................ 22
WARRANTY........................................................................... 23

4
SPANISH OWNER’S MANUAL
(MANUAL DEL USARIO) ................................................. 24
FRENCH OWNER’S MANUAL
(MANUEL D’UTILISATION) ........................................... 49
GERMAN OWNER’S MANUAL
(BENUTZERHANDBUCH)............................................... 73
BRAZILIAN PORTUGUESE OWNER’S MANUAL
(NANUAL DO OPERADOR) ........................................... 97
ITALIAN OWNER’S MANUAL
(MANUALE D’USO) ............................................................. 123
TABLE OF CONTENTS

5
SAFETY SUMMARY
SAFETY SUMMARY
CAUTION
Risk of electric shock. DO NOT disassemble. Refer servicing
to qualified service personnel.
READ THE FOLLOWING INFORMATION BEFORE
OPERATING THIS PRODUCT.
WARNING
The use of oxygen therapy requires that special care be taken
to reduce the risk of fire. Any materials that will burn in air,
and some that will not, are easily ignited and burn rapidly in
high concentrations of oxygen. For safety concerns, it is
necessary that all sources of ignition be kept away from the
product and preferably out of the room in which it is being
used. NO SMOKING signs should be prominently displayed.
A spontaneous and violent ignition may occur if oil, grease
or greasy substances come in contact with oxygen under
pressure. These substances MUST be kept away from the
oxygen concentrator, tubing and connections, and all other
oxygen equipment. DO NOT use any lubricants unless
expressly recommended by Invacare.
For optimum performance, Invacare recommends that
each concentrator be on and running for a minimum of 30
minutes at a time. Shorter periods of operation may reduce
maximum product life.
If the concentrator has a damaged cord or plug, if it is not
working properly, if it has been dropped or damaged, or
dropped into water, call Qualified Service Personnel for
examination and repair.
Keep the cord away from HEATED or HOT surfaces.
Do not move or relocate concentrator by pulling on
the cord.
NEVER drop or insert any object into any opening.
NEVER block the air openings of the product or place it on a
soft surface, such as a bed or couch, where the air opening may
be blocked. Keep the openings free from lint, hair and the like.

6
SAFETY SUMMARY
WARNING (CONTINUED)
Fill humidifier with water to the level shown by the manu-
facturer. DO NOT overfill.
Keep unit at least 7.5 cm (3 in) away from walls, draperies,
furniture, and the like.
Invacare recommends that Crush-Proof oxygen tubing
(supplied by Invacare) be used with this product and NOT
exceed 15.2 m (50 ft) in length.
MAINTENANCE
The Invacare Oxygen Concentrator was specifically designed to
minimize routine preventive maintenance at intervals of once
per year. Only professionals of the healthcare field or persons
fully conversant with this process such as authorized or factory
trained personnel should perform preventive maintenance or
performance adjustments on the oxygen concentrator.
RADIO FREQUENCY INTERFERENCE
Most electronic equipment is influenced by Radio Frequency
Interference (RFI). CAUTION should be exercised with regard
to the use of portable communications equipment in the area
around such equipment.
TO REDUCE THE RISK OF BURNS, ELECTROCUTION,
FIRE OR INJURY TO PERSONS.
Avoid using while bathing. If continuous usage is required by the
physician’s prescription:
The concentrator must be located in another room at least
2.1 m (7 ft) from the bath.
DO NOT come in contact with the concentrator while wet.
DO NOT place or store product where it can drop into
water or other liquid.
DO NOT reach for product that has fallen into water.
UNPLUG IMMEDIATELY.
A product should NEVER be left unattended when plugged in.

7
WARNING (CONTINUED)
This device is to be used only in accordance with the prescription
of a physician and this Owners Manual. If at any time the patient
or attendant conclude that the patient is receiving an insufficient
amount of oxygen, the supplier and/or physician should be
contacted immediately. No adjustments should be made to the
flowrate unless prescribed by a physician.
Close supervision is necessary when this product is used
near children or physically-challenged individuals.
Use this product for only intended use as described in this
manual.
DO NOT use parts, accessories or adapters other than those
authorized by Invacare.
DO NOT connect the concentrator in parallel or series with
other oxygen concentrators or oxygen therapy devices.
Use of some administration accessories or certain humidifiers
not specified for use with oxygen concentrator may impair the
performance.
In certain circumstances oxygen therapy can be hazardous.
Invacare recommends that you seek medical advice before using
this machine.
This equipment is to be used as an oxygen supplement and is not
considered life supporting or life sustaining.
Avoid creation of any spark near medical oxygen equipment.
This includes sparks from static electricity created by any type
of friction.
OXYGEN CONCENTRATION
WARNING
Take care not to set the flow above RED ring. An oxygen flow
greater than 5 L/min will decrease the oxygen concentration.
SAFETY SUMMARY

8

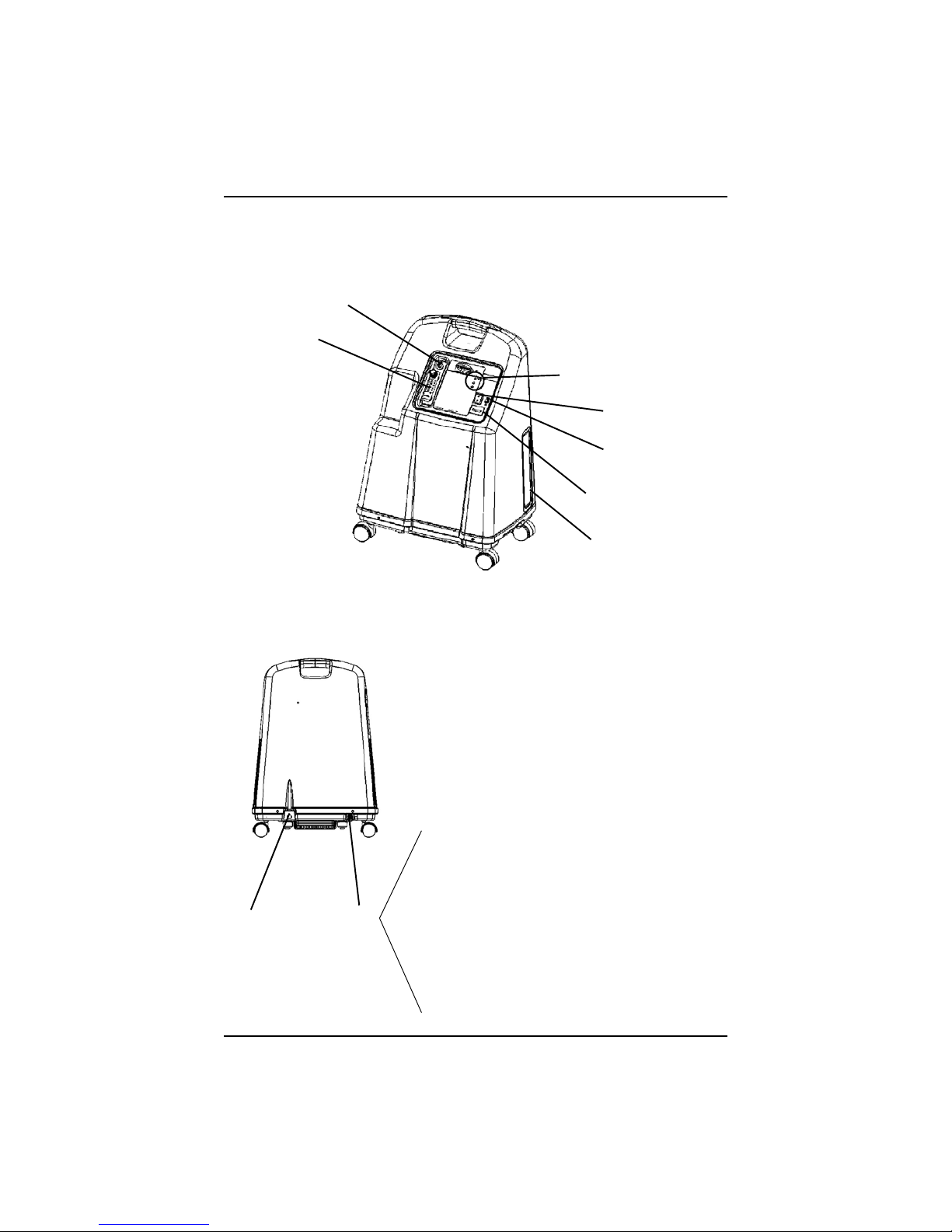

FEATURES
FRONT VIEW
Circuit Breaker
Cabinet Filter
(one of two shown)
Power Switch
Elapsed Time Meter
Oxygen Purity Indicator Lights
(SensO(SensO
(SensO(SensO
(SensO22
22
2model only)model only)
model only)model only)
model only)
(Contact Invacare for avail-
ability in your country)/ Fault
and Power Indicator Lights
(LX model only)(LX model only)
(LX model only)(LX model only)
(LX model only)
Oxygen Outlet
ACCESSORIES (NOT SHOWN):
HomeFill® home oxygen
compressor - IOH200AW
Contact local Invacare representative
for available accessory information.
Power
Cord
Outlet
Fitting
NOTE: This outlet fitting is to be used only for
filling oxygen cylinders with the HomeFill
home oxygen compressor.
The outlet fitting does not affect concentrator
performance. Refer to the HomeFill owner's
manual, for connection and operating
instructions. When not in use, the plug
provided with the concentrator should be
inserted into the outlet fitting. For more
information about the HomeFill, contact your
Invacare dealer.
REAR VIEW
Flowmeter
FEATURES

9
SPECIFICATIONS
SPECIFICATIONS
Electrical Requirements:
Rated Current Input:
Sound Level:
Altitude:
*Oxygen Output
Concentration Levels:
Maximum Outlet Pressure:
230 VAC ± 10% (253 VAC/207 VAC), 50 Hz
2.0 A
44 dB Average
Up to 1828 m(6,000 ft) above sea level without
degradation of concentration levels. NOT
RECOMMENDED FOR USE ABOVE
1828 M (6000 FT).
ALL 5LXA/5LXO2A MODELS
93% minimum at 1 to 3 L/min
91% minimum at 4 L/min
87% minimum at 5 L/min (maximum
recommended flow)
* Stated concentration levels
achieved after initial warm-up period
(approximately 30 minutes).
34.5 ± 3.45 kPa
(5 ± 0.5 psi)
Alternating Current
Type BF Equipment
Running
NOT Running
Attention-Consider Accompanying Documents
DO NOT Smoke
Class II
O2
Label Status Indicator Lights (LED)
Symbol
SYSTEM FAILURE RED Continuous Audible Alarm Sieve-GARDTM
Below 73% Compressor Shutdown
73% to 85% YELLOW
SYSTEM OKAY GREEN
Over 85%
5LXO2INDICATORS:

10
SPECIFICATIONS
SPECIFICATIONS (CONTINUED)
Label Status Indicator Lights (LED)
Symbol
I/O SYSTEM OKAY GREEN
SYSTEM FAILURE RED
5LX INDICATORS:
Flow Range:
Low Flow Alarm:
Average Power
Consumption:
Pressure Relief
Mechanism Operational at:
Change in maximum
recommended flow
when back pressure
of 7kPa is applied:
Filters:
Safety System:
Width:
Height:
Depth:
Weight:
Shipping Weight:
0.5 - 5 L/min.
Flowrates less than 1 L/min., are not
recommended.
0 L/min. to 0.5 L/min., Rapid Audible
Alarm Beeping (No Accessories Connected)
395W
241 kPa ± 24.1 kPa (35 psi ± 3.5 psi)
0.7 L/min.
Cabinet (2), Outlet HEPA and
Compressor Inlet.
Current overload or line surge shutdown.
High temperature compressor shutdown.
High Pressure Alarm w/compressor shutdown.
Low Pressure Alarm w/compressor shutdown.
Battery Free Power Loss Alarm.
Sen2Oxygen System (SensO2Model)
Low Flow Alarm.
46.7 cm ± 1 cm (18 3/8” ± 3/8”)
67.0 cm ± 1 cm (26 3/8” ± 3/8”)
36.5 cm ± 1 cm (14 3/8” ± 3/8”)
23.2 kg ± 0.5 kg (51 lbs. ± 1 lb)
26.3 kg ± 0.5 kg (58 lbs. ± 1 lb)

11
SPECIFICATIONS (CONTINUED)
SPECIFICATIONS
Operating Ambient:
Temperature:
Exhaust:
Oxygen Output:
Cabinet:
Regulatory Listing:
Electrical:
Placement:
Tubing:
Relative Humidity:
Time of Operation:
Recommended
Storage and Shipping
Temperature:
10°C - 35°C (50°F - 95°F) at 20-60% relative
humidity
Less than Ambient + 19°C (+ 35°F).
Less than Ambient + 2°C (+ 4°F).
Impact resistant flame-retardant plastic
cabinet that conforms to UL 94-V0.
5LXA/5LXO2A Models
ETL certified complying with:
EN 55011
EN 61000-3-2
EN 61000-3-3
IEC 60601-1, AI, A2
IEC 60601-1-2
5LXO2A Model only
ISO 8359
MDD
No extension cords.
No closer than 7.5 cm (3 in) from any wall,
furniture, draperies, or similar surfaces.
Crush-Proof Tubing - 2.1 m (7 ft) cannula
with a maximum 15.2 m (50 ft) extension
(DO NOT PINCH).
20 to 60%
Up to 24 hours per day.
-29°C to 65°C (-20°F to 150°F),
at 15-95% relative humidity

12
HANDLINGHANDLING
HANDLINGHANDLING
HANDLING
The concentrator should always be kept in the upright position to
prevent cabinet damage while being transported. The shipping container
has been designed to assure maximum protection of the concentrator. If
the concentrator is to be reshipped by common carrier, additional
cartons are available from Invacare.
UNPACKING
1. Check for any obvious damage to the carton or its contents.
If damage is evident, notify the carrier, or your local dealer.
2. Remove all loose packing from the carton.
3. Carefully remove all the components from the carton.
NOTE: Unless the oxygen concentrator is to be used immediately, retain
containers and packing materials for storage until use of the concentrator is required.
INSPECTION
1. Examine exterior of the oxygen concentrator for nicks, dents,
scratches or other damages. Inspect all components.
STORAGE
1. Store the repackaged oxygen concentrator in a dry area.
2. DO NOT place other objects on top of the repackaged concentrator.
HANDLING
FIGURE 1 - PACKAGING

13
INTRODUCTION
Your oxygen concentrator is intended for individual use in the home. It is an
electronically operated device that separates oxygen from room air. It provides
high concentration of oxygen directly to you through a nasal cannula. Clinical
studies have documented that oxygen concentrators are therapeutically
equivalent to other types of oxygen delivery systems.
Your provider will show you how to use your oxygen concentrator.
He/She should be contacted with any questions or problems regarding
your oxygen concentrator. This owner’s manual will tell you about your
concentrator and will serve as a reference as you use your concentrator.
OPERATING INSTRUCTIONS
SELECT A LOCATION
You may select a room in your house where using your oxygen
concentrator would be most convenient. Your concentrator can be
easily rolled from room to room on its casters.
Your oxygen concentrator will perform best when operated under
the following conditions. Usage in environments other than those
described may result in the need for increased equipment mainte-
nance. The air intake of the unit should be located in a well ventilated
area to avoid airborne pollutants and/or fumes.
RECOMMENDED END-USER GUIDELINES FORRECOMMENDED END-USER GUIDELINES FOR
RECOMMENDED END-USER GUIDELINES FORRECOMMENDED END-USER GUIDELINES FOR
RECOMMENDED END-USER GUIDELINES FOR
OPTIMUM PERFORMANCE:OPTIMUM PERFORMANCE:
OPTIMUM PERFORMANCE:OPTIMUM PERFORMANCE:
OPTIMUM PERFORMANCE:
Temperature: 10°C - 35°C (50°F - 95°F)
Electrical: No extension cords.
Placement: No closer than 7.5 cm (3 in) from the wall,
furniture, draperies, or similar surfaces.
Tubing and Cannula: 2.1 m (7 ft) cannula with a maximum 15.2 m
(50 ft) of Crush-Proof Tubing (DO NOT
PINCH).
Environment: Smoke and soot-free. No confined spaces
(Example: NO closets).
Relative Humidity: 20 to 60%
Time of Operation: Up to 24 hours per day.
Flow Rate From 0.5 L/min. to 5 L/min.
Flowrates less than 1 L/min., are not
recommended.
Minimum Operating Time: 30 Minutes
INTRODUCTION/ OPERATING INSTRUCTIONS

14
OPERATING INSTRUCTIONS
2. Place the humidifier in the humidifier compartment.
FIGURE 3 - HUMIDIFIER COMPARTMENT
Humidifier Bottle
FIGURE 2 - FILLING THE HUMIDIFIER
Humidifier Bottle
NOTE: Ensure that your concentrator is at least 7.5 cm (3 in) away from
walls, draperies or furniture to assure sufficient air flow. Avoid deep pile
carpets and heaters, radiators or hot air registers.
PLUG IN POWER CORD
1. Plug in power cord to an electrical outlet.
CONNECT HUMIDIFIER (IF SO PRESCRIBED)
1. Fill humidifier with distilled water to the level indicated by the
manufacturer. (Recommended humidifiers: Invacare 3260, 003-40,
006-40, or M5120).
WARNING
DO NOT overfill humidifier.
Replace the humidifier cap and securely tighten.
DO NOT reverse the oxygen input and output connections.
Water from the humidifier bottle WILL travel through the
cannula back to the patient.

15
3. Remove the Filter Access Door located on the side of the
concentrator. Insert a flathead screwdriver in the plate groove
on the top edge of the Filter Access Door and gently pry the
Filter Access Door open (FIGURE 4, DETAIL “A”).
4. The humidifier adapter is next to the inlet filter. Pull up and remove
the humidifier bottle adapter (FIGURE 4, DETAIL “B”).
5. Attach it to the humidifier by turning the wing nut on the humidifier
bottle counterclockwise until it is securely fastened (FIGURE 4,
DETAIL “C”).
FIGURE 4 - ATTACHING THE HUMIDIFIER
BOTTLE ADAPTER
Humidifier Bottle
Adapter
Filter Access Door
Plate Groove (Insert Flat
Head Screwdriver Here)
Humidifier Bottle
Adapter
Filter
Access
Door
DETAIL “A”
DETAIL “B”
DETAIL “C”
OPERATING INSTRUCTIONS

16
7. Attach the cannula/patient supply tubing to the humidifier bottle outlet.
8. After assembly, ensure that oxygen is flowing through the cannula.
9. Replace the filter access door on the side of concentrator by snapping
it back into the plate groove.
WARNING
For optimum performance, Invacare recommends that
the concentrator be operated a minimum of 30 minutes
during any use. Shorter periods of operation may
adversely affect the life of the product.
POWER SWITCH
1. Press power switch to the ON position. All the panel lights and
the audible alarm will come on for one second, indicating that the
unit is functioning properly.
FLOWRATE
1. Turn the flowrate knob to the setting prescribed by your
physician or therapist.
OPERATING INSTRUCTIONS
6. Attach oxygen tubing from the humidifier bottle to oxygen outlet
connector on the oxygen concentrator.
FIGURE 6 - POWER SWITCH
On/Off (I/O)
Power Switch
FIGURE 5 - ATTACHING THE OXYGEN TUBING
Oxygen
Tubing
Oxygen Outlet
Connector
Humidifier Outlet

17
NOTE: The use of some accessories such as the Homefill compressor will
deactivate the Low Flow Alarm.
SENSO2OXYGEN PURITY INDICATOR
(IF YOUR UNIT FEATURES THE O2SENSOR FEATURE)
This feature monitors the purity of oxygen generated by the oxygen
concentrator. If purity falls below factory preset standards, indicator
lights on the control panel will illuminate.
INITIAL STARTUP OF THE CONCENTRATOR
NOTE: Concentrator may be used during the initial start warm-up time
(approximately 30 min.) while waiting for the O2purity to reach maximum.
When the unit is turned on, the green light will come on (SYSTEM OK/O2
greater than 85%). After 5 minutes, the oxygen sensor will be operating
normally and will control the indicator lights depending on oxygen concentra-
tion values. The explanation of the indicator light functions are as follows.
WARNING
DO NOT change the L/min. setting on the flowmeter unless
a change has been prescribed by your physician or therapist.
NOTE: To properly read the flowmeter, locate the prescribed flowrate line on
the flowmeter. Next, turn the flow knob until the ball rises to the line. Now,
center the ball on the L/min. line prescribed (FIGURE 7).
2. If the flowrate on the flowmeter ever falls below 0.5 L/min. for
more than about one minute, the LOW FLOW ALARM will be
triggered. This is a rapid beeping of the audible alarm. Check your
tubing or accessories for blocked or kinked tubing or a defective
humidifier bottle. After rated flow is restored, more than
0.5 L/min., the Low Flow audible alarm will go off.
OPERATING INSTRUCTIONS
FIGURE 7 - ADJUSTING THE FLOWRATE-
PLATINUM 5 WITH SENSO2SHOWN
Ball
Flow Knob

18
OPERATING INSTRUCTIONS
EXPLANATION OF OXYGEN PURITY INDICATOREXPLANATION OF OXYGEN PURITY INDICATOR
EXPLANATION OF OXYGEN PURITY INDICATOREXPLANATION OF OXYGEN PURITY INDICATOR
EXPLANATION OF OXYGEN PURITY INDICATOR
LIGHTS (FIGURE 8):LIGHTS (FIGURE 8):
LIGHTS (FIGURE 8):LIGHTS (FIGURE 8):
LIGHTS (FIGURE 8):
GREEN LIGHT ( ) - Normal Operation
YELLOW LIGHT ( ) - Call Supplier IMMEDIATELY. You may
continue to use the concentrator unless instructed otherwise by your
supplier. Be certain that BACKUP OXYGEN is nearby.
RED LIGHT ()- Total unit shutdown. Switch IMMEDIATELY
to BACKUP OXYGEN supply. Call Supplier IMMEDIATELY.
GREEN LIGHT - with YELLOW LIGHT FLASHING - Call
Supplier IMMEDIATELY. Oxygen sensor malfunctioning; you may
continue to use the concentrator.
O
2
INDICATORS - IF YOUR UNIT DOES NOT
FEATURE THE O2SENSOR
LX MODELS INDICATOR LIGHT EXPLANATION
(FIGURE 9):
RED LIGHT ( )- Total Unit Shut-Down. Switch IMMEDIATELY
to a BACK-UP OXYGEN supply. Call Supplier IMMEDIATELY.
GREEN LIGHT (I/O) - On/Off. System okay.
Call Supplier
Normal
RED
GREEN
Auto Shut - Down
Use Backup
I/O
FIGURE 9 - DISPLAY CONTROL PANEL
FIGURE 8 - O2DISPLAY CONTROL PANEL
Call Supplier
Normal
Below Normal
OXYGEN PURITY
RED
YELLOW
GREEN
O2
Auto Shut - Down
Use Backup

19
Cabinet Filter
(located on
both sides of
concentrator)
FIGURE 1 - CABINET
FILTER LOCATION
CONCENTRATOR MAINTENANCE
NOTE: Normal maintenance is to be performed by the user or caregiver.
The following outlines normal maintenance procedures.
NOTE: The Invacare Concentrators are specifically designed to minimize
routine preventive maintenance at intervals of once per year. In places with
high dust or soot levels, maintenance may need to be performed more
often. Preventive maintenance must be performed at a minimum of one (1)
year in service to assure years of additional reliability. Only authorized or
factory-trained personnel should perform preventive maintenance on the
concentrator. Power should be disconnected before beginning preventive
maintenance on the Invacare concentrator.
A. CLEANING THE CABINET FILTERS
NOTE: There are two (2) cabinet
filters. One (1) is located on each
side of the cabinet (FIGURE 1).
1. Remove each filter and
CLEAN AT LEAST ONCE
A WEEK depending on
environmental conditions
(FIGURE 2).
NOTE: Environmental conditions that
may require more frequent cleaning of
the filters include but are not limited to:
high dust, smoking, air pollutants, etc.
2. Clean the cabinet filters with a vacuum cleaner or wash in warm
soapy water and rinse thoroughly (FIGURE 2).
3. Dry the filters thoroughly before reinstallation.
CAUTION
DO NOT operate the concentrator without the filters installed.
MAINTENANCE
FIGURE 2 - CLEANING THE CABINET FILTERS

20
CONCENTRATOR
TROUBLESHOOTING GUIDE
MAINTENANCE/TROUBLESHOOTING
B. CABINET
WARNING
UNPLUG the concentrator when cleaning. To avoid electrical
shock, DO NOT remove cabinet.
1. Clean the cabinet with a mild household cleaner and non-abrasive
cloth or sponge.
C. HUMIDIFIER
NOTE: To clean the oxygen humidifier, follow the instructions provided by
the manufacturer. If none are provided, follow these steps:
1. Clean the humidifier every day.
2. Wash it in soapy water and rinse it with a solution of ten (10)
parts water and one (1) part vinegar.
3. Rinse thoroughly with hot water and refill with distilled water to
the level shown on the humidifier.
WARNING
DO NOT overfill Humidifier Bottle.
SOLUTION:
1. Insert plug into outlet.
2. Inspect house circuit
breakers or fuses. If
problem recurs, use a
different outlet.
3. Call Service Provider.
1a. Remove and clean
cabinet filters.
1b. Move oxygen concentrator at
least 7.5 cm (3 in) away from
walls, draperies or furniture.
2. Do not use extension
cords. Move to another
electrical outlet or circuit.
3. Call Service Provider.
PROBABLE CAUSE:
Main Power Loss:
1. Power cord NOT
plugged In.
2. No power at outlet.
3. Tripped circuit breaker.
System Failure:
1. Unit overheating due
to blocked air intake.
2. Insufficient power at
outlet.
3. Internal repairs required.
SYMPTOM:
Alarm:
SHORT BEEPS,
LONG PAUSE
Concentrator
NOT operating,
power switch ON.
Beep......Beep......
Alarm:
CONTINUOUS
Concentrator
NOT operating,
Power Switch ON.
Beeeeeeeep....
