Invacare Platinum IRC5LXO2 User manual

PLATINUM 5
OXYGEN CONCENTRATORS STANDARD,
WITH/SENSO2® AND HOMEFILL II II
 II II
 II
CONCENTRADORES DE OXÍGENO
STANDARD, CON/SENSO2®Y HOMEFILL II
OPERATOR'S MANUAL - ENGLISH
MANUAL DE INSTRUCCIONES -
DOMESTIC SPANISH
DEALER: THIS MANUAL MUST BE GIVEN TO THE END USER.
USER: BEFORE USING THIS CONCENTRATOR, READ
THIS MANUAL AND SAVE FOR FUTURE REFERENCE.
DISTRIBUIDOR: ENTREGUE ESTE MANUAL
AL USUARIO FINAL.
USUARIO: ANTES DE OPERAR EL CONCENTRADOR,
LEA TOTALMENTE ESTE MANUAL Y CONSÉRVELO
COMO REFERENCIA PARA EL FUTURO.
Invacare 5 with/SensO2
Model IRC5LXO2
Invacare 5 con/SensO2
Modelo IRC5LXO2
Invacare 5
Model IRC5LX
Invacare 5
Modelo IRC5LX
PART ONE
CONCENTRATOR INFORMATION

2
PART ONE
SPECIAL NOTES
SAVE THESE INSTRUCTIONS
WARNING
DO NOT OPERATE THIS EQUIPMENT
WITHOUT FIRST READING AND
UNDERSTANDING THIS MANUAL. IF YOU
ARE UNABLE TO UNDERSTAND THE
WARNINGS, CAUTIONS, AND
INSTRUCTIONS, CONTACT INVACARE
TECHNICAL SERVICES BEFORE
ATTEMPTING TO USE THIS EQUIPMENT -
OTHERWISE SERIOUS INJURY OR
PROPERTY DAMAGE MAY RESULT.
SPECIAL NOTES
WARNING/CAUTION notices used in this anual apply to
hazards or unsafe practices which could result in personal
injury or property da age.
NOTICE
THE INFORMATION CONTAINED IN THIS DOCUMENT
IS SUBJECT TO CHANGE WITHOUT NOTICE.
DANGER
Users MUST NOT SMOKE while using this device. Keep
all atches, lighted cigarettes or other sources of
ignition out of the roo in which this product is located.
NO SMOKING signs should be pro inently displayed.
Textiles and other aterials that nor ally would not
burn are easily ignited and burn with great intensity in
oxygen enriched air. Failure to observe this warning can
result in severe fire, property da age and cause physical
injury or DEATH.

3PART ONE
TABLE OF CONTENTS
CONCENTRATOR
TABLE OF CONTENTS
PART ONE
SPECIAL NOTES ......................................... 2
SAFETY SUMMARY ..................................... 4
FEATURES..................................................... 7
SPECIFICATIONS ....................................... 8
HANDLING ................................................. 11
Unpacking ..................................................................... 11
Inspection ..................................................................... 11
Storage ........................................................................... 11
INTRODUCTION ....................................... 12
OPERATING INSTRUCTIONS ............... 12
Select a Location ......................................................... 12
Recommended End-User Guidelines
for Optimum Performance ................................ 12
Plug in Po er Cord ................................................... 13
Connect Humidifier (if so prescribed) ................ 13
Po er S itch ............................................................... 15

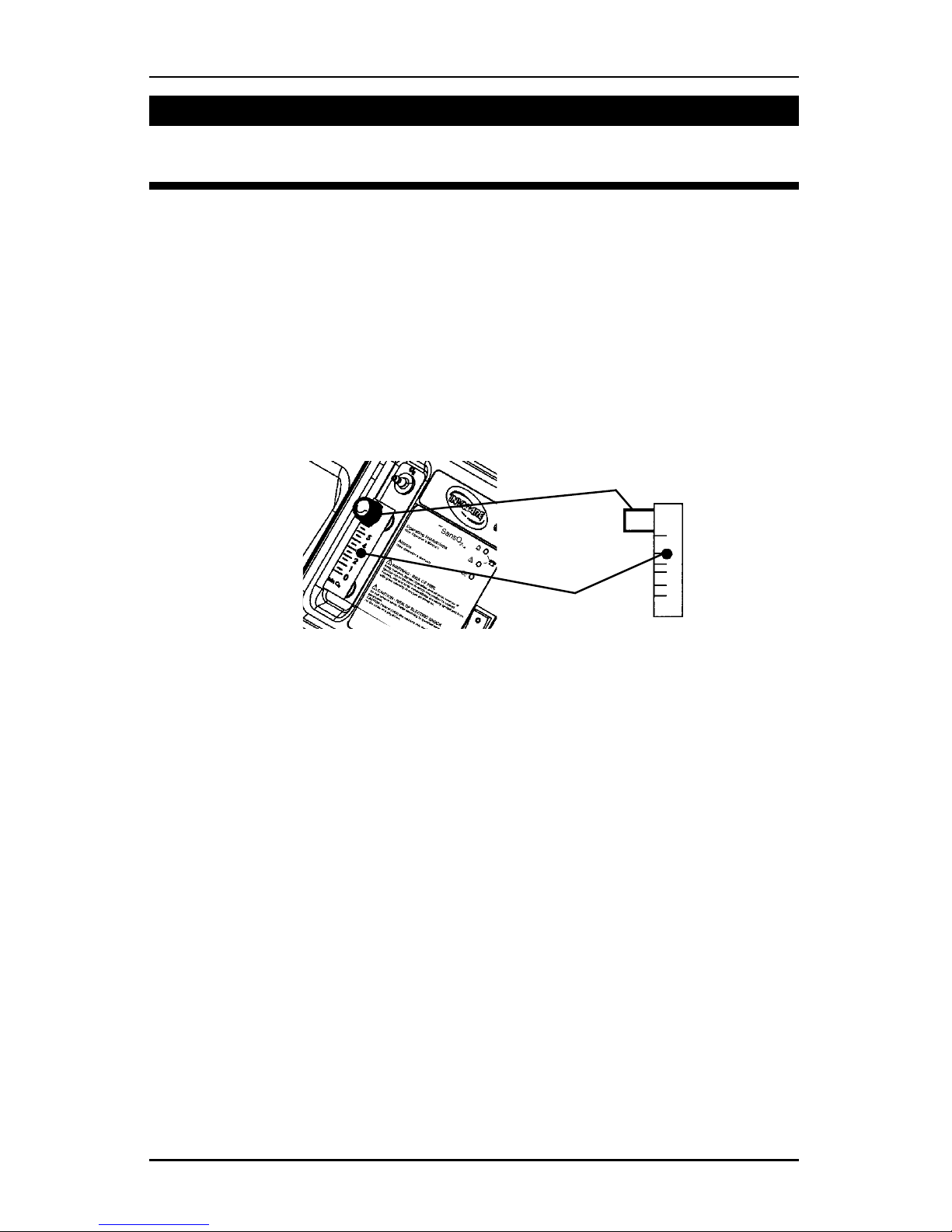

Flo rate ......................................................................... 15
Lo Flo alarm ...................................................... 16
SensO²®Oxygen Purity Indicator
(if the unit features the O² Sensor) ................. 16
Initial Startup of the Concentrator .................. 16
Explanation of Indicator Lights .......................... 17
Indicators (if the unit does not feature
the O² Sensor) ....................................................... 17
CONCENTRATOR MAINTENANCE .... 18

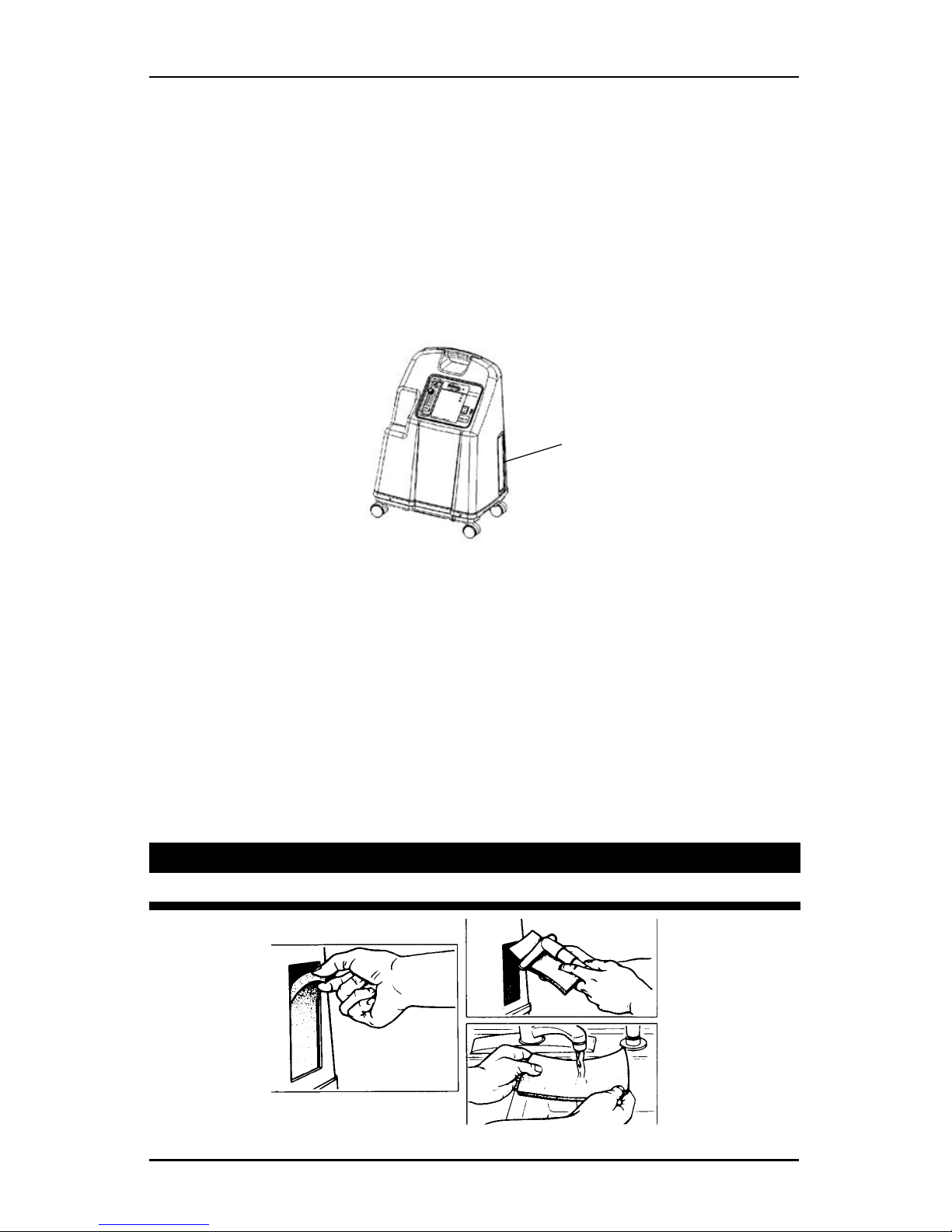

Cleaning the Cabinet Filters .................................... 18
Cabinet .......................................................................... 19
Humidifier ..................................................................... 19
TROUBLESHOOTING GUIDE ................. 19
PREVENTIVE MAINTENANCE
RECORD....................................................... 21
WARRANTY ............................................... 22
SPANISH OWNERS MANUAL
(MANUAL DEL USARIO) ......................... 24
CONCENTRATOR USE WITH
HOMEFILL II ..............................PART TWO

4
PART ONE
SAFETY SUMMARY
SAFETY SUMMARY
CAUTION
Caution: Federal law restricts this device to sale or rental
by or on order of a physician, or any other practitioner
licensed by the law of the State in which he/she practices
to use or order the use of this device.
Risk of electric shock. DO NOT disasse ble. Refer servicing
to qualified service personnel.
READ THE FOLLOWING INFORMATION BEFORE
OPERATING THIS PRODUCT.
WARNING
The use of oxygen therapy requires that special care be taken
to reduce the risk of fire. Any aterials that will burn in air,
and so e that will not, are easily ignited and burn rapidly in
high concentrations of oxygen. For safety concerns, it is
necessary that all sources of ignition be kept away fro the
product and preferably out of the roo in which it is being
used. NO SMOKING signs should be pro inently displayed.
A spontaneous and violent ignition ay occur if oil, grease
or greasy substances co e in contact with oxygen under
pressure. These substances MUST be kept away fro the
oxygen concentrator, tubing and connections, and all other
oxygen equip ent. DO NOT use any lubricants unless
reco ended by Invacare.
For opti u perfor ance, Invacare reco ends that
each concentrator be on and running for a ini u of 30
inutes at a ti e. Shorter periods of operation ay reduce
axi u product life.
If the concentrator has a da aged cord or plug, if it is not
working properly, if it has been dropped or da aged, or dropped
into water, call Qualified Service Personnel for exa ination
and repair.
Keep the cord away fro HEATED or HOT surfaces.
Do not ove or relocate concentrator by pulling on
the cord.
NEVER drop or insert any object into any opening.

5PART ONE
WARNING (CONTINUED)
NEVER block the air openings of the product or place it on a
soft surface, such as a bed or couch, where the air opening
ay be blocked. Keep the openings free fro lint, hair and
the like. Fill hu idifier with water to the level shown by the
anufacturer. DO NOT overfill.
Keep unit at least 3 inches away fro walls, draperies,
furniture, and the like.
Invacare reco ends that Crush-Proof oxygen tubing
(supplied by Invacare) be used with this product and NOT
exceed 50 ft. (15.2 ) in length.
MAINTENANCE
The Invacare Oxygen Concentrator was specifically designed to
ini ize routine preventive aintenance at intervals of once
per year. Only professionals of the healthcare field or persons
fully conversant with this process such as authorized or factory
trained personnel should perfor preventive aintenance or
perfor ance adjust ents on the oxygen concentrator.
RADIO FREQUENCY INTERFERENCE
Most electronic equip ent is influenced by Radio Frequency
Interference (RFI). CAUTION should be exercised with regard
to the use of portable co unications equip ent in the area
around such equip ent.
TO REDUCE THE RISK OF BURNS, ELECTROCUTION,
FIRE OR INJURY TO PERSONS.
Avoid using while bathing. If continuous usage is required by the
physicians prescription:
The concentrator ust be located in another roo at least
seven (7) feet fro the bath.
DO NOT co e in contact with the concentrator while wet.
DO NOT place or store product where it can drop into
water or other liquid.
SAFETY SUMMARY

6
PART ONE
SAFETY SUMMARY
WARNING (CONTINUED)
DO NOT reach for product that has fallen into water.
UNPLUG IMMEDIATELY.
A product should NEVER be left unattended when plugged in.
This device is to be used only in accordance with the prescrip-
tion of a physician and this Owners Manual. If at any ti e the
patient or attendant conclude that the patient is receiving an
insufficient a ount of oxygen, the supplier and/or physician
should be contacted i ediately. No adjust ents should be
ade to the flowrate unless prescribed by a physician.
Close supervision is necessary when this product is used
near children or physically-challenged individuals.
Use this product for only intended use as described in this
anual.
DO NOT use parts, accessories or adapters other than those
authorized by Invacare.
DO NOT connect the concentrator in parallel or series with
other oxygen concentrators or oxygen therapy devices.
Use of so e ad inistration accessories or certain hu idifiers
not specified for use with oxygen concentrator ay i pair the
perfor ance.
In certain circu stances oxygen therapy can be hazardous.
Invacare reco ends that you seek edical advice before using
this achine.
This equip ent is to be used as an oxygen supple ent and is not
considered life supporting or life sustaining.
Avoid creation of any spark near edical oxygen
equip ent. This includes sparks fro static electricity created
by any type of friction.
POLARIZED PLUG INSTRUCTION
As a safety feature, this appliance has a polarized plug (one blade
is wider than the other). This plug will fit in a polarized outlet
only one way. If the plug does not fit fully in the outlet, reverse
the plug. If it still does not fit, contact a qualified electrician. DO
NOT ATTEMPT TO DEFEAT THIS SAFETY FEATURE.

7PART ONE
FEATURES

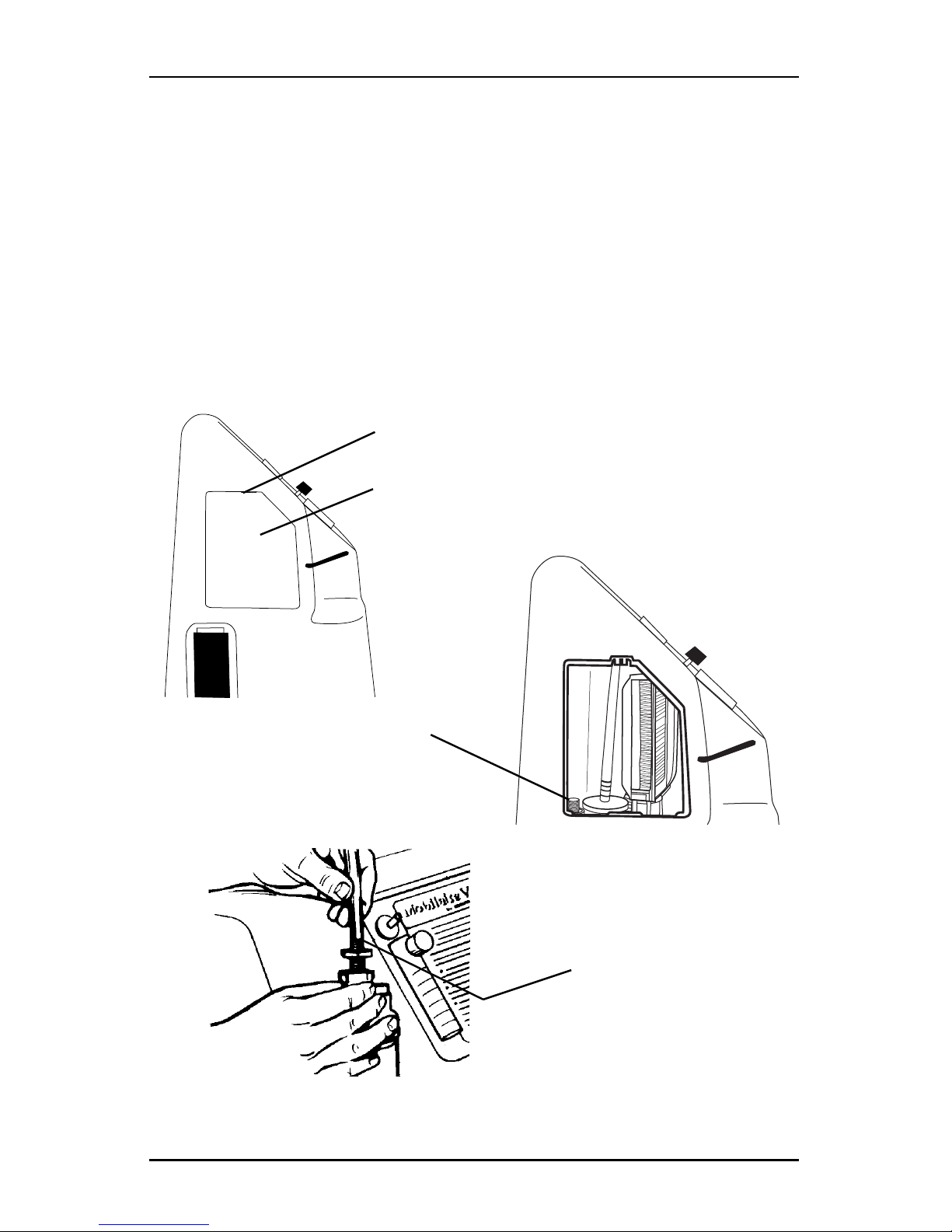

FRONT VIEW
Circuit Breaker
Cabinet Filter
(one of two shown)
Power Switch
Elapsed Time Meter
O ygen Purity Indicator Lights
(SensO2 model only)/ Fault
and Power Indicator Lights
(LX model only)
O ygen Outlet
ACCESSORIES (NOT SHOWN):
Remote Humidifier/Flo meter
Accessory - IRCRF5
PreciseRX Pediatric Humidifier/
Flo meter Accessory - IRCPF16
Venture® Homefill II home oxygen
compressor - IOH200
Power
Cord
Outlet
Fitting
NOTE: This outlet fitting is to be used only for
filling oxygen cylinders with the Venture
HomeFill II home oxygen compressor. The
outlet fitting does not ffect concentr tor
perform nce. Refer to the HomeFill II owner's
m nu l, p rt number 1100873 or P rt Two
of this m nu l, for connection nd oper ting
instructions. When not in use, the plug
provided with the concentr tor should be
inserted into the outlet fitting. For more
inform tion bout the HomeFill II, cont ct
your Inv c re de ler.
REAR VIEW
Flowmeter
FEATURES

8
PART ONE
SPECIFICATIONS
Electrical Require ents:
Rated Current Input:
Sound Level:
Altitude:
*Oxygen Output
Concentration Levels:
Maxi u Outlet Pressure:
120 VAC +10% (132 VAC/108 VAC),
60 Hz
4.3 A
50 dB Average
Up to 6,000 ft. (1828 meters) above sea level
without degradation of concentration levels.
rom 6,000 ft. (1828 meters) to 13,129 ft.
(4000 meters) below 90% efficiency.
ALL 5LXO2/5LX MODELS
95.6% to 87% at 1/2 to 5 L/min.
* Stated concentration levels
achieved after initial warm-up period
(approximately 30 minutes).
5 + 0.5 psi.
(34.5 + 3.45 kPa.)
SPECIFICATIONS

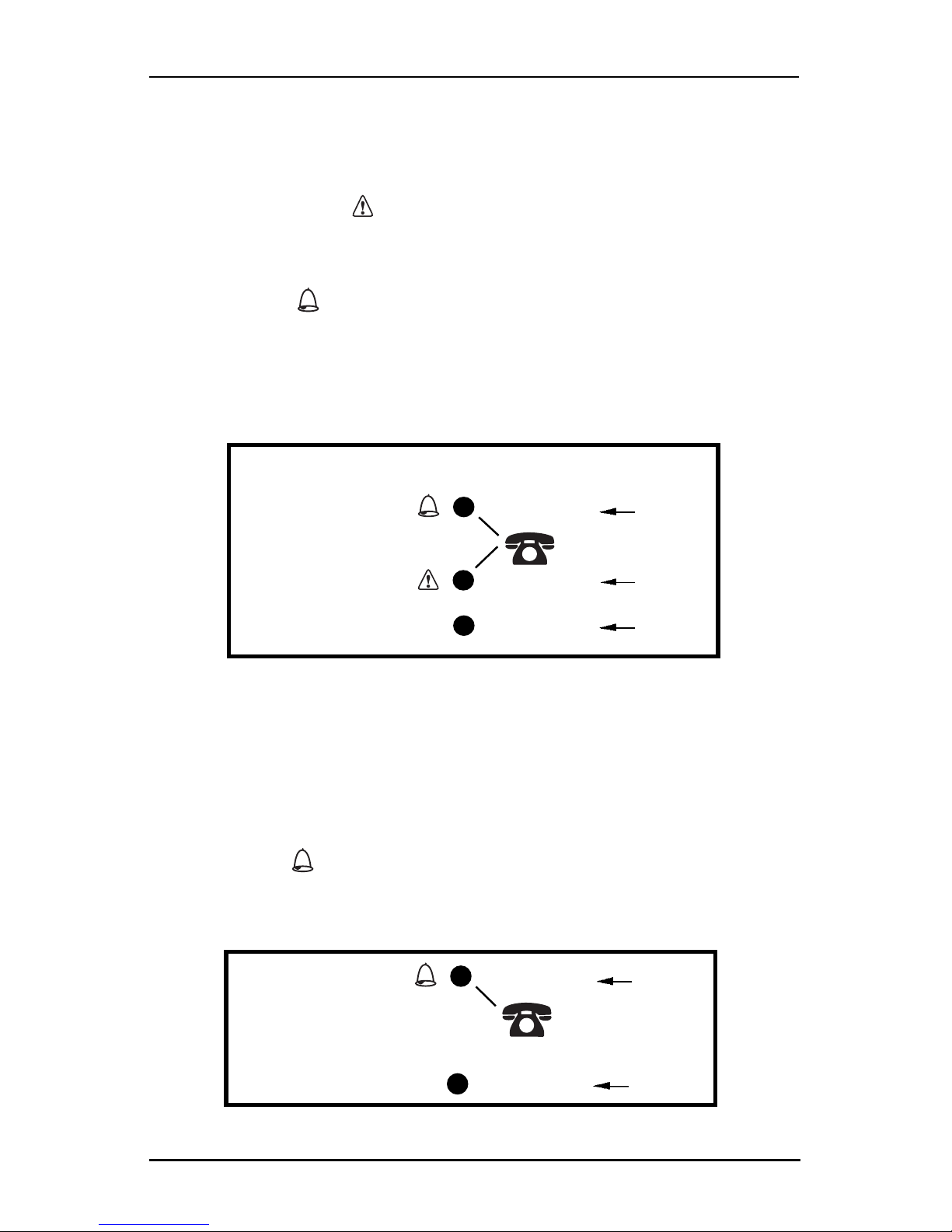

5LXO2 INDICATORS:
O2 Purity
SYSTEM FAILURE
Below 73%
73% to 85%
SYSTEM OKAY
Over 85%
ndicator Lights
RED - Contin o s A dible
Alarm Sieve-GARD
Compressor Sh tdown
YELLOW
GREEN
O2
Label
Symbol
5LX INDICATORS:
Status
SYSTEM FAILURE
SYSTEM OKAY
Indicator Lights
RED
Label
Symbol
I/O GREEN

9PART ONE
Flow Range:
Low Flow Alar :
Average Power
Consu ption:
Pressure Relief
Mechanis Operational at:
Change in axi u
reco ended flow
when back pressure
of 7kPa is applied:
Filters:
Safety Syste :
Width:
Height:
Depth:
Weight:
Shipping Weight:
SPECIFICATIONS (CONTINUED)
1/2 - 5 L/min.
For flo rates less than 1 L/min.,
e recommend the use of the Invacare
Pediatric Flo meter IRCPF16 Accessory.
0 L/min. to 0.5 L/min., Rapid Audible
Alarm Beeping (No Accessories Connected)
400W
35 psi + 3.5 psi (241 kPa + 24.1 kPa)
0.7 L/min.
Cabinet (2), Outlet HEPA and
Compressor Inlet.
Current overload or line surge shutdo n.
High temperature compressor shutdo n.
High Pressure Alarm /compressor shutdo n.
Lo Pressure Alarm /compressor shutdo n.
Battery Free Po er Loss Alarm.
SensO2 Oxygen System (SensO2 Model)
Lo Flo Alarm.
18 3/8 +/- 3/8 (46.7 cm ± 1 cm)
26 3/8 +/- 3/8 (67.0 cm ± 1 cm)
14 3/8 +/- 3/8 (36.5 cm ± 1 cm)
51 lbs. +/- 1 lb (23.2 kg +/- 0.5 kg)
58 lbs. +/- 1 lb (26.3 kg +/- 0.5 kg)
SPECIFICATIONS

10
PART ONE
SPECIFICATIONS
SPECIFICATIONS (CONTINUED)
Operating A bient
Te perature:
Exhaust:
Oxygen Output:
Cabinet:
Regulatory Listing:
Electrical:
Place ent:
Tubing:
Relative Hu idity:
Ti e of Operation:
Reco ended
Storage and Shipping
Te perature:
50°F - 95°F (10°C - 35°C) at 20-60%
relative humidity
Less than Ambient + 35°F (+19°C).
Less than Ambient + 4°F (+2°C).
Impact Resistant flame-retardant plastic
cabinet that conforms to UL 94-V0.
DOUBLE INSULATED PRODUCT
ETL certified complying ith UL 1097
ETL certified to CSA C22.2 No. 68
No extension cords.
No closer than 3-inches from any all,
furniture, draperies, or similar surfaces.
Crush-Proof Tubing - 7 ft. (2.1m) cannula
ith a maximum 50 ft. (15.2 m) extension
(DO NOT PINCH).
20 to 60%
Up to 24 hours per day.
-20°F to 150°F ( -29°C to 65°C),
at 15-95% relative humidity

11 PART ONE
HANDLINGHANDLING
HANDLINGHANDLING
HANDLING
The concentrator should al ays be kept in the upright position to prevent
cabinet damage hile being transported. The shipping container has been
designed to assure maximum protection of the concentrator. If the
concentrator is to be reshipped by common carrier, additional cartons are
available from Invacare.
UNPACKING
1. Check for any obvious damage to the carton or its contents. If
damage is evident, notify the carrier, or your local dealer.
2. Remove all loose packing from the carton.
3. Carefully remove all the components from the carton.
FIGURE 1 - PAC AGING
NOTE: Unless the oxygen concentr tor is to be used immedi tely, ret in
cont iners nd p cking m teri ls for stor ge until use of the concentr tor is required.
INSPECTION
1. Examine exterior of the oxygen concentrator for nicks, dents,
scratches or other damages. Inspect all components.
STORAGE
1. Store the repackaged oxygen concentrator in a dry area.
2. DO NOT place other objects on top of the repackaged concentrator.
HANDLING

12
PART ONE
INTRODUCTION
Your oxygen concentrator is intended for individual use in the home. It is an
electronically operated device that separates oxygen from room air. It provides
high concentration of oxygen directly to you through a nasal cannula. Clinical
studies have documented that oxygen concentrators are therapeutically
equivalent to other types of oxygen delivery systems.
Your provider ill sho you ho to use your oxygen concentrator.
He/She should be contacted ith any questions or problems regarding
your oxygen concentrator. This o ners manual ill tell you about your
concentrator and ill serve as a reference as you use your concentrator.
OPERATING INSTRUCTIONS
SELECT A LOCATION
You may select a room in your house here using your oxygen
concentrator ould be most convenient. Your concentrator can be
easily rolled from room to room on its casters.
Your oxygen concentrator ill perform best hen operated under
the follo ing conditions. Usage in environments other than those
described may result in the need for increased equipment mainte-
nance. The air intake of the unit should be located in a ell ventilated
area to avoid airborne pollutants and/or fumes.
RECOMMENDED END-USER GUIDELINES FORRECOMMENDED END-USER GUIDELINES FOR
RECOMMENDED END-USER GUIDELINES FORRECOMMENDED END-USER GUIDELINES FOR
RECOMMENDED END-USER GUIDELINES FOR
OPTIMUM PERFORMANCE:OPTIMUM PERFORMANCE:
OPTIMUM PERFORMANCE:OPTIMUM PERFORMANCE:
OPTIMUM PERFORMANCE:
Temperature: 50° - 95° (10°C - 35°C)
Electrical: No extension cords.
Placement: No closer than 3-inches from the wall,
furniture, draperies, or similar surfaces.
Tubing and Cannula: 7 ft. cannula with a maximum 50 ft. of
Crush-Proof Tubing (DO NOT PINCH .
Environment: Smoke and soot-free. No confined spaces
(Example: NO closets .
Relative Humidity: 20 to 60%
Time of Operation: Up to 24 hours per day.
Flow Rate From 1/2 L/min. to 5 L/min.
or flow rates less than 1 L/min., use the
Pediatric lowmeter Accessory.
Minimum OperatingTime: 30 Minutes
INTRODUCTION/ OPERATING INSTRUCTIONS

13 PART ONE
WARNING
DO NOT overfill hu idifier.
Replace the hu idifier cap and securely tighten.
DO NOT reverse the oxygen input and output connections.
Water fro the hu idifier bottle WILL travel through the
cannula back to the patient.
NOTE: Ensure th t your concentr tor is t le st (3) three-inches w y from
w lls, dr peries or furniture to ssure sufficient ir flow. Avoid deep pile c rpets
nd he ters, r di tors or hot ir registers.
PLUG IN POWER CORD
1. Plug in po er cord to an electrical outlet.
CONNECT HUMIDIFIER (IF SO PRESCRIBED)
1. Fill humidifier ith distilled ater to the level indicated by the
manufacturer. (Recommended humidifiers: Invacare 3260, 003-40,
or 006-40).
OPERATING INSTRUCTIONS
2. Place the humidifier in the humidifier compartment.
FIGURE 3 - HUMIDIFIER COMPARTMENT
Humidifier Bottle
FIGURE 2 - FILLING THE HUMIDIFIER
Humidifier Bottle

14
PART ONE
3. Remove the Filter Access Door located on the side of the
concentrator. Insert a flathead scre driver in the plate groove
on the top edge of the Filter Access Door and gently pry the
Filter Access Door open (FIGURE 4, DETAIL A).
4. The humidifier adapter is next to the inlet filter. Pull up and remove
the humidifier bottle adapter (FIGURE 4, DETAIL B).
5. Attach it to the humidifier by turning the ing nut on the humidifier
bottle counterclock ise until it is securely fastened (FIGURE 4,
DETAIL C).
FIGURE 4 - ATTACHING THE HUMIDIFIER
BOTTLE ADAPTER
OPERATING INSTRUCTIONS
Humidifier Bottle
Adapter
Filter Access Door
Plate Groove (Insert Flat
Head Screwdriver Here)
Humidifier Bottle
Adapter
Filter
Access
Door
DETAIL A
DETAIL B
DETAIL C

15 PART ONE
OPERATING INSTRUCTIONS
POWER SWITCH
1. Press po er s itch to the ON position. All the panel lights and
the audible alarm ill come on for one second, indicating that the
unit is functioning properly. After one second, the only green
SYSTEM OK/POWER light ill stay on.
FLOWRATE
1. Turn the flo rate knob to the setting prescribed by your
physician or therapist.
FIGURE 6 - POWER SWITCH
On/Off (I/O)
Power Switch
WARNING
For opti u perfor ance, Invacare reco ends that
concentrator be operated a ini u of 30 inutes
during any use. Shorter periods of operation ay
adversely affect the life of the product.
FIGURE 5 - ATTACHING THE OXYGEN TUBING
7. Attach the cannula/patient supply tubing to the humidifier bottle outlet.
8. After assembly, ensure that oxygen is flo ing through the cannula.
O ygen
Tubing
O ygen Outlet
Connector
Humidifier Outlet
6. Attach oxygen tubing from the humidifier bottle to oxygen outlet
connector on the oxygen concentrator.

16
PART ONE
INITIAL STARTUP OF THE CONCENTRATOR
NOTE: Concentr tor m y be used during the initi l st rt w rm-up time
( pproxim tely 30 min.) while w iting for the O2 purity to re ch m ximum.
When the unit is turned on, the green light ill come on (SYSTEM OK / O2
greater than 85%). After 5 minutes, the oxygen sensor ill be operating
normally and ill control the indicator lights depending on oxygen concentra-
tion values. The explanation of the indicator light functions are as follo s.
OPERATING INSTRUCTIONS
SENSO2 OXYGEN PURITY INDICATOR
(IF YOUR UNIT FEATURES THE O2 SENSOR FEATURE)
This feature monitors the purity of oxygen generated by the oxygen
concentrator. If purity falls belo factory preset standards, indicator
lights on the control panel ill illuminate.
NOTE: The use of some ccessories such s the pedi tric flowst nd nd the
Homefill II compressor will de ctiv te the Low Flow Al rm.
WARNING
DO NOT change the L/ in. setting on the flow eter unless
a change has been prescribed by your physician or therapist.
NOTE: To properly re d the flowmeter, loc te the prescribed flowr te line on
the flowmeter. Next, turn the flow knob until the b ll rises to the line. Now,
center the b ll on the L/min. line prescribed (FIGURE 7).
2. If the flo rate on the flo meter ever falls belo 0.5L/min. for
more than about one minute, the LOW FLOW ALARM ill be
triggered. This is a rapid beeping of the audible alarm. Check your
tubing or accessories for blocked or kinked tubing or a defective
humidifier bottle. After rated flo is restored, more than 0.5 L/
min., the LOW FLOW audible alarm ill go off.
FIGURE 7 - ADJUSTING THE FLOWRATE-
PLATINUM 5 WITH SENSO2 SHOWN
Ball
Flow Knob

17 PART ONE
EXPLANATION OF OXYGEN PURITY INDICATOREXPLANATION OF OXYGEN PURITY INDICATOR
EXPLANATION OF OXYGEN PURITY INDICATOREXPLANATION OF OXYGEN PURITY INDICATOR
EXPLANATION OF OXYGEN PURITY INDICATOR
LIGHTS (FIGURE 8):LIGHTS (FIGURE 8):
LIGHTS (FIGURE 8):LIGHTS (FIGURE 8):
LIGHTS (FIGURE 8):
GREEN LIGHT ( ) - Normal Operation
YELLOW LIGHT ( ) - Call Supplier IMMEDIATELY. You may
continue to use the concentrator unless instructed other ise by your
supplier. Be certain that BACKUP OXYGEN is nearby.
RED LIGHT ( )- Total unit shutdo n. S itch IMMEDIATELY
to BACKUP OXYGEN supply. Call Supplier IMMEDIATELY.
GREEN LIGHT - ith YELLOW LIGHT FLASHING - Call
Supplier IMMEDIATELY. Oxygen sensor malfunctioning; you may
continue to use the concentrator.
O
2
FIGURE 8 - O2 DISPLAY CONTROL PANEL
Call Supplier
Normal
Below Normal
OXYGEN PURITY
RED
YELLOW
GREEN
O2
Auto Shut - Down
Use Backup
INDICATORS- IF YOUR UNIT DOES NOT
FEATURE THE O2 SENSOR
LX MODELS INDICATOR LIGHT EXPLANATION
(FIGURE 9):
RED LIGHT ( )- Total Unit Shut-Do n. S itch IMMEDIATELY
to a BACK-UP OXYGEN supply. Call Supplier IMMEDIATELY.
GREEN LIGHT (I/O)- On/Off. System okay.
Call Supplier
Normal
RED
GREEN
Auto Shut - Down
Use Backup
I/O
FIGURE 9 - DISPLAY CONTROL PANEL
OPERATING INSTRUCTIONS

18
PART ONE
Cabinet Filter
(located on both sides
of concentrator)
NOTE: There re two (2) c binet filters. One (1) is loc ted on e ch side of
the c binet (FIGURE 1).
1. Remove each filter and CLEAN AT LEAST ONCE A WEEK
depending on environmental conditions (FIGURE 2).
CONCENTRATOR MAINTENANCE
MAINTENANCE
FIGURE 1 - CABINET FILTER LOCATION
NOTE: The Inv c re Concentr tors re specific lly designed to minimize
routine preventive m inten nce t interv ls of once per ye r. In pl ces with high
dust or soot levels, m inten nce m y need to be performed more often. The
following must be performed t minimum of one (1) ye r in service to ssure
ye rs of ddition l reli bility. Only uthorized or f ctory-tr ined personnel should
perform preventive m inten nce on the concentr tor. Power should be discon-
nected before beginning preventive m inten nce on the Inv c re concentr tor.
CLEANING THE CABINET FILTERS
NOTE: Environment l conditions th t m y require more frequent cle ning
of the filters include but re not limited to: high dust, smoking, ir pollut nts, etc.
2. Clean the cabinet filters ith a vacuum cleaner or ash in
arm soapy ater and rinse thoroughly (FIGURE 2).
3. Dry the filters thoroughly before reinstallation.
CAUTION
DO NOT operate the concentrator without the filters installed.
FIGURE 2 - CLEANING THE CABINET FILTERS

19 PART ONE
CABINET
WARNING
UNPLUG the concentrator when cleaning. To avoid
electrical shock, DO NOT re ove cabinet.
1. Clean the cabinet ith a mild household cleaner and non-abrasive
cloth or sponge.
HUMIDIFIER
NOTE: To cle n the oxygen humidifier, follow the instructions provided by
the m nuf cturer. If none re provided, follow these steps:
1. Clean the humidifier every day.
2. Wash it in soapy ater and rinse it ith a solution of ten (10) parts
ater and one (1) part vinegar.
3. Rinse thoroughly ith hot ater and refill ith distilled ater to
the level sho n on the humidifier.
WARNING
DO NOT overfill Hu idifier Bottle.
SOLUTION:
1. Insert plug into outlet.
2. Inspect house circuit
breakers or fuses. If problem
recurs, use a different outlet.
3. Call Service Provider.
1a. Remove and clean
cabinet filters.
1b. Move oxygen concentrator
at least three (3) inches
away from walls, draperies
or furniture.
2. Do not use extension
cords. Move to another
electrical outlet or circuit.
3. Call Service Provider.
CONCENTRATOR
TROUBLESHOOTING GUIDE
PROBABLE CAUSE:
Main Power Loss:
1. Power cord NOT
plugged In.
2. No power at outlet.
3. Tripped circuit breaker.
System Failure:
1. Unit overheating due
to blocked air intake.
2. Insufficient power at
outlet.
3. Internal repairs
required
SYMPTOM:
Alarm:
SHORT BEEPS,
LONG PAUSE
Concentrator
NOT operatin ,
power switch ON.
Beep......Beep......
Alarm:
CONTINUOUS
Concentrator
NOT operating,
Power Switch ON.
Beeeeeeeep....
MAINTENANCE/TROUBLESHOOTING

20
PART ONE
TROUBLESHOOTING
1. Internal repairs required. 1. Call Service Provider.
GREEN LIGHT with
YELLOW Li ht
Flashin .
Alarm:
RAP D
Beep....Beep...
Beep...Beep
LOW FLOW ALARM
1a. Kinked or blocked
tubing, cannula or
humidifier.
1b. lowmeter set at
0.5 L/min. or less.
1a. Inspect for kinks or
blockages. Correct,
clean or replace item.
Once corrected, turn
power O for 60
seconds and then turn
power back ON.
1b. Reset flowmeter to
prescribed flowrate. If
prescribed flowrate is
below 0.5 L/min., use
the Pediatric
lowmeter IRCP 16.
SYMPTOM:
YELLOW or RED
LIGHT Illuminated.
Alarm:
CONTINUOUS
On red li ht only.
PROBABLE CAUSE:
1. Low oxygen purity.*
2. Kinked or blocked
tubing, cannula or
humidifier.*
3. lowmeter set at
1/2 L/min. or less.*
4. Unit overheating
due to blocked air
intake.
5. Insufficient power at
outlet.
6. Internal repairs required.
SOLUTION:
1. Clean or Replace filters.
2. Inspect for kinks or
blockages. Correct,
clean or replace item.
Once corrected, turn
power O for 60
seconds and then turn
power back ON.
3. Check flowmeter is set
to 1.0 L/min. or more.
Refer to Recommended
End-User Guidelines in
the Operating
Instructions of this
manual.
4.a.Remove and clean
cabinet filters.
4b. Move concentrator at
least 3- inches from
walls, draperies, and
furniture.
5. Do not use extension
cords. Move to another
electrical outlet or
circuit.
6. Call Service Provider.
* Only applies to
SensO2 models.
