Invacare Solara jr. Manual

Owner's Operator And Maintenance Manual
DEALER: THIS MANUAL MUST BE GIVEN TO
THE USER OF THE WHEELCHAIR.
USER: BEFORE USING THIS WHEELCHAIR,
READ THIS MANUAL AND SAVE FOR FUTURE
REFERENCE.
Solara jr.
All manuals and user guides at all-guides.com
all-guides.com

Solara jr. 2 Part No. 1106628

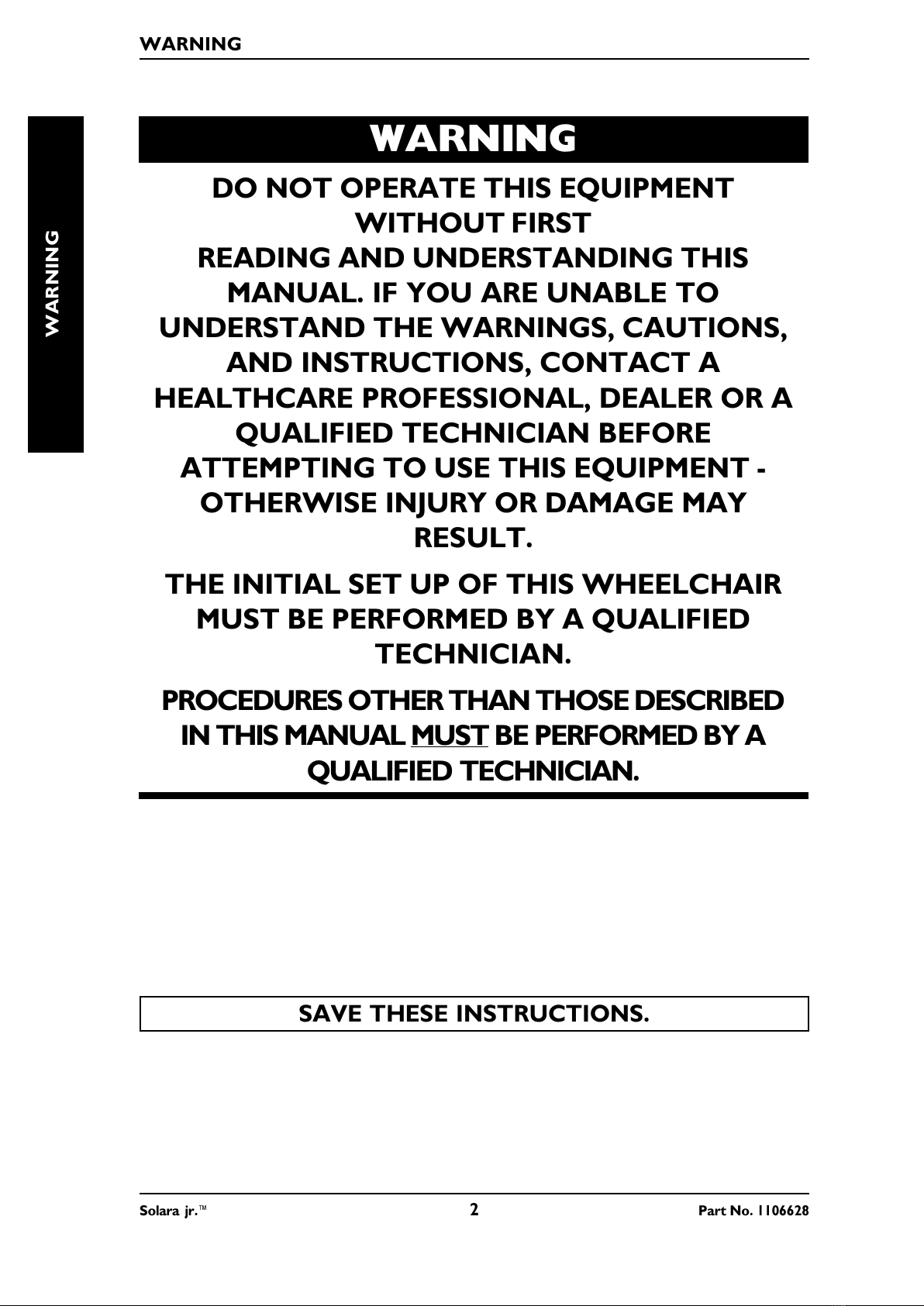

WARNING
SAVE THESE INSTRUCTIONS.
WARNING
DO NOT OPERATE THIS EQUIPMENT
WITHOUT IRST
READING AND UNDERSTANDING THIS
MANUAL. I YOU ARE UNABLE TO
UNDERSTAND THE WARNINGS, CAUTIONS,
AND INSTRUCTIONS, CONTACT A
HEALTHCARE PRO ESSIONAL, DEALER OR A
QUALI IED TECHNICIAN BE ORE
ATTEMPTING TO USE THIS EQUIPMENT -
OTHERWISE INJURY OR DAMAGE MAY
RESULT.
THE INITIAL SET UP O THIS WHEELCHAIR
MUST BE PER ORMED BY A QUALI IED
TECHNICIAN.
PROCEDURES OTHER THAN THOSE DESCRIBED
IN THIS MANUAL MUST BE PER ORMED BY A
QUALI IED TECHNICIAN.
WARNING
All manuals and user guides at all-guides.com

Part No. 1106628 3Solara jr.

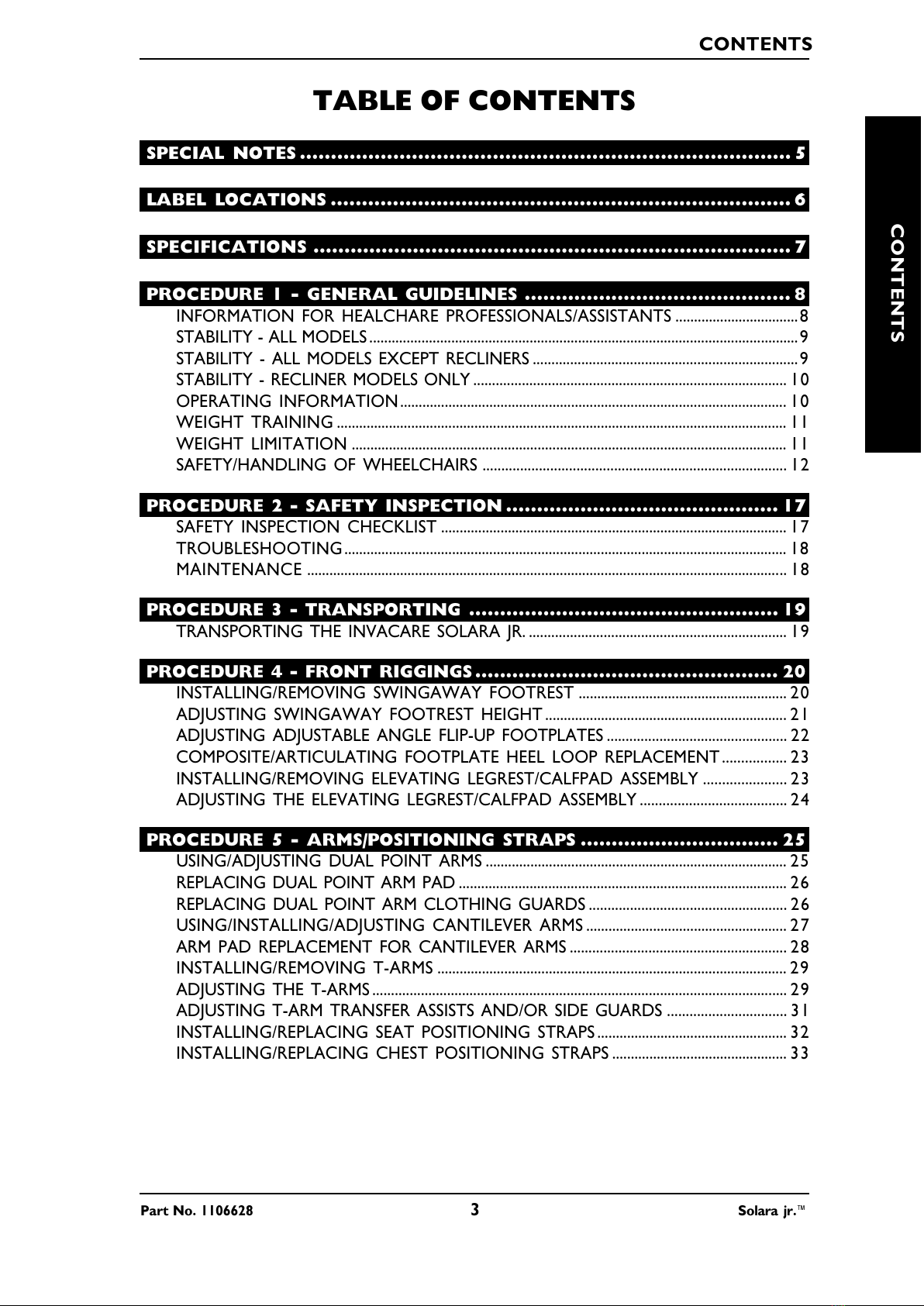

CONTENTS
TABLE OF CONTENTS
SPECIAL NOTES ............................................................................... 5
LABEL LOCATIONS .......................................................................... 6
SPECIFICATIONS ............................................................................. 7
PROCEDURE 1 - GENERAL GUIDELINES ........................................... 8
INFORMATION FOR HEALCHARE PROFESSIONALS/ASSISTANTS .................................8
STABILITY - ALL MODELS...................................................................................................................9
STABILITY - ALL MODELS EXCEPT RECLINERS .......................................................................9
STABILITY - RECLINER MODELS ONLY .................................................................................... 10
OPERATING INFORMATION........................................................................................................ 10
WEIGHT TRAINING ......................................................................................................................... 11
WEIGHT LIMITATION ..................................................................................................................... 11

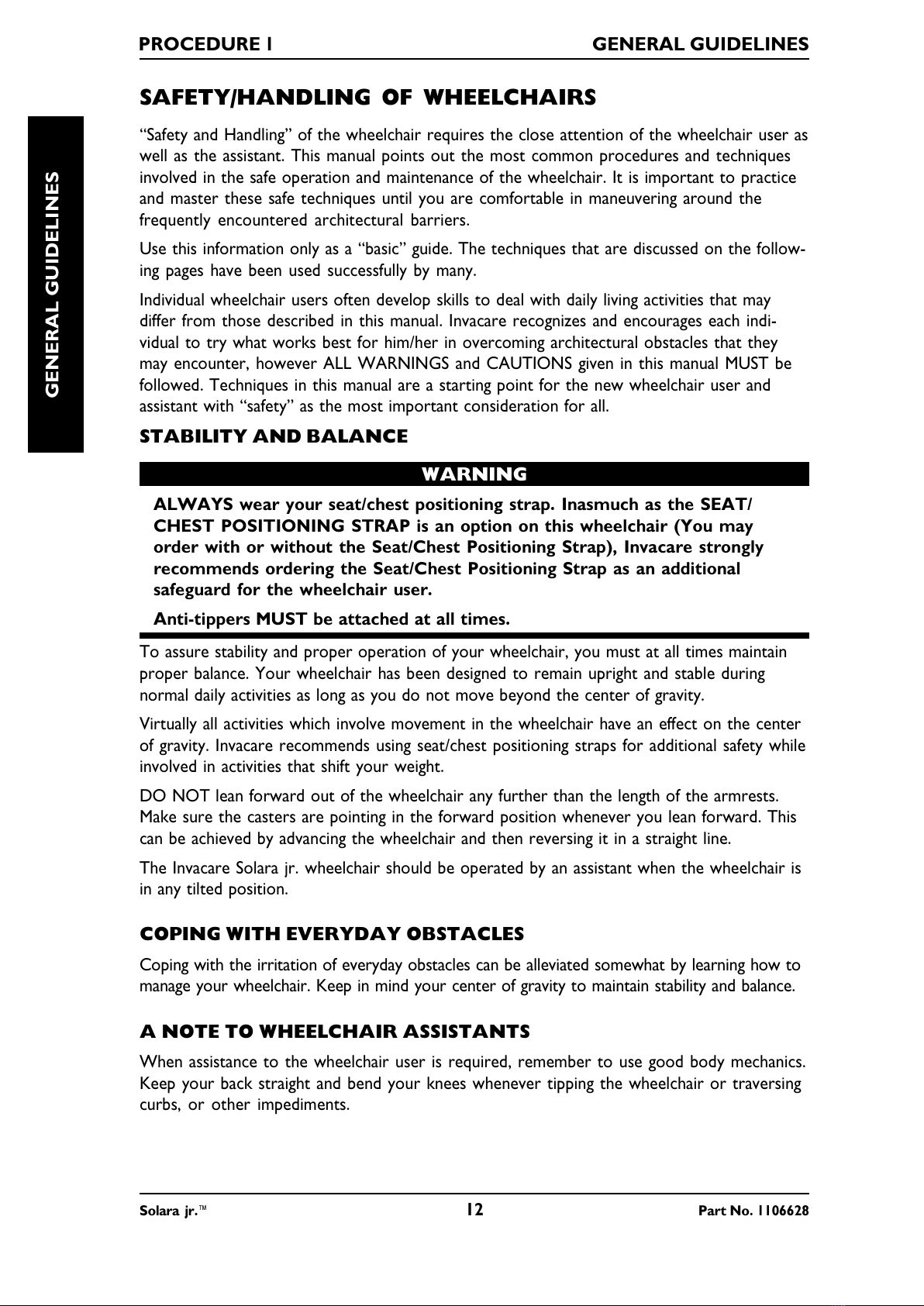

SAFETY/HANDLING OF WHEELCHAIRS ................................................................................. 12
PROCEDURE 2 - SAFETY INSPECTION ............................................ 17
SAFETY INSPECTION CHECKLIST ............................................................................................. 17

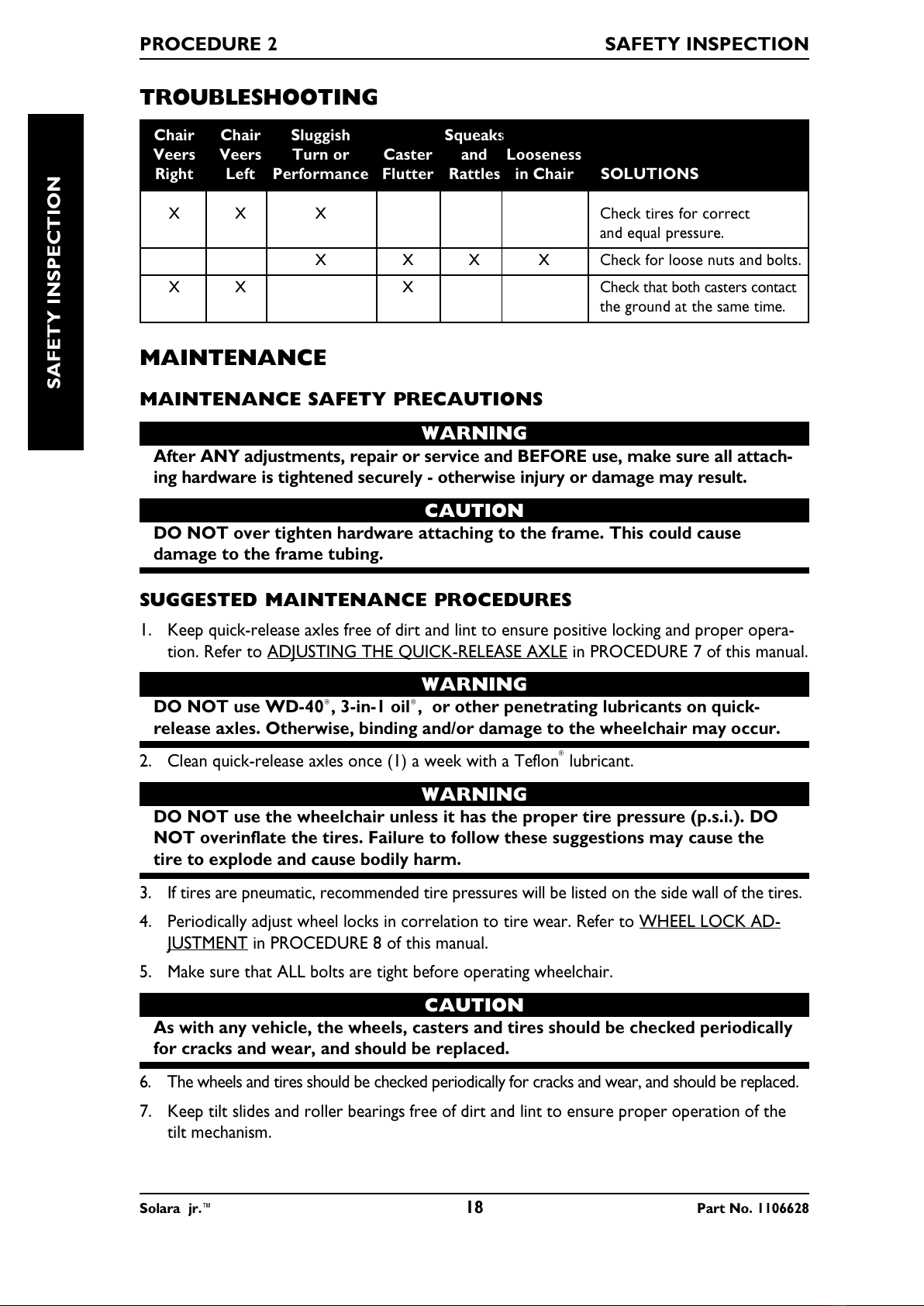

TRO BLESHOOTING....................................................................................................................... 18
MAINTENANCE ................................................................................................................................. 18

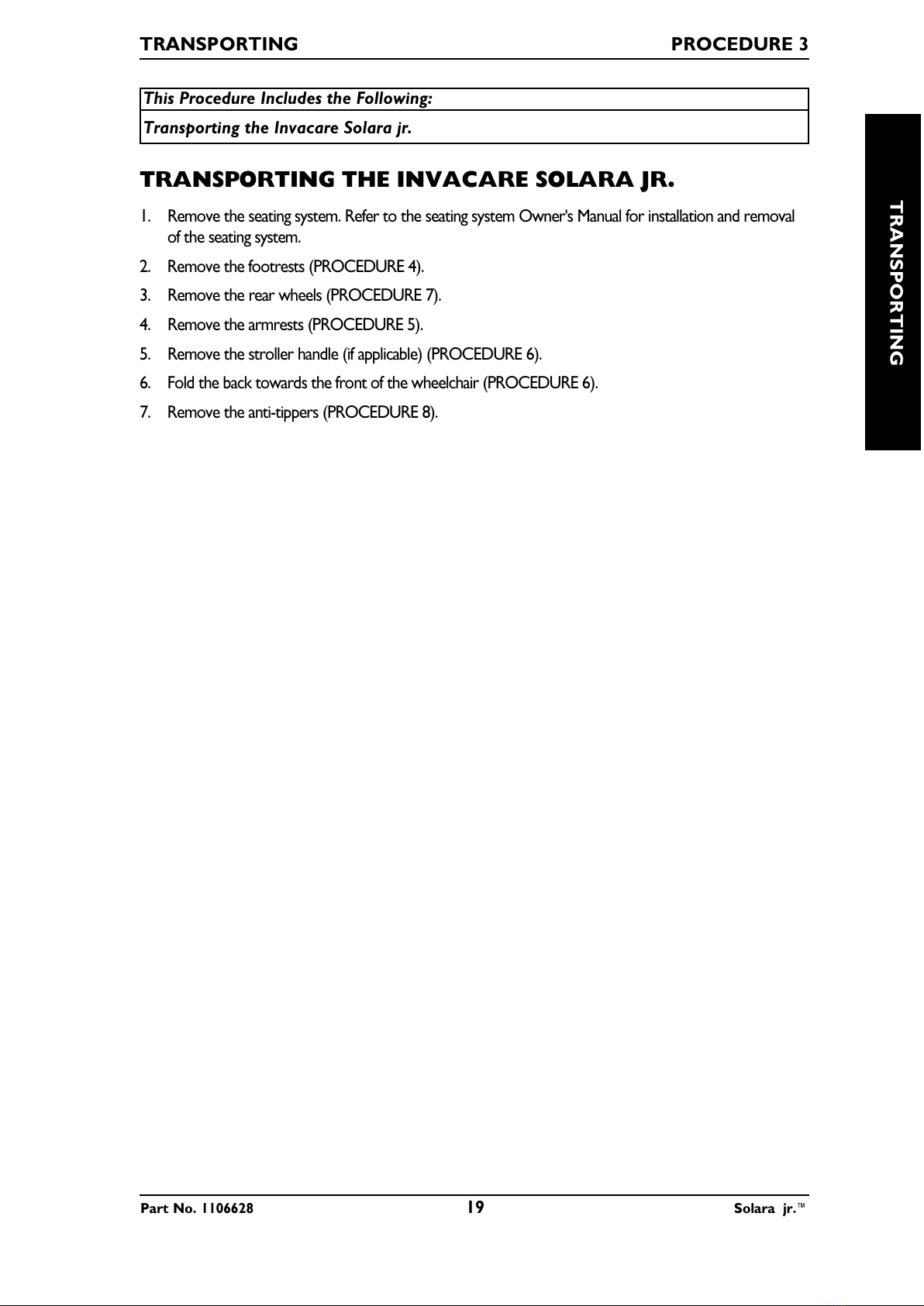

PROCEDURE 3 - TRANSPORTING .................................................. 19
TRANSPORTING THE INVACARE SOLARA JR. ..................................................................... 19

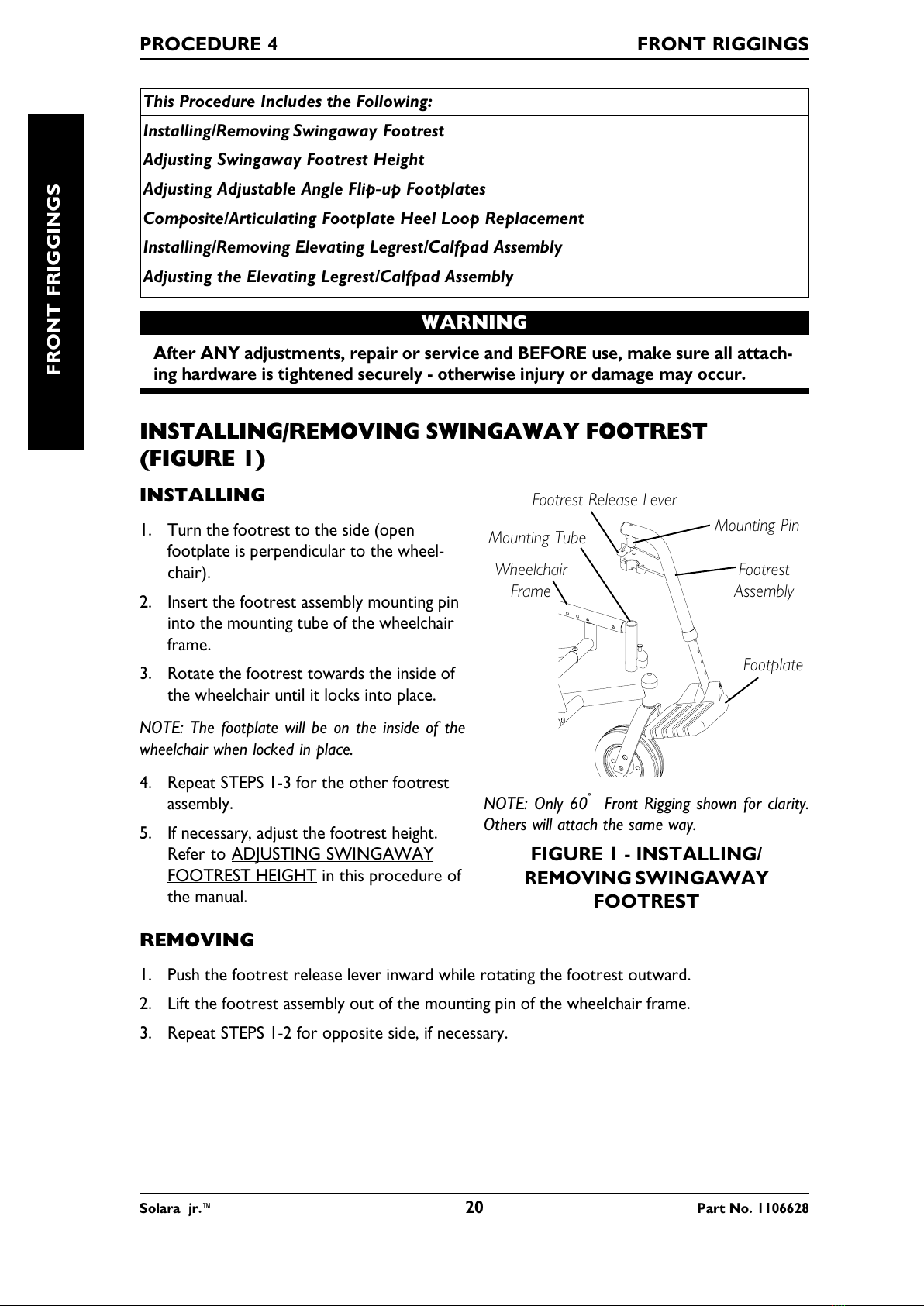

PROCEDURE 4 - FRONT RIGGINGS ................................................. 20
INSTALLING/REMOVING SWINGAWAY FOOTREST ........................................................ 20
ADJ STING SWINGAWAY FOOTREST HEIGHT ................................................................. 21
ADJ STING ADJ STABLE ANGLE FLIP- P FOOTPLATES ................................................ 22
COMPOSITE/ARTIC LATING FOOTPLATE HEEL LOOP REPLACEMENT................. 23
INSTALLING/REMOVING ELEVATING LEGREST/CALFPAD ASSEMBLY ...................... 23
ADJ STING THE ELEVATING LEGREST/CALFPAD ASSEMBLY ....................................... 24
PROCEDURE 5 - ARMS POSITIONING STRAPS ................................ 25
SING/ADJ STING D AL POINT ARMS ................................................................................. 25
REPLACING D AL POINT ARM PAD ........................................................................................ 26
REPLACING D AL POINT ARM CLOTHING G ARDS ..................................................... 26
SING/INSTALLING/ADJ STING CANTILEVER ARMS ...................................................... 27
ARM PAD REPLACEMENT FOR CANTILEVER ARMS .......................................................... 28
INSTALLING/REMOVING T-ARMS .............................................................................................. 29
ADJ STING THE T-ARMS ............................................................................................................... 29
ADJ STING T-ARM TRANSFER ASSISTS AND/OR SIDE G ARDS ................................ 31
INSTALLING/REPLACING SEAT POSITIONING STRAPS................................................... 32
INSTALLING/REPLACING CHEST POSITIONING STRAPS ............................................... 33
CONTENTS
All manuals and user guides at all-guides.com

Solara jr. 4 Part No. 1106628
CONTENTS
PROCEDURE 6 - BACK SEAT .......................................................... 34
FOLDING/ NFOLDING BACK ASSEMBLY............................................................................... 34
INSTALLING/REMOVING STROLLER HANDLES ................................................................... 34
INSTALLING/REMOVING/ADJ STING THE ADJ STABLE ANGLE
STROLLER HANDLES................................................................................................................... 35
SING THE TELESCOPING BACK CANES.............................................................................. 37
INSTALLING/REPLACING THE BACK PHOLSTERY ......................................................... 38
INSTALLING/REMOVING A SEATING SYSTEM ..................................................................... 39
REMOVING/INSTALLING THE SPREADER BAR..................................................................... 39
INSTALLING THE SEAT C SHION............................................................................................. 40
PROCEDURE 7 - WHEELS FORKS ..................................................... 41
REMOVING/INSTALLING REAR WHEELS ................................................................................ 41
ADJ STING THE Q ICK RELEASE AXLE ................................................................................ 42
SEAT TO FLOOR HEIGHT ADJ STMENT ................................................................................ 42
ADJ STING FORKS ........................................................................................................................... 43
PROCEDURE 8 - WHEEL LOCKS ANTI-TIPPERS ............................... 44
ADJ STING WHEEL LOCKS ......................................................................................................... 44
SING THE WHEEL LOCKS .......................................................................................................... 45
INSTALLING/ADJ STING ANTI-TIPPERS ................................................................................. 46
PROCEDURE 9 - TILT RECLINE ....................................................... 47
ENGAGING TILT-IN-SPACE/RECLINER OPERATION........................................................ 47
ADJ STING TILT RELEASE CABLES............................................................................................ 50
POSITIONING TILT LOCKING COLLARS ................................................................................ 51
REPLACING BACK OR HEADREST PHOLSTERY - RECLINER MODELS ONLY .... 52
ADJ STING THE BACK HEIGHT - RECLINER MODELS ONLY ...................................... 53
PROCEDURE 10 - CONTRACTURE FOOTPLATE ............................... 54
CONTRACT RE ASSEMBLY ANGLE ADJ STMENT ........................................................... 54
SING THE OPTIONAL Q ICK RELEASE PIN ...................................................................... 55
ANGLE ADJ STMENT OF THE CONTRACT RE FOOTPLATE ..................................... 55
CONTRACT RE FOOTPLATE DEPTH ADJ STMENT ....................................................... 55
CONTRACT RE FOOTPLATE HEIGHT ADJ STMENT..................................................... 56
REPLACING THE CONTRACT RE FOOTPLATE HEEL LOOP ....................................... 56
WARRANTY .................................................................................. 59
CONTENTS
All manuals and user guides at all-guides.com

Part No. 1106628 5Solara jr.
SPECIAL NOTES
WARNING/CAUTION notices as used in this manual apply to ha ards or unsafe
practices which could result in personal injury or property damage.
NOTICE
THE INFORMATION CONTAINED IN THIS DOCUMENT IS SUBJECT TO
CHANGE WITHOUT NOTICE.
As a manufacturer of wheelchairs, Invacare endeavors to supply a wide variety of
wheelchairs to meet many needs of the end user. However, final selection of the type
of wheelchair to be used by an individual rests solely with the user and his/her
healthcare professional capable of making such a selection.
WHEELCHAIR TIE-DOWN RESTRAINTS AND SEAT POSITIONING STRAPS
Invacare recommends that wheelchair users NOT be transported in vehicles of any
kind while in wheelchairs. As of this date, the Department of Transportation has not
approved any tie-down systems for transportation of a user while in a wheelchair, in a
moving vehicle of any type.
It is Invacares position that users of wheelchairs should be transferred into appropri-
ate seating in vehicles for transportation and use be made of the restraints made
available by the auto industry. Invacare cannot and does not recommend any wheel-
chair transportation systems.
AS REGARDS RESTRAINTS - SEAT /CHEST POSITIONING STRAPS - IT IS THE
OBLIGATION OF THE DME DEALER, THERAPISTS AND OTHER
HEALTHCARE PROFESSIONALS TO DETERMINE IF A SEAT/CHEST POSI-
TIONING STRAP IS REQUIRED TO ENSURE THE SAFE OPERATION OF THIS
EQUIPMENT BY THE USER. SERIOUS INJURY CAN OCCUR IN THE EVENT OF
A FALL FROM A WHEELCHAIR.
SPECIAL NOTES
SPECIAL NOTES
All manuals and user guides at all-guides.com

Solara jr. 6 Part No. 1106628
LABEL LOCATIONS
LABEL LOCATIONS
LABEL LOCATIONS
WARNING
DO NOT OPERATE WITHOUT
THE ANTI-TIP TUBES
INSTALLED.
REV. 5/98 P/N 60106X144
Detent balls should extend beyond the diameter of the axle
WARNING
bushing for a positive lock. Keep detent balls clean.
1085306
! WARNING Refer to Owner’s Manual BEFORE
adjustingaxlemountingplate.
Refer to Owner's Manual
for proper anti-tipper
setting. 1085379
WARNING
All manuals and user guides at all-guides.com
all-guides.com

Part No. 1106628 7Solara jr.
SPECIFICATIONS
PHYSICAL DIMENSIONS
INVACARE SOLARA JR.
Overall Width: Seat Width + 8-1/4-inches (Example: 16-inch Wide Wheelchair =
24-1/4-inches Overall Width
Overall Depth: 26-1/4-inches
(W/O Front Riggings
Overall Height: * Seat-to-Floor Height + 20-inches (20-inch back canes
* Seat-to-Floor Height + 24-inches (24-inch back canes
Anti-Tippers: Standard
Footrest: Swing-Away Footrest - 90° (Standard or 70°,
Elevating Legrests, Bilateral Contracture Footrests
Armrests: Dual Point Arms - Desk or Full Length, Adjustable or Fixed Height
Cantilever Arms - Bolt or Clamp-on, Desk or Full Length
T-Arms - Desk or Full Length, Adjustable Height
Seat Pan: Black Steel - Flush Mounted (Standard , Drop Mounted (Optional
Back: Adjustable Height Swivel Canes - 20 to 24-inches or 24 to 28-inches
Fixed - 20 or 24-inches
Reclining - 20 or 24-inches
Back Angle Ad ustment: 90° to 120° (10° increments
Rear Axle: Quick-Release (Standard
Rear Wheels: 12-inches Pneumatic (Standard
12-inch Pneumatic w/flat free (Optional
16, 18, 20, 22 and 24-inch Pneumatic, Urethane or Pneumatic w/flat
free (Optional
Handrims: Aluminum Handrims (20, 22 and 24-inch
Caster Size: 6 x 2-inch w/ Precision Sealed Bearings (Optional
8-inch w/ Precision Sealed Bearings (Optional
6 x 1-inch w/ Precision Sealed Bearings (Standard
Seat Width: 10 to 16-inches
(Growable from 10 to 13-inches wide or from 13 to 16-inches wide
Seat Depth: 12 to 18-inches
Back Cane Height: 20 and 24-inches
Wheel Locks: 12-inch Rear Wheels - Attendant Operated
16, 18, 20, 22, and 24-inch Rear Wheels - Pull to Lock
Tilt-In-Space: Dual Cable Trigger Mechanism (Standard - 50° of Tilt
Recliner Back: Dual Cable Trigger Mechanism (Optional 90 - 180° of Tilt
Frame: Aluminum
SPECIFICATIONS
* NOTE: The seat-to-floor heights are based on pneumatic tires and pneumatic tires with flat free
inserts. If wheelchair is equipped with urethane tires, subtract /4-inch from the measurements listed
above. All heights are measured with properly inflated new tires. These heights can vary + /4-inch due
to tire wear.
SPECIFICATIONS
All manuals and user guides at all-guides.com

Solara jr. 8 Part No. 1106628
PROCEDURE 1 GENERAL GUIDELINES
GENERAL GUIDELINES
This Procedure Includes the Following:
Information For Healthcare Professionals/Assistants

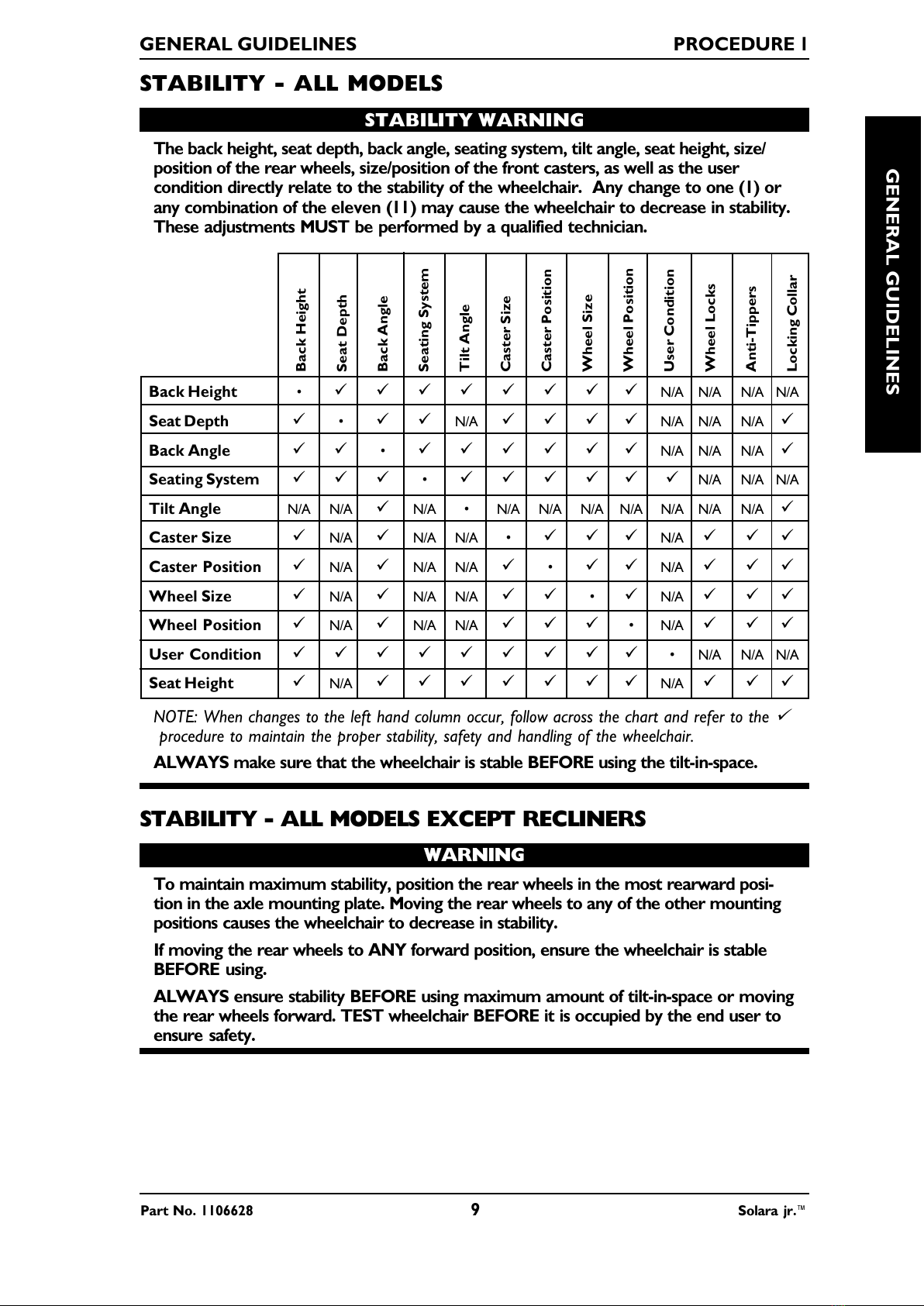

Stability - All Models
Stability - All Models xcept for Recliners

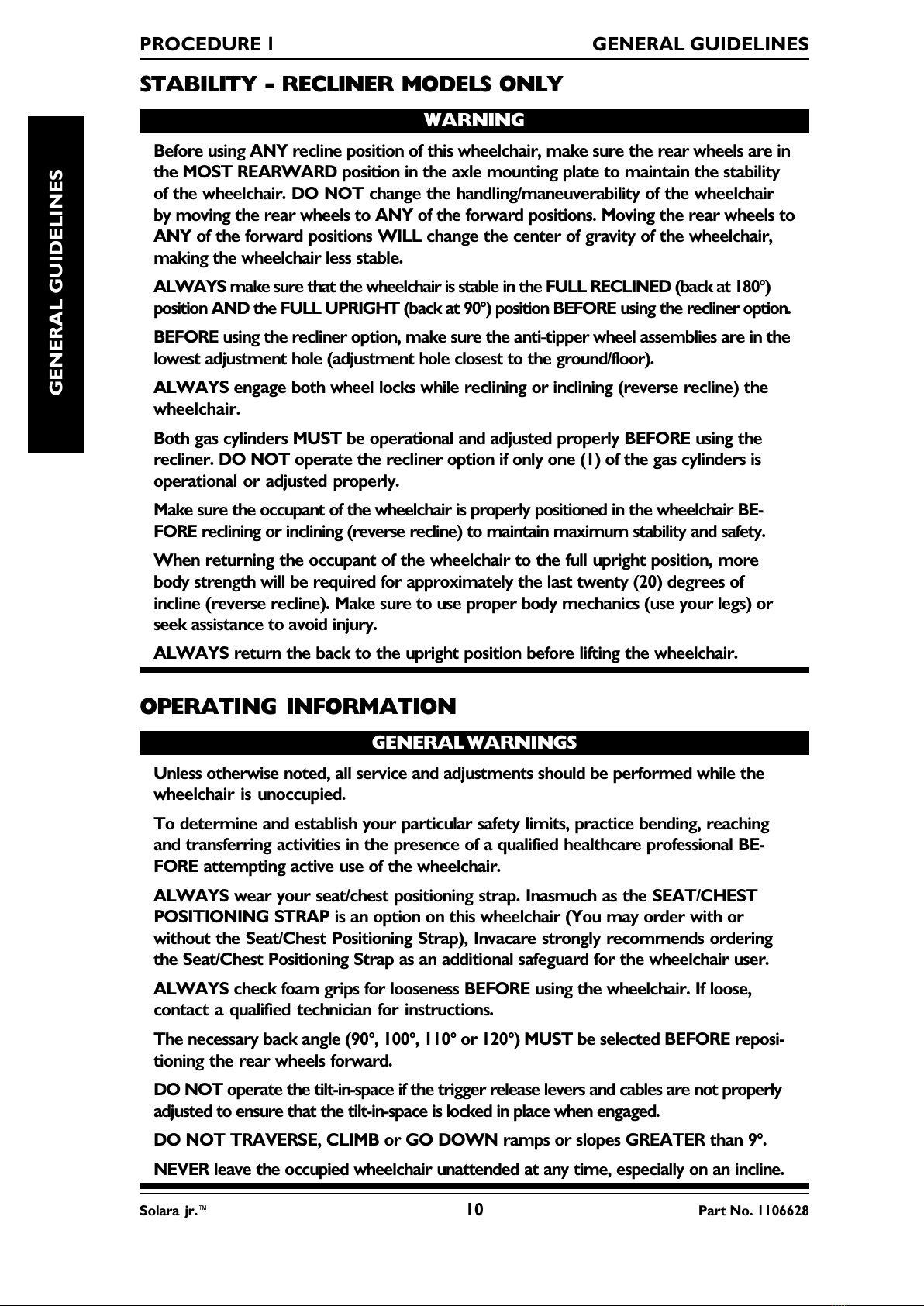

Stability - Recliner Option ONLY
Operating Information
Weight Training
Weight Limitation

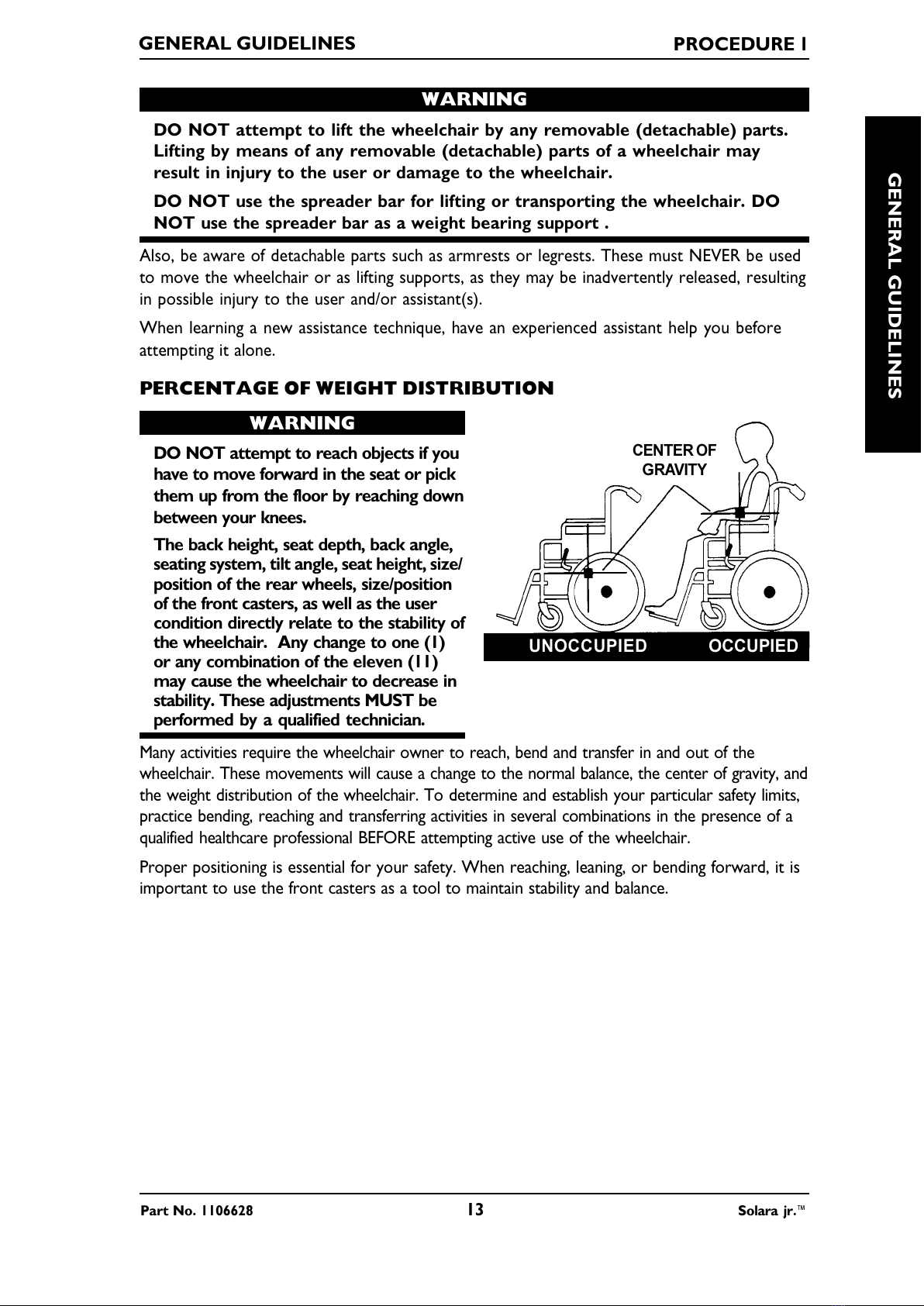

Safety/Handling of Wheelchairs
INFORMATION FOR HEALTHCARE PROFESSIONALS/
ASSISTANTS
WARNING
The Solara jr. wheelchair MUST be operated by a healthcare professional or
assistant when in ANY tilt position.
ANTERIOR (FORWARD) TILT
DO NOT operate the wheelchair when the seat frame is in the anterior (for-
ward) tilt position (frame stops in the lower position and approximately 5°
forward tilt). Serious bodily injury may occur to the patient and/or the
assistant(s).
Anterior (forward) tilt is a feature of this wheelchair designed for the USE OF
A HEALTHCARE PROFESSIONAL or ASSISTANT ONLY. Engagement of
the anterior (forward) tilt must NEVER be performed by the wheelchair user.
When anterior (forward) tilt is needed, it must ALWAYS be engaged by a
HEALTHCARE PROFESSIONAL or ASSISTANT. Make sure the occupant of
the wheelchair is properly positioned and always engage both wheel locks.
All manuals and user guides at all-guides.com

Part No. 1106628 9Solara jr.
STABILITY - ALL MODELS EXCEPT RECLINERS
WARNING
To maintain maximum stability, position the rear wheels in the most rearward posi-
tion in the axle mounting plate. Moving the rear wheels to any of the other mounting
positions causes the wheelchair to decrease in stability.
If moving the rear wheels to ANY forward position, ensure the wheelchair is stable
BEFORE using.
ALWAYS ensure stability BEFORE using maximum amount of tilt-in-space or moving
the rear wheels forward. TEST wheelchair BEFORE it is occupied by the end user to
ensure safety.
STABILITY - ALL MODELS
STABILITY WARNING
The back height, seat depth, back angle, seating system, tilt angle, seat height, si e/
position of the rear wheels, si e/position of the front casters, as well as the user
condition directly relate to the stability of the wheelchair. Any change to one (1) or
any combination of the eleven (11) may cause the wheelchair to decrease in stability.
These adjustments MUST be performed by a qualified technician.
ALWAYS make sure that the wheelchair is stable BEFORE using the tilt-in-space.
Back Height Seat Depth Back Angle Seating Syste Tilt Angle Caster Size Caster Position Wheel Size Wheel Position User Condition Wheel Locks Anti-Tippers Locking Collar
NOTE: When changes to the left hand column occur, follow across the chart and refer to the ü
procedure to maintain the proper stability, safety and handling of the wheelchair.
Back Height üüüüüüüüN/A N/A N/A N/A
Seat Depth üüüN/A üüüüN/A N/A N/A ü
Back Angle üü üüüüüüN/A N/A N/A ü
Seating System üüü üüüüüüN/A N/A N/A
Tilt Angle N/A N/A üN/A  N/A N/A N/A N/A N/A N/A N/A ü
Caster Size üN/A üN/A N/A  üüüN/A üüü
Caster Position üN/A üN/A N/A üüüN/A üüü
Wheel Size üN/A üN/A N/A üü üN/A üüü
Wheel Position üN/A üN/A N/A üüü  N/A üüü
User Condition üüüüüüüüü  N/A N/A N/A
Seat Height üN/A üüüüüüüN/A üüü
PROCEDURE 1GENERAL GUIDELINES
GENERAL GUIDELINES
All manuals and user guides at all-guides.com

Solara jr. 10 Part No. 1106628
GENERAL GUIDELINES
PROCEDURE 1 GENERAL GUIDELINES
STABILITY - RECLINER MODELS ONLY
WARNING
Before using ANY recline position of this wheelchair, make sure the rear wheels are in
the MOST REARWARD position in the axle mounting plate to maintain the stability
of the wheelchair. DO NOT change the handling/maneuverability of the wheelchair
by moving the rear wheels to ANY of the forward positions. Moving the rear wheels to
ANY of the forward positions WILL change the center of gravity of the wheelchair,
making the wheelchair less stable.
ALWAYS make sure that the wheelchair is stable in the FULL RECLINED (back at 180°)
position AND the FULL UPRIGHT (back at 90°) position BEFORE using the recliner option.
BEFORE using the recliner option, make sure the anti-tipper wheel assemblies are in the
lowest adjustment hole (adjustment hole closest to the ground/floor).
ALWAYS engage both wheel locks while reclining or inclining (reverse recline) the
wheelchair.
Both gas cylinders MUST be operational and adjusted properly BEFORE using the
recliner. DO NOT operate the recliner option if only one (1) of the gas cylinders is
operational or adjusted properly.
Make sure the occupant of the wheelchair is properly positioned in the wheelchair BE-
FORE reclining or inclining (reverse recline) to maintain maximum stability and safety.
When returning the occupant of the wheelchair to the full upright position, more
body strength will be required for approximately the last twenty (20) degrees of
incline (reverse recline). Make sure to use proper body mechanics (use your legs) or
seek assistance to avoid injury.
ALWAYS return the back to the upright position before lifting the wheelchair.
OPERATING INFORMATION
GENERAL WARNINGS
Unless otherwise noted, all service and adjustments should be performed while the
wheelchair is unoccupied.
To determine and establish your particular safety limits, practice bending, reaching
and transferring activities in the presence of a qualified healthcare professional BE-
FORE attempting active use of the wheelchair.
ALWAYS wear your seat/chest positioning strap. Inasmuch as the SEAT/CHEST
POSITIONING STRAP is an option on this wheelchair (You may order with or
without the Seat/Chest Positioning Strap), Invacare strongly recommends ordering
the Seat/Chest Positioning Strap as an additional safeguard for the wheelchair user.
ALWAYS check foam grips for looseness BEFORE using the wheelchair. If loose,
contact a qualified technician for instructions.
The necessary back angle (90°, 100°, 110° or 120°) MUST be selected BEFORE reposi-
tioning the rear wheels forward.
DO NOT operate the tilt-in-space if the trigger release levers and cables are not properly
adjusted to ensure that the tilt-in-space is locked in place when engaged.
DO NOT TRAVERSE, CLIMB or GO DOWN ramps or slopes GREATER than 9°.
NEVER leave the occupied wheelchair unattended at any time, especially on an incline.
All manuals and user guides at all-guides.com

Part No. 1106628 11 Solara jr.
GENERAL WARNINGS (CONTINUED)
DO NOT attempt to reach objects if you have to move forward in the seat.
DO NOT attempt to reach objects if you have to pick them up from the floor by
reaching down between your knees.
DO NOT lean over the top of the back upholstery/seating system. This will change
your center of gravity and may cause you to tip over.
DO NOT shift your weight or sitting position toward direction you are reaching as
wheelchair may tip over.
WHEEL LOCKS ARE NOT BRAKES. DO NOT attempt to stop a moving wheel-
chair with the wheel locks.
DO NOT tip the wheelchair onto the rear wheels without assistance.
DO NOT use an escalator to move a wheelchair between floors. Serious bodily injury
may occur.
Before attempting to transfer in or out of the wheelchair, every precaution should be
taken to reduce the gap distance. Turn both casters parallel to the object you are
transferring onto. When transferring to and from the wheelchair, ALWAYS EN-
GAGE BOTH WHEEL LOCKS.
DO NOT use wheelchair unless it has the proper tire pressure (p.s.i.). DO NOT overin-
flate the tires. Failure to follow these suggestions may cause the tire to explode and cause
bodily harm. Recommended tire pressure is listed on the side wall of the tire.
DO NOT use ANY parts, accessories, or adapters other than those authori ed by
Invacare. Otherwise, the warranty is void.
DO NOT attempt to lift a wheelchair by lifting on any removable (detachable) parts.
Lifting by means of any removable (detachable) parts of a wheelchair may result in
injury to the user or damage to the wheelchair.
DO NOT use the spreader bar for lifting or transporting the wheelchair. DO NOT use
the spreader bar as a weight bearing support.
DO NOT stand on the frame of the wheelchair.
Anti-tippers MUST BE attached at all times.
DO NOT use the footplates as a platform. When getting in or out of the wheelchair,
make sure that the footplates are in the upward position.
WEIGHT TRAINING
WARNING
Invacare DOES NOT recommend the use of its wheelchairs as a weight training
apparatus. Invacare wheelchairs have NOT been designed or tested as a seat for any
kind of weight training. If occupant uses said wheelchair as a weight training apparatus,
Invacare shall NOT be liable for bodily injury and the warranty is void.
WEIGHT LIMITATION
WARNING
The Invacare Solara jr. wheelchair has a weight limitation of 150 lbs. (68 kg.).
PROCEDURE 1GENERAL GUIDELINES
GENERAL GUIDELINES
All manuals and user guides at all-guides.com
all-guides.com

Solara jr. 12 Part No. 1106628
PROCEDURE 1 GENERAL GUIDELINES
GENERAL GUIDELINES
SAFETY/HANDLING OF WHEELCHAIRS
Safety and Handling of the wheelchair requires the close attention of the wheelchair user as
well as the assistant. This manual points out the most common procedures and techniques
involved in the safe operation and maintenance of the wheelchair. It is important to practice
and master these safe techniques until you are comfortable in maneuvering around the
frequently encountered architectural barriers.
se this information only as a basic guide. The techniques that are discussed on the follow-
ing pages have been used successfully by many.
Individual wheelchair users often develop skills to deal with daily living activities that may
differ from those described in this manual. Invacare recognizes and encourages each indi-
vidual to try what works best for him/her in overcoming architectural obstacles that they
may encounter, however ALL WARNINGS and CA TIONS given in this manual M ST be
followed. Techniques in this manual are a starting point for the new wheelchair user and
assistant with safety as the most important consideration for all.
STABILITY AND BALANCE
WARNING
ALWAYS wear your seat/chest positioning strap. Inasmuch as the SEAT/
CHEST POSITIONING STRAP is an option on this wheelchair (You may
order with or without the Seat/Chest Positioning Strap), Invacare strongly
recommends ordering the Seat/Chest Positioning Strap as an additional
safeguard for the wheelchair user.
Anti-tippers MUST be attached at all times.
To assure stability and proper operation of your wheelchair, you must at all times maintain
proper balance. Your wheelchair has been designed to remain upright and stable during
normal daily activities as long as you do not move beyond the center of gravity.
Virtually all activities which involve movement in the wheelchair have an effect on the center
of gravity. Invacare recommends using seat/chest positioning straps for additional safety while
involved in activities that shift your weight.
DO NOT lean forward out of the wheelchair any further than the length of the armrests.
Make sure the casters are pointing in the forward position whenever you lean forward. This
can be achieved by advancing the wheelchair and then reversing it in a straight line.
The Invacare Solara jr. wheelchair should be operated by an assistant when the wheelchair is
in any tilted position.
COPING WITH EVERYDAY OBSTACLES
Coping with the irritation of everyday obstacles can be alleviated somewhat by learning how to
manage your wheelchair. Keep in mind your center of gravity to maintain stability and balance.
A NOTE TO WHEELCHAIR ASSISTANTS
When assistance to the wheelchair user is required, remember to use good body mechanics.
Keep your back straight and bend your knees whenever tipping the wheelchair or traversing
curbs, or other impediments.
All manuals and user guides at all-guides.com

Part No. 1106628 13 Solara jr.
WARNING
DO NOT attempt to lift the wheelchair by any removable (detachable) parts.
Lifting by means of any removable (detachable) parts of a wheelchair may
result in injury to the user or damage to the wheelchair.
DO NOT use the spreader bar for lifting or transporting the wheelchair. DO
NOT use the spreader bar as a weight bearing support .
Also, be aware of detachable parts such as armrests or legrests. These must NEVER be used
to move the wheelchair or as lifting supports, as they may be inadvertently released, resulting
in possible injury to the user and/or assistant(s).
When learning a new assistance technique, have an experienced assistant help you before
attempting it alone.
PERCENTAGE OF WEIGHT DISTRIBUTION
WARNING
DO NOT attempt to reach objects if you
have to move forward in the seat or pick
them up from the floor by reaching down
between your knees.
The back height, seat depth, back angle,
seating system, tilt angle, seat height, si e/
position of the rear wheels, si e/position
of the front casters, as well as the user
condition directly relate to the stability of
the wheelchair. Any change to one (1)
or any combination of the eleven (11)
may cause the wheelchair to decrease in
stability. These adjustments MUST be
performed by a qualified technician.
Many activities require the wheelchair owner to reach, bend and transfer in and out of the
wheelchair. These movements will cause a change to the normal balance, the center of gravity, and
the weight distribution of the wheelchair. To determine and establish your particular safety limits,
practice bending, reaching and transferring activities in several combinations in the presence of a
qualified healthcare professional BEFORE attempting active use of the wheelchair.
Proper positioning is essential for your safety. When reaching, leaning, or bending forward, it is
important to use the front casters as a tool to maintain stability and balance.
CENTER OF
GRAVITY
UNOCCUPIED OCCUPIED
PROCEDURE 1
GENERAL GUIDELINES
GENERAL GUIDELINES
All manuals and user guides at all-guides.com

Solara jr. 14 Part No. 1106628
PROCEDURE 1 GENERAL GUIDELINES
GENERAL GUIDELINES
Reaching, Leaning and Bending - Forward.
WARNING
DO NOT attempt to reach objects if
you have to move forward in the seat
or pick them up from the floor by
reaching down between your knees.
Position the front casters so that they are
extended as far forward as possible and
engage wheel locks.
Reaching, Leaning - Backwards.
WARNING
DO NOT lean over the top of the
back upholstery. This will change
your center of gravity and may cause
you to tip over.
Position wheelchair as close as possible to the
desired object. Point front casters forward to
create the longest possible wheelbase. Reach
back only as far as your arm will extend
without changing your sitting position.
TIPPING
WARNING
DO NOT tip the wheelchair without assistance.
When tipping the wheelchair, an assistant should grasp the back of the wheelchair on a non-
removable (non-detachable) part. Inform the wheelchair occupant before tipping the wheelchair
and remind him/her to lean back. Be sure the occupants feet and hands are clear of all wheels
and/or pinch points.
After mastering the techniques of tipping the wheelchair, use one (1) of the following meth-
ods to tackle curbs, short stairs, etc.
TIPPING - CURBS: METHOD 1 - WHEELCHAIR WITH STEP TUBES:
Place foot on the step tube and begin to tilt
the wheelchair toward you. Apply a continu-
ous downward motion until the balance point
is achieved and the front casters clear the
curb. At this point, the assistant will feel a
difference in the weight distribution.
WARNING
When lowering the front casters of the
wheelchair, DO NOT let the wheelchair
drop the last few inches to the ground.
This could result in injury to the occu-
pant and/or damage to the wheelchair. METHOD 1 - WHEELCHAIR WITH
STEP TUBES
Step Tube
All manuals and user guides at all-guides.com

Part No. 1106628 15 Solara jr.

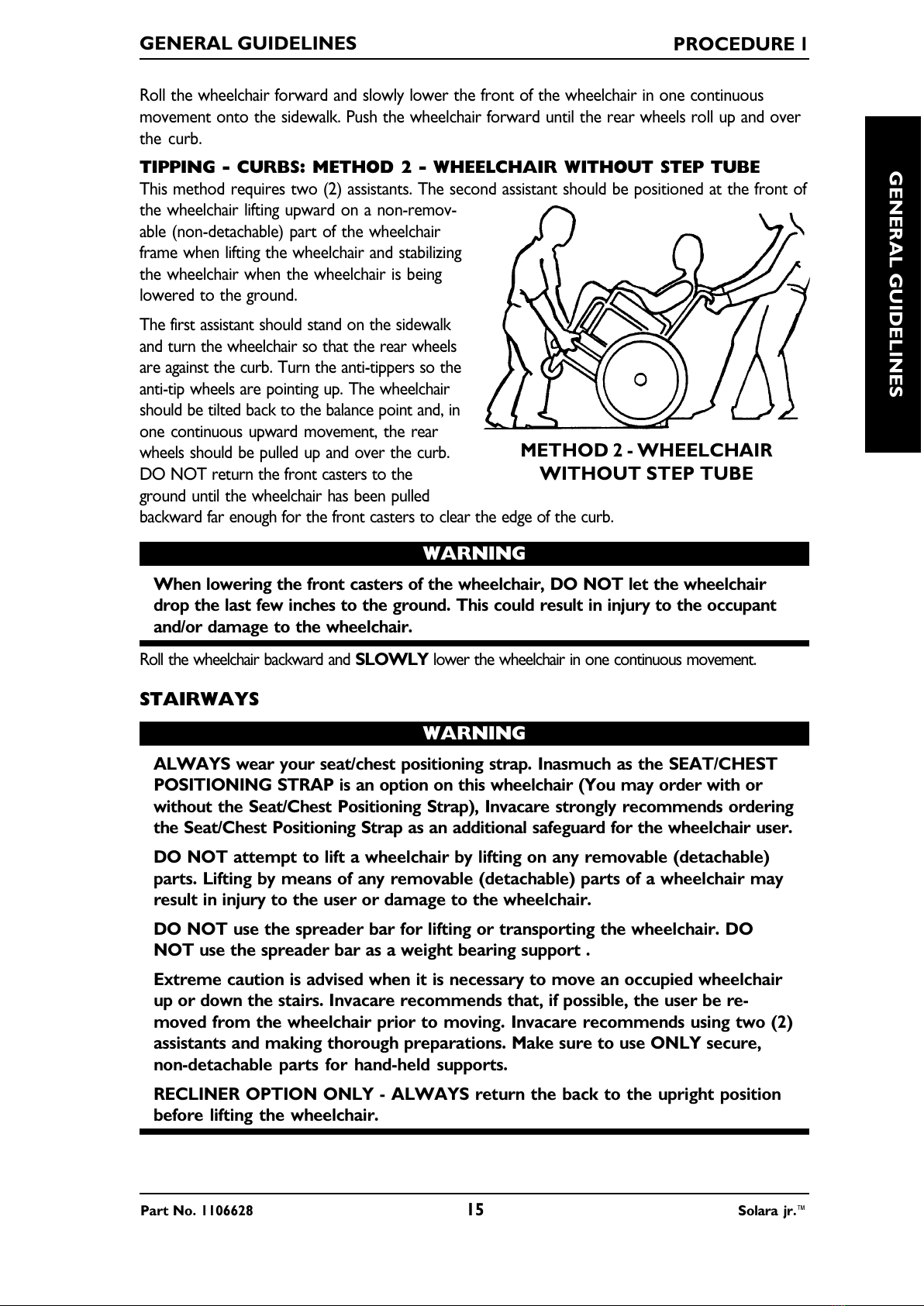

Roll the wheelchair forward and slowly lower the front of the wheelchair in one continuous
movement onto the sidewalk. Push the wheelchair forward until the rear wheels roll up and over
the curb.
TIPPING - CURBS: METHOD 2 - WHEELCHAIR WITHOUT STEP TUBE
This method requires two (2) assistants. The second assistant should be positioned at the front of
the wheelchair lifting upward on a non-remov-
able (non-detachable) part of the wheelchair
frame when lifting the wheelchair and stabilizing
the wheelchair when the wheelchair is being
lowered to the ground.
The first assistant should stand on the sidewalk
and turn the wheelchair so that the rear wheels
are against the curb. Turn the anti-tippers so the
anti-tip wheels are pointing up. The wheelchair
should be tilted back to the balance point and, in
one continuous upward movement, the rear
wheels should be pulled up and over the curb.
DO NOT return the front casters to the
ground until the wheelchair has been pulled
backward far enough for the front casters to clear the edge of the curb.
WARNING
When lowering the front casters of the wheelchair, DO NOT let the wheelchair
drop the last few inches to the ground. This could result in injury to the occupant
and/or damage to the wheelchair.
Roll the wheelchair backward and SLOWLY lower the wheelchair in one continuous movement.
STAIRWAYS
WARNING
ALWAYS wear your seat/chest positioning strap. Inasmuch as the SEAT/CHEST
POSITIONING STRAP is an option on this wheelchair (You may order with or
without the Seat/Chest Positioning Strap), Invacare strongly recommends ordering
the Seat/Chest Positioning Strap as an additional safeguard for the wheelchair user.
DO NOT attempt to lift a wheelchair by lifting on any removable (detachable)
parts. Lifting by means of any removable (detachable) parts of a wheelchair may
result in injury to the user or damage to the wheelchair.
DO NOT use the spreader bar for lifting or transporting the wheelchair. DO
NOT use the spreader bar as a weight bearing support .
Extreme caution is advised when it is necessary to move an occupied wheelchair
up or down the stairs. Invacare recommends that, if possible, the user be re-
moved from the wheelchair prior to moving. Invacare recommends using two (2)
assistants and making thorough preparations. Make sure to use ONLY secure,
non-detachable parts for hand-held supports.
RECLINER OPTION ONLY - ALWAYS return the back to the upright position
before lifting the wheelchair.
METHOD 2 - WHEELCHAIR
WITHOUT STEP TUBE
PROCEDURE 1
GENERAL GUIDELINES
GENERAL GUIDELINES
All manuals and user guides at all-guides.com

Solara jr. 16 Part No. 1106628
Follow this procedure for moving the wheelchair between floors when an elevator is NOT
available:
1. If necessary, rotate the anti-tippers so the wheels are facing up.
2. After the wheelchair has been tilted back to the balance point, one assistant (in the rear) backs the
wheelchair up against the first step, while securely grasping a non-removable (non-detachable) part
of the wheelchair for leverage.
3. The second assistant, with a firm hold on a non-detachable part of the framework, lifts the wheel-
chair up and over the stair and steadies the wheelchair as the first assistant places one (1) foot on
the next stair and repeats STEP 1.
4. The wheelchair should not be lowered until the last stair has been negotiated and the wheelchair has
been rolled away from the stairway.
5. If necessary, rotate the anti-tippers so the wheels are facing down.
ESCALATORS? SORRY!
DO NOT use an escalator to move a wheelchair between floors. Serious bodily injury
may occur.
TRANSFERRING TO AND FROM OTHER SEATS
WARNING
BEFORE attempting to transfer in or out
of the wheelchair, every precaution
should be taken to reduce the gap dis-
tance. Turn both casters parallel to the
object you are transferring onto. Also be
certain the wheel locks are engaged to
help prevent the wheels from moving.
CAUTION
When transferring, position yourself as
far back as possible in the seat. This will
help prevent broken screws, damaged
upholstery and the possibility of the
wheelchair tipping forward.
NOTE: This activity may be performed independently provided you have adequate mobility and upper body strength.
Position the wheelchair as close as possible along side the seat to which you are transferring, with the
front casters pointing parallel to it. Remove or flip up the armrest. Engage wheel locks. Shift body weight
into seat with transfer.
During independent transfer, little or no seat platform will be beneath you. se a transfer board if at all
possible.
PROCEDURE 1 GENERAL GUIDELINES
GENERAL GUIDELINES
All manuals and user guides at all-guides.com
all-guides.com

Part No. 1106628 17 Solara jr.
SAFETY INSPECTION PROCEDURE 2
SAFETY INSPECTION CHECKLIST
NOTE: Every six (6) months take your wheelchair to a qualified technician for a thorough ins ection and
servicing. Regular cleaning will reveal loose or worn arts and enhance the smooth o eration of your
wheelchair. To o erate ro erly and safely, your wheelchair must be cared for just like any other vehicle.
Routine maintenance will extend the life and efficiency of your wheelchair.
Initial adjustments should be made to suit personal body structure and preference. Thereafter
follow these maintenance procedures:
This Procedure Includes the Following:
Safety Inspection Checklist
Troubleshooting Maintenance
SAFETY INSPECTION
ITEM Initially Weekly Monthly Periodically
GENE AL
Wheelchair rolls straight
(no excessive drag or pull to one side). X X
CLOTHING GUA DS
Inspect for bent or protruding metal. X X
Ensure all fasteners are secure. X X
A MS - P OCEDU E 5
Secure but easy to release. X X
A M EST - P OCEDU E 5
Inspect for rips in upholstery. X X
ase sits flush against arm tube. X X
T IGGE ELEASE LEVE AND CABLE
- P OCEDU E 9
Cables completely release and handles return
when released. X X
EA WHEELS - P OCEDU E 7
Sealed bearings and axle nut tension correct. X X
No excessive side movement/binding when
lifted from ground and spun. X X
HAND IMS
Inspect for signs of rough edges or peeling finish. X X
F ONT CASTE S/FO KS - P OCEDU E 7
Inspect axle for proper tension by spinning
caster; caster should come to a gradual stop. X X
Adjust bearing system if wheel wobbles
noticeably or binds to stop. X X
Inspect fork and stem for damaged,
loose or missing hardware. X
Inspect casters for cracks and wear X X
CAUTION: As with any vehicle, the wheels,
casters and tires should be checked periodically
for cracks and wear, and should be replaced.
TI ES - P OCEDU E 7
Inspect for flat spots and wear. X X
If pneumatic tires, check for proper inflation. X X
Inspect rear tires for cracks and wear X X
CAUTION: As with any vehicle, the wheels,
casters and tires should be checked periodically
for cracks and wear, and should be replaced.
WHEEL LOCKS - P OCEDU E 8
Wheel locks do not interfere with tires when rolling. X X
Wheel locks easy to engage. X X
Pivot points free of wear or looseness. X X
CLEANING
Clean and wax all parts. X
Clean upholstery and armrests. X
Inspect axles are free from dirt, lint, etc. X
Inspect tilt slides and roller bearings are free
from dirt, lint, etc. X
All manuals and user guides at all-guides.com

Solara jr. 18 Part No. 1106628
SAFETY INSPECTION
TROUBLESHOOTING
Chair Chair Sluggish Squeaks
Veers Veers Turn or Caster and Looseness
Right Left Performance Flutter Rattles in Chair SOLUTIONS
X X X Check tires for correct
and equal pressure.
X X X X Check for loose nuts and bolts.
X X X Check that both casters contact
the ground at the same time.
MAINTENANCE SAFETY PRECAUTIONS
WARNING
After ANY adjustments, repair or service and BEFORE use, make sure all attac -
ing ardware is tig tened securely - ot erwise injury or damage may result.
CAUTION
DO NOT over tig ten ardware attac ing to t e frame. T is could cause
damage to t e frame tubing.
SUGGESTED MAINTENANCE PROCEDURES
1. Keep quick-release axles free of dirt and lint to ensure positi e locking and proper opera-
tion. Refer to ADJUSTING THE QUICK-RELEASE AXLE in PROCEDURE 7 of this manual.
WARNING
DO NOT use WD-40®, 3-in-1 oil®, or ot er penetrating lubricants on quick-
release axles. Ot erwise, binding and/or damage to t e w eelc air may occur.
2. Clean quick-release axles once (1) a week with a Teflon® lubricant.
WARNING
DO NOT use t e w eelc air unless it as t e proper tire pressure (p.s.i.). DO
NOT overinflate t e tires. Failure to follow t ese suggestions may cause t e
tire to explode and cause bodily arm.
3. If tires are pneumatic, recommended tire pressures will be listed on the side wall of the tires.
4. Periodically adjust wheel locks in correlation to tire wear. Refer to WHEEL LOCK AD-
JUSTMENT in PROCEDURE 8 of this manual.
5. Make sure that ALL bolts are tight before operating wheelchair.
CAUTION
As wit any ve icle, t e w eels, casters and tires s ould be c ecked periodically
for cracks and wear, and s ould be replaced.
6. The wheels and tires should be checked periodically for cracks and wear, and should be replaced.
7. Keep tilt slides and roller bearings free of dirt and lint to ensure proper operation of the
tilt mechanism.
MAINTENANCE
SAFETY INSPECTIONPROCEDURE 2
All manuals and user guides at all-guides.com

Part No. 1106628 19 Solara jr.
TRANSPORTING THE INVACARE SOLARA JR.
1. Remo e the seating system. Refer to the seating system Owner's Manual for installation and remo al
of the seating system.
2. Remo e the footrests (PROCEDURE 4).
3. Remo e the rear wheels (PROCEDURE 7).
4. Remo e the armrests (PROCEDURE 5).
5. Remo e the stroller handle (if applicable) (PROCEDURE 6).
6. Fold the back towards the front of the wheelchair (PROCEDURE 6).
7. Remo e the anti-tippers (PROCEDURE 8).
TRANSPORTING PROCEDURE 3
This Procedure Includes the Following:
Transporting the Invacare Solara jr
TRANSPORTING
All manuals and user guides at all-guides.com

Solara jr. 20 Part No. 1106628
PROCEDURE 4 FRONT RIGGINGS
FRONT FRIGGINGS
This Procedure Includes the Following:
Installing/Removing Swingaway Footrest
Adjusting Swingaway Footrest Height
Adjusting Adjustable Angle Flip-up Footplates
Composite/Articulating Footplate Heel Loop Replacement
Installing/Removing Elevating Legrest/Calfpad Assembly
Adjusting the Elevating Legrest/Calfpad Assembly
WARNING
After ANY adjustments, repair or service and BEFORE use, make sure all attac -
ing ardware is tig tened securely - ot erwise injury or damage may occur.
INSTALLING/REMOVING SWINGAWAY FOOTREST
(FIGURE 1)
INSTALLING
1. Turn the footrest to the side (open
footplate is perpendicular to the wheel-
chair).
2. Insert the footrest assembly mounting pin
into the mounting tube of the wheelchair
frame.
3. Rotate the footrest towards the inside of
the wheelchair until it locks into place.
NOTE: The foot late will be on the inside of the
wheelchair when locked in lace.
4. Repeat STEPS 1-3 for the other footrest
assembly.
5. If necessary, adjust the footrest height.
Refer to ADJUSTING SWINGAWAY
FOOTREST HEIGHT in this procedure of
the manual.
REMOVING
1. Push the footrest release le er inward while rotating the footrest outward.
2. Lift the footrest assembly out of the mounting pin of the wheelchair frame.
3. Repeat STEPS 1-2 for opposite side, if necessary.
FIGURE 1 - INSTALLING/
REMOVING SWINGAWAY
FOOTREST
Footrest Release Lever
Footrest
Assembly
Mounting Tube
Wheelchair
Frame
Footplate
NOTE: Only 60° Front Rigging shown for clarity.
Others will attach the same way.
Mounting Pin
All manuals and user guides at all-guides.com
