Invacare XLT User manual

INVACARE®XLT
WHEELCHAIR
USER MANUAL
EN

2Invacare®XLT
©Invacare Rea AB
Every effort has been made to ensure that the contents of this
publication are updated at the time of printing. As part of the
ongoing improvement of the products, Invacare Rea AB reserves
the right modify existing models at any time.
Any use of this publication, or parts thereof, as well as any repro-
duction of images, must have the written consent of
Invacare Rea AB

3
Invacare®XLT
1. General 4
1.1 Introduction 4
1.2 Symbols and signal words 4
1.3 Limitation of liability 4
1.4 Copyright protection 4
1.5 Warranty 4
1.6 Customer service 4
1.7 Accidents/near accident 4
1.8 Testing 4
1.9 Intended use 5
1.10 XLT models 5
2. Safety 6
2.1 Lifting the wheelchair 6
2.2 Daily performance check 6
2.3 Specific risks 6
3. Technical data 7
3.1 Dimensions and weight 7
3.2 Upholstery and frame colours 8
3.3 Equipment and accessories 8

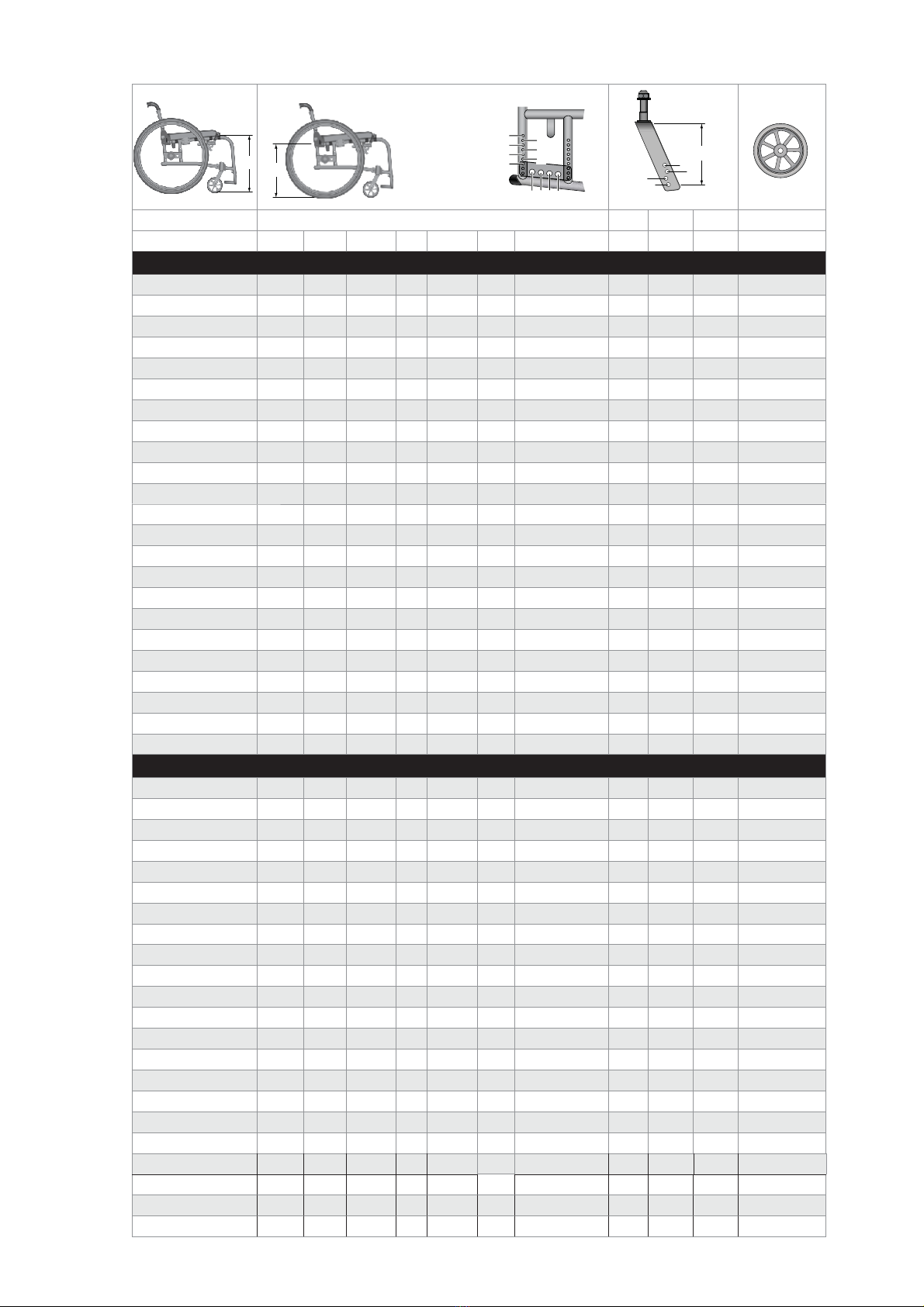

3.4 Seat height tables 9
3.4.1 XLT active 9
3.4. 2 XLT dynamic 12
3.4. 3 XLT swing 14
3.4. 4 XLT max 17
3.5 Identification label 17
4. Set-up and installation 18
4.1 Delivery check 18

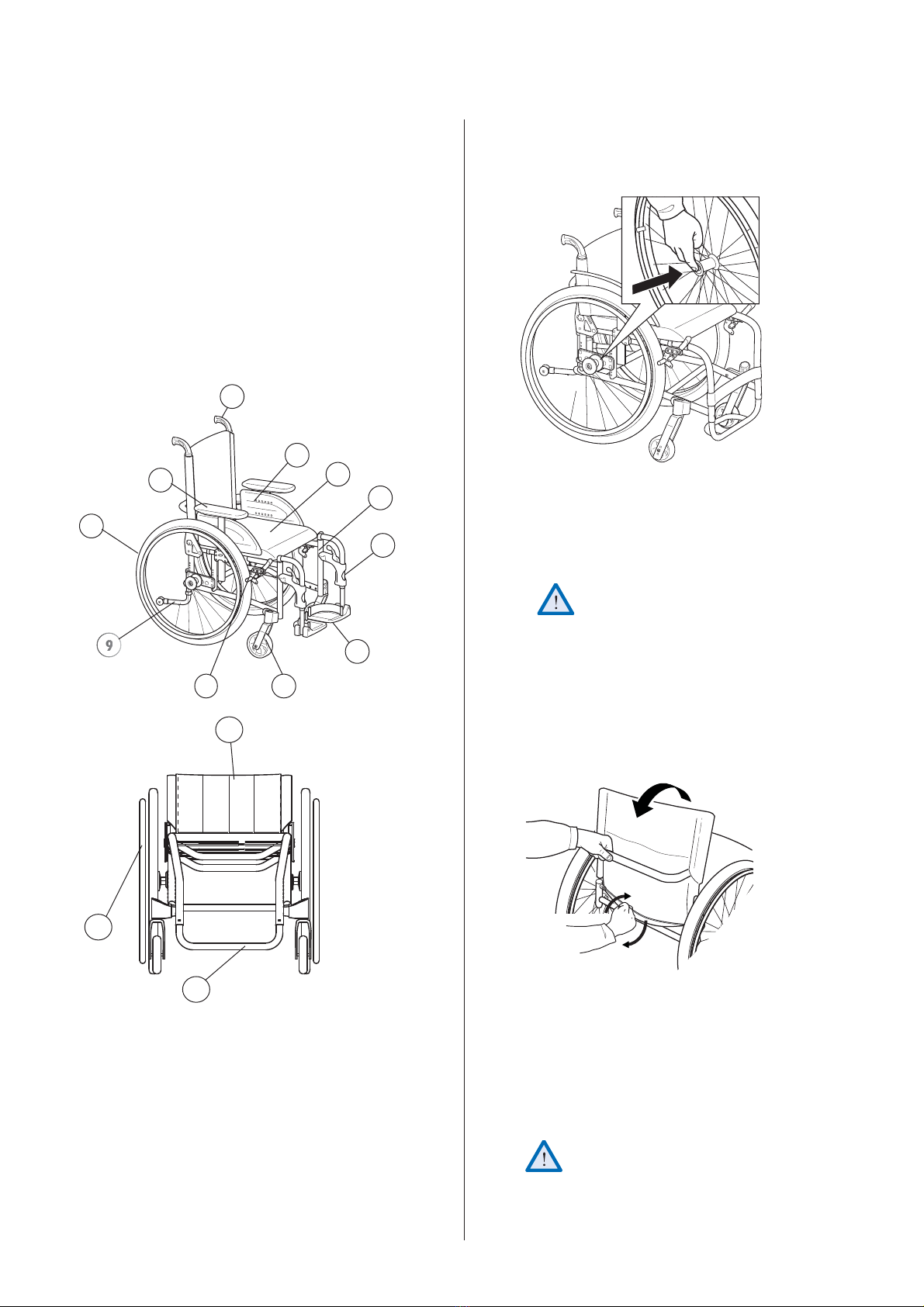

4.2 Wheelchair overview 18
4.3 Assembly 18
4.3.1 Rear wheels 18
4.3.2 Backrest 18
4.3.3 Armrests 19
4.3.4 Legrests 19
5. Components and their function 20
5.1 Footbow 20
5.1.1 High mounted footbow 20
5.1.2 Footbow XLT max 20
5.2 Fixed legrests 21
5.3 Angle adjustable legrests 21
5.4 Calf pads 22
5.5 Depth- and angle adjustable footplates 22
5.6 Footrests one-piece 22
5.6.1 Footrest, one piece (xlt swing) 23
5.6.2 Footboard converter xlt max 23
5.7 Seat 24
5.7.1 Adjusting the seat depth 24
5.7.2 Adjusting the shape 24
5.8 Backrest 24
5.8.1 Angle adjustment 24
5.8.2 Angle adjustment, fine adjustments 25
5.8.3 Height adjustments 26
5.9 Armrests/mudguard 26
5.9.1 Flip-up armrests 26
5.9.2 Detachable armrest 26
5.9.3 Mudguards 27
5.9.4 Adjusting the play 27
5.10 Brakes 27
5. 10.1 Adjusting the brake 27
5. 10. 2 Using the standard brake 27
5. 10. 3 Using the performance brake 28
5.11 Rear wheel attachment 28
5.12 Rear wheel attachment xlt max 29
5.13 Castor wheels 30
5.13.1 Adjusting the castor angle 30
5.14 Accessories 30
5.14.1 Anti-tippers 30
5.14.2 Trunk support 32
5.14.3 One-arm drive 33
5.14.4 Anti-tip device for one-arm drive 33
5.14. 5 Assistant manoeuvred
drumbrakes 34
5.14. 6 Amputee legrest 35
5.14.7 External push handles 35
5.14.8 Foldable push handles 35
5.14. 9 Head and neckrest 36
5.14. 10 Pelvic belt 36
6. Using the wheelchair 37
6.1 Moving to/and from the wheelchair 37
6.3 Propelling up a slope 37
6.2 Stretching and bending 37
6.4 Propelling down a slope 37
6.5 Onto a kerb/ off a kerb 38
6.6 Kerbs - alternative method 38
7. Transport 39
7. 1 Transporting wheelchairs vehicles 39
7. 2 Restraint methods 40
7. 2 Transport it as luggage 41
8. Maintenance 42
8.1 Safety information 42
8.2 Maintenance schedule 42
8.3 Cleaning 43
9. After use 44
CONTENTS

4Invacare®XLT
1. GENERAL
1.1 INTRODUCTION
Invacare® XLT is a wheelchair with many adjust-
ment options and accessories. To ensure that you
benefit as much as possible from your Invacare®
XLT, and in order to do its options justice, the
chair must be tested and adjusted by competent
personnel. We hope that you have also received
instructions for using your Invacare® XLT in every-
day life.
The Invacare® XLT frame, footbow and backrest
are manufactured from high quality titanium. For
the Swing version the legrest hangers are made
from aluminium. The cover for the seat cushion is
made of Jemima and the backrest cover is made of
nylon.
This manual includes a description of the parts of
the chair, simple adjustment options, how to use
the Invacare® XLT safely and how to transport
it. The manual must be read thoroughly before
the chair is used. Also included in this manual is a
description of how the most common accessories
are fitted and also some slightly more advanced
settings.
As the Invacare® XLT has many different com-
ponents and accessories, the appearance of the
accessories you have for your chair may differ from
those shown.
1.2 SYMBOLS AND SIGNAL WORDS
1.3 LIMITATION OF LIABILITY
Invacare Rea AB accepts no liability for damage
arising from:
 Non-compliance with the User Manual
 Incorrect use
 Natural wear and tear
 Incorrect assembly or set-up by the purchaser
or a third party
 Technical modifications
 Unauthorised modifications and/or use of unsui-
table spare parts
The written authorisation of Invacare Rea AB must
be obtained before installing additional adaptations
on an Invacare Rea wheelchair. Otherwise no liability
claims can be made.
1.4 COPYRIGHT PROTECTION
All information quoted is believed to be correct at
time of print.Invacare® reserves the right to alter
product specifications without prior consultation.
Rea, Rea design and DSS (Dual Stability System)
design are registered trademarks of Invacare®
International.
1.5 WARRANTY
We provide a two-year guarantee from the
delivery date. Damage due to wear and tear on
upholstery, tyres, (rubber) tubes, hand rims and
castors etc., is not covered by the guarantee.
Damage that has been caused through physical
violence or abnormal use is not covered. Damage
caused by users who weigh more than 135 kg is
not covered. The guarantee will only apply if the
maintenance instructions are followed.
1.6 CUSTOMER SERVICE
For contact details please refer to the last page of
this publication where you will find addresses to the
European sales companies.
1.8 TESTING
The Invacare® XLT has been tested and approved
TÜV and is CE-marked according to the Medical
Device Directive.
1.7 ACCIDENTS/NEAR ACCIDENT
Please inform your Invacare office immediately of
any accidents or near-accidents that have been
caused by this wheelchair and that have led to, or
could have led to, personal injury. The relevant
authority must also be contacted and reported to.
Important
Indicates a hazardous situation that could
result in damage to property if it is not avoi-
ded
Warning
Warning indicates a potentially hazardous
situation which, if not avoided, could result in
death or serious injury
Caution
Caution indicates a potentially hazardous
situation which, if not avoided, may result in
property damage or minor injury or both
Symbols and signal words are used in this manual and
apply to hazards or unsafe practices which could result
in personal injury or property damage. See the infor-
mation below for definitions of the signal words.

5
Invacare®XLT
1.9 INTENDED USE
 
for those who use the wheelchair for a longer
period of time, i.e. several hours in a row.
 
can manoeuvre the wheelchair him/herself, as
well as for the user who requires assistance.
 
that makes it possible to adjust the sitting pos-
ture so it stays comfortable for several hours.
 -
ties. With the right adjustments, carried out
by a professional, the wheelchair can be set
up specifically for a user and according to the
requirements of a possible assistant.
 
outdoors on level ground and paved areas. We
recommend the larger wheels when the wheel-
chair is used on uneven ground.
 
Invacare® XLT could tip backwards, when
being wheeled uphill, especially when the
incline is more than 8°. Or if the rear wheels
are mounted in their formost position on the
rear wheel attachment. The effect of mount-
ing the rear wheels in their foremost position
is that the chair will be easier to manoeuvre.
However, there is the increased risk of tip-
ping backwards. Therefore the use of anti tip
devices to achieve better stability is strongly
recommended.
 -
ion on the seat. The seat cushion improves the
user’s body posture and makes it possible to
sit comfortably for longer periods of time.
 Invacare® XLT with a backrest, adjusted to
a height of minimum 40 cm, a neckrest and a
pelvic belt can be used as a seat in a vehicle.
For other configurations the user must trans-
fer to the normal seat in a car or bus.
1.10 XLT MODELS
1. XLT Active (75° knee angle)
The XLT Active front is designed to hold your feet
and lower parts of your leg steady. The footbow is
standard.
2. XLT Dynamic (90° knee angle)
The XLT Dynamic is designed to hold your feet
steady. The total length of the wheelchair is very
compact. The footbow is standard.
3. XLT Swing (80°, 90° and angle adjustable
legrests)
The XLT Swing is designed with a front offering more
space for the feet and lower parts of the legs. The
standard delivery includes collapsible footrests.
4. XLT Max (75°)
The XLT Max is designed for larger users and has a
user weight capacity of 180 kg.

6Invacare®XLT
2. SAFETY
Always lift the wheelchair by grabbing the frame at
the points shown in the picture.
Never lift the wheelchair by the removable armrests
or the footrests. Ensure that the backrest and push
handles are securely in place. Also read the chapter
Safety instructions/Propelling techniques.
2.1 LIFTING THE WHEELCHAIR 2.2 DAILY PERFORMANCE CHECK
2.3 SPECIFIC RISKS
Check that the following parts are securely fitted on
the wheelchair and operational:
 
 
 
 
 
 
 
 
Below you will find a number of points affecting your
personal safety. Read them carefully!
Failure to comply with instructions given may result
in personal injury and/or product damage.
Check each of the following before using the whe-
elchair:
-that all parts are attached securely to the frame
-that all wheels and knobs are properly tight-
ened
-that all brakes and anti-tip devices function cor-
rectly
 -
rests, footrests, backrest bar or by the adjustable
push handles.
 
of the chair.
 
out of the chair, because of the risk of tipping.
 
of tipping over.
 
and this may cause injury to your hands.
 
       
operated brake is reduced in wet and slippery
conditions, as well as when on a slope.
         
securely attached.
 
user is sitting in the chair.
       
are slackened the greater the risk of tipping the
wheelchair becomes.
        
upholstery can with long time exposure to sun
reach temperatures over 41 °C.

7
Invacare®XLT
3. TECHNICAL DATA
3.1 DIMENSIONS AND WEIGHT
Seat width
Legrest length
Seat depth
Tilt adjustment
Seat height
Total width
Backrest height
Total height
Armrest height
Total length Weight Transport weight
Backrest adjustment
Maximum user
weight
* Fixed/Angle adjustable backrest
**Our wheelchairs are crash tested according to the ISO norm 7176-19 (Wheeled mobility devices for use as seats in motor vehicles) See the
chapter on Transport for more details. Wheelchair users should however transfer to the vehicle seat and use the vehicle installed restraint
system whenever it is feasible.
ACTIVE DYNAMIC SWING MAX
SW (MM)355/380/405/
430/455/480
355/380/405/
430/455/480
330/355/380/405/
430/455/480/505
505/555/ 605
SD (MM)360-400/410-450/
460-500
360-400/410-450/
460-500
360-400/410-450/
460-500
500/550/600
SH (MM)* 400-520 400-500 390-520 440-520
BH (MM)* 200-350 / 300-490 200-350 / 300-490 200-350 / 300-490 400-490
AH (MM) 210-310 210-310 210-310
LL (MM)* 380-505 355-485 280-510 380-480
SA (°) 0°-14° 0°-14° 0°-14° 0°-14°
BA (°) ±10° ±10° ±10° ±10°
W (MM)** SEAT WIDTH
+200 MM
SEAT WIDTH
+200 MM
SEAT WIDTH
+200 MM
SEAT WIDTH
+210 MM
H (MM) 610-1050 610-1050 610-1050 790-1100
L (MM) 830-1030 730-880 820-1230 930-1080
M (KG) 9,8 9,8 11,3 15,5 KG
ML (KG) 135 135 135 180KG
TW
(KG)***
6 6 6 11,1 KG
* without seat cushion
** with 0° camber
*** without rearwheels and accessories

8Invacare®XLT
3.2 UPHOLSTERY AND FRAME COLOURS
Backrest cover
Black Nylon TR33
Seat cushion cover
Black Jermina TR18 (standard)
Frame colours
Black, Grey, Blue, Red, Blasted titanium and Orange
3.3 EQUIPMENT AND ACCESSORIES
Others
Several types of handrims
Spoke guard
Anti-tip device
Trunk Support
Reflectors Kit
Table Tray
Pump
Cane holder
Tool kit
Various push handles
Pelvic belt
Mudguard
Sideguard
Step tube
Brake lever extension
Mounting brackets for E-Motion and E-Fix
* for XLT Swing only
** for XLT Active and Dynamic only
Invacare® XLT has a wide range of accessories and options. Some of the accessories may not be available in all
countries.
Backrest
Tension adjustable
Angle adjustable, fixed or height adjustable
Narrow back
Seat
Tension and depth adjustable seat
Seat cushions
Standard 5 cm
Legrests
Footbow rigid**
Footbow rigid with footplate**
Footrest one piece, flipup, angle adjustable
Footrest, high mounted**
80° & 90° fixed legrest*
Angle adjustable legrest*
Fixed footplate*
Angle and depth adjustable footplate*
Armrests
Flip-up armrest with long or short pad
Height adjustable armrest with long or short pad
Hemi armrest
Castors
75 - 125 mm (Dynamic),
75 - 180 mm (Swing, Active)
Rear wheels
22", 24", 25", 26" pneumatic or puncture-proof
24", one-arm drive
Brake
User-brake (3 types)
Carer-operated drumbrake
One-arm brake

SHf
SHr
1
3
5
7
ABCD
2
4
6
1
23
4L
SHf SHr L=75 L=110 L=150 mm
12 3 4 5 6 *
22"
40 40 39 38 2 75 (3")
41 41 40 39 38 1 75 (3")
41 41 40 39 38 2 100 (4")
42 41-42 40 39 38 1 100 (4")
43 43 41-42 40 39 38 2 75 (3")
43 43 41-42 40 39 38 4 125 (5")
43 43 41-42 40 39 38 3 100 (4")
43 43 41-42 40 39 38 1 125 (5")
44 44 43 41-42 40 39 38 4 140 (5,5")
44 44 43 41-42 40 39 38 1 75 (3")
44 44 43 41-42 40 39 38 3 125 (5")
44 44 43 41-42 40 39 38 2 100 (4")
45 44 43 41-42 40 39 38 3 140 (5,5")
45 44 43 41-42 40 39 38 1 100 (4")
45 44 43 41-42 40 39 38 2 125 (5")
45 44 43 41-42 40 39 38 3 150 (6")
46 44 43 41-42 40 39 38 2 140 (5,5")
47 44 43 41-42 40 39 38 1 125 (5")
47 44 43 41-42 40 39 38 2 150 (6")
47 44 43 41-42 40 39 38 2 75 (3")
47 44 43 41-42 40 39 38 3 100 (4")
47 44 43 41-42 40 39 38 4 125 (5")
47 44 43 41-42 40 39 1 140 (5,5")
48 44 43 41-42 40 39 4 140 (5,5")
48 44 43 41-42 40 39 1 150 (6")
48 44 43 41-42 40 39 2 180 (7")
48 44 43 41-42 40 1 75 (3")
48 44 43 41-42 40 2 100 (4")
48 44 43 41-42 40 3 125 (5")
48 44 43 41-42 40 4 150 (6")
49 44 43 41-42 40 3 140 (5,5")
49 44 43 41-42 40 1 180 (7")
49 44 43 41-42 1 100 (4")
50 44 43 41-42 2 125 (5")
50 44 43 41-42 3 150 (6")
50 44 43 4 180 (7")
50 44 43 2 140 (5,5")
51 44 43 1 125 (5")
51 44 43 2 150 (6")
51 44 43 3 180 (7")
51 44 43 1 140 (5,5")
52 44 44 1 150 (6")
52 44 44 2 180 (7")
3.4.1 XLT Active
9
Invacare®XLT
3.4 SEAT HEIGHT TABLES
* = Not applicable SD =seat depth
3.4.1 xlt active

SHf
SHr
1
3
5
7
ABCD
2
4
6
1
23
4L
SHf SHr L=75 L=110 L=150 mm
12345 6 *
24"/25" Low profile
40 40 2 75 (3")
41 41 40 1 75 (3")
41 41 40 2 100 (4")
42 41-42 40 1 100 (4")
43 43 41-42 40 2 75 (3")
43 43 41-42 40 4 125 (5")
43 43 41-42 40 3 100 (4")
43 43 41-42 40 1 125 (5")
44 43 41-42 40 4 140 (5,5")
44 43 41-42 40 1 75 (3")
44 44 43 41-42 40 3 125 (5")
44 44 43 41-42 40 2 100 (4")
45 45 44 43 41-42 40 3 140 (5,5")
45 45 44 43 41-42 40 1 100 (4")
45 45 44 43 41-42 40 2 125 (5")
45 45 44 43 41-42 40 3 150 (6")
46 46 45 44 43 41-42 40 2 140 (5,5")
47 46-47 45 44 43 41-42 40 1 125 (5")
47 46-47 45 44 43 41-42 40 2 150 (6")
47 46-47 45 44 43 41-42 40 2 75 (3")
47 46-47 45 44 43 41-42 40 3 100 (4")
47 46-47 45 44 43 41-42 40 4 125 (5")
47 46-47 45 44 43 41-42 40 1 140 (5,5")
48 46-47 45 44 43 41-42 40 4 140 (5,5")
48 46-47 45 44 43 41-42 40 1 150 (6")
48 46-47 45 44 43 41-42 40 * D1-4 (SD40) 2 180 (7")
48 46-47 45 44 43 41-42 40 1 75 (3")
48 46-47 45 44 43 41-42 40 2 100 (4")
48 46-47 45 44 43 41-42 40 3 125 (5")
48 46-47 45 44 43 41-42 40 4 150 (6")
49 46-47 45 44 43 41-42 40 3 140 (5,5")
49 46-47 45 44 43 41-42 40 1 180 (7")
49 46-47 45 44 43 41-42 40 1 100 (4")
50 46-47 45 44 43 41-42 40 2 125 (5")
50 46-47 45 44 43 41-42 3 150 (6")
50 46-47 45 44 43 41-42 4 180 (7")
50 46-47 45 44 43 41-42 2 140 (5,5")
51 46-47 45 44 43 41-42 1 125 (5")
51 46-47 45 44 43 41-42 2 150 (6")
51 46-47 45 44 43 41-42 * D1-5 (SD40) 3 180 (7")
51 46-47 45 44 43 1 140 (5,5")
52 46-47 45 44 43 1 150 (6")
52 46-47 45 44 43 * D1-3 (SD40) 2 180 (7")
10 Invacare®XLT
* = Not applicable SD =seat depth

SHf
SHr
1
3
5
7
ABCD
2
4
6
1
23
4L
SHf SHr L=75 L=110 L=150 mm
123456 *
26" Low profile
41 41 1 75 (3")
41 41 2 100 (4")
42 42 41 1 100 (4")
43 42-43 41 2 75 (3")
43 42-43 41 4 125 (5")
43 42-43 41 3 100 (4")
43 42-43 41 1 125 (5")
44 44 42-43 41 4 140 (5,5")
44 44 42-43 41 1 75 (3")
44 44 42-43 41 3 125 (5")
44 44 42-43 41 2 100 (4")
45 45 44 42-43 41 3 140 (5,5")
45 45 44 42-43 41 1 100 (4")
45 45 44 42-43 41 2 125 (5")
45 45 44 42-43 41 * D4 (SD40) 3 150 (6")
46 46 45 44 42-43 41 2 140 (5,5")
47 47 46 45 44 42-43 41 1 125 (5")
47 47 46 45 44 42-43 41 * D2 (SD40) 2 150 (6")
47 47 46 45 44 42-43 41 2 75 (3")
47 47 46 45 44 42-43 41 3 100 (4")
47 47 46 45 44 42-43 41 4 125 (5")
47 47 46 45 44 42-43 41 1 140 (5,5")
48 47-48 46 45 44 42-43 41 4 140 (5,5")
48 47-48 46 45 44 42-43 41 * D2 (SD40) 1 150 (6")
48 47-48 46 45 44 42-43 41 * D2-6 (SD40) 2 180 (7")
48 47-48 46 45 44 42-43 41 1 75 (3")
48 47-48 46 45 44 42-43 41 2 100 (4")
48 47-48 46 45 44 42-43 41 3 125 (5")
48 47-48 46 45 44 42-43 41 4 150 (6")
49 47-48 46 45 44 42-43 41 3 140 (5,5")
49 47-48 46 45 44 42-43 41 * C1,D1-6 (SD40) 1 180 (7")
49 47-48 46 45 44 42-43 41 1 100 (4")
50 47-48 46 45 44 42-43 41 2 125 (5")
50 47-48 46 45 44 42-43 41 * D1 (SD40) 3 150 (6")
50 47-48 46 45 44 42-43 41 * D1-6 (SD40) 4 180 (7")
50 47-48 46 45 44 42-43 41 2 140 (5,5")
51 47-48 46 45 44 42-43 41 1 125 (5")
51 47-48 46 45 44 42-43 41 2 150 (6")
51 47-48 46 45 44 42-43 41 *D1-6 (SD40) 3 180 (7")
51 47-48 46 45 44 42-43 41 1 140 (5,5")
52 47-48 46 45 44 42-43 1 150 (6")
52 47-48 46 45 44 42-43 * D1-6 (SD40) 2 180 (7")
11
Invacare®XLT
* = Not applicable SD =seat depth

SHf
SHr
1
3
5
7
ABCD
2
4
6
1
23
4L
SHf SHr L=75 L=110 L=150 mm
123456 *
22"
39 39 38 2 75 (3")
40 40 39 38 1 75 (3")
41 40 39 38 2 100 (4")
42 41-42 40 39 38 1 100 (4")
43 43 41-42 40 39 38 2 75 (3")
43 43 41-42 40 39 38 4 125 (5")
43 43 41-42 40 39 38 3 100 (4")
43 43 41-42 40 39 38 * D3 (SD40) 1 125 (5")
44 43 41-42 40 39 38 1 75 (3")
44 43 41-42 40 39 38 * D2 (SD40) 3 125 (5")
44 44 43 41-42 40 39 38 2 100 (4")
45 44 43 41-42 40 39 38 1 100 (4")
45 44 43 41-42 40 39 38 * D1 (SD40) 2 125 (5")
46 44 43 41-42 40 * D1 (SD40) 1 125 (5")
47 44 43 41-42 40 2 75 (3")
47 44 43 41-42 40 3 100 (4")
47 44 43 41-42 4 125 (5")
48 44 43 41-42 1 75 (3")
48 44 43 41-42 2 100 (4")
48 44 43 41-42 3 125 (5")
49 44 43 41-42 1 100 (4")
49 44 43 41-42 2 125 (5")
50 44 43 1 125 (5")
24" / 25" Low profile
40 40 1 75 (3")
41 40 2 100 (4")
42 41-42 40 1 100 (4")
43 43 41-42 40 * D5 (SD40) 2 75 (3")
43 43 41-42 40 * D1-6 (SD40) 4 125 (5")
43 43 41-42 40 * D5 (SD40) 3 100 (4")
43 43 41-42 40 * D1-6 (SD40) 1 125 (5")
44 44 43 41-42 40 * D4-5 (SD40) 1 75 (3")
44 44 43 41-42 40 * D1-6 (SD40) 3 125 (5")
44 44 43 41-42 40 * D4 (SD40) 2 100 (4")
45 45 44 43 41-42 40 * D3-4 (SD40) 1 100 (4")
45 45 44 43 41-42 40 * D3-6 (SD40) 2 125 (5")
46 46 45 44 43 41-42 40 * D2-6 (SD40) 1 125 (5")
47 46-47 45 44 43 41-42 40 * D2-4 (SD40) 2 75 (3")
47 46-47 45 44 43 41-42 40 * D2-4 (SD40) 3 100 (4")
47 46-47 45 44 43 41-42 40 * D2-5 (SD40) 4 125 (5")
48 46-47 45 44 43 41-42 40 * D1-4 (SD40) 1 75 (3")
48 46-47 45 44 43 41-42 40 * D1-4 (SD40) 2 100 (4")
48 46-47 45 44 43 41-42 40 * D1-5 (SD40) 3 125 (5")
49 46-47 45 44 43 41-42 * D1-4 (SD40) 1 100 (4")
49 46-47 45 44 43 41-42 * D1-4 (SD40) 2 125 (5")
50 46-47 45 44 43 * D1-6 (SD40) 1 125 (5")
3.4. 2 XLT Dynamic
12 Invacare®XLT
* = Not applicable SD =seat depth

SHf
SHr
1
3
5
7
ABCD
2
4
6
1
23
4L
SHf SHr L=75 L=110 L=150 mm
123456 *
26" Low profile
42 41 * D1-6 (SD40) 1 100 (4")
43 42-43 41 * D1-6 (SD40) 2 75 (3")
43 42-43 41 * D1-6 (SD40) 4 125 (5")
43 42-43 41 * D1-6 (SD40) 3 100 (4")
43 42-43 41 * D1-6 (SD40) 1 125 (5")
44 44 42-43 41 * D1-6 (SD40) 1 75 (3")
44 42-43 41 * D1-6 (SD40) 3 125 (5")
44 44 42-43 41 * D1-6 (SD40) 2 100 (4")
45 45 44 42-43 41 * D1-6 (SD40) 1 100 (4")
45 45 44 42-43 41 * D1-6 (SD40) 2 125 (5")
46 46 45 44 42-43 41 * D1-6 (SD40) 1 125 (5")
47 47 46 45 44 42-43 41 * D1-6 (SD40) 2 75 (3")
47 47 46 45 44 42-43 41 * D1-6 (SD40) 3 100 (4")
47 47 46 45 44 42-43 41 * D1-6 (SD40) 4 125 (5")
48 47-48 46 45 44 42-43 41 * D1-6 (SD40) 1 75 (3")
48 47-48 46 45 44 42-43 41 * D1-6 (SD40) 2 100 (4")
48 47-48 46 45 44 42-43 41 * D1-6 (SD40) 3 125 (5")
49 47-48 46 45 44 42-43 41 * D1-6 (SD40) 1 100 (4")
49 47-48 46 45 44 42-43 41 * D1-6 (SD40) 2 125 (5")
50 47-48 46 45 44 42-43 * D1-6 (SD40) 1 125 (5")
13
Invacare®XLT
* = Not applicable SD =seat depth

SHf
SHr
1
3
5
7
ABCD
2
4
6
1
23
4L
SHf SHr L=75 L=110 L=150 mm
12 3 4 56 7 *
22"
39 39 38 2 75 (3")
40 40 39 38 1 75 (3")
41 41 40 39 38 2 100 (4")
42 41-42 40 39 38 1 100 (4")
43 43 41-42 40 39 38 2 75 (3")
43 43 41-42 40 39 38 4 125 (5")
43 43 41-42 40 39 38 3 100 (4")
43 43 41-42 40 39 38 1 125 (5")
44 43 41-42 40 39 38 4 140 (5,5")
44 43 41-42 40 39 38 1 75 (3")
44 43 41-42 40 39 38 3 125 (5")
44 43 41-42 40 39 38 2 100 (4")
45 44 43 41-42 40 39 38 * D1-2 (SD40) 3 140 (5,5")
45 44 43 41-42 40 39 38 1 100 (4")
45 44 43 41-42 40 39 38 2 125 (5")
45 44 43 41-42 40 39 38 * D1-4 (SD40) 3 150 (6")
46 44 43 41-42 40 39 2 140 (5,5")
47 44 43 41-42 40 39 1 125 (5")
47 44 43 41-42 40 39 * D1-2 (SD40) 2 150 (6")
47 44 43 41-42 40 39 2 75 (3")
47 44 43 41-42 40 39 3 100 (4")
47 44 43 41-42 40 39 4 125 (5")
47 44 43 41-42 40 * D1-2 (SD40) 1 140 (5,5")
48 44 43 41-42 40 * D1-2 (SD40) 4 140 (5,5")
48 44 43 41-42 40 * D1-3 (SD40) 1 150 (6")
48 44 43 41-42 40 * D1-6 (SD40) 2 180 (7")
48 44 43 41-42 40 1 75 (3")
48 44 43 41-42 40 2 100 (4")
48 44 43 41-42 40 3 125 (5")
48 44 43 41-42 40 * D1-2 (SD40) 4 150 (6")
49 44 43 41-42 3 140 (5,5")
49 44 43 41-42 * C1-2,D1-6 (SD40)
+ D1-2 (SD45) 1 180 (7")
49 44 43 41-42 1 100 (4")
50 44 43 41-42 2 125 (5")
50 44 43 41-42 * D1-2 (SD40) 3 150 (6")
50 44 43 41-42 * D1-6 (SD40) 4 180 (7")
50 44 43 2 140 (5,5")
51 44 43 1 125 (5")
51 44 43 2 150 (6")
51 44 43 * C1,D1-6 (SD40) + D1 (SD45) 3 180 (7")
51 44 1 140 (5,5")
52 44 * D1-6 (SD40) 1 150 (6")
52 44 * D1-6 (SD40) 2 180 (7")
3.4. 3 XLT Swing
14 Invacare®XLT
* = Not applicable SD =seat depth

SHf
1
3
5
7
ABCD
2
4
6
1
23
4L
SHf SHr L=75 L=110 L=150 mm
123456 *
24"/25" Low profile
40 40 2 75 (3")
41 41 40 1 75 (3")
41 41 40 2 100 (4")
42 41-42 40 1 100 (4")
43 43 41-42 40 2 75 (3")
43 43 41-42 40 4 125 (5")
43 43 41-42 40 3 100 (4")
43 43 41-42 40 1 125 (5")
44 44 43 41-42 40 * D4-6 (SD40) 4 140 (5,5")
44 44 43 41-42 40 1 75 (3")
44 44 43 41-42 40 3 125 (5")
44 44 43 41-42 40 2 100 (4")
45 45 44 43 41-42 40 * D3-6 (SD40) 3 140 (5,5")
45 45 44 43 41-42 40 1 100 (4")
45 45 44 43 41-42 40 2 125 (5")
45 45 44 43 41-42 40 * D1-6 (SD40) 3 150 (6")
46 46 45 44 43 41-42 40 * D2-5 (SD40) 2 140 (5,5")
47 46 45 44 43 41-42 40 * D1 (SD40) 1 125 (5")
47 46 45 44 43 41-42 40 * D2-6 (SD40) 2 150 (6")
47 46 45 44 43 41-42 40 2 75 (3")
47 46 45 44 43 41-42 40 3 100 (4")
47 46 45 44 43 41-42 40 4 125 (5")
47 46 45 44 43 41-42 40 * D1-5 (SD40) 1 140 (5,5")
48 46 45 44 43 41-42 40 * D1-4 (SD40) 4 140 (5,5")
48 46 45 44 43 41-42 40 1 150 (6")
48 46 45 44 43 41-42 40 2 180 (7")
48 46 45 44 43 41-42 40 1 75 (3")
48 46 45 44 43 41-42 40 2 100 (4")
48 46 45 44 43 41-42 40 3 125 (5")
48 46 45 44 43 41-42 40 * D1-6 (SD40) 4 150 (6")
49 46 45 44 43 41-42 * D1-4 (SD40) 3 140 (5,5")
49 46 45 44 43 41-42 1 180 (7")
49 46 45 44 43 41-42 1 100 (4")
50 46 45 44 43 41-42 2 125 (5")
50 46 45 44 43 41-42 * D1-6 (SD40) 3 150 (6")
50 46 45 44 43 * C1-7,D1-6 (SD40)
+ D1-6 (SD45) 4 180 (7")
50 46 45 44 43 * D1-3 (SD40) 2 140 (5,5")
51 46 45 44 43 1 125 (5")
51 46 45 44 43 * D1-6 (SD40) 2 150 (6")
51 46 45 44 43 * C1-6,D1-6 (SD40)
+ D1-6 (SD45) 3 180 (7")
51 46 45 44 * D1-3 (SD40) 1 140 (5,5")
52 46 45 44 * D1-6 (SD40) 1 150 (6")
52 46 45 44 * C1-6,D1-6 (SD40)
+ D1-6 (SD45) 2 180 (7")
15
Invacare®XLT
* = Not applicable SD =seat depth

SHf
SHr
1
3
5
7
ABCD
2
4
6
1
23
4L
SHf SHr L=75 L=110 L=150 mm
1234 5 6 *
26" Low profile
41 41 1 75 (3")
41 41 2 100 (4")
42 42 41 1 100 (4")
43 42-43 41 2 75 (3")
43 42-43 41 4 125 (5")
43 42-43 41 3 100 (4")
43 42-43 41 * D6 (SD40) 1 125 (5")
44 44 42-43 41 * D1-6 (SD40) 4 140 (5,5")
44 42-43 41 1 75 (3")
44 44 42-43 41 * D5-6 (SD40) 3 125 (5")
44 44 42-43 41 2 100 (4")
45 45 44 42-43 41 * D1-6 (SD40) 3 140 (5,5")
45 45 44 42-43 41 * D4 (SD40) 1 100 (4")
45 45 44 42-43 41 * D4 (SD40) 2 125 (5")
45 45 44 42-43 41 * C4-5,D1-6 (SD40) + D4-5 (SD45) 3 150 (6")
46 46 45 44 42-43 41 * D1-6 (SD40) 2 140 (5,5")
47 47 46 45 44 42-43 41 * D2-4 (SD40) 1 125 (5")
47 47 46 45 44 42-43 41 * C2-3,D1-6 (SD40) + D2-3 (SD45) 2 150 (6")
47 47 46 45 44 42-43 41 2 75 (3")
47 47 46 45 44 42-43 41 * D2-3 (SD40) 3 100 (4")
47 47 46 45 44 42-43 41 * D2-3 (SD40) 4 125 (5")
47 47 46 45 44 42-43 41 * D1-6 (SD40) 1 140 (5,5")
48 47 46 45 44 42-43 41 * D1-6 (SD40) 4 140 (5,5")
48 47 46 45 44 42-43 41 * C2-3,D1-6 (SD40) + D2-3 (SD45) 1 150 (6")
48 47 46 45 44 42-43 41 * B2,C1-6,D1-6 (SD40)
+ D1-6 (SD45) 2 180 (7")
48 47 46 45 44 42-43 41 1 75 (3")
48 47 46 45 44 42-43 41 * D2-3 (SD40) 2 100 (4")
48 47 46 45 44 42-43 41 * D2-3 (SD40) 3 125 (5")
48 47 46 45 44 42-43 41 * D1-6 (SD40) + D2 (SD45) 4 150 (6")
49 47 46 45 44 42-43 41 * D1-6 (SD40) 3 140 (5,5")
49 47 46 45 44 42-43 41 * B1-4,C1-3,D1-6 (SD40)
+ C1-2,D1-6 (SD45) 1 180 (7")
49 47 46 45 44 42-43 41 * D1-2 (SD40) 1 100 (4")
50 47 46 45 44 42-43 41 * D1-2 (SD40) 2 125 (5")
50 47 46 45 44 42-43 41 * C1-3,D1-6 (SD40) + D1-3 (SD45) 3 150 (6")
50 47 46 45 44 42-43 41 * B1,C1-7,D1-7 (SD40)
+ D1-6 (SD45) 4 180 (7")
50 47 46 45 44 42-43 * D1-6 (SD40) 2 140 (5,5")
51 47 46 45 44 42-43 * D1-2 (SD40) 1 125 (5")
51 47 46 45 44 42-43 * C1,D1-6 (SD40) + D1 (SD45) 2 150 (6")
51 47 46 45 44 42-43 * B1-2,C1-6,D1-6 (SD40) +
C1-2,D1-6 (SD45) 3 180 (7")
51 47 46 45 44 * D1-6 (SD40) 1 140 (5,5")
52 47 46 45 44 * C1,D1-6 (SD40) + D1 (SD45) 1 150 (6")
52 47 46 45 44 * C1-6,D1-6 (SD40) + D1-6 (SD45) 2 180 (7")
16 Invacare®XLT
* = Not applicable SD =seat depth

SHf
SHr
A
B
C
12
SHf SHr L=110 L=150 mm
A1 A2 B1 B2 C1 C2 *
24"
44 * * 44 43-42 41 40 4 * 140 (5,5")
45 * 45 44 43-42 41 40 3 * 140 (5,5")
46 * 45 44 43-42 41 40 3 * 150 (6")
47 46 45 44-43 42 41 40 2 * 140 (5,5")
47 46 45 44-43 42 41 40 2 * 150 (6")
48 46 45 44-43 42 41 40 1 * 140 (5,5")
48 46 45 44-43 42 41 40-39 1 * 150 (6")
48 46 45 44-43 42 41 40-39 2 * 180 (7")
49 46 45 44-43 42 41 40-39 * 4 150 (6")
49 46 45 44-43 42 41-40 39 * 3 140 (5,5")
49 46 45 44-43 42 41-40 39 1 * 180 (7")
50 46 45-44 43 42 41-40 39 * 3 150 (6")
50 46 45-44 43 42 41-40 39 * 4 180 (7")
50 46 45-44 43 42 41-40 39 * 2 140 (5,5")
51 46 45-44 43 42 41-40 39 * 2 150 (6")
51 46 45-44 43 42 41-40 39 * 3 180 (7")
51 46 45-44 43 42 41-40 * * 1 140 (5,5")
52 46 45-44 43 42 41-40 * * 1 150 (6")
52 46 45-44 43 42-41 41 * * 2 180 (7")
INVACARE International SARL
1.
2.
3.
4.
3.4. 4 XLT Max
17
Invacare®XLT
1
23
4L
* = Not applicable SD =seat depth
3.5 IDENTIFICATION LABEL
1. Model
2. Serial No.
3. Manufacturing date
4. Max. user weight
Location of identifaication label

9
9
9
9
9
3
13
12
1
4
11
5
8
7
10
2
6
14
18 Invacare®XLT
4. SET-UP AND INSTALLATION
Check that all components comply with the delivery
note. Any damage incurred during transport should
be reported immediately to the delivery company.
Retain all packaging until the transport company has
inspected the consignment and an agreement has
been reached.
4.1 DELIVERY CHECK
4.2 WHEELCHAIR OVERVIEW
1. Frame (chassis)
2. Backrest
3. Push handles
4. Seat
5. Rear wheel
6. Hand rims
7. Brakes
8. Castors
9. Anti tip device
10. Armrests
11. Jaw
12. Legrests
13. Footrest
14. Footbow
4.3 ASSEMBLY
4.3.1 Rear wheels
Attach the rear wheels by pressing the button in the
centre of the hub whilst simultaneously sliding the
axle onto the rear wheel position attachment of the
positioning plate.
It is very important that you check
that the locking pin has actually
locked the wheel into position when
the centre button has been released.
Take hold of the wheels and try to
detach them. This should NOT be
possible.
4.3.2 Backrest
Unfold the backrest by grabbing the wire at the lower
back of the backrest and twisting it to release the
backrest locking pins. Pull the backrest backwards/
uppwards until it is fixed into place. Check that it is
fixed properly. The XLT Max does not have a locking
function. Just pull the backrest upwards and check that
it is fixed in place.
Be careful not to trap your fingers
between the frame and the backrest
attachments.

19
Invacare®XLT
4.3.3 Armrests
Insert the armrests by fitting them into the attachments
on the backrest frame and then swinging them down into
position.
Do not place your fingers on the seat
frame.
When using detachable armrests, just push them down into
place in their receiver.
4.3.4 Legrests
Attach the legrests by pushing the tube at the upper part
of the legrests down into the tubes on the wheelchair. You
must angle the legrests outwards when inserting them.
Lock the legrests by turning them inwards. The legrests are
automatically locked so there is no risk of them coming off
the wheelchair.
Be careful not to trap your fingers between
frame and legrest.

A
B
C
20 Invacare®XLT
5. COMPONENTS AND THEIR FUNCTION
5.1 FOOTBOW
5.1.1 High mounted footbow
Height adjustment, footbow
Loosen the screws (A) using an Allen key, remove
them, and adjust the footbow to the correct height.
Retighten the screws and adjust the calf-strap.
Important
The distance between the lowest
part of the footrest and the floor or
ground must be at least 40 mm.
Tools: 4 mm Allen Key
10 mm fixed spanner
Loosen the screws (B) using an Allen key and adjust
the clamp and footbow to a suitable height. Retighten
the screws and adjust the calf-strap.
Tools: 5 mm Allen Key
5.1.2 Footbow XLT Max
Loosen the screws (C) using an Allen key and adjust
the footbow to a suitable height using one of six
holes on the footbow tube. Retighten the screws and
adjust the calf-strap. Make sure that the screws do not
protrude out of the casing.
Warning!
Risk of injury
The footbow can fall out if the
screws are not tightened properly.
Make sure that both screws are posi-
tioned in the holes on the tube.
Important
The distance between the lowest
part of the footrest and the floor or
ground must be at least 40 mm.
Tools: 5 mm Allen Key
