Chapter 1. Introduction
The G6-300 Outdoor Payment Terminal (OPT) is designed to be durable and tough, yet simple and
secure to use.
To get the best use out of the G6-300, it should be installed correctly and properly maintained.
This guide will walk you through installation and correct care for your new G6-300.
Note: If you are installing an OPT using an approved retrofit kit, the instructions with the kit supersede
the instructions in this guide.
1.1. Where Can the G6-300 be Installed?
The G6-300 is a multi-purpose Outdoor Payment Terminal (OPT) designed for unattended use.
It operates in a range of outdoor environments in temperatures from -20°C (-4°F) through to +70°C
(158°F)
It has been primarily designed for fuel station forecourts but can be installed into any physically secure
cabinet that has been designed for the intended environment.
For outdoor environments, the G6-300 must be installed with its front face vertical, to prevent rain or
condensation pooling inside.
Because it’s usually used in fuel stations, this guide explains the requirements for mounting it into a fuel
pump-head, however the steps are applicable to any cabinet.
Specific steps and precautions for pump head installation are highlighted.
Please, always use safety precautions when installing our products.

DCV-00477 S2 R05 2
Chapter 2. Safety & Compliance Information
STOP There are hazards and safety precautions associated with installing, inspecting, maintaining or
servicing this product.
Important: Before you start, READ! You need to understand the safety information in this manual.
Hazards and safety precautions for tasks are always listed.
Fire, explosion or electrical shock could occur and cause death or serious injury if these safe service
procedures are not followed.
2.1. Preliminary Precautions
Fuel stations can be a dangerous place to work - there are flammable fuels, vapours and high voltages.
You should only install, inspect, maintain or service this equipment when you are fully trained and
authorized to do so.
2.2. Evacuation and Barricading
If you need to access a pump/dispenser head, then you must:
•Evacuate all unauthorized persons and vehicles.
•Use safety tape or cones as a barricade to the affected unit(s).
2.3. Total Electrical Shut-Off
Before accessing the electrical components or the electronics of a pump/dispenser, you must carry out
a total electrical shut-off of that unit.
To shut off electricity find the switch or circuit breaker and turn it to the “off” position.
If you can’t turn off the power, STOP. Do not continue until the electricity has been safely turned off by
you or someone else.
2.4. Read the Manual
Read, understand and follow this manual and any other labels or related materials supplied with this
equipment. If you do not understand a procedure, call an Invenco-authorized service contractor.
Warning: For your own safety and that of others, you must understand the procedures before
beginning work.
2.5. Follow the Regulations
Regulations exist to keep everyone safe.
You are expected to follow:
•OSH regulations.
•National regulations and codes.
•State regulations and codes.
•Local regulations and codes.

DCV-00477 S2 R05 3
Note: If you do not install, inspect, maintain or service this equipment in accordance with these codes,
regulations and standards, it may affect the safe use and operation of the equipment, or lead to legal
citations with penalties.
2.6. Replacement Parts
Use only genuine Invenco replacement parts and retrofit kits on your installation. Using parts other than
genuine Invenco replacement parts could create a safety hazard and violate local regulations.
2.7. Safety Symbols and Warning Words
Throughout this guide you will see warnings and notes in boxes like below. These are used to let you
know when you need to take extra caution in order to avoid hazards and/or potential injury to yourself
or another person.
Always follow these instructions!
Warning: This alerts you to a hazard or unsafe practice that could result in death or serious injury.
Note: This designates a hazard or unsafe practice which may result in minor injury or a legal issue.
2.8. Prevent Explosions and Fires
Fuels and their vapours will become explosive if ignited.
All fuels cause vapours when they are exposed to air and transferred between containers; spilled or
leaking fuels cause even more vapours.
When a customer’s tank is filled, vapours leak into the air around the tank and island, and these vapours
can potentially catch fire or explode if they are exposed to a spark or flame.
This is why every single person on a fuel station forecourt must be aware of the danger of sparks and
open flames and take precautions to avoid explosions and fires.
No Open Flames
Open flames from matches, lighters, welding torches or other sources can ignite the fuel and vapours
present on forecourts.
There should never be an open flame on a fuel station forecourt for any reason.
No Sparks - No Smoking
Sparks can also start a fire or cause an explosion on a forecourt. Be safety conscious!
Do not:
1. Smoke.
2. Light a match.
3. Use a lighter.
4. Use a mobile phone outside of your car.
5. Start or use power tools.
6. Create a flame of any kind.
Also beware of:
1. Static electricity.
Always touch the metal of your vehicle after you get out of it to discharge any electrostatic charge before
you approach the dispenser island.

DCV-00477 S2 R05 4
2.9. Working Alone
Best Practice
Always work with at least two people if possible; one to actively work and one as an assistant/backup.
Ideally if you are working around high voltages, the backup/assistant should be trained in providing
Cardiopulmonary Resuscitation (CPR).
Safety First!
Whether working alone or with someone else:
1. Advise station personnel where you will be working.
2. Warn station personnel not to turn the power back on while you are working on the equipment.
3. Use the OSH tag out and lock out procedures.
If you are not familiar with this requirement, refer to the information in the service manual and the
OSH documentation.
Installer Certification
Many countries’ authorities require people working in hazardous environments to hold additional
qualifications that prove they are suitably skilled to perform work on fuel station forecourts.
Please ensure that you have the relevant certifications and that they are current, before attending to
any site to perform installation work.
2.10. Safety First: Working with Electricity
Always:
1. Use safe and established practices.
2. Follow OSH Lock-Out and Tag-Out requirements before carrying out any service or installation
work.
3. Check all devices before use.
•Is the wiring in good condition?
•Is the grounding connection firmly attached?
•Are all sealing devices and compounds in tact and in place?
Never:
1. Use devices if they have any damage.
2. Skip over safety procedures for any reason.
Faulty wiring or unsafe procedures can cause a fire, explosion or electrical shock.
Station employees and service contractors must understand and comply with these guidelines
completely to ensure safety while the equipment is down.
2.11. Hazardous Materials
Some materials present inside electronic enclosures may present a health hazard if not handled
correctly.
•Always wear gloves if practical to do so.
•Keep your hands away from your eyes and mouth during installation.
•Wash your hands as soon as possible.
2.12. Informing Emergency Personnel

DCV-00477 S2 R05 5
Emergency personnel will need the following information:
•Location of accident (e.g. address, front/back of building).
•Nature of accident (e.g. possible heart attack, run over by car, burns).
•Approximate age of victim (e.g. baby, teenager, middle-age, elderly).
•Whether or not victim has received first aid (e.g. stopped bleeding by pressure).
•Whether or not victim has vomited (e.g. if swallowed or inhaled something).
Warning: Oxygen may be needed at scene if gasoline has been ingested or inhaled. Seek medical
advice immediately.
2.13. Computer Programs and Documentation
All Invenco Group Ltd. computer programs (including software on discs and within memory chips) and
documentation are copyrighted by, and shall remain the property of, Invenco Group Ltd. Such computer
programs and documents may contain trade secret information.
The duplication, disclosure, modification, or unauthorized use of computer programs or documentation
is strictly prohibited unless otherwise licensed by Invenco Group Ltd.
2.14. Approvals
Invenco develops and maintains its hardware and software products using industry-standard quality
processes and is audited by the MasterCard TQM (Terminal Quality Management) scheme.
The G6-300 OPT has the following approvals:
•CAN/CSA C22.2 No. 62368-1-14 (Safety –Audio/video, information and communication
technology equipment)
•CSA C22.2 No. 213-17 (Hazardous location safety –Class I Division 2)
•EN 300 300 & ETSI 301 489-3 (in conjunction with ETSI 301 489-1) for Radio
•EMV standards (Security)
•EN 55024 (Immunity)
•EN 55032 (Emissions)
•FCC certification (Part 15.225, 15.207 transmitter)
•IC certification (RSS-Gen Issue 5 section 8.8 & RSS-210 Issue 9 Section B.6)
•IEC/EN/UL 62368-1 (Safety –Audio/video, information and communication technology
equipment)
•PCI (Payment Card Industry)
•TQM (Quality)
•ISA 12.12.01 (Hazardous location safety –Class I Division 2)
European Directives
The G6-300 complies with the necessary European Directives for the CE mark.

DCV-00477 S2 R05 6
FCC
FCC ID: 2AC7B-G6300OPT (For Hardware ID: XXX-XX1XXXXXXX)
FCC ID: 2AC7B-G6300V2OPT (For Hardware ID: XXX-XX2XXXXXXX)
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause
undesired operation.
Note: The grantee is not responsible for any changes or modifications not expressly approved by the
party responsible for compliance. Such modifications could void the user’s authority to operate the
equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
•Consult the dealer or an experienced radio/TV technician for help.
Hazardous Locations
The G6-300 is suitable for use in Class I, Division 2, Group D, Temperature Class T4 OR non-hazardous
locations only.
WARNING: EXPLOSION HAZARD –Do not connect or disconnect equipment unless power has
been removed or the area is known to be non-hazardous.
WARNING: EXPLOSION HAZARD –Substitution of any components may impair suitability for Class
I, Division 2.
WARNING: EXPLOSION HAZARD –Batteries must only be changed in an area known to be non-
hazardous.
Please refer to “DCV-00119 G6 OPT Control Drawing” for further information on installation in a Class
I, Division 2 hazardous location. Also refer to the ANSI/NFPA70 (US National Electrical Code) and
ANS/ISA RP12.06.01 (Wiring Methods for Hazardous Locations).

DCV-00477 S2 R05 7
Industry Canada Compliance Statements
IC ID: 12614A-G6300 (For Hardware ID: XXX-XX1XXXXXXX)
IC ID: 12614A-G6300V2 (For Hardware ID: XXX-XX2XXXXXXX)
This device complies with Industry Canada’s license-exempt RSSs. Operation is subject to the
following two conditions:
1. This device may not cause interference; and
2. This device must accept any interference, including interference that may cause undesired
operation of the device.
Le resent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio
exempts de licence.L’exploitation est autorisée aux deux conditions suivantes:
1. l’appareil ne doit pas produire de brouillage, et
2. l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre le fonctionnement.

DCV-00477 S2 R05 8
Chapter 3. Product Features
3.1. Location of Features
Fig. 3.1: G6-300 Front Features

DCV-00477 S2 R05 9
Fig. 3.2: G6-300 Rear Features

DCV-00477 S2 R05 10
Chapter 4. Accessories
4.1. In the box
Inside the box is a small plastic bag that contains a spindle and a gasket.

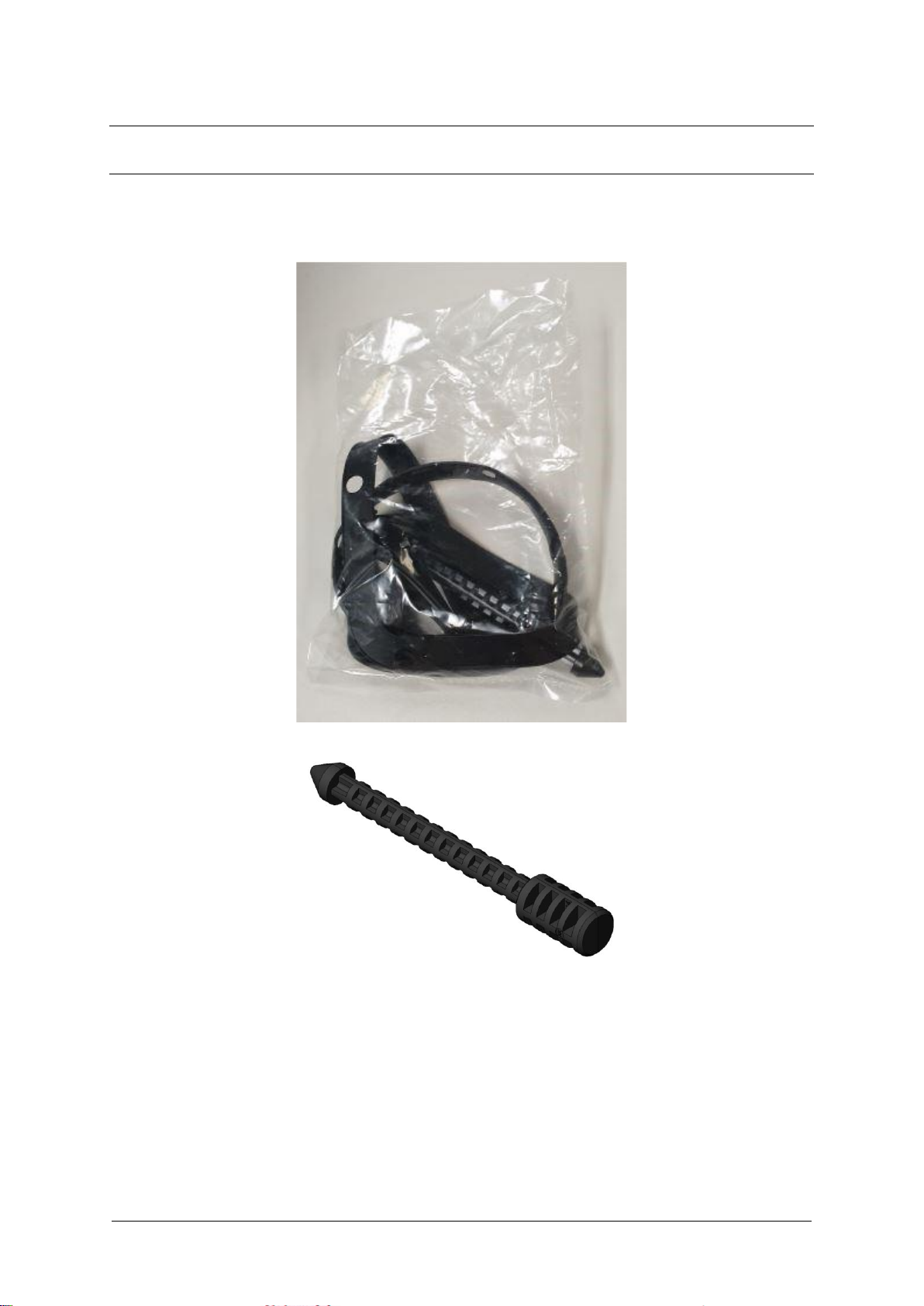

Fig. 4.1: Accessories bag
Fig. 4.2: Spindle to hold printer paper

DCV-00477 S2 R05 11
Fig. 4.3: Gasket for mounting G6-300 to pump head
4.2. Consumables
If the G6-300 has a printer fitted (most of them do), then a roll of paper should be installed (see Chapter
17).
Invenco’s recommended paper is part number CP0002. The specification for this paper is:
•Thermal paper, top-coated (BPA free can be used)
•Paper weight = 60 to 80gsm
•Width = 57 ± 1 mm
•Roll Diameter = 110mm max
•Core Diameter = 12mm
•Recommended Suppliers
oNippon Paper
▪TF60KS-E
oOji Paper
▪FTP-020PU001 (58mm)
▪PD105R
▪FTP-020P0701 (58mm)
Use good-quality paper in the G6-300 to reduce the build-up of dust and fibres, and to extend the life
of the printer.

DCV-00477 S2 R05 12
Chapter 5. Location of Mounting Points
Green highlights show the standard mounting points for a new installation.
Each mounting point has an M4 threaded brass insert. The maximum depth into the G6-300 case is
8mm
See the Drawings at the end of this guide for panel cut-out information.
Fig. 5.1: Location of mounting points (in green).

DCV-00477 S2 R05 13
Chapter 6. Installation
6.1. Installing a Brand New OPT
In most cases a new installation must be done by the pump manufacturer, not a third party. Each pump
has safety certifications that can be invalidated if anyone other than the manufacturer modifies it.
Before a G6-300 can be installed, the pump enclosure must meet the following standards:
1. Fire. The enclosure must be designed to meet the requirements of ISO/EN 60950-1 for fire
enclosures.
2. ATEX (Explosive Atmospheres).
The G6-300 has openings that prevent it being gas-tight. Because of this, it should be installed
away from all hazards. Refer to local laws and regulations for hazardous zones to work out the
best mounting place for the G6-300. The pump or cabinet that the G6-300 is mounted in should
also be designed to prevent a dangerous build-up of explosive gases.
3. Security.
The pump or cabinet should offer physical security to protect the public from the hazards within,
and to reduce the ability of anyone to tamper with the OPT.
4. Power & Data.
a. The pump or cabinet must provide mains power. The requirements are:
i. A permanently-wired connection or a socket to plug it into.
ii. A protective earth connection.
iii. The outlet may be switched if it is a socket, and must be switched if it is permanently
wired.
iv. We recommend one Power Supply Unit (PSU) per G6-300. The use of two G6-300s on a
single PSU may lead to erratic start up behaviour and is not recommended. If using two
G6-300s to one PSU, both must have power applied at the same time to reduce this risk.
b. The pump or cabinet must provide an Ethernet data connection. The requirements are:
v. Capable of at least 10Mbps (preferably 100Mbps).
vi. The connection must be either a socket into which a standard Ethernet patch cable can
be connected, or a cable that is terminated in a standard RJ45 plug suitable for direct
connection into the OPT LAN socket.
vii. Minimum cable standard should be Cat5e.
c. The enclosure may provide an alternative data connection for terminals that have optional
communications modules installed. Please consult with Invenco for what options are available.
5. Accessibility.
The enclosure must be designed and mounted so that disabled persons are able to operate the
OPT. Height must be compliant with PCI 5.0 standards. The G6-300 has an optional ADA
keypad that can be purchased and installed if required in order to meet this compliance.
6. Materials.
The enclosure and all its components must be constructed of durable materials suitable for the
intended location.
7. Door cut-out.
d. Use the wireframe in Chapter 22 Drawings at the end of this manual to determine the extra
space required for the front of the terminal (the terminal is larger than cut-out).
e. The edge of the cut-outs should be smooth and free of burrs, and the surface of the door around
the cut-out should be clean, and planar within ± 1mm.
8. Water-Tightness.
The G6-300 is rated for IP65 around the screen and keypad, and IP54 for other front side apertures.
The parts sitting inside the pump/pedestal enclosure are designed to reduce the likelihood of rain
splashes entering the electronics but the enclosure must provide protection from water.
The door should have a water seal against the enclosure, and there should be good drainage
and/or a system to reduce excessive condensation build-up and dripping.

DCV-00477 S2 R05 14
9. Protection from Weather Extremes. | While the G6-300 is intended for use outdoors, exposure
to direct sunlight and/or heavy rain can affect customers’ experience using the product. | The
pump or enclosure should provide a canopy that prevents the OPT from being exposed to direct
sunlight and heavy rain. | If the OPT cannot be protected from direct sunlight, a warning sign
should be provided close to the OPT advising that the screen may become too hot to touch.
10. In humid climates where the temperature regularly falls below 5°C it is probable that occasional
condensation will occur overnight inside the OPT cabinet, which can cause printer paper jams. In
this case, it is recommended, in the absence of any other heat source, that a thermostatic heater
is installed inside the cabinet, with attention to possible overheating.
11. Placement.
The G6-300 must always be installed in an upright (vertical) position with no horizontal tilt.
12. Hinging.
Use the following diagrams as a guide when designing an enclosure and/or door to house the G6-
300. This will ensure there is a clearance between the G6-300 housing and the opening.
Note: Invenco Recommends Right-side hinging only. Hinging on the left side may cause cables
to be pulled out.
Hinging Option 1
For models without an internal printer, or for models with a printer where the paper has been mounted
with the spindle moving right to left through the paper roll (with the point to the center of the terminal):

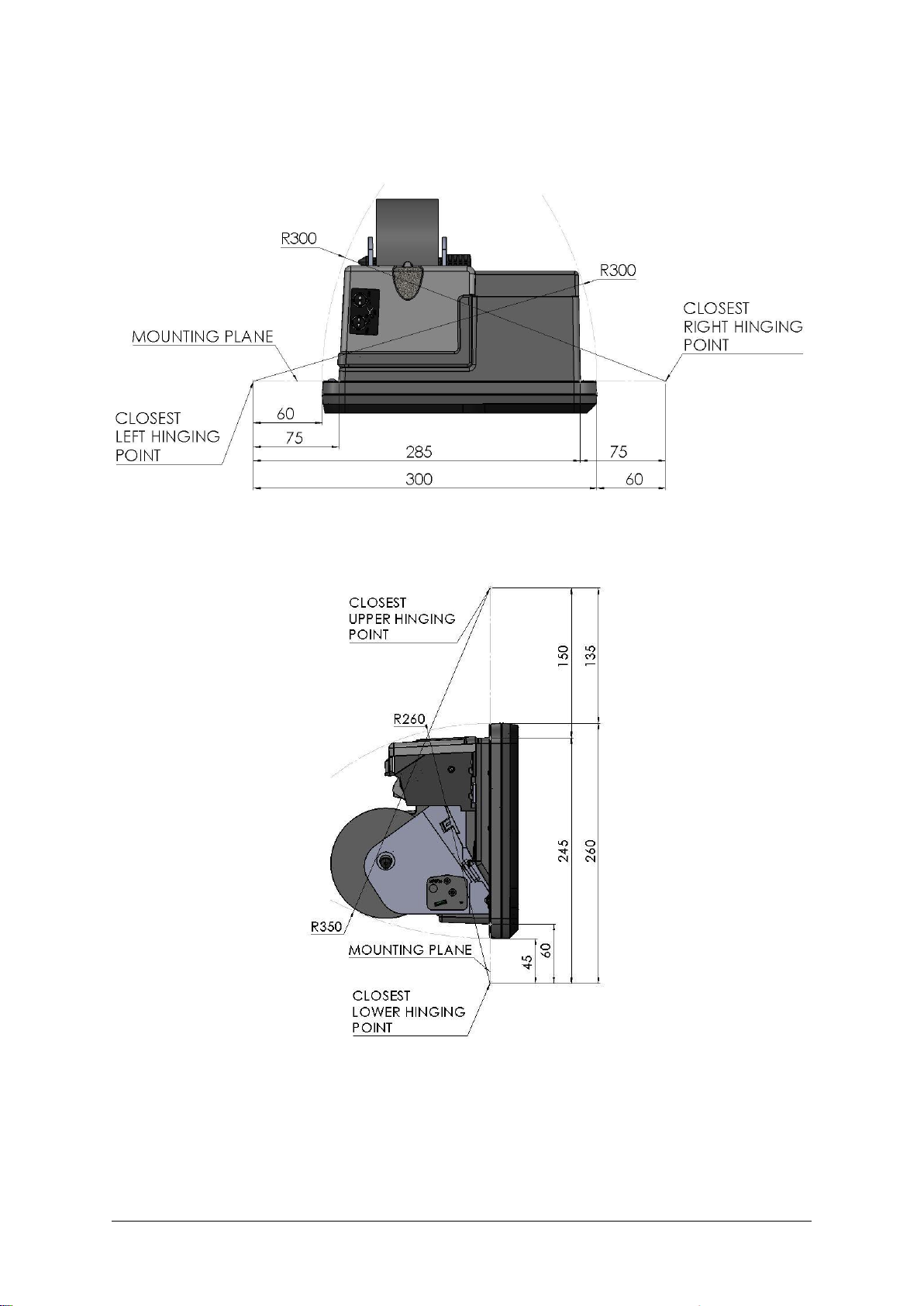

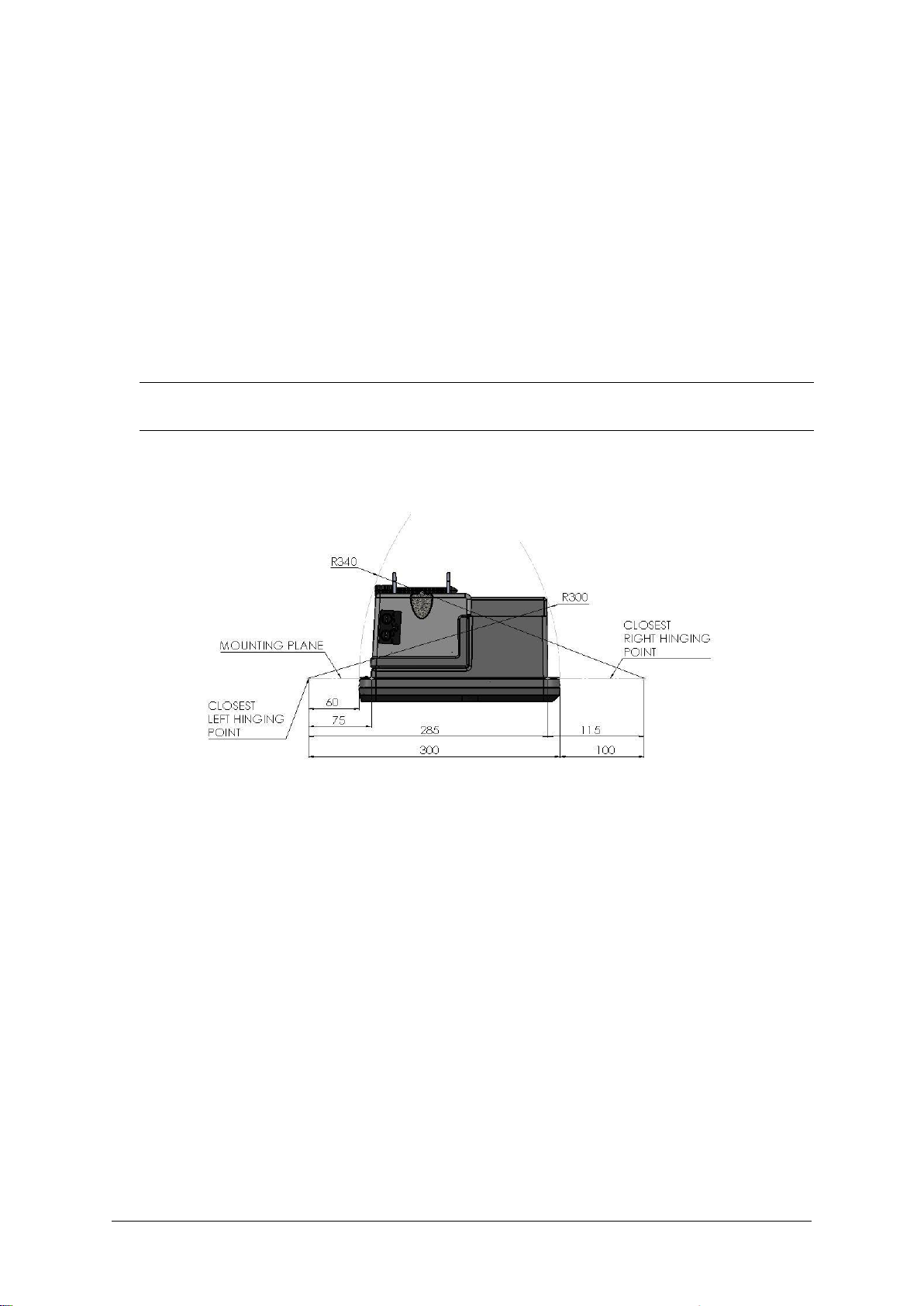

Fig. 6.1: G6-300 Side hinging diagram, spindle pointed left or with no printer.

DCV-00477 S2 R05 15
Hinging Option 2
For models with an internal printer, where the paper has been mounted with the spindle moving left to
right through the paper (with the point ending by the right side of the terminal):
Fig. 6.2: G6-300 Side hinging points diagram, spindle pointed left.
Hinging Option 3
Top and bottom hinging points, suitable for all models.
Fig. 6.3: G6-300 Top-bottom hinging diagram.

DCV-00477 S2 R05 16
Chapter 7. Tools Required to Mount the G6-300
•12 x M4 screws of the correct length to attach the OPT to your pump/cabinet.
•A screwdriver to fit the M4 screws.
•Philips #1 or Flat 5mm screwdriver –for connections on the power supply.
•Small adjustable spanner –for earth connections inside the cabinet.
•Cable ties.
•Side cutters –to trim the cable tie(s).
•You may require other tools if retrofitting into a non-standard enclosure.
Warning: Do not use power tools if working on a fuel station forecourt. Any spark could cause a fire
or explosion.

DCV-00477 S2 R05 17
Chapter 8. Installing into a New Pump or Cabinet
Step
Instruction
1.
Unpack the G6-300 as per the Invenco Shipping Guide.
2.
Open the pump/cabinet door.
3.
Attach the gasket to the back of the unit, following the separate instructions below.
4.
Hold the G6-300 outside the pump/cabinet and locate at least one of the top mounting
screws. Loosely screw it in.
5.
Start several of the remaining support screws around the edge of the G6-300.
6.
Check that the G6-300 is aligned with any features on the pump/cabinet door and then
tighten the screws.
7.
Insert and tighten all remaining screws.
8.
Once the G6-300 is secure, move onto the wiring section to complete installation.
