INVENTOR MOB-GPC09AH User manual

MOBILE AIR CONDITIONER
MOB-GPC09AH

CONTENTS
1SUMMARY 1
2WORKING PRINCIPLE 1
3 STRUCTURE 3
4OPERATING METHODS 4
Environmental temperature 6
Operation of wireless remote control 7
5 DRAINAGE METHOD 10
6ACCESSORIES AND INSTALLATION OF HEAT EXHAUST HOSE 12

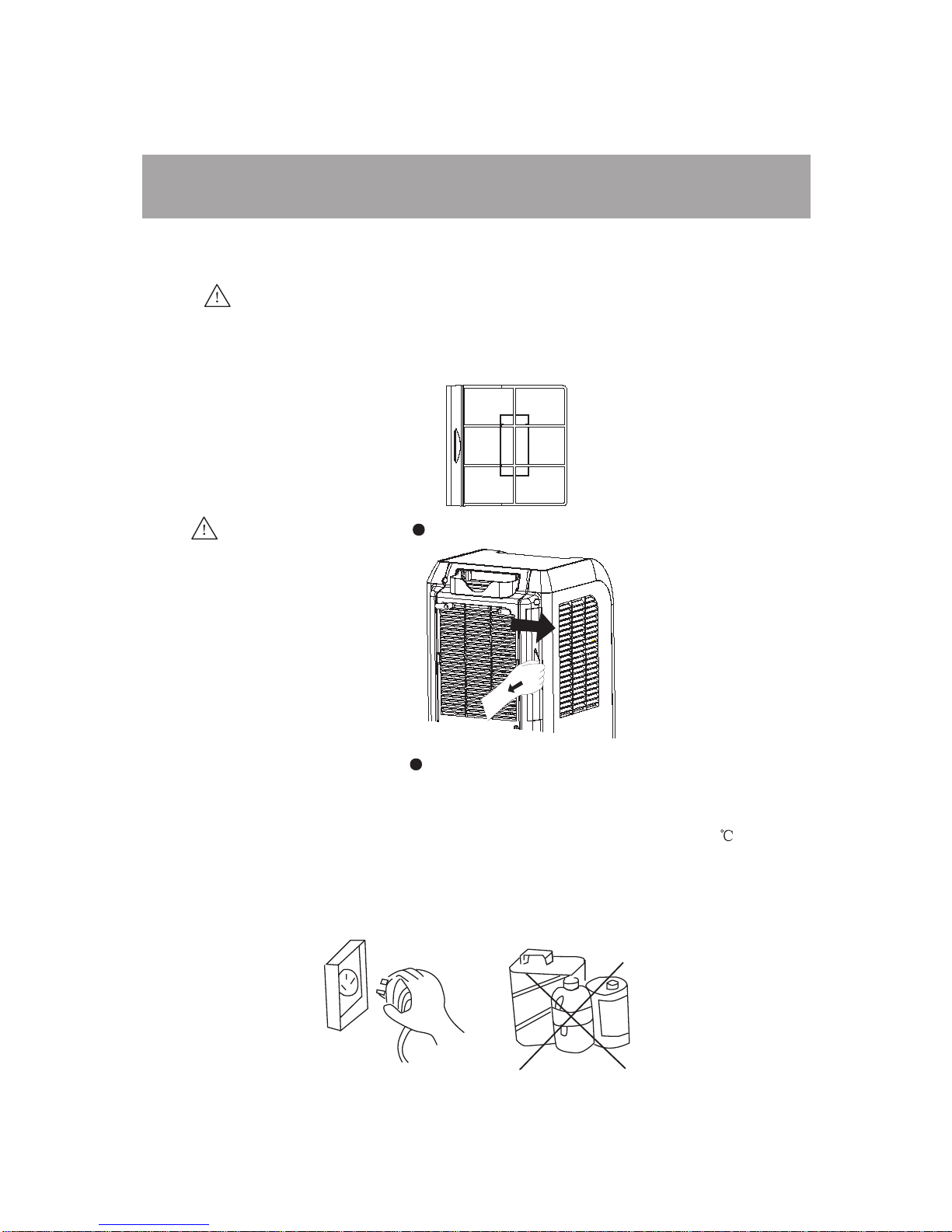

7MAINTENANCE 14
Names and functions of wireless remote control 7
Guide for operation- General operation 9
MALFUCTION ANALYSIS 15
SAFE NOTE AND NOTICE 16
AFTER SALES SERVICE 17
8
9
10
Functions and operation methods of control panel
Guide for operation- Optional operation 9
5

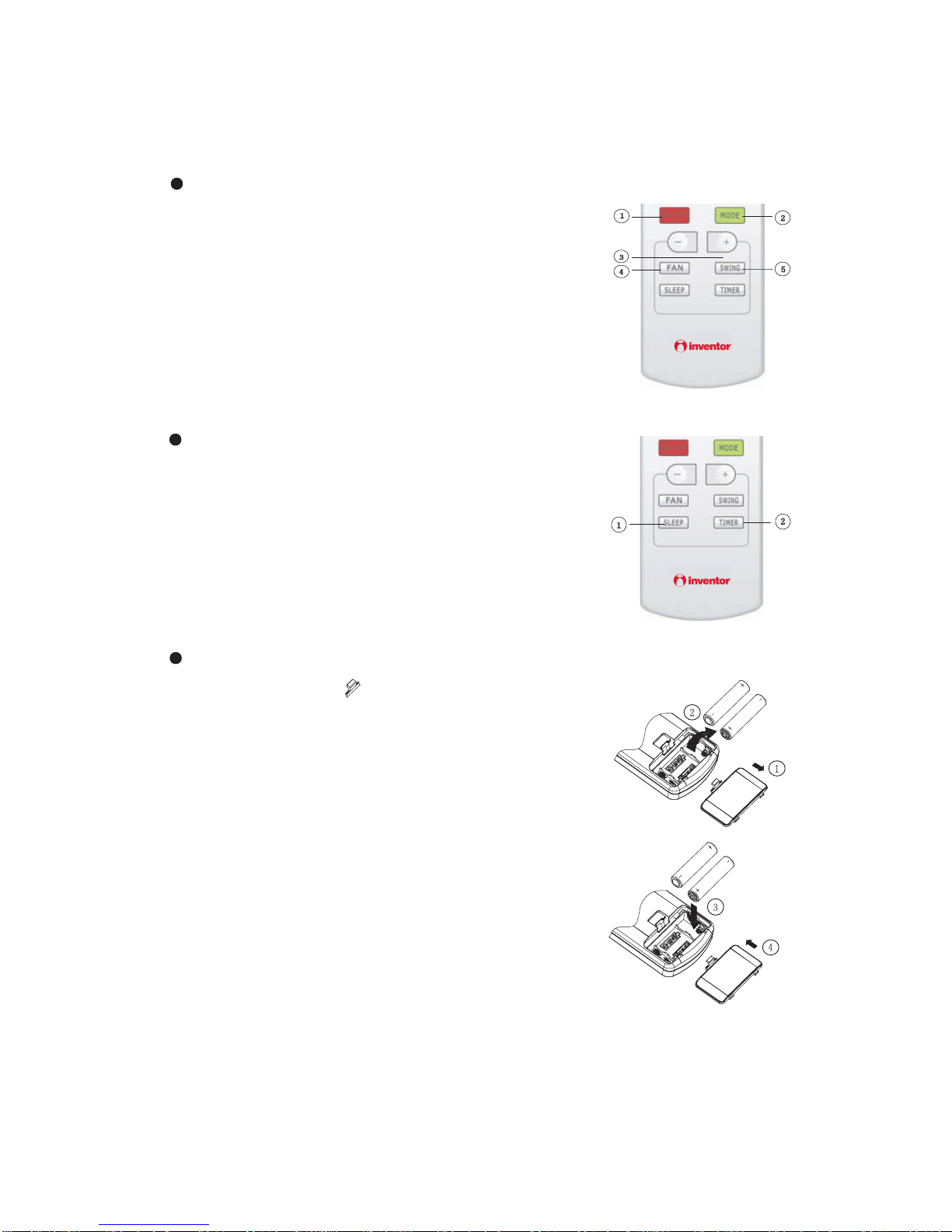

Changing batteries and notices 9

Thank you for your selection, please read this instruction carefully before operating and keep it for consultation.

Mobile Air Conditioner is a type of small multifunctional and movable air conditioner that contains func
tions of COOL DRY and separate ventilation and it can be moved freely according to different location and
occasion.it is suitable for office and houses especially those with many rooms. This product also contains the ad-
vantages of compact configuration, excellent process, elegant appearance, convenient moving, low cost and low
noise.
Note:Please read this instruction carefully before operating the unit.This instruction is only for reference
the specification parameters are subject to be changed without notice.

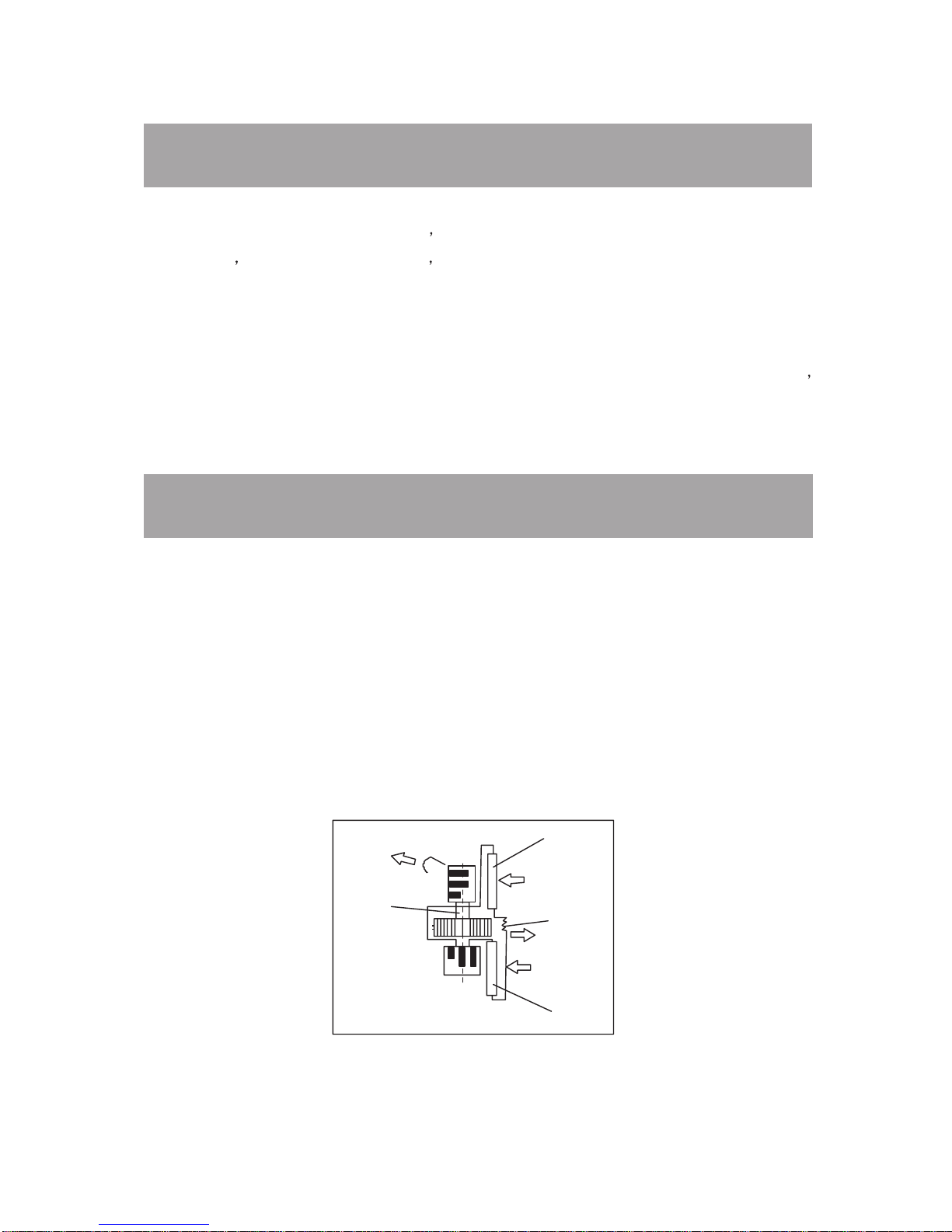

evaporator
fluel
capillary
flue2
condenser
cool air
fan motor
heat air
Under function of fan motor, indoor airflow changed into cooled air through evaporator then blew
out, while the indoor airflow changed into heated air though condenser then blew out. There are 2 flues
designed on structure of this unit: heated air is discharged from rear air outlet vent on back air conditio-
ner while cooled air from front air outlet vent of the unit.After guide louver, gentle and steady cooled ai-
rflow is produced to reach needed cooling effect.
Working principle
SUMMARY
WORKING PRINCIPLE
－1－

window or wall
discharge pipe
cooled air
Heated air
Cooling
Flow direction
of cooled air
Mobile AC
Heat air
1.5~2m
60 ~70
(Sector cooling area)
When only used as dehumidifier, remember to take off heat
discharge pipe from unit and install it onto unit when the unit is
used as air conditioner. Since partial indoor air will be heated
as heat air and discharged to outside by discharge pipe after cyc-
ling then outdoor air will enter to maintain balance air pressure,
thus the air conditioner will only lower temperature of partial re-
gional air of indoor room instead of turning entire indoor air to a
lower temperature.
Usage Location
1.Where room area is smaller than 15m , and wall (or building) has well heat insulation effect. As shown
in following figure, if unit is in shown location, the cooling effect will be better.
2.If room area is larger than20m , for example workshop or factory, the unit can only offer cooled air to
partial area(as shown in following figure),and people in this area can enjoy better cooling effect.
Room
region
2
2
－2－

Rear
Air outlet vent
Upper air inlet grille
Lower air inlet grille
Control panel
Guide louver
Swing louver
Wheel
Power
Filters
Remote conrtoller box
cord
Front
STRUCTURE
－3－

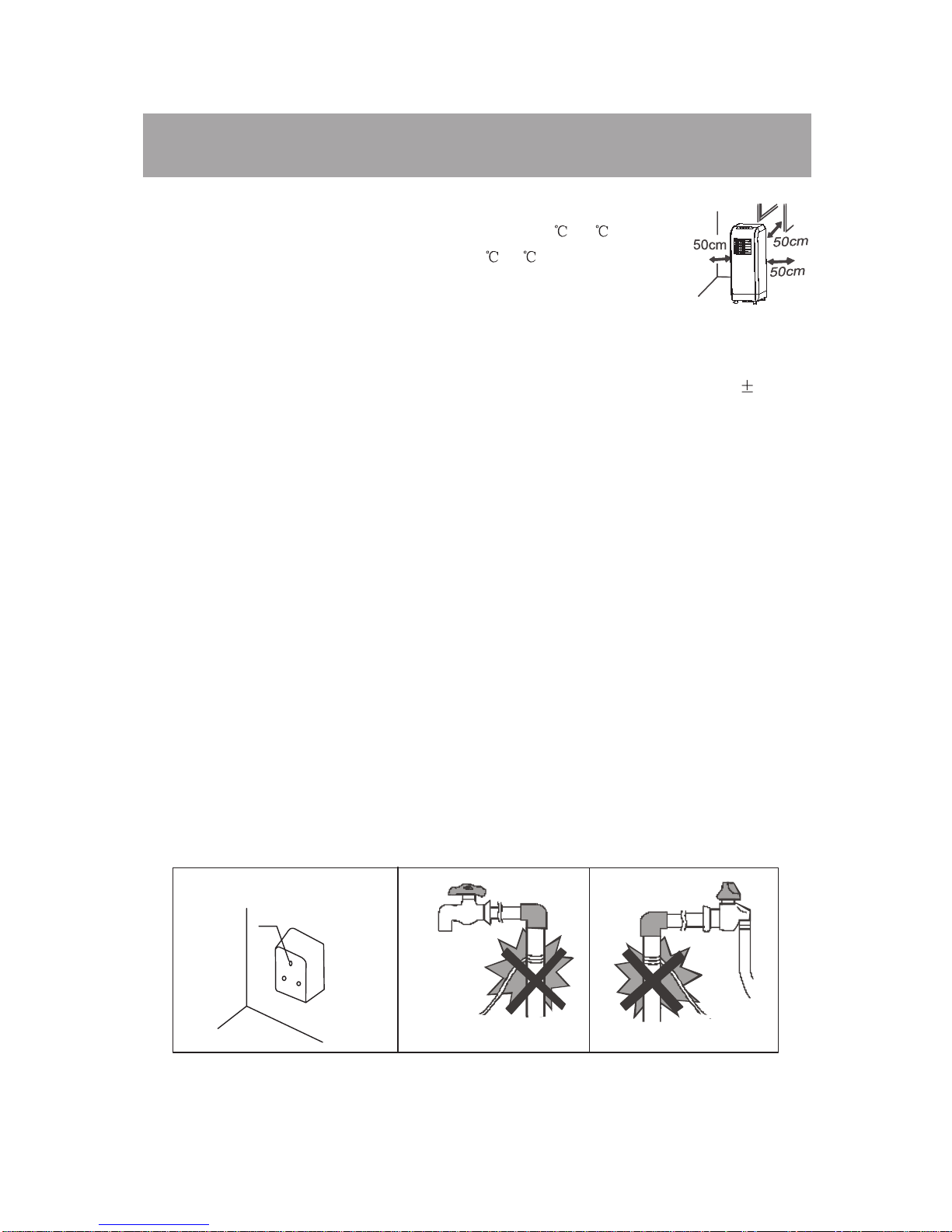

Apply range for COOL and DRY
Disposal requirement
Power
The temp. range of this unit is 16 35 for cooli-
ng and ranges from for dehumidifying
on nameplate. Too high or too low of voltage will influence
the unit.
It is better to adopt power lead with pickup current above 10A to prevent
sudden drop of voltage when the unit is running.
It is necessary to exchange broken power hose by special power hose.
When it is necessary to change power hose or maintain, please contact the
seller and have them repaired by professional personnel.
Earth must be conducted reliably and should connect to special earthing
equipments in building to ensure well earth.
Do not replace fuse by steel or copper and capacity for fuse should be pro-
per. it is forbidden to fix power on blade or sharp objects to prevent creep-
age leaded by mangled wire.
Circuitry must be installed and fixed by professional personnel following
the
16 -35
Place the unit on horizontal floor when using and ma-
intain a distance for above 50cm from walls,surface
of flammable objects or other obstructions.
national wiring regulations.Creepage protect switch with enough capa-
city and.
Check before connecting power:
The normal running fluctuation range of voltage of the unit is 10% of
value listed
OPERATING METHODS
10A solenoid heat tripping air switch must be contained in circuitry. It is forbidden to connect earth
wire to water pipe or gas pipe, plug off power plug or cut off power supply when the unit is not going
to be used.
Earth
Power must contain reliable earth wire
Gas pipe
Water pipe
－4－
-

Functions and operation methods of control panel
Receiver window
WATER FULL light
MODE button
LED screen
DRY mode light
FAN mode light
Temperature selection button ON/OFF button
COOL mode light
When pressing key is valid,buzzer makes a sound,indicated light indicates relevant state,system will last
for 2 seconds.
6.
When the unit running in cool mode, it can decrease the temperature of the room, and make people very
comfortable.
7.
When it twinkling, that means the water in the tank is full, We should drain off the water.
Panel control
l.
3.MODE
In the state of running,press the key to enter the mode of COOL DEHUMIDIFY FAN.
4.Fan speed
Turn on or turn off the unit (press once to turn on unit and repress to turn off).
When working in FAN or COOL mode, the air conditioner can select 3 speeds and the initial speed is hi-
gh; when running in DRY, fan motor runs in Low speed.
5.Dry mode
When the unit running in the dry mode,it can decrease the humidity of the room.
ON/OFF
2."+","-" key
In COOL mode, press "-" once, the set temperature will decrease 1 (1 ), press "+" once, the set tem-
perature will incresae 1 (1 ). The set temperature can be selected from 16 -30 (61 -86).
℃
℃℃℃
Cool mode
Water full
℉
℉℉℉
-5-

No matter under what circumstance after electrified, the interval between twice start of compressor should not
be less than 3 minutes; after started, compressor will not stop by the change of temp. in 6 minutes.
Closed doors and windows can get better dry effect.Press ON/OFF to turn on the unit and MODE
is selected DRY,then cool and dry indicated lights are on and unit runs in dry mode.
When drying, indoor fan motor runs in low speed, compressor and outdoor fan motor run continuously, set te-
mperature will not be displayed and is not adjustable.Discharge pipe is unnecessary to be installed.
Press ON/OFF to turn on unit and select FAN by SPEED, indoor fan motor can run in 3 speeds of
High, Medium and low, set temperature will not be displayed and is not adjusable, High,Medium
or low symbol will be displayed in display window according to speed of indoor fan.
Environmental temperature
Usage environmental temperature of this unit is 16 35 .
1 Install heat discharge pipe well, select a location near door and window, connect the heat
discharge pipe to outside and note to leave an air return vent such as a window
or door to guarantee the indoor air return normal.
2 After press ON/OFF to turn on unit and pressed MODE to select cool mode,cool indicated
light on and unit runs in cooling way.
3 Press SPEED to select proper fan speed (High/Medium/Low).
4 turn on the switch firstly, approve to run in COOL mode ,then initial fan speed is high.
Dry
Compressor delay protect
FAN
while COOL is running, in order to raise cooling effect, please:
Draw up curtain to prevent sunshine from shining into the air conditioning room:
Prevent setting other heat source in the room.
Note
Note
Cool
－6－

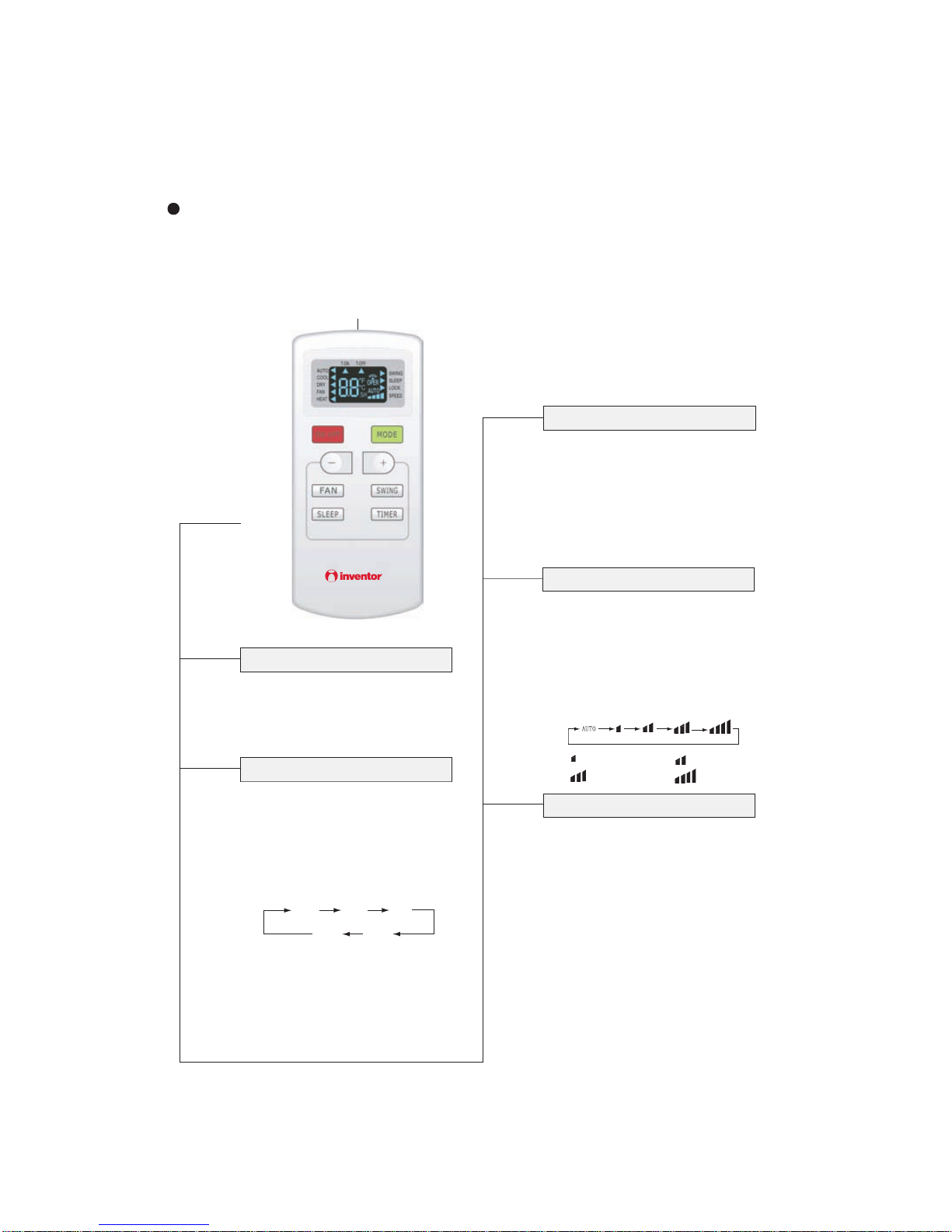

Names and functions of wireless remote control
●
ON/OFF button
ON/OFF
Remote control
Signal transmitter
▲▲▲▲▲
AUTO
COOL
DRY
FAN
HEAT (Only for cooling and heating unit.)
Fan 2Fan 1
Fan 3 Fan 4
Don't drop or throw the remote control; Don't let any liquid in the remote control and
Note: Be sure that there are no obstructions between receiver and remote controller;
put the remote control directly under the sunlight or any place where is very hot.
●Press this button, Auto, Cool,Dry, Fan,
Heat mode can be selected circularly.
MODE button
MODE
Auto mode is default while power on.
Under Auto mode,the temperature will not
be displayed; Under Heat mode, the
initial value is 28℃;Under other
modes, the initial value is 25℃ .
●Press this button, Sleep On and Sleep
Off can be selected. After powered on,Sleep
SLEEP button
SLEEP
Off is defaulted. After the unit is turned
off, the Sleep function is canceled. After
Sleep function set up, the signal of Sleep
will display. In this mode, the time of timer
can be adjusted. Under Fan and Auto
modes, this function is not available.
●By pressing this key, you may select AUTO,
FAN 1, FAN 2, FAN 3 or FAN 4, and may
FAN button
FAN
cool mode. After being energized, AUTO
is defaulted. Only LOW fan can be set
(oF)
82
(oF)
77
Press this button, the unit will be turned on,
press it once more, the unit will be turned
off. When turning on or turning off the unit,
the Timer, Sleep function will be canceled,
but the presetting time is still remained.
not adjust the fan speed, but can send
message.
under DRY mode,pressing this key can
also cycle between them. FAN 4 only in
●
SWING button
SWING
Press this key to activate or deactivate
the swing.
AUTO COOL DRY
FAN
HEAT
Operation of wireless remote control
－7－

Remote control
●
+ button
+
● Presetting temperature can be decreased.
Press this button, the temperature can be
- button
-
set up, continuously press this button
and hold for two seconds, the relative
contents can quickly change, until unhold
this button and send the order that the ℃
(oF) signal will be displayed all the time.
The temperature adjustment is unav-
ailable under the Auto mode, but the order
can be sent by if pressing this button.
For presetting temperature increasing.
Press this button,can set up the temperature,
when unit is on . Continuously press and
hold this button for more than 2 seconds,
the corresponding contents will be
changed
rapidly, until unpress the button
℃（℉）
laying all along. In Auto mode, the temp-
erature can not be set up, but operate this
button can send the signal. Centigrade
setting range :16-30; Fahrenheit scale
setting range 61-86.
then send the information, is disp-
with multifunction; For some function, which the model dosen't have, if press the
corresponding button on the remote controller that the unit will keep the original
running
status.
Notice: This is a general use remote controller, it could be used for the air conditioners
●
By pressing this key under switch-off state,
you may set the time for auto switch-on. The
TIMER button
TIMER
range of setting is 0.5 ~ 24 hours. The
characters "T-ON" and "H" will flash for 5
seconds. Within 5 seconds,you may make
one press of this key to complete the setting
and send the message.If the setting is valid,
the set time will be displayed for 2 seconds
before display of the temperature message.
During flash, you may press "+" key to
increase the value and press "-" key to decrease
the value. The time will increase or decrease
by 0.5 hours with each press of this key.
If pressing "+" or "-" key continuously, the
time value will change rapidly. The remote
controller can increase the set time by 0.5
hours every 0.25 seconds. After being
energized, the fault is no timer setting, and
there is no display of "T-ON" or "H". Press
ON/OFF key to switch on the unit and cancel
the auto switch-on.When the temperature
display becomes constant, you may press
this key again to display the remaining set
time. The time value, "T-On" and "H" will
display constantly for 2 seconds. After 2
seconds,the preset temperature will be
displayed. Within these 2 seconds, you may
press this key again to cancel the auto
switch-on and send the message.
By pressing this key under switch-on state,
you may set the time for auto switch-off.
The method of setting as the same as for
auto switch-on.
●
－8－

－9－
1. After powered on, press ON/OFF button, the unit will start to run.(Note: When
it is powered off, the guide louver of main unit will close automatically.)
2. Press MODE button, select desired running mode, or press COOL or HEAT
mode to enter into the corresponding operation directly.
3. Pressing + or - button, to set the desired temperature. (It is unnecessary to
set the temp. at AUTO mode.)
4. Pressing FAN button, set fan speed, can select AUTO, FAN 1, FAN 2,
FAN 3 or FAN 4.
5. Pressing SWING button, to select the swing.
1. Press SLEEP button, to set sleep.
2. Press TIMER button, can set the scheduled timer on or timer off.
Guide for operation- General operation
Guide for operation- Optional operation
1.
4.
2.
3.
★
Slightly to press the place to take out the back cover of wireless
remote control.(As shown in figure)
Take out the old batteries. (As show in figure)
Insert two new AAA1.5V dry batteries, and pay attention to the polarity.
(As show in figure)
Attach the back cover of wireless remote control. (As show in figure)
When changing the batteries, do not use the old or different batteries,
If the wireless remote control will not be used for a long time, please
otherwise, it can cause the malfunction of the wireless remote control.
take them out, and don't let the leakage liquid damage the wireless
remote control.
The operation should be in its receiving range.
It should be placed at where is 1m away from the TV set or stereo sound sets.
If the wireless remote control can not operate normally, please take them out,
after 30s later and reinsert, if they cannot normally run, please change them.
NOTE:
●
●
●
●
●
Changing batteries and notices

When COOL or DRY is running,condensate will drain to water tank.When water tank is filled buz-
zer will sound 8 timers for warn, water tank green indicated light on panel on with H8
hose and take off the hose fro-
m fixing clamp, then drain out water in tank.After that,plug the pipe plug onto pipe to prevent leaka-
ge of condensate and fix drainage pipe fixing clamp as shown in following figure.The unit will resu-
me running when water filled protect released and compressor stops for 3 minutes.
displayed on
display window and whole unit stop running.Plug out plug on drainage
Install of drainage hose(as shown in following figure):
Note Drainage hose must be installed before using otherwise block of drain may occur and affects
normal run of unit.
Drain Hose included:
Install Drain Hose
1. Remove drain cap from drain port.
Drain Cap
2. Attach one end of the drain hose to the drain port with the clamp. See Drain Hose graphic.
3. Insert the drain plug into the other end of the drain hose and secure with clamp. See Drain Hose graphic.
4. Attach the drain hose clip to the back panel of the air conditioner near the drain port with the screw
provided.
A. Drain port
B. Drain cap
A
B
Drainage pipe Clamp Pipe hoop Rubber plug Screw
DRAINAGE METHOD
－10－

5. Snap the free end of the drain hose intothe drainhose clip.
Drain Hose
Install Exhaust Hose and Adapter
1. Roll air conditioner to its selected location. See “Location Requirements.”
2. Insert one end of the flexible exhaust hose into the exhaust adapter.
3. Twist clockwise to lock hose into place.
4. Insert the other end of the flexible exhaust hose into the window exhaust adapter.
5. Twist clockwise to lock hose into place.
A. Drain plug
B. Drain port
C. Drain hose
D.
E.
A. Exhaust adapter
B.Flexible exhaust hose
C. Window exhaust adapter
ABC
D
E
B
A
C
-
Drain Hose Clip
A. Drain port
B. Attach drain hose
clip with screw provided.
AB
－11－
Clamps
Drain hose clip

●Length range of exhaust pipe should be 500mm-1500mm.
It is recommended to use it with shortest length.
●When installing, exhaust pipe should be as flat as possible.
Don't prolong the pipe or connect it with other exhaust pipe, or
Correct installation is as shown in figure (When installing it on
wall, height of hall should be about 40cm-130cm from floor).
130cm
40cm
ACCESSORIES AND INSTALLATION OF HEAT EXHAUST HOSE
－12－

55cm
55cm
If the pipe are to be bent, please install it by considering
Wrong installation is shown in following figure (If the pipe is
following dimension.
bent too much, it would easily cause malfunction.)
－13－

There are wheels at bottom of mobile air conditioner that enable the unit moves among
rooms conveniently according to need.
Plug off power plug from socket and cut off power before any maintenance to
prevent creepage occurs.
If too much duct deposed on filter, performance of air conditioner will reduce,
thus it is better to clean filter at least once 2 weeks.
Mobile AC
Warning
Clean air filter
Please soak the cloth by warm whose temperature is lower than 40 (or
soap water or water with proper cleaner)and wipe the dirty part on unit slightly
after the cloth is wrung.Don't clean the unit by gasoline, diesel oil or similar thing.
Pull out the power plug before cleaning.
Note: Disassembly
Wash
From these two direction to take out filters.
Clean filter individually, When cleaning , wash it by shooting
water(for example shower) and shakes it. Or soak it in warm
soap water then dry it.
Gas
Clean AC
1
2
MAINTENANCE
－14－
(104 )


If malfunction occur, please check the following before maintenance:
protection.
Troubles
The air conditioner doesn't start.
The LCD displays the number of
time, but it doesn't work.
Although it was set to COOL
mode, there is no cool wind.
Although it was set the DRY
mode, there is no cool wind.
The LCD displays" ".
The LCD displays" ".
Possible Causes
The power supply is not connected well.
The power plug is not inserted tightly.
There is the malfunction of power plug
or socket.
The fuse is broken.
Is the TIMER ON in operation?
1. The room temp.is lower than
the set temp.
2. The evaporator frosts.
1. The evaporator frosts.
1. Low voltage over current
The water tank gets full.
Solutions
1. Insert the power plug tightly.
2. Replace the power plug or socket.
3. Ask for the maintenance man to
replace the fuse.
Cancel the "SET TIMER" operation
or to wait the auto running.
1. This is the normal phenomenon.
2. Unit is running in defrosting operation,
it will resume running in original
operation after defrosting.
1. Unit is running in defrosting operation,
it will resume running in original
operation after defrosting.
Cut off power supply, after 10
minutes, turn on the unit, if " "
still be displays, please inform the
maintenance man to maintain.
1. Pour out water in the tank
2. If the malfunction still exists,
please inform the maintenance
man to maintain.
MALFUCTION ANALYSIS
－15－

Location Don't place the unit in narrow location. Guarantee better ventilation for unit
to prevent malfunction occurs.
Don't place the unit in where there is direct sunburn to prevent fade and re-
duce of effect.
The unit should be at least 50cm away from surface of flammable thing.
Don't soak the unit or operate it in place where is easy to get wet to prevent
creepage.
Don't operate the unit in following location for malfunction may be led:
*Gas place *Fire *where is easy to get oil.
Consider safe problem to following people.
1)Children and patients
2)Sick people or who cannot express himself or herself
3)Those who are exhausted, badly drunk or taken lot of soporific.
Don't climb on the unit or place something on it for drop may occur and le-
ading malfunction.
Don't let wind blows to human directly for long time for it is not good for
health.
The unit should leave TV for at least lm to prevent disturbance of electro-
magnetic wave.
Don't block air inlet or outlet vent for it would lead malfunction.
Don't insert finger or stick etc. into air outlet vent; take special care to child-
ren to prevent accidence.
It is forbidden to slope or turn down air conditioner. Take off power plug
immediately if abnormal circumstance occurs and contact the authorized
seller for check and repair.
Don't sprinkle and shower unit by insecticide for it will lead deformation or
breakage
If your air conditioner has problems on quality or others, please contact lo-
cal seller.
Others:
SAFE NOTE AND NOTICE
－16－
