Get to know MSK-101
Contents
This section includes the following topics:
MSK-101 6
Relay outputs 7
1
MSK-101| Advanced configuration manual v1.5 MAY 2018 |msk-101_advanced-config_en_wo v1.5|© 2017-2018 Inxpect SpA 5

6MSK-101| Advanced configuration manual v1.5 MAY 2018 |msk-101_advanced-config_en_wo v1.5|© 2017-2018 Inxpect SpA
MSK-101
Description
MSK-101 is an advanced motion sensor for high
security intrusion detection systems.
Thanks to a proprietary motion detection motor
based on FMCW radar, it can detect intruders while
minimizing false alarms triggered by small animals,
moving objects or environmental conditions. It
signals the presence of intruders through activation
of the dedicated relay outputs and LED on the front of
the sensor.
Thanks to IP66 and IP68 protection grade, it is
suitable for indoor and outdoor installations.
Special features
The sensor calculates the distance and estimates
dimensions of the moving object in real time,
permitting advanced configuration possibilities in
respect to traditional motion sensors. In particular, it
is possible to:
lset a pre-alarm area at the margins of the
monitored area for activation of deterrent actions
(e.g.: turning on the lights)
lfine set the tolerance level for animals
lexclude any moving objects that would generate
continuous false alarms from the monitored area
Main components
Part Description
APerforated housing base for adaptation to the
main junction boxes
IMPORTANT: the base of the
container is, together with the two
fastening screws (not provided), an
integral part of the sensor anti-removal
and anti-tear system.
BSensor housing
CAdjustable support for the sensor with
integrated fastening screws
DSensor
Part Description
ECaps to cover the fastening screws of the
adjustable support
FBox-base fastening screw
Note: the container-base fastening screw is
not a part of the sensor anti-removal and
anti-tear system.
Sensor
Part Description
ATerminal block for connecting power supply
and four relays
BConnector for connecting the dongle
CSensor plane indicators (horizontal or
vertical)
DLED
LED
Status Meaning
Steady
red Motion detected in alarm area
Flashing
red Motion detected in pre-alarm area
Purple Sensor tampered with, faulty or masked
Flashing
purple Permanent fault. Contact technical assistance to repair or replace the
sensor.
Blue Motion signal processing in progress.
Flashing
blue Sensor initialization phase in progress. Requires a free area of approximately 1
m around the sensor and lasts 10-15
seconds.
Note: during the initialization phase, the
masking signal is disabled.
Get to know MSK-101

Accessories for configuration
The entire configuration is easily managed through
the Inxpect Security application. The application
communicates with the sensor through a removable
wireless dongle.
Figure 1- Dongle.
Figure 2- Application Inxpect Security.
Download the application
www.inxpect.com/stores.php
Relay outputs
Functions of relay outputs
The sensor has four relay outputs pre-configured to
signal the following statuses:
lalarm: relay 1
lpre-alarm: relay 2
ltampering by moving or extracting the sensor:
relay 3
lfault: relay 4
lmasking: relay 1 + relay 4
Note: through the application it is possible to
configure relay 4 to also signal sensor tampering.
With this configuration the sensor no longer
complies with standard EN 50131.
Status of relay outputs
The default status of the relays is closed, which
signals the presence of faulty functioning when the
sensor is not supplied with power. The normal status
of the relays can be changed (Inxpect Security >
>General).
The status of the relays is indicated in the homepage
of the application to facilitate on-site inspections
during the installation phase.
Get to know MSK-101
MSK-101| Advanced configuration manual v1.5 MAY 2018 |msk-101_advanced-config_en_wo v1.5|© 2017-2018 Inxpect SpA 7

Useful information for design
Contents
This section includes the following topics:
Applications 9
Barrier configuration 11
Field of vision 11
Interferences 13
8MSK-101| Advanced configuration manual v1.5 MAY 2018 |msk-101_advanced-config_en_wo v1.5|© 2017-2018 Inxpect SpA
2

Applications
Types of applications
The sensor is suitable for indoor and outdoor
installations and can be mounted on the wall or
ceiling.
According to the direction, the sensor can be:
la volumetric sensor to monitor a large area
(horizontal direction).
lbarrier sensor to monitor a perimeter area, creating
a protective barrier against access along a wall or
gate (vertical direction).
Examples of volumetric sensor
installation
Figure 1- Indoor wall installation.
Figure 2- Indoor ceiling installation.
Figure 3- Outdoor installation.
Useful information for design
MSK-101| Advanced configuration manual v1.5 MAY 2018 |msk-101_advanced-config_en_wo v1.5|© 2017-2018 Inxpect SpA 9

10 MSK-101| Advanced configuration manual v1.5 MAY 2018 |msk-101_advanced-config_en_wo v1.5|© 2017-2018 Inxpect SpA
Examples of barrier sensor
installation
Figure 4- Indoor wall installation.
Figure 5- Indoor ceiling installation.
Figure 6- Indoor hallway installation.
Figure 7- Outdoor installation with adapter.
Useful information for design

Barrier configuration
Adapter for barrier assembly
Barrier installation for protection of a wall or window
requires the sensor to be installed at approximately
15 cm (5.9 in) from the same wall. If other adequate
supports are not available, an adapter is necessary
for assembling the barrier (product code: MSK-101-
BM.
Figure 8- Example of installation without adapter.
Figure 9- Example of installation with MSK-101-BM adapter.
Sensor direction
The MSK-101-BM adapter, according to the
installation method, allows directing the sensor to the
left or the right.
Figure 10- Sensor directed towards the left.
Figure 11- Sensor directed towards the right.
Field of vision
Range of the field with horizontal
sensor direction (volumetric)
In this installation the visual field of the sensor is
approximately 90° along the horizontal plane and 30°
on the vertical plane. It extends for a maximum of 20
m, following the radiation pattern of the antenna.
Figure 12- Top view.
Figure 13- Side view.
Range of the field with vertical
sensor direction (barrier)
In this installation the visual field of the sensor is
approximately 30° along the horizontal plane and 70°
on the vertical plane. It extends for a maximum of 20
m, following the radiation pattern of the antenna.
Figure 14- Top view.
Figure 15- Side view.
Useful information for design
MSK-101| Advanced configuration manual v1.5 MAY 2018 |msk-101_advanced-config_en_wo v1.5|© 2017-2018 Inxpect SpA 11

12 MSK-101| Advanced configuration manual v1.5 MAY 2018 |msk-101_advanced-config_en_wo v1.5|© 2017-2018 Inxpect SpA
Calculation of the field of vision
The actual field of vision of the sensor depends on:
lsensor installation height
lsensor direction (horizontal or vertical)
lsensor inclination
Based on a specific installation height, there are
direction and inclination combinations that guarantee
optimum performance. The following table reports
some examples to better explain the effects of height
and inclination.
Sensor installation height
The sensor can be installed at any distance from the
plane to be monitored, from 0.5 and 3 m (from 1.6 to
10 ft). For example, it can be installed at 2 m from the
floor or 0.5 m from the jamb of the window frame.
When installing the sensor, consider the risk of a
blind spot: if the sensor is too high, it must be tilted
downwards to reduce the undetected area. However,
this also reduces the maximum detected distance. If
the sensor is too low, the blind spot is minimal, but it
increases the risk of masking caused by accidental
passage of people.

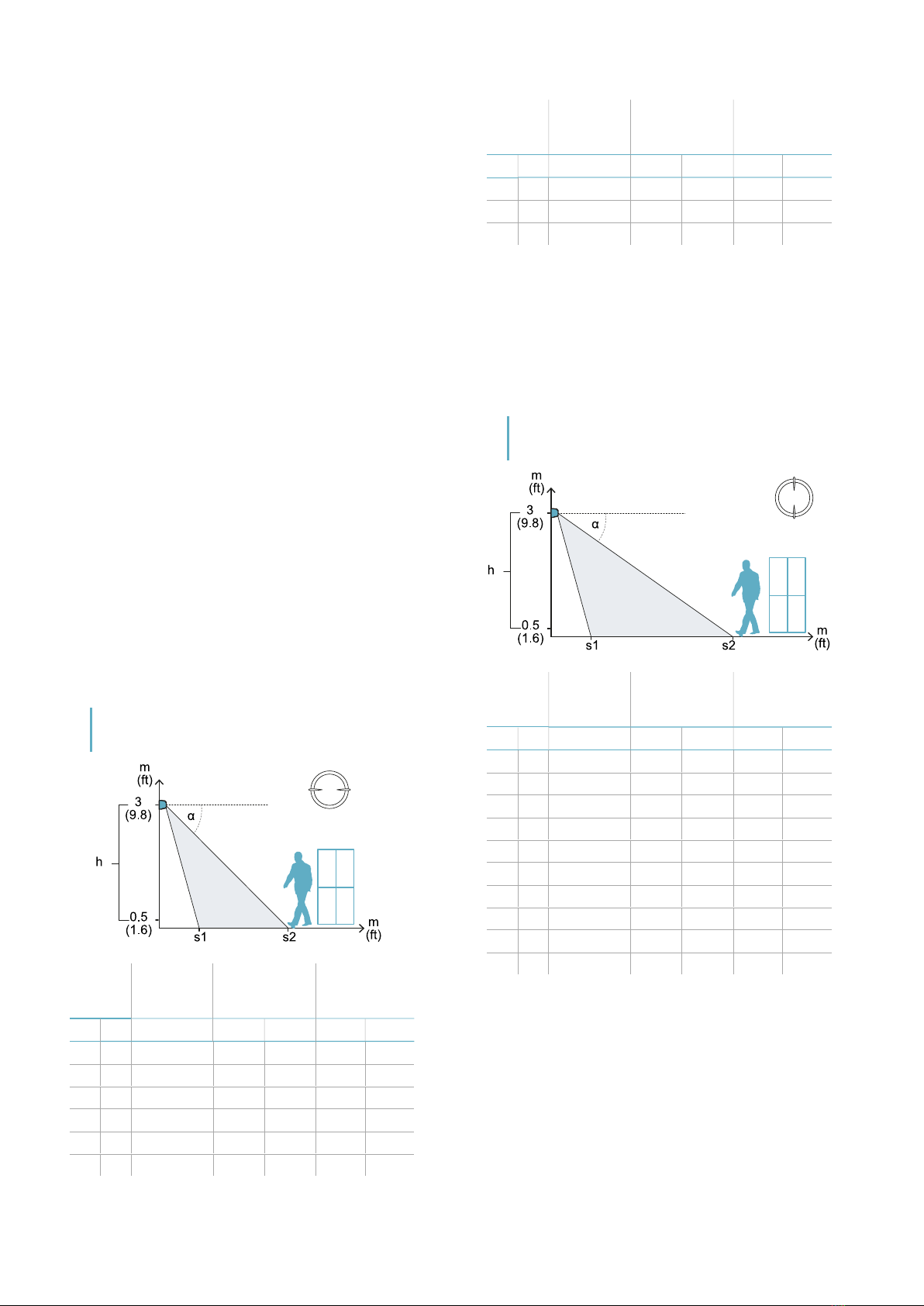

Examples of the field of vision
with horizontal sensor direction
(volumetric)
NOTICE: the detection start and end values do
not guarantee detection of a standing person.
The reported values may slightly vary based on
the installation conditions.
Note: only some heights are reported, but every
intermediate value is allowed and guarantees
optimum performance.
Height
(h) Inclination (α)
Start
detection
(s1)
End
detection
(s2)
m ft m ft m ft
1 3.2 0° 0.5 1.6 20 65
1.5 4.9 0° 0.5 1.6 20 65
2 6.5 -15° 2.5 8.2 16 52
2 6.5 -30° 2 6.5 10 32
2.5 8.2 -15° 3 9.8 17 55
2.5 8.2 -30° 2.5 8.2 10 32
Height
(h) Inclination (α)
Start
detection
(s1)
End
detection
(s2)
m ft m ft m ft
2.5 8.2 -45° 2 6.5 6.5 21
3 10 -30° 2.5 8.2 10 32
3 10 -45° 2 6.5 6.5 21
Examples of the field of vision
with vertical sensor direction
(barrier)
NOTICE: the detection start and end values do
not guarantee detection of a standing person.
The reported values may slightly vary based on
the installation conditions.
Note: only some heights are reported, but every
intermediate value is allowed and guarantees
optimum performance.
Height
(h) Inclination (α)
Start
detection
(s1)
End
detection
(s2)
m ft m ft m ft
1 3.2 0° 0.5 1.6 20 65
1.5 4.9 0° 0.5 1.6 20 65
2 6.5 -15° 2 6.5 20 65
2 6.5 -30° 1 3.2 16 52.5
2.5 8.2 -15° 2 6.5 20 65
2.5 8.2 -30° 1 3.2 20 65
2.5 8.2 -45° 1 3.2 18 59
3 10 -15° 2 6.5 20 65
3 10 -30° 1 3.2 20 65
3 10 -45° 1 3.2 15 49
Alarm and pre-alarm areas
Within the sensor field of vision, the alarm and
possible pre-alarm areas define the area that is
actually monitored by the sensor. If a pre-alarm area
is not defined, the alarm area corresponds to the
entire monitored area.
Useful information for design

Motion in the alarm area triggers an alarm and
excitation on relay 1, motion in the pre-alarm area
triggers a pre-alarm and excitation on relay 2.
Note: not all motions occurring in the pre-alarm or
alarm area are signaled. It depends on the level of
tolerance set for animals and possible semi-static
objects.
For outdoor installations, the pre-alarm area is
especially useful for implemented security
operations (e.g.: turning on the lights, activating a
surveillance video camera) in the presence of motion
in the marginal areas of the monitored area.
The configuration of the pre-alarm area in barrier
installations is usually not very useful, except for
protection in hallways, where the pre-alarm area
could be useful for detecting the presence of an
intruder in the area that is farthest from the sensor.
Interferences
Introduction
The MSK-101 sensor is different from other
traditional motion sensors. It is important to know
what factors interfere in its correct functioning, to
properly install, configure it, and to obtain optimum
performance.
Warnings relative to precipitation
lUnusually intense rain (heavy storms with
intensities exceeding 20 mm/h (0.80 in/h)) can
reduce the field of vision by up to 50%.
lHail may cause false alarms.
lIf exposed to precipitation, install the sensor
parallel to the usual direction of the precipitation.
Precautions
lThe sensor has been designed for installations on
the wall or ceiling: do not install it on moving or
vibrating objects, like poles or fences.
lHiding the sensor behind objects may impact the
sensor performance, even significantly: in these
cases checking correct functioning is completely
the responsibility of the installer.
lDo not install it in the presence of large reflective
objects (e.g.: metallic objects) that could influence
correct detection.
lIn the presence of fluorescent tubes, tilt down the
sensor by 15°/30°, or install it at a minimum
distance of 20 m from the tube.
lIn the presence of other MSK-101 sensors,
maintain the minimum indicated distances, see
"How to install several sensors" on the next page.
lIn the presence of other MSK-101 sensors, assign
each sensor to a different channel, see "How to
configure several sensors" on the next page.
lThe sensors that use the same frequency (e.g.
Blind Spot Detection devices on automobiles,
with radar at 24 GHz) interfere with proper
functioning and may cause false alarms. Do not
point the sensor directly towards a parking area.
lThe sensor can detect motion beyond glass,
walls, and thin floors, for example in drywall. Via
the Inxpect Security application, limit the
monitored area to only the specific area of
interest, and perform tests to prevent false
alarms.
lIn the presence of neon tubes, respect the
minimum sensor inclination indicated so that the
tube does not interfere with the sensor:
Sensor direction Minimum inclination (α)*
Horizontal - 15°
Vertical - 30°
Note *: see "Examples of the field of vision with
horizontal sensor direction (volumetric)" on the
previous page and "Examples of the field of
vision with vertical sensor direction (barrier)" on
the previous page.
Useful information for design
MSK-101| Advanced configuration manual v1.5 MAY 2018 |msk-101_advanced-config_en_wo v1.5|© 2017-2018 Inxpect SpA 13

14 MSK-101| Advanced configuration manual v1.5 MAY 2018 |msk-101_advanced-config_en_wo v1.5|© 2017-2018 Inxpect SpA
Factors that do NOT interfere
A list of factors that in contrast to traditional motion
sensors do NOT interfere with the normal functioning
of the sensor is presented as follows:
ldirect exposure to the sun or windows that face
the exterior
lrapid temperature fluctuations
lsmoke, dust, or strong air currents (e.g.: air
conditioners, fans)
lwater sprays, vaporized water or mist
lelectrical fields (e.g.: electrical motors, high
voltage devices)
lmoving objects (e.g.: fans, pulleys, conveyor
belts, trees and shrubs). See "Manage semi-static
objects" on page23.
lsmall animals or pets. See "Set the tolerance level
for animals" on page23.
How to install several sensors
Three possible combinations of sensor installation
and the minimum distances to maintain between the
sensors with the sensors aligned are presented as
follows. Respecting these distances guarantees the
performance levels indicated in section "Field of
vision" on page11.
NOTICE: other combinations are possible, but
their performance must be validated in the field.
Figure 16- Front-front combination
Figure 17- Front-back combination
Figure 18- Back-back combination
Note: the blind spot created in this combination is
very wide. If possible, use the back-front
configuration.
How to configure several sensors
To reduce interference between the sensors present
in the same area, assign a different channel to each
one. Up to three channels are available (channel A,
B, C).
An example of an installation with nine sensors and
relative channel assignments is presented as
follows.
Useful information for design

Installation and use
Contents
This section includes the following topics:
Installation and configuration 16
Use the application 22
Set the tolerance level for animals 23
Manage semi-static objects 23
Other operations 24
3
MSK-101| Advanced configuration manual v1.5 MAY 2018 |msk-101_advanced-config_en_wo v1.5|© 2017-2018 Inxpect SpA 15

16 MSK-101| Advanced configuration manual v1.5 MAY 2018 |msk-101_advanced-config_en_wo v1.5|© 2017-2018 Inxpect SpA
Installation and
configuration
Necessary components and tools
lWi-Fi dongle (product code: WSYNC-RJ-WIFI or
WSYNC-RJ-WIFI-US).
lAndroid or iOS device with Wi-Fi enabled and the
Inxpect Security application installed (see
"Download the application" on page7).
IMPORTANT: to ensure correct
functioning, allow all requested
permissions for the application.
lOnly for barrier applications and if necessary,
adapter for assembly (product code: MSK-101-
BM) (see "Barrier configuration" on page11).
lTwo screws up to M4 (No.6) for fastening to the
wall or to the junction box.
lScrewdriver, wire stripper and fastening tools not
provided.
Before installation
NOTICE: to ensure effective functioning, the
sensor must be installed in the best possible
position and configured correctly. Carefully
follow the instructions below.
Before installing the sensor, perform the following
operations:
1. Define the sensor application type (see
"Applications" on page9).
2. Define the installation position, considering
possible interferences (see "Interferences" on
page13).
3. Define the height of installation for the sensor to
obtain the desired field of vision (see "Field of
vision" on page11).
4. Run a shielded cable with the necessary
conductors from the alarm control unit to connect
the sensor (power supply and relay outputs).
5. Only for installations with MSK-101-BM adapter,
define the direction of the sensor (see "Barrier
configuration" on page11).
Warnings
NOTICE: damage to the device. Do not let dust
or water near the sensor during installation.
Install MSK-101
1. Assemble the sensor:
For... And... See...
barrier
applications
with
adapter
MSK-101-
BM
sensor
directed
to the
right
"Assemble the sensor
with the MSK-101-BM
adapter (sensor directed
to the right)" on the
facing page
barrier
applications
with
adapter
MSK-101-
BM
sensor
directed
to the
left
"Assemble the sensor
with the MSK-101-BM
adapter (sensor directed
to the left)" on page18
all other
cases - "Assemble the sensor" below
2. "Connect the sensor to the alarm control unit" on
page19.
3. " Direct the sensor and connect the dongle " on
page19.
4. "Configure the sensor" on page20
5. "Fasten the sensor" on page21.
Assemble the sensor
1. Using the prepared holes, fasten the base to the
wall or to the junction box with two screws (not
provided). See "Perforated base dimensions" on
page32.
2. Extract the sensor from the adjustable support.
Installation and use

3. Pass the cable with the wires coming out of the
alarm control unit into the sensor housing.
4. Fasten the sensor housing to the base.
Assemble the sensor with the
MSK-101-BM adapter (sensor
directed to the right)
1. Using the prepared holes, direct the base of the
sensor as shown in the figure and fasten it to the
wall or to the junction box with two screws (not
provided). See "Perforated base dimensions" on
page32.
2. Assemble the adapter to the base, passing the
cable with the wires coming out of the alarm
control unit into the adapter.
3. Extract the sensor from the adjustable support.
4. Pass the cable into the sensor housing.
Installation and use
MSK-101| Advanced configuration manual v1.5 MAY 2018 |msk-101_advanced-config_en_wo v1.5|© 2017-2018 Inxpect SpA 17

18 MSK-101| Advanced configuration manual v1.5 MAY 2018 |msk-101_advanced-config_en_wo v1.5|© 2017-2018 Inxpect SpA
5. Assemble the sensor housing to the adapter.
Assemble the sensor with the
MSK-101-BM adapter (sensor
directed to the left)
1. Using the prepared holes, direct the base of the
sensor as shown in the figure and fasten it to the
wall or to the junction box with two screws (not
provided). See "Perforated base dimensions" on
page32.
2. Assemble the adapter to the base, passing the
cable with the wires coming out of the alarm
control unit into the adapter.
3. Unscrew the fastening screws on the pre-
assembled base of the adapter.
4. Turn the base 180°.
5. Tighten the screws.
6. Extract the sensor from the adjustable support.
Installation and use

7. Pass the cable into the sensor housing.
8. Assemble the sensor housing to the adapter.
Connect the sensor to the alarm
control unit
1. Remove the sheath and the hose by at least 5 cm
(2 in).
2. Connect the power supply and relay outputs. It is
recommended to connect relay 3 (tampering) and
4 (fault) to a 24 h line from the alarm control unit.
Direct the sensor and connect the
dongle
1. Insert the sensor into the adjustable support,
leaving the connector in sight.
2. Turn the sensor to lock it into the adjustable
support.
Installation and use
MSK-101| Advanced configuration manual v1.5 MAY 2018 |msk-101_advanced-config_en_wo v1.5|© 2017-2018 Inxpect SpA 19

20 MSK-101| Advanced configuration manual v1.5 MAY 2018 |msk-101_advanced-config_en_wo v1.5|© 2017-2018 Inxpect SpA
3. Turn the adjustable support to orient the sensor
direction vertically (barrier application) or
horizontally (volumetric application).
4. Tilt down the adjustable support to reach the
desired sensor inclination.
5. Insert the dongle into its caddy.
6. Connect the dongle and fasten it to the sensor.
For 45° sensor inclinations downwards, see "45°
downward inclination" below. It can be fastened
to the right or left of the sensor.
45° downward inclination
To make the connector for connecting the dongle
accessible, turn the adjustable support by 180°.
Configure the sensor
1. Connect the sensor to the power supply.
2. Start the Inxpect Security application.
3. Select the Wi-Fi network of the dongle connected
to the sensor.
Note: if necessary, enable the Wi-Fi
connection of the mobile device.
4. If required, enter the access password for the
dongle (see the dongle instruction sheet for the
default password).
5. If other sensors are present in the area, assign a
specific channel to the sensor, or select "None".
Installation and use
