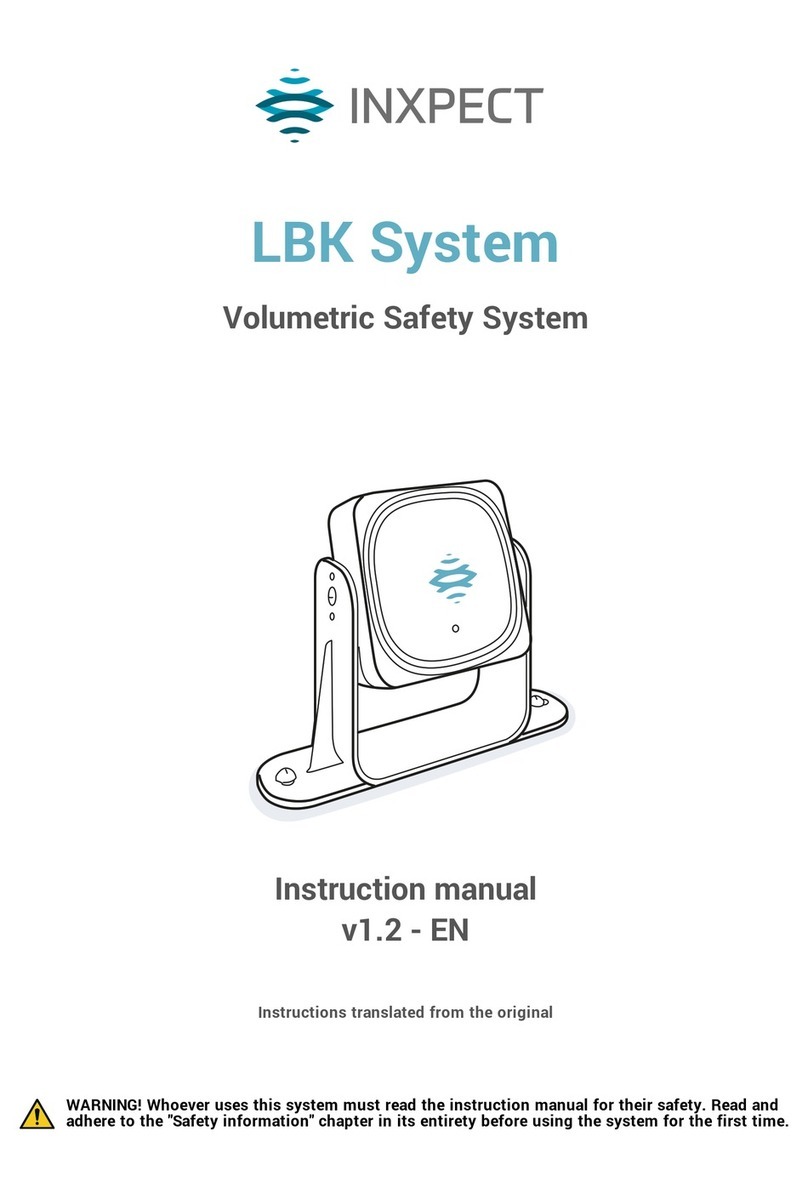

Inxpect LBK Series User manual

Original instructions
LBK System Series
Instruction manual
v1.2 - EN
SRE - Safety Radar Equipment
WARNING! Anyone who uses this system must read the instruction manual to ensure safety. Read
and adhere to the "Safety information" chapter in its entirety before using the system for the first
time.

Copyright © 2020-2021, Inxpect SpA
All rights reserved in all countries.
Any distribution, alteration, translation or reproduction, partial or total, of this
document is strictly prohibited unless with prior authorization in writing from
Inxpect SpA, with the following exceptions:
lPrinting the document in its original format, totally or partially.
lTransferring the document on websites or other electronic systems.
lCopying contents without any modification and stating Inxpect SpA as
copyright owner.
Inxpect SpA reserves the right to make modifications or improvements to the
relative documentation without prior notice.
Requests for authorizations, additional copies of this manual or technical
information about this manual must be addressed to:
Inxpect SpA
Via Serpente, 91
25131 Brescia (BS)
Italy
[email protected]
[phone]

Contents
Glossary of terms iv
1. This manual 6
1.1 Information on this manual 6
2. Safety 8
2.1 Safety information 8
2.2 Conformity 10
2.3 National restrictions 14
3. Get to know LBK System Series 16
3.1 LBK System Series 16
3.2 LBK System Series control units 18
3.3 LBK-S01 sensors 24
3.4 Inxpect Safety application 24
3.5 Fieldbus communication 26
3.6 Modbus communication 27
3.7 System configuration 28
4. Functioning principles 31
4.1 Sensor functioning principles 31
4.2 Detection fields 32
4.3 System category (according to EN ISO 13849) 33
4.4 Safety working modes and safety functions 35
4.5 Safety working mode: Both (default) 40
4.6 Safety working mode: Always access detection 41
4.7 Safety working mode: Always restart prevention 41
4.8 Features of the restart prevention function 42
4.9 Muting 44
4.10 Anti-tampering functions:anti-rotation around axes 45
4.11 Anti-tampering functions:anti-masking 46
4.12 Multi-control unit Synchronization 47
5. Sensor position 52
5.1 Basic concepts 52
5.2 Sensor field of view 53
5.3 Dangerous area calculation 54
5.4 Calculation of position for sensor height ≤ 1 m 56
5.5 Calculation of position for sensor height > 1 m 60
5.6 Outdoor installations 61
6. Installation and use procedures 63
6.1 Before installation 63
6.2 Install and configure LBK System Series 64
6.3 Validate the safety functions 68
6.4 Manage the configuration 71
6.5 Other functions 72
7. Maintenance and troubleshooting 73
7.1 Troubleshooting 73
7.2 Event log management 76
7.3 INFOevents 80
7.4 ERRORevents (control unit) 82
7.5 ERRORevents (sensor) 84
7.6 ERRORevents (CANbus) 85
7.7 Cleaning and spare parts 85
8. Technical references 86
8.1 Technical data 87
8.2 Terminal blocks and connector pin-outs 89
8.3 Electrical connections 91
8.4 Parameters 99
8.5 Digital input signals 101
9. Appendix 106
9.1 System software 106
9.2 Disposal 107
9.3 Service and warranty 107
LBK System Series| Instruction manual v1.2 SET 2021|SAF-UM-LBKBus-en-v1.2|© 2020-2021 Inxpect SpA iii

iv LBK System Series| Instruction manual v1.2 SET 2021 |SAF-UM-LBKBus-en-v1.2|© 2020-2021 Inxpect SpA
Glossary of terms
1
1oo2
(one out of two) Type of multi-channel architecture where one area is monitored by two sensors at the
same time.
A
Activated output (ON-state)
Output that switches from OFF to ON-state.
Angular coverage
Property of the field of view that corresponds to the coverage of 110° or 50° on the horizontal plane.
D
Dangerous area
Area to be monitored because it is dangerous for people.
Deactivated output (OFF-state)
Output that switches from ON to OFF-state.
Detection distance 1
Depth of the field of view configured for detection field 1.
Detection distance 2
Depth of the field of view configured for detection field 2.
Detection field 1
Area of the fieldset closer to the sensor. In the absence of detection field 2, it corresponds to the whole
fieldset.
Detection field 2
Area of the fieldset that follows detection field 1.
Detection signal 1
Output signal that describes the monitoring status of detection field 1.
Detection signal 2
Output signal that describes the monitoring status of detection field 2.

E
ESPE (Electro-Sensitive Protective Equipment)
Device or system of devices used for the safety-related detection of people or parts of the body. ESPEs
provide personal protection at machines and plants/systems where there is a risk of physical injury.
These devices/systems cause the machine or plant/system to switch over to a safe status before a
person is exposed to a dangerous situation.
F
Field of view
Sensor area of vision characterized by a specific angular coverage.
Fieldset
Structure of the field of view which can be composed of one or two detection fields.
FMCW
Frequency Modulated Continuous Wave
I
Inclination
Sensor rotation around the x-axis. The sensor inclination is the angle between the center of the field of
view of the sensor and a line parallel to the ground.
M
Machinery
The system for which the dangerous area is monitored.
Monitored area
Area that is monitored by the system. It is composed of detection field 1 (e.g. used as alarm area) and
detection field 2 (e.g. used as warning area) of all the sensors.
O
OSSD
Output Signal Switching Device
R
RCS
Radar Cross-Section. Measure of how detectable an object is by radar. It depends, among other factors,
on the material, dimension and position of the object.
T
Tolerance area
Area of the field of view where detection or not of a moving object/person depends on the
characteristics of the same object itself.
Glossary of terms
LBK System Series| Instruction manual v1.2 SET 2021|SAF-UM-LBKBus-en-v1.2|© 2020-2021 Inxpect SpA v

6LBK System Series| Instruction manual v1.2 SET 2021 |SAF-UM-LBKBus-en-v1.2|© 2020-2021 Inxpect SpA
1. This manual
1.1 Information on this manual
1.1.1 Objectives of this instruction manual
This manual explains how to integrate LBK System Series for safeguarding machinery operators and how to
install it, use it and maintain it safely.
This document includes all the information as Safety Manual according to IEC 61508-2/3 Annex D. Please refer in
particular to "Safety parameters" on page87 and to "System software" on page106.
The functioning and safety of the machinery to which LBK System Series is connected is out of the scope of this
document.
1.1.2 Obligations with regard to this manual
NOTICE: this manual is an integral part of the product and must be kept for its entire working life.
It must be consulted for all situations related to the life cycle of the product, from its delivery to
decommissioning.
It must be stored so that it is accessible to operators, in a clean location and in good condition.
In the event of manual loss or damage, contact Customer Assistance Service.
Always enclose the manual when the equipment is sold.
1.1.3 Provided documentation
Document Code Date Distribution format
Instruction manual (this
manual)
SAF-UM-LBKBus-
en-v1.2
SET
2021
online PDF
PDF downloadable from the site
www.inxpect.com/industrial/tools
PROFIsafe
communicationReference guide
SAF-RG-
PROFIsafe-en-v16
JUL
2021
online PDF
PDF downloadable from the site
www.inxpect.com/industrial/tools
Modbus communication
Reference guide
SAF-RG-Modbus-
en-v1
JUL
2021
online PDF
PDF downloadable from the site
www.inxpect.com/industrial/tools

1.1.4 Instruction manual updates
Publication
date Code Hardware version Firmware version Updates
SET 2021 SAF-UM-
LBKBus-en-
v1.2
lISC-B01, ISC-
02 and ISC-03:
2.1
lLBK-S01: 2.1
lISC-B01, ISC-
02 and ISC-
03: 1.4.0 e
1.5.0
lLBK-S01: 2.20
Changed system denomination in LBK
System Series
Changed application denomination in
Inxpect Safety
Added ISC-02 and ISC-03 control units
Added topics: "Modbus communication" on
page27, "System software" on page106
Added event log (Fieldbus connection,
Modbus connection, Session
authentication, Validation, Log download)
Other minor changes
MAR 2021 SAF-UM-
LBKBus-en-
v1.1
lISC-B01: 2.1
lLBK-S01: 1.2
lISC-B01:
1.3.0
lLBK-S01: 2.10
Updated manual content to firmware
version 1.3.0 (main topics: Fieldbus
communication, Detection field
dependency, Multi-control unit
synchronization)
Updated application name and UI
reference
Technical data. Added PFHd values with
Fieldbus and control unit and sensor
weight.
Deleted the "Updates" chapter.
Replaced "Dalarm" with "d", "DalarmReal"
with "Dalarm", "longitudinal" with "x-axis"
and "transverse" with "z-axis" and other
minor changes.
SEP 2020 LBK-System-
BUS_
instructions_
en v1.0
lISC-B01: 2.1
lLBK-S01: 1.2
lISC-B01:
1.1.0
lLBK-S01: 2.10
First publication
1.1.5 Intended users of this instruction manual
The recipients of the instruction manual are:
lThe machinery manufacturer onto which the system will be installed
lSystem installer
lMachinery maintenance technician
1. This manual
LBK System Series| Instruction manual v1.2 SET 2021|SAF-UM-LBKBus-en-v1.2|© 2020-2021 Inxpect SpA 7

8LBK System Series| Instruction manual v1.2 SET 2021 |SAF-UM-LBKBus-en-v1.2|© 2020-2021 Inxpect SpA
2. SAFETY
2.1 Safety information
2.1.1 SAFETY MESSAGES
Warnings related to the safety of the user and of the equipment as envisaged in this document are as follows:
WARNING! indicates a hazardous situation which, if not avoided, may cause death or serious injury.
NOTICE: indicates obligations that if not observed may cause harm to the equipment.
2.1.2 SAFETY SYMBOLS ON THE PRODUCT
This symbol marked on the product indicates that the manual must be consulted. In particular, pay
attention to the following activities:
lwiring of the connections (see "Terminal blocks and connector pin-outs" on page89 and "Electrical
connections" on page91)
lcable operating temperature (see "Terminal blocks and connector pin-outs" on page89)
lcontrol unit cover, which was subjected to a low energy impact test (see "Technical data" on page87)
2.1.3 PERSONNEL SKILLS
The recipients of this manual and the skills required for each activity presented herein are as follows:
Recipient Assignments Skills
Machinery
manufacturer
lDefines which protective devices should
be installed and sets the installation
specifications
lKnowledge of significant hazards of the
machinery that must be reduced based on
risk assessment.
lKnowledge of the entire machinery safety
system and the system on which it is
installed.
Protection
system installer
lInstalls the system
lConfigures the system
lPrints configuration reports
lAdvanced technical knowledge in the
electrical and industrial safety fields
lKnowledge of the dimensions of the
dangerous area of the machinery to be
monitored
lReceives instructions from the machinery
manufacturer
Machinery
maintenance
technician
lPerforms maintenance on the system lAdvanced technical knowledge in the
electrical and industrial safety fields
2.1.4 SAFETY ASSESSMENT
Before using a device, a safety assessment in accordance with the Machinery Directive is required.
The product as an individual component fulfills the functional safety requirements in accordance with the
standards stated in "Standards and Directives" on page10. However, this does not guarantee the functional
safety of the overall plant/machine. To achieve the relevant safety level of the overall plant/machine’s required
safety functions, each safety function needs to be considered separately.

LBK System Series| Instruction manual v1.2 SET 2021|SAF-UM-LBKBus-en-v1.2|© 2020-2021 Inxpect SpA 9
2.1.5 INTENDED USE
LBK System Series is certified SIL 2 according to IEC/EN 62061 and PL d according to EN ISO 13849-1.
It performs the following safety functions:
lAccess detection function: access to a hazardous area deactivates the safety outputs to stop the moving
parts of the machinery.
lRestart prevention function: prevents unexpected starting or restarting of the machinery. Detection of
motion within the dangerous area maintains the safety outputs deactivated to prevent machinery starting.
It performs the following optional safety functions:
lStop signal: force all the safety outputs to OFF-state.
lRestart signal: enables the control unit to switch to ON-state the safety outputs related to all the detection
fields with no motion detected.
lMuting (see "Muting" on page44).
LBK System Series is suitable for protecting the entire body for the following applications:
ldangerous area protection
lindoor and outdoor applications
The following is deemed improper use in particular:
lAny component, technical or electrical modification to the product,
lUse of the product outside the areas described in this document,
lUse of the product outside the technical details, see "Technical data" on page87.
2.1.6 EMC-COMPLIANT ELECTRICAL INSTALLATION
NOTICE: The product is designed for use in an industrial environment. The product may cause interference if
installed in other environments. If installed in other environments, measures should be taken to comply with the
applicable standards and directives for the respective installation site with regard to interference.
2.1.7 GENERAL WARNINGS
lIncorrect installation and configuration of the system decreases or inhibits the protective function of the
system. Follow the instructions provided in this manual for correct installation, configuration and validation of
the system.
lChanges to the system configuration may compromise the protective function of the system. After any
changes made to the configuration, validate correct functioning of the system by following the instructions
provided in this manual.
lIf the system configuration allows access to the dangerous area without detection, implement additional
safety measures (e.g. guards).
lThe presence of static objects, in particular metallic objects, within the field of view may limit the efficiency of
sensor detection. Keep the sensor field of view unobstructed.
lThe system protection level (SIL 2, PL d) must be compatible with the requirements set forth in the risk
assessment.
lCheck that the temperature of the areas where the system is stored and installed is compatible with the
storage and operating temperatures indicated in the technical data of this manual.
lRadiation from this device does not interfere with pacemakers or other medical devices.
2.1.8 WARNINGS FOR THE RESTART PREVENTION FUNCTION
lThe restart prevention function is not guaranteed in blind spots. If required by the risk assessment, implement
adequate safety measures in those areas.
lMachinery restarting must be enabled only in safe conditions. The button for the restart signal must be
installed:
ooutside of the dangerous area
onot accessible from the dangerous area
oin a point where the dangerous area is fully visible
2. Safety

10 LBK System Series| Instruction manual v1.2 SET 2021 |SAF-UM-LBKBus-en-v1.2|© 2020-2021 Inxpect SpA
2.1.9 RESPONSIBILITY
The machinery manufacturer and system installer are responsible for the operations listed below:
lProviding adequate integration of the safety output signals of the system.
lChecking the monitored area of the system and validating it based on the needs of the application and risk
assessment. Following the instructions provided in this manual.
2.1.10 LIMITS
lThe system cannot detect the presence of people who are immobile and not breathing or objects within the
dangerous area.
lThe system does not offer protection from pieces ejected from the machinery, from radiation, and objects
falling from above.
lThe machinery command must be electronically controlled.
2.1.11 DISPOSAL
In safety-related applications, comply with the mission time reported in "General specifications" on page87.
For decommissioning follow the instructions reported in "Disposal" on page107.
2.2 Conformity
2.2.1 STANDARDS AND DIRECTIVES
Directives 2006/42/EC (MD - Machinery)
2014/53/EU (RED - Radio equipment)
Standards IEC/EN 62061: 2005, A1:2013, A2:2015, AC:2010 SIL 2
EN ISO 13849-1: 2015 PL d
EN ISO 13849-2: 2012
IEC/EN 61496-1: 2013
IEC/EN 61508: 2010 Part 1-7 SIL 2
IEC/EN 61000-6-2:2019
ETSI EN 300 440 v2.1.1
ETSI EN 301 489-1 v2.2.3 (only emissions)
ETSI EN 301 489-3 v2.1.1 (only emissions)
IEC/EN 61326-3-1:2017
IEC/EN 61010-1: 2010
UL/CSA 61010-1
IEC/EN 61784-3-3 for the PROFIsafe Fieldbus
Note: no type of failure has been excluded during the system analysis and design phase.
The EUDeclaration of Conformity can be downloaded from www.inxpect.com/en/resources/downloads/.
2.2.2 CE
The manufacturer, Inxpect SpA, states that LBK System Series type of radio equipment complies with the
2014/53/EU and 2006/42/EC directives. The full EU declaration of conformity text is available on the company's
website at the address: www.inxpect.com/en/resources/downloads/.
At the same address all updated certifications are available for download.
2. Safety

LBK System Series| Instruction manual v1.2 SET 2021|SAF-UM-LBKBus-en-v1.2|© 2020-2021 Inxpect SpA 11
2.2.3 FCC
LBK System Series complies with FCC CFR title 47, part 15, subpart B. It contains FCC ID: UXS-SMR-3X4.
Operation is subject to the following two conditions:
lthis device may not cause harmful interference, and
lthis device must accept any interference received, including interference that may cause undesired operation
NOTICE: changes or modifications made to this equipment and not explicitly approved by Inxpect SpA may void
the FCC authorization to operate this equipment.
2.2.4 SRRC
en LBK-S01 is a micro-power (short range) radio transmission equipment, type G, and does not require any
type approval.
zh-CN LBK-S01是一种微功率(近程)无线电传输设备，G型，不需要任何类型认可。
2.2.5 IMDA
2.2.6 CERTIFICAÇÕES ANATEL
Este produto está homologado pela Anatel, de acordo com os procedimentos regulamentados pela Resolução
nº242/2000 e atende aos requisitos técnicos aplicados.
Para maiores informações, consulte o site da ANATEL www.anatel.gov.br.
07125-19-12500
Este equipamento não tem direito à proteção contra interferências prejudiciaL e não pode causar interferência
em sistemas devidamente autorizados.
2. Safety

12 LBK System Series| Instruction manual v1.2 SET 2021 |SAF-UM-LBKBus-en-v1.2|© 2020-2021 Inxpect SpA
2.2.7 NCC
en The use of low-power RF devices shall not affect flight safety or interfere with legal communications; if
interference is found, the user should stop using the device immediately and improve it until there is no
interference.
Legal communication in the preceding paragraph refers to radio communications operating in accordance with
the provisions of the Telecommunications Act. Low-power RF devices must withstand interference from
legitimate communications or radio electrical equipment for industrial, scientific, and medical use.
zh-TW 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改
善至無干擾時方得繼續使用。
前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用
電波輻射性電機設備之干擾。
2.2.8 ICASA
TA 2019-5126
APPROVED
2. Safety

LBK System Series| Instruction manual v1.2 SET 2021|SAF-UM-LBKBus-en-v1.2|© 2020-2021 Inxpect SpA 13
2.2.9 ROHS2 CHINA
en According to the SJ/T 11364-2014 Standard of the People’s Republic of China for the Electronic
Industry.
Model: ISC-B01, ISC-02, ISC-03, LBK-S01
Component
name
Hazardous substances
Lead
(Pb)
Mercury
(Hg)
Cadmium
(Cd)
Hexavalent
Chromium
(Cr (VI))
Polybrominated
biphenyls
(PBB)
Polybrominated
diphenyl ethers
(PBDE)
Aluminum,
steel, copper
alloy
X* O O O O O
Electrical
contacts
O O O O O O
Printed
board
assembly
O O O O O O
Plastics O O O O O O
This table was developed according to the provisions of SJ/T 11364.
O: The content of such hazardous substance in all homogeneous materials of such component is below the limit
required by GB/T 26572.
X: The content of such hazardous substance in all homogeneous materials of such component is beyond the limit
required by GB/T 26572.
X*:Exemptions applied according to EU RoHS 2011/65 Annex III and IV.
This statement is based on information and data provided by third parties and may not have been verified
through destructive testing methods or other chemical analysis.
2. Safety

14 LBK System Series| Instruction manual v1.2 SET 2021 |SAF-UM-LBKBus-en-v1.2|© 2020-2021 Inxpect SpA
zh-CN 本表格依据中华人民共和国SJ/T11364的规定编制。
模型: ISC-B01, ISC-02, ISC-03, LBK-S01
部件名称
有害物质
铅
(Pb)
汞
(Hg)
镉
(Cd)
六价铬
(Cr (VI))
多溴联苯
(PBB)
多溴二苯
醚
(PBDE)
铝、铁 、铜合金 X*OOOOO
电触头 OOOOOO
印制板装置 OOOOOO
塑料制品 OOOOOO
本表格依据SJ/T11364的规定规制。
O: 表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572规定的限量要求以下。
X: 表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572规定的限量要求。
X*：根据欧盟RoHS 2011/65的附件III和IV适 用豁免。
本声明基于第三方提供的信息和数据，可能未经破坏性检测方法或其他化学分析进行验证。
2.3 National restrictions
2.3.1 FRANCE AND THE UNITED KINGDOM
LBK System Series is a short-range device in class 2 in accordance with the directive 2014/53/EU (RED - Radio
equipment) and is subject to the following restrictions:
FR UK
en Restrictions in UK and France. In the United Kingdom and in France, the national allocation of
frequencies does not allow the free use of the whole band 24-24.25 GHz. Set the country correctly in the Inxpect
Safety application and the authorized band 24.05-24.25 GHz will be automatically selected.
fr Restrictions en FR. En France, la répartition nationale des fréquences ne permet pas l'utilisation libre de
la totalité de la bande 24-24,25 GHz. Définissez correctement le pays dans l'application Inxpect Safety et la
bande autorisée 24,05-24,25 GHz sera automatiquement sélectionnée.
2.3.2 JAPAN
en Restrictions in Japan. In Japan, the national allocation of frequencies does not allow the free use of the
whole band 24-24.25 GHz. Set the country correctly in the Inxpect Safety application and the authorized band
24.05-24.25 GHz will be automatically selected.
ja 日本 における制限。日本では、全国 的な周波数割 り当てでは、24〜24.25 GHzの全帯 域を自 由に使 用するこ
とはできません。Inxpect Safetyアプリケーションで国 を正しく設定 すると、許可 された帯域 24.05-24.25 GHzが自動的 に
選択 されます。
2. Safety

LBK System Series| Instruction manual v1.2 SET 2021|SAF-UM-LBKBus-en-v1.2|© 2020-2021 Inxpect SpA 15
2.3.3 SOUTH KOREA
en Restrictions in South Korea. In South Korea, the national allocation of frequencies does not allow the free
use of the whole band 24-24.25 GHz. Set the country correctly in the Inxpect Safety application and the
authorized band 24.05-24.25 GHz will be automatically selected.
ko 한국의 제한. 한국에서는 국가의 주파수 할당 규정에 따라 24-24.25 GHz 전체 주파수 대역을 무료로 사용하
는 것을 허용하지 않는다. Inxpect Safety 응용프로그램에서 올바른 국가를 설정하면 승인된 대역 24.05-24.25 GHz
가 자동으로 선택된다.
2.3.4 ARGENTINA
en Restrictions in Argentina. In Argentina, the national allocation of frequencies does not allow the free use
of the whole band 24-24.25 GHz. Set the country correctly in the Inxpect Safety application and the authorized
band 24.05-24.25 GHz will be automatically selected.
es-AR Restricciones en Argentina. La atribución de las bandas de frecuencia en la República Argentina no
permite el uso libre de toda la banda de 24-24,25 GHz. Configure correctamente el país en la aplicación Inxpect
Safety y la banda autorizada 24,05-24,25 GHz se seleccionará automáticamente.
2.3.5 MEXICO
en Restrictions in Mexico. In Mexico, the national allocation of frequencies does not allow the free use of the
whole band 24-24.25 GHz. Set the country correctly in the Inxpect Safety application and the authorized band
24.05-24.25 GHz will be automatically selected.
es-MX Restricciones en México. La atribución de las bandas de frecuencia en México no permite el uso libre de
toda la banda de 24-24,25 GHz. Configure correctamente el país en la aplicación Inxpect Safety y la banda
autorizada 24,05-24,25 GHz se seleccionará automáticamente.
2.3.6 RUSSIAN FEDERATION
en Restrictions in Russian Federation. In Russia Federation, the national allocation of frequencies does not
allow the free use of the whole band 24-24.25 GHz. Set the country correctly in the Inxpect Safety application
and the authorized band 24.05-24.25 GHz will be automatically selected.
ru Ограничения в Российской Федерации. Порядок использования частот в Российской Федерации
не предусматривает свободного использования всего диапазона 24-24,25 ГГц. Необходимо правильным
образом выбрать страну в приложении Inxpect Safety, после чего разрешенный диапазон 24,05-24,25 ГГц
будет выбран автоматически.
2.3.7 CHINA
en Restrictions in China. Use in China is strictly linked to compliance with the temperature range of
operation, which can not fall below 0° C or 32° F.
zh-CN 中国的限制。在中国使用须严格符合操作温度范围，不能低于0°C或32°F。
2. Safety

16 LBK System Series| Instruction manual v1.2 SET 2021 |SAF-UM-LBKBus-en-v1.2|© 2020-2021 Inxpect SpA
3. Get to know LBK System Series
Contents
This section includes the following topics:
3.1 LBK System Series 16
3.2 LBK System Series control units 18
3.3 LBK-S01 sensors 24
3.4 Inxpect Safety application 24
3.5 Fieldbus communication 26
3.6 Modbus communication 27
3.7 System configuration 28
Product label description
The following table describes the information contained in the product label:
Part Description
DC "yy/ww" : year and week of the product manufacture
SRE Safety Radar Equipment
Model Product model (e.g. LBK-S01, ISC-B01)
Type Product variant, used for commercial purposes only
S/N Serial number
3.1 LBK System Series
3.1.1 Definition
LBK System Series is an active protection radar system that monitors the dangerous areas of machinery.
3.1.2 Special features
Some of the special features of this protection system are the following:
lup to two safe detection fields to signal proximity or prepare the machinery for stopping
lEthernet safety Fieldbus to safely communicate with the PLC of the machinery (if available)
lpossibility to switch dynamically between different preset configurations (max 32 through Fieldbus, if
available, and max 4 with digital inputs) to adapt to the surrounding reality
lthree configurable sensitivity levels
lmuting on the entire system or only on some sensors
limmunity to dust and smoke
lreduction of undesired alarms caused by the presence of water or processing waste
lcommunication and data exchange through Modbus (if available)

3.1.3 Main components
LBK System Series is composed of a control unit and up to six sensors. The Inxpect Safety application allows
system operation configuration and checks.
3.1.4 Control unit - sensor communication
The sensors communicate with the control unit via CAN bus using diagnostic mechanisms in compliance with
standard EN 50325-5 to guarantee SIL 2 and PL d.
For correct functioning, each sensor must be assigned an identification (Node ID).
Sensors on the same bus must have different Node IDs. By default, the sensor does not have a pre-assigned
Node ID.
3.1.5 Control unit - machinery communication
The control units communicate with the machinery via I/O ("Inputs" on page20 and "Outputs" on page21).
The ISC-B01 control unit is provided with a safety communication on a Fieldbus interface. The Fieldbus interface
allows the ISC-B01 control unit to communicate in real-time with the PLC of the machinery in order to do the
following:
lsend information about the system to the PLC (e.g. the position of the detected target)
lreceive information from the PLC (e.g. to change the configuration dynamically)
See "Fieldbus communication" on page26.
The ISC-B01 and ISC-02 are provided with an Ethernet port that allows an unsafe communication on a Modbus
interface. See "Modbus communication" on page27.
3.1.6 Applications
LBK System Series integrates with the machinery control system: when performing safety functions or detecting
failures, LBK System Series deactivates the safety outputs and keeps them deactivated, so the control system
can put the area into a safe condition and/or prevent restarting of the machinery.
In the absence of other control systems, LBK System Series can be connected to the devices that control the
power supply or machinery start-up.
LBK System Series does not perform normal machinery control functions.
For connection examples, see "Electrical connections" on page91.
3. Get to know LBK System Series
LBK System Series| Instruction manual v1.2 SET 2021|SAF-UM-LBKBus-en-v1.2|© 2020-2021 Inxpect SpA 17

18 LBK System Series| Instruction manual v1.2 SET 2021 |SAF-UM-LBKBus-en-v1.2|© 2020-2021 Inxpect SpA
3. Get to know LBK System Series
3.2 LBK System Series control units
3.2.1 Control units supported
The LBK System Series supportsthree different control units. The main difference among them are the
connection ports and therefore the communication interfaces available:
lISC-B01: two Ethernet ports for Fieldbus, an Ethernet port for system configuration and Modbus
communication and a micro-USB port
lISC-02: an Ethernet port for system configuration and Modbus and a micro-USB port
lISC-03: a micro-USB port
Safe
Unsafe
ISC-B01 communication architecture. ISC-02 communication architecture.
ISC-03 communication architecture.
3.2.2 Functions
The control unit performs the following functions:
lCollects information from all the sensors via CAN bus.
lCompares the position of detected motion with the set values.
lDeactivates the dedicated safety output when at least one sensor detects motion in the detection field.
lDeactivates all the safety outputs if a failure is detected in one of the sensors or the control unit.
lManages the inputs and outputs.
lCommunicates with the Inxpect Safety application for all configuration and diagnostic functions.
lAllows dynamically switching between different configurations.
lCommunicates with a safety PLC through the Fieldbus connection (if available)
lCommunicates and exchanges data through Modbus protocol (if available)

3.2.3 Structures
ISC-B01 ISC-02
ISC-03
Part Description Control unit
AI/O terminal block ISC-B01, ISC-02, ISC-03
BSystem status LEDs ISC-B01, ISC-02, ISC-03
CNetwork parameter reset button ISC-B01, ISC-02, ISC-03
DReserved for internal use. Output reset button ISC-B01, ISC-02, ISC-03
EMicro-USB port for connecting the PC and
communicating with the Inxpect Safety application
ISC-B01, ISC-02, ISC-03
FMicro-USB port (reserved) ISC-B01
GFieldbus status LEDs
See "Fieldbus status LEDs" on the next page
ISC-B01
HEthernet port with LEDs for connecting the PC,
communicating with the Inxpect Safety
application, and for Modbus communication
ISC-B01, ISC-02
IPower supply terminal block ISC-B01, ISC-02, ISC-03
JPower supply LEDs (steady green) ISC-B01, ISC-02, ISC-03
KCAN bus terminal block for connecting the first
sensor
ISC-B01, ISC-02, ISC-03
LDIP switch to turn on/off the bus termination
resistance:
lOn (top position, default) =resistance included
lOff (bottom position)= resistance excluded
ISC-B01, ISC-02, ISC-03
3. Get to know LBK System Series
LBK System Series| Instruction manual v1.2 SET 2021|SAF-UM-LBKBus-en-v1.2|© 2020-2021 Inxpect SpA 19

20 LBK System Series| Instruction manual v1.2 SET 2021 |SAF-UM-LBKBus-en-v1.2|© 2020-2021 Inxpect SpA
3. Get to know LBK System Series
Part Description Control unit
MCPU LEDs:
lon the right: status of hardware functions of the
primary micro-controller
loff: normal behavior
lsteady red: contact assistance service
lonly for ISC-B01 and ISC-02, on the left: status
of hardware functions of the secondary micro-
controller
lslow flashing orange: normal behavior
lother status: contact assistance service
ISC-B01, ISC-02, ISC-03
NEthernet Fieldbus port n. 1 with LEDs ISC-B01
OEthernet Fieldbus port n. 2 with LEDs ISC-B01
3.2.4 System status LEDs
The LEDs are each dedicated to a sensor, and can display the following statuses:
Status Meaning
Steady green Normal sensor function and no motion detected
Orange Normal sensor function and some motion detected
Flashing red Sensor in error. See "Control unit LED" on page73
Steady red System error. See "Control unit LED" on page73
Flashing green Sensor in boot status. See "Control unit LED" on page73
3.2.5 Fieldbus status LEDs
The LEDs reflect the status of the PROFINET/PROFIsafe Fieldbus and their meaning is reported below.
Note: F1 is the LEDat the top, F6 is the LED at the bottom.
LED Status Meaning
F1 (power) Steady green Normal behavior
Flashing green or
off
Contact assistance service
F2 (boot) Off Normal behavior
Steady or flashing
yellow
Contact assistance service
F3 (link) Off Data exchange is running with the host
Flashing red No data exchange
Steady red No physical link
F4 (not used) - -
F5 (diagnosis) Off Normal behavior
Flashing red DCP signal service is initiated via the bus
Steady red diagnostic error at PROFIsafe layer (wrong F Dest Address, watchdog
timeout, wrong CRC) or diagnostic error at PROFINET layer (watchdog
timeout; channel, generic or extended diagnosis present; system
error)
F6 (not used) - -
3.2.6 Inputs
The system has two type 3 digital inputs (according to IEC/EN 61131-2). Each digital input is dual channel, and
the ground reference is common for all the inputs (for details, see "Technical references" on page86).
When using digital inputs, it is mandatory that the additional SNS input "V+ (SNS)" is connected to 24 V dc and
that the GND input "V- (SNS)" is connected to the ground in order to:
