DIAGRAM AND PARTS DESCRIPTION
1. Instrument / Microphone Input with Volume
Control (1/4"): This mono input accepts a 1/4" input
such as a microphone, guitar, or other musical
instrument.
2. Auxuliary input: This stereo 1/8” input can be used
to connect a CD player, MP3 player, or other audio
source.
3. Bluetooth: The Paired LED will be lit when a
device is paired to BLOCKROCKER. This LED will
not be lit when BLOCKROCKER is first powered on
(unless it was previously paired with a device).
Press the Disconnect button to disconnect a
connected Bluetooth device.
4. Master Volume Control: This knob controls the
master volume of the BLOCKROCKER.
5. Radio Selector: This switch sets the radio to AM or
FM or turns the radio off. (Note: This switch does
not turn the unit's power off – just the radio.)
6. LCD: Displays the current radio station.
7. Tuner: Use these buttons to search for a radio
station. To "scan" (jump to the next available
station), hold this down for a few seconds until it
starts to seek a station.
8. Power LED: Indicates whether BLOCKROCKER is
on or off.
9. Dock Charge: Connect iPad/iPod touch/iPhone
here to charge it.
10. iPod Cradle: Place iPad/iPod touch/iPhone here to
be held by BLOCKROCKER.
11. Antenna: Adjust this telescoping FM antenna to get the
best radio reception.

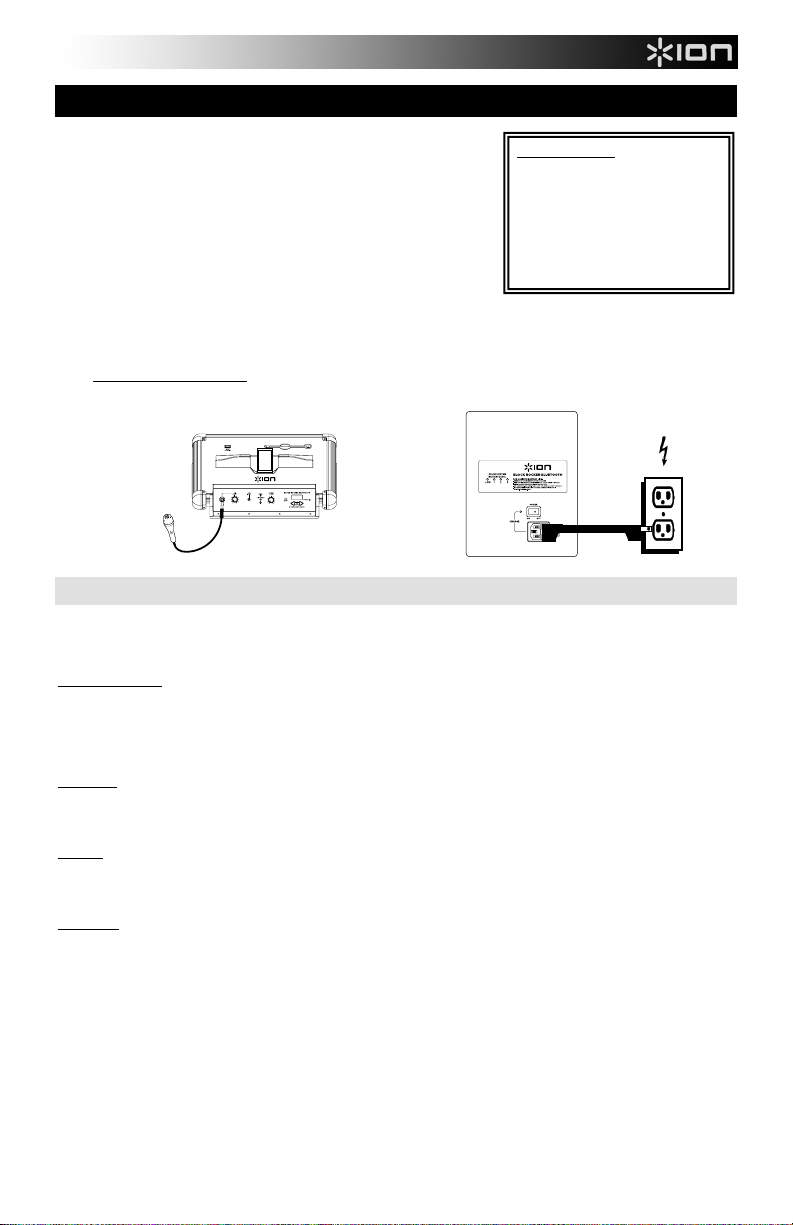

12. Power Cable Input (IEC): Insert the included power
cable here to charge the unit. Note that the
BLOCKROCKER can run off the power adapter while it
simultaneously charges the battery. The charge indicator
illuminates when the battery is charging.
13. Voltage Selector* (EU/UK only): This must be set to the
proper voltage setting for your location. To change its
setting, only remove *one* screw of the cover and slide it aside to expose the selector.
14. Power ON/OFF Switch: Turns BLOCKROCKER on or off. Please note that while BLOCKROCKER is
connected to a power source, it does not need to be powered on to charge the battery.
15. Battery Level Indicator: While the unit is powered ON, these four lights indicate the power left in the battery.
Battery life varies based on volume and usage.
13
14
15
12
123
4
5
6
7
77
8
9
10
11
* WARNING: Units purchased in the UK and
EU have a voltage selector switch. You do not
need to change the voltage unless you are
traveling to another country or are in a
country with varying voltage. Selecting an
improper voltage setting can damage the unit.
