ION IPA22P User manual

Confidential ION Audio Service Manual
ION Audio
Block Party
[iPA22P]
Service Manual, EU
v1.0
2013.11.21
The information in this document contains privileged and confidential information. It is intended
only for the use of those authorized by ION Audio. If you are not the authorized, intended
recipient, you are hereby notified that any review, dissemination, distribution or duplication of this
document is strictly prohibited. If you are not authorized, please contact ION Audio and destroy
all copies of this document. You may contact ION Audio at [email protected].
Copyright ION Audio
ATTENTION!
THIS DOCUMENT CONTAINS SENSITIVE
PROPRIETARY INFORMATION.
ALL RECIPIENTS MUST HAVE A CURRENT
NON-DISCLOSURE AGREEMENT ON FILE
WITH ION AUDIO.
DO NOT MAKE ILLEGAL
COPIES OF THIS DOCUMENT

Confidential ION Audio Service Manual
PREFACE
This document is intended to assist the service technician in the operation, maintenance and
repair of the ION Audio device. Together with the User Reference Manual, this document
provides a complete description of the functionality and serviceability of the Device. Any
comments or suggestions you may have pertaining to the document are welcome and
encouraged.
READ THIS!
In addition to any purchase price that ION Audio may charge as consideration for ION Audio
selling or otherwise transferring this service manual (“Manual”) to you, if you are not a service and
repair facility (“Service Center”) authorized by ION Audio in writing to be an authorized Service
Center, ION Audio sells or transfers the Manual to you on the following terms and conditions:
Only Service Centers authorized by ION Audio in writing are authorized to perform service and
repairs covered by an ION Audio warranty (if any), and transfer of the Manual to you does not
authorize you to be an authorized Service Center. Therefore, if you perform, or if the Manual
is used to perform, any service or repairs on any ION Audio product or part thereof, any
and all warranties of ION Audio as to that product and any service contract with ION Audio
for that product shall be voided and shall no longer apply for such product, even if your
services or repairs were done in accordance with the Manual.
All service or repairs done by you or with reference to the Manual shall be solely your
responsibility, and ION Audio shall have no liability for any such repairs or service work. All such
service or repairs are performed at the sole risk of the person performing the service or
repairs. You agree that all such work will be performed in a competent, professional and safe
manner at all times and to indemnify and fully hold ION Audio and its successors and assigns
harmless in the event of any failure to so perform.
Your purchase of the Manual shall be for your own ultimate use and shall not be for purposes of
resale or other transfer.
As the owner of the copyright to the Manual, ION Audio does not give you the right to copy the
Manual, and you agree not to copy the Manual without the written authorization of ION Audio.
ION Audio has no obligation to provide to you any correction of, or supplement to, the Manual, or
any new or superseding version thereof.
ION Audio shall have the right to refuse to sell or otherwise transfer repair parts or materials to
you in its sole discretion. You shall not use, sell or otherwise transfer spare or replacement parts
supplied by ION Audio to you (i) to repair or be used in products manufactured for or by third
parties or (ii) to any third parties for any purpose.
You shall not make any warranties or guarantees with respect to the products of ION Audio or the
use thereof on behalf of ION Audio or in your own name.
The foregoing describes the entire understanding related to sale or transfer of the Manual to you,
and no other terms shall apply unless in a writing signed by an authorized representative of ION
Audio.
All Trademarks are property of their respective companies.

Confidential ION Audio Service Manual
WARNINGS
TO REDUCE THE RISK OF ELECTRIC SHOCK OR FIRE, DO NOT EXPOSE
THIS PRODUCT TO WATER OR MOISTURE.
The arrowhead symbol on a lightning flash inside a triangle is
intended to alert the user to the presence of uninsulated "dangerous
voltage" within the enclosed product which may be of sufficient
magnitude to constitute a risk of electric shock to persons.
The exclamation point inside a triangle is intended to alert the user
to the presence of important operating, maintenance and servicing
instructions in the literature which accompanies the product.
REPAIR BY ANY PERSON OR ENTITY OTHER THAN AN AUTHORIZED ION
AUDIO SERVICE CENTER WILL VOID THE ION AUDIO WARRANTY.
PROVISION OF THIS MANUAL DOES NOT AUTHORIZE THE RECIPIENT TO
COMPETE WITH ANY ION AUDIO DISTRIBUTOR OR AUTHORIZED REPAIR
SERVICE CENTER IN THE PROVISION OF REPAIR SERVICES OR TO BE
OR MAKE REPAIRS AS AN AUTHORIZED SERVICE CENTER.
ALL REPAIRS DONE BY ANY ENTITY OTHER THAN AN AUTHORIZED ION
AUDIO SERVICE CENTER SHALL BE SOLELY THE RESPONSIBILITY OF
THAT ENTITY, AND ION AUDIO SHALL HAVE NO LIABILITY TO THAT
ENTITY OR TO ANY OTHER PARTY FOR ANY REPAIRS BY THAT ENTITY.
Regarding the Power Supply Fuse
CAUTION: The product under service may employ the use of a
replaceable fuse. Danger of fire or electrocution if fuse is incorrectly
replaced. Replace with only the same type or equivalent type
recommended by the equipment manufacturer.
Regarding the Internal Battery
CAUTION: The product under service may employ the use of a
internal battery. Danger of explosion if battery is incorrectly
replaced. Replace only with the same or equivalent type
recommended by the manufacturer. Dispose of used batteries
according to the manufacturer's instruction.

Confidential ION Audio Service Manual
Safety Instructions
Carefully read the applicable items of the operating instructions and these safety suggestions
before using this product. Use extra care to follow the warnings written on the product itself and in
the operating instructions. Keep the operating instructions and safety suggestions for reference in
the future.
1. Power Source. The product should only be connected to a power supply which is described
either in the operating instructions or in markings on the product.
2. Power Cord Protection. AC power supply cords should be placed such that no one is likely to
step on the cords and such that nothing will be placed on or against them.
3. Periods of Non-use. If the product is not used for any significant period of time, the product's
AC power supply cord should be unplugged from the AC outlet.
4. Foreign Objects and Liquids. Take care not to allow liquids to spill or objects to fall into any
openings of the product.
5. Water or Moisture. The product should not be used near any water or in moisture.
6. Heat. Do not place the product near heat sources such as stoves, heat registers, radiators or
other heat producing equipment.
7. Ventilation. When installing the product, make sure that the product has adequate
ventilation. Improperly ventilating the product may cause overheating, which may damage the
product.
8. Mounting. The product should only be used with a rack which the manufacturer
recommends. The combination of the product and rack should be moved carefully. Quick
movements, excessive force or uneven surfaces may overturn the combination which may
damage the product and rack combination.
9. Cleaning. The product should only be cleaned as the manufacturer recommends.
10. Service. The user should only attempt the limited service or upkeep specifically described in
the operating instructions for the user. For any other service required, the product should be
taken to an authorized service center as described in the operating instructions.
11. Damage to the Product. Qualified service personnel should service the unit in certain
situations including without limitation when:
a. Liquid has spilled or objects have fallen into the product,
b. The product is exposed to water or excessive moisture,
c. The AC power supply plug or cord is damaged,
d. The product shows an inappropriate change in performance or does not operate
normally, or
e. The enclosure of the product has been damaged.

P/N Part Name Description Unit Q'ty T/P
DR001558
IPA22P IPA22P ASSY PCS 1 /
12030031 rocker switch AN-S331,RF-1003,BBG8E2L1T, no silkscreen PCS 1 0.2625
13110005 Power supply 100-240VAC,SR-AD456W,16VDC,4.1A PCS 1 4.9
16040829 cable AN-W4389,2P,22#,UL1007,160mm PCS 1 0.0963
16040830 cable AN-W4390,2P,18#,UL1007,160mm PCS 1 0.1663
16040831 cable AN-W4391,2P,22#,UL1617,180mm PCS 1 0.1698
20010106 rear panel DN-PC1048,ABS80% pure,UL94V2,,70°,ROHS,V1.0 PCS 1 0.8575
20020108 top panel DN-PC2073,ABS(UL94HB)black,ROHS,V1.1 PCS 1 1.5873
20200042 switch knob
DN-PN1038,ABS,black,(MT-11000)black rubber
painting,ROHS,V1.0
PCS 1 0.0788
20210118 rotary knob DN-PN2087,ABS, chrome plating,V1.0 PCS 2 0.2415
30010045 heat-shrinkable T bush Φ22*40*0.45mm,UL, black PCS 1 0.0158
30010051 heat-shrinkable T bush Φ30*40*0.50mm,UL, black PCS 1 0.0263
30060357 foam Φ4.5*Φ18mm,EVA1030,black,T=6.0mm,V1.0 PCS 1 0.007
40010051 power socket AN-J0150,DB-14-2,0.8T,3P PCS 1 0.1925
54010127 faceplate DN-PC1048,ABS, white silkscreen,ROHS,V1.0 PCS 1 0.0175
54020057 top panel DN-PC2073,ABS, white silkscreen,ROHS,V1.0 PCS 1 0.0175
60100011 antenna 2.4G,2DBi,black,ROHS PCS 1 0.2713
70010576 screw Φ3*6mm,,screw headD7.5mm PCS 10 0.0357
90140001 label DN-YP001,7mm*7mm PCS 1 0.0018

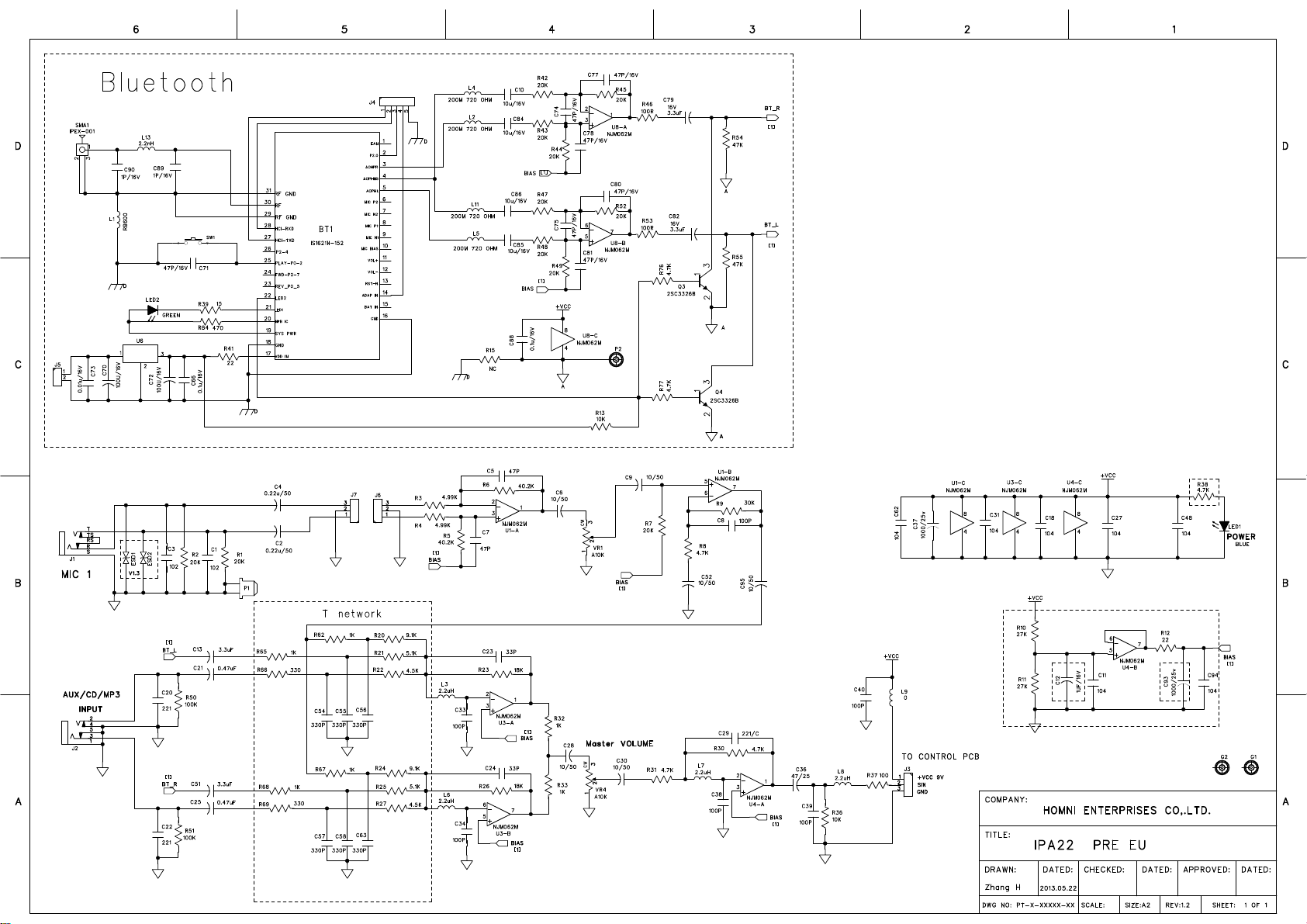

CR010541
RoHS: IPA22P PRE IPA22P PRE ASSY PCS 1 1.3789
10490015 insert JP-13,13*7*0.8mm, PCS 1 0.0333
12040001 touch switch AN-S401,TSF6273DJ-250AH PCS 1 0.0266
15010459
rotational
AN-V1162,R0915N1D2-17.5F7-7-A10K-R90 PCS 2 0.35
16040458 cable AN-W46M,2P,22#,UL1007,120mm PCS 1 0.0508
16050142 shielded cable AN-W5140,3P,24#,UL2547,70mm PCS 1 0.091
16050206 shielded cable AN-W5203,3P,24#,UL2547,200mm PCS 1 0.1435
17010119 electrolytic capacitor 100uF/25V,±20%,-40/+85℃,Φ5*11mm,P=2mm,black PCS 2 0.0144
17010282 electrolytic capacitor 1000uF/16V,±20%,-40/+85℃,Φ8*16mm,P=3.5mm,black PCS 2 0.0628
17020010
micro-electrolytic
0.47uF/50V,±20%,-40/+85℃,Φ4*7mm,P=1.5mm,black PCS 2 0.0144
17020013
micro-electrolytic
1uF/50V,±20%,-40/+85℃,Φ4*7mm,P=1.5mm,black, PCS 1 0.0069
17020021
micro-electrolytic
3.3uF/25V,±20%,-40/+85℃,Φ4*7mm,P=1.5mm,black PCS 4 0.027
17020032
micro-electrolytic
10uF/50V,±20%,-40/+85℃,Φ5*7mm,P=2.0mm,black PCS 6 0.0454
17020049
micro-electrolytic
47uF/25V,±20%,-40/+85℃,Φ5*7mm,P=2.0mm,black PCS 1 0.0076
17030012
Low leakage electrolytic
capacitor
0.22uF/50V,±20%,-40/+85℃,Φ5*11mm,P=2.0mm,
orange PCS 2 0.0181
18040122 LED AN-L0122,DIP,SBR-03W4C-3B7W,Φ3*5mm, blue PCS 2 0.133
20260067 LED sleeve LED3B-10-B, PCS 1 0.0085
30010004 heat-shrinkable T bush Φ2*10*0.20mm,UL,black PCS 2 0.0006
40030051 6.35 socket AN-J0350,SJ6305-5P PCS 1 0.182
40040017 3.5 socket AN-J0418,PJK-0358,silver plating PCS 1 0.1418
40370001 male jack AN-JP401,XH2.5-2P,2532-02 PCS 2 0.0126
40370002 male jack AN-JP401,XH2.5-3P,HT-2.5-03P-01A,180 PCS 1 0.0086
CR010543
IPA22P PRE SMT IPA22P PRE SMT ASSY PCS 1 1.3316
11170001 SMT resistor 1/8W,0Ω,±5%,0805, PCS 1 0.0008
11170011 SMT resistor 1/8W,22Ω,±5%,0805 PCS 1 0.0008
11170022 SMT resistor 1/8W,100Ω,±5%,0805 PCS 1 0.0008
11170032 SMT resistor 1/8W,330Ω,±5%,0805 PCS 2 0.0016
11170044 SMT resistor 1/8W,1KΩ,±5%,0805 PCS 6 0.0049
11170059 SMT resistor 1/8W,4.7KΩ,±5%,0805 PCS 4 0.0033
11170072 SMT resistor 1/8W,15KΩ,±5%,0805 PCS 2 0.0016

11170075 SMT resistor 1/8W,18KΩ,±5%,0805 PCS 2 0.0016
11170080 SMT resistor 1/8W,30KΩ,±5%,0805 PCS 1 0.0008
11170092 SMT resistor 1/8W,100KΩ,±5%,0805 PCS 2 0.0016
11170124 SMT resistor 1/4W,22Ω,±5%,1206 PCS 1 0.0014
11170239 SMT resistor 1/8W,4.53KΩ,±1%,0805 PCS 2 0.0021
11170242 SMT resistor 1/8W,4.99KΩ,±1%,0805 PCS 2 0.0021
11170266 SMT resistor 1/8W,10KΩ,±1%,0805 PCS 1 0.0011
11170288 SMT resistor 1/8W,20KΩ,±1%,0805 PCS 3 0.0032
11170355 SMT resistor 1/10W,15Ω,±5%,0603 PCS 1 0.0004
11170364 SMT resistor 1/10W,100Ω,±5%,0603 PCS 2 0.0008
11170377 SMT resistor 1/10W,470Ω,±5%,0603 PCS 1 0.0004
11170398 SMT resistor 1/10W,4.7KΩ,±5%,0603 PCS 2 0.0008
11170413 SMT resistor 1/10W,20KΩ,±5%,0603 PCS 8 0.0034
11170421 SMT resistor 1/10W,47KΩ,±5%,0603 PCS 2 0.0008
11170694 SMT resistor 1/8W,5.1KΩ,±1%,0805 PCS 2 0.0021
11171091 SMT resistor 1/10W,9.1KΩ,±1%,0805 PCS 2 0.0021
11171119 SMT resistor 1/8W,40.2KΩ,±1%,0805 PCS 2 0.0021
14010161 NPN audion KTC2875-B-RTK/P,SOT-23,KEC PCS 2 0.133
14040740 IC MC78M05BDTRKG,DPAK(TO-252) PCS 1 0.0788
24010009 SMT magnetic bead 600Ω@100MHZ,0.5A,±25%,0805,FB0805-601 PCS 1 0.0053
24010033 SMT magnetic bead FCM1608K-721T,200MHZ,720Ω,0603 PCS 4 0.0476
24040035 SMT inductor AN-I4029 2.2NH,220MA,0402,(FCI1005F-2N2S) PCS 1 0.0035
24040045 SMT inductor 2.2UH 30MA 0805 PCS 4 0.027
26020626 PCB AN-B20466,PRE,FR4 double sides,141.3*126.5*1.6mm PCS 1 0.7
40330016 connector IPEX terminal connector,IPEX-001,SMD PCS 1 0.0788
50050030 SMT ceramic capacitor 33PF,VDC25,±5%,NPO,0805, PCS 2 0.0044
50050036 SMT ceramic capacitor 47PF,VDC50,±5%,NPO,0603, PCS 7 0.0081
50050037 SMT ceramic capacitor 47PF,VDC50,±5%,NPO,0805, PCS 2 0.0046
50050047 SMT ceramic capacitor 101,VDC50,±5%,NPO,0805, PCS 6 0.0137
50050051 SMT ceramic capacitor 102,VDC50,±10%,X7R,0805, PCS 1 0.0023
50050059 SMT ceramic capacitor 102,VDC16,±10%,X7R,0805, PCS 2 0.0044
50050069 SMT ceramic capacitor 104,VDC25,±10%,X7R,0603, PCS 2 0.003
50050075 SMT ceramic capacitor 104,VDC50,±10%,X7R,0805, PCS 7 0.0184
50050116 SMT ceramic capacitor 221,VDC50,±5%,NPO,0805, PCS 3 0.0095
50050138 SMT ceramic capacitor 331,VDC50,±5%,NPO,0805, PCS 6 0.021
50050344 SMT ceramic capacitor 10UF,VDC10,±10%,X5R,0805, PCS 4 0.0469
50050351 SMT ceramic capacitor 1.1PF,VDC50,±0.25%,NPO,0402, PCS 2 0.0019
60190108
ESD interference
0603ESDA-TR1 PCS 2 0.0788
CR010357
IPA BLUETOOTH V3.0 homni comfidence PCS 1 /
11171116 SMT resistor homni comfidence PCS 1 0.0005
11171121 SMT resistor homni comfidence PCS 1 0.0005
11171122 SMT resistor homni comfidence PCS 2 0.0025
14040835 IC homni comfidence PCS 1 0.1238
14040889 IC homni comfidence PCS 1 1.68
14040898 IC homni comfidence PCS 1 0.084
24040053 SMT inductor homni comfidence PCS 1 0.0048
24040059 SMT inductor homni comfidence PCS 1 0.0803
25020030 SMT crystal resonator homni comfidence PCS 1 0.14
26060053 PCB homni comfidence PCS 1 0.105
50050268 SMT ceramic capacitor homni comfidence PCS 2 0.0019
50050323 SMT ceramic capacitor homni comfidence PCS 2 0.0175
50050334 SMT ceramic capacitor homni comfidence PCS 3 0.0131
50050340 SMT ceramic capacitor homni comfidence PCS 5 0.0048

50050343 SMT ceramic capacitor homni comfidence PCS 3 0.0473
50050347 SMT ceramic capacitor homni comfidence PCS 3 0.0105
50050350 SMT ceramic capacitor homni comfidence PCS 1 0.0011
50050365 SMT ceramic capacitor homni comfidence PCS 1 0.0056
50050386 SMT ceramic capacitor homni comfidence PCS 1 0.0013
GR000389
optional parts: IPA22
PRE SMT
IPA22 PRE board SMT PCS 1 /
14040279 IC NJM062M,SOP8,JRC, PCS 4 0.504

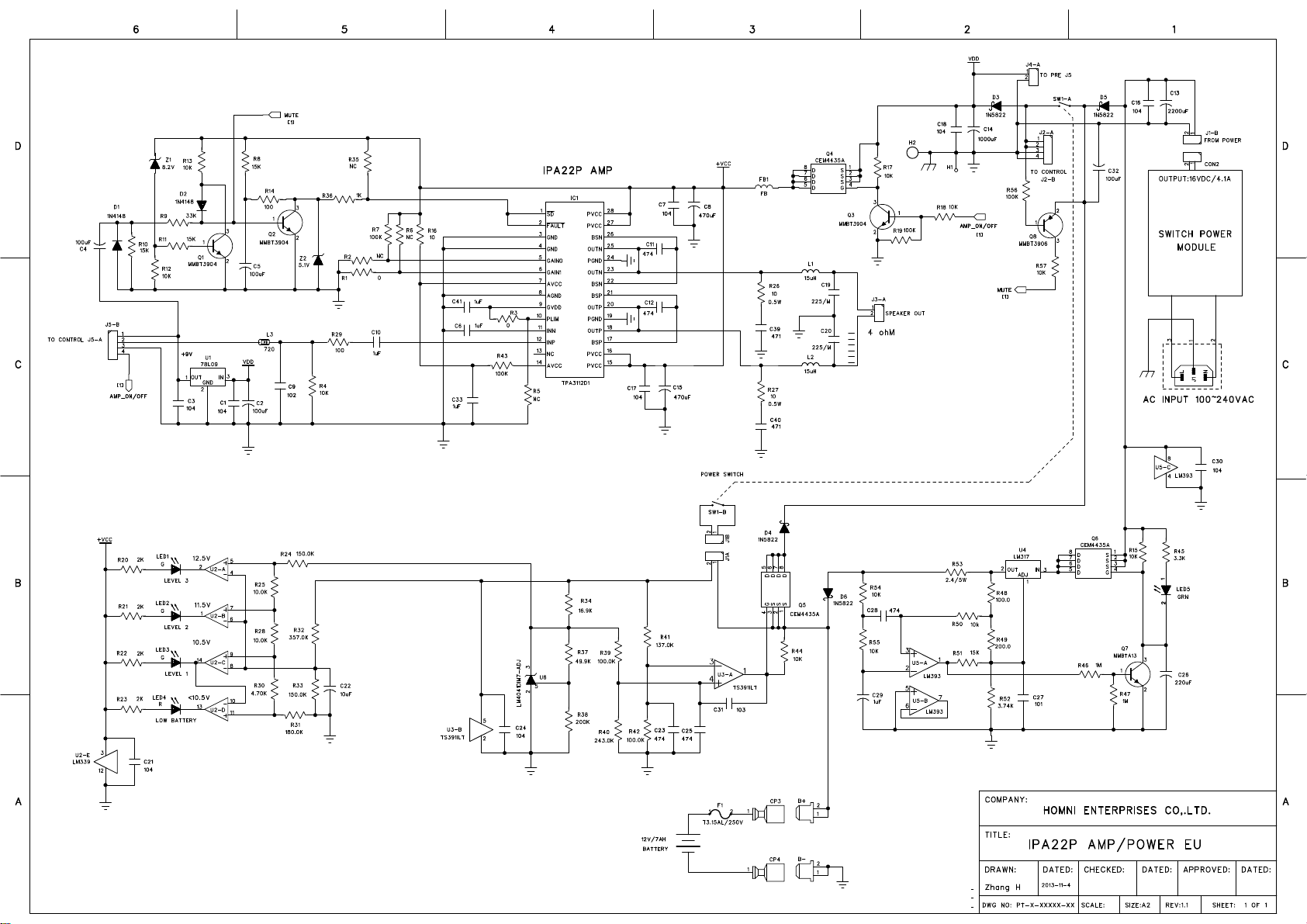

CR010542
IPA22P AMP IPA22P AMP ASSY PCS 1 1.979
10070018 Crystal heat sink DN-MH7012,48*23.5,aluminium alloy PCS 1 0.14
10490004 insert E665,，P=5.0mm,T250 PCS 2 0.0298
11110241 metal oxide film 5W,2.4Ω,±5% PCS 1 0.0709
14040034 IC 78L09,TO92,UTC PCS 1 0.0375
14040213 IC LM317T,TO220,ST PCS 1 0.126
16010392 cable AN-W4265,2P,24#,UL1007,180mm PCS 1 0.0735
16040774 cable AN-W4334,2P,18#,UL1007,80mm PCS 1 0.0613
16060099 grounding cable AN-W697,18#,UL1015,100mm PCS 1 0.0613
17010098 electrolytic capacitor 1uF/50V,±20%,-40/+85℃,Φ5*11mm,P=2mm,black PCS 1 0.0064
17010103 electrolytic capacitor 10uF/25V,±20%,-40/+85℃,Φ5*11mm,P=2mm,black PCS 1 0.0065
17010119 electrolytic capacitor 100uF/25V,±20%,-40/+85℃,Φ5*11mm,P=2mm,black PCS 4 0.0287
17010217 electrolytic capacitor 220uF/25V,±20%,-40/+85℃,Φ6.3*11mm,P=2.5mm,black PCS 1 0.0144
17010256 electrolytic capacitor 470uF/25V,±20%,-40/+85℃,Φ8*14mm,P=3.5mm,black PCS 2 0.0529
17010502 electrolytic capacitor 2200uF/25V,±20%,-40/+105℃,Φ13*21mm,P=5mm, black PCS 1 0.0938
17010523 electrolytic capacitor 1000uF/25V,±20%,-40/+85℃,Φ8*20mm,P=3.5mm,black PCS 1 0.0455
18010117 common diode DO-201AD,1N5822 PCS 4 0.196
18040019 LED DIP,Φ3*5,TOL-30AHGADAA,3MM,OASISTEK PCS 1 0.0123
18040207 LED DIP,Φ3*10,Φ5,T2193EGD PCS 3 0.0698
18040208 LED DIP,Φ3*10,Φ5,T2193RDD PCS 1 0.0252
20500006 insulation :W05-253，￠5.3*1.8MM(fire rating:94V-0) PCS 1 0.0088
24060112 magnetic core inductor AN-I6053,GPDC1010-150M,15uH,3.5A PCS 2 0.245
24100002 magnetic bead PFR011-08403509,3.5*9*0.8J5C,1.8uH±25%, PCS 1 0.0245
30010004 heat-shrinkable T bush Φ2*10*0.20mm,UL,black PCS 2 0.0006
30050006 mica plate 13*18*0.1mm PCS 1 0.0065
40360350 pin AN-JP413,1P,HT-TJC1-1A PCS 1 0.0136
40370001 male jack AN-JP401,XH2.5-2P,2532-02,(180degree,P=2.5mm) PCS 2 0.0126
40370098 male jack AN-JP410,3961-02,(P=3.96mm,180 degree) PCS 2 0.0306
40370149 male jack AN-JP418,2021-02,(P=2mm,180 degree) PCS 1 0.0053
40370197 male jack AN-JP426,2600PS-04,(180 degree,P=2.54mm) PCS 1 0.0158
50030210
Metallised Polyester
capacitor
225,VDC100,±5%, grey,7.2*11*6mm PCS 2 0.4375
70010054 screw Φ3*6mm,,screw headD5.5mm PCS 6 0.0119
70010088 screw Φ3*8mm,,screw headD5.5mm PCS 4 0.0077
70010515 screw AN-C10515,M3*10mm,,screw headD5.5mm PCS 1 0.0068
CR010544
IPA22P AMP ASSY IPA22P AMP SMT ASSY PCS 1 2.073
11170009 SMT resistor 1/8W,10Ω,±5%,0805 PCS 1 0.0008
11170350 SMT resistor 1/10W,0Ω,±5%,0603 PCS 2 0.0008
11170385 SMT resistor 1/10W,1KΩ,±5%,0603 PCS 1 0.0004
11170390 SMT resistor 1/10W,2KΩ,±5%,0603 PCS 4 0.0017
11170395 SMT resistor 1/10W,3.3KΩ,±5%,0603 PCS 1 0.0004
11170417 SMT resistor 1/10W,33KΩ,±5%,0603 PCS 1 0.0004
11170434 SMT resistor 1/10W,200KΩ,±5%,0603 PCS 1 0.0004
11170444 SMT resistor 1/10W,1MΩ,±5%,0603 PCS 2 0.0008
11170460 SMT resistor 1/10W,200Ω,±1%,0603 PCS 1 0.0006

11170510 SMT resistor 1/10W,3.74KΩ,±1%,0603 PCS 1 0.0006
11170517 SMT resistor 1/10W,4.7KΩ,±1%,0603 PCS 1 0.0006
11170536 SMT resistor 1/10W,10KΩ,±1%,0603 PCS 13 0.0073
11170543 SMT resistor 1/10W,15KΩ,±1%,0603 PCS 4 0.0022
11170576 SMT resistor 1/10W,100KΩ,±1%,0603 PCS 6 0.0034
11170580 SMT resistor 1/10W,150KΩ,±1%,0603 PCS 2 0.0011
11170592 SMT resistor 1/4W,10Ω,±5%,1206 PCS 2 0.0028
11170778 SMT resistor 1/10W,100Ω,±1%,0603, PCS 3 0.0017
11170838 SMT resistor 1/10W,49.9KΩ,±1%,0603, PCS 1 0.0006
11170849 SMT resistor 1/10W,16.9KΩ,±1%,0603, PCS 1 0.0006
11171123 SMT resistor 1/10W,137KΩ,±1%,0603 PCS 1 0.0006
11171178 SMT resistor 1/10W,180KΩ,±1%,0603 PCS 1 0.0006
11171179 SMT resistor 1/10W,243KΩ,±1%,0603 PCS 1 0.0006
11171180 SMT resistor 1/10W,357KΩ,±1%,0603 PCS 1 0.0006
14010077 NPN audion MMBT3904LT1,SOT23,ONSEMI PCS 3 0.0205
14010169 NPN audion MMBTA13,SOT23 PCS 1 0.021
14020070 PNP audion MMBT3906LT1,SOT23,ONSEMI PCS 1 0.0068
14040229 IC LM393DT,SOP8,ST PCS 1 0.0638
14040454 IC LM339PT,TSSOP14,ST PCS 1 0.1605
14040841 IC TPA3112D1,TSSOP-28 PCS 1 0.5985
14040871 IC TS391ILT,SOT23-5,ST PCS 1 0.1502
14040872 IC LM4041DIM7-ADJ,SC70,NS PCS 1 0.224
14060010 PFET CEM4435A,SO-8,CET, PCS 2 0.1848
18010075 common diode AN-D10075,LL-34,1N4148, PCS 2 0.0086
18030105 voltage-regulator diode LL-34,1/2W,5.1V, PCS 1 0.0084
18030172 voltage-regulator diode RLZTE118.2B/RLZ8.2-K-T11,8.2V PCS 1 0.0068
24010033 SMT magnetic bead FCM1608K-721T,200MHZ,720Ω,0603 PCS 1 0.0119
26020709 FR4 PCB AN-B20498,AMP/POWER,120*116*1.6mm,V1.2 PCS 1 0.5481
50050045 SMT ceramic capacitor 101,VDC50,±5%,NPO,0603, PCS 1 0.0012
50050052 SMT ceramic capacitor 102,VDC50,±10%,X7R,0603, PCS 1 0.0011
50050063 SMT ceramic capacitor 103,VDC50,±10%,X7R,0603, PCS 1 0.0011
50050069 SMT ceramic capacitor 104,VDC25,±10%,X7R,0603, PCS 9 0.0134
50050313 SMT ceramic capacitor 471,VDC50,±5%,NPO,0603, PCS 2 0.0046
50050320 SMT ceramic capacitor 474,VDC25,±20%,Y5V,0603, PCS 5 0.0158
50050332 SMT ceramic capacitor 105,VDC50,±10%,X7R,0603, PCS 4 0.0266
GR000483
RoHS optional
part:IPA22P AMP SMT
IPA22P AMP SMT ASSY PCS 1 /
14060010 PFET CEM4435A,SO-8,CET, PCS 1 0.0924
GR000388
RoHS optional:IPA22
AMP
IPA22 AMP PCS 1 /
40370003 male jack
AN-JP401,XH2.5-4P,2532-04,(180degree,P=2.5mm)HT-
2.5-04P-01A
PCS 1 0.0116
CR010545
RoHS:IPA22P CONTROL IPA22P CONTROL ASSY PCS 1 0.5302
12010113 slide switch AN-S247,SS-13E05-G7, PCS 1 0.0753
12040036 touch switch AN-S436,RM-021-01B PCS 1 0.0858
16010184 cable AN-W13N,3P,24#,UL1007,200mm PCS 1 0.0578
16040766 cable AN-W4331,2P,26#,UL1007,200mm PCS 1 0.035
17010168 electrolytic capacitor 47uF/16V,±20%,-40/+85℃,Φ5*11mm,P=2mm,black PCS 1 0.0082
17010523 electrolytic capacitor 1000uF/25V,±20%,-40/+85℃,Φ8*20mm,P=3.5mm,black PCS 1 0.0455
24060116 magnetic core inductor DG-DR6*8DG-45UH,47uH,1A PCS 3 0.126
40360300 pin AN-FP364P1022-1*04SGF11,A=2.8,L=8.8,H=2.0,P=2.0 PCS 1 0.0154
40370001 male jack AN-JP401,XH2.5-2P,2532-02, (180 degree,P=2.5mm) PCS 1 0.0063
40370002 male jack AN-JP401,XH2.5-3P,HT-2.5-03P-01A,180 PCS 2 0.0173

40370004 male jack AN-JP401,HT-2.5-05P-01A PCS 1 0.0155
40370149 male jack AN-JP418,2021-02,(P=2mm,180 degree) PCS 1 0.0053
40370197 male jack AN-JP426,2600PS-04,(180 degree, P=2.54mm) PCS 1 0.0158
40370321 male jack 2600PS-06,180 degree,P=2.54mm, PCS 1 0.021
CR010397
IPA22 CONTROL SMT IPA22 CONTROL SMT ASSY PCS 1 2.2126
11170378 SMT resistor 1/10W,510Ω,±5%,0603 PCS 3 0.0013
11170385 SMT resistor 1/10W,1KΩ,±5%,0603 PCS 1 0.0004
11170394 SMT resistor 1/10W,3KΩ,±5%,0603 PCS 1 0.0004
11170406 SMT resistor 1/10W,10KΩ,±5%,0603 PCS 6 0.0025
11170413 SMT resistor 1/10W,20KΩ,±5%,0603 PCS 2 0.0008
11170901 SMT resistor 1/10W,75KΩ,±1%,0603 PCS 2 0.0011
11170949 SMT resistor 1/4W,61.9Ω,±1%,1206 PCS 1 0.0019
11171152 SMT resistor 1/8W,0.15Ω,±1%,0805 PCS 3 0.0116
11171153 SMT resistor 1/4W,5.6Ω,±5%,1206 PCS 1 0.0014
14010077 NPN audion MMBT3904LT1,SOT23,ONSEMI PCS 1 0.0068
14040052 IC
TAR5SB50,TOSHIBA/LP2985AIM5-5.0,NATIONAL,5.0V
LDO,SOT23-5
PCS 1 0.231
14040900 IC STM8S103F3P6,TSSOP20 PCS 1 0.3465
14040920 IC MCP6001T-I/OT,SOT23-5,Microchip PCS 1 0.1125
14040921 IC PT4115-89E,SOT89-5,POWTECH PCS 3 0.4148
14040922 IC ULN2003ADR,SOIC16,TI PCS 1 0.1008
14060010 PFET CEM4435A,SO-8,CET, PCS 1 0.0924
18010075 common diode AN-D10075,LL-34,1N4148, PCS 1 0.0043
18010123 common diode AN-D0123,SS14,DO-214AC,VISHAY PCS 3 0.1418
24010016 SMT magnetic bead FB120,3A,1206,BLM31PG121SN1L MURATA PCS 1 0.07
24010020 SMT magnetic bead FB2012-301 PCS 1 0.0105
26020627 PCB
AN-B20467,CONTROL,FR4 double
sides,130*114*1.6mm,black,V1.3
PCS 1 0.5845
50050042 SMT ceramic capacitor 82PF,VDC50,±5%,NPO,0603, PCS 1 0.0012
50050069 SMT ceramic capacitor 104,VDC25,±10%,X7R,0603, PCS 8 0.0119
50050321 SMT ceramic capacitor 2.2UF,VDC50,±20%,Y5V,0805, PCS 1 0.0193
50050322 SMT ceramic capacitor 105,VDC25,+80/-20%,Y5V,0603, PCS 1 0.0021
50050353 SMT ceramic capacitor 10UF,VDC50,±20%,Y5V,0805, PCS 2 0.0175
40370003 male jack
AN-JP401,XH2.5-4P,2532-04,(180 degree,P=2.5mm)HT-
2.5-04P-01A,
PCS 2 0.0233
CR010546
IPA22P LED IPA22P LED ASSY PCS 1 2.9366
10330033 spring DN-MP3026, spring-2,V1.0 PCS 1 0.0963
16040767 cable AN-W4332,6P,26#,UL1569,250mm PCS 1 0.245
18040187 LED VZK1WBAV12CAZ1Z4,high glossy,3W, red,SMD PCS 2 0.7735
18040188 LED VZK1WBAG72CAZ1Z4,high glossy,3W, green,SMD PCS 2 0.868
18040189 LED VZK1WBAB12CAZ1Z4,high glossy,3W,blue,SMD PCS 2 0.756
26100001 PCB IPA22,LED, single board,45*45*1.6mm,V1.0 PCS 1 0.1978
ER000449
IPA22P IPA22P packaging ASSY PCS 1 /
10080239 heat sink DN-MH0160,aluminium alloy,V1.0 PCS 1 0.3063
10260004 retaining bracket DN-MF26003, aluminium alloy,V1.0 PCS 1 0.168
10320045 rail DN-MP2036,SPCC,T=1mm,zinc plating,V1.0 PCS 2 0.455
10330032 spring DN-MP3026,V1.0 PCS 4 0.091
10330033 spring DN-MP3026, spring-2,V1.0 PCS 1 0.0963
10360012 corner
DN-ME1006,corner-1,SPCC,T=0.8mm, chrome plating,
PCS 2 0.308
10360013 corner
DN-ME1007,corner-2,SPCC,T=0.8mm, chrome plating,
PCS 6 0.945
10410121 grill DN-ME5082,SPCC,T=0.8mm,black PCS 1 1.575
10520106 wheel JD180D PCS 2 0.77
16040574 cable AN-W4148,2P,18#,UL1015,L=350mm PCS 1 0.1265

16040739 cable AN-W4305,1P,16#,UL1015,550mm,black PCS 1 0.2048
16040765 cable AN-W4330,4P,22#,UL1007,450mm PCS 1 0.2083
16040832 cable AN-W4392,,18#,UL1015,500mm PCS 1 0.2993
16050191 shielded cable AN-W5188,2P,22#,UL1185,480mm PCS 1 0.1638
16140115 multi-core cable 18#,UL1007,L=350mm,black PCS 1 0.0508
16140116 multi-core cable 18#,UL1007,10+350+10mm, brown PCS 1 0.0508
16140591 multi-core cable 18#,UL1015,L=500mm, blue PCS 1 0.1068
16150041 3.5 cable AN-W1540,UL2547,26#,610mm,black PCS 1 0.2345
17050013
nonpolarity electrolytic
capacitor
4.7uF/50V,±20%,-40/+85℃,Φ6*17mm,purple PCS 1 0.0358
20160016 plastic pipe ABS(UL94HB),black,ROHS,V1.0 PCS 2 0.2765
20290042 bracket DN-PB0032,ABS(UL94HB)black,ROHS,V1.1 PCS 1 0.1698
20300025 rubber feet Φ30*17,rubber, black PCS 2 0.1309
20320014 handle DN-PE2014,ABS,black PCS 2 0.1505
20440026 interval PC19-5,Φ6.5*6.95mm, PCS 4 0.0644
20460013 fixed button KY-CLT-2 PCS 1 0.041
20630083 PC dome PC,UL94V-2, transparent3mm,V1.0 PCS 1 0.945
20660010 rail DN-PC6009,rail 1,ABS,UL94HB,black,ROHS, textured,V1.1 PCS 2 0.2975
20660011 rail DN-PC6010,rail 2,ABS,UL94HB,black,ROHS, textured,V1.1 PCS 1 0.1313
21010410 cabinet MDF,T=9.0mm,PVC film,black painting,CARB,V1.0 PCS 1 9.3625
22010705 manual ION, safety manual,V14.7 PCS 1 0.0788
22050006 desiccant 50g, silicone,DMT,SGS PCS 1 0.0735
22150001 serve card ION serial,V1.1 PCS 1 0.0665
23010020 PE bag PE,120*280*0.06mm PCS 1 0.0082
23010295 PE bag PE,160*260*0.025mm, punch PCS 1 0.0042
23010533 PE bag （290+390）*750*0.1mm, punch,V1.1 PCS 1 0.2133
23020234 polyfoam polyfoam, V1.0 PCS 2 1.96
23031149 master carton IPA22P,A=B,479*363*595mm,black printing, V1.0 PCS 1 0.756
23070029 pearl sheet LGA8,500*350*2mm,V1.0 PCS 2 0.1358
23090476 giftbox IPA22P,300g+C3+C3,463*347*573mm PCS 1 1.9075
23100092 inner carton 250g+CE,270*65*60mm.V1.0 PCS 1 0.0963
30060079 foam 50*150*5mm,black PCS 1 0.0193
30060095 foam 10*1000*1mm,EVA1030,black PCS 2 0.0595
30060257 foam 5*1000*1.0mm,EVA1030,black PCS 1 0.069
30090009 cable 2.5*120mm,black，PCS 8 0.0322
30150084 pull rod 295*88mm,V1.0 PCS 1 3.045
30160009 rubber pad rubber pad-3,black rubber,T=2mm,V1.0 PCS 1 0.1803
30160013 rubber pad rubber pad-2,black rubber，T=2mm,Φ4*Φ12mm,V1.0 PCS 4 0.056
60090030 MIC AN-E0926,PM-353, silkscreen ION,ROHS PCS 1 1.2775
60110041 fan DFS602012L,12V, P=2.5MM, cable length 160mm PCS 1 1.05
60190088 battery AN-E1906,HYS1270,12V,7AH PCS 1 7.7875
60230001 motor W-28BYJ48-018,12VDC PCS 1 1.05
70010048 screw AN-C10048,M3*6mm,,screw headD5.5mm, PCS 2 0.0039
70010064 screw M3*6mm PCS 2 0.0105
70010129 screw AN-C10129,M3*12mm,,screw headD5.5mm PCS 1 0.0066
70010137 screw Φ3*12mm,,screw headD6mm, PCS 4 0.0112
70010151 screw Φ3*15mm,,screw headD5.5mm, PCS 21 0.0551
70010236 screw Φ4*16mm,,screw headD7mm, PCS 4 0.0179
70010237 screw M4*16mm,,screw headD9mm PCS 4 0.0272
70010300 screw AN-C10300,M5*25mm,,screw headD9mm PCS 4 0.0499
70010479 screw Φ4*20mm,screw headD9mm PCS 2 0.0089
70010602 screw AN-C10602,Φ3*32mm,，screw headD5.5mm,,, PCS 4 0.0314
70010605 screw Φ2.6*7mm,,screw headD4.5mm PCS 3 0.0102

70010691 screw M4*26mm,,screw headD8mm PCS 6 0.0407
70010770 screw M3*40,M3+Φ3.5 PCS 1 0.0788
70010771 screw Φ2.5*8,,screw headD10mm PCS 4 0.0154
70010777 screw Φ3*9mm,screw headD6mm, nickel plating PCS 24 0.0756
70010778 screw Φ4*10mm,,screw headD8mm PCS 8 0.028
70070014 nut Φ6*M3*2.5mm, PCS 2 0.0032
70090106 gasket Φ6*Φ13.5*5mm PCS 4 0.1365
80010017 3/4" tweeter AN-L109,FA78F60FXB0415,15W/4ohm PCS 1 0.8488
80130031 8" woofer AN-LD25,50W,4ohm,99-08-Y838LI-00 PCS 1 3.57
90021168 S/N label IPA22P,(128 code),64*13mm,V1.0 PCS 4 0.042
90041232 label IPA22P,38*26mm,V1.0 PCS 2 0.0158
90080001 destination label GA0/GA1/GA2, yellow background PCS 1 0.0018
90200056 label BT30P, BLACK&361C printing,Φ30mm,V1.0 PCS 1 0.0018
90200071 label green circle label PCS 1 0.0018
90220078 label ALESIS,30*30mm, PANTONE 361C printing PCS 1 0.0033
90240006 label 38*10mm PCS 1 0.0026
90250035 CARB label ION/ALESIS, white text,pantone802C,25.4*25.4mm PCS 1 0.0018
GR000482
RoHS optional
parts:IPA22P packaging
parts
IPA22P packaging ASSY PCS 1 /
16050209 shielded cable AN-W5206,4P,24#,UL2547,550mm, grey PCS 1 0.294
16070140 power cable AN-W1038,3G,0.75mm2,H05VV-F,1830mm, black PCS 1 1.5155
22010779 manual IPA22P, manual,V1.0 PCS 1 0.0788

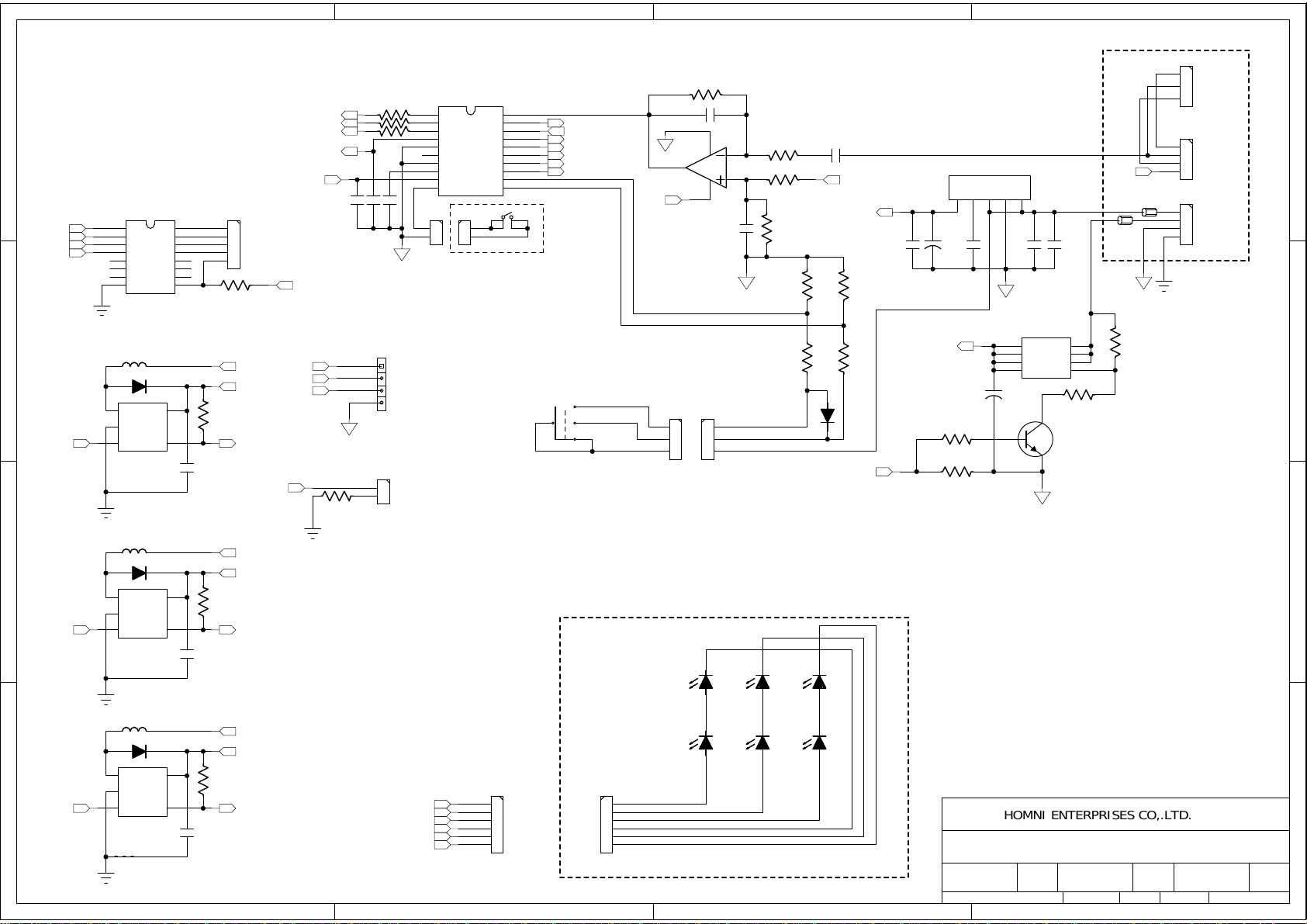

IPA22 CONTROL&LED EU
2013.03.06
V1.3
SHEET: OF
Zhang H
1SCALE: REV:
HOMNI ENTERPRISES CO,.LTD.
DWG NO.: PT-X-XXXXX-XX SIZE:A3
DATED:APPROVED:DATED:CHECKED:DATED:DRAWN:
TITLE:
4
DCBA
4
3
2
1
ABCD
1
2
3
COMPANY:
1
LIMIT SW
TO LED PCB TO J3-A
LED PCB
Simulation JACK
TO PRE J3
TO AMP J5-B
TO AMP J2-A
TO FAN
TO MOTOR
OFF
ON(party mode)
ON(beats mode)
Beats mode: would be the current program that spins fast and flashes to the
music, like HMS sample 1 when music is playing.
Party mode: would be spinning quickly even though there is no more music.
12
3
4
5
U1
MCP6001
1
PD4
2
PD5
3
PD6
4
NRST
5
OSCIN/PA1
6
OSCOUT/PA2
7
VSS
8
VCAP
9
VDD
10
PA3
11
PB5
12
PB4
13
PC3
14
PC4
15
PC5
16
PC6
17
PC7
18
PD1
19
PD2
20
PD3
U2
STM8S103F3P6
1SW
2GND
3DIM 4
CSN
5
VIN
U3
PT4115
D1 SS14
C5
104
R5
0.15
L1 47uH
C6
104
C7
105
C8
104
R6 1K
1
2
J1-A 1
2
J1-B
1
2
3
4
J6
1SW
2GND
3DIM 4
CSN
5
VIN
U4
PT4115
D2 SS14
C9
104
R7
0.15
L2 47uH
1SW
2GND
3DIM 4
CSN
5
VIN
U5
PT4115
D3 SS14
C10
104
R8
0.15
L3 47uH
1
2
3
4
5
6
J3-A
R1
10K
R2
75.0K
C12.2uf
C2
82pF
R3
10K
R4
10K
C3
10uf
12
LED1
R
12
LED2
R
12
LED3
G
12
LED4
G
12
LED5
B
12
LED6
B
1
2
3
4
5
6
J3-B
C4
47uF
C11
104 C13 104
1
2
3
J4-A
1
2
3
4
J5-A
1
2
3
4
J2-B
R9
10K
1
2
J7-A
R10
61.9
FB
L4 301
FB
L5
121
1
2
3
4
5
J8-A
1
1B
2
2B
3
3B
4
4B
5
5B
6
6B
7
7B
8
E
9
COM
10
7C
11
6C
12
5C
13
4C
14
3C
15
2C
16
1C
U7
ULN2003ADR
S1
1
S2
S3
S4
G
5D
6D
7D
8D
Q4
CEM4435A
1
2
3
J9-A
1
2
3
J9-B
1
2
3
4
S2
D4
1N4148
R14
5.6
2
1
3
Q1
MMBT3904
R15
3K
R16
10K
R17
10K
R18
20K
C15
1000uF
1IN 2
GND
3EN 4BYP
5
OUT
U8
LP2985AIM5-5.0
C14
104
R11
75K
R12
20K
C12
10uF
R13
510
R19
510
R20
510
R-
R+
+VDD
RED_LED
RED_LED
GREEN_LED
BLUE_LED
+5V
NRST
SWIM
D
C
B
A
+5V
SWIM
NRST
G-
G+
+VDD
GREEN_LED
B-
B+
+VDD
BLUE_LED R+
R-
G+
G-
B+
B-
+5V
+5V
R+
G+
B+
R-
G-
B-
+VDD_ON/OFF
GND
GND
GND GND GND
+VDD
A
B
C
D
+VDD
GND
+5V
DGND
DGND
DGND
DGND
DGND
DGND
+VDD
AMP_ON/OFF
+VDD_ON/OFF
AMP_ON/OFF
