ION F-20 Series User manual

I
CONTENTS
Preface..............................................................................................................................................................................................1
Safety................................................................................................................................................................................................2
1. Function Description....................................................................................................................................................................3
1-1. UPS Block Diagram................................................................................................................................................................3
1-2. UPS Outlook View..................................................................................................................................................................4
2. Installation and Wiring...............................................................................................................................................................13
2-1. Storage and Installation Environment...................................................................................................................................13
2-2. Unpacking, Removing and Fixing UPS.................................................................................................................................14
2-3. General Requirement for Ventilation and Maintenance.........................................................................................................21
2-4. Power Cables Connections ..................................................................................................................................................22
2-5. Communication Cables Connections....................................................................................................................................30
2-6. UPS Parallel Connections ....................................................................................................................................................34
3. Operation Description................................................................................................................................................................39
3-1. Operation Modes..................................................................................................................................................................39
3-2. Online Operations ................................................................................................................................................................40
3-3. Manual Bypass Operation ....................................................................................................................................................40
3-4. Operation Processes............................................................................................................................................................41
4. Control Panel Operation and Function Description.................................................................................................................42
4-1. Screen Introduction..............................................................................................................................................................42
4-2. Menu....................................................................................................................................................................................43
4-3. Mimic Display.......................................................................................................................................................................46
5. Options .......................................................................................................................................................................................47
5-1. Dry Contact Card..................................................................................................................................................................47
5-2. RS-485 MODBUS Card........................................................................................................................................................47
5-3. SNMP Card..........................................................................................................................................................................47
5-4. Temperature Sensor.............................................................................................................................................................48
5-5. DC Cold Start Kit..................................................................................................................................................................48
5-6. Parallel Communication Cable..............................................................................................................................................48
6. Troubleshooting.........................................................................................................................................................................49
7. Technical Specification..............................................................................................................................................................50

1
Preface
Thank you for purchasing the ION F20 series 3 Phase UPS solution.
Our equipment complies with the European Community directives for professional equipment and is
authorized to use the CE marking.
The purpose of this manual is to introduce the operating principles of the UPS and to provide instructions
for its safe operation. The manual also provides troubleshooting assistance should an abnormal message
or behavior occur.
Should an abnormal message not covered in this manual appear, please contact your local authorized
service agent for troubleshooting and repair.
[email protected].au or call us on 1300 700 805
All of the installation, operation, and maintenance of this device must be performed by authorized and
qualified ION technicians who are familiar with this manual.

2
Safety
Important Rules
(1) Please follow these UPS operating instructions to ensure safe and proper operation.
(2) When the UPS is being moved or operated, please ensure that the machine is standing vertically. Do
not shake or tip over the machine. Avoid heavy impact.
(3) Poor grounding will lead to unexpected current leakage. Please ensure that the AC power input is
properly grounded (PE Ground) before making any connections.
(4) Please make sure that the UPS is placed in an insulated environment before use and that there are no
electrocution hazards to the operating personnel.
(5) Do not connect the neutral wire with the ground and make sure that the input voltage is correct.
(6) Once the UPS has been switched on, if the UPS needs to be moved then it must be fully switched off
and fully discharged. If the UPS is not discharged, the UPS will switch to battery power after grid power
is disconnected and pose an electrocution hazard.
(7) Do not place any objects, liquid containers, or coverings over the UPS. The liquid spilt into the UPS or
heat prevented from dissipating could lead to internal damage or cause electrocution.
(8) Make sure that the battery specifications match the UPS requirements before connecting any external
batteries.
(9) Please follow the rules below before engaging in any activity that involves the battery.
a. Remove all metallic items such as rings, watches and jewelry before working on the battery.
b. Please use insulated tools.
c. Do not open or damage the battery. The toxic liquid inside will harm the skin and eyes.
d. Keep batteries away from fire to prevent explosion.
Symbols
Please follow the instructions and warnings on the UPS.
WARNING！Refer to the operating instructions.
WARNING！High voltage inside.
Ground
1. Function Description
1-1 UPS Block Diagram
This UPS provides Mains input and Bypass input for dual inputs application. The system
block diagram as shown below.

3
○
1
Input Switch
○
5
Inverter
○
2
Bypass Switch
○
6
Static Switch
○
3
Manual Bypass Switch
○
7
Charger/Booster
○
4
IGBT Rectifier
○
8
Output Switch
Load
Bypass Input
Mains Input
Battery
Input

4
1-2 UPS Outlook View
ION F20 10-40kW Front View
○

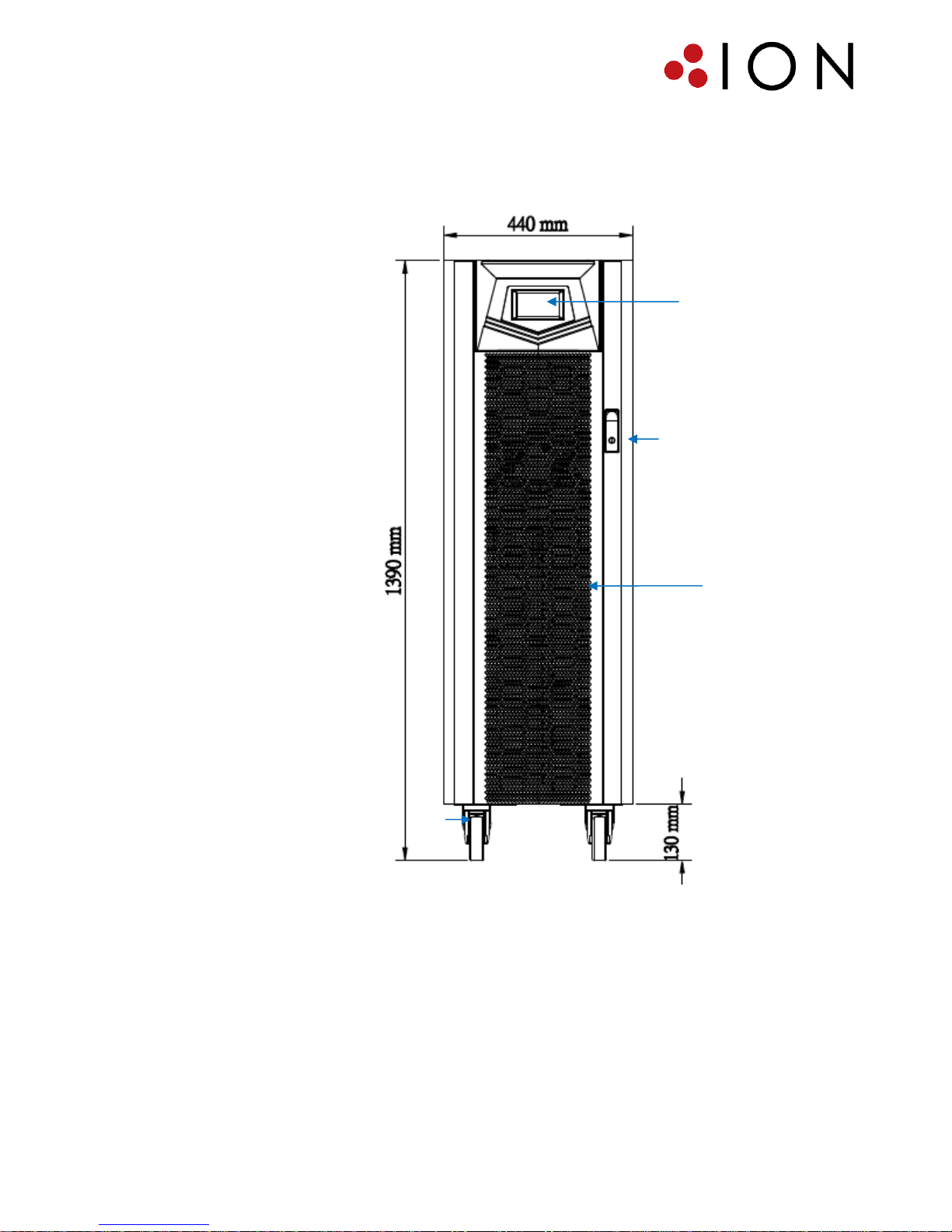

1
Control panel with colorful LCD touch screen
○
3
Ventilation grille
○
2
Handle with lock
○
4
Wheels for handling
○
1
○
2
○
3
○
4

5
ION F20 10-40kW Right Side View
○
1
Through hole for the optional parallel communication cable
○
1

6
ION F20 10-40kW Interval View
○
11
Mains Input Switch
○
14
Output Switch
○
12
Bypass Input Switch
○
15
Fuses for Control Power
○
13
Manual Bypass Switch
○
16
Battery Tray (Option)
○
1
Parallel Communication Ports
○
2
HMI Communication Port
○
3
Communication Selector for service
only
○
4
USB Port for service only
○
5
Terminal Resistor Setting Switch for
parallel communication
○
6
Status LED Indictors
○
7
EPO
○
8
Backfeed Protection
○
9
Communication Card Slot2
○
10
Communication Card Slot1
Please find the detail descriptions of above
items on section 2-5.
○
1
○
2
○
9
○
10
○
11
○
12
○
13
○
14
○
16
○
15
○
7
○
8
○
3
○
4
○
6
○
5

7
ION F20 10-20kW Rear View
○
1
X40: Bypass Input Connections Terminal (R,
S,T , N)
○
4
X20: External Battery Connections
Terminal (B+,N,B-)
○
2
X10: Mains Input Connections Terminal (R, S,
T, N)
○
5
Ground Connections
○
3
X50: Output Connections Terminal
(R, S, T, N)
○
1
○
2
○
3
○
4
○
5

8
ION F20 30-40kW Rear View
○
1
X40: Bypass Input Connections Terminal (R, S,
T, N)
○
4
X20: External Battery Connections
Terminal (B+,N,B-)
○
2
X10: Mains Input Connections Terminal (R,
S,T , N)
○
5
Ground Connections
○
3
X50: Output Connections Terminal
(R, S, T, N)
○
1
○
2
○
3
○
4
○
5
