ION F22 Online UPS User manual

F22 Online UPS
For 30KW Power Module
Uninterruptible Power Supply System
Version: 4.0
User Manual

Table of Contents
1. Safety ...............................................................................................................................1
1.1 Important Safety Instructions.....................................................................................1
1.2 EMC..........................................................................................................................1
1.3 Installation information ..............................................................................................1
1.4 Maintenance .............................................................................................................2
1.5 Recycling the used battery .........................................................................................2
2. Installation ........................................................................................................................3
2.1 Initial Inspection .......................................................................................................3
2.2 Installation Environment ............................................................................................3
2.3 Unpacking.................................................................................................................4
2.4 Moving the Cabinet....................................................................................................6
2.5 Types of UPS Cabinet.................................................................................................7
2.6 Exterior.....................................................................................................................8
2.7 Internal Mechanisms................................................................................................ 11
2.8 Control Panel........................................................................................................... 16
2.9 Introduction of Modules ........................................................................................... 18
2.10 Power Cable .......................................................................................................... 24
2.11 Wiring................................................................................................................... 25
2.12 Power Module Installation ...................................................................................... 28
2.13 Battery Module Installation..................................................................................... 30
3. Operation Mode and UPS Operation .................................................................................. 31
3.1 Block diagram of UPS .............................................................................................. 31
3.2 Operation Mode....................................................................................................... 32
3.3 UPS Operation......................................................................................................... 40
4. Control Panel and Display Description................................................................................ 51
4.1 Introduction ............................................................................................................ 51
4.2 Screen Description................................................................................................... 52
4.3 Alarm List ............................................................................................................... 76
4.4 History Record......................................................................................................... 78
5. Interface and Communication ........................................................................................... 80
5.1 Dry Contact Port...................................................................................................... 80
5.2 Extra Comm. Slot .................................................................................................... 82
5.3 Local Communication Ports –RS232 & USB............................................................... 82
5.4 SNMP Slot ............................................................................................................... 82
6. Troubleshooting ............................................................................................................... 83
7. Service ............................................................................................................................ 86
7.1 Replacement Procedures Of Power Module ................................................................ 86
7.2 Replacement Procedures Of STS Module ................................................................... 86
7.3 Replacement Procedures Of Battery Module .............................................................. 86
7.4 Replacement Procedures Of Air Filter ........................................................................ 87
8. Specifications .................................................................................................................. 88
8.1Conformity And Standards ........................................................................................ 88
8.2Environmental Characteristics ................................................................................... 88
8.3Mechanical Characteristics ........................................................................................ 88
8.4 Electrical Characteristics (Input Rectifier) .................................................................. 89
8.5Electrical Characteristics (Intermediate DC Circuit) ..................................................... 89
8.6Electrical Characteristics (Inverter Output)................................................................. 90

8.7 Electrical Characteristics (Bypass Mains Input) ........................................................... 90
9. UPS Installation for Parallel Rack System ........................................................................... 91
9.1 Input and Output Wiring .......................................................................................... 91
9.2Parallel Board Setting and Power Module ................................................................... 92
9.3 Parallel Function Setting........................................................................................... 93
9.4Parallel Cable Connection.......................................................................................... 94
9.5Parallel System Turn On Procedure............................................................................ 94

1
1. Safety
1.1 Important Safety Instructions
This UPS contains LETHAL VOLTAGES. All repairs and service must be performed by AUTHORIZED
SERVICE PERSONNEL ONLY. There are NO USER SERVICEABLE PARTS inside the UPS.
WARNING:
The UPS designed for commercial and industrial purpose, it is forbidden to apply for any life
sustainment and support.
The UPS system contains its own energy source. The output terminals may carry live voltage
even when UPS is disconnected to an AC source.
To reduce the risk of fire or electrical shock, UPS installation has to be in a controlled room
where temperature and humidity are monitored. Ambient temperature must not exceed 40°C.
The system is only for indoor use.
Ensure all power is disconnected before installation or service.
Service and maintenance should be performed by qualified personnel only.
1.2 EMC
WARNING: This is a product for commercial and industrial application in the second environment
- installation restrictions or additional measures may be needed to prevent disturbances.
1.3 Installation information
WARNING:
Installation must be performed by qualified personnel only.
The cabinets must be installed on a level floor suitable for computer or electronic equipment.
The UPS cabinet is heavy. If unloading instructions are not closely followed, cabinet may
cause serious injury.
Do not tilt the cabinets more than 10 degree.
Before applying electrical power to the UPS, make sure the Ground conductor is properly
installed.
Installation and Wiring must be performed in accordance with the local electrical laws and
regulations.
The disconnection device should be chosen based on the input current and should break line
and neutral conductors - four poles for three phases.
Before working on this circuit
-Isolate Uninterruptible Power System (UPS)
-Then check for Hazardous Voltage between
all terminals including the protective earth.
Risk of Voltage Backfeed
The isolation device must be able to carry the UPS input current.

2
1.4 Maintenance
WARNING:
Only qualified service personnel should perform the battery installation.
The following PRECAUTIONS should be observed
(1.) Remove watches, rings, or other metal objects.
(2.) Use tools with insulated handles.
(3.) Wear rubber gloves and boots.
(4.) Do not lay tools or metal parts on top of batteries or battery cabinets.
(5.) Disconnect the charging source prior to connecting or disconnecting terminal.
(6.) Check if the battery is inadvertently grounded. If it is, remove the source of grounding.
Contacting with any part of the ground might result in electrical shock. The likelihood of
such shock can be prevented if such grounds are removed during installation and
maintenance.
UPS is designed to supply power even when disconnected from the utility power. After
disconnect the utility and DC power, authorized service personnel should attempt internal
access to the UPS.
Do not disconnect the batteries while the UPS is in Battery mode.
Disconnect the charging source prior to connecting or disconnecting terminals.
Batteries can result in a risk of electrical shock or burn from high short circuit current.
When replacing batteries, use the same number of sealed, lead-acid batteries.
Do not open or mutilate the battery. Release electrolyte is harmful to the skin and eyes, and
may be toxic.
1.5 Recycling the used battery
WARNING:
Do not dispose of the battery in a fire. Battery may explode. Proper disposal of battery is
required. Refer to your local codes for disposal requirements.
Do not open or mutilate the battery. Released electrolyte is harmful to the skin and eyes. It
may be toxic.
Do not discard the UPS or the UPS batteries in the trash. This product contains sealed,
lead-acid batteries and must be disposed properly. For more information, contact your local
recycling/reuse or hazardous waste center.
Do not discard waste electrical or electronic equipment (WEEE) in the trash. For proper
disposal, contact your local recycling/reuse or hazardous waste center.

3
2. Installation
2.1 Initial Inspection
1. Visually examine if there is any damage inside and outside of packages in the process of the
transportation. If any damage, report it to the carrier immediately.
2. Verify the product label and confirm the consistency of the equipment.
3. If the equipment needs to be returned, carefully repack the equipment by using the originally
packing material that came with.
2.2 Installation Environment
1. The UPS is designed for indoor use only and should be located in a clean environment with
adequate ventilation to keep the environmental parameters within the required specification.
2. Make sure that transportation routes (e.g. corridor, door gate, elevator, etc.) and installation
area can accommodate and bear the weight of the UPS, the external battery cabinet and
handling equipment.
3. The UPS uses forced convection cooling by internal fans. Cooling air enters the module
through ventilation grills located at the front of the cabinet and exhausted through grills
located in the rear part of the cabinet. Please do not block the ventilation holes.
4. Ensure that the installation area is spacious for maintenance and ventilation.
5. Keep the temperature of installation area around 30°C and humidity within 90%. The highest
operating altitude is 1000 meters above sea level.
6. If necessary, install a system of room extractor fans to avoid formation of room temperature.
Air filters are necessary if the UPS is operated in a dusty environment.
7. It is recommended that you parallel the external battery cabinets to the UPS. The following
instructions of clearances are suggested:
Keep a clearance of 100cm from the top of the UPS for maintenance, wiring and
ventilation.
Keep a clearance of 100cm from the back of the UPS and the external battery cabinets for
ventilation.
Keep a clearance of 150cm from the front of the UPS and the external battery cabinets
for maintenance and ventilation.
8. For safety concerns, we suggest that you shall:
Equip with CO2 or dry powder fire extinguishers near the installation area.
Install the UPS in an area where the walls, floors and ceilings were constructed by
fireproof materials.
9. Do not allow unauthorized personnel to enter the installation area. Assign specific personnel
to keep the UPS key.

4
2.3 Unpacking
1. Use a forklift to move the product to installed area. Refer to Figure 2-1. Please make sure the
bearing capacity of forklift is sufficient.
2. Please follow the orders in Figure 2-2 to remove carton and foams.
Figure 2-1
Figure 2-2

5
3. Put a ramp in the front of the cabinet and insert small wood into groove. Then, remove two
side panels. Refer to Figure 2-3.
Figure 2-3
4. Remove 4 fixing cabinet plates and loosen leveling feet by rotating them counterclockwise.
Then, move the cabinet from the pallet. Refer to Figure 2-4.
5. To fix the cabinet in position, simply rotate leveling feet clockwise. Refer to Figure 2-5.
Figure 2-4
Figure 2-5

6
2.4 Moving the Cabinet
The UPS is fixed on the pallet with 4 fixing cabinet plates. When removing it, pay attention to
the movement of the casters to avoid accidents.
The cabinet can be pushed forward or backward only. Pushing it sideward is not allowed.
When pushing the cabinet, pay attention not to overturn it as the gravity center is high.
1. If you need to move the UPS over a long distance, please use appropriate equipment like a
forklift. Do not use the UPS casters to move over a long distance.
2. After the UPS has been removed from the pallet to ground, we suggest that at least three
people move the UPS to the installation area. One person holds a lateral side of the UPS with
hands, another holds the other lateral side of the UPS with hands, and the other person pushes
the UPS either from the front side or from the back side to the installation area and avoid
tipping the UPS.
3. The casters are designed to move on level ground. Do not move the UPS on an uneven surface.
This might cause damage to the casters. Toppling the UPS could also damage the unit.
4. Ensure that the weight of UPS is within the designated bearing capacity of any handling
equipment.
5. At the bottom of the UPS, the four casters help you to move the UPS to a designated area.
Before you move the UPS, please turn the four leveling feet counterclockwise to raise them off
the ground. This protects the leveling feet from damage when moving the UPS. Refer to Figure
2-6.
Figure 2-6

7

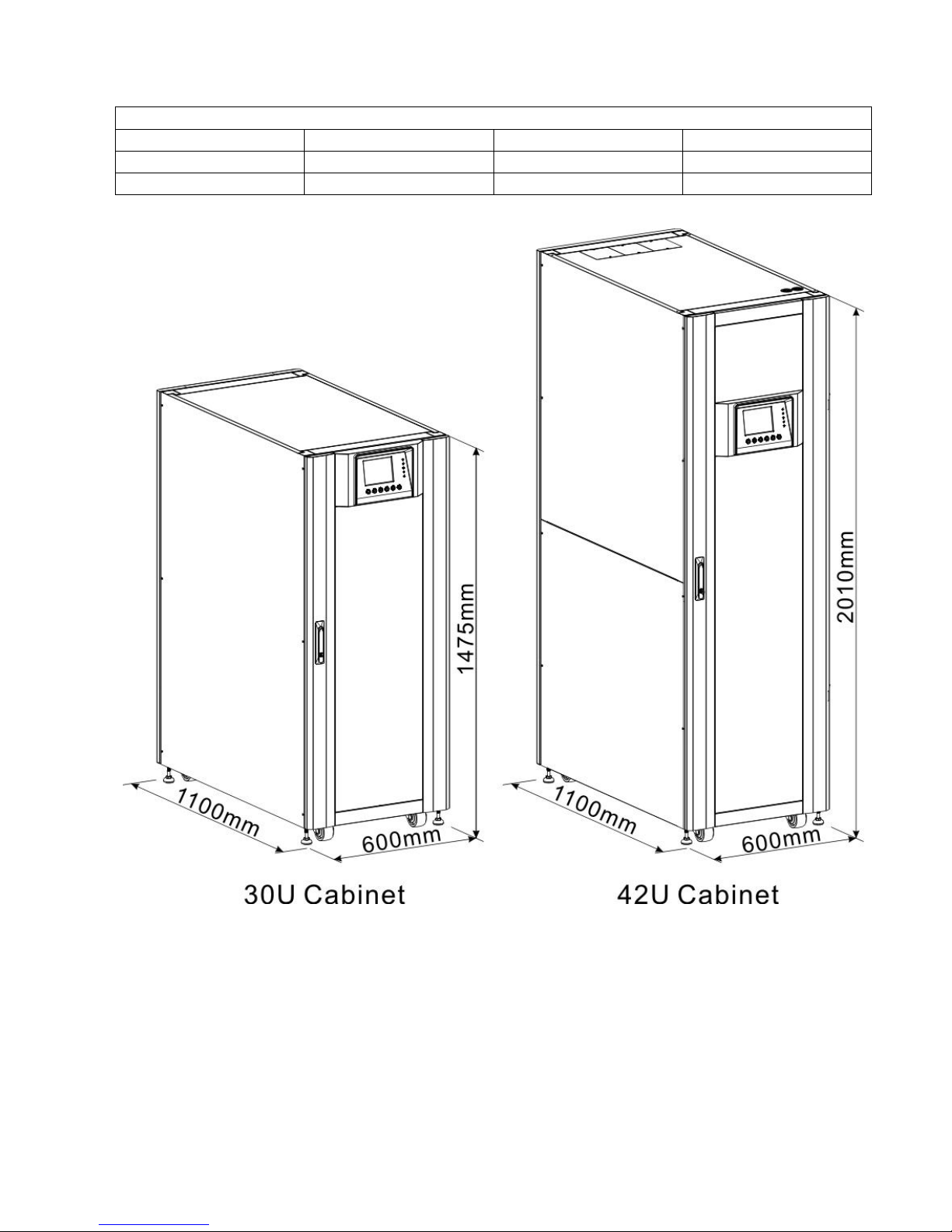

2.5 Types of UPS Cabinet
There are two series of UPS cabinets, standard and extended for different requirements.
The standard cabinets have the battery modules inside and they can work as a stand-alone UPS or
be connected to battery externally.
The extended cabinets don’t have the battery module compartments. The battery has to be
connected externally.
Please consider the external battery space and wiring gauge for installation.

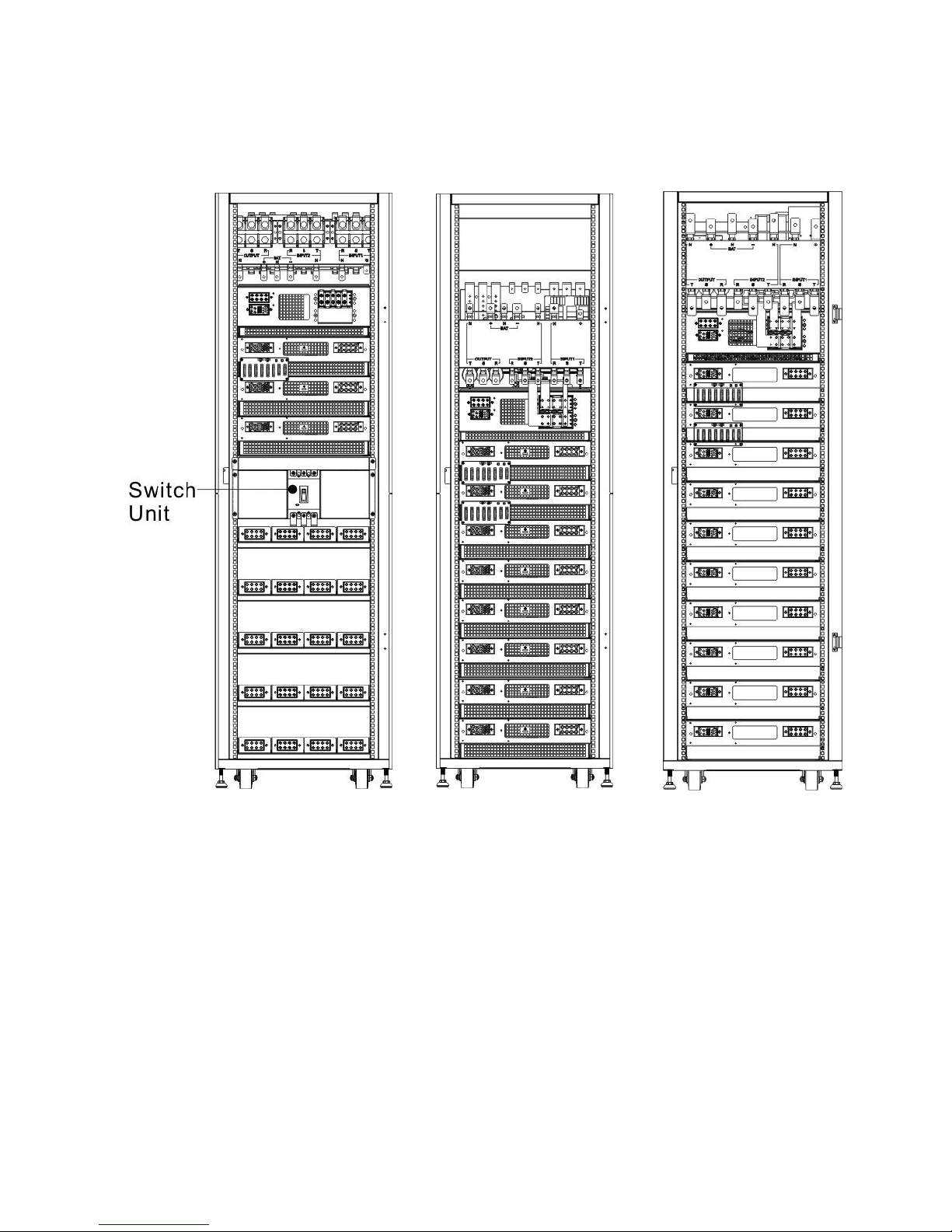

Standard Series
Extended Series
Cabinet
Height
30U
42U
30U
30U
42U
42U
Switch
Unit
1
1
1
1
1
1
STS
1
1
1
1
1
1
Max.
Power
Module
3
4
4
6
8
10
Battery
Module
12
20
N/A
N/A
N/A
N/A
