iOttie Auto Sense User manual

Auto Sense
Dash and Windshield Mount
Manual • Guide • Manuale •Handbuch •Manual

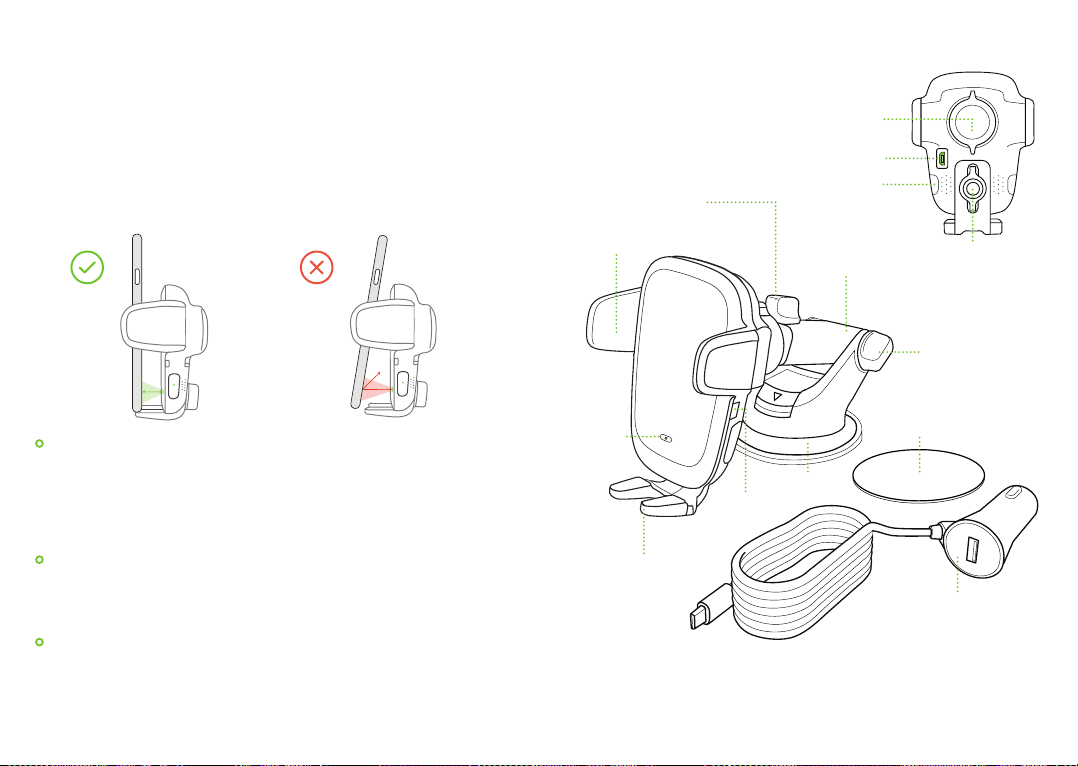

At a Glance
Adjustable Foot
Foot Knob
Release Buttons
Proximity
Sensor
Suction Cup
Charging
Light
Dashboard Pad
Auto Open Side Arms
Micro USB Port
Back View
Dual Car Charger with
Micro USB cable
Telescopic Knob
Telescopic Arm
Pivot Knob
Cradle Knob
Getting Started
For optimal mounting and charging, please follow the detailed instructions
within this manual when using the Auto Sense Wireless Charging Mount.
iOttie is not liable for possible damages due to product misuse.
Critical Information
Mounting at a perpendicular angle
to the mount works best with the
proximity sensor.
If mounting at an angle, phone will
need to be very close to sensor for
arms to open.
Smartphone cases
Reflective Smartphone cases work best. Dark colored or textured cases do not
reflect light well, making it dicult for the Proximity Sensor to detect phone. If
using a dark colored or textured case, the phone will have to be very close to
mount for arms to open automatically.
Compatibility
Before using product, make sure your device is Qi Wireless compatible.
Compatible devices include iPhone X, iPhone Xs, iPhone XR, Samsung Galaxy
S10, S10+, Note9+, and Google Pixel 3.
Qi Wireless Charging in Vehicle
Use the included iOttie Car Charger and Micro USB Cable. If you do use
a third party car charger, use a Qualcomm Quick Charge 2.0 or equivalent
adapter to receive a wireless charge (with compatible devices).

STICKY SUCTION CUP
STICKY SUCTION CUP
Installation

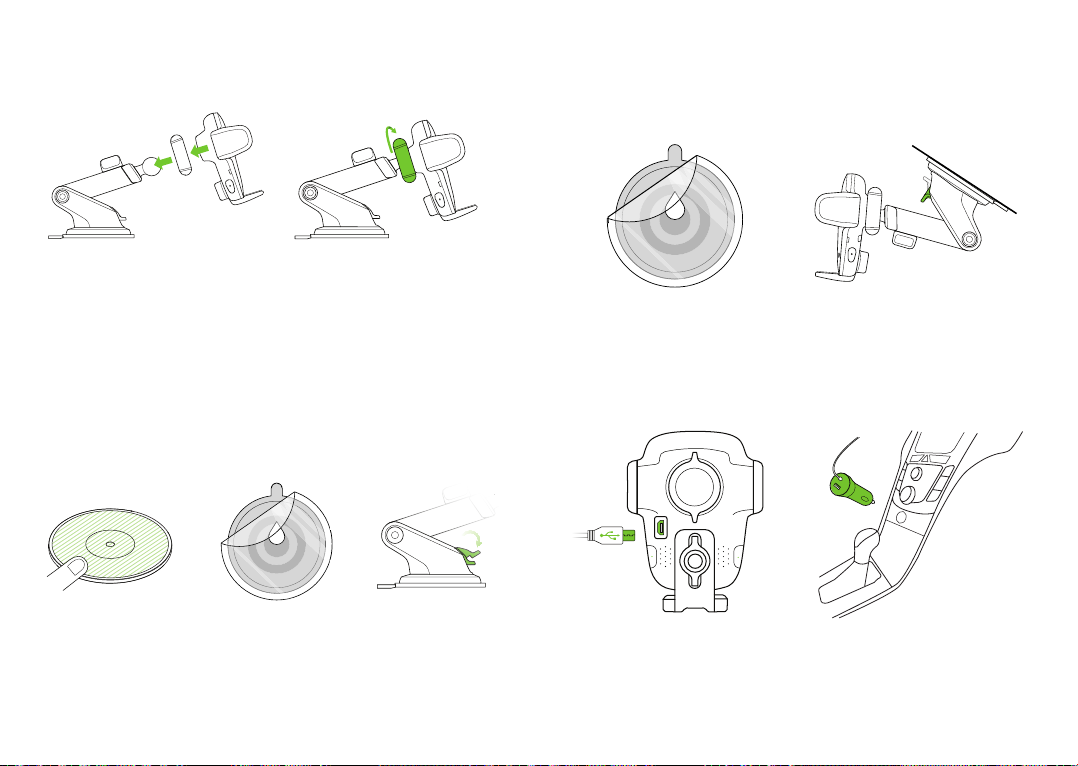

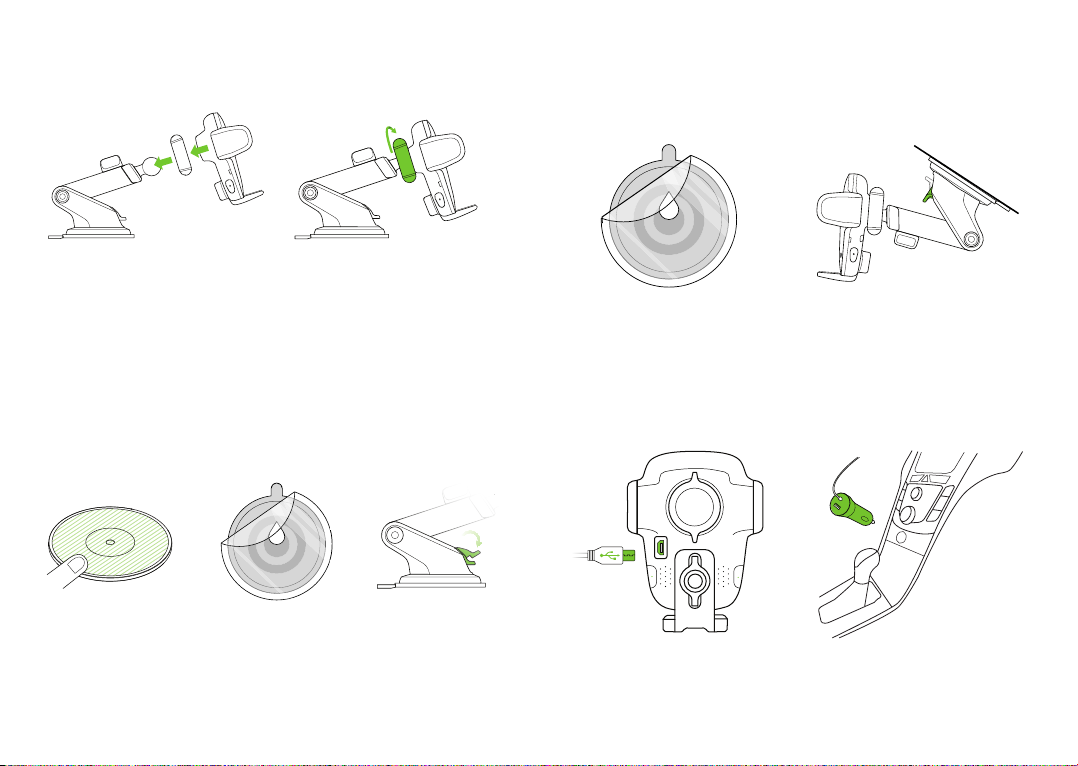

A. Connect the Mount Cradle with
the Ball Joint.
B. Then, tighten the Cradle Knob.
2. Selecting a Location
Choose an installation method: Dashboard/Flat Surface (A) or Windshield (B).
1. Assembling the Mount
Option A
Dashboard or Flat Surface Installation
Choose an area on a flat surface on the vehicle’s dashboard and wipe any
dust or debris from the surface. Prior to mounting product, we recommend
surface and product be above 40°F.
2. Peel o the protective
film on the Suction
Cup and press
mount firmly onto the
dashboard pad.
3. Push Locking Lever
down to secure
mount.
1. Plug the micro-USB cable into
the USB port on the back of the
Mounting Head.
2. Insert Car Charger into
your vehicle’s power port.
1. Peel o the film on
the pad & stick on the
desired installation
location. Wait 15-30
minutes for adhesive
to adhere before
moving on to next step.
2. Peel o the protective film on the
Suction Cup and press firmly onto
the windshield.
Choose a location on the windshield and wipe any dust or debris
from the surface.
3. Push Locking Lever down to
engage suction.
Option B
Windshield Installation or Curved Glass Installation
Connecting Power

90% Charged
Using the Auto Sense Mechanism
Once it is unplugged or car is turned o, the Auto Sense’s internal battery
keeps a charge for up to one hour.
Adjusting the Mount
1. Foot Knob
Out of box, the foot knob is set to
regular sized phones. Foot will need
to be adjusted for plus sized phones
or cases with thicker bottoms.
3. Telescopic Knob
Located on top of Telescopic Arm,
loosen to extend the arm, and
tighten to secure distance.
4. Pivot Knob
Located on the side of the Mount
Base, turning allows you to pivot
telescopic arm. Tighten to secure
position.
2. Once phone is placed in mount,
arms will automatically close after
one second. Qi wireless charging will
start immediately.
3. Buttons under the light on both
sides of device can also open
and close the arms. One or both
buttons can be pressed.
1. Side arms on mount automatically
open via silent step motor for one
second when phone is detected in
front of Proximity Sensor on mount.
• The Auto Sense is powered via a
micro-USB cable and coil cell battery.
There is no on/o switch on the device.
Once it is plugged in, the device will
remain on unless the vehicle shuts o
power when in parking mode.
Move the knob down until laser
etching is aligned appropriately as
shown in line drawing.
Releasing Device
Mounting and Charging

iPhone X iPhone XR iPhone XS Max
The Qi Receiver Coil is usually located in the center area of the phone. Check
with your phone's manufacturer for Qi coil location. Below are some examples
for commonly used phones.
Auto Sense
Samsung
Galaxy S10
Samsung
Galaxy S10+
Samsung
Galaxy Note9

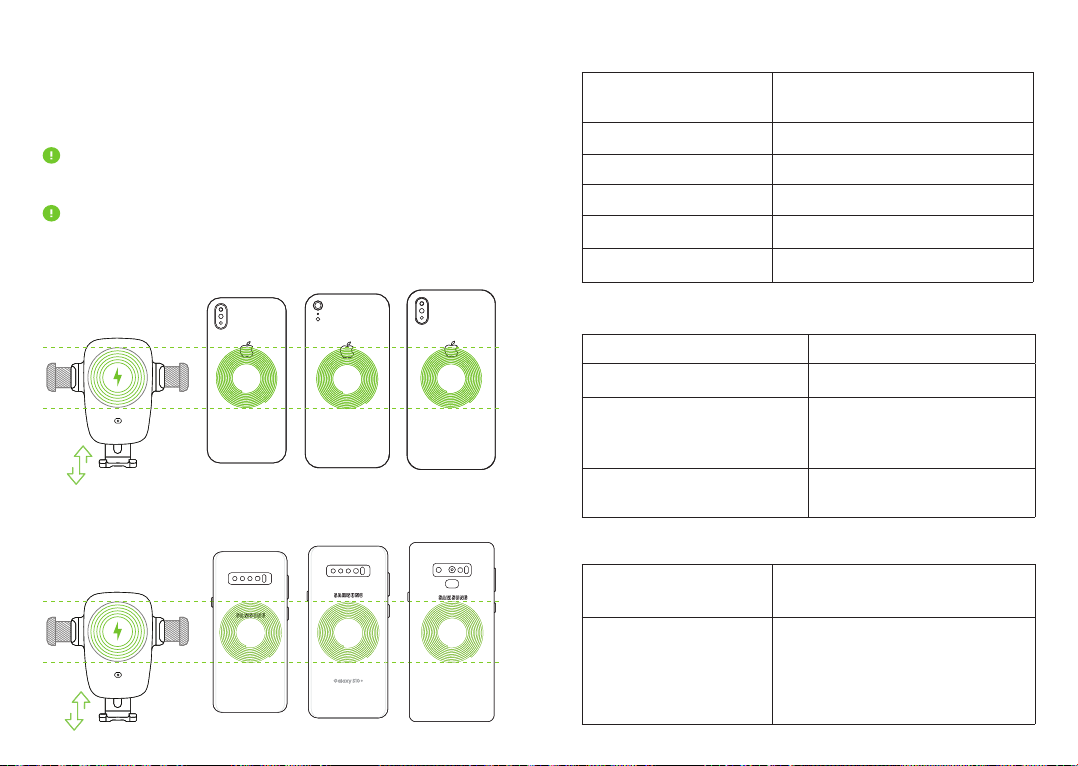

Qi Alignment Guide
Auto Sense
For larger/plus phones or larger cases, knob on mount will need to be
adjusted as indicated by laser etching on back for proper alignment
with Qi coils.
The Qi coil on the mount is located at the top, above the iOttie logo.
Please follow the guide below to line up your phone with the device for
an optimal wireless charging.
Wireless Charger Specifications
INPUT DC 9.0V-1.67A
DC 5.0V-2.0A
CHARGING PORT MICRO USB
LENGTH 2.96"
WIDTH 2.75"
HEIGHT 3.74" (Foot not extended)
WEIGHT 4.16oz
Car Charger Specifications
MODEL NUMBER CHY-CC-U2CQ3C
INPUT DC 12V~24V
OUTPUT
MICRO USB CABLE LENGTH 120MM
DC
DC
DC
5V  3A
9V  2A
12V  1.5A
Charging Indicator
Solid Green Light Smartphone charging.
Blinking Red Light
Smartphone not charging.
Foreign object detected or
overheating of mount or smartphone.
