IPG Interpack ET 2Plus H275 Installation and operation manual

ET 2Plus
Serial Numbers H275, H775
STANDARD TAPE HEAD

2R00
REVISION CONTROL
REVISION CONTROL
REV00 INITIAL RELEASE

3R00
TABLE OF CONTENTS
Section 1 HHHTUTUTUTable Of ContentsUUUTTTHHH--------------------------------------------- 3
Section 2 HHHTUTUTUTechnical AssistanceUUUTTTHHH----------------------------------------- 4
Section 3 HHHTUTUTUWarrantyUUUTTTHHH--------------------------------------------------------- 5
Section 4 HHHTUTUTUDescription Of Tape HeadUUUTTTHHH---------------------------------- 6
Section 5 HHHTUTUTUSafety IssuesUUUTTTHHH--------------------------------------------------- 7
Section 6 HHHTUTUTUSpecificationsUUUTTTHHH--------------------------------------------------- 10
HHHTUTUTUTape Head DimensionsUUUTTTHHH-------------------------------------- 10
HHHTUTUTUTape Head ComponentsUUUTTTHHH------------------------------------- 11
HHHTUTUTUTape Head SpecificationsUUUTTTHHH------------------------------------12
HHHTUTUTUInstallation In Other MachineryUUUTTTHHH----------------------------- 13
Section 7 HHHTUTUTUSet Up ProceduresUUUTTTHHH-------------------------------------------- 14
HHHTUTUTU Mounting AdaptersUUUTTTHHH-------------------------------------------- 15
HHHTUTUTUTape LoadingUUUTTTHHH--------------------------------------------------- 16
HHHTUTUT UTape ThreadingUUUTTTHHH------------------------------------------------ 17
HHHTUTUTU Tape CenteringUUUTTTHHH------------------------------------------------ 19
HHHTUTUT UTape Leg Length AdjustmentUUUTTTHHH------------------------------ 20

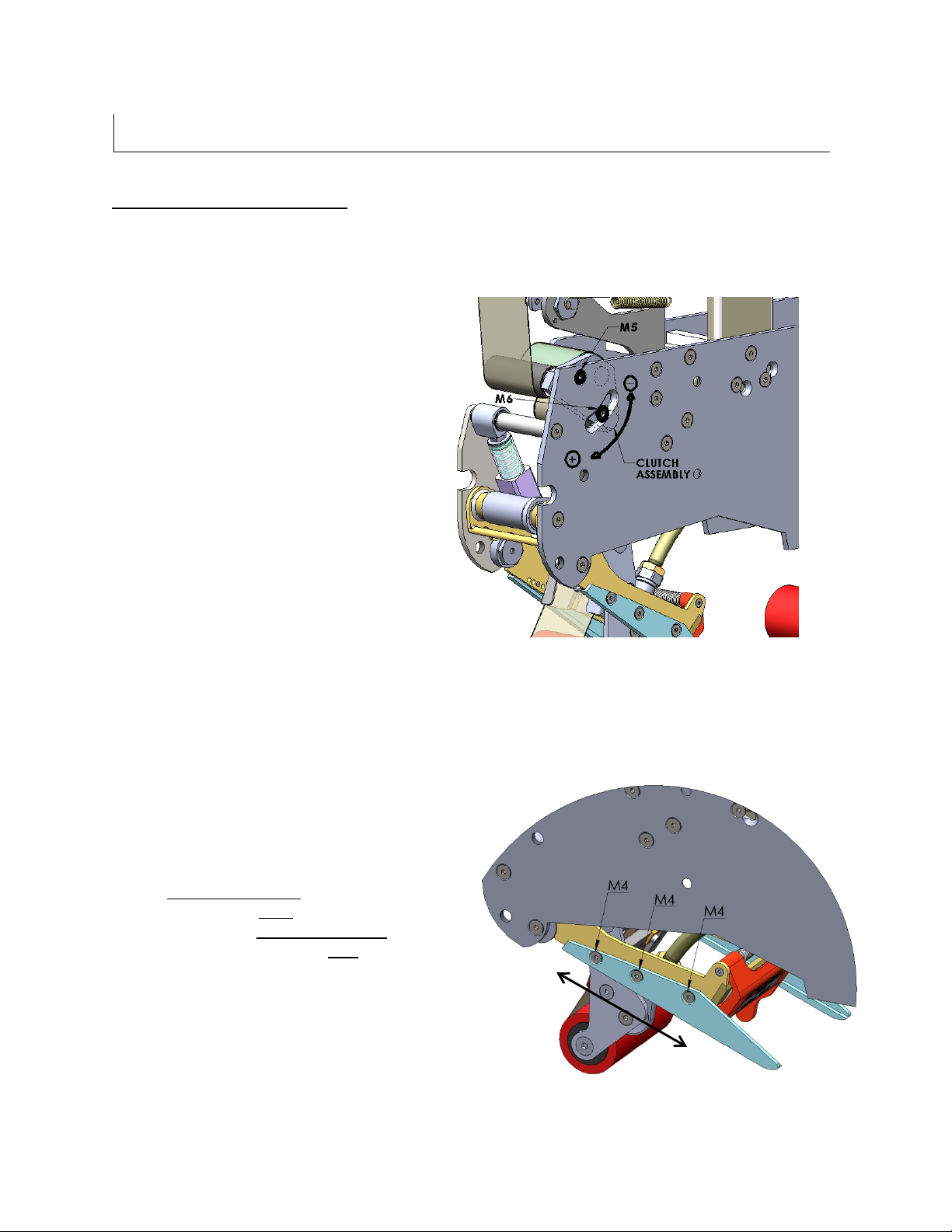

HHHTUTUTU One Way Clutched Roller AdjustmentUUUTTTHHH------------------- 21
HHHTUTUTU Main Spring AdjustmentUUUTTTHHH------------------------------------- 21
HHHTUTUTU Mandrel Tension AdjustmentUUUTTTHHH------------------------------- 22
Section 8 HHHTUTUTUTroubleshootingUUUTTTHHH------------------------------------------------ 23
Section 9 HHHTUTUTURecommended Spare Parts ListUUUTTTHHH--------------------------- 26
Section 10 HHHTUTUTUPreventive MaintenanceUUUTTTHHH------------------------------------- 28
HHHTUTUTUKnife Blade ReplacementUUUTTTHHH----------------------------------- 28
HHHTUTUTUOiler Pad LubricationUUUTTTHHH----------------------------------------- 29
HHHTUTUTUUrethane Wipe Down Roller ReplacementUUUTTTHHH------------- 30
HHHTUTUTUSpring ReplacementsUUUTTTHHH---------------------------------------- 31
HHHTUTUTUWipe Down Brush ReplacementUUUTTTHHH-------------------------- 38
HHHTUTUTU Schedule Of Preventive MaintenanceUUUTTTHHH------------------- 39
Section 11 HHHTUTUTUAppendix A-Illustrations And Parts ListsUUUTTTHHH---------------- 40
HHHTUTUTU No Tape OptionUUUTTTHHH------------------------------------------------ 68
HHHTUTUTU Low Tape OptionUUUTTTHHH---------------------------------------------- 70

4R00
TECHNICAL ASSISTANCE
Technical Support
This is the Interpack Model ET 2Plus Series Tape Head you ordered. It has been set up and
tested in our factory with Intertape brand tapes. If any problems occur when setting up or
operating this equipment, please contact the authorized distributor from where you purchased
this item.
If contact with the authorized distributor is not possible, Interpack Technical Support is
available. Should the need to contact Interpack Technical Support arise, please have the
tape head model number and serial number on hand. This information can be found on the
nameplate on the cover frame of the tape head. Interpack Technical Support is available
during normal business hours (Eastern Time).
PHONE [phone] Option 3
If you have a technical question that does not require an immediate response, you may
contact Interpack by fax.
FAX [phone]
Technical support may also be contacted via email at the address below:
EMAIL Machs[email protected]
Replacement Parts
Order parts by part number, item description and quantity required. Replacement parts are
available from your Authorized Interpack Distributor exclusively.
Should you require assistance selecting the correct part, you may call:
Intertape Polymer Group
Interpack Machinery
Tel: [phone] Option 3
Fax: [phone]
MODEL:
SERIAL NUMBER:
DISTRIBUTOR PURCHASED FROM:
DATE OF PURCHASE:

5R00
WARRANTY
EQUIPMENT WARRANTY AND LIMITED REMEDY: The following warranty is made in lieu of all other
warranties, express or implied, including, but not limited to, the implied warranty of
merchantability, the implied warranty of fitness for a particular purpose, and any implied
warranty arising out of a course of dealing, a custom or usage of trade:
Intertape sells its Interpack Tape Heads, Case Tapers and Case Erectors with the following warranties:
1. The ET 2Plus Tape Heads' knife blades, springs and wipe down rollers will be free from all
defects for a period of ninety (90) days.
2. All other ET 2Plus Tape Head parts will be free from all defects for one (1) year after delivery.
3. Water Activated Tapers’ blades and brushes will be free from defects for ninety (90) days after
delivery
4. Drive Belts will be free from defects for ninety (90) days after delivery
5. The Gear Motors will be free from defects for one (1) year after delivery.
6. All other components will be free from defects for one (1) year after delivery.
If any part is proven defective within its warranty period, then the exclusive remedy and
Intertape's and the seller's sole obligation shall be, at Intertype’s option, to repair or replace
the part, provided the defective part is returned immediately to Intertape's factory or an
authorized service station designated by Intertape.
A part will be presumed to have become defective after its warranty period unless the part is
received or Intertape is notified of the problem no later than five (5) calendar days after the
warranty period.
If Intertape is unable to repair or replace the part within a reasonable time, then Intertape, at its
option, will replace the equipment or refund the purchase price. Intertape shall have no
obligation to install the repaired or replacement part.
Intertape shall have no obligation to provide or pay for the labor required to install the repaired
or replacement part. Intertape shall have no obligation to repair or replace (1) those parts
failing due to: operator misuse, carelessness, or due to any accidental cause other than
equipment failure, or (2) parts
1. Failure or damage is due to misapplication, lack of proper maintenance,
abuse, improper installation or abnormal conditions such as temperature,
moisture, dirt or corrosive matter, etc.
2. Failure due to inadequate cleaning, improper operating environment, improper
utilities or operator error.
3. Failure due to operations above the rated capacities, or in any other improper
manner, either intentional or otherwise.
4. Failure is due to equipment, which has been altered by anyone other than an
authorized representative of Intertape Polymer Group.
5. Failure is due to an attempt by the purchaser to correct alleged defective
equipment. In this event the purchaser is responsible for all expenses
incurred.
LIMITATION OF LIABILITY: Intertape and seller shall not be liable for direct, indirect, special,
incidental or consequential damages based upon breach of warranty, breach of contract,
negligence, strict liability or any other legal theory.
The foregoing Equipment Warranty and Limited Remedy and Limitation of Liability may be
changed only by written agreement signed by authorized officers of Intertape and seller.

6R00
DESCRIPTION OF TAPE HEAD
Figure 4-1
The Intertape ET 2Plus Family of Tape Heads are designed to apply Intertape brand pressure
sensitive carton sealing tape to the top and bottom center seam of regular slotted corrugated
cartons.
The ET 2Plus is the standard tape head in all Interpack machinery.
This ET 2Plus is also designed to upgrade most competitive case sealers. Interpack can provide a
variety of adapter kits to install this tape head into most case sealers.

7R00
SAFETY ISSUES
There are two safety labels used on all Interpack Tape Heads. One label is placed on the Tape
Head knife guard to warn operators and service personnel of the sharp cutting edge of the blade.
The other is on the side frame warning of pinch points within the tape head. Please read the
labels and the following safety precautions before using the Tape Head.
Read this manual for other important safety operating and service information.
Only trained personnel are to operate and service Tape Head.
Wear safety glasses.
Shut off power to machine before adjusting.
Unplug electrical power before servicing.
All covers and guards must be in place before operating.
Stay clear of moving parts which can shear and cut.
Never operate the Tape Heads with the Knife Guard removed.
Turn electrical supply off before servicing the Tape Heads, including tape loading
and threading.
Note: Should any of the safety labels placed on the Tape Head be
damaged or destroyed, replacements are available.

8R00
SAFETY ISSUES
The illustrated label shown in Figure 5-1 is
attached to the Knife Guard. The label
warns operators and service personnel of
the very sharp blade. The guard shall only
be removed when the torsion spring or the
guard itself are being replaced.
Should the tape head be operated without
blade guard, user voids all warranty
implied, the manufacturer bears no
responsibility for the consequences.
Tape head shall never be serviced while
mounted in a machine.
Figure 5-1
Label on Figure 5-2 is visible on carton
sealing machine.
Figure 5-2
While the tape head is processing cartons,
or it is in motion, keep your hands away
(Figure 5-3).
Figure 5-3

9R00
SAFETY ISSUES

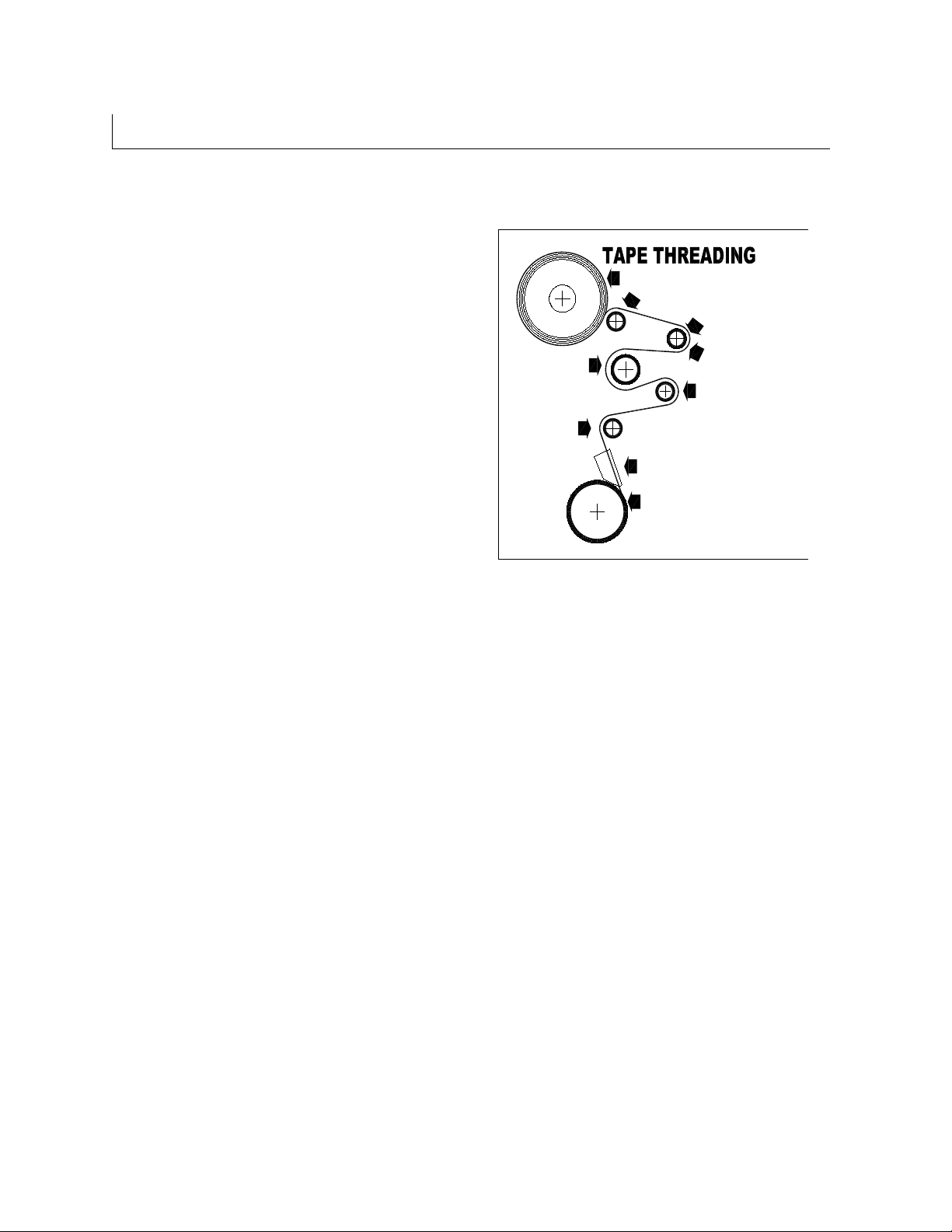

The illustrated label shown in Figure 5-2 is
attached to the operator side plate of each
tape head. The label provides operators
and service personnel the proper method of
threading a new roll of tape through the tape
head.
More detailed information is provided in the
“Set Up Procedures” portion of this manual.
Turn air and electrical supplies off before
servicing the tape heads.
Figure 5-4
ROLLER
GUIDE
ROLLER
CLUTCH
APPLICATION
TAPE GUIDE
ROLLER
SHOE
GUIDE
ROLLER
ADHESIVE SIDE
TAPE ROLL
GUIDE
ROLLER
PEEL OFF ROLLER

10 R00
SPECIFICATIONS

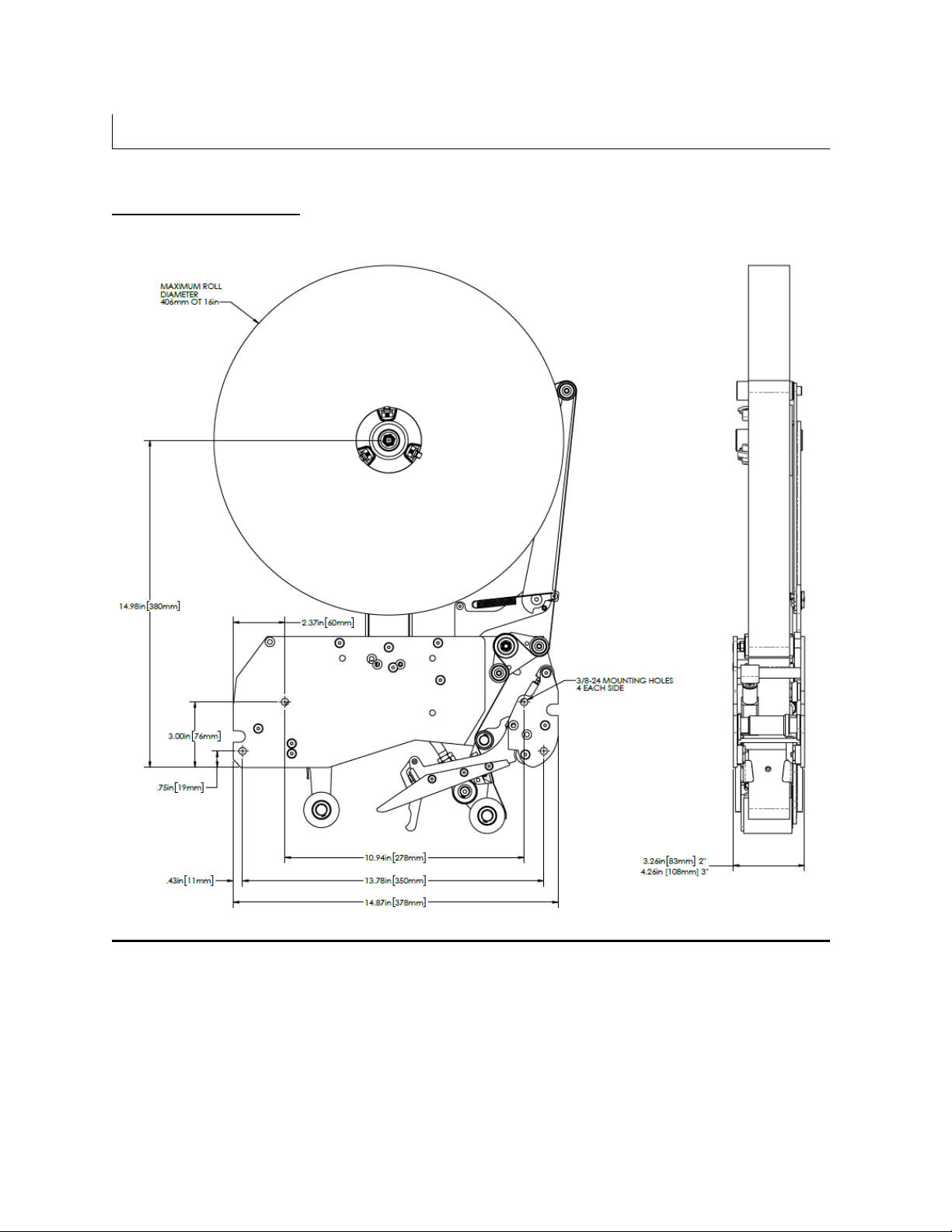

UUUTape Head Dimensions
Figure 6-1

11 R00
SPECIFICATIONS
UUUTape Head Components
Figure 6-2

12 R00
SPECIFICATIONS
UUU
Operating Conditions
Use in a dry, relatively clean environment at 40º to 105º F (5º to 40º C) with clean, dry cartons.
Note:
The
ET2 Plus Standard Tape Head should UUUneverUUU be washed down or subjected to
conditions causing condensation on components.
ET 2Plus SS Stainless Steel
tape heads provide protection against mild detergent wash down only. Do not
subject Stainless Steel tape heads to ANY harsh detergent or solvent wa
sh down.
The warrantee will be voided as a result.
UUUTape Head Specifications
1) General
Use Intertape brand Pressure Sensitive Carton Sealing Tape.
2) Tape Width
For ET 2Plus 2” (48mm) models
1 ½ to 2 inch wide tape (36 to 48 mm)
For ET 2Plus 3” (72mm) models
2 ½ to 3 inch wide tape (60 to 72mm)
3) Tape Roll Diameter
Maximum of 16 inches (405 mm) on a 3-inch (76.86 mm) diameter core.
(Accommodates all Intertape brand film tape machine roll lengths)
4) Tape Application Leg Length – Standard
2 ¼ inches (+0.25", -0")
57.15 mm, (+6.3 mm, -0 mm)
5) Tape Application Leg Length – Optional
The tape leg length can be adjusted from:
1 3/4 to 2 1/2 inches
45 mm to 63.5 mm
6) Tape Head Weight
The Tape Head weighs 13 lbs. (6.1 kg.)
7) Operating Speed
For use with line speeds up to 90 ft/min maximum.
UUUPLEASE NOTEUUU: A stronger main spring may be necessary to process cases at
90 ft/ min. Void filled cases should not be processed with the stronger main
spring

13 R00
SPECIFICATIONS
UUU
Installation of the ET 2Plus in Other Machinery
This tape head can be used to upgrade case sealers provided by other manufacturers. It
can be mounted in the upper or lower positions. It can also be mounted horizontally. Please
contact the factory for the proper mounting adapters, any possible mirror image footprint
requirements and any limitations when upgrading competitor machinery.
1) The case must be positively propelled through the case sealer taking into
account any void fills, overfills, stability factors or weight factors.
2) Verify the case sizes which will be processed through the case sealer. Installing
Interpack ET 2Plus tape heads to process very short cases may cause the tape
heads to collide with each other.
3) If a flight bar or lug drive system propels the case, ensure that these devices
provide proper clearance and do not contact any portion of the tape head
4) Verify that the proper adapter kits have been ordered and supplied with the tape
head.

14 R00
SET-UP PROCEDURES
UUUReceiving and Handling
All contents must be verified upon reception. The following items are included with each tape
head.
DESCRIPTION UH 275TW
2” VERSION
UH 775TW
3” VERSION
Main Tape Head assembly 1 1
SHCS M6 x 8 (part no. UF0810) 4 4
Mounting adaptors (part no. UPH3880) 4 4
Mounting adaptors (part no. UPH3882) 4 -
Mounting adaptors (part no. UPH0864) 4 4
Mounting adaptors (part no. UPH0282) 4 -
Main spring (part no. UPH1090) 1 1
Main spring (part no. UPH0910 1 1
Knife arm spring (part no. UPH4665) 1 1
Operational manual & parts list 1 1
Note: After unpacking the Tape Head, look for any damage that may have
occurred during shipping. Should the Tape Head be damaged, file a claim
with the transport company and notify your Intertape representative.

15 R00
SET-UP PROCEDURES
W
ARNING! TURN OFF ELECTRICAL POWER SUPPLY AND DISCONNECT THE POWER CORD
FROM THE ELECTRICAL SUPPLY BEFORE BEGINNING TO WORK ON THE TAPE
HEADS OR TO LOAD TAPE.IF POWER CORDS ARE NOT DISCONNECTED,
SEVERE INJURY TO PERSONNEL COULD RESULT.
UUUMounting Adapters
ET 2Plus Tape Heads require Mounting Adapter Hardware to install in any case sealer or
case erector. If your Tape Heads are pre-installed in your Interpack or TUFflex case sealer or
case erector, you do not need to follow any instructions from this section. If your tape heads
will be installed in any other competitior machinery, please review these general guidelines
plus any additional instructions included with your ET 2Plus tape head.
Location Of Mounting Adapter Holes
Front Cover
Figure 7-1
Rear Cover
Figure 7-2
Examples Of Mounting Hardware
There are numerous mounting holes on the
front and rear side plates of the tape head.
These are used to install various mounting
adaptors. Examples of these mounting
adapters are:
1. Internal and external threaded nuts
2. Mounting Bars
3. Threaded Spacers
Figure 7-3

16 R00
SET-UP PROCEDURES
UUUTape Loading
The ET 2Plus 2” Tape Heads accommodate 2-inch (48mm) wide tape rolls, while the ET 2Plus
3" Tape Heads accommodate 3-inch (72mm) wide rolls.
1. Place the tape head onto a sturdy, flat surface.
2. Move the peel off roller away from the mandrel.
3. Push the roll of tape onto the mandrel with the adhesive side up (refer to Threading
Diagram under Tape Threading section in this manual) until the core sits against the
mandrel flange. This ensures that the tape will be aligned when feeding into the tape
head.
4. Replace the peel roller against the tape roll.
Figure 7-4
Adhesive Side
Peel Off Roller
Tape Roll

17 R00
SET-UP PROCEDURES
W
ARNING
!
T
HE KNIFE CONTAINED IN THE
T
APE
H
EAD IS EXTREMELY SHARP
.
USE CAUTION
WHEN REMOVING THE BLADE GUARD AND THREADING THE TAPE TO AVOID
PERSONNEL INJURY.
Tape Threading Preparation
Figure 7-5
Threading the tape in the Tape Head does not require any special tools.
1. Pull approximately twelve (12) inches of tape from the roll and fold
in half
lengthwise, adhesive side to adhesive side. This allows you to thread the tape
without it adhering to the guide and clutch rollers inside the Tape Head.

18 R00
SET-UP PROCEDURES
Figure 7-6
Figure 7-7
1. As illustrated in Figures 7-6 & 7-7, first thread the tape tail over the Peel Off
Roller.
2. Thread the tape over and around the first smooth Guide Roller.
3. Continue to thread the tape over and around the knurled Clutch Roller.
4. Then pass the tape up and over the second smooth Guide Roller.
5. Continue threading the tape over and behind the final knurled Guide Roller.
6. Thread the tape through the cut-out provided in the Tape Guide Shoe and pull the
tape through the front Application Roller, ensuring that the tape is retained in the
tape guide shoe
7. Cut off the folded tape.
8. Place the Tape Head to its initial position in the machine.
ROLLER
GUIDE
ROLLER
CLUTCH
APPLICATION
TAPE GUIDE
ROLLER
SHOE
GUIDE
ROLLER
ADHESIVE SIDE
TAPE ROLL
GUIDE
ROLLER
PEEL OFF ROLLER
Adhesive Side
Guide Roller
Clutch Roller

19 R00
SET-UP PROCEDURES
UUUTape Centering
If the tape is not centered as it travels through the tape shoe guide, the tape mandrel can be
adjusted in or out to correct this
Loosen the M18 inverse jam nut on the
rear of the mandrel as shown in Figure
7-8 with a 10 mm allen key.
Figure 7-8
Adjust the shaft in or out as required
using a flat screwdriver as illustrated in
Figure 7-9. One full turn of screwdriver
will displace mandrel 1mm. When the
tape is centered, tighten the jam nut .
Figure 7-9

20 R00
SET-UP PROCEDURES
UUUTape Leg Length Adjustment
For optimum performance, the tape leg length has been factory set at 2 inches (50 mm).
However, the tape leg length can be modified.
Front Tape Leg
To adjust the tape leg length on the
leading end of the box, refer to
Figure 7-12 of the clutch assembly.
Facing the rear main frame, loosen
the two (2) Flat Head Cap Screws
using a 3 & 4 mm hexagonal key.
Rotate the clutch assembly to bring
the lowers screw towards the minus
(-) sign stamped on the rear plate for
a shorter tape leg. Conversely, bring
the bottom screw towards the plus
(+) sign for a longer tape leg.
Re-tighten both Flat Head Cap
Screws.
Figure 7-10
Rear Tape Leg
To adjust the tape leg length on the trailing
end of the box, both chrome knife arm
extension brackets must be re-positioned.
Unscrew the three (3) Flat Head Cap
Screws on each knife arm extension using
an 2.5 mm hexagonal key.
For a UUUShorter Tape LegUUU, bring the knife
arms towards the UUUfrontUUU of the tape head.
Conversely, for a UUULonger Tape LegUUU, bring
the knife arms towards the UUUrearUUU of the tape
head. Both Knife Arm Extensions have to
be set for the same position.
Replace the three (3) screws on each
knife arm extension and tighten.
Figure 7-11
Front
Rear
