IPGARD SA-HDN-4D User manual

4 Port DP/HDMI to DP/HDMI
secure KVM switch
TECHNICAL SPECIFICATIONS
SA-HDN-4D
Advanced 4-Port Secure
Dual-head DP/HDMI to
DP/HDMI KVM Switch
with Audio
Quick Start Guide
VIDEO
Host Interface (8) DisplayPort 20-pin F;
(8) HDMI 19-pin F
User Console
Interface
(1) DisplayPort 20-pin F;
(1) HDMI 19-pin F
Max Resolution 3840 x 2160 @ 60Hz
DDC 5 volts p-p (TTL)
Input Equalization Automatic
Input Cable Length Up to 20 ft.
Output Cable Length Up to 20 ft.
USB
Signal Type USB 1.1 and 1.0 Keyboard and
Mouse only
USB Connectors (4) USB Type B
User Console Interface (2) USB Type A for keyboard/mouse
connections
AUDIO
Input (4) Connector stereo 3.5 mm
female
Output (1) Connector stereo 3.5 mm
female
POWER
Power Requirements 12V DC, 3A power adapter with
center-pin positive polarity
ENVIRONMENT
Operating Temp 32° to 104° F (0° to 40° C)
Storage Temp -4° to 140° F (-20° to 60° C)
Humidity 0-80% RH, non-condensing
CERTIFICATIONS
Security
Accreditation
Common Criteria Validated To
NIAP, Protection Prole PSS Ver.
4.0
OTHER
Emulation Keyboard, mouse, and video
User Controls Front-panel buttons
WHAT’S IN THE BOX
PART NO. QTY DESCRIPTION
SA-HDN-4D 14-Port DH Secure DP/HDMI to
DP/HDMI KVM with Audio
PS12VDC2A 112-VDC, 2-A power adapter with
center-pin positive polarity.
1Quick Start Guide
A full manual can be downloaded from
www.ipgard.com/documentation/
DESIGNED
AND MADE
IN THE USA
NOTICE
The information contained in this document
is subject to change without notice. iPGARD
makes no warranty of any kind with regard
to this material, including but not limited to,
implied warranties of merchantability and
tness for a particular purpose. iPGARD
will not be liable for errors contained
herein, or for incidental or consequential
damages in connection with the furnishing,
performance, or use of this material. No
part of this document may be photocopied,
reproduced, or translated into another
language without the prior written consent
from iPGARD, Inc.
20170518
Toll Free: (888)-994-7427
Phone: [phone]
Fax: [phone]
WWW.iPGARD.COM
SA-HDN-4D
1 2 3 4ST1 ST2
CONSOLE
12VDC2.0A AUDIO
K/M
AUDIO AUDIO AUDIO AUDIO
K/M K/M K/M K/M
IN-1IN-2IN-3IN-4
DP/HDMI IN1 ADP/HDMI IN2 ADP/HDMI IN3 ADP/HDMI IN4 ADP/HDMI OUT A
DP/HDMI IN1 BDP/HDMI IN2 BDP/HDMI IN3 BDP/HDMI IN4 BDP/HDMI OUT B

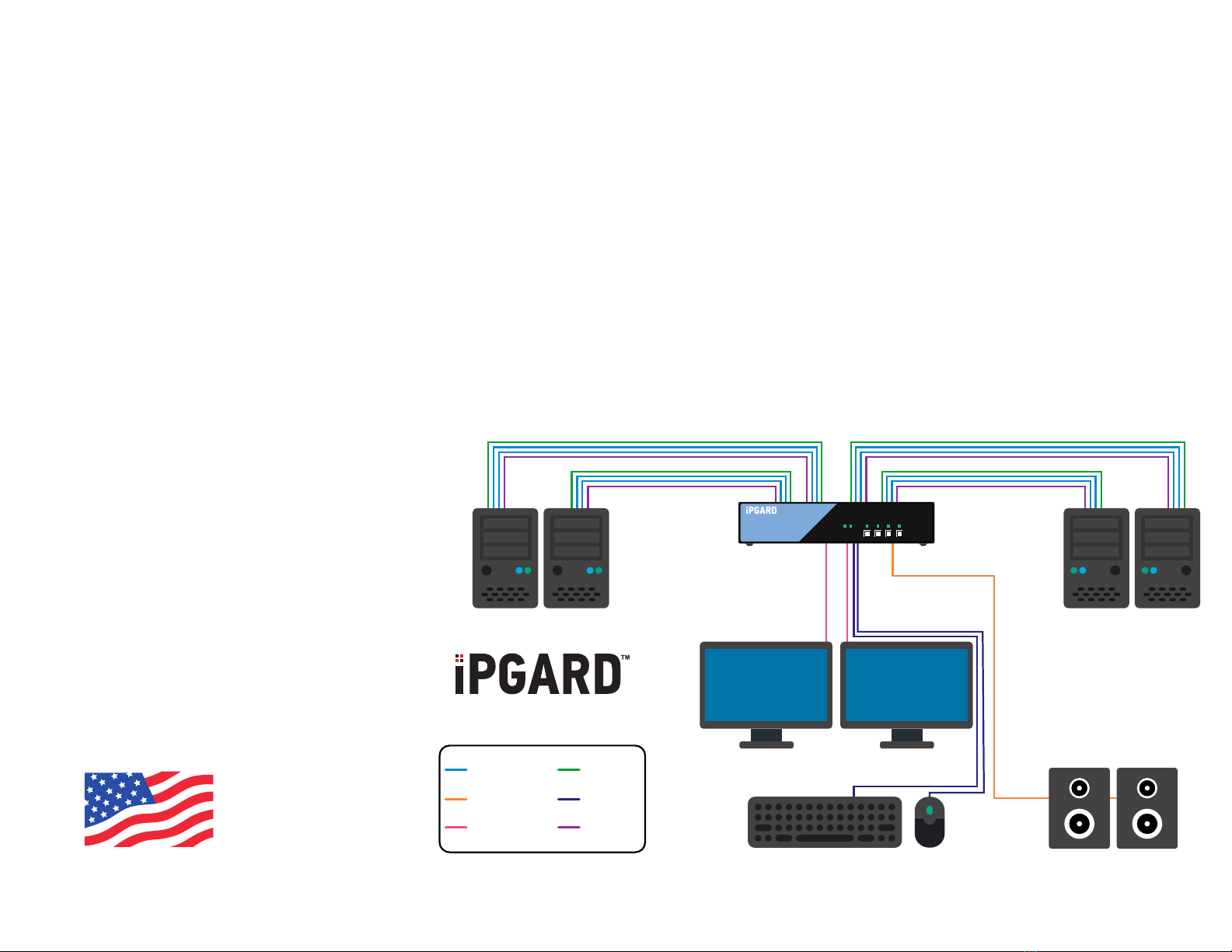

EDID LEARN HARDWARE INSTALLATION
1. Ensure that power is turned off or disconnected from the unit and the computers.
2. Use DisplayPort or HDMI cables to connect the DisplayPort or HDMI output ports from each
computer to the corresponding DP/HDMI IN ports of the unit.
3. Use a USB cable (Type-A to Type-B) to connect a USB port on each computer to the
respective USB ports of the unit.
4. Optionally, connect a stereo audio cable (3.5 mm to 3.5 mm) to connect the audio output of
the computer(s) to the audio in ports of the unit.
5. Connect monitor(s) to the DP/HDMI OUT console port of the unit using DiplsayPort or HDMI
cable(s).
6. Connect a USB keyboard and mouse in the two USB console ports.
7. Optionally, connect stereo speakers to the audio out port of the unit.
8. Finally, power on the secure KVM switch by connecting a 12-VDC power supply to the power
connector, and then turn on all the computers.
Note: You can connect two monitors to the dual-head KVM switch. The computer connected
to port 1 will always be selected by default after power up.
Note: You can connect up to 4 computer to the 4 port KVM.
DESIGNED
AND MADE
IN THE USA
The KVM switch is designed to learn a
connected monitor’s EDID upon power up. In
the event of connecting a new monitor to the
KVM a power recycle is required.
The KVM switch will indicate the unit’s
EDID learn process is active by ashing
the front panel’s LEDs in sequential order.
Starting with the LED above button “1” on
the front panel, each LED will ash green for
approximately 10 seconds upon beginning
the EDID learn. Once all the LEDs stop
ashing, the LEDs will cycle and the EDID
learn will be complete.
If the KVM switch has more than one video
board (such as dual-head and quad-head
models), then the unit will continue to learn
the EDIDs of the connected monitors and
indicate the progress of the process by
ashing the next port selection green and
blue push-button LEDs respectively.
A monitor must be connected to the video
output port located in the console space at
the back of the KVM switch during the EDID
learn process.
If the read EDID from the connected monitor
is identical to the current stored EDID in the
KVM switch, then the EDID learn function
will be skipped. SA-HDN-4D
DP/HDMI IN
AUDIO OUT
DP/HDMI OUT
USB IN
USB OUT
AUDIO IN
SA-HDN-4D
1 2 3 4ST1 ST2
A full Manual can be downloaded from
www.ipgard.com/documentation/
