IQ Gate Systems IntelliSwing IQ-500-S Quick guide

IQ Gate Systems
www.iqgatesystems.com
www.iqgatesystems.comwww.iqgatesystems.com
www.iqgatesystems.com
IntelliSwing IQ-500-S Installation And
Instruction Manual
UL 325 Compliant
ETL Listed
REV. H
12/2012
www.iqgatesystems.com
1-801-455-7961

2
IQ Gate Systems
Warranty Information
This document pertains to all IQ Gate Systems manufactured products. All products that
are sold, but not manufactured by IQ Gate Systems are not covered under this warranty.
The following warranty covers models including but not limited to:
IQ-50 / IntelliSwing IQ-50-H Series**
IQ-500 / IntelliSwing IQ-500-S / / IntelliSwing IQ-500-S-MC2
IQ-500c
IQ-5000 / IntelliSlide IQ-5000-S / IntelliSlide IQ-5000-S-MC2
IQ-12B
IQ Gate Systems reserves the right to alter its warranty coverage and models including
coverage duration without prior notification.
Limited Warranty
**IQ Gate Systems model IQ-50 / IntelliSwing IQ-50-H Series linear gate operator is covered by the following warranty for a period of two
years (24 months) from the date of original purchase.
IQ Gate Systems new products, not including the IQ-50 linear actuator, are warranted to be free of defects in material or workmanship for a
period of three years, (36 months), from the date of purchase. This warranty does not cover aesthetical defects in materials. This
warranty extends only to wholesale customers who buy direct from IQ Gate Systems or through IQ Gate Systems normal distribution
channels. This warranty also only covers and is extended to products that are manufactured by IQ Gate Systems. IQ Gate Systems does
not warrant any products in any way to the end user consumer. Consumers must obtain warranty information from the selling dealer
and/or installer as to the nature of the dealer’s warranty, if any. All contact to IQ Gate Systems from the end user consumer will be referred
to the consumer’s selling dealer and/or installer. There are no obligations and/or liabilities on the part of IQ Gate Systems for
consequential damages arising out of or in connection with use or performance of IQ Gate Systems products or other indirect damages
with respect to loss of property, revenue, or profit, or cost of removal, installation, or reinstallation. Any use or change to IQ Gate Systems
products not expressly approved by the manufacturer, and performed by an authorized dealer/installer will immediately void the warranty.
All implied warranties, including warranties for marketability as well as implied warranties for suitability, are valid only until the warranty
expires or is voided, whichever comes first.
This IQ Gate Systems Limited Warranty is in lieu of all other warranties express or implied and all IQ Gate Systems warranties are subject,
but not limited, to the following conditions.
NEW PRODUCT POLICY
1. The products must be properly installed as specified; and maintained or used as intended.
2. Cause of product failure is not due to vandalism or malicious mischief, improper installation, abnormal physical or electrical stress, lightning, power
surges, misuse, negligence, accidents, or Natural disasters. Normal “wear and tear” from use of equipment is not covered under warranty
3. Warranty is immediately null and void if the product has been altered, repaired, or modified without express written authorization from
IQ Gate Systems Technical Department, with such authorization given only to manufacturer approved dealer/installers.
4. Under no circumstances will IQ Gate Systems honor warranty on any product found to have been altered, repaired, and/or modified by the end-
user consumer.
5. IQ Gate Systems reserves the right to repair the product, or replace a warranted product with a like product of equal value in the event original
product cannot be repaired.
6. Distributors and/or Dealer-Installer must first obtain a Return Merchandise Authorization (RMA) number from IQ Gate Systems Technical
Department before returning any product to factory for repair, whether under warranty or not. No returns accepted without RMA.
7. Return Merchandise Authorization (RMA) numbers will not be issued to the end-user consumers. Consumers must contact their selling dealer-
installer for any/all warranty issues.
8. Distributor and/or Dealer-Installer are responsible for all shipping charges, incl. freight and insurance fees, for products shipped to IQ Gate
Systems repair center.
9. IQ Gate Systems warranty does not guarantee any product to be free of operation error or service interruption in any way during the course of
daily product operation.
10. IQ Gate Systems is not responsible for time, travel, and/or labor costs of any distributor and/or dealer-installer, including but not limited to, any
expenses to install, uninstall or reinstall hardware/software/firmware related to warranty issues, product enhancements, or product failures.

3
IQ GATE SYSTEMS NON-WARRANTY REPAIR LIMITED WARRANTY
NON-WARRANTY REPAIR POLICY
IQ Gate Systems warrants repairs to be free of defects in material or workmanship for a period of three (3) months from the date of repair and
invoice. This warranty extends only to wholesale customers who buy direct from IQ Gate Systems or through IQ Gate Systems normal
distribution channels. Consumers must obtain warranty information from the selling dealer and/or installer as to the nature of the dealer’s
warranty, if any. All contact to IQ Gate Systems from the end user consumer will be referred to the consumer’s selling dealer and/or
installer.
This IQ Gate Systems Limited Warranty is in lieu of all other warranties express or implied and all IQ Gate Systems warranties are subject, but
not limited, to the following conditions.
1. The products must be properly re-installed as specified; and maintained or used as intended.
2. Cause of repaired product failure is not due to vandalism or malicious mischief, improper installation, abnormal physical or electrical stress,
lightning, power surges, misuse, negligence, accidents, or Natural disasters.
3. Warranty is immediately null and void if the product has been altered, repaired, or modified without express written authorization from
IQ Gate Systems Technical Department, with such authorization given only to manufacturer approved dealer/installers.
4. Under no circumstances will IQ Gate Systems honor warranty of any product found to have been altered, repaired, and/or modified by
the end-user consumer.
5. IQ Gate Systems reserves the right to replace a previously repaired product with a like product of equal value in the event of repair failure,
provided repair failure occurs within the specified warranty period.
6. Distributors and/or Dealer-Installer must first obtain a Return Merchandise Authorization (RMA) number from IQ Gate Systems Technical
Department before returning any product to factory for non-warranty repair. No repair returns accepted without RMA.
7. Return Merchandise Authorization (RMA) numbers will not be issued to the end-user consumers. Consumers must contact their selling dealer-
installer for any/all warranty issues.
8. Distributor and/or Dealer-Installer are responsible for all shipping charges, incl. freight and insurance fees, for products shipped to IQ Gate
Systems repair center.
9. IQ Gate Systems warranty does not guarantee any product, new or repaired, to be free of operation error or service interruption in any
way during the course of daily product operation
10. IQ Gate Systems is not responsible for time, travel, and/or labor costs of any distributor and/or dealer-installer, including but not limited
to, any expenses to install, uninstall or reinstall hardware/software/firmware related to warranty issues, product enhancements, or product failures.
IMPORTANT REPAIR NOTE: IQ Gate Systems will perform a factory physical evaluation of all products submitted for repair at receipt of item, and
reserves the right to decline repairs after said physical evaluation. In the event a returned product is deemed ineligible for repair; the product will be
returned to sender via common carrier ground at IQ Gate Systems expense. NO RETURNS WILL BE REPAIRED, CREDITED, OR RETURNED
WITHOUT THE RMA# THAT WAS ISSUED FOR THE MENTIONED PRODUCT FROM IQ GATE SYSTEMS.
IQ Gate Systems: IQ-500 Installation
IQ-500 Capacities:
Swing gates that are up to 20 feet in length and 1000 lbs.
!
Warning: Do not install this gate operator if you
don’t have experience or proper training with gate operators

4
Important Safety Instructions
WARNING –
TO REDUCE THE RISK OF INJURY OR DEATH - READ AND FOLLOW ALL INSTRUCTIONS.
Never let children operate or play with gate controls. Keep the remote control away from children.
Always keep people and objects away from the gate. NO ONE SHOULD CROSS THE PATH OF THE
MOVING GATE.
Test the gate operator monthly. The gate MUST reverse on contact with a rigid object or stop when an
object activates the non-contact sensors. After adjusting the force or the limit of travel, retest the gate
operator. Failure to adjust and retest the gate operator properly can increase the risk of injury or death.
Use the emergency release only when the gate is not moving. Make sure that all power to the gate
operator is off.
KEEP GATES PROPERLY MAINTAINED. Read the owner’s manual. Have a qualified service person
make repairs to gate hardware.
The entrance is for vehicles only. Pedestrians must use separate entrance.
SAVE THESE INSTRUCTIONS.
Warning: To reduce the risk of injury or death, please read the following:
1. Read, follow and understand all instructions
2. The automated gate is not for pedestrian use
3. Do not activate your gate operator unless it is in sight and you can determine that it will travel without
interfering with any objects or persons. Always keep people and objects away from the gate and its area
of travel
4. Keep all access devices such as key switches, push buttons, and telephone entry systems away from
the gate. The recommended distance is a minimum of 10 feet.
5. Make sure that all warning signs have been attached and that the operator has been installed
correctly
6. If edges and photoelectric sensors have been installed, they should be tested for proper operation.
7. Keep gates properly maintained. Grease and lubricate all hinges and brackets to prevent binding and
unnecessary friction.
8. Have the operator tested and serviced by a qualified and experienced technician. The gate should
respond and reverse to all obstructions both inherently and externally
9. Disconnect the operator only when it is not in motion

5
10.DO NOT turn on the automatic close timer unless the gate is equipped with at least one non-contact
external obstruction sensor, e.g., a photo electric beam, a vehicle loop, etc.
The IQ-500 is a residential/commercial swing gate operator
1) Install the gate operator only when:
•The operator is appropriate for the construction of the gate (see the ASTM F2200 standard) and
the usage UL Class of the gate,
•It is recommended that all openings of a swing gate are guarded or screened from the bottom of
the gate to a minimum of 4 feet (1.22 m) above the ground to prevent a 2-1/4 inch (57.2 mm)
diameter sphere from passing through the openings anywhere in the gate, and in that portion of
the adjacent fence that the gate covers in the open position,
•Guarding is supplied for exposed hinges
•The bottom of the gate has been constructed so that a “raking” action has been eliminated
•All exposed pinch points are eliminated or guarded
2) The operator is intended for installation only on gates used for vehicles. Pedestrians must be supplied with a
separate access opening.
3) The gate must be installed in a location so that enough clearance is supplied between the gate and adjacent
structures when opening and closing to reduce the risk of entrapment. Swinging gates shall not open “into”
public access areas.
RESIDENTIAL VEHICULAR GATE OPERATOR
CLASS I – A vehicular gate operator (or system) intended for use
in a home of one-to four single family dwelling, or a garage or
parking area associated therewith.
COMMERCIAL/GENERAL ACCESS VEHICULAR GATE OPERATOR
CLASS II – A vehicular gate operator (or system) intended for use
in a commercial location or building such as a multi-family housing
unit (five or more single family units), hotel, garages, retail
store, or other building servicing the general public.
INDUSTRIAL/LIMITED ACCESS VEHICULAR GATE OPERATOR
CLASS III – A vehicular gate operator (or system) intended for
use in an industrial location or building such as a factory or
loading dock area or other locations not intended to service the
general public.
RESTRICTED ACCESS VEHICULAR GATE OPERATOR
CLASS IV – A vehicular gate operator (or system) intended for
use in a guarded industrial location or building such as an airport
security area or other restricted access locations not servicing
the general public, in which unauthorized access is prevented
via supervision by security personnel.

6
4) The gate must be properly installed and work freely in both directions prior to the installation of the gate
operator. Do not increase the operator amperage levels beyond the required operable amounts to compensate
for a damaged gate.
5) For gate operators utilizing Type D protection:
•The gate operator controls must be placed so that the user has full view of the gate area when the
gate is moving,
•The placard be placed adjacent to the controls,
•An automatic closing device (such as a timer, loop sensor, or similar device) shall not be
employed
•No other activation device shall be connected.
6) Controls must be far enough from the gate so that the user is prevented from coming in contact with the gate
while operating the controls. Controls intended to be used to reset an operator after 2 sequential activations of
the entrapment protection device or devices must be located in the line-of-sight of the gate. Outdoor or easily
accessible controls shall have a security feature to prevent unauthorized use.
7) All warning signs and placards must be installed where visible in the area of the gate. A minimum of two
placards shall be installed. A placard is to be installed in the area of each side of the gate and be visible to
persons located on the side of the gate on which the placard is installed.
8) For gate operators utilizing a non-contact sensor such as a photo beam:
•See instructions on the placement of non-contact sensors for each type of application,
•Care shall be exercised to reduce the risk of nuisance tripping, such as when a vehicle, trips the
sensor while the gate is still moving
•One or more non-contact sensors shall be located where the risk of entrapment or obstruction
exists, such as the perimeter reachable by a moving gate or barrier.
9) For a gate operator utilizing a contact sensor such as an edge sensor:
•One or more contact sensors shall be located where the risk of entrapment or obstruction exists,
such as at the leading edge, trailing edge, and post mounted both inside and outside of a
vehicular horizontal Swing gate.
•One or more contact sensors shall be located at the bottom edge of a vehicular vertical lift gate.
•One or more contact sensors shall be located at the pinch point of a vehicular vertical pivot gate.
•A hardwired contact sensor shall be located and its wiring arranged so that the communication
between the sensor and the gate operator is not subjected to mechanical damage.

7
•A wireless contact sensor such as one that transmits radio frequency (RF) signals to the gate
operator for entrapment protection functions shall be located where the transmission of the signals
are not obstructed or impeded by building structures, natural landscaping or similar obstruction. A
wireless contact sensor shall function under the intended end-use conditions.
Before installation:
•Read and follow all instructions
•Verify that the IQ Gate Systems operator that is being installed is the correct operator for the gate.
•Make sure that the gate has been properly installed and swings freely and level throughout its travel.
Repair or replace any damaged or unsafe hardware. A gate that swings free of friction and binding will
greatly increase the life of the gate operator.
•Review the operation of the system and the customers needs to make the installation as easy and
efficient as possible.
•This gate operator is intended for vehicular gates only. A separate entrance must be provided for
pedestrian use.
•Please conform with the UL and ASTM standards on building safe and approved gates
During installation:
•Install the gate operator on the secured side of the property and away from public access.
•Be mindful of moving parts and pinch points. Avoid close proximities.
•Installation of contact and non-contact sensors such as edges and photoelectric sensors is suggested to
enhance the prevention of entrapment.

8
•Determine the best level of open and close force for the installation. An improper level will defeat the
inherent current sensing purpose and make the installation unsafe. By utilizing the “Motor Diagnostic”
feature; proper and accurate levels can be obtained when adjusting the open and close force settings.
Improper testing and setting of the force adjustment can increase the risk of serious injury or
death.
•Mount all access controls away from the gate a recommended minimum distance of 10 feet. The gate
must be in full view of controls but out of reach.
After Installation:
•Review ALL safety instructions with the end user. Explain the basic operation and features including
safety precautions of the entire gate operator system. Don’t forget to include how to disconnect power to
the operator and how to operate the gate manually.
•Attach all warning signs and placards as well as your own business contact information to the gates. It is
recommended that you take a picture of the gates with the warning signs in place and record the date of
the photo. Keep for your records.
•SAVE ALL INSTRUCTIONS. Leave a copy of the manual and your contact information with the end
user.
Preparing to install the IQ-500
Consider the following when installing an IQ-500:
•Survey the desired location for the gate. Make sure that the opening is far enough away from a main
road or heavy traffic. Be sure to allow enough distance away from the road so that a vehicle can
approach the gate without obstructing traffic. Twenty-five feet from the road should be sufficient, but
compliance with local codes should be observed.
•Keep power requirements in mind. The IQ-500 is capable of operating with a supply of power from a
solar panel that consists of at least 20 watts. AC power is recommended to consist of 110 to 220 volts.
AC power is the preferred method of supply.
•Depending on soil conditions, set the concrete pad at least 2 feet in the ground with an abundance of
concrete. Check and conform to local codes.
•Install the gate with the incline of the road in mind. For proper operation, the gate must swing back and
forth at a level plane.
For Master / Slave Applications:

9
•Be sure to provide a conduit between the two gates if they will be set up as bi-parting. A minimum of at
least 5 comm. wires are required for the IQ-500-S to function. A twisted shielded 18 gauge 5 conductor
cable will be sufficient. Wire the boards Comm terminals from side to side, terminal for terminal on the
Interface Boards
Installing the IQ-500
Be sure to follow these instructions:
•Bolt the IQ-500 onto a concrete pad
•Tighten all necessary bolts and prepare the gate and operator for motion

10
•Properly secure and attach the desired form of power in the control box where power termination is
labeled.
•Attach the battery wires to the batteries after the AC power has been terminated and energized.
DO NOT REVERSE BATTERY POLARITY AT THE BATTERY OR THE
CIRCUIT BOARD. SEVERE DAMAGE WILL OCCUR
The IQ-500 is a 24 volt DC gate operator. Utilizing (2) 12 vdc batteries, the batteries
must be connected in series, and then the positive (+) power wire (RED) is to be
connected to the positive (+) battery terminal
•For Solar powered IQ-500 operators, the AC power supply should be disconnected
and removed. The Solar panel should be wired into the power terminal block or
solar regulator (if provided).

11
Limit Settings
Setting the Gate Direction
•If the gate operator opens to the Right, the red motor wire will need to be inserted into the Motor B
terminal, with the Black motor wire being inserted in the Motor A terminal. If the gate opens to the Left,
the Red wire should be inserted into the Motor A terminal, with the Black motor wire being inserted into
the Motor B terminal.
•The open and close limit switch wires will need to be switched accordingly.
Limit Switches
•IQ-500 Left Hand:
The limit switch opposite of the Drive Chain is the open limit
•IQ-500 Right Hand:
The limit switch on the Drive Chain side is the open limit

12

13
The following instructions reference the addition and
The following instructions reference the addition andThe following instructions reference the addition and
The following instructions reference the addition and programming of the on board 433
programming of the on board 433 programming of the on board 433
programming of the on board 433
MHz dual ch
MHz dual chMHz dual ch
MHz dual channel receiver
annel receiverannel receiver
annel receiver
A coaxial cable antenna kit is required for optimum range and reliability of the on board radio receiver
The on board 433mhz dual channel receiver has a set of four dip switches that can be changed to alter the function
of the corresponding channel. Using dip switch 1, channel 1 can be programmed to function as an open only, or a “Radio”
command open, stop, close function; or by turning dip switch 2 on (push to the right), it will allow channel 1 to take the
action that is programmed in the auxiliary input terminal of the “Auxiliary Settings Menu”.
Channel 2 of the receiver is designed to be used as the reversing input channel. Dip switch 3 can be set to reverse
the gate from closing when set as the “SAFE” option, or it can be switched to the “EDGE” option which will reverse the
gate in either direction. When dip switch 4 is turned on, channel 2 will take the action of the auxiliary input terminal that is
programmed in the “Auxiliary Settings Menu”.
The following is how to program a 433 MHz transmitter into the on board receiver:
1. Push and hold the desired channel “Learn” button (1 or 2) for approximately 2 seconds or until the Green
LED DS27 come on and stays on.
2. Next, push and hold the button on the remote transmitter until the Green LED blinks twice (about 4 sec).
At this point the remote should be programmed. Test the operation of the remote. Press the system reset button if
the remote doesn’t respond. If the transmitter doesn’t operate gate, repeat steps 1 and 2.
To delete the programmed transmitters in channel 1, push and hold the “LEARN” button until the LED goes out
(approximately 12 seconds)
Transmitter operational range and functionality can and will differ depending on the site of installation and other nearby
obstacles (power lines, electric motors, satellite receivers, fiber optic lines, wireless routers, and other radio frequencies).
No guarantee of operational range should be expected or assumed.

14

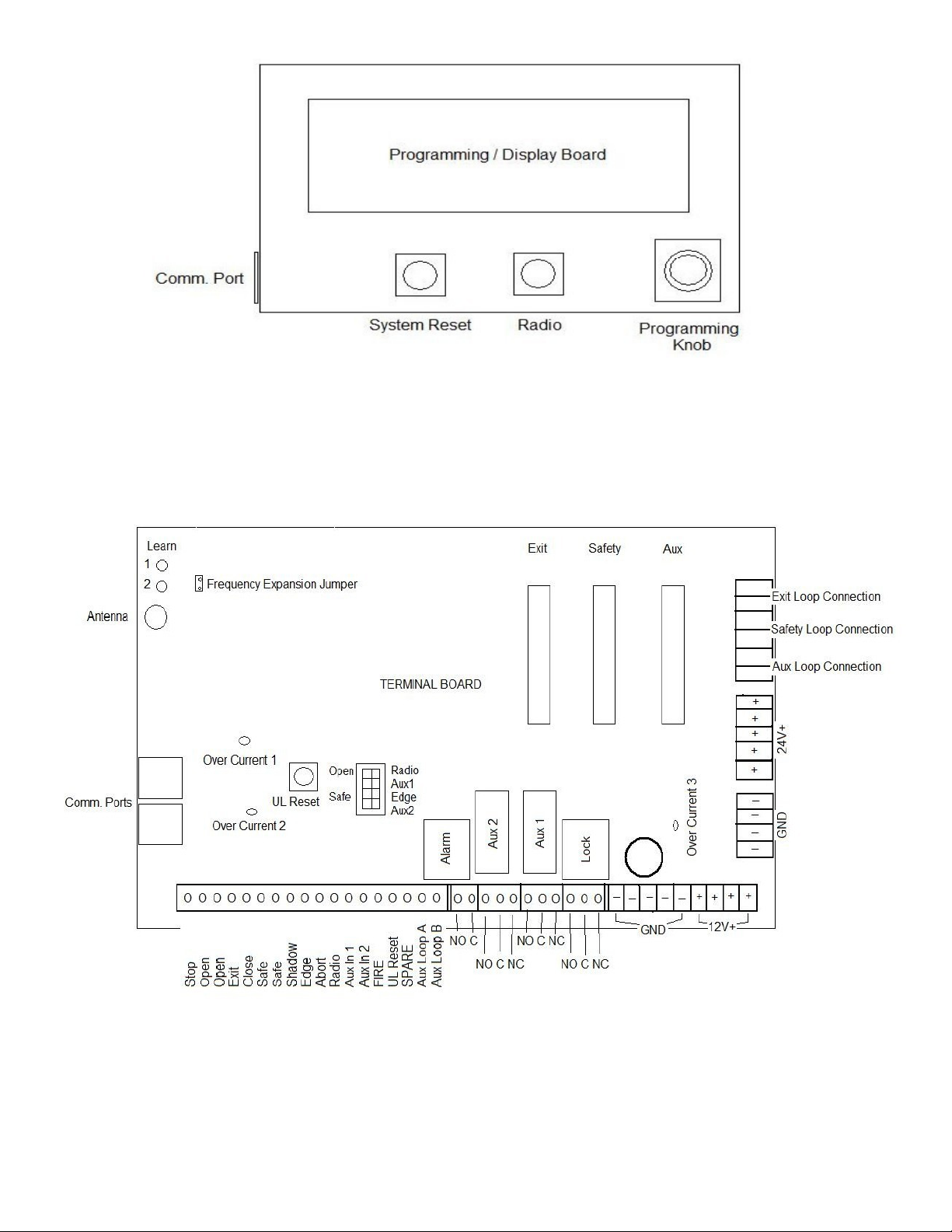

Antenna
Connection
Receiver
Programming Buttons
Programming LED
Board
Communication
LED’s
Receiver Channel 1
Options
Receiver Channel 2
Options
2 Channel Receiver
Option Switches

15
12 / 24 VDC + Power
Input Terminals
Inductance Loop
Terminals
Input Power -
Ground Terminals

16
The IQ Control Board is equipped with (2) 10 amp programmable relays. These relays can be configured to
perform a variety of functions. The output terminals for these relays are directly below their corresponding
relay.
The output relay functions and input terminal options can be programmed in the Auxiliary Settings Menu.
The new revision of the IQ Motor board has two (2) new on board push buttons labeled “OPEN” and “CLOSE”. These
buttons will be implemented in a later software revision to be used as a motor limit learning protocol. However, they may
be currently used to operate the gate manually for the means of setting the positive limits and overall travel of the gate. To
utilize the manual override buttons, perform the following:
1. Unplug the RJ45 Ethernet cable from the DISPLAY/PROGRAMMING BOARD
2. Push and hold the desired manual override button on the MOTOR BOARD
Please note that the manual override button will ignore and run past the limit switches. The gate will not stop unless the
button is released or the power is shutoff.
Wiring the IQ Control Board
The IQ Control board utilizes spring loaded terminal connections. To connect or disconnect wires, push the
white prong inwards towards the circuit board using a 3/16
th
inch blade screwdriver; insert or remove the
desired wire, and release the pressure on the terminal spade.
The IQ control board has numerous terminals to accommodate your entire accessory wiring needs. The IQ
control board uses pull down contacts so that the ground or “GND” terminals should be used as the common
contact to complete the circuit for your normally open contacts. The IQ control board also consists of 2
separate power output supplying areas. The Red terminals located at the far most bottom right corner of the
Terminal board are labeled {+ 12V}. These 4 terminals can be used for your 12 vdc positive power output
terminals and are only designed for 12vdc accessory power. Maximum output is 500ma.
The 5 Orange terminals that are located directly above these are labeled: {28/14 VDC}. These 5 terminals are
whatever voltage that the operator is being supplied with, rather it be 12 vdc or 24 vdc.

17
All of the GND terminals on the board may be used for the “ – “ power terminal or for a common contact.
The 6 terminals at the top right corner of the terminal board are for the termination of ground loops. These
terminals correspond with the 3 available plug-in loop detector slots. The loop detector slots are available for
use as an EXIT, SAFE and AUX configuration.
•The EXIT detector will provide an open contact to the controller and will display “Exit Loop/Term”.
•The SAFE detector will provide a “safe” or close-reversing contact to the controller and will display “Safe
Loop/Term”.
•The AUX detector will provide the output contacts from the detector to the terminals on the board labeled
“A – AUX – B”. When an AUX loop is utilized and detecting, the output from the detector will be able to
be utilized from the Aux A and B terminals and from here you can jump to whatever contact you would
like. For example, if you should require a shadow loop, insert the shadow loop wires into the AUX loop
terminals at the top right corner of the board and then use a jumper wire and insert it between the “Aux
A” and “Shadow” terminals.
Be sure to disconnect and disable any magnetic or other gate locks before learning an operator
Programming the IQ Control Board
The following is a list of programming and available features. Please be aware that the IQ control board is one
of the most advanced gate operator circuit boards available and take care when programming and choosing
desired features. Refer to this manual if a feature that you desire is needed or if any changes are necessary to
be made in the menus.
The IQ control board is divided into 7 menus. Using the round rotating programming knob on the
display board, you can scroll through the menus and select an option or enter a menu by depressing the
programming knob. When changes are being made in any menus the programming “ *“ will be displayed at the
top left of the screen. The 7 menus consist of the following:
Adjust the Clock
Adjust Time Settings
Auxiliary Settings
Maintenance Menu
Motor Drive Menu
IQ Gate Learning
Error and Fault Log
To enter any of the menus, rotate the programming knob one click to the right, or clockwise. The first option
that will appear is “Enter Password / None”. This is indicating that the menu is not being password protected. If
the password feature was/is being utilized then the appropriate password would need to be entered prior to
advancing into the menus past this point. After 1 second, the “Enter Password / None” display will expire and
“Adjust the Clock” will be displayed. At this point, you have entered the menu and may scroll clockwise or
counter-clockwise to make the adjustments that you desire. To enter a menu, scroll until the one you desired is
displayed and push the programming knob to enter. To exit a sub-menu, scroll all the way clockwise until “exit
the sub-menu” is displayed and then push the programming knob in. To exit the main menus, just scroll all the
way counter-clockwise until the time and date is displayed.

18
Adjust the Clock :
Adjust Date / Time
•Year =
•Month =
•Date =
•Day =
•Hour =
•Minute =
Exit the sub-menu
Adjust Time Settings
•Maximum Run Timer = adjustable from 10 to 180 seconds, this timer amount represents the maximum
number of seconds that the gate operator can run in one direction
•Close Delay Timer = adjustable from OFF to 4:15, this timer represents the amount of time from OFF to
seconds to minutes of how long the gate waits to close from the open limit after all open and hold open
inputs are removed
•Holiday Next ____ thru ____ (adjustable up to 8 days in advanced) This option is to be used to define
what day of the week an upcoming holiday is (if it is desired that the gate not open with the 7-day open
timer on that holiday) Just enter the first day of the holiday and the last day of the holiday.
•7-day open timer = (Completely Off, Off to next {next on program}, On) this is the option in which the 7-
day open timer could be activated
•P-1 Open @ 08:00am / Su Mo Tu We Th Fr Sa
(These P-* options are the programmable 7 day auto open timers. You can choose the time and days that the
gates automatically open and then close. There are 4 available auto open time slots. To program, adjust the
desired time and then display what days you would like the timer to function. If a day is undesired, move the
cursor under that day and press the programming knob to erase that day from the program. Then scroll
clockwise and set the days and time for the auto close). Here is an example of the 7-day open timer:
•7Day Security Timer = (Completely Off, Off to next {next on program}, On)
(The security timer has 2 available time slots that can be programmed for desired days and times to allow or
secure 5 inputs. The inputs that can be secured are: Open, Exit, Radio Terminal, AUX IN 1 and AUX IN 2. To
program a secured input, simply program the desired time and the days to secure that input, and also when to
release. Then allow the inputs by scrolling to “Secure Inputs, Allow” screen and move the cursor under a
desired input. To secure that input, press the programming knob. The inputs that remain displayed will be
allowed during the Secured Input timer.
•Secure Inputs, Allow = Open, Exit, Radio Terminal, Aux In 1 and Aux In 2
Exit the sub-menu
P-1 Open: 07:00a
Su Mo Tu We Th Fr Sa
P-1 Secure at 5:30p
Su Mo Tu We Th Fr Sa
Secured inputs
Open-Exit-RadioTerm-Aux1-
Aux 2

19
{Some possible and popular uses for the security timer are as follows: a “Free Entrance” loop by day and a
“Safety” loop by night; the automatic disabling of the free exit loop after work hours; a controlled output from the
auxiliary relays utilizing the Aux In terminals; etc.}
Auxiliary Settings / Enter to View/Adjust
•Aux Input Terminals
(These are available programmable inputs that can be programmed to take on the function that is selected
when the AUX terminal is activated)
oOpen
oSafe
oShadow
oFire
oClose
oPhoto Eye Close (stops the gate from closing but doesn’t reverse the gate)
oAux Out 1 (momentary activation of Aux 1 output relay)
oAux Out 2 (momentary activation of Aux 2 output relay)
oToggle Aux 1 (toggles Aux 1 output relay on/off)
oToggle Aux 2 (toggles Aux 2 output relay on/off)
o7-day Open Timer Off (turns off the 7-day open timer until the next open schedule)
oHold Open (momentary contact will hold open gate and release it)
•Aux 1 Output Relay
•Aux 2 Output Relay
(These are available options for the Aux 1/2 output relays to perform if selected)
oPulse on Open Limit (a 2 second relay activation on the open limit)
oPulse on Close Limit (a 2 second relay activation on the close limit)
oHold on Open Limit (latches the relay on the open limit)
oHold on Close Limit (latches the relay on the close limit)
oPulse on Motor Open (a 2 second relay activation when gate is opening)
oPulse on Motor Close (a 2 second relay activation when gate is closing)
oHold on Motor Open (latches the relay when gate is opening)
oHold on Motor Close (latches the relay when gate is closing)
oHold on UL-325 Alarm (latches the relay upon a UL-325 alarm)
oAux Input Received (activates the relay when the Aux input is in use)
oAC Power Loss (activates the relay upon AC power loss detection which is measured when the
gate receives less than 23.5 VDC)
oLow DC Power (activate the relay upon low DC power detection, a value of equal to or less than
75% of full power supplied)
oThermostat Engaged (activates the relay when the thermostat is engaged)
oMaintenance Request (activates the relay upon a maintenance request)
oHold on Motor Run (activates the relay whenever the gate is running)
•Recycle Test Mode = OFF, ON (This is for testing purposes. If selected, it will cause the gate to cycle
open and close unless stopped with the radio input or turned off in this menu)
Aux Input Terminal 1
Open

20
•MRT Exp Limit Option =OFF, ON (This will signal a limit switch in its last direction if the Maximum Run
Timer expires)
•Radio Terminal = Open-Stop-Close, Open Only, Partial Open
•Partial Open Timed Run = 03 Seconds (this is the programmable amount of time that the gate can run
when a partial open signal is given through the Radio Terminal)
•Lock Relay – 2 seconds, 7 seconds, Full Cycle
•Send Transmitter Memory to Display
•Send Transmitter Memory to Terminal Board
Exit the sub-menu
Maintenance Menu
•Main Power/Battery = 24 VDC or 12 VDC (should be set at 24VDC for IQ Gate operators
•Maintenance Request in = Cycles or Days
•Maintenance Request after = _ _ Cycles or _ _ Days
•Current _ _ _ _ _ _ Cycles/Days – Enter to reset (pressing the programming knob to enter will erase and
reset the current maintenance count)
•Total Operator Cycle = M1 00,000,000 (this is displaying the total accumulated cycles and is non-
resettable)
•Low Power Function =
Hold Open – the gate will hold open until battery is above 75% full
Normal – the gate will continue to function regardless of low power
Fire – the gate will only open from a FIRE input
•Alarm Relay = Pulsed or Continuous output
•Motion Warning Type =
3 Sec Pre-Warn – Activates the alarm relay for 3 seconds before motion
Motion Warning – Activates the alarm relay 3 seconds before motion as well as during gate
motion
Off – no audible notification of gate motion
•Reset Password = None or New (press enter to setup a new password)
•Limit Secure = Off or On (this is fail-secure option recommended for use in the IQ-5000 only)
•Input Contacts = Momentary or Constant (affects the OPEN and CLOSE inputs) should be set on
Momentary
•Stop Input = Normally Open(default) or Normally Closed
•De-Icing Mode = On or Off (see below)
•Activate De-Icing at Temp: 37 F = (user selectable temperature) this temperature setting is used to
activate the De-Icing mode if activated. It can also be used to energize the output relays if they have
been selected to activate on a temperature selection
•Abrupt Reverse = Off or On (this selects rather the gate ramps down or instantly reverses upon a input
when closing) Should be set to OFF
•Motor Diagnostics View for M1 = Off or On (turns off or on the M1 diagnostics) (see below)
•Motor Diagnostics View for M2 = Off or On
•Temperature Cal Display = (allows the thermostat to be calibrated accurately)
Exit the sub-menu
(The De-Icing mode is a revolutionary new feature that automatically increases the initial speed as well
as the total amperage that is provided to the gate operator when certain conditions, including temperature,
are met.)
