IQAir Atem User manual

User Guide
Benutzerhandbuch
Mode d'emploi
Guía del usuario
用户指南
用戶指南
 ユー ザーガイド
사용자 설명서는
Руководство пользователя


Product
Components
1 Atem
®
air purier
2 PureJet
™
diffuser
3 Back cover
4 Stand head
5 Stand base
6 HyperHEPA
®
lter
7 Silencer
8 Power adapter
and plugs
9 Connector
cover
Produkt-
komponenten
1 Luftreiniger Atem
®
2 PureJet
™
Diffusor
3 Abdeckung
4 Standfuß-Arm
5 Standfuß-Basis
6 HyperHEPA
®
Filter
7 Schalldämpfer
8 Netzteil und
Stecker
9 Steckerhalter
Composants
du produit
1 Puricateur d’air
Atem
®
2 PureJet
™
diffuseur
3 Plaque arrière
4 Tête du support
5 Base du support
6 HyperHEPA
®
ltre
7 Silencieux
8 Adaptateur élec
trique et ches
9 Couvercle du
connecteur
Componentes
del producto
1 Puricador de
aire Atem
®
2 PureJet
™
difusor
3 Cubierta
posterior
4 Cabezal del
soporte
5 Base del soporte
6 HyperHEPA
®
Filtro
7 Silenciador
8 Adaptador y
tomas de
corriente
9 Cubierta del
conector
产品组件
1 Atem
®
空气净化器
2 PureJet
™
扩散器
3 背板盖
4 支架头
5 支架座
6 HyperHEPA
®
滤芯
7 消音器
8 电源适配器和插头
9 连接器盖
產品組件
1 Atem
®
空氣淨化器
2 PureJet
™
擴散器
3 背板蓋
4 支架頭
5 支架座
6 HyperHEPA
®
濾芯
7 消音器
8 電源適配器和插頭
9 連接器蓋
製品の構成部品
1 Atem
®
空気清浄機
2 PureJet
™
ディフュ
ーザー
3 バックカバー
4 スタンドヘッド
5 スタンドベース
6 HyperHEPA
®
フ
ィルタ
7 消音機
8 電 源 アダプタとプ
ラグ
9 コネクタカバー
생성물구성 요소
1 Atem
®
공기 청정기
2 PureJet
™
디퓨저
3 백 커버
4 스탠드 헤드
5 스탠드 베이스
6 HyperHEPA
®
필터
7 소음기
8 전원 어댑터
및 플러그
9 커넥터 커버
Компоненты
изделия
1 Очиститель
воздуха
Atem®
2 Распылитель
PureJet
™
3 Задняя крышка
4 Верхняя часть
подставки
5 Основание
подставки
6 HyperHEPA
®
Фильтр
7 Глушитель шума
8 Сетевой адаптер
и разъемы
9 Крышка
соединителя
 
®Atem   1
™PureJet   2
  3
  4
  5
®HyperHEPA  6
  7
   8
   9
1
2
2
34
9
5
5
7
6
8

Congratulations on your purchase of the
IQAir Atem®personal air purifier. Please
study this User Guide carefully to familiarize
yourself with the special features and
functions of this IQAir®product.
Retain this document in a safe place
for future reference.
Herzlichen Glückwunsch zum Kauf Ihres
persönlichen Luftreinigers IQAir Atem®.
Bitte lesen Sie diese Bedienungsanleitung
sorgfältig durch, um sich mit den
Besonderheiten und Funktionen dieses
IQAir®-Produkts vertraut zu machen.
Bewahren Sie diese Anleitung zum
späteren Nachlesen an einem sicheren
Ort auf.
恭喜您購買了此IQAir Atem®高性能空氣淨
化系統。請仔細閱讀本用戶手冊，以熟悉
IQAir®系統的特性和功能，並將其保存在安
全的地方以備將來參考。
恭喜您购买了此IQAir Atem®高性能空气净
化 系 统。 请仔细阅读本用户手册，以熟悉
IQAir®系统的特性和功能，并将其保存在安
全的地方以备将来参 考。
IQAir Atem® 개인용 공기 청정기를 구입하신
것을 축하드립니다. 본 사용자 설명서를 주의
깊게 읽고 본 IQAir® 제품의 특징과 특수 기능을
숙지하십시오. 나중에 참조할 수 있도록 본 문서를
안전한 장소에 보관하십시오.
Introduction Einführung 简介 簡介 소개

English.......................................1-11
Deutsch.....................................12-22
Français.....................................23-33
Español......................................34-44
简体中文 ...................................45-53
繁體中文 ...................................54-62
日本...........................................63-72
한국어 ........................................73-81
Русский ...................................82-91
......................................92-100
For the User Guide online and in other languages visit
www.iqair.com
ةيبرعلا
ES
CN
SP
CN
TR
JP
FR
KO
RU
AR
DE
EN

1
Before you start
The IQAir Atem®personal air purifier is ideal
for use anywhere you wish to create your own
personal clean air zone.
The Atem should only be used in conjunction with
the dedicated stand, power accessories, and/or
hardware delivered in the package. Misuse can
lead to injury, malfunction and/or damage.
Read these instructions for use carefully
before using the product and save them
for future reference.
•As with all electronic devices, please keep out
of the reach of children under the age of 8. This
device is not a toy!
•This product can be used by
children aged from 8 years
and above and persons with
reduced physical, sensory or
reasoning capabilities, or lack
of experience and knowledge,
only if they have been given
supervision or instruction by a responsible person
concerning use of the appliance in a safe way and
understand the hazards involved. Cleaning and
user maintenance should not be performed by
children without supervision.
To reduce risk of fire, electric shock, or
injury please read these warnings before
using this product.
•To avoid risk of electric shock or fire, only plug
the product into suitable, easily accessible, mains
power connections. Use only the IQAir provided
power accessories.
•Use the power accessories only indoors and in
dry environments.
•Do not use damaged power adaptor, cables
or plugs. If damaged they must be disposed
of and replaced with original IQAir Atem power
accessories only.
•Do not allow any kind of
liquid to spill on, or come
into contact with the product.
Including, but not limited
to water, detergents or
flammable solvents.
•To clean the device:
- Disconnect from the power supply
Important Safety Warnings
Important Safety Instructions
3kg
0-8
EN

2
Important Safety Warnings
- Use a soft, dry cloth only
- Cables and plugs:
Keep plugs clean and dry.
Blow away any dirt lodged in
the plugs of the connecting
cables.
Never immerse the
product or any of its
components in water or
under running water.
•Never cover the unit nor otherwise impede
the air intake and outflow in any way. Do not
introduce a foreign object or
finger into air flow openings.
•This product contains high-
precision technology. Do
not drop, tamper with nor
expose to impact.
•Lift and carry the purifier
using both hands to grasp
firmly.
•Do not lift the assembled
device by the stand.
•This product is intended
for use in living and office
environments. It helps to
create a breathing zone with
improved air quality.
•Only use this product in
conjunction with its intended
stand, as delivered in the
original product packaging.
•Adverse use for this
product would be in damp
or wet environments such as
bathrooms or kitchens.
•Use the purifier only in a dry
environment.
•Do not use in an open
window.
•Adverse use can lead to injury, malfunction and
damage.
•Limits of use: Only use this product in an
atmosphere appropriate for permanent human
habitation. Not suitable for use in toxic or
explosive environments, or for protection against
hazardous airborne substances.
Important Safety Instructions
EN

3
Electromagnetic Compatibility (EMC)
•The term Electromagnetic Compatibility is
taken to mean the capability of the product
to function smoothly in an environment where
electromagnetic radiation and electrostatic
discharges are present, and without causing
electromagnetic disturbances to other equipment.
•Electromagnetic radiation can cause
disturbances in other equipment. Although the
product meets the strict regulations and standards
which are in force in this respect, IQAir cannot
completely exclude the possibility that other
equipment may be disturbed.
Environment
Help to preserve the environment. Do not discard
the device with household waste. Bring it to the
official waste recycling service near you. Filters
may be disposed of with household waste.
Product Storage
When not in use, store your Atem in a clean dry
place. Use the original packaging for optimal
storage.
For Korea:
As an electromagnetic wave equipment for
home use (Class B), this equipment is intended
to use mainly for home use and may be used in
all areas.
This radio equipment cannot provide a service
relevant to the human safety, as it can be
crossed.
Important Safety Instructions
EN

4
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses and can radiate
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communication.
However, there is no guarantee that interference will
not occur in a particular installation. If this equipment
does cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to
try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment
and the receiver.
- Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV
technician for help.
- Changes or modifications not expressly approved
by the party responsible
for compliance
could void the user’s
authority to operate the
equipment.
For Canada:
This device complies with Industry Canada’s
licence-exempt RSSs. Operation is subject to
the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference,
including interference that may cause undesired
operation of the device.
For USA: FCC Statement
Product Use and Operation
The location of compliance
statements on the Atem air
purifier is found under the back
cover.
EN

5

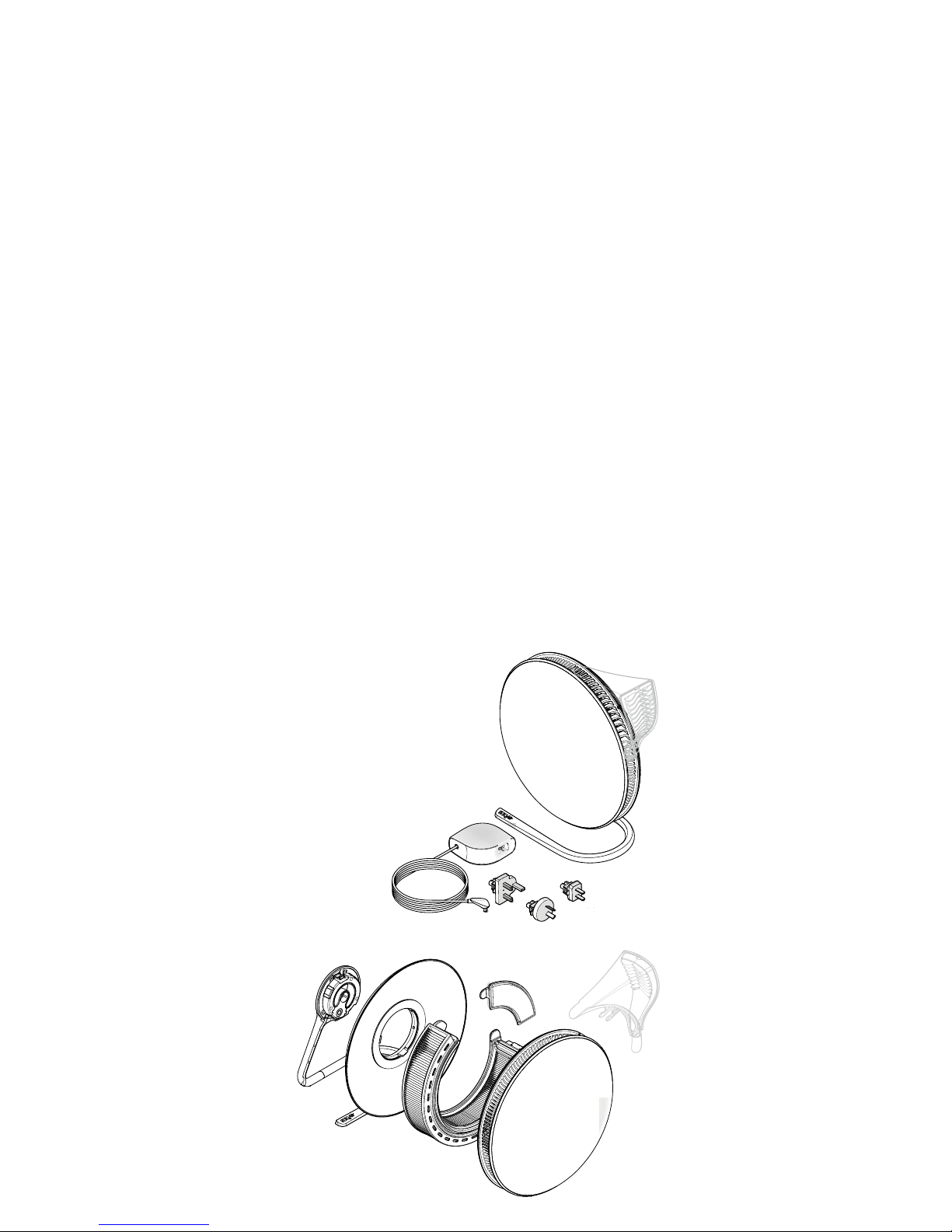

Product Components
and Assembly
Product Components
See product illustration on the inside cover.
1Atem®air purifier
2PureJet™diffuser
3Back cover
4Stand head
5Stand base
6HyperHEPA®filter
7Silencer
8Power adapter and plugs
9Connector cover
Assembly
After unboxing you will find the Atem personal air
purifier (1) with the PureJet diffuser (2) attached.
Power adaptor and stand assembly
Remove and unpack the power adapter and plug
box. Select the correct plug for your region and snap
into place as shown.
Take the stand head
(4) and remove the
connector cover (black
part) (9) and set aside.
Product Use and Operation
Select your region’s plug
Assembled plug
1
2
Remove the connector cover
Snap into place
EN

6
Take the connector end of the power adapter cord
(8) and snap into place. Replace the connector
cover. Press the power cord into the channel on the
stand head.
Connect the stand head
to the stand base (5).
Once assembled, set the
stand upright.

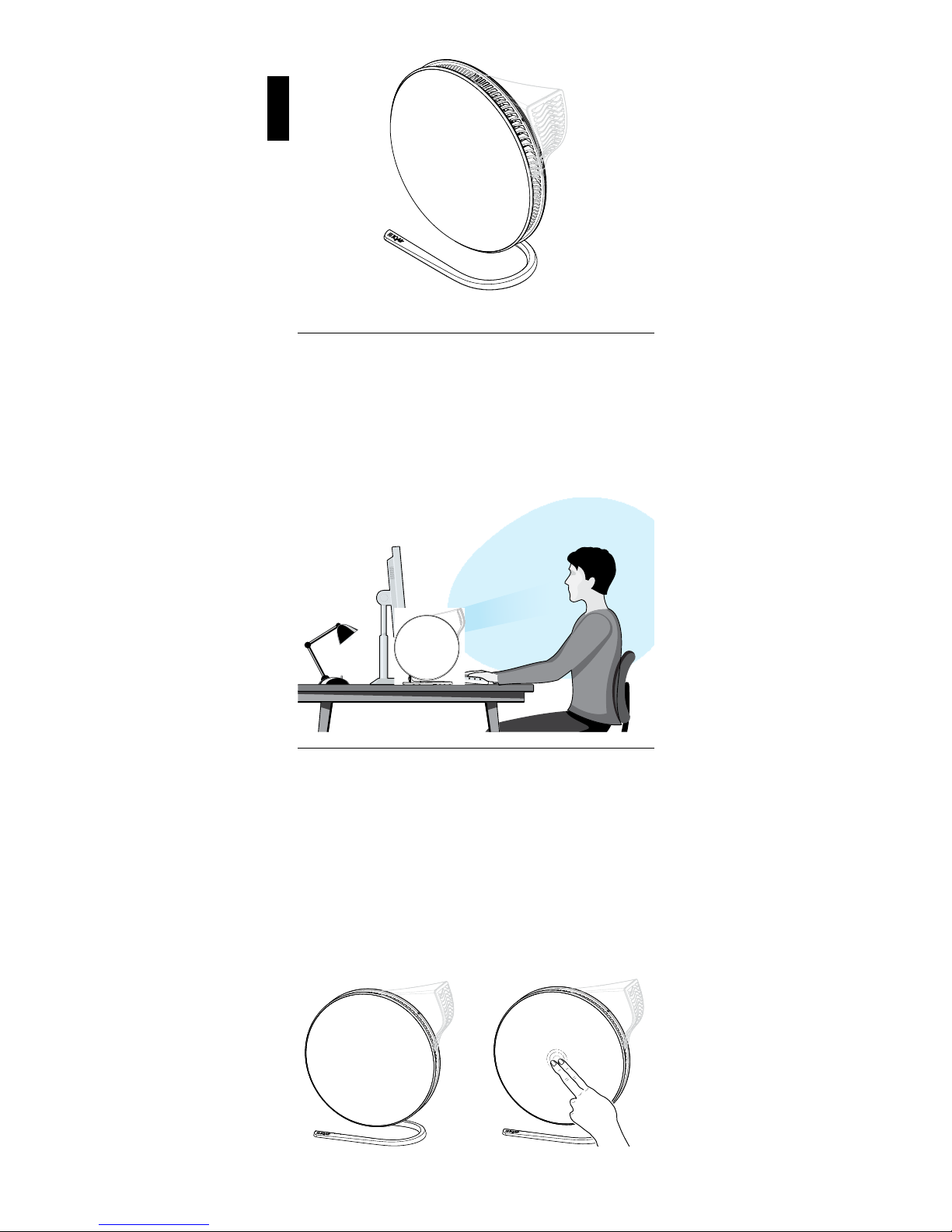

Connecting the air purifier to the stand
Firmly grasp the air purifier and align with the stand
head (4). Tilt and affix the air purifier onto the stand
head. Snap the air purifier and stand together.
With your air purifier, diffuser and stand assembled,
you are now ready to use your Atem personal air
purifier.
Product Use and Operation
Align the stand head
1
2
Angle and snap into place
Snap in the power cord
connector Replace the connector cover
Press the cord into the stand
channel
Connect the stand head
to the stand base
EN

7
Air purier assembled and powered on
Using the Atem for the First Time
Upon initially connecting to the power supply, you will
hear the Atem’s power-on chime and see a red light.
User interface & touch point settings
To change fan speed, use two fingers to touch the front
center. With every touch, you will hear a sound and see
the light change. The size of the light corresponds to
the air speed.
Product Use and Operation
Place the Atem personal air purifier near you on a
stable surface such as a desk or table. Point the
PureJet diffuser toward your breathing zone.
For best results, place the Atem as close to you
as possible.
Setting Up Your Personal
Clean Air Zone
Red light and
chime = standby
Touch point
EN

8
Filter Replacement
The Atem will indicate a necessary filter change with
a double red flash accompanied by a sound.
HyperHEPA filter
Follow steps 1-4 to change the filter in the Atem.
Disconnect the Atem from the power source
before changing the filter!
Step 1: Remove the air purifier from the stand and
place it face down on a cloth surface with the back
facing up.
Step 2: On the back
cover, note the direction
indicators on the locking
ring. Grasp the locking
ring firmly and rotate
in a counter-clockwise
direction until the back
cover (3) releases. You
should be able to easily
lift the back away.
A double red flash with
sound = change filter
Opening direction
Product Use and Operation
Small blue light and
sound = low speed
Medium blue light
and sound = medium
speed
Full blue light and sound
= high speed
(Cooling Mode)
To unlock, turn the locking ring
counter clockwise
Lift the back cover away
EN

9

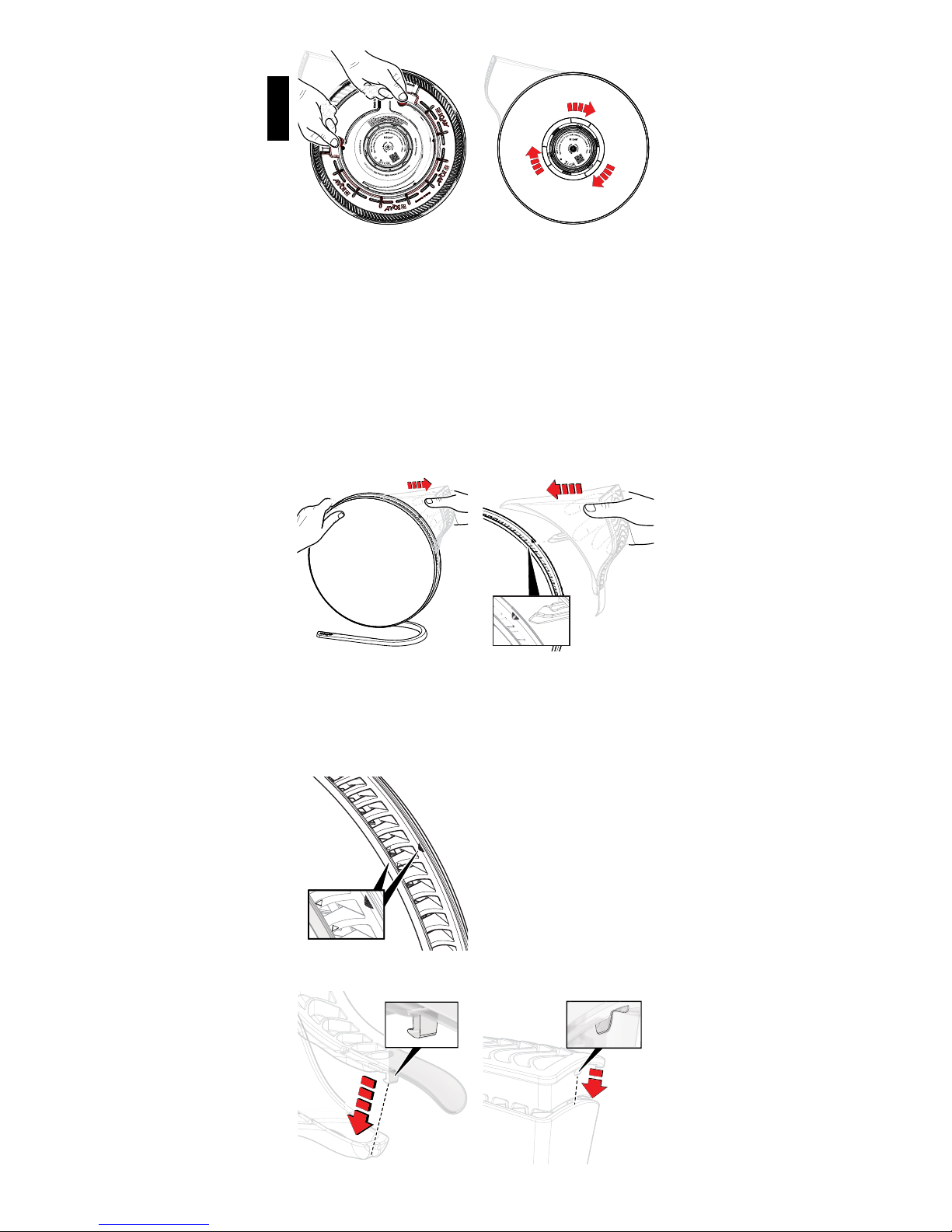

Step 3: Remove the old filter by pulling on the tabs
and then dispose of it. Replace with a new IQAir
Atem HyperHEPA®filter (6) and firmly press into
place.
Step 4: Put the back cover on and gently rotate until
the lock pins align into place. Grasp firmly and press
down on the locking ring and turn clockwise to lock.
The back cover should now be closed securely.
Attach the air purifier to the stand for use.
PureJet Diffuser
To remove your PureJet diffuser, firmly grasp the air
purifier and pull off the diffuser.
To attach your PureJet diffuser firmly grasp the air
purifier and align the large pins on the diffuser with
the arrows on the outlet vent. Note the outlet vent
has larger openings.
Once the diffuser pins
are aligned with the vent
arrows press firmly into
place while holding the
air purifier.
Should the PureJet
diffuser grille become
dislodged, align the
hook at the bottom of
the diffuser grille with the
bottom of the diffuser
body and snap firmly into
place.
Product Use and Operation
Lift tabs to remove lter Turn clockwise to lock
Removal of the diffuser
Locate outlet vent arrows
Align the large pins with
the arrows
Connector hook Diffuser grille snaps into place
EN

10
Cleaning the PureJet Diffuser
Completely remove the diffuser to facilitate safe
cleaning.
IQAir Atem App
To enhance your user
experience and to unlock
additional features of the
IQAir Atem personal air
purifier, download and
install the IQAir Atem App for Apple or Android. App
features and benefits include:
Smart on/off
Fan speed settings
Filter life notifications
Light and Sound settings
With the App, you will be able to access all the
features and custom setting available for your Atem.
Please remember that the Bluetooth®mode must be
activated beforehand on your smart phone. To install
follow the set-up directions on the App.
Bluetooth pairing
Pair your Smart Phone device with the Atem by using
the IQAir Atem App. The Atem is automatically in
discovery mode and will
appear in the Bluetooth
section of the App.
Tap the Atem name to
pair. Enter the Bluetooth
code PIN found on the
back of this User Guide,
the back of the air purifier
and on the packaging
label.
Smart on/off
This feature in the App
can be set to sense
proximity of the user’s smart phone device to the
Atem. This enables a power-saving automatic on/off
function if desired.
Troubleshooting
Visit the Atem support section on the website.
Accessories and Filters
A list of available filters and replacement parts
for the Atem air purifier can also be found on the
website at: www.iqair.com
Model:
Atem Air Purifier
Power Rating:
12-24V -
--
— 1.5A max
Power Adaptor:
Model: IQS27-1801500
Input: 100-240V ~ 50/60Hz
Output: 18V -
--
— 1.5A
Dimensions (Air Purifier on stand):
L x H x W 330 x 330 x 145 mm 13 x 13 x 5.8 in
Weight (Air Purifier only):
1850g / 4.1lbs
Technical specifications
Atem App, Troubleshooting & Technical Information
The location of product
information & specifications is
found on the back.
EN

11
Responsibilities, Warranty
and Service Information
Manufacturer of the Product
IQAir AG, herein referred to as IQAir, is
responsible for supplying the product, including
the User Manual and original accessories, in a
completely safe condition. The manufacturers
of non IQAir accessories for the product are
responsible for developing, implementing
and communicating safety concepts for their
products, and are also responsible for the
effectiveness of those safety concepts in
combination with the IQAir product.
International Limited Warranty
and Service
The IQAir warranty will be honored, provided
the product is handled in accordance with its
intended use and operating instructions.
Tampering with the power adapter or the use
of non-IQAir power accessories voids the
warranty. This product is subject to the terms
and conditions set out in the International
Limited Warranty which you can download from
the IQAir home page at www.iqair.com The
foregoing warranty is exclusive and is in lieu of
all other warranties, terms or conditions, express
or implied, either in fact or by operation of law,
statutory or otherwise, including warranties,
terms or conditions of merchantability, fitness
for a particular purpose, satisfactory quality and
non-infringement, all of which are expressly
disclaimed.
For detailed instructions on how to claim your
warranty for a defective device, please visit the
IQAir website, contact a IQAir distributor or your
closest IQAir representative.
If you need information on IQAir products or if
you have a problem with your product, please
visit the IQAir website at www.iqair.com or
contact the retailer where you purchased the
product for further assistance.
Warranty & Service Information
EN

Manufacturer:
IQAir Germany GmbH
Karl-Maybach-Straße 18
88239 Wangen im Allgäu
Germany
Distribution:
IQAir North America
IQAir North America, Inc.
14351 Firestone Blvd.
La Mirada, CA 90638
USA
IQAir International
Incen AG
Hauptstrasse 104
9422 Staad
Switzerland
IQAir China
DRC Liangmaqiao Diplomatic
Office Building, Suite 1305B
No.19 Dongfang Dong Road
Chaoyang District
100600 Beijing
Tel.: [phone]
www.iqair.com Atem User Guide v10191017
