Introduction
Congratulations on your purchase of the IQAir Atem®Car air purifier.
Please study this User Guide carefully to familiarize yourself with the special
features and functions of this IQAir®product. Keep this document in a safe
place for future reference.
Product Components
1 Air purier
2 Car mount
3 Belt and buckle
4 HyperHEPA
®
Plus lter
5 Silencer
6 Car power adapter
7 Back cover
8 Quick Start Guide and User Guide
2
3
6
8
1
4
7
5

1
Before you start
The IQAir Atem®Car air purifier is the ideal way to enjoy cleaner air in
your car. Your air purifier should only be used in conjunction with the
dedicated car mount, power accessories, and/or hardware delivered
in the package. Misuse can lead to injury, malfunction and/or damage
Read these instructions for use carefully before using the
product and save them for future reference.
•As with all electronic devices, please keep out of the reach of
children under the age of 8. This device is
not a toy!
•This product can be used by children aged
from 8 years and above and persons with
reduced physical, sensory or reasoning
capabilities, or lack of experience and
knowledge, only if they have been given
supervision or instruction by a responsible
person concerning use of the appliance in a safe way and
understand the hazards involved. Cleaning and user maintenance
should not be performed by children without supervision.
To reduce risk of fire, electric shock, or injury please read
these warnings before using this
product.
•
To avoid risk of electric shock or fire,
only plug the product into suitable, easily
accessible, power connections. Use only the
IQAir provided power accessories.
•Use the power accessories only inside the
vehicle and in dry environments.
•Do not use damaged power adaptor, cables or plugs. If damaged
they must be disposed of and replaced with original IQAir Atem
power accessories only.
•Do not allow any kind of liquid to spill on,
or come into contact with, the product.
This includes, but is not limited to: water,
detergents or flammable solvents.

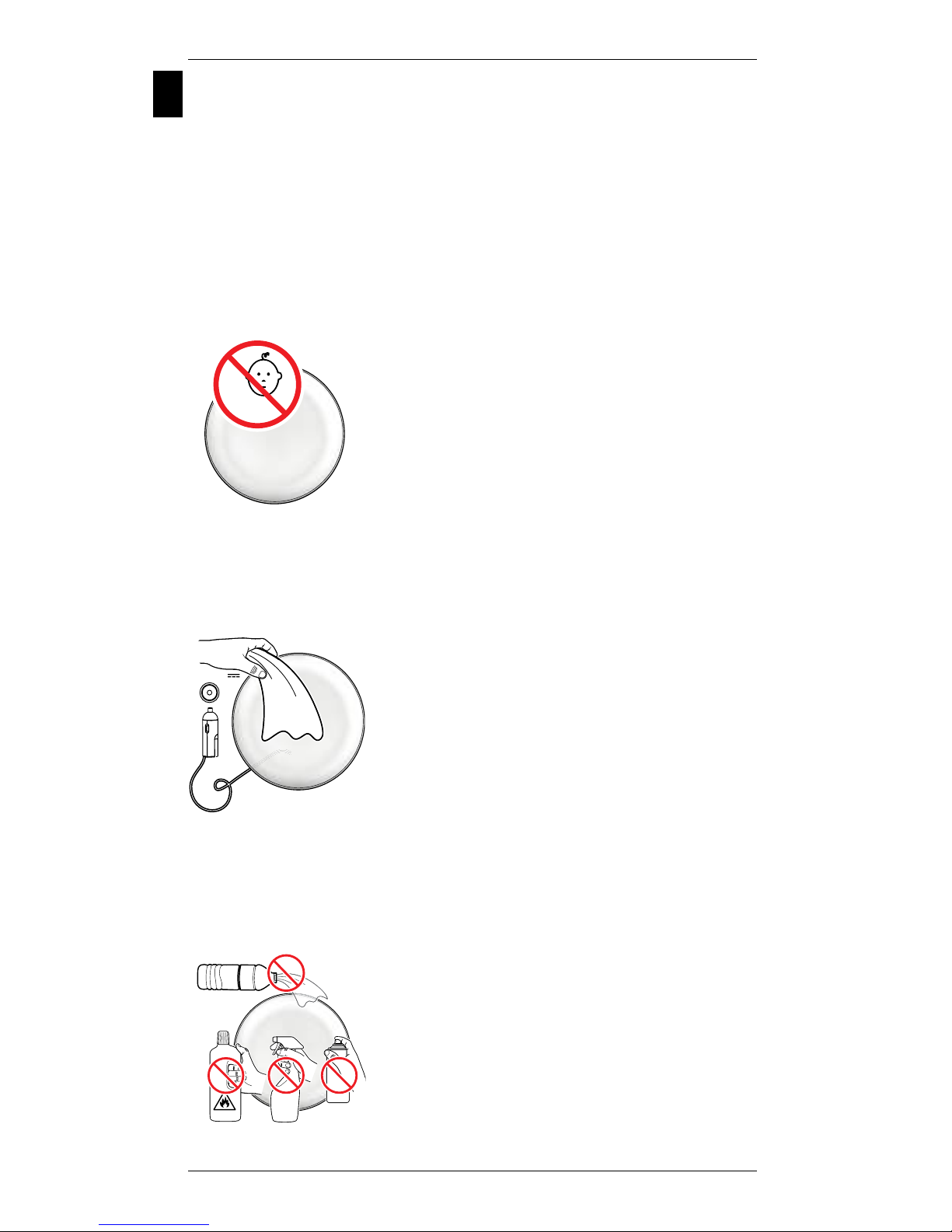

•To clean the device:
- Disconnect from the power supply.
- Use a soft, dry cloth only.
Important Safety Instructions
Important Safety Warnings
12-24 V
3kg
0-8
EN

2
Important Safety Warnings
•To maintain cables and plugs:
- Keep plugs clean and dry.
- Blow away any dirt lodged in the plugs of the connecting cables.
Never immerse the product or any of its components in
water or under running water.
•Never cover the unit nor otherwise impede the air intake and
outflow in any way.
•
Do not introduce a foreign object or finger
into airflow openings.
•This product contains high-precision
technology. Do not drop, tamper with nor
expose to impact.
•Lift and carry the air purifier using both
hands to grasp firmly.
•This product is only intended for use in a
passenger vehicle environment.
•Do not sit on or place items on top of the
air purifier.
•Only use this product in conjunction with its
intended adapter, as delivered in the original
product packaging.
•Adverse use for this product would be in
damp or wet environments.
•Use the air purifier only in a dry environment.
•Adverse use can lead to injury, malfunction
and damage.
•Limits of use: This product should only be
used to improve the air quality in a car. It
is not suitable for use in toxic or explosive
environments, or for protection against
hazardous airborne substances.
Warning: Never use the air purifier
in the car without it being properly
mounted.
•Do not install the air purifier or the car
mount next to or on top of an airbag. This
could result in injury or malfunction when
airbag is deployed.
Important Safety Instructions
EN

3
•Do not use the Atem App while you are driving. Smart phone use
while driving is prohibited in most countries.
•If your air purifier cannot be mounted on the back of your seat,
please use the alternate mounting method described below.
•
Do not install where active headrests are in place (whiplash protection).
•
Make sure that the installed air purifier does not interfere with any air bags.
•
Make sure that the cable is installed safely and will not interfere with your
safe driving or with the mechanical components of your car (e.g.: seats, doors).
•
Always place and attach the air purifier in a safe and stable location.
•Secure and check your product at regular intervals.
•Keep your Atem away from and do not install the product on top of
or next to safety relevant features of your car (e.g. air bags or
release mechanisms).
•Attach the product in a way that it cannot injure passengers in case
of a crash or accident.
•Make sure that there is enough room between a headrest mounted
air purifier and a passenger in a seat behind it.
•Always follow all rules for safe driving in your country and make
sure that no one in the car is endangered by your installation.
Electromagnetic Compatibility (EMC)
•The term Electromagnetic Compatibility is taken to mean the
capability of the product to function smoothly in an environment
where electromagnetic radiation and electrostatic discharges are
present, and without causing electromagnetic disturbances to other
equipment.
•Electromagnetic radiation can cause disturbances in other
equipment. Although the product meets the strict regulations and
standards which are in force in this respect, IQAir cannot completely
exclude the possibility that other equipment may be disturbed.
Environment
Help to preserve the environment. Do not discard the device with
household waste. Bring it to the official waste recycling service near
you. Filters may be disposed of with household waste.
Product Storage
When not in use, store your Atem in a clean dry place. Use the
original packaging for optimal storage.
Important Safety Instructions
EN Important Safety Warnings

4
For USA: FCC Statement
This equipment has been tested and
found to comply with the limits for a Class
B digital device , pursuant to part 15 of
the FCC rules. These limits are designed
to provide reasonable protection against
harmful interference in a residential
installation.
This equipment generates, uses and can
radiate frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful
interference to radio communication.
However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
- Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate
the equipment.
For Canada:
This device complies with Industry Canada’s license-exempt RSSs.
Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference
that may cause undesired operation of the device.
For Korea:
As an electromagnetic wave equipment for home use (Class B), this
equipment is intended to use mainly for home use and may be used
in all areas.
This radio equipment cannot provide a service relevant to the human
safety, as it can be crossed.
Important Safety Instructions

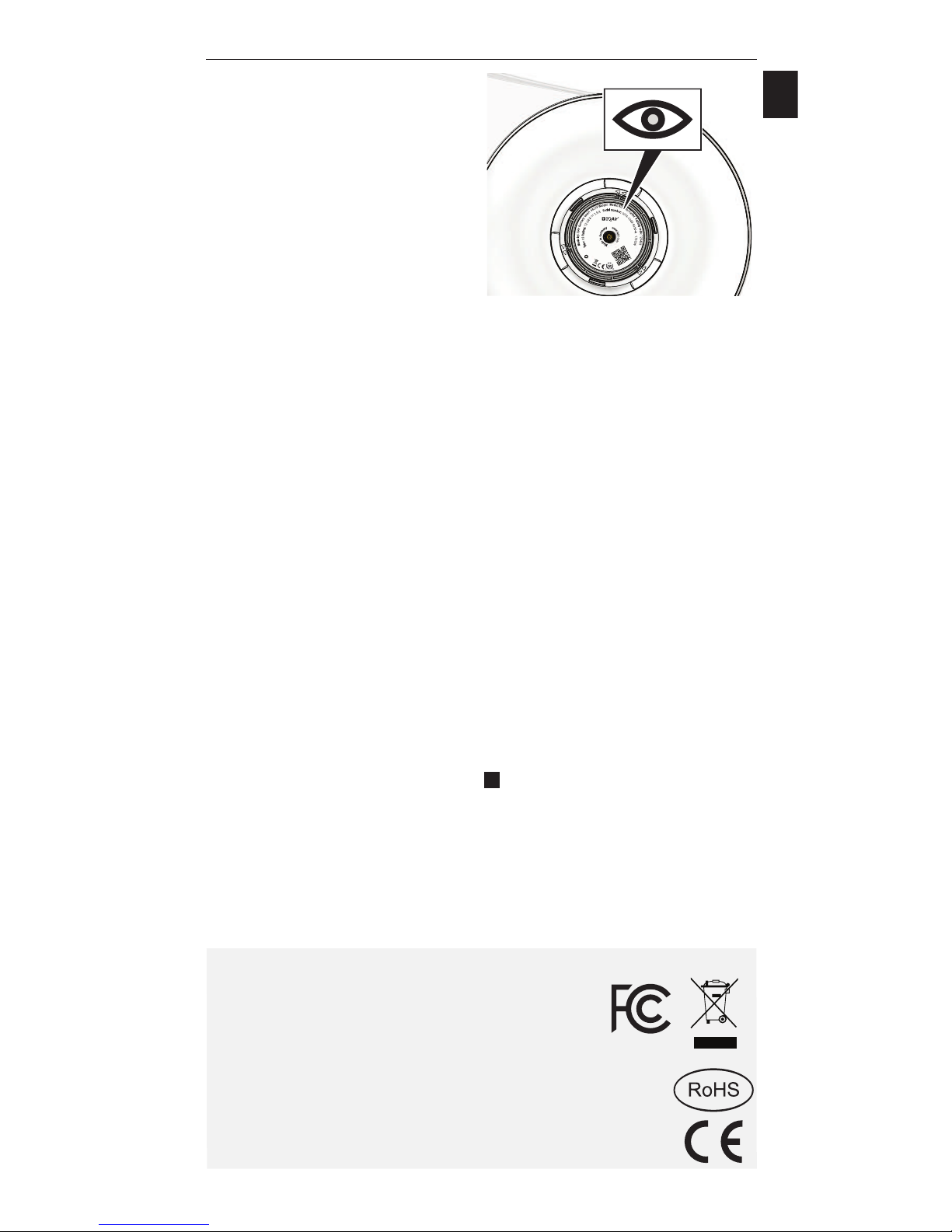

The location of compliance
statements on the Atem air purifier
is found under the back cover.
EN

5
Product Components
and Assembly
Product Components
See product illustration on the inside
cover.
1Air purifier
2Car mount
3Belt and buckle
4HyperHEPA®Plus filter
5Silencer
6Car power adapter
7Back cover
8Quick Start Guide and
User Guide
Important notice!
Do not operate air purifier
unless it is properly mounted
in the vehicle. If you are not
sure whether the installation
interferes with the protective
equipment of your car, consult
a professional familiar with
your car’s technology or
consider the alternative
assembly on a car seat
cushion.
Assembly
The car accessory kit box contains the Atem
car mount, belt and buckle set, car power
adapter, quick start guide and user guide.
Please only install on seats
that have two posts to connect
the headrest with the seat.
For other mounting options
see the section “Alternative
mounting position.”
Connecting the belt and buckle to
the car mount.
Step 1: Connecting the belt and buckle to
the car mount. Place the car mount on a
flat surface with the Atem logo facing up.
Feed the ends of the belt through the two
belt loops right and left of the Atem logo
on the car mount. Feed the belt through
the loops with the stripe of the belt facing
up. Pull the belt all the way through the belt
loops so that the buckle sits in the center
between both belt loops.
Connecting the car mount to the
headrest posts.
The car mount assembly for the Atem Car
air purifier is designed to be compatible
with a wide variety of car seats with two
headrest posts.

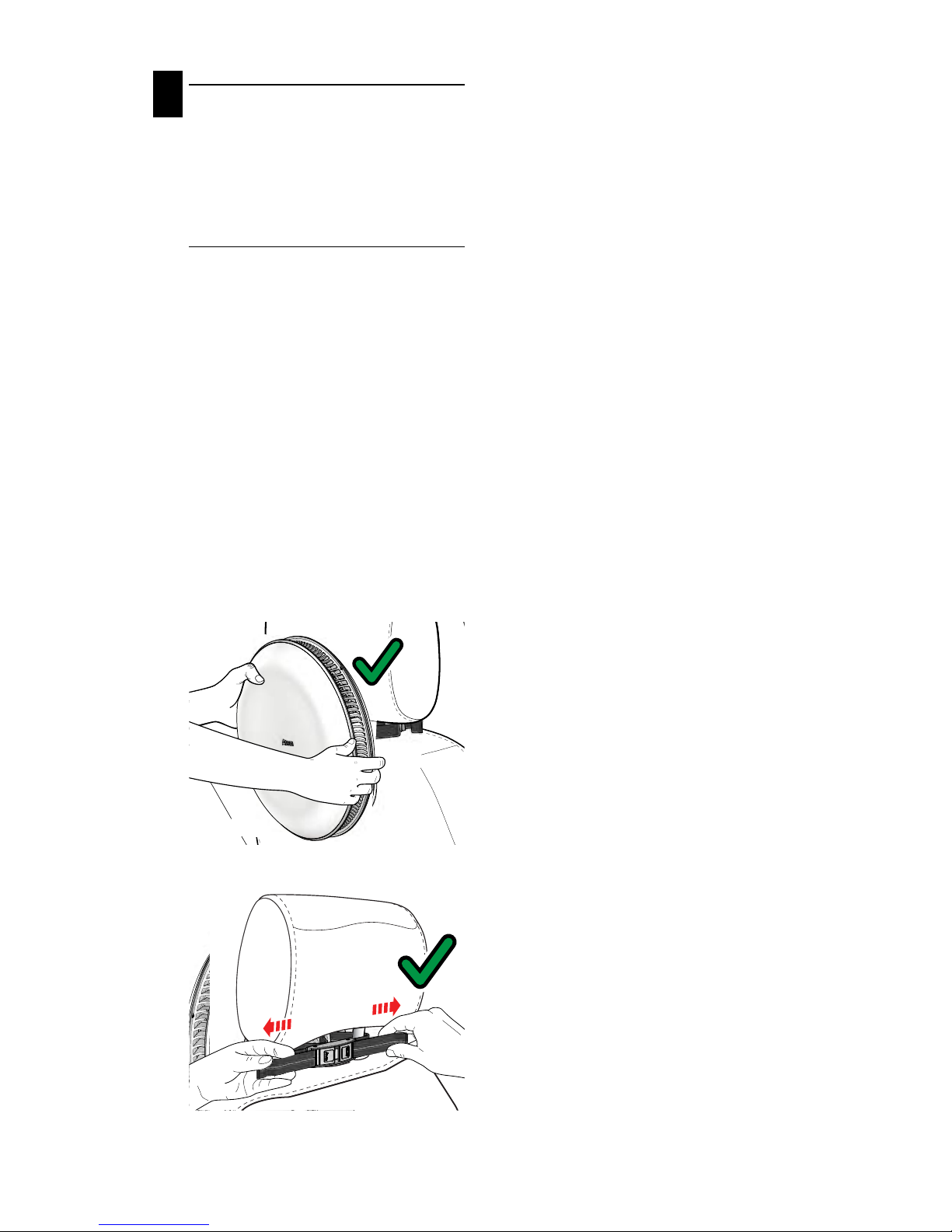

Step 2: Raise the headrest for enough
clearance to allow the buckle to easily pass
between head rest and seat top.
Step 3: Position the car mount behind the
seat headrest and feed the buckle between
the poles through to the front.
Step 4:
Loop one end of the belt around a
headrest post, feed the belt through the buckle
and pull the belt tight to secure the car mount
around the post. Do the same around the
second post with the other end of the belt.
Step 5: Pull both ends of the belt out
and away from the center of the buckle to
tightly secure the car mount to the seat.
Product Use and Operation
Car power adapter
Car mount
Belt and buckle
EN

6
Connecting the car power adaptor.
Step 6: Connect the car power adapter
with the small angled plug to the car
mount and with the large plug into the car
power outlet. Make sure that the cable is
installed safely and will not interfere with
your safe driving or with the mechanical
components of your car (e.g.: seats,
doors).
Product Use and Operation

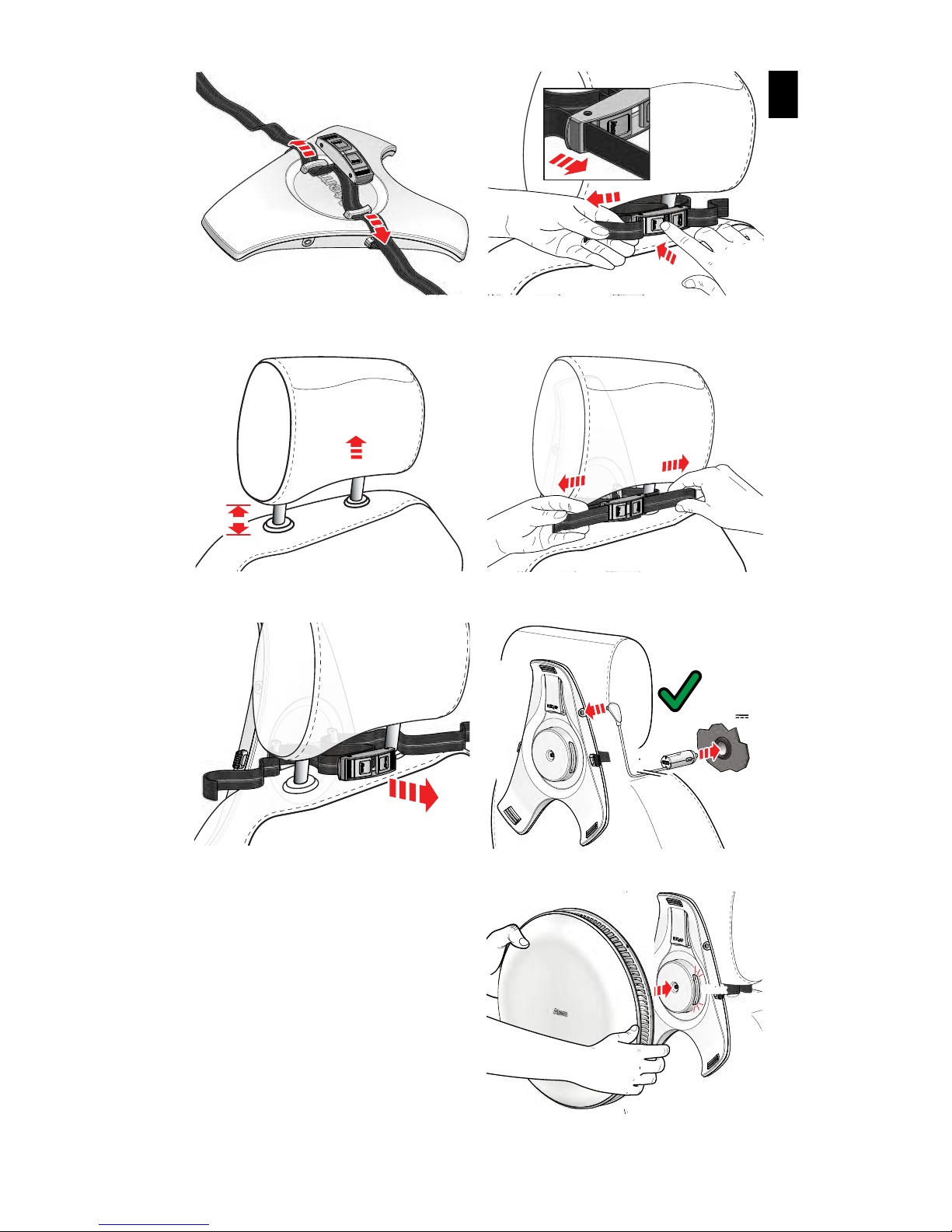

Step 1: Feed the ends of the belt through the two
belt loops on the car mount as shown.
Step 2: Raise the headrest up for enough
clearance.
Step 3: Position the car mount behind the seat
headrest and feed the buckle between the poles.
Step 4: Loop both ends of the belt around the
headrest posts and feed the through the buckle
and pull.
Step 5: Pull both ends of the belt out and away to
tightly secure the car mount.
ClickClick
Step 7: Grasp, attach and click into place.
12-24 V
1
2
Step 6: Connect the car power adapter.
EN

7
Important: In vehicles that feature
constantly powered outlets (typically in the
back of the vehicle), the power adaptor
should be unplugged when the vehicle
is parked for more than a week to avoid
unnecessary drain on the vehicle battery.
Attaching the air purifier to the
car mount.
Step 7: To attach the air purifier firmly
grasp and align the back of the air purifier
with the car mount and press into the car
mount. The air purifier will lock firmly into
the car mount and you should hear a click
when it locks into place.
Ensuring a safe installation.
Step 8: Pull the air purifier back to check
that it has fully locked onto the car mount.
Step 9: Re-tighten the belt to ensure
that the air purifier is securely fixed to the
headrest posts. Tuck in the excess belt
under the car mount.
Alternative mounting
position on seat cushion
If your car seat design does not permit
mounting the air purifier onto the back of
a headrest, or there are technical or safety
concerns please follow the instructions to fix
your Atem car air purifier on an unoccupied
passenger seat cushion in your car.
Step 1: Place the car mount facing up flat
on the seat of your choice. Close the safety
belt and tighten the belt.
Step 2: Slide car mount under the belt and
secure into the hook.
Step 3: Connect the power cable to the
car mount and to the car power outlet.
Step 4: Place your air purifier into the car
mount. Ensure that it clicks and locks onto
the car mount by pulling on the air purifier.
Tighten the belt again after installation of
the air purifier.
Adjust the position by rotating the air
purifier.
Warning: Do not sit on or place
items on top of the air purifier.
Product Use and Operation
Step 9: Re-tighten the belt as necessary.
01 01
Step 8: Pull to check that the installation is
secure.
EN

8
Safety checklist for Atem Car air purifier:
•Check your installation regularly to ensure all parts are tightly affixed to the
car mount.
• Tighten the belt when necessary to ensure secure installation.
•Damaged or broken accessories (car mount, belt and buckle, power cable) can
result in unsafe operation and injury. Replace damaged or broken parts with original
IQAir accessory replacement parts.
•Ensure safe installation of the power cable away from mechanical and movable
parts (e.g. seat mechanics).
Product Use and Operation
Step 4: Center and place the air purifier onto the
car mount.
22ClickClick
11
Click and lock down the air purifier. Check and
tighten the seat belt.
Slide the car mount forward securing the belt into
the belt hook.
Step 1: Close the safety belt and tighten the belt.
Step 2: Slide the car mount under the belt into
the belt hook.
1
2
12-24 V
Step 3: Connect the car power adapter.
EN

9
Using the Atem Car air purifier
user interface & touch point
settings.
When the car is started and the air purifier is
connected to the car power outlet, you will
hear the Atem’s power-on chime.
To change fan speed, use two fingers to
touch the front center. With every touch, you
will hear a sound and see the light change.
The size of the light corresponds to the air
speed.
Adjust the air outlet position to your
preference by rotating the air purifier.
With the Atem app you can disable the
touch point to prevent unwanted passenger
interaction.
First time use
Product Use and Operation

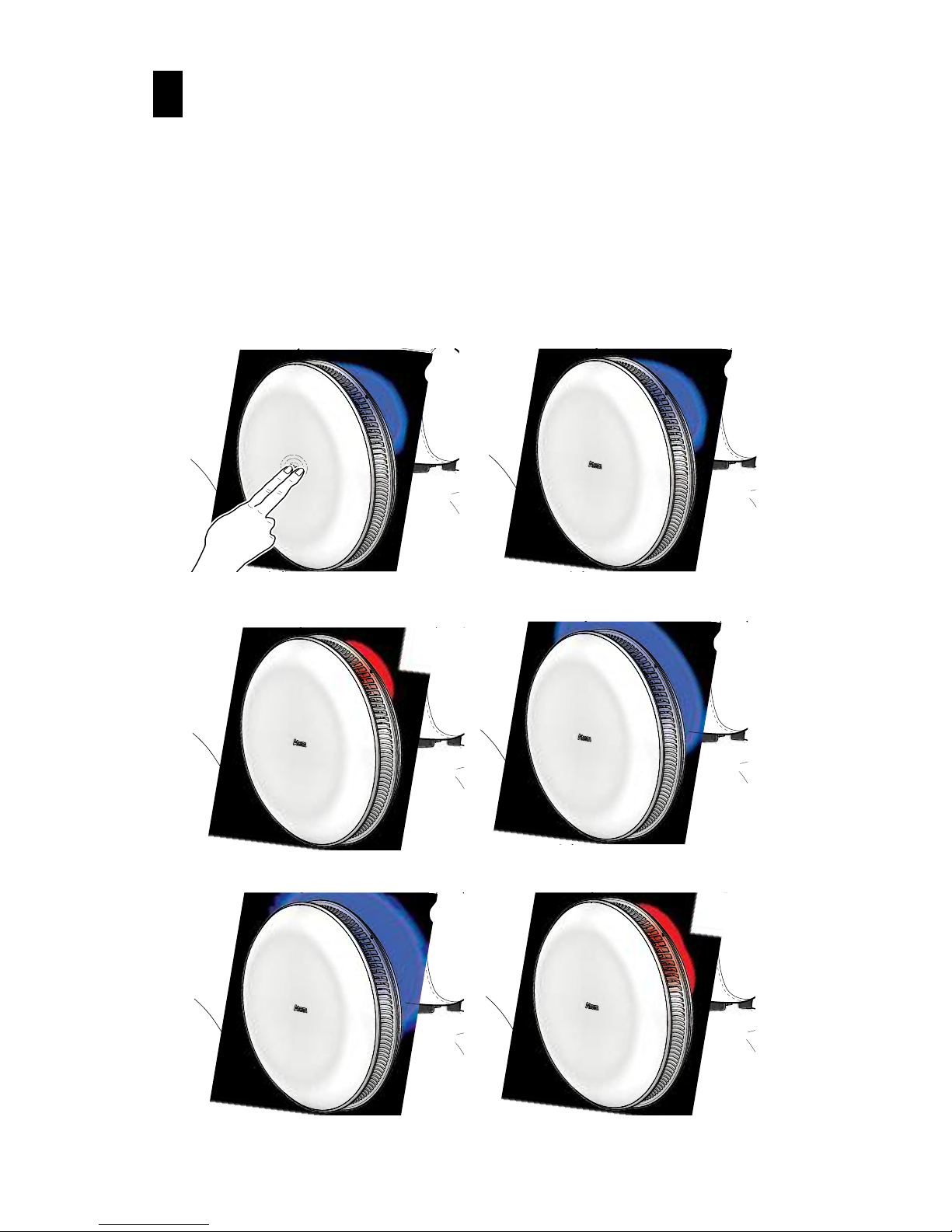

Red light and chime = standby
4
Touch point
4
Small blue light and sound = low speed
4
Medium blue light and sound = medium speed
4
Full blue light and sound = high speed
(Cooling Mode)
4
A double red flash with sound = change filter
4
EN

10
Filter Replacement
The Atem will indicate a necessary
filter change with a double red flash
accompanied by a sound. It is now time to
change the filter in the Atem.
Step 1: Remove the air purifier from the
car mount. To release the air purifier from
the car mount, hold the air purifier with
both hands and press one or both release
buttons on the car mount and pull back to
release the air purifier from the car mount.
Disconnect the Atem from the power
source before changing the filter!
Remove the air purifier from the car mount
and place it face down on a non-scratch
surface with the back facing up.
Step 2: Open the back cover. On the back
cover, note the direction indicators on the
locking ring. Grasp the locking ring firmly
and rotate in a counter-clockwise direction
until the back cover releases. You should
be able to easily lift the back away.
Step 3: Remove the old filter by pulling
on the tabs and then dispose of it. Replace
with a new IQAir Atem HyperHEPA®Plus
filter and firmly press into place.
Step 4: Put the back cover on and gently
rotate until the lock pins align into place.
Grasp firmly and press down on the locking
ring and turn clockwise to lock. The back
cover should now be closed securely. You
may now attach the air purifier to the car
mount for use.
Product Use and Operation
Filter replacement back cover opening direction.
2
1
Step 1: To remove press one or both release
buttons on the car mount.
Step 2: To unlock, turn the locking ring counter
clockwise.
11
2
2
1
1
Hold the air purifier with both hands and press
one or both release buttons on the car mount.
EN

11
IQAir Atem App
Do not use the app while
operating the car.
To enhance your user experience and
to unlock additional features of the IQAir
Atem air purifier, download and install the
IQAir Atem App for Apple or Android. App
features and benefits include:
Touch control
Custom fan speed settings
Light and sound settings
Filter life notifications
With the App, you will be able to access all
the features and custom setting available
for your Atem. Please remember that
the Bluetooth®mode must be activated
beforehand on your smart phone. To install
follow the set-up directions on the App.
Bluetooth pairing
Pair your smart phone device with the Atem
by using the IQAir Atem App. The Atem is
automatically in discovery mode and will
appear in the Bluetooth section of the App.
Tap the Atem name to pair. Enter the
Bluetooth code PIN found on the back of
this User Guide, the back of the air purifier
and on the packaging label.
Touch function
With the app you can disable the touch
function to prevent unwanted passenger
interaction.
To re-enable the touch function without the
app, hold your fingers down on the touch
area for 5 seconds.
Troubleshooting
Visit the Atem support section on the
website.
Accessories and Filters
A list of available filters and replacement
parts for the Atem air purifier can also be
found on the website at:
www.iqair.com
Atem App, Troubleshooting & Technical Information
Step 4: Replace the back cover and turn clock-
wise to lock.
Step 3: Lift tabs to remove filter, replace with a
new filter.
Lift the back cover away.
EN

12
Responsibilities, Warranty
and Service Information
Manufacturer of the
Product
IQAir AG, herein referred to as IQAir, is
responsible for supplying the product,
including the User Guide and original
accessories, in a completely safe
condition. The manufacturers of non
IQAir accessories for the product are
responsible for developing, implementing
and communicating safety concepts for
their products, and are also responsible for the effectiveness of those safety concepts in
combination with the IQAir product.
International Limited Warranty and Service
The IQAir warranty will be honored, provided the product is handled in accordance with its
intended use and operating instructions.
Tampering with the car power adapter or the use of non-IQAir power accessories
voids the warranty. This product is subject to the terms and conditions set out in the
International Limited Warranty which you can download from the IQAir home page at
www.iqair.com The foregoing warranty is exclusive and is in lieu of all other warranties,
terms or conditions, express or implied, either in fact or by operation of law, statutory
or otherwise, including warranties, terms or conditions of merchantability, fitness for a
particular purpose, satisfactory quality and non-infringement, all of which are expressly
disclaimed.
For detailed instructions on how to claim your warranty for a defective device, please visit
the IQAir website, contact a IQAir distributor or your closest IQAir representative.
If you need information on IQAir products or if you have a problem with your product,
please visit the IQAir website at www.iqair.com or contact the retailer where you
purchased the product for further assistance.
Model:
Atem Car Air Purifier
Power Rating:
12-24V -
--
— 1.5A max
Power Adaptor:
Model: Atem Car Power Adapter 250.60.20.25
Input: 12-24V -
--
— 4A max
Output USB: 5V -
--
— 2.1A max
Output DC: 12-24V -
--
— 2A max
Dimensions (Air Purifier only):
L x H x W 300 x 300 x 85 mm 12 x 12 x 3.4 in
Weight (Air Purifier only):
1850g / 4.1lbs
Technical specifications
Warranty & Service Information
The location of product information &
specifications is found on the back.
EN

Manufacturer:
IQAir Germany GmbH
Karl-Maybach-Straße 18
88239 Wangen im Allgäu
Germany
Distribution:
IQAir North America
IQAir North America, Inc.
14351 Firestone Blvd.
La Mirada, CA 90638
USA
IQAir International
Incen AG
Hauptstrasse 104
9422 Staad
Switzerland
IQAir China
DRC Liangmaqiao Diplomatic
Office Building, Suite 1305B
No.19 Dongfang Dong Road
Chaoyang District
100600 Beijing
Tel.: [phone]
www.iqair.com
Atem Car User Guide v01 2018
