IRIS IP-400 User manual

- INDEX -
1. Introduction ..................................................................................................... 1
2. Technical data .................................................................................................... 2
3. Parts .................................................................................................................... 3
4. How to Operate ................................................................................................ 4-6
5. Important safety information ................................................................... 7
6. Checkup ................................................................................................................. 8
7. Storage ................................................................................................................... 8
8. Spreading chart .......................................................................................... 9-10
9. Parts sales & Trouble shooting ............................................................. 11
10. Warranty/Complimentary check up & Repair .............................. 11
11. Part list ......................................................................................................... 12-15
12. Certificate of Quality Assurance ...................................................... 16-21

1. Introduction
1) Yellow poly hopper makes rust free and visible inside.
2) Three point linkage type, easily attached to tractor.
3) Spreaders fertilizer, lime, seeds and etc.
4) Capacity : 400ℓ, 700ℓ, 900ℓ
Even Spreading Spotted Spreading
- 1 -

Model
IP-400
IP-700
IP-900
HOPPER CAPACITY(ℓ)
400
700
900
WEIGHT OF THE MACHINE
(㎏)
144
158
165
WIDTH(outside side)(㎜)
1430
1430
1430
LOADING HEIGHT(㎜)
900
1180
1350
LENGTH(㎜)
1380
1380
1380
HOPPER WIDTH(㎜)
1430
1430
1430
SPREADING WIDTH(m)
6~24
6~24
6~24
POWER
P.T.O
P.T.O
P.T.O
2. Technical data
IP-400 IP-900
IP-700
- 2 -

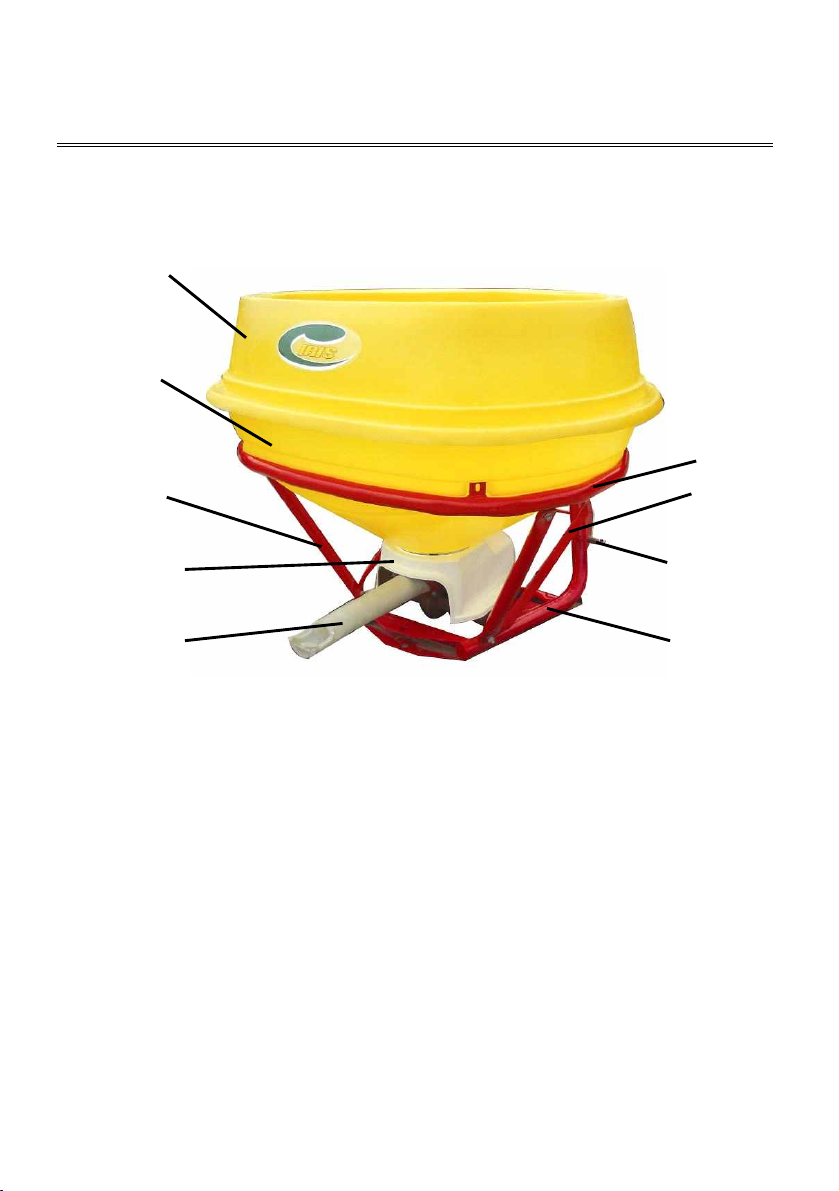

3. Parts
Fertilizer Pendular Spreader(IP-400,700,900)
➀
➁
➂
➃ ➄
➅ ➆
⑨ ➇
➀ Extension Hopper ➁ Hopper
➂ Hopper Ring ➃ Hopper Brace
➄ Frame Tie Rod ➅ Gearbox Guard
➆ Low link Pin ➇ Frame
⑨ Spout
- 3 -

4. How to Operate
1) Insert fertilizer spreader’s link to the tractor’s low links
(both left and right) and fasten with the pins.
2) Connect and fasten the fertilizer spreader’s upper link to the tractor’s
top link.
3) Close the outlet and pour fertilizer or seed into the hopper.
4) Adjust spread rate by using adjustment lever.
5) Spread fertilizer or seed by a tractor.

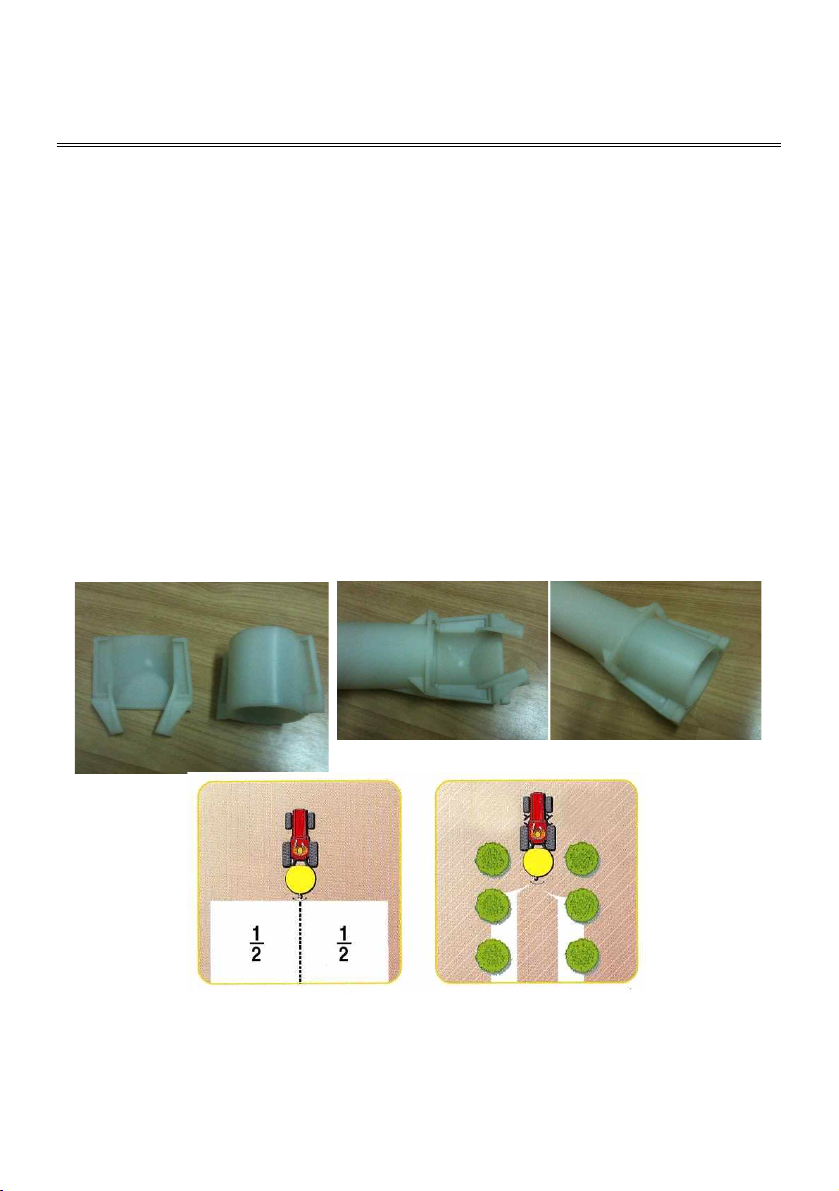

6) Two spreading patterns :
The interchangeable front-end permits even or spotted spreading
The pendulum-spout equipped with front-end A allows for even spreading.
The pendulum-spout equipped with front-end B allows for a spotted
spreading.
(A) (B) (A) (B)
Even Spreading(A) Spotted Spreading(B)
- 4 -

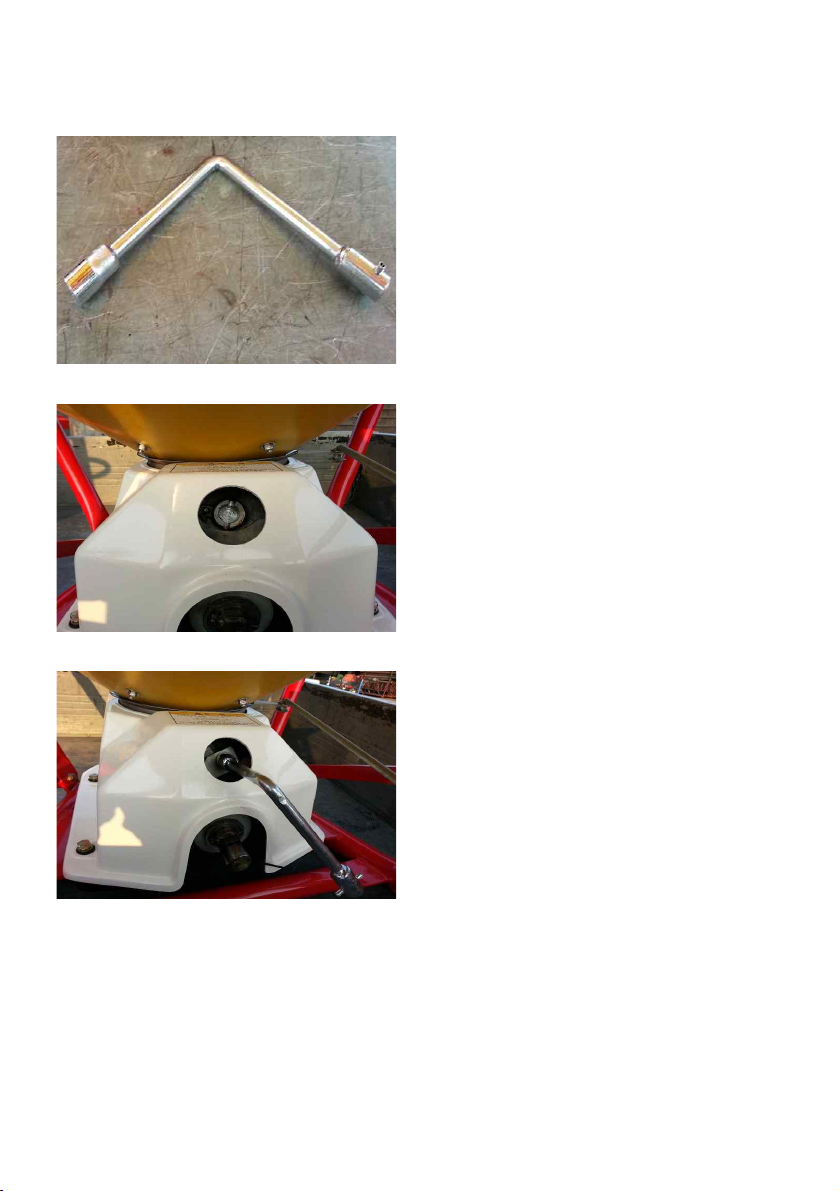

7) Spreading width adjusting :
One is pin wrench and other is
17mm socket.
ADJUSTMENT WRENCH
You can see the stroke adjuster back
of gearbox.
STROKE ADJUSTER
In order to move stroke adjuster,
Please loosen the 2 bolts with
adjustment wrench
- 5 -

Please turn the stroke adjuster with
the adjustment wrench No. 1 to No. 5
No. 1 : Narrow spreading
No. 5 : Wide spreading
Tighten the 2 bolts with adjustment
wrench
- 6 -

5. Important safety information
1) Safety gear must be worn while operating the machine.
2) If more than two people are operating the machine, observe the others’
movement carefully.
3) Make sure there is NO on or no obstacle within the operating area and
its range.
4) Do NOT overload or apply excessive force to the equipment.
5) Perform “pre-operation”procedures. In particular, check for loosen nuts
and bolts, connecting pins, and Lubricant.
6) If any trouble occurs while operating the equipment, turn off the engine
of tractor and apply the break, then refer to “Trouble Shooting.”
7) Comply with all local traffic regulations while driving.
8) After assembling universal joint (before trial run), if joint is too long, or
the angle between the tractor's PTO and the spreader exceeds.
recommended angle, then it may cause the breakage of the gear box.
※ Recommended angle is 15 degree
※ A PTO driveline that is too long and "bottoms out" could possibly cause
severe damage to the gearbox. It is VERY IMPORTANT to check the
proper PTO driveline length for your tractor.
Gearboxes damaged by incorrect PTO driveline length are NOT covered
by warranty.
- 7 -

6. Checkup
1) Make sure to apply Lubricant where needed and check for loosen nuts
and bolts before operating.
2) Check for air pressure on the tires.
3) Test drive the equipment before actual use.
7. Storage
1) When the equipment is to be stored for a long time, apply lubricants
to the area where it is likely to have corrosion.
2) Firmly secure the fertilizer spreader on the flat surface to prevent any
possible fall off.
3) Keep it away from children to prevent any safety hazard.
4) When the equipment is to be stored for a long time, store it in indoor.
If it is to be stored outside, place it on the flat surface and cover it
with protectors to prevent any source of damages from rain and snow.
- 8 -

FERTILIZER TYPE
P.T.O
SPEED
(RPM)
SPREAD
WIDTH
(METERS)
TRACTOR
SPEED
(km/h)
QUANTITY TO BE SPREAD, IN KGS PER HECTARE AT CONTROL LEVER
SETTING INDICATED
1
2
3
4
5
6
7
Coarse Grain Fertilizers
(Approx 750kg/㎥)
540
20
5.0
38
162
333
417
489
549
591
8.0
24
101
208
261
306
343
369
12.0
16
68
139
174
204
229
246
Medium Grain Fertilizers
(Approx 1,100kg/㎥)
540
22
5.0
46
234
487
585
662
727
782
8.0
29
146
304
366
414
455
489
12.0
19
98
203
244
276
303
326
Fine Grain Fertilizers
(Approx 1,400kg/㎥)
540
24
5.0
54
251
533
605
695
755
805
8.0
34
157
333
379
435
472
504
12.0
23
105
222
252
290
315
336
8. SPREADING CHART FOR FERTILIZER – METERS
- 9 -

FERTILIZER TYPE
P.T.O
SPEED
(RPM)
SPREAD
WIDTH
(FT)
TRACTOR
SPEED
(mile/h)
QUANTITY TO BE SPREAD, IN LBS PER HECTARE AT CONTROL LEVER
SETTING INDICATED
1
2
3
4
5
6
7
Coarse Grain Fertilizers
(Approx 6.26lbs/gallon)
540
65.5
3.0
84
356
733
917
1076
1208
1300
5.0
53
222
458
574
673
755
812
7.5
35
150
306
383
449
504
541
Medium Grain Fertilizers
(Approx 9.18lbs/gallon)
540
72
3.0
101
515
1071
1287
1456
1599
1720
5.0
64
321
669
805
911
1001
1076
7.5
42
216
447
537
607
667
717
Fine Grain Fertilizers
(Approx 11.7lbs/gallon)
540
78.5
3.0
119
552
1173
1331
1529
1661
1771
5.0
75
345
733
834
957
1038
1109
7.5
51
231
488
554
638
693
739
SPREADING CHART FOR FERTILIZER – FT
- 10 -

Model
Number
Description
Quantity
IP-700
1
hopper
1
9. Parts sales & Trouble shootings
Parts sales
1) The parts list provided is in compliance with
IP-400,700,900 standards. Refer to this list when order any parts.
2) Follow next steps as below when order parts:
ex) We would like to order 1 unit of hopper
3) To purchase the parts, contact the dealer where you purchased the
equipment or our main office.
Trouble shootings
1) If any malfunction occurs, please refer to “Trouble Shooting” section
first.
2) If “Trouble Shooting”does not solve the issue, contact authorized dealer
or manufacturer’s Customer Service.
10. Warranty/complimentary check up & Repair
1) The warranty is good for one year from the date of delivering to the
customer.
2) Even after one-year warranty period, we would gladly check up and
repair the equipment at a reasonable price.
3) With a faith that any one-time customer is a customer for forever,
we would continue to take care of our products for you until it lasts.
- 11 -

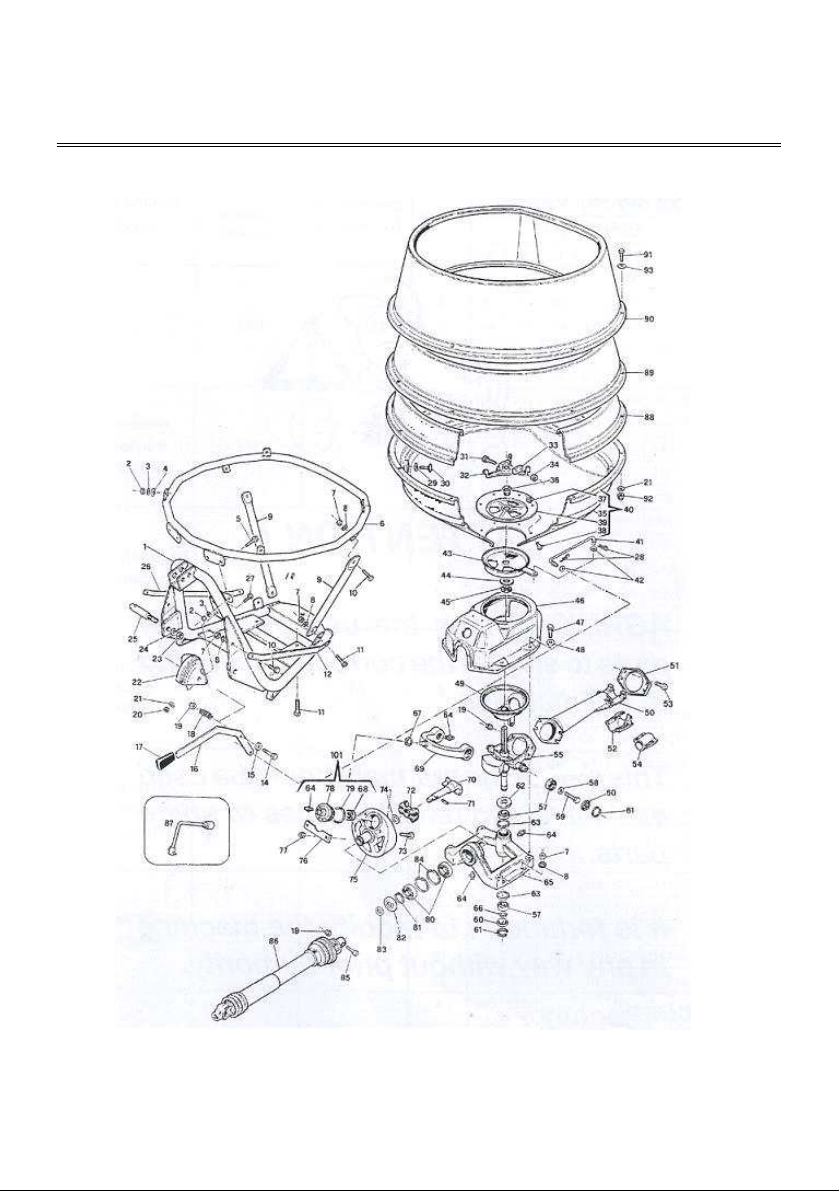

11. Part list
- 12 -

PART NO.
QTY
DESCRIPTION
1
1
FRAME
2
8
Nut, Hex M10
3
8
Spring Lock Washer, M10
4
4
Washer, M10
5
4
Screws, Hex Head M10X35
6
1
HOPPER RING
7
10
Nut, Hex M12
8
10
Washer, M12
9
2
HOPPER BRACE
10
4
Screws, Hex Head M12X35
11
6
Screws, Hex Head M12X40
12
1
FRAME TIE ROD(RIGHT)
14
1
Screws, Hex Head M12X65
15
1
BAKELITE DISC
16
1
LEVER
17
1
RUBBER HANDLE
18
1
COMPRESSION-SPRING
19
6
Nut, Self-locking, M10
20
10
Nut, Hex M8
21
2
Washer, M8
22
1
LEVER GUIDE
23
2
Nut, Hex M22
24
2
Spring Lock Washer, M22
25
2
LOW LINK-PIN
26
1
FRAME TIE ROD(LIGHT)
27
2
Screws, Hex Head M8X30
28
2
R PIN
29
4
Washer, M10
30
4
Screws, Hex Head M10X35
31
2
Screws, Hex Head M14X65
32
1
AGITATOR
33
1
AGITATOR FIXING PLATE
34
2
Nut, Hex M14
35
1
HOPPER
36
1
LOCKING BUSH
37
6
Nut, Hex M10
38
6
Screws, Hex Head M10X25
39
1
HOPPER LOW PLATE
- 13 -

PART NO.
QTY
DESCRIPTION
40
1
HOPPER PLATE
41
1
ADJUSTING BAR
42
2
Washer, M12
43
1
DOSING DISC
44
1
WASHER
45
1
Nut, Hex M40
46
1
GUARD
47
4
Screws, Hex Head M10X25
48
4
Washer, M10
49
1
CUP
50
1
PENDULUM SPOUT
51
1
COUPLING FLANGE
52
1
FRONT SPOUT(EVEN SPREADING)
53
4
Screws, Hex Head M10X50
54
1
FRONT SPOUT(SPOTTED SPREADING)
55
1
SPOUT MOUNTING
57
4
BEARING 6206 1RS
58
2
WASHER
59
2
Screws, Hex Head M12X80
60
3
FORK PROTECTION COVER
61
3
LOCKING RING R62
62
1
SHAFT COVER
63
2
LOCKING RING R62
64
5
GREASER
65
1
BASE
66
1
LOCKING RING S30
67
1
FORK GUARD
68
1
BEARING 6206 1RS
69
1
FORK
70
1
SHAFT JOINT
71
1
SPRING PIN 8x50
72
1
RUBBER SHOCK ABSORBER
73
2
Screws, Hex Head M10X35
74
1
WASHER
75
1
FLY WHEEL
76
1
FIXING PLATE
77
2
Nut, Self-locking, M12
78
1
STROKE ADJUSTER
79
1
O RING
- 14 -

PART NO.
QTY
DESCRIPTION
80
2
BEARING 6011 1RS
81
1
LOCKING RING R55
82
1
FRONT COVER
83
1
WASHER
84
2
LOCKING RING R90
85
1
Screws, Hex Head M10X50
86
1
P.T.O SHAFT
87
1
ADJUSTMENT WRENCH
88
1
EXTENSION(500ℓ)
89
1
EXTENSION(700ℓ)
90
1
EXTENSION(900ℓ)
91
8
Screws, Hex Head M8X30
82
8
Nut, Self-locking, M8
93
16
Washer, M8
- 15 -

CERTIFICATE OF QUALITY ASSURANCE
All products manufactured and sold by IRIS SPREADERS,
Co. are designed and assembled in accordance with
regulations on farm machinery under very strict quality
management. If the product is managed and used in
accordance with instructions on regular check-ups and
maintenance schedule provided in the owner’s operation
manual then we assure you that the product always will
be at its best condition and outstanding performance, and
safely maintained. Thus, we are pleased to offer you the
assurance terms as below.
1. SCOPE OF WARRANTY
If the product you purchased was managed and used in
accordance with instructions on regular check-ups and
maintenance schedule provided in the owner’s operation
manual AND the product is still within warranty period and
used less than allowed usage time for warranty AND
technical analysis reveals that the malfunction was caused
by quality of the parts or manufacturing defects, we will
repair it or exchange with our qualified replacement parts.

▶ On delivery the customer should check the censure that the
machine has not been damaged in transit, and that it
complies with that ordered as that it is complete with all the
accessories as specified in the purchase contract. If it is
found defective, a written complaint should be sent within
8 days of receipt of the same.
2. WARRANTY PERIOD: 1 FULL YEAR
When the product requires complementary repairs or
maintenance, simply Present “Certificate of Warranty” to
an authorized dealer or our main office for inspections
and repairs.
3. RESPONSIBILITIES OF THE OWNER
Since any unauthorized inspections or use of non-genuine
parts that are not prescribed in Owner’s Operation Manual may
decrease the performance of the parts or cause fatal damages
to the product, it is very critical to follow all the instructions
prescribed in the Owner’s Operation Manual and Certificate of
Quality Assurance.
4. EXCLUSIONS (Even within Warranty Period)
1) Items to be checked frequently for management :
cleaning fuel-related parts,
Items to be checked on regular basis :
inspection of breaks and adjustment
2) Wear and Tear parts
(except manufacturer’s defect):
filters, elements, rubber parts, vinyl parts, fuse, and wires.

3) Any malfunction or defect caused by using unspecified fuel
(low quality fuel or contaminated fuel)
4) Any malfunction caused by not complying with instructions
prescribed in Owner’s Operation Manual or Warning Signs
5) Any defect caused by unauthorized modification of the
product or use of non-genuine parts.
6) Any defect caused by negligence in storing and managing
such as damages due to extreme weather conditions.
7) Minor issues not related with the function (smell, vibrations,
shape, sensitivity)
8) Major discrepancies between the parts and its serial
numbers recorded in our data base.
9) Malfunction caused by natural calamities.
5. PROCEDURE FOR WARRANTY REPAIR
Warranty repair will be provided in our authorized Customer
Service Centre by qualified warranty repair technician during
business hours.
