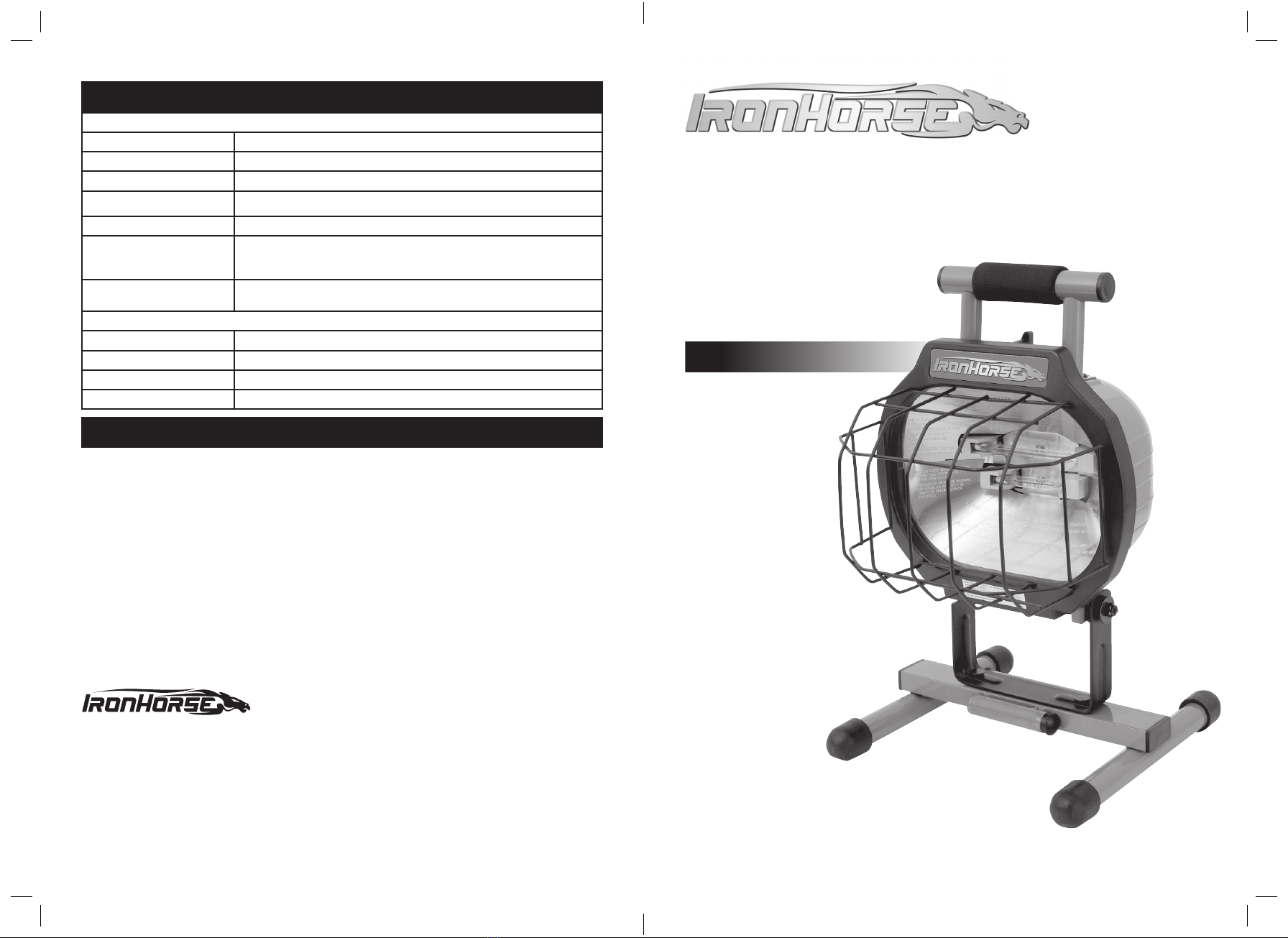

Iron Horse HL70 User manual

4
HL70
CPIN002119/2
INSTRUCTIONS
Technical Data
HALOGEN
WORKLIGHT
700W
Specifications
Input Voltage 230-240V AC, 50Hz
Supply Current 2.95A
Max Watt 700W (200W + 500W)
IP Classification IP44
Power Factor 0.995
Replacement Globe 500W Max linear tungsten halogen tube (118mm long )
Arlec Part No: HT500
200W Max linear tungsten halogen tube (78mm long)
Protective Shield Glass Lens (250x200x5mm thick)
Arlec Part Number SS2035
Construction
Enclosure Zinc / Aluminium alloy
Glass / Lens 5mm thick tempered safety
Reflector 0.3mm aluminium
Colour Red/Black
WARRANTY
Arlec guarantees this product in accordance with the
Australian Consumer Law.
Arlec also warrants to the original first purchaser of this
product (“you”) from a retailer that this product will be free
of defects in materials and workmanship for a period of 12
months from the date of purchase; provided the product is
not used other than for the purpose, or in a manner not
within the scope of the recommendations and limitations,
specified by Arlec, is new and not damaged at the time of
purchase, has not been subjected to abuse, misuse, neglect
or damage, has not been modified or repaired without the
approval of Arlec and has not been used for commercial
purposes (“Warranty”).
If you wish to claim on the Warranty, you must, at your own
expense, return the product, and provide proof of original
purchase and your name, address and telephone number, to
Arlec at the address below or the retailer from whom you
originally purchased the product within 12 months from the
date of purchase.
Arlec will (or authorise the retailer to) assess any claim you
may make on the Warranty in the above manner and if, in
Arlec’s reasonable opinion, the Warranty applies, Arlec will
at its own option and expense (or authorise the retailer to)
replace the product with the same or similar product or
repair the product and return it to you or refund the price
you paid for the product. Arlec will bear its own expenses
of doing those things, and you must bear any other
expenses of claiming on the Warranty.
The Warranty is in addition to other rights and remedies you
may have under a law in relation to the product to which the
Warranty relates.
Our goods come with guarantees that cannot be excluded
under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and for
compensation for any other reasonably foreseeable loss or
damage. You are also entitled to have the goods repaired or
replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
For All Sales & Warranty Enquiries
Arlec Australia Pty. Ltd. ACN 009 322 105
(“Arlec”) gives the Warranty.
Building 3, 31 – 41 Joseph Street,
Blackburn North, Victoria, 3130
Blackburn North LPO, P.O. Box 1065, Blackburn North, 3130
Customer Service: [phone]
Email: [e-mail]
© This instruction leaflet is subject to copyright and must not be reproduced,
copied or otherwise used in any way or for any purpose without the consent
in writing of the owner, Arlec Australia Pty Ltd (A.C.N. 009 322 105). CPIN002119/2
HL70 Instructions REV.indd 1-2 25/11/11 1:07 PM

3
2
The Arlec HL70, 700Watt halogen worklight is suitable for indoor (ambient temperature 25˚C) or
temporary outdoor use. The worklight can be plugged into a standard power point and has a
weatherproof classification of IP44. HL70 allows three different light levels 200W, 500W & 700W
with the push-on switches located at the rear of the unit.
Assemble the worklight as shown in diagram. Fix the support bracket of lamp head onto the base
stand with 2 self threaded bolts, washer and nut. Ensure that the nuts are tight firmly holding the
support bracket and base stand assembly together.
Front safety grille has locking tabs.
Clip the front grille locking tabs on to the slots provided on the front face of the housing.
To adjust the tilt hold the carry handle and tilt the lamp head to the desired angle.
Spare tubes can be stored in the metal tube holders attached to the H base stand.
Remove the rubber grommets to store the spare tubes supplied with the unit.
NOTE: The safety adjustment stop prevents worklight from tilting too far forward.
This helps avoid accidental scorching or burning.
Do not remove support bracket from lantern body.
While adjusting the lamp head avoid pinching or bending of the supply cord.
WARNING
When the luminaire is operated outdoors the supply cord must be appropriately covered or
located such that it is subjected to indoor conditions only.
If the external flexible cable or cord of this luminaire is damaged, contact the Arlec Customer
Service Team. (Refer to details on back page) or a similar qualified person in order to avoid
hazard.
The tungsten halogen tubes are supplied and packed separately to avoid damage. Ensure that
worklight is unplugged from wall socket. Open the worklight housing by loosening the front cover
wing knob located on the rear of the unit, near the handle. The glass front of the housing will hinge
forward and down. Insert the tube in the holder, ensuring that you do not touch the glass envelope
of the tube with bare hands. Use the tube wrapper to handle the tube. (Oils from the hands can
cause the tube to fail or shatter).
If necessary the tube should be carefully cleaned with methylated spirit and dried before
installation. Do not attempt to adjust or force the tube holder with tools, but carefully push the
tube into the holder contacts. Reassemble the worklight housing.
Please observe the following do’s and don’ts to ensure safe and trouble free use:
DO ensure combustible material is kept away from worklight.
DO use the handle to adjust the beam.
DO keep the worklight out of reach of children when in use.
DO switch off and allow to cool for a minimum of 10 minutes before storing.
DO take extreme care in crowded or confined areas that worklight is not positioned where it can
be easily toppled over.
DO use the worklight in horizontal position (+4°). If not used in horizontal position the tube life
will be greatly reduced.
DON’T touch tube with bare hands. This could cause tube to shatter when worklight is switched on.
DON’T stand worklight in pools of water.
DON’T handle with wet hands or operate when standing on wet surface.
DON’T position the worklight closer than one metre from surface to be illuminated.
DON’T allow power cable to come in contact with front of worklight or housing.
DON’T touch the housing or glass while hot.
DON’T allow overhanging shrubs or foliage to come into contact with worklight.
DON’T place or operate the worklight closer than 5 metres to a swimming pool or spa.
DON’T operate the worklight with the front of housing opened.
INTRODUCTION
ASSEMBLY CHANGING TUBES
DO'S AND DONT'S
4°
4°
4°
4°
200W Spare Tube
storage
500W Spare Tube
storage
H Base
stand
Safety
Grill
Carry
Handle
Wing
Knob
ON/OFF Switches
200W 500W
700W
