Installation

Instruction Manual

MKR-LTG1-0IR

MKR-LTG2-0IR

Single & Double

Red / Infrared LED

Obstruction Lights

MKR-LTG

Front Matter

proprietary information, photographs, graphics, and other material (collectively, "the

Content") protected by copyright, and this manual and all accompanying hardware,

software and documentation are copyrighted. No part of this document may be

photocopied or reproduced by mechanical, electronic, or other means in any form without

written consent of ITL, LLC.

ITL, LLC, MKR-LTG1-0IR, MKR-LTG2-0IR and the ITL logo are trademarks of ITL, LLC.

All other trademarks and brand names are the property of their respective proprietors.

Limited Warranty and Disclaimer

ITL, LLC guarantees that MKR-LTG series obstruction lights are free from physical

defects of material and workmanship under normal use for five (5) years from the date of

purchase. If the product proves defective during this warranty period, please contact ITL,

LLC in order to obtain a Return Authorization Number, RMA.

In no event shall ITL, LLC’s liability exceed the price paid for the product from direct,

indirect, special, incidental, or consequential damages resulting from the use of the

product, its accompanying software, or its documentation. ITL, LLC makes no warranty

or representation, expressed, implied, or statutory, with respect to its products or the

contents or use of this documentation and all accompanying software, and specifically

disclaims its quality, performance, merchantability, or fitness for any particular purpose

unless otherwise stated.

The technical documentation is being delivered to you AS-IS. ITL, LLC makes no

warranty as to its accuracy or use. Any use of the technical documentation or the

information contained therein is at the risk of the user. Documentation may include

technical or other inaccuracies or typographical errors. ITL, LLC reserves the right to

revise or update its products, software, or documentation without obligation to notify any

individual or entity.

Please send any comments regarding the manual to [email protected].

MKR-LTG

Safety Warning

This equipment uses lethal voltages which can cause serious injury and/or death. Do not

attempt to service this equipment with line power applied.

The LED lamps used in this equipment produce brilliant light and infrared (IR) radiation.

Temporary or permanent eye damage may result from looking directly at the LED

obstruction light while it is operating.

Disconnect power at the circuit breaker panel and wait at least 30 seconds before

servicing. Do not rely on interlock switches for removing power. Energy storage

capacitors can maintain high voltage long after power has been disconnected. Verify that

all high voltage warning lights are completely off. Measure all high voltage sources (HV1,

HV2) using a DC voltmeter to ensure that power is off and has been completely removed

before servicing.

Do not wear any jewelry. Gold and silver are excellent conductors of electricity.

This equipment emits near infrared radiation. Avoid direct eye exposure.

MKR-LTG

Table of Contents

Front Matter ....................................................................................................................... 2

Copyright & Trademarks ................................................................................................ 2

Limited Warranty and Disclaimer ................................................................................... 2

Safety Warning .............................................................................................................. 3

Introduction ........................................................................................................................ 5

Product Description ........................................................................................................... 5

Specifications .................................................................................................................... 6

Environment ................................................................................................................... 6

Intensity ......................................................................................................................... 6

Mechanical ..................................................................................................................... 6

MKR-LTG1-0IR (Single) ................................................................................................. 6

MKR-LTG2-0IR (Double) ............................................................................................... 6

Electrical ........................................................................................................................ 6

Installation ......................................................................................................................... 7

Unpacking your LED Obstruction Light .......................................................................... 7

Tools for Installation ....................................................................................................... 7

Quick Installation ............................................................................................................ 7

Leveling ......................................................................................................................... 7

Installation Wiring Diagram ............................................................................................ 8

Grounding ...................................................................................................................... 8

Spare Parts ....................................................................................................................... 9

Parts Locator (MKR-LTGx-0IR) ....................................................................................... 10

Parts Locator (MKR-LTG2-0IR) ....................................................................................... 11

Maintenance .................................................................................................................... 12

Technical Support and Contact Information .................................................................... 13

Contact Information ...................................................................................................... 13

RMA ............................................................................................................................. 13

MKR-LTG

Introduction

Congratulations, and thank you for choosing an ITL L-810(L) red obstruction light.

We trust that ITL’s reputation for technical excellence, experience in product

development, commitment to our customers and testing will ensure your complete

satisfaction.

You have chosen one of the most technologically innovative LED obstruction lights

available on the market today. This product is the result of many years of engineering

with extensive input from field service personnel.

This manual covers the MKR-LTG1-0IR Single and MKR-LTG-0IR Double red/infrared

LED Obstruction Lights.

Please take the time to read and familiarize yourself with this manual. It contains the

information necessary to install, test and troubleshoot the MKR-LTG LED Obstruction

Light.

Product Description

The MKR-LTG1-0IR Single Obstruction Light and MKR-LTG2-0IR Double Obstruction

Lights utilize LED technology and Fresnel Optics to provide a reliable low power lighting

solution. In addition to visible red LEDs, infrared (IR) emitters are included to enhance

conspicuity for personnel using Night Visions Systems (NVS) and Night Vision Goggles

(NVG).

The ITL, LLC L-810(L) / L-810F(L) red obstruction light has been tested for compliance

with applicable FAA and Transport Canada specifications for marking hazards to air

navigation such as towers, smoke stacks or similar structures. It is intended for

installations which require FAA L-810(L) / L810F(L) red lights.

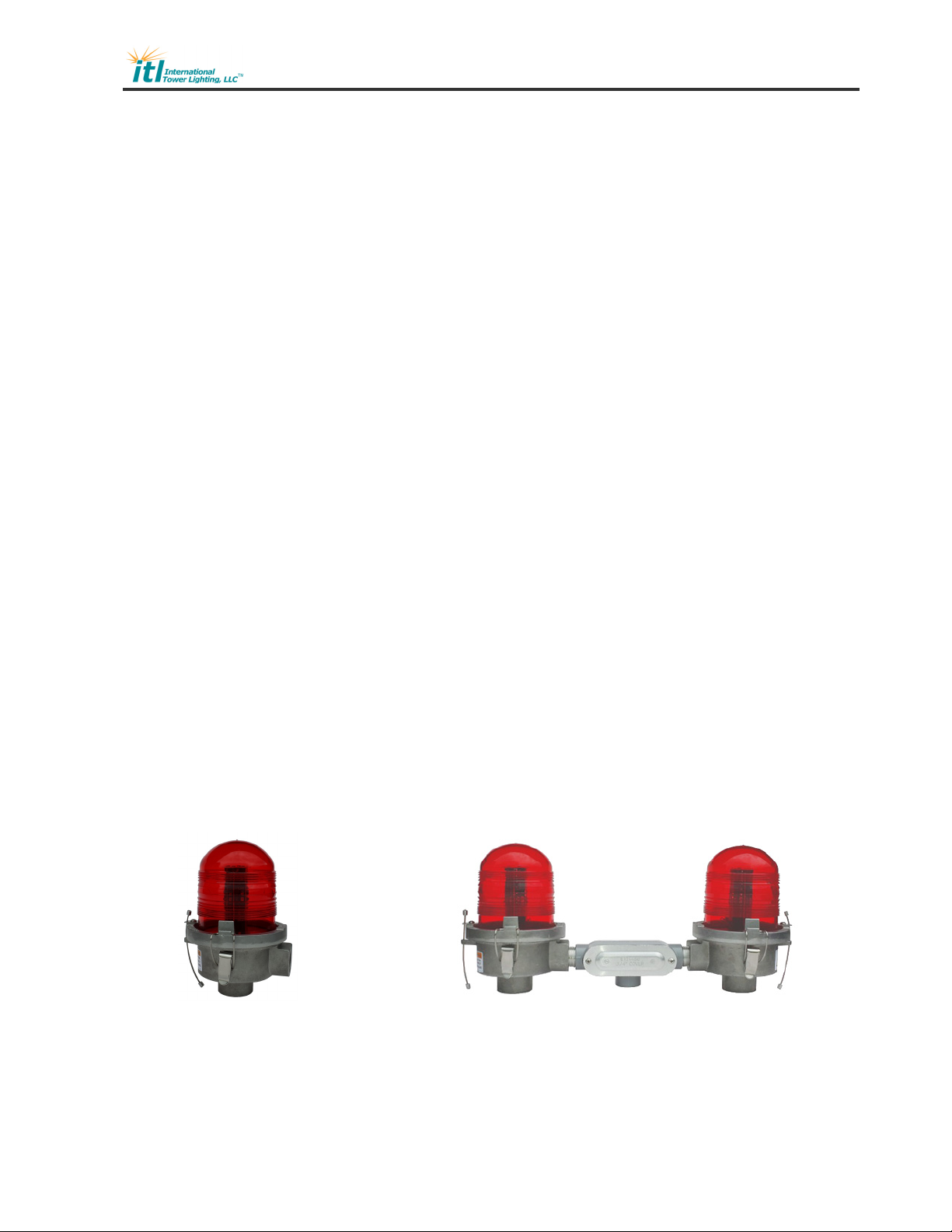

MKR-LTG2-0IR

Double LED Obstruction Light

with infrared emitters

MKR-LTG1-0IR

Single LED Obstruction Light

with infrared emitters

MKR-LTG

Specifications

ETL Certified to AC150/5345-43, Type L-810 (L) / L-810F (L)

Transport Canada CAR 621 as the FAA Types listed.

MKR-LTG1-0IR L-810 (L) / L-810F (L)

MKR-LTG2-0IR L-810 (L) / L-810F (L)

Environment

Temperature -40ºC to +55ºC

Humidity less than 95% relative humidity (non-

condensing)

Intensity

Effective Candela (red) 32.5cd (min)

Infrared Radiant Intensity (IR) 4mW/sr (min, 800-900nm)

Mechanical

MKR-LTG1-0IR (Single)

Dimension Height: 7.5” (19.1 cm)

Width: 5.4” (13.7cm)

Weight 2 lbs (0.9 Kg) max

MKR-LTG2-0IR (Double)

Dimension Height: 7.9” (20 cm)

Width: 5.4” (13.7cm)

Length: 17” (43.2cm)

Weight 5 lbs (2.3Kg) max

Electrical

Input Power 100 to 240VAC at 50/60 Hz

Power Consumption (max.) 7W, MKR-LTG1-0IR (single)

14W, MKR-LTG2-0IR (double)

MKR-LTG

Installation

LED obstruction lights of different models and/or manufacturers may draw differing

amounts of power. This may make monitoring by measuring operating current difficult

especially when multiple obstruction lights are operated on a single circuit as is common

practice. It is recommended that models/manufacturers not be mixed on a single

installation. The following section describes how to install the LED obstruction light.

Unpacking your LED Obstruction Light

Please examine the shipping containers and their content thoroughly upon receipt and

report any potential shipping damage to the carrier.

Tools for Installation

The following tools are suggested for mounting of the MKR-LTG obstruction lights.

 Digital multi-meter capable of reading 600VAC/DC (Fluke 177 or 179)

 Nut Drivers and Sockets

 #2 Phillips Screwdriver

 5/16 Flat Head screwdriver

 Crimp Tool

 Needle Nose Pliers

Quick Installation

The MKR-LTG1-0IR L-810(L) LED Single Obstruction Light has ¾” NPT side and bottom

hubs available for mounting. The MKR-LTG2-0IR LED Double Obstruction Light has a ¾”

NPT bottom hub available for mounting.

All fixtures, enclosures and junction boxes must be mounted in the upright position.

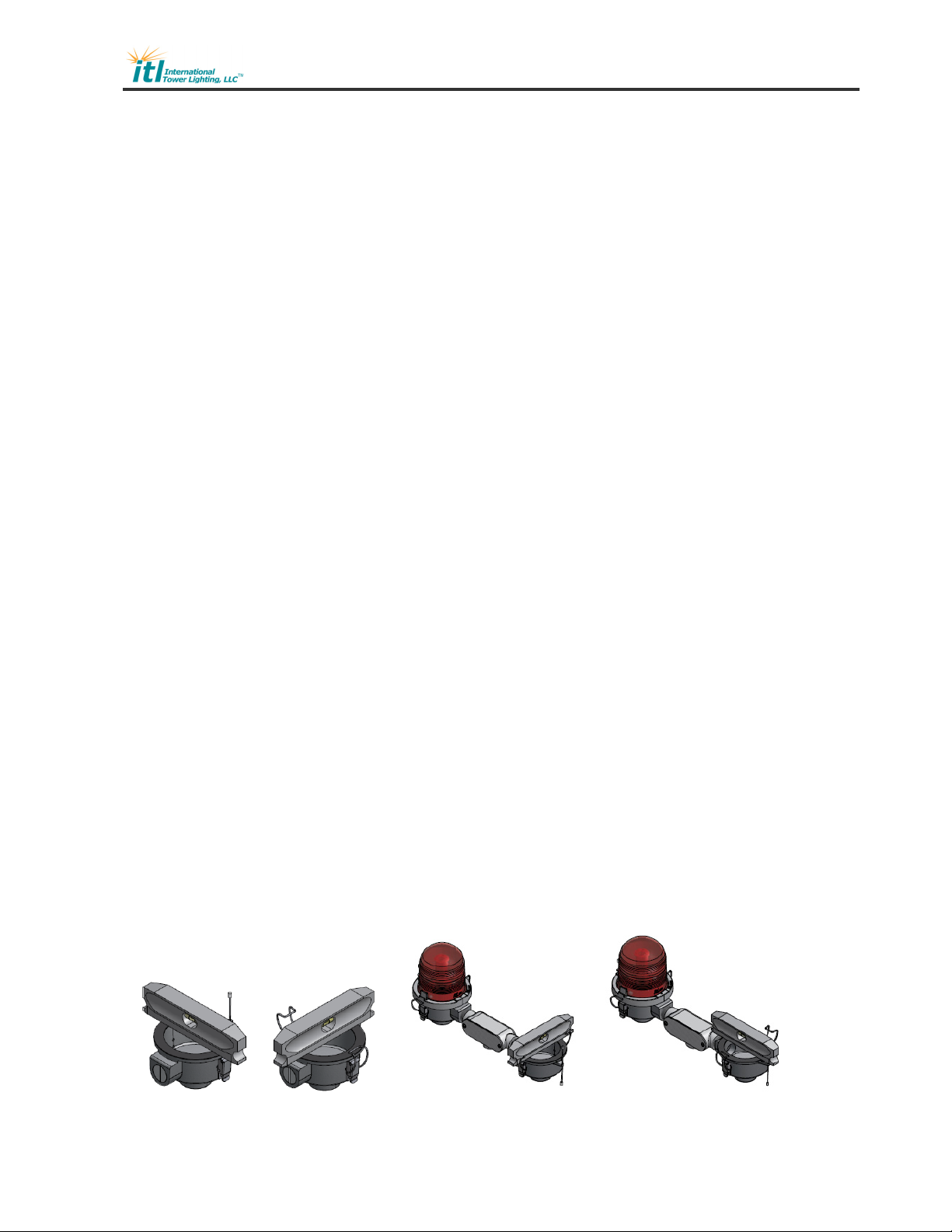

Leveling

The L-810(L) must be leveled during installation for correct vertical bean alignment.

The following diagrams detail how to use a compact “torpedo” level on two axes to ensure

that the obstruction light is level mounted level. Remove the globe and power supply and

place the level across the base as shown. Adjust fixture as necessary for level

installation.

MKR-LTG

Installation Wiring Diagram

Sample connections for typical LED obstruction lights are shown in the diagrams below.

Grounding

The metal base of the Side Light must be grounded as shown. The grounding screw

includes a square washer which accepts stripped copper wire or terminal lugs.

Do not remove the power supply ground wire (green wire with red ring lug) from the

grounding screw. Do not cut the green power supply ground wire.

Failure to ground the Side Light base as shown can result in Electrical Shock Hazard,

Compromised surge suppression, and voiding of warranty.

 Electrical Shock Hazard

 Compromised surge suppression

 Voiding of Warranty

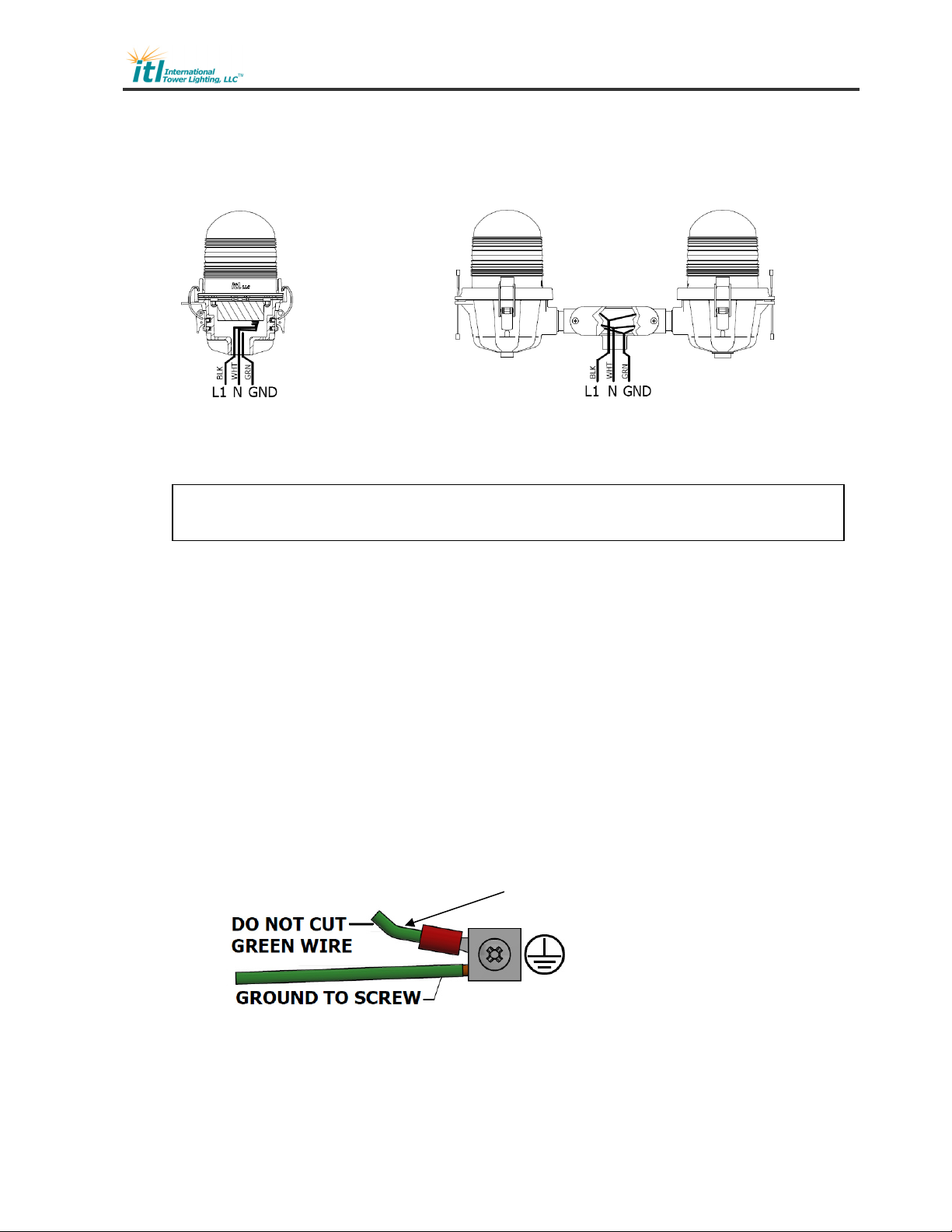

MKR-LTG1-0IR Single and MKR-LTG2-0IR Double Obstruction Wiring Diagram

MKR-LTE1-0xx Single Grounding Detail

It is the responsibility of the installer to comply with all applicable local, state,

and federal regulations for installation and operation of this device.

Power Supply Ground Wire

MKR-LTG

Spare Parts

MKR-LTG Spare Parts

ITL Order P/N Description

LMP-0LTG-0IR LED Red Lamp (MKR-LTGx-0IR Series)

MKR-ILED-GS1 Gasket

PWR-LTG-AC Power Supply (MKR-LTGx-0IR Series)

MKR-LTG

Parts Locator (MKR-LTGx-0IR)

Part Number Qty Description

MKR-X750-BAS-3 1 Marker Base, Bottom Hub, AL, No Bosses

MKR-S759-TOP-1 1 Marker Top Ring, AL

LEN-L810-LED-RED 1 Red Lens for single LED side light

LMP-0LTG-0IR 1 LED Lamp Assembly, Red/Infrared (MKR-LTEx-0IR Series)

PWR-LTG-AC 1 Power Supply, 7W, 100-240Va Input (MKR-LTGx-0IR Series)

MKR-ILED-GS1 1 Gasket for LED side light, Neoprene, 1/6” thickness

HDW-LTCH-0SS 2 Draw Latch, Stainless Steel

MKR-S750-CBL 1 Wire rope cable assembly

HDW-RIVT-125 4 Rivet, 1/8”, AL

HDW-PLUG-750 1 Closure Plug, ¾”, AL

Hdw-0632-50S 2 Screw, Pan Head, 6-32 x ½, SS

MKR-LTG

Parts Locator (MKR-LTG2-0IR)

Part Number Qty Description

MKR-LTG1-0IR 2 Red/Infrared LED Obstruction Light, (MKR-LTG2-0IR)

HDW-COND-BDY-75 1 Conduit Body Access Port, ¾” NPT, AL

HDW-COND-001-50 2 Conduit ¾” x 1 1/2”, Galvanized Steel

MKR-LTG

Maintenance

The maintenance outlined below should be performed at least once annually.

 Verify that the fixture is functional in all operating modes with no indication of an

alarm condition on alarm indicator lights, alarm dry contacts, or digital monitoring

interfaces.

 Verify that the photoelectric control operates the system in the correction operating

mode (day/night), light color (white/red) and intensity (day/night intensity) when

exposed to light and dark ambient lighting conditions.

 Inspect the fixture for any type of obstruction that could block light output at any

point along the 360 degree horizontal output of the fixture. Note that multiple

fixtures may be used to achieve 360 degree coverage.

 Inspect lenses and transparent covers for damage.

 Clean the fixture lens or transparent cover using a mild detergent and soft

nonabrasive cloth.

 Inspect all electrical wiring connections for corrosion, arcing, damage, insulation

degradation or loosening of the connection. Correct, replace or secure as needed.

 Inspect all interconnecting cables and power supply cables and conduits for

damage.

 Verify the all cables are fastened securely at appropriate intervals to prevent

damage.

 Inspect all electrical components for evidence of damage caused by lightning or

power line induced electrical surges. Replace any components showing evidence

of damage.

 Inspect fixtures and enclosures for water infiltration and insect infiltration. Replace

any damaged gaskets or seals. Install plugs to close any unused conduit ports

that may allow insect infiltration.

 Verify that all breathers and drain holes are clear of blockages.

MKR-LTG

Technical Support and Contact Information

Contact Information

For information on the MKR-LTG LED obstruction lights’ basic functions, refer to this

manual and the accompanying drawings. For additional help with the installation or

operation of any ITL products, please contact ITL, LLC at one of the following below.

Web and Internet Sites

Corporate home page: http://www.itl-llc.com

Customer Support Technicians

(8:00 AM - 5:00 PM Central Time)

US and Canada call: +1-615-256-6030

Toll Free: +1-866-624-8309

Email: [email protected]

RMA

Please contact ITL, LLC before returning equipment for repair and obtain a Return

Material Authorization (RMA) number.

Revision Description of Change Date Preparer / Approval

0 Initial Release 7/23/2020 Prepared By: E. Hinson

Approved By: A. Rudolph

1 Updated to ETL certified. 12/15/2020 Prepared By: E. Hinson

Approved By: R. Gregory

2 Updated Grounding Detail and Information (pg.8).

Added reference to Transport Canada.

3/24/2021 Prepared By: E. Hinson

Approved By: R. Gregory

This manual suits for next models

Table of contents

Other ITL Lighting Equipment manuals

ITL

ITL ILS-1700-CAT User manual

ITL

ITL SOLARIS ILS-S810-0IR Service manual

ITL

ITL PULSAR ILS-1400 Service manual

ITL

ITL IFH-1900-0IR User manual

Popular Lighting Equipment manuals by other brands

Merlin

Merlin myQ 827AU quick start guide

Chauvet

Chauvet LED Pinspot 2 user manual

NANLITE

NANLITE Compac 68 user manual

JBL

JBL L-U-W 35 manual

Ibiza

Ibiza LS58W-BLUE instruction manual

COEF

COEF MP 700 ZOOM operating instructions

Samsung

Samsung SEK-2000/ZA E-manual

Vaxcel

Vaxcel ProLine T0435 Assembly and installation instructions

Viking

Viking VK1815 user manual

NOAS

NOAS YL83-1062 user manual

Chauvet DJ

Chauvet DJ Festoon String instructions

Knightsbridge

Knightsbridge SHE S Series Installation & maintenance manual

Bresser

Bresser BR-SP60 instruction manual

Elation

Elation WW PROFILE HP IP user manual

Elation

Elation SC-816 User instructions

Godox

Godox TL-5 instruction manual

Whelen Engineering Company

Whelen Engineering Company TN Series installation guide

IN KHA CITY manual

ITL MKR-LTG1-0IR Service manual

Popular Lighting Equipment manuals by other brands
