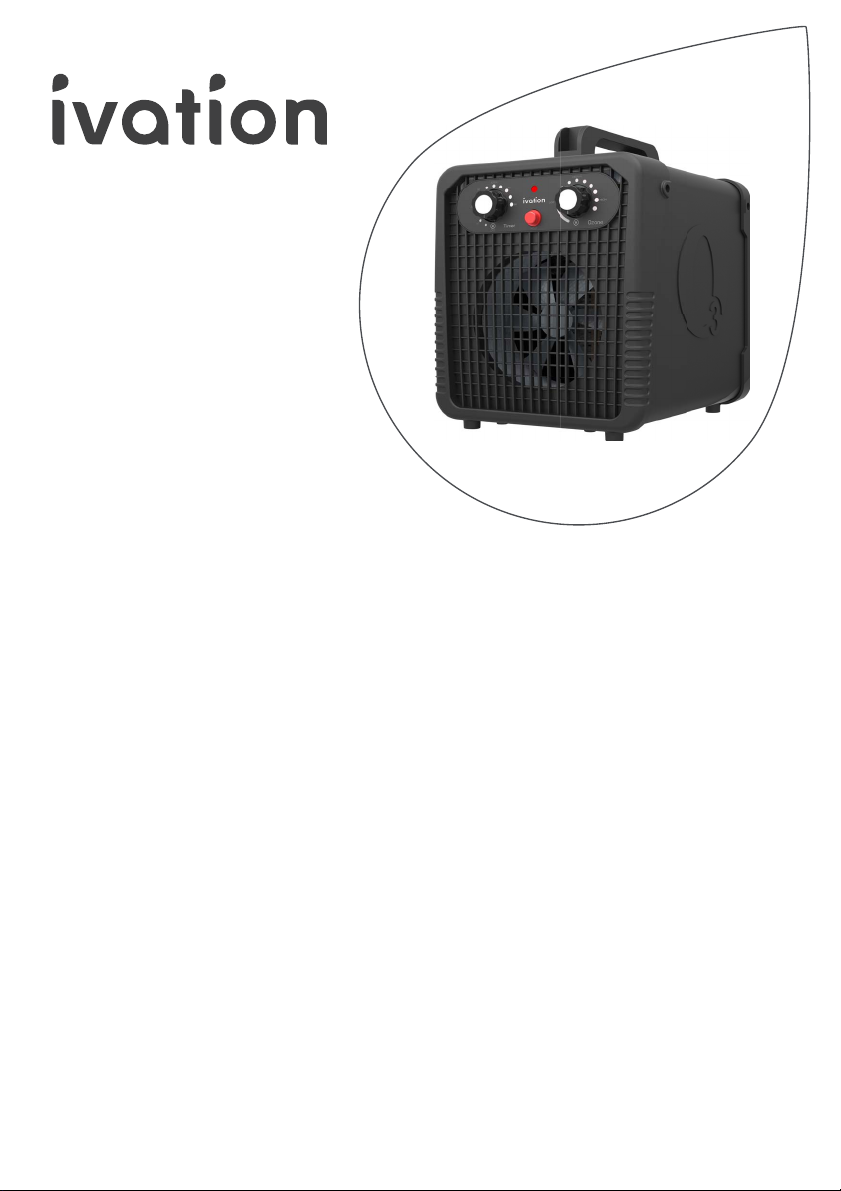

Ivation IVACOZ80 User manual

OZONE AIR
PURIFIER
USER GUIDE
IVACOZ80
Thank you for purchasing the Ivation® Portable Ozone Air Purifier. This User Guide is
intended to provide you with guidelines to ensure that operation of this product is safe
and does not pose risk to the user. Any use that does not conform to the guidelines
described in this User Guide may void the limited warranty.
Please read all directions before using the product and retain this guide for reference.
This product is intended for household use only.
This product is covered by a limited one-year warranty. Coverage is subject to limits
and exclusions. See warranty for details.
TABLE OF CONTENTS
2 Safety Precautions
2 Box Contents
3 Parts
4 How Does It Work?
4 Using the Ozone Air Purifier
5 Troubleshooting
6 Specifications

Safety Precautions
WARNING! Operate this unit in unoccupied spaces only. Inhalation of
ozone can cause lung damage and other harmful conditions in people
and animals.
• When inhaled, ozone can damage the lungs. Relatively low amounts can cause chest
pain, coughing, shortness of breath and throat irritation.
• Ozone may also worsen chronic respiratory diseases such as asthma and compromise
the body’s ability to fight respiratory infections.
• Operate this unit in unoccupied spaces only. Do not leave pets in the vicinity while the
unit is in operation.
• Do not return to the space immediately after treating the air. The ozone will normally
dissipate in less than an hour after the unit is turned o.
• We strongly recommend that you only operate the unit for the shortest recommended
time for your room size.
• Do not attempt to disassemble this unit. There are no user-serviceable parts inside
the unit.
• To avoid electric shock, plug the unit into a grounded electrical outlet.
• Make sure the unit is placed on a flat, even surface in a well-ventilated area. Do not block
the fan vent or the back of the unit.
• Do not expose the unit to direct sunlight, high humidity, or extreme temperatures.
• Do not place the unit close to heat sources or open flames.
• Do not use the unit outdoors.
• Unplug the unit before cleaning.
• Do not clean the unit with solvents, boiling water, or cleaning agents.
• Do not place items on top of the unit.
• Use this appliance only for its intended purpose.
• Do not let children operate the appliance unless supervised.
Box Contents
Ozone air purifier
Power cord
Spare fuse
User guide
2

Parts
1. Timer Knob
2. Ozone Knob
3. Hold Button
4.Handle
5. On/O Switch
6. Fuse Holder
7. Power Cable Connection
8. Air Filter
9. Power Cable
3
1
2
4
8
5
6
7
3
9

How Does It Work?
Nature creates ozone (O3) as a natural air cleaner in a number of ways, usually involving an
ordinary oxygen (O2) molecule and some form of electrical charge (like lightning or static
electricity in the air). The electrical current transforms an ordinary O2molecule into an
O3molecule. If you’ve taken a walk after a thunderstorm and experienced the fresh, clean
smell in the air, you’ve experienced the after-eects of ozone at work in the environment.
The Ivation Portable Ozone Air Purifier creates O3 via a special process that utilizes an
electrical current and the oxygen in the room. The ozone then sanitizes the air in your
room by breaking down odors, microorganisms, and other pollutants at their source.
During the air sterilization process, no one can be present in the room, because ozone is
not safe for humans or animals to inhale. The ozone air purifier includes a timer for your
safety and convenience. Once the timer runs out, the device will deactivate automatically.
After about an hour, the ozone reverts back to normal oxygen, and the room will be safe
for you to re-enter. Breathe deep, knowing the air in your room is fresh and clean.
Using the Ozone Air Purifier
1. Turn the unit on via the on/o switch on the rear of the device. This will not cause the
unit to start generating ozone. The machine will not start generating ozone until you
turn the Timer Knob to set the timer.
2. Use the Ozone dial on the right side of the control panel to determine whether you want
a high, medium, or low level of ozone to be generated, from 0 – 6000mg/h.
4

Troubleshooting
If you experience issues with your device, please check the following:
1. Make sure the unit is plugged in properly and turned on via the ON/OFF switch on
the back.
2. Make sure the wall outlet to which the power cable is connected is an active outlet that
is working properly.
3. Make sure that the ozone plates are clean and dry without any cracks. Ozone plates
generally need to be cleaned about once a month. Environmental factors such as pet
dander, cigarette smoke, etc., can aect the duration of ozone output. It’s optimal to
replace the ozone plates once every six months. Clean or change your ozone plates
more often if ozone output is weak. Follow these steps to check your ozone plates:
a. Make sure the ozone air purifier is o and disconnected from the
power supply.
b. Flip the unit over so the handle is on the bottom. You will see two
screws toward the front plate of the device. Remove those two
screws with a Philips-head screwdriver.
c. Remove the bottom plate. You should see a piece of white plastic
material with a black honeycomb pattern on it, held in place by a
black clip at the top. Press back on the clip until it releases the
plate and you can pull the white plastic ozone plate toward you
without bending it.
5
3. Turn the timer knob clockwise to set the timer for up to 60 minutes. Please refer to the
table below for a general guideline about operation time in relation to room size.
NOTE: For very large spaces, you can press the red HOLD button to make the unit run
indefinitely. Please note the unit is designed to operate in unoccupied spaces only. If you
set the red HOLD button, the unit will continue operating until someone quickly comes in,
turns it o, and then leaves the space again.
4. As soon as you set the timer, the machine will begin generating ozone. Leave the
room immediately.
5. Wait for the timer to run out and the machine will automatically deactivate. If the HOLD
override is in operation, wait for someone to deactivate the unit.
6. Once the machine is deactivated, wait at least another hour before re-entering the room,
so the ozone molecules have enough time to revert to oxygen molecules.
7. Enter your room after at least an hour and enjoy the fresh, clean air! (Please note, a slight
“electrical” odor in the air is normal; ozone has its own distinctive scent that will fade.)
Room
Room
S
S
ize
ize
100sqft 200sqft 500sqft 1000sqft 2500sqft 4000sqft
Run Time
Run Time
5min 10min 18min 36min 60min Hold

6
d. Examine the ozone plate for cracks and make sure it’s dry on the front. The white
paste on the back is there to improve conductivity. Do not remove it.
e. When you’ve finished, replace the ozone plate so that the clip holds it securely in
place again. Reattach the bottom plate on the unit itself and replace both screws.
Do not touch any of the other internal parts of the unit.
4. Make sure that the air filter on the back is clean. The air filter is removable and washable.
Do not use heat to dry the air filter, as this could damage it.
5. Make sure the fuse is installed properly and in good condition.
a. To replace the fuse, use the latch on the right side of the fuse holder slot to open the
cover, pull the holder straight out toward you, and then remove and replace the fuse.
One spare fuse is included in your package. The fuse type is 4A, 1.25"(31.75mm).
6. Make sure that the ozone air purifier is properly plugged into a grounded outlet to avoid
the potential for electrical shock and also to ensure proper functionality.
7. If the fan is still not operating, and/or there is no buzzing sound when the device is in
operation, immediately call Ivation customer service at 1-866-849-3049.
Specifications
• Rated Voltage: 110V
• Rated Frequency: 60Hz
• Rated Wattage: 88W
Questions or Problems? Contact us!
[e-mail]
1-866-849-3049
Distributed by
C&A Marketing
114 Tived Lane East
Edison, NJ 08837
[email protected]
Europe: C&A Europe
167 Hermitage Road
Crusader Industrial Estate
London N4 1LZ
United Kingdom
Made in China
IVATION is a trademark of
C&A IP Holdings, LLC
in the U.S.
©2018 All rights reserved
