Ivoclar Vivadent Bluephase Style 20i User manual

bluephase®20i
Licence to cure
For dental use only!
Caution: U.S. Federal law restricts this device to
sale by or on the order of a licensed dentist
Made in Austria
Ivoclar Vivadent AG, FL-9494 Schaan /
Liechtenstein
new
LED for every use

2
bluephase®20i
LED for every use Technical data
Wavelength range: 380-515 nm
Light intensity: 2,000 – 2,200 mW/cm2
Curing modes: Turbo, High Power, oft tart, Low Power
Max. exposure time:for composites: 10 sec.
Tetric EvoCeram: 5 sec.
Light probe: 10>8 mm black
Power supply: Lithium polymer battery,
approx. 45 min. capacity (curing time);
approx. 2 h charging time
Operating voltage: 100-240 VAC / 50-60 Hz
Warranty 3 years (battery 1 year)
3
12
2
11
7
8
9
10
1
5
6
4
new
Overview
En Operating Instructions Page 6
Sv Bruksanvisning ida 20
Da Brugsanvisning ide 34
Fi Kayttöohjeet ivu 48
No Bruksanvisning ide 62
Nl Bedieningshandleiding Pagina 76
El Οδηγίες χρήσης σελίδα 90
Ru àÌÒÚÛ͈Ëfl ÔÓ ÔËÏÂÌÂÌ˲ Page 104
Appendix Page / eite 118
EC Declaration of Conformity /
EU Konformitätserklärung Page / eite 120
13

4
3
1
2
3
4
5
6
7
8
9
10
11
12
13
English
List o parts
Handpie e
Start button
Display
Program sele tion button
Time sele tion button
Volume button
Power indi ator
Charging base
Power ord
Power pa k
Battery
Light probe 10>8 mm
Anti-glare shield
Indicators on the
charging base
Indi ator lights up in blue – the
harging base is onne ted to the
power supply
Indicators on the
handpiece
Curing program and
operating status
Sele ted indi ations and uring
time
Charging status of the battery
Signs and symbols
Non-permissible use
Double insulation (Apparatus
omplies with safety lass II)
Prote tion against ele tri al sho k
(BF type apparatus)
Observe Operating Instru tions
The apparatus must not be disposed
of in the normal domesti waste
Svenska
Lampans delar
Handsty ke
Startknapp
Display
Programvalsknapp
Tidvalsknapp
Volymknapp
Strömindikator
Laddningsstation
Nätkabel
Transformator
Batteri
Ljusledare 10>8 mm
Avbländningsskydd
Indikatorer på
laddningsstationen
Indikatorn lyser blått -
laddningsstationen är kopplad till
strömkällan.
Indikatorer på
handstycket
Ljushärdningsprogram o h
driftsstatus
Vald indikation o h
ljushärdningstid
Batteriets laddningsstatus
Tecken och symboler
Kontraindikation
Skydd mot elektrisk ho k
(BF apparat)
Prote tion against ele tri al sho k
(BF type apparatus)
Observera bruksanvisningen
Apparaten får inte kastas bland
hushållssopor
Dansk
Komponentoversigt
Håndstykke
Starttast
Display
Programvælgertast
Tidvælgertast
Volumenknap
Tændt-indikator (Power)
Ladestation
Netkabel
Netapparat
Batteri
Lysleder 10>8 mm
Blændskærm
Indikatorer på
ladestationen
Indikatoren lyser blåt –
ladestationen er forbundet til
forsyningsnettet
Indikatorer på
håndstykket
Belysningsprogram og
driftstilstand
Valgte indikatorer og
belysningstid
Batteriets tilstand
Symbol orklaring
Ikke-tilladt brug
Dobbeltisoleret
(apparat i beskyttelsesklasse II)
Beskyttelse mod elektriske stød
(apparat af typen BF)
Bemærk brugsanvisningen
Apparatet må ikke bortskaffes via
det normale husholdningsaffald
Suomi
Osaluettelo
Käsikappale
Start-näppäin
Näyttö
Ohjelman valintanäppäin
Ajan valintanäppäin
Äänenvoimakkuuden valintanäppäin
Virtanäyttö
Latausasema
Verkkojohto
Voimaosa
Akku
Valojohdin 10>8 mm
Häikäisysuojakilpi
Latausaseman
indikaattorit
Indikaattorissa palaa sininen
valo - latausasema on liitetty
virtalähteeseen
Käsikappaleen
indikaattorit
Kovetusohjelma ja
käyttötila
Valittuja indikaatioita
ja kovetusaika
Akun latausaika
Merkit ja symbolit
Käyttö ei sallittu
Kaksoiseriste (laite vastaa
turvaluokan II määräyksiä)
Suojaus sähköiskulta
(BF-luokan laite)
Noudata käyttöohjeita
Laitetta ei saa hävittää tavallisena
talousjätteenä
Norsk
Deleliste
Håndstykke
Starttast
Display
Programvalgtast
Tidsvalgtast
Volumtast
Driftsindikator
Ladestasjon
Strømledning
Nettadapter
Batteri
Lysleder 10>8 mm
1Blendingsbeskyttelse (-skjerm)
Indikatorer på
ladestasjonen
Indikatoren lyser blått –
ladestasjonen er koblet til
strømforsyningen
Indikatorer på
håndstykket
Herdeprogram og
driftsstatus
Valgte indikeringer
og herdetid
Batteriets ladestatus
Tegn orklaring
Ikke tillatt bruk
Dobbel isolering (apparatet svarer
til sikkerhetsklasse II)
Beskyttelse mot elektrisk støt
(apparat av type BF)
Følg bruksanvisningen
Apparatet må ikke kastes i det
normale husholdningsavfallet.
Nederlands
Onderdelenoverzicht
Handstuk
Startknop
Display
Programmakeuzeknop
Tijdinstellingsknop
Volumeknop
Powerindi ator
Laadstation
Netsnoer
Netvoedingseenheid
Batterij
Li htgeleider 10>8 mm
Antiverblindingss hermpje
Indicatoren op het
laadstation
Het indi atielampje brandt blauw –
het laadstation is aangesloten op
de stroomvoorziening
Indicatoren op het
handstuk
Beli htingsprogramma
en status
Gekozen indi aties en
beli htingsduur
Laadtoestand van de batterij
Verklaring van de
symbolen
Niet-toegestane toepassing
Dubbel geïsoleerd
(bes hermingsklasse II)
Beveiligd tegen elektris he
s hokken (type BF)
Raadpleeg de gebruiksaanwijzing
Het apparaat mag niet als
normaal huishoudelijk afval
worden afgevoerd
Ελληνικά
Κατάλογος µερών
χειρολα ή
Κου6πί έναρξης
Οθονηξ
Κου6πί επιλογής προγρά66ατος
Κου6πί επιλογής χρνου
Κου6πί έντασης
∆είκτης ισχύος
Βάση φρτισης
Καλώδιο τροφοδοσίας ηλεκτρικού ρεύ6ατος
Τροφοδοτικ
Μπαταρία
Ρύγχος φωτς 10>8 χιλ.
Αντιθα6 ωτική ασπίδα
∆είκτες στη
βάση φρτισης
οδείκτης ανά ει σε 6πλε χρώ6α – η
άση φρτισης είναι συνδεδε6ένη
6ε την τροφοδοσία ρεύ6ατος
∆είκτες στη
χειρολαβή
Πργρα66α πολυ6ερισ6ού και
κατάσταση λειτουργίας
Επιλεγ6ένοι δείκτες και
χρνος πολυ6ερισ6ού
Κατάσταση φρτισης της 6παταρίας
Σήµατα και
σύµβολα
Μη επιτρεπτή χρήση
∆ιπλή 6νωση
(Η συσκευή συ66ορφώνεται 6ε
την κατηγορία ασφαλείας II)
Προστασία απ ηλεκτροπληξία
(συσκευή τύπου BF)
Τηρείτε τις οδηγίες χειρισ6ού
Η συσκευή δεν πρέπει να
απορρίπτεται 6ε τα κανονικά
οικιακά απορρί66ατα
êÛÒÒÍËÈ
Lista de peças
Peça de mão
Botão de ligar
Visor
Te la de sele ção do programa
Te la de sele ção do tempo
Te la de intensidade sonora
Indi ador de alimentação elé tri a
Estação de arregamento
Cabo de ligação à rede
Unidade de alimentação
Bateria
Condutor de luz 10>8 mm
Es udo anti-ofus ante
Indicators on the
charging base
Indi ator lights up in blue – the
harging base is onne ted to the
power supply
Indicators on the
handpiece
Curing program and operating
status
Sele ted indi ations and uring
time
Charging status of the battery
Signs and
symbols
Non-permissible use
Double insulation (Apparatus
omplies with safety lass II)
Prote tion against ele tri al sho k
(BF type apparatus)
Observe Operating Instru tions
The apparatus must not be disposed
of in the normal domesti waste
Deutsch
Teileverzeichnis
Handstü k
Starttaster
Display
Programmwahltaster
Zeitwahltaster
Lautstärketaster
Power-Anzeige
Ladestation
Netzkabel
Netzgerät
Akku
Li htleiter 10>8 mm
Blends hutzs hild
Anzeigen der Ladesta-
tion
Anzeige leu htet blau – Ladestation ist
an die Stromversorgung anges hlossen
Anzeigen des Hand-
stücks
Beli htungsprogramm bzw. Betriebszu-
stand
Angewählte Indikation bzw. Beli h-
tungsdauer
Ladezustand Akku
Zeichenerklärung
Ni ht zulässige Anwendung
Doppelt isoliert
(Gerät der S hutzklasse II)
S hutz gegen elektris hen S hlag
(Gerätetyp BF)
Bedienungsanleitung bea hten
Das Gerät darf ni ht über den normalen
Hausmüll entsorgt werden
Für russ.
Übersetzung

5
Curing program
T RBO Program
Consistently high light intensity for the poly-
merization of restorative and cementation
materials for direct and indirect restorations.
HIGH POWER Program
Consistently high light intensity for the poly-
merization of restorative and cementation
materials for direct and indirect restorations.
LOW POWER Program
Reduced light intensity with reduced heat
development for the polymerization of
adhesives, liners, and restorative materials
in areas near the pulp when restoring
Class V cavities.
SOFT START Program
Step-by-step increase of the light intensity
with reduced shrinkage stress and reduced
heat development for the polymerization of
restorative materials.
Light intensity
Max. exposure time for composites
Max. exposure time for Tetric voCeram
Filling materials
Composite
Tetric voCeram / Tetric voFlow
Artemis / 4 Seasons, InTen-S,
Tetric new,Tetric N-Ceram /Tetric N-Flow
Heliomolar / Heliomolar HB / Heliomolar Flow
Others 1)
Compomer 2)
Compoglass F / Compoglass Flow
Indirect restorations /
Luting materials
Variolink II 3), Variolink Veneer 3)
Variolink Ultra 4), Multilink Automix 4),
Dual Cement 4)
Miscellaneous
Heliosit Orthodontic
Filling materials
Composite
Tetric voCeram / Tetric voFlow
Artemis / 4 Seasons, InTen-S,
Tetric new,Tetric N-Ceram /Tetric N-Flow
Heliomolar / Heliomolar HB / Heliomolar Flow
Others 1)
Compomer 2)
Compoglass F / Compoglass Flow
Indirect restorations /
Luting materials
Variolink II 3), Variolink Veneer 3)
Variolink Ultra 4), Multilink Automix 4),
Dual Cement 4)
Miscellaneous
Helioseal / Helioseal F / Helioseal Clear
Monopaque
MultiCore Flow / Multicore HB
CoroSeal
CoroSeal Bonding
Vivaglass Liner
Adhesive
AdheS , AdheS One,
xciT , xciT DSC
Tetric N-Bond
Syntac / Heliobond
Temporary materials
Systemp.link
Systemp.inlay/onlay
Fermit / Fermit N
Miscellaneous
Heliosit Orthodontic
Filling materials
Composite
Tetric voCeram / Tetric voFlow
Artemis / 4 Seasons, InTen-S,
Tetric new,Tetric N-Ceram /Tetric N-Flow
Heliomolar / Heliomolar HB / Heliomolar Flow
Others 1)
Compomer 2)
Compoglass F / Compoglass Flow
bluephase®20i
2,000 – 2,200 mw/cm2
10 sec.
5 sec.
Curing time
5 sec.
2x 5 sec.
2x 5 sec.
per mm ceramic: 2x 5 sec. per segment
2x 5 sec. per segment
2x 5 sec.
10 sec.
15 sec.
20 sec.
per mm ceramic: 10 sec. per segment
10 sec. per segment
10 sec.
20 sec.
20 sec.
10 sec.
10 sec.
20 sec.
10 sec.
10 sec.
10 sec.
10 sec.
20 sec.
15 sec.
20 sec.
20 sec.
1) Applies to a maximum layer thickness of 2 mm and provided that the Instructions for Use of the respective material do not state any other recommendation (might be the case with dentin shades)
2) Applies to a maximum layer thickness of 3 mm 3) Applies to light-curing (exclusive use of base paste) 4) Applies to dual-curing
1.200 mW/cm2
t [s]
05
650 mW/cm2
t [s]
0
1.200 mW/cm2
t [s]
0
2.000 mW/cm2
t [s]
0
650 mW/cm2

6
D ar Custom r
Optimum polym rization is an important
r quir m nt for all light cur d mat rials in
ord r to consist ntly produc high quality
r storations. Th polym rization light
s l ct d also plays a d cisiv rol in this
r sp ct. Th r for , w would lik to thank
you for having purchas d blu phas ®20i.
blu phas 20i is a high-quality m dical d vic
which has b n d sign d according to th
lat st standard of sci nc and t chnology in
complianc with th r l vant industry stan-
dards.
Th s Op rating Instructions will h lp you to
saf ly start up th d vic , mak full us of its
capabiliti s and nsur a long s rvic lif .
Should you hav any furth r qu stions,
pl as do not h sitat to contact us
(s addr ss s on th back cov r).
Your
Ivoclar Vivad nt T am

7
Table of Contents
Safety
Intended use 8
Indications 8
Safety notes 8
Start-up
Charging base 10
Handpiece 11
Battery 11
Click & Cure corded operation 12
Operation
Selecting the curing program and the curing time 13
Cure Memory function 16
Start
Acoustic signals 16
Light intensity 16
Measuring the light intensity 16
Maintenance and cleaning
Housing 17
Light probes 17
Battery contacts 17
Disposal 17
What if … 18
Warranty /
Procedure in case of repair 19
Product specifications
Delivery form 19
Accessories 19
Technical data 19
Operating conditions 19
Transportation and storage conditions 19
Declaration of conformity 120
English

8
Safety
Intended use
bluephase 20i is an L D polymerization light that produces
energy-rich blue light. It is used for the polymerization of
light-curing dental materials immediately at the dental unit.
The intended use also includes the observation of the notes
and regulations in these Operating Instructions.
Indication
With its “polywave” broadband spectrum, bluephase is
suitable for the polymerization of all light-curing dental
materials curing in the wavelength range of 380-515 nm.
These materials include restoratives, bonding agents/adhe-
sives, bases, liners, fissure sealants, temporary materials as
well as luting materials for brackets and dental-lab materi-
als such as those used in the fabrication of ceramic inlays.
Contraindications
• Materials, the polymerization of which is activated out-
side the wavelength range of 380-515 nm (no materials
known to date). If you are not sure about certain prod-
ucts, please ask the manufacturer of the corresponding
material.
• This unit should not be used near flammable anaesthetics
or mixtures of flammable anaesthetics with air, oxygen or
nitrous oxide.
• Portable and mobile high-frequency communication
devices may interfere with medical equipment. The use of
mobile phones during operation is not allowed.
• Caution – The use of controls or adjustment devices or
the performance of procedures other than those specified
herein may result in hazardous radiation exposure.
Safety notes
The bluephase 20i is a medical electronic device which is
subject to I C 601-1 ( N 60601-1) and MC standards (see
appendix). It complies with the relevant U regulations and
is classified as L D Class 2.
The apparatus has been shipped from the manufacturer in a
safe and technically sound condition. In order to maintain
this condition and to ensure risk-free operation, the notes
and regulations in these Operating Instructions have to be
observed. To prevent damage to equipment and risks for
patients, users and third parties, the following safety
instructions have to be observed.
sage and liability
• bluephase 20i must only be employed for the intended
use. Any other uses are contraindicated. Liability cannot
be accepted for damage resulting from misuse or failure
to observe the Operating Instructions.
• The user is responsible for testing bluephase 20i for its
use and suitability for the intended purposes. This is par-
ticularly important if other equipment is used in the
immediate vicinity of bluephase at the same time.
• Only original spare parts and accessories from Ivoclar
Vivadent (see Accessories) should be used. The manufac-
turer does not accept any liability for damage resulting
from the use of other spare parts or accessories.
Operating voltage
Before switching on, make sure that
a) the voltage indicated on the rating plate complies with
the local power supply
and
b) the unit has acquired the ambient temperature.
If the battery or power pack are used separately, e.g. during
start-up or Click & Cure corded operation, contact with
patients or third parties must be prevented. Do not touch
the exposed contacts of the battery or connection plug
(power pack).
Assumption of impaired safety
If it is assumed that safe operation is no longer possible,
the power must be disconnected and the battery removed
LED LIGHT
DO N OT S TAR E IN TO BEAM
CLASS 2 LED PRODUCT
Max. 5,11 mW / Wavelenght 380 - 515 nm
IEC 6 0825 -1:19 93 +A1:1997+A 2:2001

9
to avoid accidental operation. This may be the case, for
example, if the apparatus is visibly damaged or no longer
works correctly. Complete disconnection from the power
supply is only ensured when the power cord is disconnected
from the power source.
Eye protection
Direct or indirect exposure of the eyes must be prevented.
Prolonged exposure to the light is unpleasant to the eyes
and may result in injury. Therefore, using the supplied anti-
glare cones is recommended. Individuals who are generally
sensitive to light, who take photosensitizing drugs, have
undergone eye surgery, or people who work with the appa-
ratus or in its vicinity for long periods of time should not be
exposed to the light of this device. Therefore, they should
wear protective goggles (orange) that absorb light below
515 nm.
Battery
Caution: Use only original spare parts, particularly Ivoclar
Vivadent batteries and charging bases. Do not short circuit
battery. Do not store at temperatures above 40 °C / 104 °F
(or 60 °C / 140 °F for a short period). Always store batter-
ies charged. The storage period must not exceed 6 months.
May explode if disposed of in fire.
Heat development
(burn hazard)
As it is the case with all high-performance lights, the high
light intensity results in a certain heat development. Pro-
longed exposure of areas near the pulp and soft tissues
may result in irreversible or reversible damage. Therefore,
this high-performance curing light must only be operated by
trained professionals.
The recommended curing times have to be observed.
Uninterrupted curing times of more than 5 seconds in the
Turbo-Program on the same tooth surface, as well as direct
contact with the gingiva, oral mucous membrane or skin
have to be prevented. If required, polymerize in intermittent
intervals of at most 5 seconds each. Prevent heat accumula-
tion when polymerizing with a rubber dam in place. If irra-
diation of soft tissue cannot be avoided, operate with
reduced light intensity (use Low Power program). Polymer-
ize indirect restorations at intermittent intervals of 10 sec-
onds in the High-Power program and 2x 5 seconds each in
the Turbo program or use external cooling with an air
stream.
The instructions regarding
curing programs and curing
times must be observed (see
Selecting the curing program
and the curing time). In
addition, the light emission
window must be placed
directly over the material to
be cured at all times (e.g. by
holding it in place using a
finger).
It is not recommended to use the High Power program for
sensitive patients. In this case, operate with reduced light
intensity (use Low Power program).

10
Start-up
Delivery form
Check the delivery for completeness and any possible trans-
portation damage (see Delivery form). If components are
missing or damaged, immediately contact your dealer or
your Service Center.

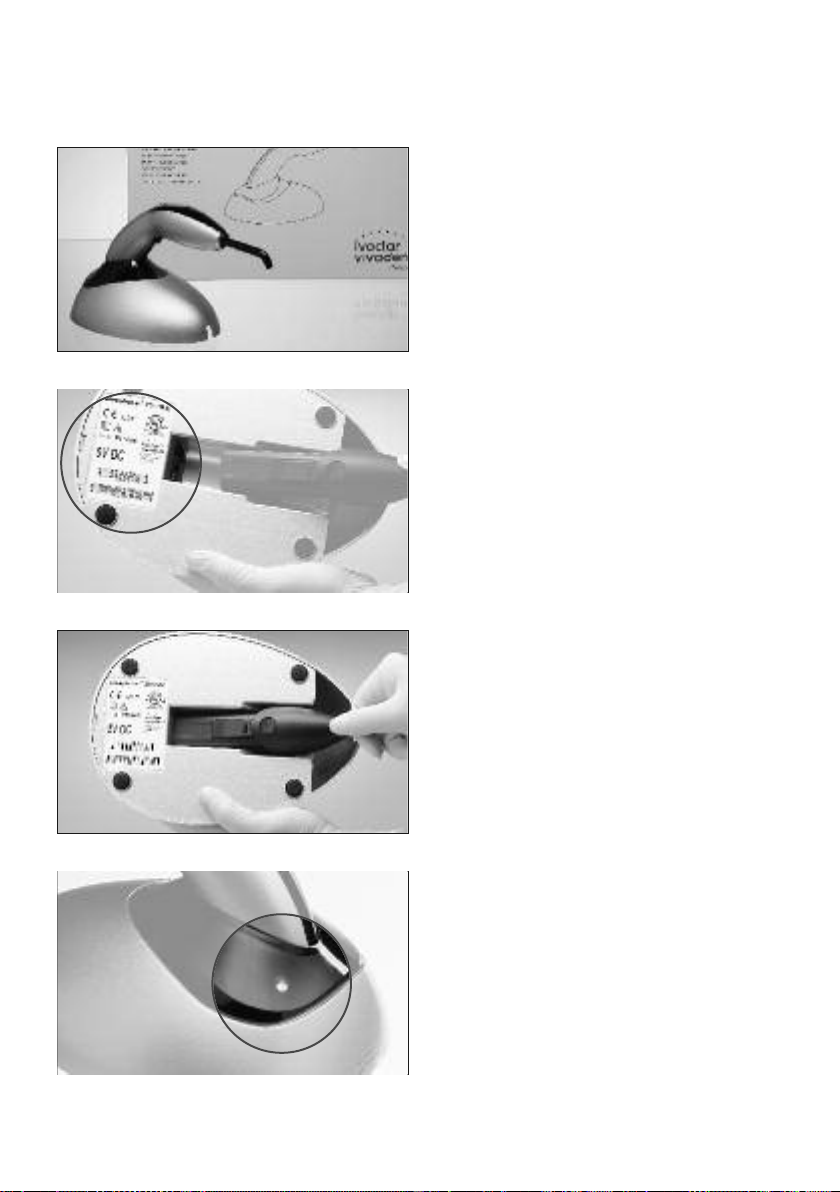

Charging base
Before you switch on the device, make sure that the voltage
mentioned on the rating plate complies with your local
power supply. The rating plate is attached to the underside
of the charging station.
Place the charging base on a suitable, flat table top.
Remove the protective foil from the connection plug of the
power pack. Slide the connection plug of the power pack
into the socket on the underside of the charging base. Tilt it
slightly and apply light pressure until you hear and feel it
snap into place.
Connect the power cord with the power supply and the
power pack.
The Power ON indicator on the left side of the housing
lights up in blue (see Indicators on the charging base).

11
Handpiece
Before you insert the light probe, remove the protective foil
on the corresponding opening of the handpiece.
Slightly turn the light probe while attaching it to the hand-
piece.
After that, mount the anti-glare shield on the light probe.
Battery
We recommend fully charging the battery before the first
use.
Slide the battery straight into the handpiece until you hear
and feel it click into place.
Gently place the handpiece in the corresponding cradle in
the charging base. If a sleeve is used, please remove it
before you charge the battery. If the battery is fully charged,
it features a curing capacity of approximately 45 minutes.
Tip
If possible, use the light always with a fully charged battery.
This will prolong its service life. It is therefore recommended
to place the handpiece into the charging base after each
appointment.

12
Click & Cure corded operation
bluephase 20i can be used in corded operation at any time,
but particularly when the battery is completely empty.
For this purpose, remove the battery from the handpiece.
Then remove the power pack from the underside of the
charging base. Do not pull on the power cord.
Insert the connection plug straight into the handpiece until
you hear and feel it click into place.
During corded operation, the charging base cannot charge
the battery, since it is not connected to a power source.
The apparatus is only completely disconnected from the
power supply if the power cord has been pulled out of the
plug-in socket.
Start-up

13
Charging status of the battery
With the handpiece switched on, the current charging status is shown on the display as follows:
The indicator on the display shows that the battery is being
charged.
The battery is fully charged as soon as the display is dark (if the
battery is completely empty, charging takes approximately 2 h).
However, the handpiece may be taken off the charging base
with reduced capacity and used for polymerization at any time.
Battery fully charged (curing capacity of approximately 45
minutes).
Battery half full
Reserve (The last bar in the battery indicator is red in the reser-
ve mode. The battery has to be charged as soon as possible.)
If the battery is completely empty, the handpiece automatically
switches to the stand-by mode. The light can no longer be cal-
led up and the curing program and curing time can no longer
be set. However, the handpiece can be used in the
Click & Cure corded operation.
Since the battery is a consumable, it has to be replaced after its
typical life cycle has expired after 2-3 years. See battery label
for the age of the battery.
Signs and symbols
S000001 04/04/09
dd/mm/yy

14
Operation
Disinfect or autoclave contaminated surfaces of the curing
light as well as light probes and anti-glare cones before
each use.
Furthermore, make sure that the stipulated light intensity
permits adequate polymerization. For this purpose, check
the light probe for contamination and damage as well as
the light intensity at regular intervals (e.g. with the Ivoclar
Vivadent radiometer “bluephase meter”).
Selecting the curing program and the
curing time
The curing program and the curing time can be individually
set. bluephase 20i is equipped with the following 4 curing
programs for the different indications. The desired curing
program is selected with the program selection buttons. The

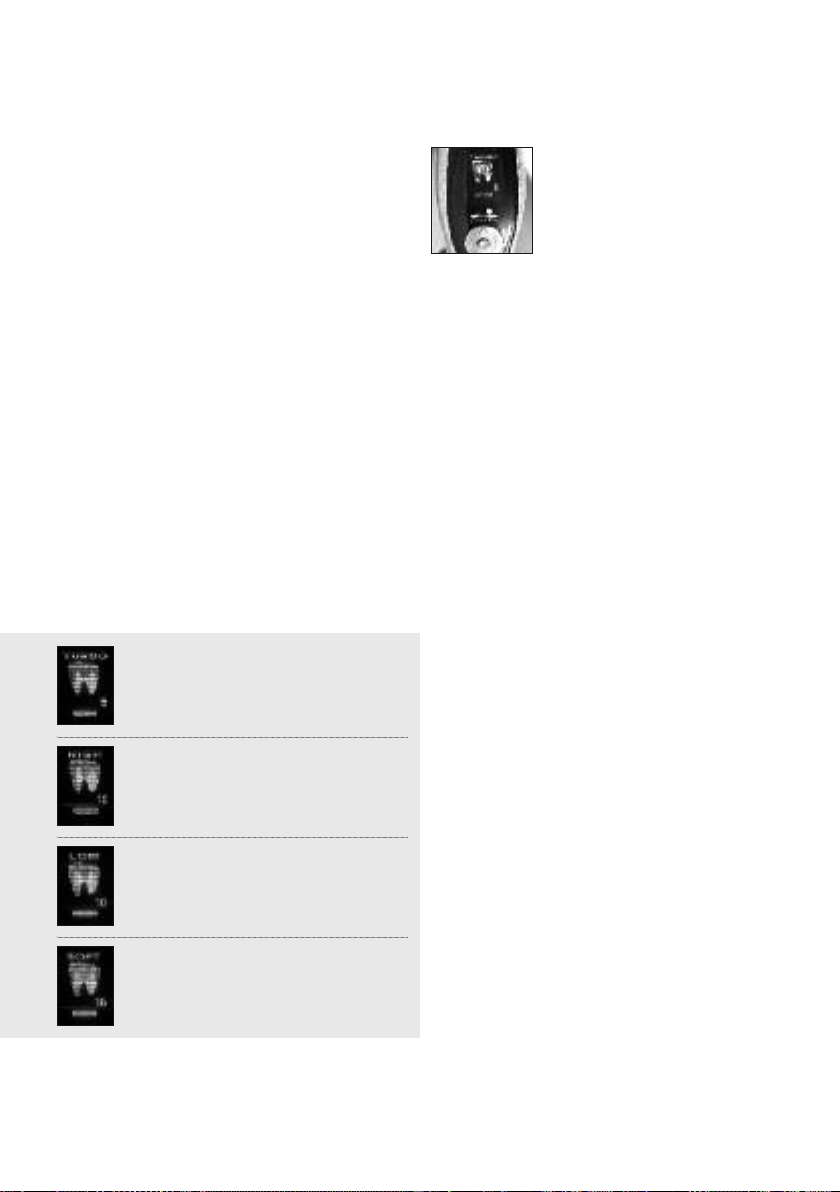

display changes accordingly (see Indicators on the hand-
piece). The device comes equipped with the following pre-
set programs:
Factory settings
TURBO 5 seconds
HIGH 10 seconds
(High Power)
OW 10 seconds
( ow Power)
SOFT 15 seconds
(Soft start)
The intended curing time is selected
using the time selection buttons. Users
may choose between 5, 10, 15, 20
and 30 seconds.
Observe the Instructions for Use of the material applied
when selecting the curing time.
The curing recommendations for composite materials apply
to all shades and, if not mentioned otherwise in the Instruc-
tions for Use, to a maximum layer thickness of 2 mm. Gen-
erally, these recommendations apply to situations where the
emission window of the light probe is placed directly over
the material to be polymerized. Increasing the distance
between the light source and the material will require the
curing time to be extended accordingly. For instance, if the
distance to the material is 8 mm, the effective light output
is reduced by approx. 50%. In this case, the recommended
curing time has to be doubled.
1) The information provided herein applies to the light
probe 10>8 mm supplied in the delivery form.
2) The information regarding heat development and burn
hazard must be taken into consideration (see Safety
notes).

15
Curing programm
1) Applies to a maximum layer thickness of 2 mm and provided that the Instructions for Use of the respective material do not state any other recommendation (might be the case with dentin shades)
2) Applies to a maximum layer thickness of 3 mm 3) Applies to light-curing (exclusive use of base paste) 4) Applies to dual-curing
T RBO Program
Consistently high light intensity for the poly-
merization of restorative and cementation
materials for direct and indirect restorations.
HIGH POWER Program
Consistently high light intensity for the poly-
merization of restorative and cementation
materials for direct and indirect restorations.
LOW POWER Program
Reduced light intensity with reduced heat
development for the polymerization of
adhesives, liners, and restorative materials
in areas near the pulp when restoring
Class V cavities.
SOFT START Program
Step-by-step increase of the light intensity
with reduced shrinkage stress and reduced
heat development for the polymerization of
restorative materials.
Light intensity
Max. exposure time for composites
Max. exposure time for Tetric voCeram
Filling materials
Composite
Tetric voCeram / Tetric voFlow
Artemis / 4 Seasons, InTen-S,
Tetric new, Tetric N-Ceram / Tetric N-Flow
Heliomolar / Heliomolar HB / Heliomolar Flow
Others 1)
Compomer 2)
Compoglass F / Compoglass Flow
Indirect restorations /
Luting materials
Variolink II 3), Variolink Veneer 3)
Variolink Ultra 4), Multilink Automix 4),
Dual Cement 4)
Miscellaneous
Heliosit Orthodontic
Filling materials
Composite
Tetric voCeram / Tetric voFlow
Artemis / 4 Seasons, InTen-S,
Tetric new, Tetric N-Ceram / Tetric N-Flow
Heliomolar / Heliomolar HB / Heliomolar Flow
Others 1)
Compomer 2)
Compoglass F / Compoglass Flow
Indirect restorations /
Luting materials
Variolink II 3), Variolink Veneer 3)
Variolink Ultra 4), Multilink Automix 4),
Dual Cement 4)
Miscellaneous
Helioseal / Helioseal F / Helioseal Clear
Monopaque
MultiCore Flow / Multicore HB
CoroSeal
CoroSeal Bonding
Vivaglass Liner
Adhesive
AdheS , AdheS One,
xciT , xciT DSC
Tetric N-Bond
Syntac / Heliobond
Temporary materials
Systemp.link
Systemp.inlay/onlay
Fermit / Fermit N
Miscellaneous
Heliosit Orthodontic
Filling materials
Composite
Tetric voCeram / Tetric voFlow
Artemis / 4 Seasons, InTen-S,
Tetric new, Tetric N-Ceram / Tetric N-Flow
Heliomolar / Heliomolar HB / Heliomolar Flow
Others 1)
Compomer 2)
Compoglass F / Compoglass Flow
bluephase®20i
2,000 – 2,200 mW/cm2
10 sec.
5 sec.
Curing time
5 sec.
2x 5 sec.
2x 5 sec.
per mm ceramic: 2x 5 sec. per segment
2x 5 sec. per segment
2x 5 sec.
10 sec.
15 sec.
20 sec.
per mm ceramic: 10 sec. per segment
10 sec. per segment
10 sec.
20 sec.
20 sec.
10 sec.
10 sec.
20 sec.
10 sec.
10 sec.
10 sec.
10 sec.
20 sec.
15 sec.
20 sec.
20 sec.
1.200 mW/cm2
t [s]
05
650 mW/cm2
t [s]
0
1.200 mW/cm2
t [s]
0
2.000 mW/cm2
t [s]
0
650 mW/cm2

16
Cure Memory function
The last settings used, together with the combination of
curing program and curing time, are automatically saved.
Start
The light is switched on by means of the start button. Once
the selected curing time has elapsed, the curing program is
automatically terminated. If desired, the light can be
switched off before the set curing time has elapsed by
pressing the start button again. The fan is activated simulta-
neously to the light. Once the curing time has elapsed, the
fan continues to run for a certain time to cool the appara-
tus. The battery must not be removed as long as the fan is
still running.
Acoustic signals
Acoustic signals can be heard for the following functions:
• Start (Stop)
• very 10 seconds
• Program change
• Curing time change
• Connecting the battery to the charging base
• Inserting battery
• rror message
If desired, the volume of the acoustic signals can be
adjusted.
For this purpose, press the blue volume button (see Product
overview) while the light is off and reduce the volume or
turn the acoustic signals off with the left time selection but-
ton. If you want to turn the acoustic signals back on or
increase the volume, press the blue volume button and then
the right time selection button.
Light intensity
The light intensity is maintained at a consistent level during
operation. If the supplied 10>8 mm light probe is used, the
light intensity has been calibrated to 2,000 - 2,200 mW/cm2.
Measuring the light intensity
The light intensity of the bluephase 20i and the supplied
10>8 mm light probe can be checked, for instance, by
means of the bluephase meter.
If the measured value does not correspond with the expect-
ed light intensity, proceed as follows:
• Check the selected curing program
• Clean light sensor if it is contaminated
• Remove the light probe and clean the light emission
window of the handpiece with a cotton swab dipped in
alcohol
• Clean light probe if it is contaminated
(see Maintenance and cleaning)
• Replace a damaged light probe with a new one
If these measures do not improve the results, please contact
your dealer or your local Service Center.
Operation

17
For reasons of hygiene, the use of a disposable protective
sleeve is recommended for each patient. Contaminated sur-
faces of the device as well as of the light probes and anti-
glare cones must be disinfected (e.g. FD333/Dürr Dental,
Incidin Liquid/ colab) or autoclaved before each use. Make
sure that no liquids or other foreign substances enter the
handpiece, charging base and particularly the power pack
during cleaning (risk of electrical shock). Disconnect the
charging base from the power source when cleaning it.
Housing
Wipe the handpiece and handpiece holder with a custom-
ary aldehyde-free disinfecting solution. Do not clean with
highly aggressive disinfecting solutions (e.g. solutions based
on orange oil or with an ethanol content of more than
50%), solvents (e.g. acetone), or pointed instruments, which
may damage or scratch the plastic. Clean dirty plastic parts
with a soap solution.
Light probes
Clean the light probe with a disinfectant and a soft cloth.
Carefully remove any possible material residue, such as
composite material, from the light probe with a fingernail
or a plastic spatula, for instance. Do not use sharp or point-
ed instruments, since they may scratch the surface of the
light probe and thus reduce light transmission. Light probes
and anti-glare cones may be autoclaved (e.g. 134 °C, 3 bar,
5 minutes). Check light probes for damage. If a light probe
is held against a light source and certain segments appear
black, then the glass fibres are broken. In this case, the light
probe has to be replaced with a new one.
Battery contacts
For good conductivity at all times, keep the battery contacts
free from possible contamination (e.g. composite residue).
For this purpose, clean the affected contacts regularly with
disinfectant wipes (after each patient).
Disposal
The apparatus must not be disposed of in normal domestic
waste. Dispose of unserviceable batteries and polymeriza-
tion lights according to the corresponding legal require-
ments in your country. Batteries must not be incinerated.
Maintenance and cleaning

18
Error rectification
Remove and reinsert the battery. If the error persists, replace the battery
with the power pack (Click & Cure).
If the error persists, please contact your dealer or your local Service
Center.
Allow the apparatus to cool down (or assume room temperature if it is
undercooled) and try again after a certain time.
If the error persists, please contact your dealer or your local Service
Center.
Remove and reinsert the battery. If the error continues to be displayed,
place the apparatus into the charging base. If the error persists nonethe-
less, replace the battery with the power pack (Click & Cure).
Please contact your dealer or your local Service Center.
Place the handpiece into the charging base. The corresponding message
(„Charging”) will be displayed. If the battery is not charged, the contacts
have to be cleaned.
If the error persists, please contact your dealer or your local Service
Center.
Check if the handpiece has been correctly placed into the charging base.
Clean battery contacts.
If cleaning the battery contacts does not resolve the problem, remove the
battery from the apparatus. Charge the battery separately from the hand-
piece in the charging base for approximately 10 minutes.
If the error persists, please contact your dealer or your local Service
Center.
Check the battery contacts and if the power pack is correctly positioned
in the charging base or if the power pack is connected to the power sup-
ply by means of the power cord (display on the power pack lights up in
green if it works correctly).
If the error persists, please contact your dealer or your local Service
Center.
Causes
lectronic defect in the handpiece
or battery
Apparatus is overheated or under-
cooled
lectronic defect in the battery
Battery empty
Charging contacts contaminated
Battery in safety mode
Power pack not connected or
defective
What if …
Symbol
No display
during
charging
LED of the
charging
base is not
illuminated

19
Warranty /
Procedure in case of repair
The warranty period for bluephase 20i is 3 years from the
date of purchase (battery 1 year). The warranty includes an
L D operating life of 300 hours. Malfunctions resulting from
faulty material or manufacturing errors are repaired free of
charge during the warranty period. The warranty does not
provide the right to recover any material or non-material
damage other than the ones mentioned. The apparatus
must only be used for the intended purposes. Any other
uses are contraindicated. The manufacturer does not accept
any liability resulting from misuse and warranty claims can-
not be accepted in such cases. This is particularly valid for:
• damage resulting from improper handling, especially
incorrectly stored batteries (see Technical data:
Transportation and storage conditions).
• damage to components resulting from wear under stan-
dard operating conditions (e.g. battery).
• damage resulting from external influences, e.g. blows,
drop to the floor.
• damage resulting from incorrect set-up or installation.
• damage resulting from connecting the unit to a power
supply, the voltage and frequency of which do not com-
ply with the ones stated on the rating plate.
• damage resulting from improper repairs or modifications
that have not been carried out by certified Service
Centres.
In case of a claim under warranty, the complete apparatus
(handpiece, charging base, power cord and power pack)
must be returned, carriage paid, to the dealer or directly to
Ivoclar Vivadent, together with the purchase document. Use
the original packaging with the corresponding cardboard
inserts for transportation.
Repair work may only be carried out by a certified Ivoclar
Vivadent Service Center. In case of a defect that cannot be
rectified, please contact your dealer or your local Service
Center (see addresses on the reverse side). A clear descrip-
tion of the defect or the conditions under which the defect
occurred will facilitate locating the problem. Please enclose
this description when returning the apparatus.
Product specifications
Delivery form
1 Charging base, 1 Power cord, 1 Power pack, 1 Handpiece
1Battery (LI-Po, 1 10>8 mm light probe, 1 Anti-glare shield, Sleeves,
1 Set of Operating Instructions
Accessories
The following accessories are available for bluephase 20i:
REF Description
627389 Light probe 10>8 mm, black (G2)
608538 Pin-point light probe 6/2 mm, black (G2)
551756 Anti-glare cones
592496 Anti-glare shield
627299 bluephase 20i charging base (G2)
627300 bluephase 20i battery (G2)
627298 bluephase 20i handpiece (G2)
607922 bluephase meter
608554 bluephase sleeves (G2)
Technical data
Operating voltage charging base 5 VDC
Operating voltage handpiece 3.7 VDC with battery
5 VDC with power pack
Power Pack 100-240 VAC / 50-60 Hz /
max. 0.4 A / Output 5 VDC
TYP 15.2630
Operating conditions
Temperature +10 °C to +40 °C (+50 to +104°F)
Relative humidity 30 % to 75%
Ambient pressure 700 hPa to 1060 hPa
Dimensions of the charging base L=205mm; W=150mm; H=85mm
Weight of the charging base 250 g
Charging time approx. 2 h (with the battery empty)
Power supply of the handpiece Li-Po battery
Max. battery time approx. 45 min.
(with a new, fully charged battery)
Light source polywave L D
Wavelength range 380–515 nm
L D-Class 2 L D LIGHT
DO NOT STAR INTO B AM
CLASS 2 L D PRODUCT
Max. 5.11 mW / Wavelenght 380 - 515 nm
Light intensity 2,000 - 2,200 mW/cm2
Operation 6 min. on / 4 min. off (intermittently)
Dimensions of the handpiece L=260mm; W=42mm; H=120mm
Weight of the handpiece (incl. battery) 245 g
Transportation and storage conditions:
Temperature -20 °C to +60 °C (-4 to 140°F)
Relative humidity 10% to 75%
Ambient pressure 500 hPa to 1060 hPa
bluephase 20i has to be stored in closed, roofed rooms.
Protect the device from severe jarring.
Battery
• Do not store at temperatures above 40 °C / 104 °F (or 60 °C / 140 °F
for a short period). Recommended storage temperature 20–25 °C (68–77 °F).
• Always store the battery charged and
• not for longer than 6 months.

20
Bäst kund,
Optimal ljushärdning är n viktig
förutsättning för att g nomgå nd rhålla
högkvalitativa r stauration r m d alla
ljushärdand mat rial.Val av ljushärdnings-
lampa sp lar också n viktig roll. Därför vill vi
tacka dig för ditt köp av blu phas 20i.
D nna ljushärdningslampa är tt högkvalita-
tivt m dicint kniskt hjälpm d l, som har
utformats ft r s nast v t nskapliga och
t kniska rön, tillsammans m d nu gälland
industri lla norm r.
D nna bruksanvisning komm r att hjälpa dig
att på tt säk rt sätt sätta lampan i bruk och
lära dig att utnyttja d ss möjligh t r till fullo
und r h la lampans långa livslängd.
Om du har frågor, tv ka int att kontakta oss
(s adr ss n på baksidan).
Ditt
Ivoclar Vivad nt T am

21
Innehållsförteckning
Säkerhet
Användningsområde 22
Indikationer 22
Säkerhetsföreskrifter 22
Första start
Laddningsstation 24
Handstycke 25
Batteri 25
Click & Cure kabeldrift 26
Arbete
Val av härdningsprogram och härdningstid 28
Härdningsminnesfunktion 30
Start
Akustiska signaler 30
Ljusintensitet 30
Mätning av ljusintensitet 30
nderhåll och rengöring
Kåpan 31
Ljusledare 31
Batterikontakter 31
Avyttring 31
Vad är fel när … 32
Garanti /
Procedur i händelse av reparation 33
Produktspecifikationer
Leveransform 33
Tillbehör 33
Teknisk data 33
Arbetsförhållanden 33
Transport och förvaringsvillkor 120
Svenska
