Jabra PanaCast 50 User manual

User manual
Jabra PanaCast 50

Made in Malaysia
MODEL: VSM020
Declaration of Conformity can be found on www.jabra.com/doc
© 2021 GN Audio A/S. All rights reserved. Jabra®is a trademark of GN Audio A/S. The Bluetooth®word
mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks
by GN Audio A/S is under license.

3
1. Welcome........................................ 5
2. Overview........................................ 6
2.1 Jabra PanaCast 50 overview
2.2 Included accessories
2.3 Optional accessories
3. Visual indicators.........................10
4. Room setup guide ..................... 11
5. Mounting options ......................12
5.1 Wall Mount installation
5.2 Screen Mount installation
5.3 Table Stand installation
5.4 Installation height
6. Cabling .........................................16
6.1 Room system cabling
6.2 Bring-your-own-device (BYOD) cabling
6.3 Jabra hub cabling
7. Software ......................................19
7.1 Operating systems
7.2 Jabra Direct (Windows or macOS)
7.3 Jabra Xpress (Windows or macOS)
7.4 Jabra Sound+ (iOS or Android)
7.5 Microsoft Teams and Teams Rooms
7.6 Zoom and Zoom Rooms
7.7 Other compatible video conferencing
applications
8. Remote management setup...25
8.1 Quick startup wizard in Jabra Direct
9. Video conferencing features...28
9.1 Camera controller in Jabra Direct and
Jabra Sound+
9.2 Intelligent Zoom
9.3 Virtual Director

4
9.4 Safety capacity settings
9.5 Save Pan, Tilt, Zoom presets
9.6 Image quality settings
9.7 Video flicker
9.8 Field of view
9.9 Video stitching
9.10 Update firmware
10.Whiteboard .................................35
10.1 Position the whiteboard
10.2 Set up whiteboard view
10.3 Share the whiteboard in the main
camera view
10.4 Share a separate view of the whiteboard
in Zoom Rooms
11.Remote control
(optional accessory).................. 40
11.1 How to pair the remote control
11.2 How to use the remote control
12.Support ........................................ 42
12.1 FAQ and technical specifications
12.2 How to care for your Jabra device
12.3 How to factory reset

5
1. Welcome
Thank you for using the Jabra PanaCast 50. We hope you will enjoy it!
Jabra PanaCast 50 features
• Inclusive meetings. Panoramic-4K video using three 13-megapixel cameras and
patented real-time video stitching to give 180° coverage, for a more natural view
of the huddle room.
• Intelligent video technology. Intelligent Zoom automatically includes everyone
in the conversation, while Vivid HDR ensures the best video experience, even
under widely varying lighting conditions.
• Instant collaboration. Plug-and-play technology lets you collaborate with others
quickly and easily, bringing hassle-free video and audio to your huddle room.
• Versatile compatibility. Compatible with all leading video and audio-conferencing
solutions. Certified for use with Microsoft Teams Rooms, Zoom and Zoom Rooms.

6
2. Overview
2.1 Jabra PanaCast 50 overview
FRONT SIDE
LED
Speakers
Microphones
MicrophonesMicrophones
Microphones
Microphones
Cameras

7
BACK SIDE
Adjustable
mounting bracket
Air vents
Bluetooth button (to pair
remote control)
3.5 mm
AUX port
Reset
Ethernet (for
Jabra Xpress)
USB-C
AC power
POWER
USB C
ETHERNET
AUXIN RESET

8
2.2 Included accessories
Additional accessories can be purchased at jabra.com/accessories.
AC power cable
(1m/3ft)
2 screws
(M5x12)
Wall MountAC power adapter (2m/6ft)
USB-C cable
(2m/6ft)
Hardware not included:
• Drywall screws and
anchors
• Masonry screws

9
2.3 Optional accessories
Accessories can be purchased at jabra.com/accessories.
USB-C cable
(5m/15ft)
Screen Mount
Table Stand
Remote control

10
3. Visual indicators
LED STATUS
Off or not streaming
Starting up
Connected
In call or streaming video/media
In call, audio muted
Room capacity notification
Pairing remote control
Firmware updating
(LED off)
(pulsing white)
(on for 3 seconds)
(pulsing red)
(flashing green and blue)
(flashing purple)

11
4. Room setup guide
The Jabra PanaCast 50 is designed for meeting rooms up to 4.5 meters x 4.5
meters (15 feet x 15 feet) and can be mounted using the supplied Wall Mount or
the optional Screen Mount or Table Stand. If a whiteboard will be used in the
meeting room, ideally it should be positioned on the adjacent wall for optimal
viewing.
View the Room setup guide PDF here: jabra.com/help/panacast50/getstarted
Below are some typical room setup scenarios.

12
5. Mounting options
5.1 Wall Mount installation
View the Wall Mount assembly video or PDF here:
jabra.com/help/panacast50/getstarted

13
5.2 Screen Mount installation
The Screen Mount is designed for screens up to 220 centimeters (86 inches) and
VESA mounts up to 600 millimeters.
View the Screen Mount assembly video or PDF here:
jabra.com/help/panacast50/getstarted

14
5.3 Table Stand installation
View the Table Stand assembly video or PDF here:
jabra.com/help/panacast50/getstarted

15

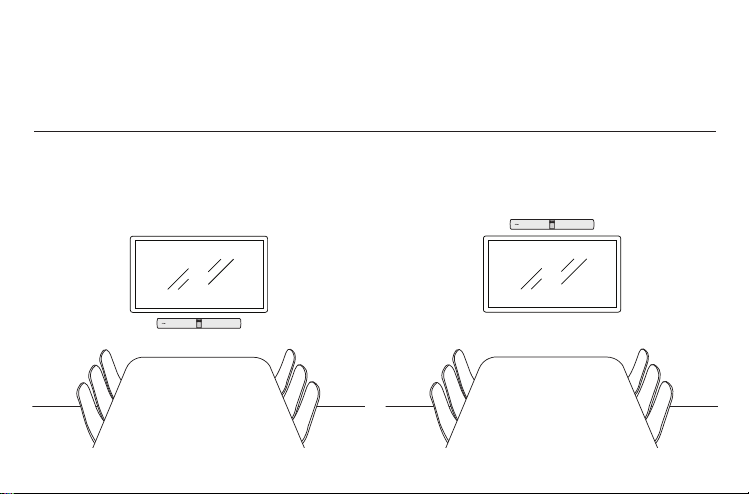

5.4 Installation height
It is recommended to install the Jabra PanaCast 50 at eye-level of the meeting
room participants.
When installing the PanaCast 50
with the Wall Mount or Screen
Mount, the camera should be
positioned 8 centimeters (3 inches)
below the screen and ideally 30-35
centimeters (12-14 inches) above the
table top or 100 centimeters
(3 feet) from the floor. If this height is
not possible, it is recommended to
install the Jabra PanaCast 50 above the screen.
Do not mount the camera facing direct sunlight as this may affect the preset white
balance and compromise the image.
Min.
8 cm (3 in)
Recommended
30-35 cm (12-14 in)
Recommended
1 m (3 ft)

16
6. Cabling
The Jabra PanaCast 50 is versatile and can be used with a Microsoft Teams Room or
Zoom Room systems, bring-your-own-devices (BYOD), or a Jabra hub. It is
recommended not to use USB extender cables.

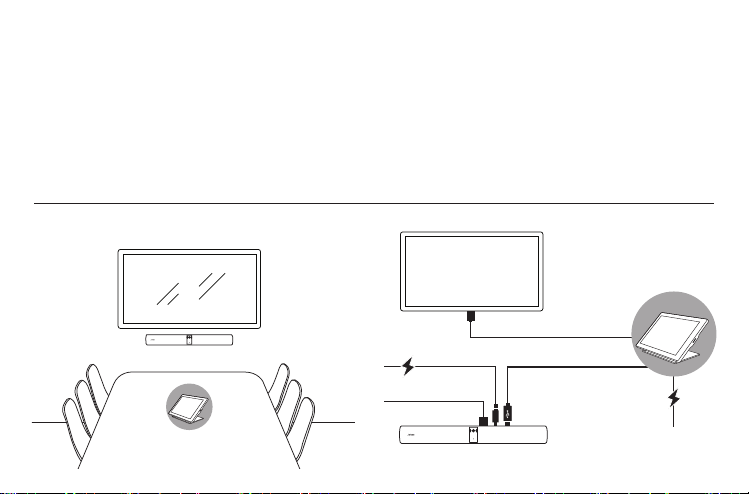

6.1 Room system cabling
Jabra PanaCast 50
Screen
HDMI (4K)
USB-CAC power
Ethernet (Jabra Xpress) AC power

17
6.2 Bring-your-own-device (BYOD) cabling
Jabra PanaCast 50
Screen
HDMI (4K)
USB-CAC power
Ethernet (Jabra Xpress)

18

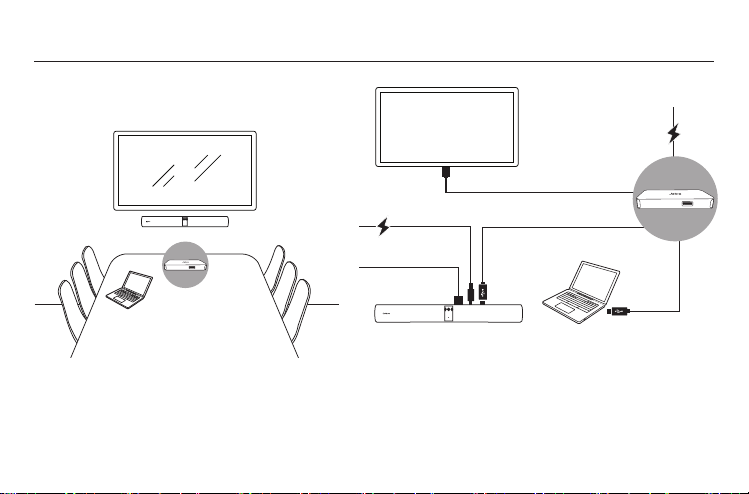

6.3 Jabra hub cabling
Jabra PanaCast 50
Screen
AC power
AC power
HDMI (4K)
USB-C
USB-A/USB-C
Ethernet (Jabra Xpress)

19
7. Software
7.1 Operating systems
Jabra PanaCast 50 supports Windows 8 or later, and macOS 10.15 or later, and does
not require extra drivers.

20
7. 2 Jabra Direct (Windows or macOS)
Jabra Direct is free desktop
software designed to support,
manage and enable optimal
functionality for Jabra devices.
Jabra Direct features a camera
controller that can be used as a
remote control for the Jabra
PanaCast 50 (refer to section
9.1 for more info).
Download the latest free version from jabra.com/direct
