Jacuzzi FUZION 7236 RH User manual

English Metric
Outer Dimensions 70 3/4” L x 35 1/2” W x 24” H 1797 mm L x 902 mm W x 610 mm H
Interior Dimensions
(bottom of bath) L x W (Mid) x W (End) 48” L x 21 1/2” W x 21 1/2” W 1219 mm L x 546 mm W x 546 mm W
Drain/Pump Configuration Right hand drain/Left end pump Right hand drain/Left end pump
Bath Weight (empty) 135 lbs 61 kg
Total Weight/Floor Loading 1,210 lbs 69.6 lbs/ft2550 kg 340 kg/m2
Operating Gallonage (min-max) 77 (min) 99 (max) U.S. Gals 291.5 (min) 375 (max) L
Fuzion 7236 RH Whirlpool
Material Type: High-Gloss Acrylic
Install Type: Drop-in with wood frame or Undermount
Available Colors: White (W), Almond (A), Oyster (Y), Black (B)
Cut-out: 69” x 33” or Undermount Template DD42000
Standard (Included) Features:
14 jets, In-line Heater, Chromatherapy lighting, infinity edge overflow, 1
pillow, chrome twist and turn drain (for alternate finishes, replace with
standard parts, 1.5” drain elbow)
Available Control Systems:
J4 Luxury Control Panel (standard)
J5 Luxury LCD Control Panel
Available Upgrades:
Whisper Quiet Technology,
Illumatherapy Lighting
Available Accessories:
HB77 Optional wood frame (specify finish) 900: Unfinished, 935: Wenge,
936: Teak
© 2010 Jacuzzi Luxury Bath • For additional information call Customer Service 800-288-4002 • www.jacuzzi.com/technicalspecs
HD28000 REL 03/10
Letter Description English Metric
L Outer Length 70 3/4” 1797 mm
W Outer Width 35 1/2” 902 mm
H Overall Height** 24” 610 mm
A Overflow Height 17” 432 mm
B Long Edge to Drain Center 10 1/4” 260 mm
C Short Edge to Drain Center 17 11/16” 447 mm
D Drain Shoe Length 7” 178 mm
E Deck Height** 4” 102 mm
F Deck Width* 3” 76 mm
G ServiceAccess Dimensions 12” H x 18” L 305 mm x 457 mm
I Floor Cut-out for Drain 12” x 4” 305 mm x 102 mm
*Deck width reflects only area indicated on detail.
Refer to installation instructions included with fixture before beginning installation. Please confirm product availability and specifications before commencing with any installation work.
PRODUCT SPECIFICATIONS ANDAVAILABILITYARE SUBJECT TO CHANGE WITHOUT NOTICE.
Electrical Specifications Each component requires a separate, dedicated GCFI protected circuit
Motor/Pump 120V 20A 60HZ
Heater 120V 15A 60HZ
D095 TheraPro Jet Trim Kit (specify metal finish)
P556 AccuPro Jet Trim Kit (specify metal finish)
827: Chrome, 826: Brushed Nickel, 845: Oil Rubbed Bronze
*Note: D095 (Chrome) is standard on Illumatherapy jets.
GQ88 Light Chromatherapy Add-on Kit
DD50 Replacement Pillow (specify color) 959: White, 958: Almond,
969: Oyster
*Faucet installation note:
Selecting a faucet for rim mounting: The combined thickness at the rim
of the bathtub shell and optional wood deck is 2” (50 mm) nominal. The
length of the faucet tailpiece(s) must be long enough to extend past this
dimension and have ample clearance to assemble any hardware (i.e.
locknut, water supply fittings, etc.) necessary for installation. For under-
mount units, the combined thickness of the bathtub shell is 1/2” (12 mm)
nomial and the undermount deck should not exceed the length of the
faucet tailpiece(s), including any assembly hardware.
NOTE: Graphics May Not be to Scale
Product Codes beginning with: FUZ7236WRL
Also applies to products sold under part numbers: EF50, KL15, EF65, KL25, KL30, KL35, KL40, KL45

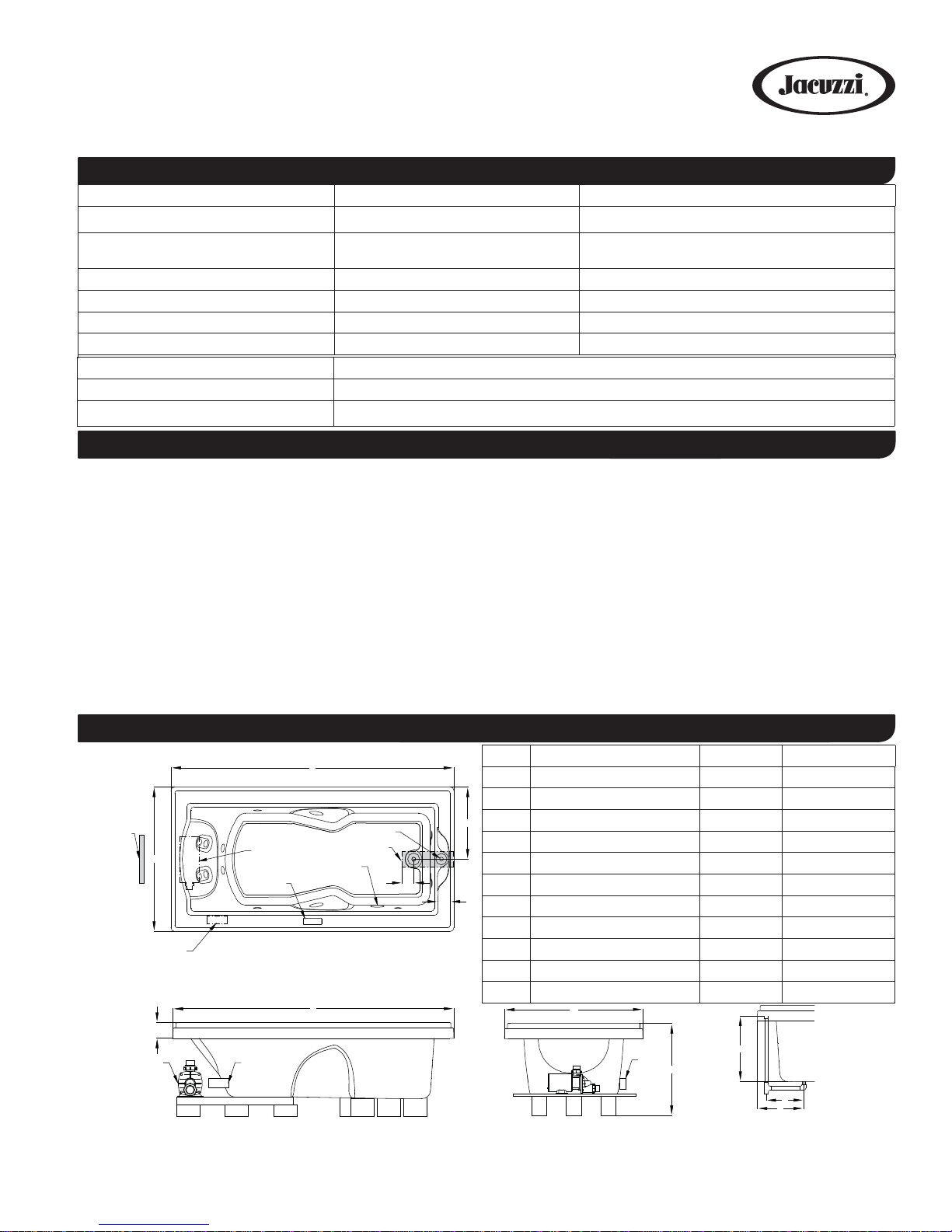

KEY DIMENSIONS
FEATURES, UPGRADES & ACCESSORIES
TECHNICAL SPECIFICATIONS
Drain/Overflow
End View
Side View
(Heater)(Motor)
L
E
(Motor) (Heater)
W
H**
A
D
B
W
L
C
F
I
3”
Motor Suction
Fitting
Overflow
Control
Panel
Heater
(G) Primary
Service
Access
Note: Drain included. Non-standard
installation, refer to manual.
**Height of tub only, optional wood frame adds 1.25”
