JAI GOX-6409M-PGE User manual

Thankyouforpurchasingthisproduct.
Besuretoreadthismanualbeforeuse.
Thismanualincludesimportantsafetyprecautionsandinstructionsonhowtooperatetheunit.Besuretoreadthismanualtoensureproperoperation.
Thecontentsofthismanualaresubjecttochangewithoutnoticeforthepurposeofimprovement.
@2021JAI

CMOS Digital Progressive Scan
Monochrome and Color Camera
Document Version: 0.1
GO-X_Series_RollingShutter_PGE_Ver.0.1_Sep2021
GOX-6409M-PGE / GOX-6409C-PGE
GOX-12409M-PGE / GOX-12409C-PGE
GOX-20409M-PGE / GOX-20409C-PGE
User Manual
PRELIMINARY

Go-X Series Rolling Shutter GigE Vision I/F (Preliminary)
2
Table of Contents
Notice/Warranty/Certifications ............................................................................ 5
Usage Precautions ............................................................................................................ 8
Features.......................................................................................................................... 9
Parts Identification.......................................................................................................... 10
Preparation.........................................................................................................14
Preparation Process ........................................................................................................ 14
Step 1: Installing the Software (first time only) .................................................................. 14
Step 2: Connecting Devices ............................................................................................. 15
Step 3: Verifying Camera Operation.................................................................................. 17
Step 4: Verifying the Connection between the Camera and PC ............................................. 17
Step 5: Changing the Camera Settings.............................................................................. 20
Step 6: Adjusting the Image Quality ................................................................................. 21
Step 7: Saving the Settings ............................................................................................. 24
Main Functions....................................................................................................25
Sensor Shutter Mode ...................................................................................................... 25
Acquisition Control.......................................................................................................... 27
Exposure Mode............................................................................................................... 28
Trigger Control............................................................................................................... 30
Pixel Format .................................................................................................................. 31
Image Flip function......................................................................................................... 31
GPIO (Digital Input/Output Settings)................................................................................. 32
VideoProcessBypassMode ................................................................................................ 33
Calculate the Maximum Frame Rate (Approximate) ............................................................ 33
Gain Control .................................................................................................................. 36
White Balance ................................................................................................................ 37
ALC (Automatic Level Control) Function ............................................................................ 38
Gamma Function ............................................................................................................ 39
LUT (Lookup Table) ........................................................................................................ 40
Blemish Compensation .................................................................................................... 41
Shading Correction ......................................................................................................... 43
Binning Function ............................................................................................................ 44

Go-X Series Rolling Shutter GigE Vision I/F (Preliminary)
3
ROI Function (Single ROI) ............................................................................................... 45
Pulse Generator.............................................................................................................. 46
CounterAndTimerControl Function .................................................................................... 47
ChunkData Function........................................................................................................ 49
Event Control Function .................................................................................................... 49
Action Control Function ................................................................................................... 50
PTP (Precision Time Protocol)........................................................................................... 51
Setting List .........................................................................................................52
Feature Properties .......................................................................................................... 53
DeviceControl ................................................................................................................ 53
ImageFormatControl....................................................................................................... 54
AcquisitionControl........................................................................................................... 56
EventControl .................................................................................................................. 57
AnalogControl ................................................................................................................ 58
DigitalIOControl.............................................................................................................. 59
PulseGenerator............................................................................................................... 60
LUTControl .................................................................................................................... 61
TestControl.................................................................................................................... 61
TransportLayerControl .................................................................................................... 61
ActionControl ................................................................................................................. 62
UserSetControl............................................................................................................... 63
ChunkDataControl .......................................................................................................... 63
AutoLevelControl ............................................................................................................ 64
BlemishControl............................................................................................................... 65
ShadingControl .............................................................................................................. 65
CounterAndTimerControl ................................................................................................. 66
ImagingControl .............................................................................................................. 66
Miscellaneous .....................................................................................................67
Troubleshooting ............................................................................................................. 67
Specifications ................................................................................................................. 68
Spectral Response (GOX-6409MC-PGE) ............................................................................. 72
Spectral Response (GOX-12409MC-PGE) ........................................................................... 73
Spectral Response (GOX-20409MC-PGE) ........................................................................... 74
Dimensions.................................................................................................................... 75

Go-X Series Rolling Shutter GigE Vision I/F (Preliminary)
4
Comparison of the Decibel Display and Multiplier Display ..................................................... 76
User’s Record................................................................................................................. 77
Index..................................................................................................................78
About Technical Note
Some additional technical information is provided on the JAI website as Technical Notes. In this
manual, if a technical note is available for a particular topic, the above icon is shown. Please refer
to the following URL for Technical notes.
https://www.jai.com/support-software/technical-notes

Go-X Series Rolling Shutter GigE Vision I/F (Preliminary)
5
Notice/Warranty/Certifications
Notice
The material contained in this manual consists of information that is proprietary to JAI Ltd., Japan
and may only be used by the purchasers of the product. JAI Ltd., Japan makes no warranty for the
use of its product and assumes no responsibility for any errors which may appear or for damages
resulting from the use of the information contained herein. JAI Ltd.,Japan reserves the right to
make changes without notice.
Company and product names mentioned in this manual are trademarks or registered trademarks of
their respective owners.
Warranty
For information about the warranty, please contact your factory representative.
Certifications
CE compliance
As defined by the Directive 2004/108/EC of the European Parliament and of the Council, EMC
(Electromagnetic compatibility), JAI Ltd., Japan declares that GOX-6409M-PGE, GOX-6409C- PGE,
GOX-12409M-PGE, GOX-12409C-PGE, GOX-20409M-PGE and GOX-20409C-PGE comply with the
following provisions applying to their standards.
EN 55032:2015(CISPR32:2015)
EN 55035:2017(CISPR35:2016)
FCC
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
•Consult the dealer or an experienced radio/TV technician for help.
Warning
Changes or modifications to this unit not expressly approved by the party responsible for FCC
compliance could void the user’s authority to operate the equipment.

Go-X Series Rolling Shutter GigE Vision I/F (Preliminary)
6

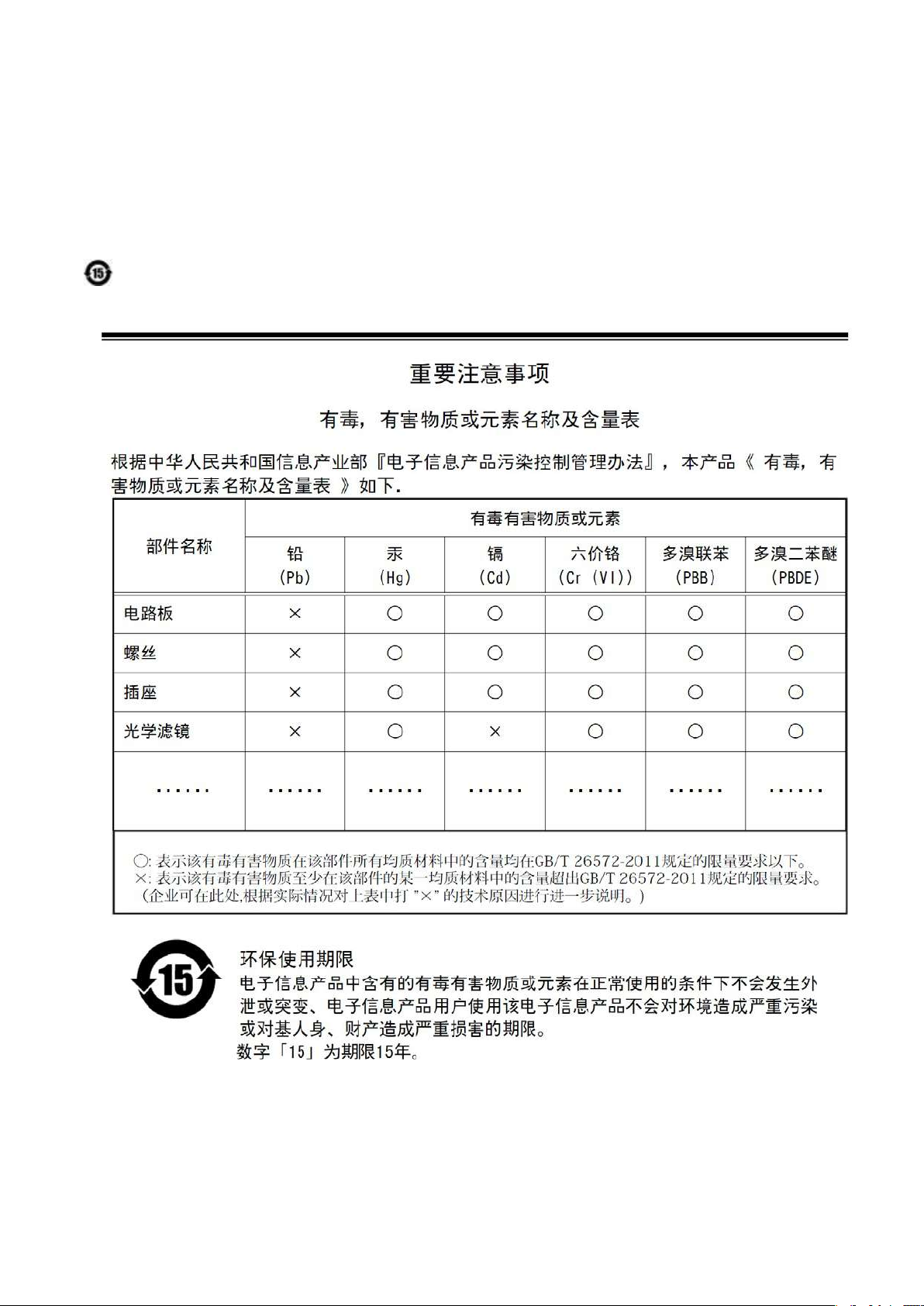

Supplement
The following statement is related to the regulation on “Measures for the Administration of the
control of Pollution by Electronic Information Products “, known as “China RoHS“. The table shows
contained Hazardous Substances in this camera.
mark shows that the environment-friendly use period of contained Hazardous Substances is
15 years.

Go-X Series Rolling Shutter GigE Vision I/F (Preliminary)
7
Supplement
The following statement is related to the regulation on “Measures for the Administration of the
control of Pollution by Electronic Information Products “, known as “China RoHS“. The table shows
contained Hazardous Substances in this camera.
mark shows that the environment-friendly use period of contained Hazardous Substances is 15
years.

Go-X Series Rolling Shutter GigE Vision I/F (Preliminary)
8
Usage Precautions
Notes on cable configurations
The presence of lighting equipment and television receivers nearby may result in video noise. In
such cases, change the cable configurations or placement.
Notes on LAN cable connection
Secure the locking screws on the connector manually,
and do not use a driver. Do not secure the screws too
tightly. Doing so may wear down the screw threads on
the camera. (Tightening torque: 0.147 Nm or less)
Secure
manually. Do
not secure
too tightly.
Notes on attaching the lens
Avoiding dust particles
When attaching the lens to the camera, stray dust and other particles may adhere to the sensor
surface and rear surface of the lens. Be careful of the following when attaching the lens.
•Work in a clean environment.
•Do not remove the caps from the camera and lens until immediately before you attach the
lens.
•To prevent dust from adhering to surfaces, point the camera and lens downward and do not
allow the lens surface to come into contact with your hands or other objects.
•Always use a blower brush to remove any dust that adheres.
•Never use your hands or cloth, blow with your mouth, or use other methods to remove dust.
Phenomena specific to CMOS image sensors
The following phenomena are known to occur on cameras equipped with CMOS image sensors.
These do not indicate malfunctions.
•Aliasing: When shooting straight lines, stripes, and similar patterns, vertical aliasing
(zigzag distortion) may appear on the monitor.
•Blooming: When strong light enters the camera, some pixels on the CMOS image sensor
may receive much more light than they are designed to hold, causing the accumulated
signal charge to overflow into surrounding pixels. This “blooming” phenomenon can be seen
in the image, but does not affect the operation of the camera.
•Fixed pattern noise: When shooting dark objects in high-temperature conditions, fixed
pattern noise may occur throughout the entire video monitor screen.
•Defective pixels: Defective pixels (white and black pixels) of the CMOS image sensor are
minimized at the factory according to shipping standards. However, as this phenomenon
can be affected by the ambient temperature, camera settings (e.g., high sensitivity and
long exposure), and other factors, be sure to operate within the camera’s specified
operating environment.
Notes on exportation
When exporting this product, please follow the export regulations of your country or region.

Go-X Series Rolling Shutter GigE Vision I/F (Preliminary)
9
Features
Go-X Series rolling shutter GigE Vision interface cameras are industrial progressive scan cameras
equipped with a rolling shutter CMOS image sensor. These provide an attractive combination of
high resolution, high speed, and high image quality for machine vision applications.
Model name
Image Sensor
Active Pixels
Pixel Size
Maximum
framerate
GOX-6409M-PGE
Mono
1/1.8 inch
3088 x 2064
(6.3 mega)
2.4μm x 2.4μm
18.0 fps
GOX-6409C-PGE
Color
GOX-12409M-PGE
Mono
1/1.7 inch
4016 x 3036
(12.2 mega)
1.85μm x 1.85μm
9.4 fps
GOX-12409C-PGE
Color
GOX-20409M-PGE
Mono
1 inch
5472 x 3648
(20 mega)
2.4μm x 2.4μm
5.7 fps
GOX-20409C-PGE
Color
These cameras are equipped with various functions required for machine vision including external
trigger, exposure setting, image level control, look-up table, shading correction, blemish
compensation, ROI, binning, etc.
In addition, these cameras feature the backside illumination technology, which enables them to
support higher pixel densities while maintaining low-light performance, low heat generation, and
good signal-to-noise ratio.
Feature overview
•Compliance with GigE Vision Ver.2.0 and GenICam standards
•Rolling Shutter high resolution CMOS sensor
•Lens mount: C-mount (flange back: 17.526 mm)
•Various Video Output formats
GOX-6409M-PGE
Monochrome model
Mono8
GOX-6409C-PGE
Color model
BayerRG8
GOX-12409M-PGE
GOX-20409M-PGE
Monochrome models
Mono8, Mono10, Mono10Packed, Mono12,
Mono12Packed
GOX-12409C-PGE
GOX-20409C-PGE
Color models
BayerRG8, BayerRG10, BayerRG10Packed,
BayerRG12, BayerRG12Packed
•Backside illuminated sensor
•Gamma correction circuit that uses lookup tables
•Internal test signal for settings configuration
•Compatible with free eBUS SDK for JAI

Go-X Series Rolling Shutter GigE Vision I/F (Preliminary)
10
Connection example:
Parts Identification
①Lens mount（C-mount）
Mount a C-mount lens, microscope adapter, etc. here.
❖Before mounting a lens, be sure to refer to “Step 2: Connecting Devices” and confirm the
precautions for attaching a lens and the supported lens types.
②RJ-45 connector
Connect a Gigabit Ethernet compatible LAN cable (Category 5e or higher, Category 6
recommended) here.
Camera
External Trigger
AC adapter
PoE-compatible switching hub
PC

Go-X Series Rolling Shutter GigE Vision I/F (Preliminary)
11
③POWER/TRIG LED
Indicates the power and trigger input status.
LED status and camera status
Light
Status
（Lit amber）Camera initializing.
（Lit green）Camera in operation.
（Blinking green）
During operation in trigger mode, trigger signals are being input.
❖The blinking interval is not related to the actual input interval of the
external trigger.
④LINK LED
Indicates whether the GigE network connection is established or not.
⑤ACT LED
Indicates the GigE network status.
⑥DC IN/TRIG connector（6-pin round）
Connect the cable for a power supply (optional) or for DC IN / trigger IN here.
Compatible Connectors
Camera side : HR10A-7R-6PB (73）（Hirose Electric or equivalent ）
Cable side : HR10A-7P-6S (plug) (Hirose Electric or equivalent ）
Pin No.
Input/Output
Signal
Description
1
Power In
DC In
DC 10 V ～25 V
2
In
Opto In +
3
In
Opto In -
4
Out
Opto Out +
5
Out
Opto Out -
6
GND
GND
Note: Use this connector or PoE to supply power to this camera.

Go-X Series Rolling Shutter GigE Vision I/F (Preliminary)
12
Recommended external input circuit diagram (reference example)
Recommended external output circuit diagram (reference example)
OPTO-In circuit characteristics
Opto In + (Pin2)
Opto In - (Pin3)
Opto Out + (Pin4)
Opto Out - (Pin5)

Go-X Series Rolling Shutter GigE Vision I/F (Preliminary)
13
Characteristics of the recommended circuits for Opto OUT
OUTPUT LINE RESPONSE TIME
For the operating conditions of applied voltage (User Power) +12V, load resistance 10kΩ, and
cable length 1m, the timing is shown in the table below.
Item Result (Typ)
TDR
(Time Delay Rise)
(μs)
0.48
RT
(Rise Time)
(μs)
3.08
TDF
(Time Delay Fall)
(μs)
3.16
FT (Fall Time) (μs)
52.4
*) Since it varies depending on the applied voltage, load resistance, cable length, etc., check the
actual environment before use.
Caution
Please note that the recommended load resistance of Opto output is 10 kΩ
(rated 1/10 W) or more. The 270 Ω resistor shown in the circuit diagram is the
MINIMUM resistance that should be used. The response speed from On (High)
to Off (Low) depends on the voltage applied to Opto output and the value of
the load resistance. Higher load resistance results in slower response. If the
response at 10 kΩ is slower than desired, you can try reducing the load
resistance in order to increase the response speed but DO NOT go below the
minimum 270 Ω value.
The load resistance loss can be calculated as follows.
load resistance loss ≒ (voltage applied to Opto output )2/ (load resistance)
⑦Camera locking screw holes（M3, 3mm depth, 12mm pitch）
Use these holes mounting the camera directly to a wall or other structural system.
⑧Camera locking screw holes（M2, 3mm depth, 20mm pitch）
Use these holes mounting the camera directly to a wall or other structural system.
⑨Camera locking screw holes（M3, 3mm depth, 21mm pitch）
Use these holes mounting the camera directly to a wall or other structural system.

Go-X Series Rolling Shutter GigE Vision I/F (Preliminary)
14
Preparation
Preparation Process
Step 1
Installing the Software (first time only)
Install the software for configuring and controlling the camera (eBUS SDK for JAI) on
the computer.
Step 2
Connecting Devices
Connect the lens, LAN cable, AC adapter, computer, and other devices.
Step 3
Verifying Camera Operation
Verify whether the camera is turned on and ready for use.
Step 4
Verify whether the camera is turned on and ready for use.
Verify whether the camera is properly recognized via Control Tool.
Step 5
Changing the Camera Settings
Refer to the procedure for changing the output format setting as an example, and
change various settings as necessary.
Step 6
Adjusting the Image Quality
Refer to the procedures for adjusting the gain, white balance, and black level as
examples, and adjust the image quality.
Step 7
Saving the Settings
Save the current setting configurations in user memory.
Step 1: Installing the Software (first time only)
When using the camera for the first time, install the software for configuring and controlling the
camera (eBUS SDK for JAI) on the computer.
❖When you install eBUS SDK for JAI, eBUS SDK for JAI player will also be installed.
1
Download the eBUS SDK for JAI from the JAI website.
URL https://www.jai.com/support-software/jai-software
2
Install eBUS SDK for JAI on the computer.

Go-X Series Rolling Shutter GigE Vision I/F (Preliminary)
15
Step 2: Connecting Devices
①Lens
C-mount lenses with lens mount protrusions of 9 mm or less can be attached.
•To prevent vignetting and to obtain the optimal resolution, use a lens that will cover the
image sensor size.
Model name
Image Sensor
GOX-6409M-PGE
Mono
1 / 1.8
inch
7.37 mm x 4.91 mm (8.86mm diagonal)
GOX-6409C-PGE
Color
GOX-12409M-PGE
Mono
1 / 1.7
inch
7.44 mm x 5.61 mm (9.32 mm diagonal)
GOX-12409C-PGE
Color
GOX-20409M-PGE
Mono
1 inch
13.13 mm x 8.75 mm (15.78 mm
diagonal)
GOX-20409C-PGE
Color

Go-X Series Rolling Shutter GigE Vision I/F (Preliminary)
16
Caution
•The maximum performance of the camera may not be realized depending on
the lens.
•Attaching a lens with a mount protrusion of 9 mm or longer may damage the
lens or camera.
Note: The following formula can be used to estimate the focal length.
Focal length ＝WD /（1 ＋W/w）
WD ：Working distance （distance between lens and object）
W ：Width of object
w ：Width of sensor
②Direct connection（or MP-43 tripod adapter plate）
When mounting the camera directly to a wall or other device, use screws that match the camera
locking screw holes on the camera (M3, depth: 3 mm). Use the supplied screws to attach the
tripod adapter plate.
Caution
For heavy lenses, be sure to support the lens itself. Do not use configurations in
which its weight is supported by the camera.
③LAN cable
Connect a LAN cable to the RJ-45 connector.
•Use a LAN cable that is Category 5e or higher (Category 6 recommended).
•Use a LAN cable that is STP cable.
•When supplying power via PoE, connect to a PoE-compatible switching hub or a PoE-
compatible network card.
•Refer to the specifications of the cable for details on its bend radius.
Caution
Secure the locking screws on the connector
manually, and do not use a driver. Do not secure
the screws too tightly. Doing so may wear down the
screw threads on the camera. (Tightening torque:
0.147 Nm or less)
Secure manually.
Do not secure too tightly.
④Network card
Install this in the computer that will be used to configure and operate the camera. As the camera
supports PoE, you can also use PoE-compatible network cards. Refer to the instruction manual of
the network card, and configure settings on the computer as necessary.
⑤DC IN / trigger IN connection cable
⑥AC adapter (power supply) (if necessary)
Connect the AC adapter and the round connector of the connection cable to the DC IN / trigger IN
connector on the camera.

Go-X Series Rolling Shutter GigE Vision I/F (Preliminary)
17
Step 3: Verifying Camera Operation
When power is supplied to the camera while the necessary equipment is connected, the
POWER/TRIG LED at the rear of the camera lights amber, and initialization of the camera starts.
When initialization is complete, the POWER/TRIG LED lights green.
Verify whether power is being supplied to the camera by checking the rear LED.
* For details on how to read the LEDs, see “LED status and camera status” in the “Parts
Identification” section.
Step 4: Verifying the Connection between the Camera and PC
Verify whether the camera is properly recognized via Control Tool.
Connecting the Camera to Control Tool
1
Startup eBUS Player for JAI
eBUS Player for JAI
eBUS Player for JAI startup screen appears.
When properly turned on
Lit green

Go-X Series Rolling Shutter GigE Vision I/F (Preliminary)
18
2
Select the camera you want to configure.
Click the Select / Connect button.
The connected camera is listed.
Please select one camera.

Go-X Series Rolling Shutter GigE Vision I/F (Preliminary)
19
3
Check that the settings of the selected camera are displayed.
Click the Device control button.
The screen shown below will be displayed. In this window you can adjust various
settings of the camera.
This completes the procedure for verifying whether the camera is properly recognized
and whether control and settings configuration are possible.

Go-X Series Rolling Shutter GigE Vision I/F (Preliminary)
20
Step 5: Changing the Camera Settings
This section explains how to change settings by describing the procedure for changing the output
format as an example.
Configuring the Output Format
Configure the size, position, and pixel format of the images to be acquired.
The factory settings are as follows. Change the settings as necessary.
Factory default values (GOX-12409C-PG)
Item
Default value
ImageFormatControl
Width 4016
Height 3036
OffsetX (horizontal position)
0
OffsetY (vertical position) 0
PixelFormat BayerRG8
*You can specify the image acquisition area. For details, see “ROI Function”.
1
Configuring the Width of ImageFormatControl
By selecting Width, you can change the value as shown below.
Note: Depending on the setting item, you need to change visibility. Please switch visibility
(Beginner / Expert / Guru) as necessary.
×
