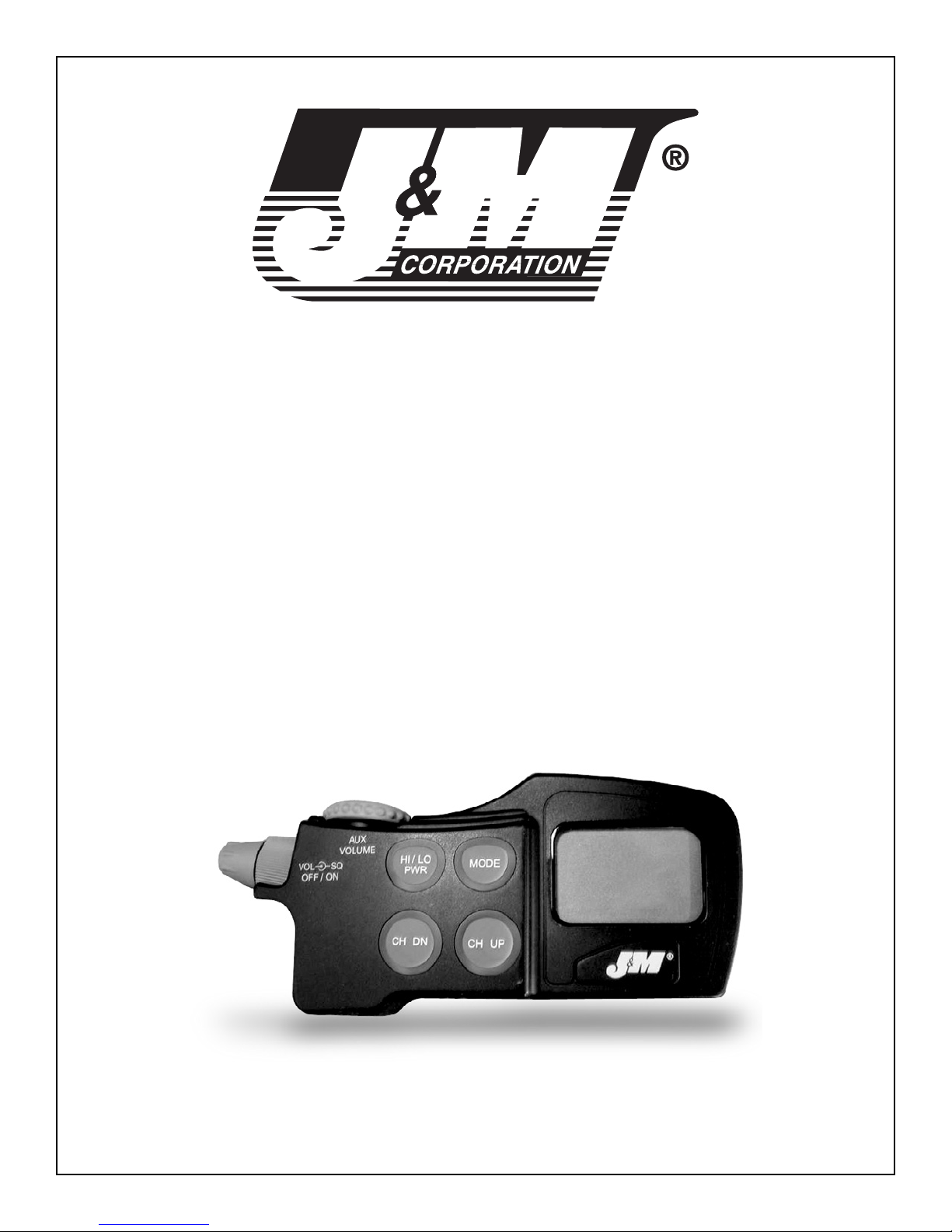

J&M Corporation JMCB-2003B-BW User manual

© 2010 J&M Corporation. All rights reserved. 9/10
#
JMCB-2003B-BW
Handlebar Mounted 40 Channel
Citizen’s Band Transeiver
(CB)/Weather Radio with Rider
Passenger Intercom and Auxiliary
Audio Input
Owner’s Manual

1. Product Description
The JMCB-2003-BW is a compact Citizen’s Band radio designed to
operate in the 26.965 MHz to 27.405 MHz band. This lightweight
unit also features rider-to-passenger intercom, an auxiliary audio
input for an audio source such as an MP-3 player, and ten weath-
er channels, consisting of seven NOAA frequencies and three
international marine frequencies.
2. FCC Regulations
You do not need an FCC license to operate this radio in the United
States. However, you must know and be familiar with Part 95 of
the FCC Rules in regard to Subpart D of the Citizen’s Band Radio
Service, a copy of which is enclosed in the JMCB-2003-BW pack-
aging.
3. Performance Features
• Maximum legal RF output Power (up to 4W) with high-level
modulation (in accordance with FCC Part 95 rules).
• Radio receives current National Weather Service broadcasts
on one or more of seven separate frequencies and periodic
marine weather information on three separate frequencies.
• Hi/Lo TX Power selection button
• Built-in automatic gain control (AGC)
• Phase locked loop synthesizer provides clear voice transmis-
sion and reception on all CB channels
• Integrated rider-passenger intercom
• Auxiliary audio input (stereo)
4. Package Contents
• CB unit JMCB-2003-BW
• Owner’s manual
• Copy of FCC Part 95, Subpart D
• Copy of NOAA Weather Network frequency list
Product Description Section 1
FCC Regulations Section 2
Performance Features Section 3
Package Contents Section 4
Controls and Functions Section 5
Installation Instructions Section 6
Operation Instructions Section 7
Antenna Information Section 8
CB Channel Frequency Chart Section 9
Specifications Section 10
Warranty Statement Section 11
Table of Contents
Changes or modifications not expressly approved by the
party responsible for compliance could void the user's
authority to operate the equipment.

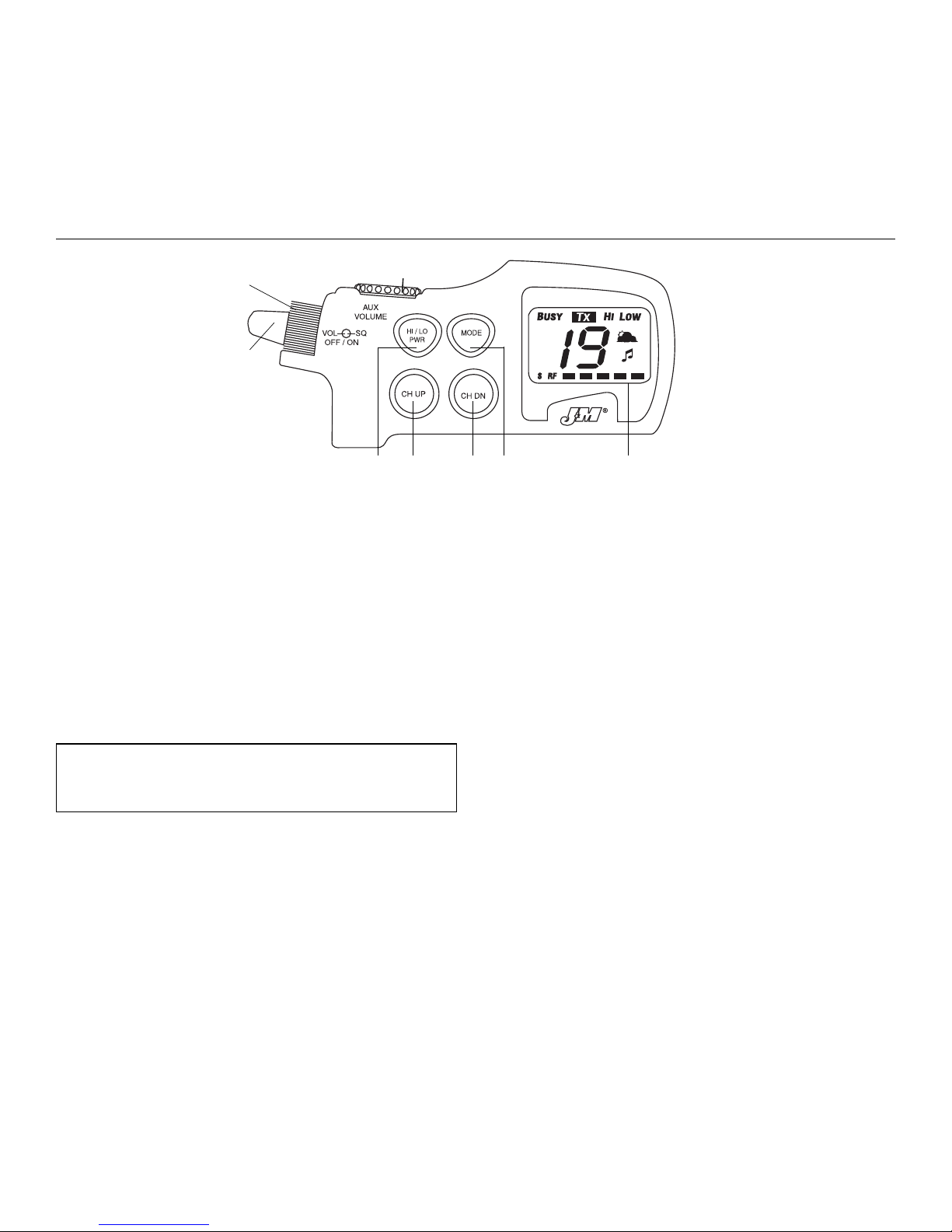

5. Controls and Functions
A. Auxiliary Audio Volume—Controls auxiliary audio/input volume to the
headset/headsets.
B. Squelch Control—Allows CB background noise to be eliminated when no
signal is present.
C. On/Off CB and Intercom Volume Control—In the inward position the
knob turns the entire unit on and off and controls the CB volume. In
the pulled-out position, this knob controls the intercom volume. For
Solo Rider Use: the intercom volume should be turned down com-
pletely (counter-clockwise).
D. Hi/Lo Power Selector Lock/Unlock Button—Controls CB TX power
level. Note: Pressing and holding the Hi/Lo button for 3 seconds will
lock the Mode, Hi/Lo, Channel Up, and CHannel Down buttons. A lock
symbol will be displayed on the LCD Display. To Unlock the Mode,
Hi/Lo, Channel Up, and Channel Down buttons, press and hold the
Hi/Lo button for 3 seconds and the lock symbol will not be seen in
the display. The CB Volume, Squelch, Intercom Volume, PTT, and Aux
Volume will not be affected by locking or unlocking the CB.
E. Channel Up—Selects any one of the 40 channels available on the CB
radio. It is also used to select any one of the 10 weather channels
in the Weather Mode.
F. Channel Down—Selects any one of the 40 channels available on the
CB radio. It is also used to select any one of the 10 weather chan-
nels in the Weather Mode.
G. Mode—Used to select CB channels, weather channels or keypad
beep.
H. LCD Display—Identifies CB or weather channel, Tx (transmit), Wx
(weather mode), keypad beep and signal/power strength.
I. Push to Talk Button—Activates CB transmission (TX) mode.
J. Helmet Headset Plugs—Allows hookup to J&M helmet headset/
headsets.
K. 12V DC Power Cord—Provides power and ground for the JMCB-2003-
BW.
L. PL-258 Connector—Antenna connector for a rear-mounted CB
antenna.
M. 3-Pin Connector—Connects auxiliary audio input to a Walkman®-type
music device or other type of stereo radio system.
N. Auxiliary Audio Cable—Connects to a Walkman®-type music device.
A.
B.
C.
D. E. F. G. H.

6. Installation Instructions
1) Mount the JMCB-2003-BW to the left handlebar
using the mounting bracket kit that is applicable to
your specific make and model of motorcycle.
(Mounting Bracket Kits are sold separately.)
2) Route the wires from the CB radio down the han-
dlebar. Plug in the black 9-pin plug from the sup-
plied wiring harness. Connect the power wire (red)
directly to the positive (+) post of the battery.
Connect the orange wire to a switchable power
source or accessory terminal so that the unit is
automatically turned off when the ignition is turned
off. Connect the black wire to a frame ground (not
to the battery negative). If it becomes necessary to
replace the fuse, use a 5 amp fuse for the red wire.
3) Connect the black 3-pin plug to the auxiliary
audio cable and route the cable to the auxiliary
audio source.
4) Route all other cables where desired and hook

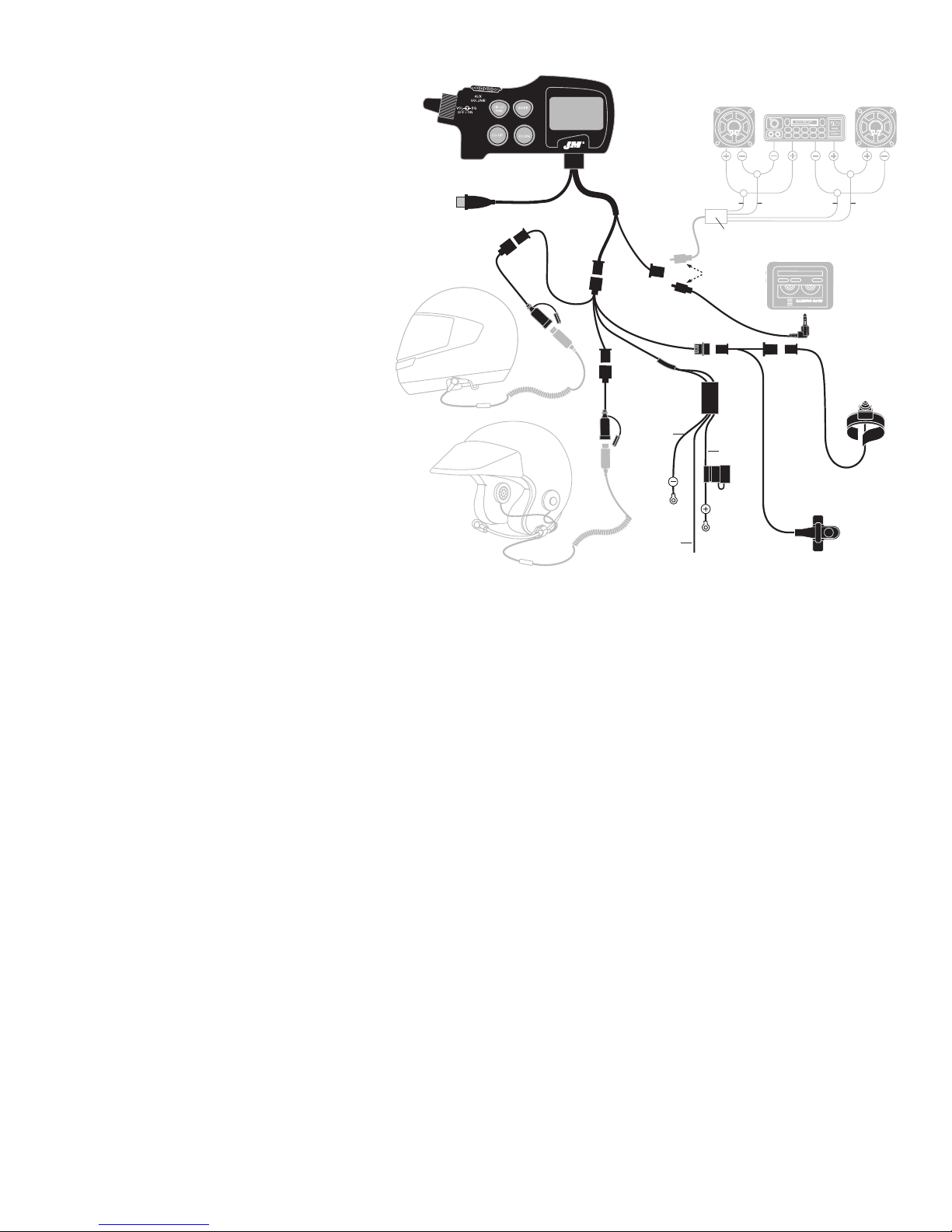

them up according to the wiring diagram.
5) Secure all wires and cables with the zip ties pro-
vided.
7. Operation of the JMCB-2003-BW
1) With a helmet headset connected to the JMCB-
2003-BW turn the ignition switch to the ON position.
2) Rotate the SQUELCH knob on the JMCB-2003-BW fully clock-
wise.
3) Adjust the OFF/ON CB volume knob to a comfortable volume
level and select the desired CB channel.
4) Rotate the SQUELCH knob counterclockwise until the back-
ground noise is removed.
5) Plug in your auxiliary audio/music device and adjust the AUX
VOL control on the JMCB-2003-BW fully clockwise to maximum vol-
ume. Adjust the volume on the auxiliary audio source to a maxi-
mum level just before distortion and then adjust the AUX VOL con-
trol on the JMCB-2003-BW down to comfortable level. Further vol-
ume adjustments while riding should be made with the CB mount-
ed AUX VOL control only.
6) The intercom volume can be adjusted by pulling out the CB VOL
OFF/ON knob. Turning the knob clockwise will increase the inter-
com volume. When the intercom has been adjusted to a com-
fortable level, push the VOL OFF/ON knob back to the inward posi-
tion.
7) Weather channels can be accessed by depressing the MODE
button once then using the CH UP and CH DN buttons to select
one of the ten weather channels.
The National Weather Service uses several special radio frequen-
cies to provide continuous reports of the local weather conditions
and forecasts throughout the United States. Taped weather mes-
sages are repeated every four to six minutes on a 24-hour basis
and are routinely revised every one to three hours, or more fre-
quently if needed.
During severe weather, the routine weather broadcasts will be
interrupted with special weather warning messages.
The JMCB-2003-BW is designed to receive all these special weath-
er frequencies plus three international marine frequencies. An
NOAA Weather Radio Network Frequency pamphlet is enclosed to
identify the frequencies specifically broadcast for your geographi-
cal area.
The JMCB-2003-BW receives CB, National Weather Service and
international marine weather broadcast frequencies as listed
below:
CB Channels 1-40 26.965 to 27.405 MHz
Weather Channels 01WX 162.550 MHz
02WX 162.400 MHZ
03WX 162.475 MHz
04WX 162.425 MHz
05WX 162.450 MHz
06WX 162.500 MHz
07WX 162.525 MHz
Int’l Marine 08WX 161.650 MHz
09WX 161.775 MHz
00WX 163.275 MHz
8) Function indication “beep” can be turned on or off by depress-
ing the MODE button two (2) times. The LCD display will show the
word ON or OFF. To turn the beep on or off, switch between the
CHL UP and CHL DN buttons.
9) The HI/LO PWR selection controls the transmit (TX) power out-
put. The low power setting is often preferred when riding on close
proximity to other motorcycles you are communicating with to
reduce distortion and improve overall voice clarity.
to
rear-mounted
CB antenna
(not included)
personal
stereo/CD/
MP3/cassette
music device
(not included)
automotive-type radio adapter
J&M #FGA-390
(not included)
black
3-pin plug
ground to
frame
fuse
holder
inline
noise
filter
battery
Left speaker
(not included)
Right speaker
(not included)
Fairing mounted
radio or booster amp
(not included)
WHITE WHITE / RED RED
RED / WHITE
OR
black
3-pin
plug
black
9-pin
plugs
6-pin din
driver's
helmet headset
(not included)
passenger's
helmet headset
(not included)
red
black
orange
12 volt switchable
passenger
CB transmit
switch
driver handlebar
CB transmit
switch
6-pin
plugs
female
6-pin din
6-pin
plugs
J.
J.
K.
L.
M.
N.
I.
I.

8. Antenna Information
The maximum allowable CB transmitting power is limited by FCC
regulations. The antenna is a major component in the strength of
the CB radio’s transmission signal and its reception range.
A minimum distance of 18”
between the CB antenna and
the operator or passenger of
the motorcycle should be
maintained.
10. Specifications
CB Channels 40
CB Frequency Range 26.965 to 27.405 MHz
Weather Channels 10
Weather Frequency Range
Receive Frequencies 162.550 MHz - 163.275 MHz
CB/Weather
Frequency Control Phase locked loop (PLL) synthesizer
Operation Temperature
Range – 4°F to +122°F
Channel Display Liquid crystal display (LCD)
Power Source 13.2V DC
Dimensions 6.5” x 3” x 1.75”
(165.1 mm x 76.2 mm x 44.5 mm)
Weight .8 lb
Receiver AM dual conversion superheterodyne
Transmitter 4 watts (maximum FCC allowable)
Noise and Interference: Motorcycle audio systems are by their
very nature noisy. While we do not guarantee this system to be
completely free from electrical noises and interference, we have
taken many steps to achieve that goal: the power supply system
is well filtered and the cables associated with the unit are
shielded.
Most modern day motorcycles have resistor-type spark plugs
installed by the factory. It may be necessary to insure that resistor-
type spark plugs are installed on your motorcycle.
Care, Cleaning and Protection: Your JMCB-2003-BW unit has been
designed to withstand most weather conditions likely to be encoun-
tered in the motorcycle riding environment.
This unit is NOT however designed to be submerged or to withstand
a high pressure spray from commercial car wash nozzles and the
warranty will be void on any unit that has been subjected to these
conditions.
The included slip-on elastic cover should be installed over your
JMCB-2003-BW unit when washing your motorcycle or whenever
your motorcycle will be left out in the weather or direct sunlight for
extended periods of time.
To clean your JMCB-2003-BW, use a soft damp cloth and avoid any
harsh cleaning solvents or abrasives, as these may damage the fin-
ish or structural integrity of your CB unit.
11. Two Year Warranty
J&M Corporation warrants each new product it manufactures to
be free from defective materials and workmanship and agrees to
remedy any such defect or replace the unit (at our option), provid-
ed the unit is delivered to us, intact, for our examination, with all
transportation charges prepaid to our factory, within two (2) years
from the date of the sale to the original purchaser. The provisions
of the warranty shall not apply to any unit which has been subject
to misuse, neglect, incorrect mechanical or electrical installation,
unauthorized modifications, accident, nor to units which have
been repaired or altered outside of our factory.
WARNING: Do not try to make any internal adjustments.
Any internal adjustments must be made only by qualified
technical personnel. Internal adjustments and/or modifica-
tions can lead to illegal operation as defined by FCC Rules
and REgulations, Part 95. Illegal operation can result in seri-
ous consequences.
Channel
1 26.965 MHz
2 26.975 MHz
3 26.985 MHz
4 27.005 MHz
5 27.015 MHz
6 27.025 MHz
7 27.035 MHz
8 27.055 MHz
9 27.065 MHz
Emergency
Channel
10 27.075 MHz
11 27.085 MHz
12 27.105 MHz
13 27.115 MHz
14 27.125 MHz
15 27.135 MHz
16 27.155 MHz
17 27.165 MHz
18 27.175 MHz
19 27.185 MHz
Highway
Channel
Channel
20 27.205 MHz
21 27.215 MHz
22 27.225 MHz
23 27.255 MHz
24 27.235 MHz
25 27.245 MHz
26 27.265 MHz
27 27.275 MHz
28 27.285 MHz
29 27.295 MHz
30 27.305 MHz
31 27.315 MHz
32 27.325 MHz
33 27.335 MHz
34 27.345 MHz
35 27.355 MHz
36 27.365 MHz
37 27.375 MHz
38 27.385 MHz
39 27.395 MHz
40 27.405 MHz
Thank you for the confidence you have shown by purchasing one
of J&M’s innovative products. If you have any questions during the
installation, or require further assistance, you may call us at
1-800-358-0881 from 8:00 a.m. to 5:00 p.m. Mountain Standard
Time, Monday through Friday.
Tucson, Arizona U.S.A.
Tel [phone]
Website: www.jmcorp.com
E-mail: [email protected]
9. CB Channel Frequency Chart
