OWNER’S MANUAL
RC/RE630P forma®Soaking Baths
INSTALLATION, OPERATION, AND MAINTENANCE
Jason International, Inc.
8328 MacArthur Drive
North Little Rock, AR 72118
www.jasoninternational.com
OWNER’S RECORD
Dealer:
Date Purchased:
Date Installed:
Installer:
PLACE SERIAL NUMBER CARD WITH
PRODUCT CONFIGURATION IN THIS BOX
INSPECTION
Inspect the unit prior to installation. In the event of a
problem, DO NOT install the unit.
All components are factory assembled to the bath and the
unit is water tested and inspected prior to leaving Jason
International, Inc.
If the carton shows sign of damage, inspect the product
before accepting and describe the problem on the Bill of
Lading.
NOTE: Transportation and insurance from Jason’s
factory are the buyer’s responsibility.
Damage sustained in transit is the responsibility of
the carrier. If damage is discovered, The carrier must
be immediately notified in writing with a request for a
representative to inspect the unit. Failure of the carrier
to respond should be reported to the seller and carrier.
Always file a freight claim promptly.
The installer is responsible for insuring that the unit is
free from defects or shipping damage. In the event of a
problem, DO NOT install the unit.
Jason International is not responsible for damage that
might have been avoided by inspection or testing prior to
installation.
If the carton shows sign of damage, inspect
the product before accepting and describe the
problem on the Bill of Lading.
Damage to the unit during installation will not be covered
by warranty and is the responsibility of the installer. ALL
WARRANTY CLAIMS ON ACRYLIC SURFACE DAMAGE
MUST BE MADE PRIOR TO INSTALLATION. Inspect
plumbing and bath surface for missing or damaged
components. Alert your dealer of any discrepancies.
To protect the unit from damage keep the bath in the
carton until ready for installation.
EQUIPMENT ACCESS
In accordance with Building Codes, service access to all
therapy bath equipment, controls and electrical connections
must be provided during installation. Access must be provided
for both the pump/control and the blower/control equipment.
Insufficient access will hinder repair and maintenance.
Warranty service will not cover costs of providing equipment
access.
TABLE 1 - SPECIFICATIONS
forma® RC/RE630P Soaking®
Model
Overall
Dimension
W x L x H (in.)
W x L x H (cm.)
Operating
Capacity
Gal.
Liters
Floor
Loading
lbs/ft2
kg/M2
RE630P
36 x 72 x 22 53 50.3
91 x 183 x 56 201 246
RC630P
36 x 72 x 22 50 48.7
91 x 183 x 56 189 238

Jason International, Inc. • 501.771.4477 Page 2 of 8 Customer Service : 800.255.5766
Copyright © 2011 Jason International.
INSTALLATION
Remove the product from its packaging. Read the entire
instructions prior to installing this product.
See USER MAINTENANCE INSTRUCTIONS section of this owner’s
manual for humidity and mold prevention suggestions prior to
Installation.

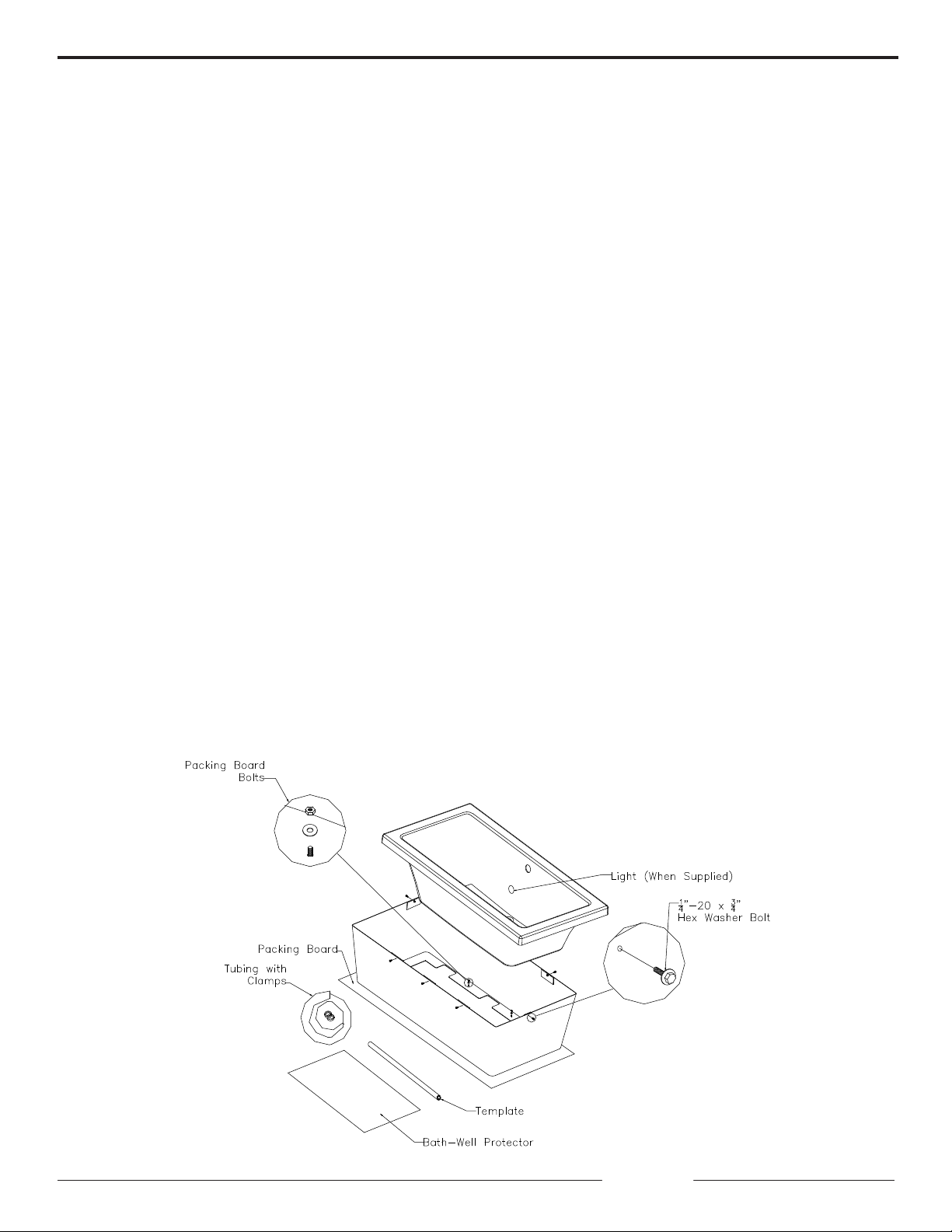

1. Disassemble the bath from its skirt by removing the eight (8)
bolts located around the top perimeter of the skirt with a
3/8” [9 mm] open-end wrench. See Figure 1. Do not throw
the bolts away. They will be used to reattach the skirt to
the bath later.
2. Lift the bath out of the skirt. Remove the bolts attaching the
packing board to the skirt. See Figure 1.
3. Set aside the template and tubing with 2 clamps, these will be
used later.
4. Cardboard bath-well protector. Each bath is provided with a
cardboard bath-well protector that should be kept in the
unit throughout the bathroom construction process.
NOTE: Overflow drains, fill spouts, and valves must
be installed according to the instructions herein.
5. Installation template. An installation template is provided to
locate the floor drain position, sump area position, remote
blower-tubing floor cutout position, water inlet stub-out
position, mounting holes, and skirt center lines. Tape the
template to the sub-floor in the desired location.
FIGURE 1
INSTALLATION INSTRUCTIONS
6. Mark on the sub-floor the sump area position and the water
inlet stub-out position, three (3) water inlet stub-out
positions have been indicated on the template. Choose
the one that is preferable for your installation.
7. Remove the template and cut out the floor. CAUTION: The floor
drain location must be installed according to the template. This
location is critical to the proper installation of this product.
NOTE: You must keep the template, it will be needed
during the next step of the installation process. See
Figure 2.
NOTE: The skirt is designed to accommodate both
an end drain (RE630P) and a center drain (RC630P)
model. Refer to Figure 2 to determine which cut-outs
are designed for use with your particular model.
8. After the finished floor is installed, position the installation
template on the finished floor. Place the template to line
up with the existing floor drain location and orient the
template to the desired position.
NOTE: The sump area location cutout, and water inlet
stub-out location must line up with the template.
9.Tape the template to the finished floor using care to align both
center lines and assure that the template is laying flat on
the floor.

Jason International, Inc. • 501.771.4477 Page 3 of 8 Customer Service : 800.255.5766
Copyright © 2011 Jason International.
FIGURE 2
FIGURE 4
FIGURE 3
FIGURE 5
INSTALLATION INSTRUCTIONS (cont.)

Jason International, Inc. • 501.771.4477 Page 4 of 8 Customer Service : 800.255.5766
Copyright © 2011 Jason International.
FIGURE 6
10.Transfer the center lines of the template to the finished floor.
CAUTION: Use a marker that can be removed from the
finished floor after installation.
11.Drill the 1/4” [6 mm] pilot holes for the two indicated mounting
holes if installing on a wooden floor. 5/16” [8 mm] holes
are required for a cement slab floor. See Figure 3.
12.Dry fit the drain and overflow to the bath.
a. Usetheinstructions includedwith thedrain andoverflow
to determine the proper fit to the bath.
NOTE: It is recommended that the Geberit drain and
overflow or overflow drain fill spout model sold by Jason
International be used. If any other drain is used, it
may not conform to these instructions. (Drain Not
Included.) This drain can be purchased from any
authorized Jason International, Inc. dealer.
b. Position bath in place and attach the drain and overflow
to the floor drain “P” trap. CAUTION: Only dry fit
the drain and overflow tee to the “P” trap at this
time.
c. Disconnect the drain and overflow from the bath and
leave the drain assembly free standing in the “P”
trap.
13.Align the drain with the center line on the template. Refer to
Figure 4.
14. Permanently attach the drain tee to the “P” trap.
15. Remove the template from the floor.
16.Place the bath skirt into position and align the center line hole
in the bottom of the skirt and the offset hole on the opposite
end with the pre-drilled holes in the floor. Attach to the
floor with a 5/16” x 2-1/2” [8 mm x 6 cm] lag screws and a
5/16” x 1-1/2” [8 mm x 9 cm] fender washer when installing
into a wood floor or 5/16” [8 mm] concrete anchors and a
5/16” x 1-1/2” [8 mm x 4 cm] fender washer when installing
into a concrete slab floor. (Fasteners not included).
CAUTION: Do not over tighten.
17.Pilot holes. Using the remaining four (4) holes in the skirt
as a template, drill four (4) pilot holes into the floor and
use the remaining 5/16” [8 mm] fasteners and washers to
complete attaching the skirt to the floor. See Figure 5.
18.Attach faucet accessories to the bath (if applicable).
CAUTION: There is not enough room to mount a deck
mounted diverter valve on the deck of the bath.
If a hand-held shower is desired consider a floor mounted
faucet or a faucet with an above deck diverter.
If a floor mounted faucet is desired, be sure to install
the faucet to allow for sufficient overhang into the well
of the bath. This will ensure an unobstructed water flow
out of the faucet when filling the bath. Follow the faucet
manufacturers installation instructions.
19. Flex plumbing.

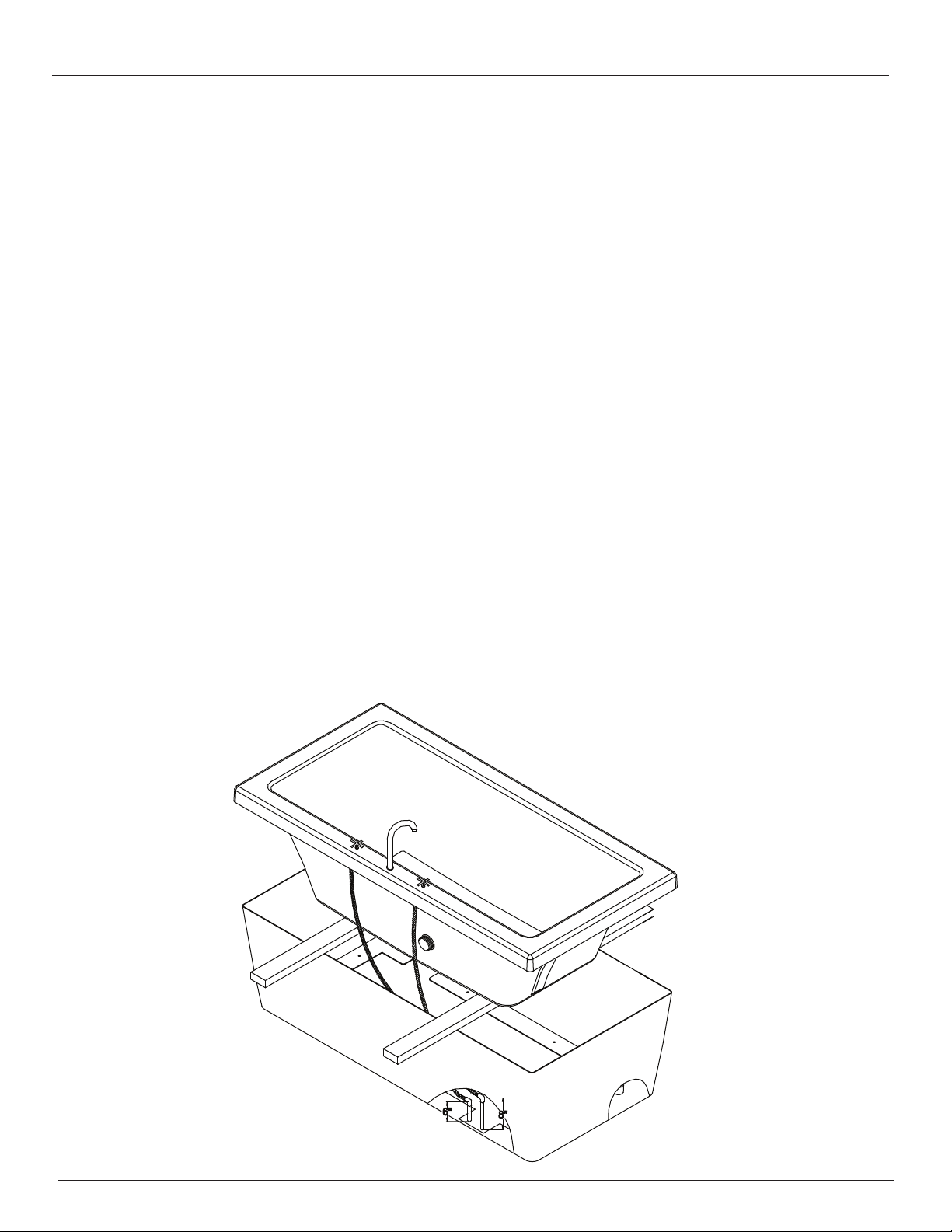

a. Place two 2” x 4” [5 cm x 10 cm] boards approximately
four (4) feet [121 cm] in length across the top of the
skirt. See Figure 6.
INSTALLATION INSTRUCTIONS (cont.)

Jason International, Inc. • 501.771.4477 Page 5 of 8 Customer Service : 800.255.5766
Copyright © 2011 Jason International.
b. Set the bath on top of the 2” x 4” [5 cm x 10 cm]
boards.
c. Attach stainless steel flex plumbing from the deck-
mounted faucet to the stubouts (if applicable).
NOTE: Flex plumbing lines must be long enough so
the bath can be removed from the skirt if access is
required in the future.
1/2” [12 mm] 4 foot [122 cm] stainless steel flex hoses
may be purchased from Jason International, Inc.
20.Test all connections for leaks.
21.Remove the 2” x 4” [5 cm x 10 cm] boards and lower the
bath into the skirt. WARNING: WHEN LOWERING THE
BATH INTO THE SKIRT, DO NOT ALLOW THE HOSE
SECTIONS TO BIND.
22.Align the drain and overflow with the corresponding bath
holes and the bath brackets with the pre-drilled holes in

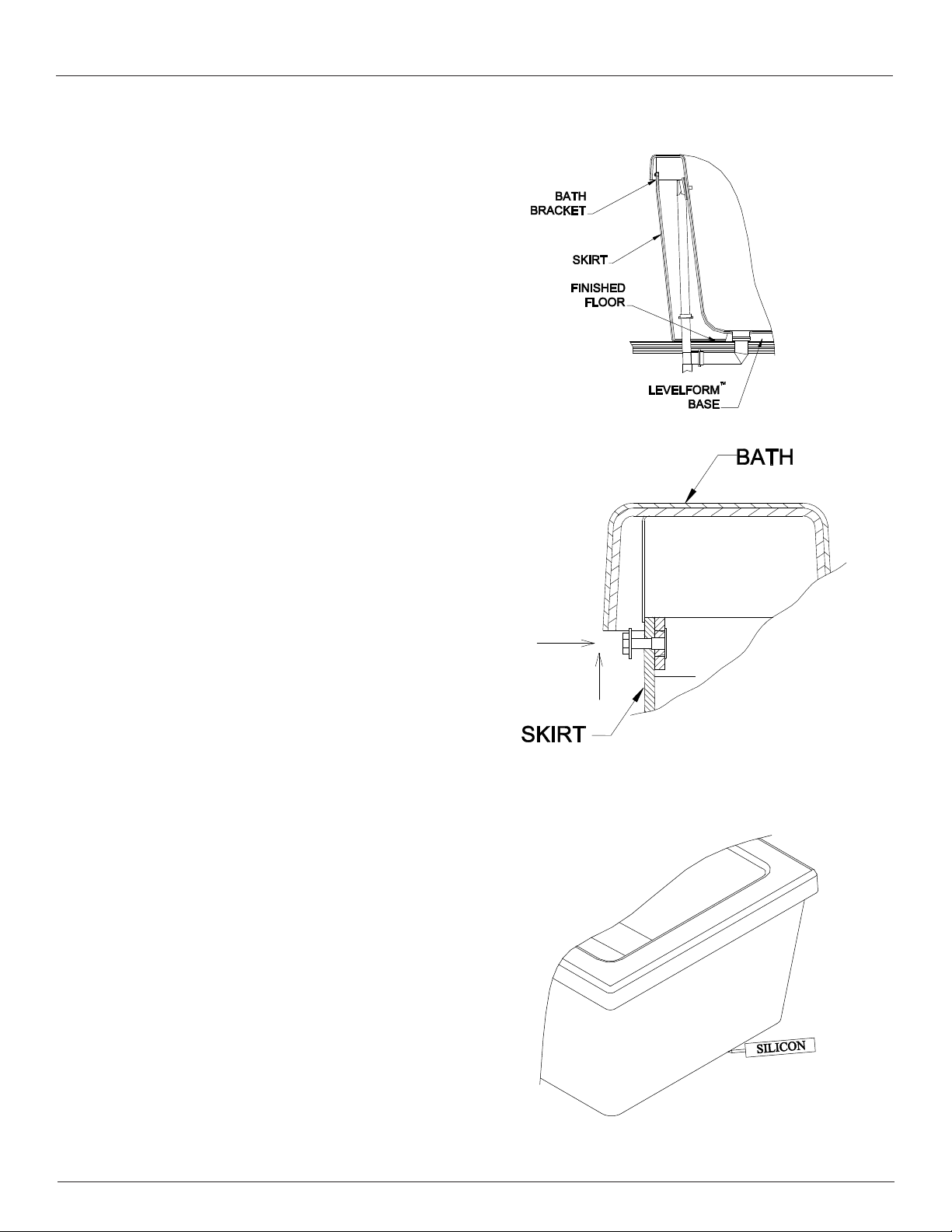

the skirt. See Figure 7.
Jason baths are designed to be supported at the base of
the bath. If the floor is smooth and level the bath’s Level
Form™ Base will provide proper drainage and support.
See Figure 7.
NOTE: The bottom of the bath’s Level Form™ Base
must be level with the bottom of the skirt.
NOTE: Do not use a sand bed to install or level the
bath.
23.Bolts.
a. Start with one (1) bolt and lift the bath enough to partially
install the bolts. Do not tighten the bolts completely at
this time. Align bolts with the slot in the bath bracket.
Repeat the process until all eight (8) bolts are partially
installed.
b. Continue to fully tighten all eight (8) bolts with a 3/8”
[9mm] open-end wrench. See Figure 8.
24.Drain and overflow. Complete the installation of the
drain and overflow per the instructions included with the
drain and overflow.
25. Seal the joint between the skirt bottom and the floor with
a silicone caulk. See Figure 9.
INSTALLATION INSTRUCTIONS (cont.)
FIGURE 8
FIGURE 7
FIGURE 9

Jason International, Inc. • 501.771.4477 Page 6 of 8 Customer Service : 800.255.5766
Copyright © 2011 Jason International.
INSTALLATION INSTRUCTIONS (cont.)
CLEANING
1. Remove all loose debris. Construction plaster or excess
grout can be removed with the use of a wood (edge)
trowel.
2. Paint or tar stains may need to be removed with a cleaner
such as paint thinner, turpentine, or isopropyl alcohol
(rubbing alcohol). Never allow the cleaner to soak
against the acrylic surface for long periods of time.
Always rinse the surface immediately following the use of
cleaners.
Note: Follow the manufacturers instructions for safe use
of cleaning products. If the surface becomes scratched
or dulled, it may be restored by using a quality plastic
polish, like Novus Plastic Polish No. 2 (available from
the Jason Dealer). It is always preferable to protect the
acrylic surface during installation to minimize cleanup and
prevent surface damage.
WATER TESTING
Before finishing the installation, it is recommended that the
bath be water tested and the plumbing tested for leaks.
1. Before water testing the bath, make sure that all plumbing
connections are tight. DO NOT OVERTIGHTEN.
2. Fill and operate the bath. Close the drain and fill the bath with
water to at least 10 inches [25 cm] below the bath deck. The
inlet temperature should not exceed 104°F (40°C) as this
could damage the acrylic surface.
3. Inspect the plumbing for leaks.

Jason International, Inc. • 501.771.4477 Page 7 of 8 Customer Service : 800.255.5766
Copyright © 2011 Jason International.
USER MAINTENANCE INSTRUCTIONS
HUMIDITY
WARNING: AVOID HIGH HUMIDITY LEVELS IN YOUR HOME.
MOLD, MILDEW, FUNGI, AND BACTERIA WHICH MAY BE
HARMFUL TO HEALTH THRIVE IN AREAS WITH CONTINUED
HIGH HUMIDITY LEVELS; THEREFORE, EVERY PRECAUTION
SHOULD BE TAKEN TO MAKE SURE YOUR PLUMBING FIXTURES,
INCLUDING BATHTUBS, THERAPY BATHS, OR SHOWERS DO
NOT BECOME A SOURCE OF HIGH HUMIDITY DUE TO IMPROPER
INSTALLATION OR LEAKS.
To avoid having your plumbing fixtures become a source
of unwanted humidity, please make sure the following
steps are taken prior to installation.
1. Make sure the area where the bathtub or shower is
installed is well vented and allows enough ventilation
and air circulation to dry the bathroom environment
within a short time after taking a bath or shower.
2. If your bath or shower unit is tiled-in, use units with an
integral tile flange or make sure a tile flange kit or a
similar mechanical barrier is installed to prevent shower
spray, splash, or overflow to leak behind the bathtub.
3. Make sure the plumber properly tests your therapy bath
before it is roughed in to make sure there are no leaks
and it is installed with proper access to bath equipment.
4. Make sure that all the plumbing and fixtures in the
bathroom are in good working order and have no leaks.
5. Do not use carpeting or other materials or furniture,
which can hold moisture, in your bathroom.
6. Use disinfectant to clean any bathroom surfaces, which
are regularly exposed to moisture.
7. Clean and disinfect humidifier and dehumidifiers as
recommended by the manufacturer. Replace the air
filter on the HVAC unit once a month.
8. Clean moldy surfaces as soon as any mold appears
by using a detergent/soapy solution and appropriate
household cleaner. Always use gloves during cleaning.
Dispose of any sponges or rags used to clean mold.
CLEANING
With minimum care, your acrylic-surfaced bath will retain
its high-luster finish for many years. For regular cleaning
use Jason Bath Cleaner or a mild NONABRASIVE liquid
detergent solution (i.e. glass cleaner) and a soft, wet cloth
or sponge. Do not run the air system with foaming cleaners
or soaps. Rinse the bath thoroughly after cleaning.
SURFACE MAINTENANCE
Areas with minor scratches or dull surfaces can be
restored by applying commercially available plastic
polish (i.e. Novus Plastic Polish No. 2, available at your
Jason dealer), followed by an application of acrylic paste
wax. Buff the surface with a clean soft cloth. Do not use
sandpaper, steel wool, or abrasive rubbing compounds.
If scratches are too deep to rub out, or if the damage
penetrates the acrylic surface, consult your dealer for
recommendations on surface repair.
FLUSHING / SANITIZING
Upon start-up and not to exceed 90 days, your
AirMasseur®bath and plumbing system should be flushed.
Follow the Sani-Design™ Cleaning instructions provided
with the bath.
REPAIR
Refer all plumbing or electrical repair to a qualified service
technician. DO NOT ATTEMPT TO RESOLVE THE
PROBLEM. This can result in danger of electrical shock
or damage to the unit and will VOID THE WARRANTY.
Remember, when contacting your dealer or service
representative; always have your serial number, proof
of purchase, and model number. This will insure a quick
response on warranty items. The serial number can be
found on the front page of this manual or on the small card
adhered to the back of the bath just above the blower.

Jason International, Inc. • 501.771.4477 Page 8 of 8 Customer Service : 800.255.5766
Copyright © 2011 Jason International.
IMPORTANT SAFETY INSTRUCTIONS
INSTRUCTIONS PERTAINING TO THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO
PERSONS
WARNING: When using this unit, basic precautions should always be followed, including
the following:
This manual contains information and instructions for proper operation and maintenance of your bath. Failure to follow
these instructions could result in personal injury, electrical shock, or fire.
READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY
DANGER: TO REDUCE THE RISK OF INJURY FOLLOW THESE PRECAUTIONS:
A. Do not permit children to use this product unless they are closely supervised at all times.
B. Use this unit only for its intended use as described in this manual. Do not use attachments not recommended by the
manufacturer.
C. The water in a soaker bath should never exceed 40°C (104°F). Water temperatures between 38°C (100°F) and 40°C
(104°F) are considered safe for a healthy adult. Use time should be limited to approximately 30 minutes, followed by
a shower to cool down. Longer exposures may result in hyperthermia. The symptoms of this condition are nausea,
dizziness, and fainting, and it can be fatal. Lower water temperatures are recommended for extended use (exceeding
10 -15 minutes) and for young children.
D. Since excessive water temperatures have a high potential for causing fetal damage during the early months of pregnancy,
pregnant or possibly pregnant women should limit whirlpool water temperatures to 38°C (100°F).
E. The use of drugs or alcoholic beverages before or during soaker bath use may lead to unconsciousness with the
possibility of drowning. Never use the soaker bath while under the influence of alcohol, anticoagulants, stimulants,
antihistamines, vasoconstrictors, vasodilators, hypnotics, narcotics, or tranquilizers.
F. Persons with a medical history of heart disease, low or high blood pressure, circulatory system problems, or diabetes
should consult a physician before using a soaker bath.
G. Persons using medication should consult a physician before using a soaker bath since some medication may induce
drowsiness while other medication may affect heart rate, blood pressure, and circulation.
DANGER: To reduce the risk of injury, enter and exit the bath slowly.
WARNING: Never operate electrically connected devices in or near the bath. Never drop or insert any object into any opening.
To avoid the possibility of personal injury and discoloration of the acrylic surface, the inlet water temperature should not
exceed 40°C (104°F). The bath should be drained after each use. Each bather should start their bath with fresh water.
Do not use oil base additives in your soaker bath.
CAUTION: Do not use harsh abrasives or solvents for cleaning this unit.
INSTALLER/OWNER BEARS ALL RESPONSIBILITY TO COMPLY WITH ALL STATE
AND LOCAL CODES WHEN INSTALLING THIS PRODUCT.
SAVE THESE INSTRUCTIONS
Jason InternatIonal, Inc.
8328 MacArthur Drive • North Little Rock • Arkansas • 72118
www.jasoninternational.com
