Jay Fusion User manual

S E C T I O N E N G L I S H
O w n e r ’s M a n u a l

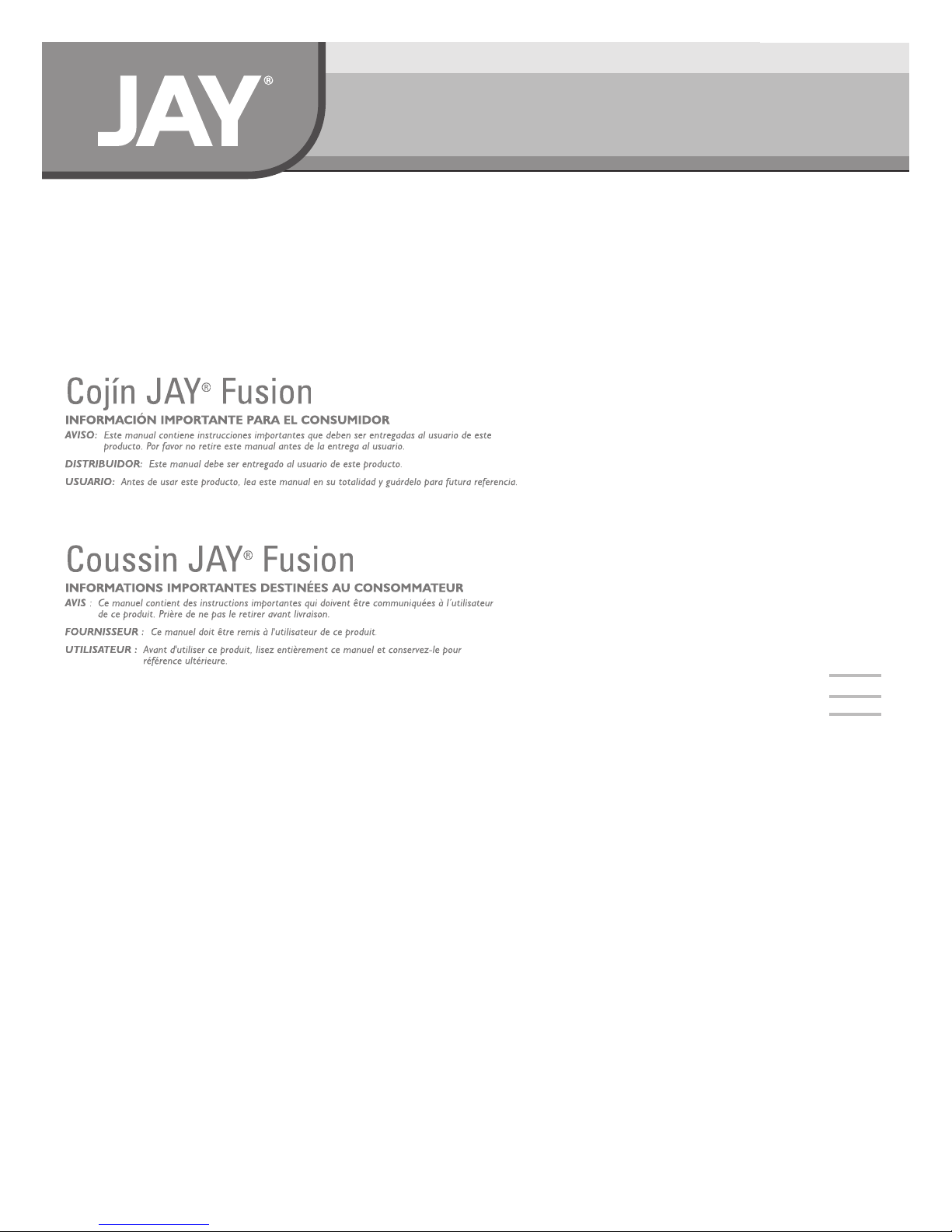

JAY®Fusion Cushion
IMPORTANT CONSUMER INFORMATION
NOTICE: This m nu l cont ins import nt instructions th t must be p ssed on to the user of this product.
Ple se do not remove this m nu l before delivery to the end user.
SUPPLIER: This m nu l must be given to the user of this product.
USER: Before using this product, re d this entire m nu l nd s ve for future reference.
M a n u a l d e i n s t r u c c i o n e s
M a n u e l d ’ i n s t r u c t i o n s
F US I ON

2
ENGLISH
JAY FUSION
NOTE: Check all parts from shipping damage. In case of damage DO NOT
use. Contact Carrier/Sunrise for further instructions.
Sunrise Medical recommends that a clinician such as a doc-
tor or therapist experienced in seating and positioning be
consulted to determine if a Fusion cushion is appropriate.
Cushions should only be installed by an authorized Sunrise
Medical supplier.
GENERAL WARNINGS
WARNING
DO NOT install this equipment without first reading and
understanding this manual. If you are unable to
understand the Warnings, Cautions, and Instructions,
contact a qualified clinician or supplier - otherwise injury or
damage may occur.
WARNING
Hook and Loop Velcro® should not come into prolonged
contact with moisture as this may degrade the adhesive
and lead to a failure of the Velcro® .
WARNING
Installing a cushion on a wheelchair may affect the center
of gravity of the wheelchair and may cause the wheelchair
to tip backwards, potentially resulting in injury. Always
assess for the potential need for anti-tippers or amputee
axle adapter brackets to be added to the wheelchair to
help increase stability.
WARNING
Prior to prolonged sitting, any cushion should be tried for a
few hours at a time while a clinician inspects your skin to
ensure that red pressure spots are not developing. You
should regularly check for skin redness. The clinical
indicator for tissue breakdown is skin redness. If your skin
develops redness, discontinue the use of the cushion
immediately and see your doctor or therapist.
The Fusion cushion is designed to help reduce pressure.
However, no cushion can completely eliminate sitting pressure
or prevent pressure sores. The Fusion cushion is not a
substitute for good skin care including; proper diet, cleanliness,
and regular pressure reliefs.
WARNING
Do not leave the fluid cushion outside overnight at tem-
peratures below 40° F (5° C). Allow the cushion to warm
to room temperature before using. Sitting on extremely
cold or hot surfaces can cause skin damage.
CAUTION– AVOID SHARP OBJECTS OR EXPOSURE TO EXCESSIVE HEAT OR
OPEN FLAME.
WARNING
PROPER Fluid Level: The amount of fluid contained in the
insert is determined by the clinician during a seating
evaluation. This should not be adjusted without a clinician
directive as it can alter the pressure relieving properties
and lead to injury or damage.
WARNING
OBSTRUCTIONS: DO NOT place any obstructions between
the user and the cushion because it will reduce product
effectiveness.
WARNING
CUSHION AND COVER ORIENTATION: Product must be used
with the fluid insert facing up. If the cover is not used
correctly it may reduce or eliminate the cushion's benefits
and could increase risk to the skin and soft tissue.
WARNING
ROHO® DRY FLOATATION® Pad: refer to applicable
warnings in the ROHO® DRY FLOATATION® Pad
Supplement.
INTRODUCTION
The JAY Fusion Cushion is designed for clinicians to use with
clients who need superior pressure distribution and stability The
Fusion Cushion offers a complete solution to meet a large
range of skin protection and positioning needs.
Maximum user weight: 14" to 21" width = 300 lbs
22" to 24" width = 500 lbs
121985 Rev. C

FITTING A PRESSURE DISTRIBUTING
CUSHION
Fitting the cushion
Select a cushion to match your hip width when in the seated
position. The cushion length should extend to within 1" -
2" (2.5cm -5cm) from the back of the knees. Place the cushion
to the back of the wheelchair with the material identification
tags and pressure relieving pad toward the rear. When fit
correctly, your hips should be to the back of the chair. Your
ischials (seat bones) should be centered on the insert in the
pelvic loading area of the cushion. Proper footrest adjustment
may enhance sitting comfort and help lower peak sitting
pressures. Adjust the footrests so your legs rest firmly but
comfortably on the cushion.
Avoid using the cushion on overly stretched seat upholstery.
Stretched upholstery does not provide adequate support for the
cushion and improper positioning may result. Replace stretched
upholstery or purchase the JAY Adjustable Solid Seat.
Reference the ROHO® DRY FLOATATION® Pad Owner’s Manual
Supplement for proper fitting and set-up instructions.
CUSHION ADJUSTABILITY
Fluid and Air Adjustability
The Fusion Cushion offers volume adjustability to accommodate
for users needs through the determination of the correct
amount of fluid made by your clinician during evaluation.
The determination of Air Single or Air Dual Models is also made
by your clinician during evaluation. The inserts should only be
changed at the direction of your clinician.
Adjusting through the ROHO® DRY FLOATATION® Pad Insert
The air insert version of the JAY Fusion Cushion can be adjusted
at any time through the use of the hand pump (provided) and
release valve on the ROHO® DRY FLOATATION® insert.
JAY FU S ION
E N G L I S H
3
JAY FUSION CORE
JAY FUSION WITH POSITIONING
121985 Rev. C
JAY FUSION COMPONENTS
Fluid Insert
Air Bladder
Moisture-
Resistant
Inner Cover
Dual Layer
Foam Base
Outer Cover
Fluid Insert
Dual Layer
Foam Base
Fluid Insert
(Air Bladder
Outer Cover
Pelvic Thigh
Moisture-
Resistant
Inner Cover
Dual Layer
Foam Base
Outer Cover
not shown) Support
Lateral Thigh
Support
Medial Thigh
Support

4
MAINTENANCE AND CLEANING
EENNGGLLIISSHH
EASY MAINTENANCE & CLEANING
Monthly cleaning and regular maintenance may help extend the
life of your cushion. During cleaning, component inspection is
recom-mended.
Check the cover for tears and excessive wear and replace if
ripped, torn, or otherwise not fully functional. Inspect the fluid
pad for punctures or any other abnormalities.
Check the foam base to ensure foam consistency. While
checking the fluid pad if you ever feel the fluid is firmer in one
area, simply knead the fluid back to its original consistency
and/or call your local authorized supplier.
To clean cover
1. Remove the cover from the foam base and turn inside out.
2. Machine wash in warm water and drip or tumble dry on low
heat.
No ironing required.
CAUTION– DO NOT DRY CLEAN COVERS OR USE INDUSTRIAL
WASHERS AND DRYERS TO CLEAN COVER. DO NOT STEAM
AUTOCLAVE. DO NOT BLEACH.
To refit cover after washing, reinstall the cover on the foam
base. Ensure the back of the cover matches up to the back of
the foam base.
NOTE: If utilized in an institutional setting, write the resident’s
name witha permanent marker on the content label of the covers. This
will help to ensure the return of the covers after washing.
Use only JAY-designed covers on JAY cushions. The cover is an
important part of allowing the immersion into the fluid insert
which redistributes the pressure. Changing the cover will alter
this design and its efficacy.
To clean foam base
Remove the cover, fluid pad, and inner cover from the foam
base. Wipe lightly with a damp cloth. Do not use soap. Do not
submerge in water. Wipe off with a clean cloth. Let it
completely air-dry before reassembly.
NOTE: Avoid submersion of the foam base in water.
Reinstall the cover over foam base. Ensure the back of the
cover matches up to the back of the foam base.
To clean fluid pad
Remove the cover from the foam base. Remove fluid pad from
the inner cover and wipe with warm water and soap. Rinse with
a clean, damp cloth. Then wipe dry with a clean cloth.
CAUTION– NEVER SUBMERGE THE FLUID PAD IN ANY LIQUID.
CAUTION– AVOID HARSH CLEANING OR ROUGH HANDLING AS THIS
MAY LEAD TO A DEGRADATION OF THE FLUID INSERT.
If at any time, the outer cover, inner cover, Foam base, fluid
insert or any other component appears to be wearing or you
notice a degradation in the texture, contact your supplier/
Sunrise for evaluation and further instructions.
To clean the ROHO® DRY FLOATATION® Pad (if applicable),
Reference the ROHO® DRY FLOATATION® Pad Owner’s Manual
Supplement for proper cleaning instructions.
REASSEMBLING THE JAY FUSION
CUSHION AFTER CLEANING
Follow cleaning and maintenance instructions as described in
“Easy maintenance and cleaning” then reassemble as follows.
WARNING
Place the JAY Fluid or ROHO® DRY FLOATATION® Pad on
the inner cover making sure that all Velcro® strip
locations are aligned. A misalignment or creation of an
edge could cause an unwanted pressure point which
could lead to injury.
Insert the foam base / inner cover assembly into the outer
cover. Ensure that the zipper is at the rear of the foam base
where the pelvic loading area is located.
Fluid insert
ROHO® DRY
FLOATATION® PAD
Foam base
Laundry Care Symbols
Machine wash in warm
water (60° C)
Only non-chlorine
bleach, when needed
Drip dry
Do not iron
Do not dry clean
121985 Rev. C
N/A - ON FUSION CORE

5
ENGLISH
BOTTOMING OUT
WARRANTY
JAY FUSION CUSHION WARRANTY
Each JAY cushion is carefully inspected and tested to provide
peak performance. Every JAY cushion is guaranteed to be free
from defects in materials and workmanship for a period of 24
months from the date of purchase, provided normal use. Should
a defect in materials or workmanship occur within 24 months
from the original date of purchase, Sunrise Medical will, at its
option, repair or replace it without charge. This warranty does
not apply to punc-tures, tears or burns, nor to the cushion’s
removable cover.
The removable cover is guaranteed to be free from defects in
materials and workmanship for a period of six (6) months from
the date of purchase, provided normal use. Should a defect in
materials or workmanship occur within six (6) months from the
original date of purchase, Sunrise Medical will, at its option,
repair or replace it without charge.
Claims and repairs should be processed through the nearest
authorized supplier. Except for express warranties made herein,
all other warranties, including implied warranties of
merchantability and warranties of fitness for a particular
purpose are excluded.
There is no implied warranty beyond what is contained herein.
Remedies for breach of express warranties herein are limited to
repair or replacement of the goods. In no event shall damages
for breach of any warranty include any consequential damages
or exceed the cost of non-conforming goods sold.
JAY Flow Fluid Pad
Consult your healthcare professional for proper fitting and use, and
read the following statements carefully:
Fluid Pad Policy
If a Clinician, Certified Rehab Professional or Authorized Sunrise
Medical Supplier has determined that the fluid volume is
inappropri-ate for the original purchaser, Sunrise Medical, during
the warranty life of the product, will replace the fluid pad free of
charge. Requests must be submitted by an authorized Sunrise
Medical supplier.
•The fluid in this cushion may lose volume over time.
•Volume loss in this cushion may result in bottoming out
the cushion.
•Monthly, during routine cleaning and inspection, check
this cushion for bottoming out (see instructions under
“checking for bottoming out” in the warranty use and
care guide) and any fluid inconsistencies, If the fluid is
firmer in one area sim-ply knead it back to its original
consistency.
•If bottoming out occurs discontinue use of this cushion
and contact your healthcare professional.
ROHO® DRY FLOATATION® Pad
Reference the ROHO® DRY FLOATATION® Owner’s Manual
Supplement for additional use and care guidelines.
WHAT IS BOTTOMING OUT?
Bottoming out may occur on a Fusion Cushion if you displace
the fluid or air underneath your pelvic bones or buttocks, which
would leave you sitting on the foam base. It sometimes occurs
on very thin individuals, people using recliner wheelchairs,
people who have lost weight or have other changes in body size
or shape, or people who slouch when sitting.
WARNING
When bottoming out occurs, increased pressure is placed
onto the ischials and coccyx increasing the risk for skin
breakdown. Immediately discontinue use of the pad. See
your healthcare professional.
HOW TO CHECK FOR BOTTOMING OUT
JAY Flow Fluid Pad
To check for bottoming out, sit on the cushion, with the cover
on and the zipper opened, for seven to ten minutes. Transfer up
and off the cushion (or have someone help you transfer), trying
not to disturb the fluid underneath you. Fold the back portion of
the cover forward over the front, exposing the fluid pad. Push
down in the depressions on the pad where your ischials (seat
bones) and coccyx (tailbone) were. You should have to push
through at lest 1/2" (1.3 cm) of fluid before you feel the firm
cushion base below.
1/2" (1.3 cm) is approximately this deep.
If the cushion is properly positioned, the footrests are properly
adjusted, and there is not at least the minimum 1/2" (1.3 cm)
of fluid, the cushion is bottoming out and should not be used. If
you are bottoming out, discontinue use of the cushion and see
your cli-nician. Usually bottoming out is easily solved by
ordering additional fluid in the form of an Overfill. Call your
local authorized supplier to see if this is appropriate for you.
ROHO® DRY FLOATATION® Pad
Reference the ROHO® DRY FLOATATION® Owner’s Manual
Supplement for instrutions on preventing and checking for
bottom-ing out.
WHEN TO CHECK
With JAY Flow Fluid, check every month when you clean it.
With ROHO® DRY FLOATATION®, check daily.
121985 Rev. C
